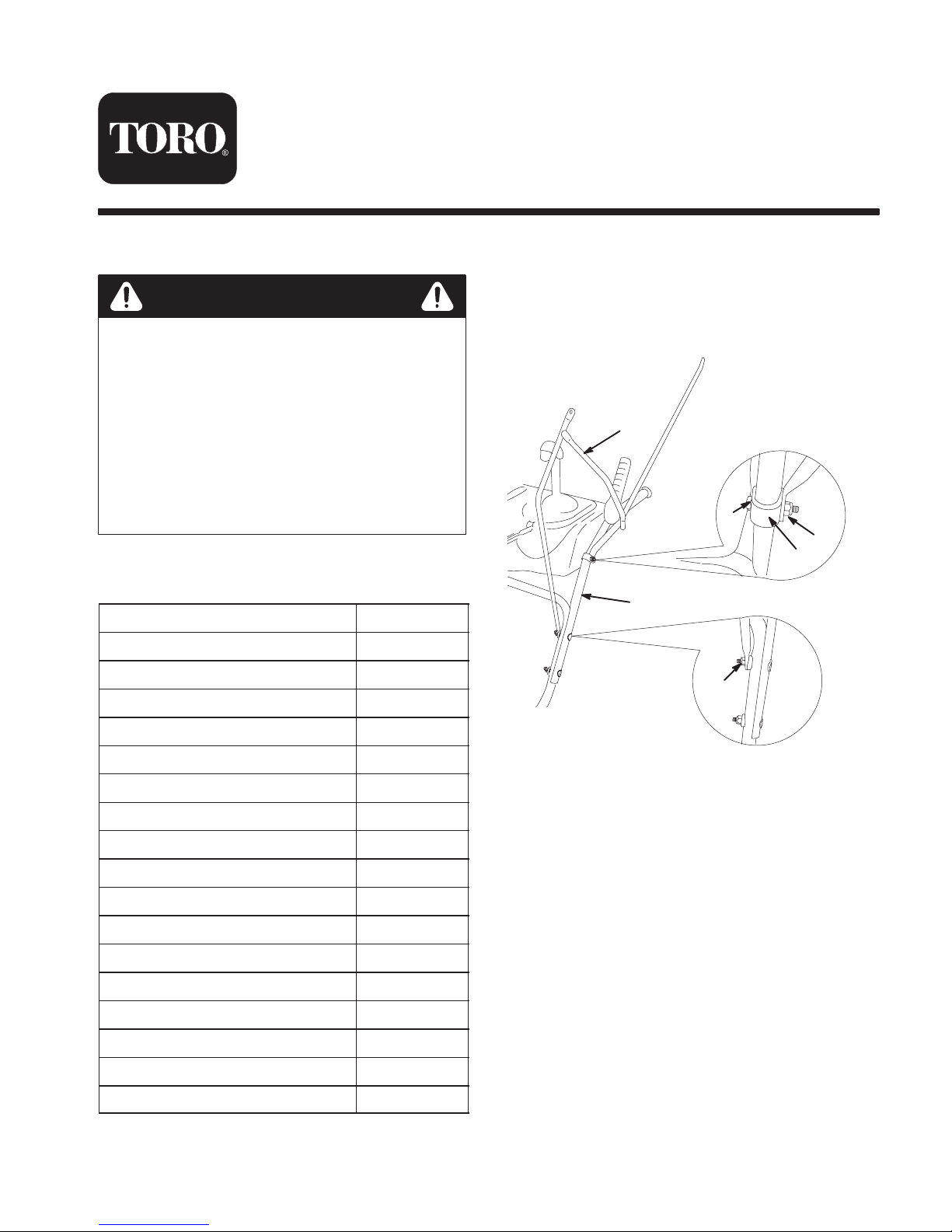

Toro 107-3814 Manuel utilisateur

 2003—TheToro Company

8111 Lyndale Ave., Bloomington, MN 55420, USA Printed in the USA

Snow Cab Kit

Power MaxSnowthrowers

Model No. 107-3814

Form No. 3351-212

Installation Instructions

Save these instructions with your Operator’s Manual for

future reference.

Installing this snow cab onto a Power Max

snowthrower without properly installing a

counterweight to the front of the snowthrower can

cause it to tip backward and fall on the operator,

causing injury.

•Do not operate a snowthrower with a snow cab

that does not have the proper counterweight.

•Obtain and install a Toro weight kit to the front

of the snowthrower in order to balance the

added weight of the snow cab.

Warning

Contents of the Kit

DESCRIPTION QUANTITY

U-brackets 2

Washers 4

End caps 2

Headlight extension bar 1

Bolts, 1/4 x 1 in. 2

Bolts, 1/4 x 3/4 in. 6

Bolts, 1/4 x 1-3/4 in. 2

Locknuts, 1/4 in. 10

Bolt, 5/16 x 3/4 in. 1

Flange locknut, 5/16 in. 1

Top frame 1

Rear frame 1

Horizontal frame 1

Left mounting bracket 1

Right mounting bracket 1

Front posts 2

Cover 1

Installing the Snow Cab Frame

on the Snowthrower

1. Remove the 2 upper handle nuts (1 on each side) from

the snowthrower handle assembly (Fig. 1) and save

them for step 2.

m-7249

Figure 1

1. Handleassembly

2. Upper handle nut (2)

3. U-bracket (2)

4. Bolt, 1/4 x 1-3/4 in. (2)

5. Locknut (2)

6. Left mounting bracket

2. Install the lower front end of the left and right

mounting brackets onto the handle assembly using the

upper handle mounting nuts you removed in step 1

(Fig. 1).

3. Install the other lower end of each mounting bracket

onto the handle assembly with a U-bracket, bolt (1/4 x

1-3/4 in.), and locknut (Fig. 1).

Note: You may need to squeeze each U-bracket together

slightly before installing it onto the handle assembly.

Note: The ends of the U-brackets should face downward.

4. Position the horizontal frame inside the upper ends of

the mounting brackets (Fig. 2).

Note: Position the horizontal frame with the 2 front

tabs downward (see inset in Figure 3).

m-7250a

Figure 2

1. Horizontalframe 2. Upper end of mounting

bracket (4)

5. Align each of the 2 holes in the front corners and insert

a bolt (1/4 x 3/4 in.) from the outside through each of

the holes and install locknuts on the bolts until they are

finger tight.

6. Remove a locknut that you just installed on one of the

front corners in step 5, install the bottom (straight) end

of a front post and a locknut onto the bolt, and tighten

the locknut until the front post stays upright (Fig. 3).

m-7250

m-2699

Figure 3

1. Bolt, 1/4 x 3/4 in. (2)

2. Upper end of mounting

bracket (2 in the front)

3. Front post (2)

4. Horizontal frame

5. Tab (2)

6. Locknut (2)

Note: The tabs at the top of the front post should face in

toward the operating position.

7. Repeat step 6 for the other front post.

8. For each side, align the holes in the frame ends in the

rear, insert a bolt (with a washer) through the holes

from the inside (Fig. 4).

m-2700

Figure 4

1. Mountingbracket end (2)

2. Horizontal frame 3. Washer (2)

4. Bolt, 1/4 x 1 in. (2)

9. Position the rear frame with the top tabs facing

forward and the bottom ends to the outside of the other

frame ends (Fig. 5).

m-2700

Figure 5

1. Locknut (2)

2. Washers (4)

3. Rear frame

4. Mounting bracket (2)

5. Horizontal frame

6. Bolt, 1/4 x 1 in. (2)

7. End cap (2)

10.Install a washer and a locknut on each of the bolts and

tighten each locknut until it is finger tight.

11. Hold the rear frame upright and tighten the locknuts

(Fig. 5).

Note: Do not overtighten the locknuts because you

will need to adjust the frame assembly to install the

top frame and the cover.

12.Attach the top frame to the front posts (Fig. 6) and to

the rear frame (Fig. 7) with 4 bolts (1/4 x 3/4 in.) and

4 locknuts.

Note: Insert the bolts from the bottom.

m-2702

Figure 6

1. Top frame

2. Front post (2) 3. Bolt, 1/4 x 3/4 in.

4. Locknut (2)

m-7252a

m-2701

Figure 7

1. Locknut (2)

2. Rear frame 3. Top frame

4. Bolt, 1/4 x 3/4 in.

13.From the operating position, move the entire frame

assembly forward until the rear frame is at a 90-degree

angle to the horizontal frame. (Fig. 8).

Note: Ensure that the horizontal frame is parallel to

the ground. If it is not, adjust the U-brackets (step 3).

m-2696

90

Figure 8

1. Rear frame 2. Horizontal frame

14.Tighten all fasteners securely and insert the end caps

on the bolt ends that extend from the washers (Fig. 5).

Installing the Headlight

Extension Bar

If your snowthrower has a headlight, you will need to

move the headlight.

1. Loosen the nuts that hold the headlight bracket onto

the right side of the handle (Fig. 9).

m-7011

Figure 9

1. Headlight

2. Bracket 3. Nut (2)

2. Rotate the headlight bracket to the right 90 degrees

(Fig. 9) and tighten the nuts.

3. Install the headlight extension bar with a bolt (5/16 x

3/4 in.) and a flange locknut (5/16 in.) and secure the

headlight to the bar.

m-7253

Figure 10

1. Headlightextension bar

(shown with cover)

Installing the Cover

1. Open the 2 slits in the cover to allow room for the

chute control rod and the headlight extension bar.

2. Slip the cover over the frame assembly and close the

snaps to secure the cover around the top and rear

frames (Fig. 11).

m-2697

Figure 11

1. Top flap

2. Rear frame 3. Top frame

4. Side flap

3. Close the slits around the chute control bar and

headlight extension bar.

Note: The front of the snow cab should be slightly

forward from vertical when the snowthrower is not in use

(Fig. 12).

m-7253

Figure 12

1. Cover
