The Toro Company – 1995

FORM NO. 3317–786

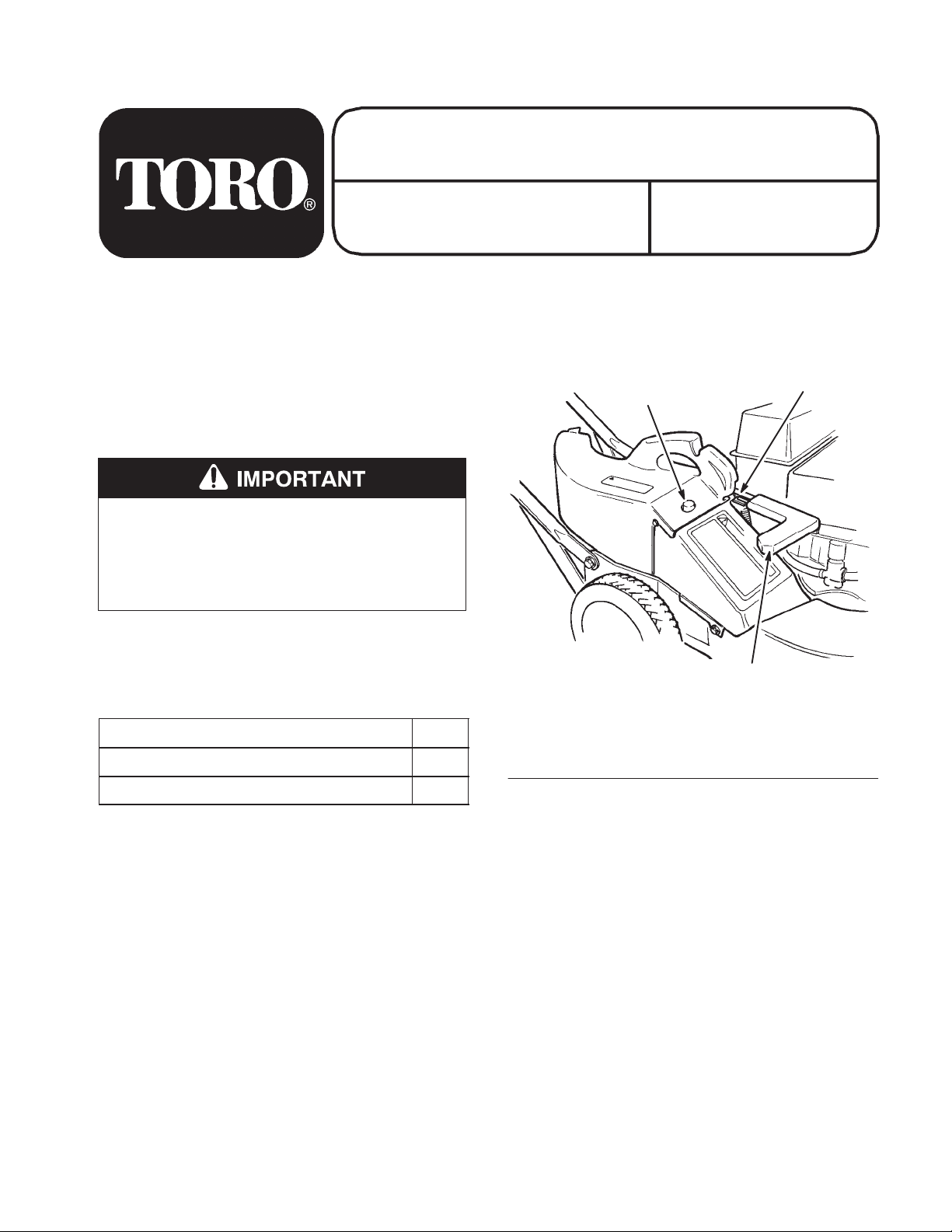

INSTALLATION

INSTRUCTIONS

MODEL NO. 59113

RECYCLERMOWER SIDE

DISCHARGE CHUTE KIT

Since this instruction sheet covers only a minimal

amount of information necessary to maintain and

operate your mower, we suggest that you keep this

material with your Operator’s Manual so that both

may be referred to for instructions concerning safe

operation and proper maintenance procedures.

Your Recyclermower has been updated to

permit side discharging. Make sure that your

dealer is aware of this whenever parts are

ordered or servicing is required.

Kit Contents

DESCRIPTION QTY.

Side Discharge Chute 1

Installation Instruction Sheet 1

Operation

Using Side Discharge Chute

1. Stop the engine and wait for all moving parts to

stop.

2. Ensure discharge door handle is fully forward

(Fig. 1).

1917

Figure 1

1. Chuteframe on retaining

post

2. Pin

3. Handle fully

forward–discharge door

closed

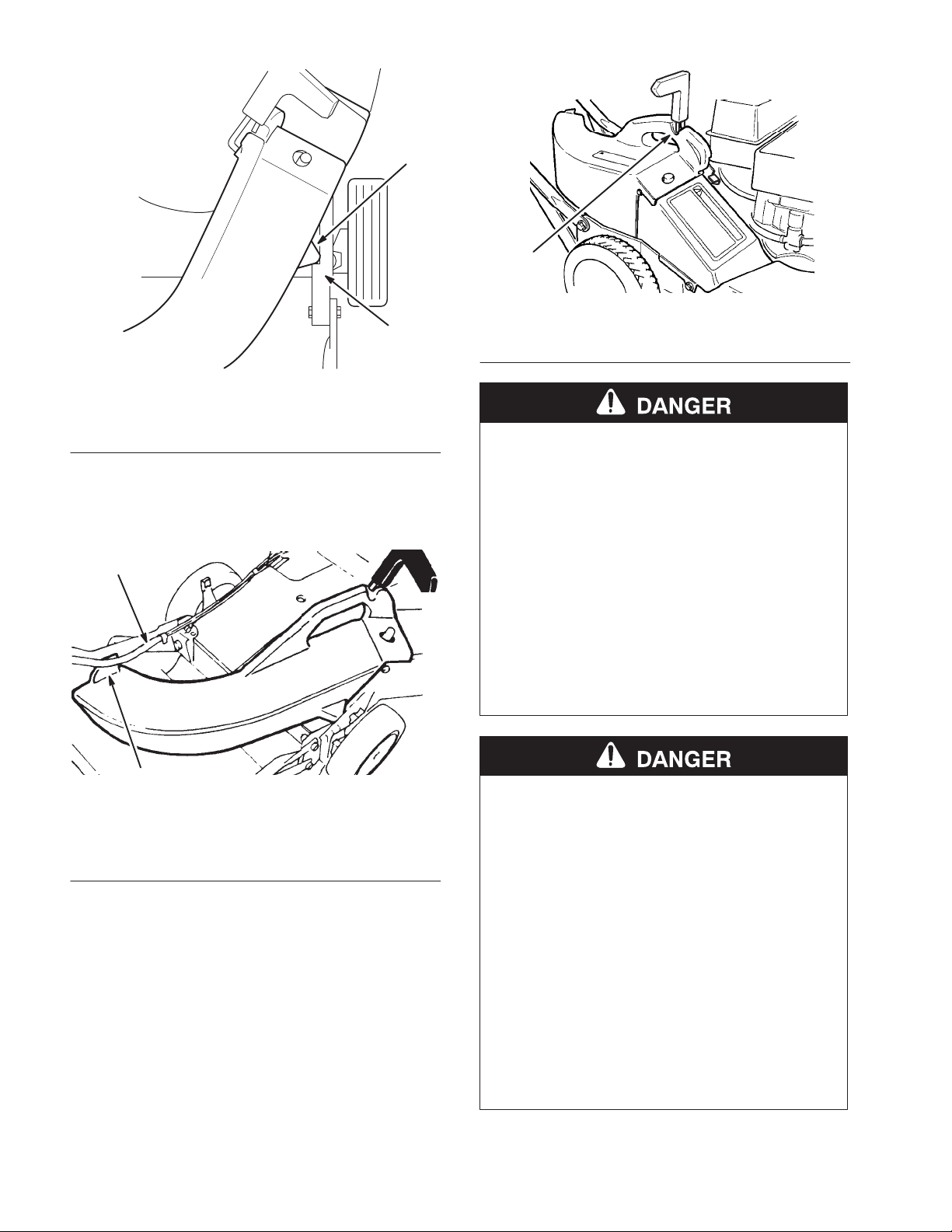

3. INSTALLING CHUTE—Slide hole in side

discharge chute onto retaining post on discharge

tunnel (Fig. 1).

IMPORTANT: Chute tab must be positioned in

front of wide portion of rear housing wall as

shown in Figure 2.

2046

Figure 2

1. Chutetab 2. Wide portion of rear

housing wall

IMPORTANT: On self-propelled mowers, hook

the control cables behind the cable tab on the

end of the side discharge chute (Fig. 3).

2047

Self-propelled models

Figure 3

1. Cabletab 2. Control cables

4. Pull discharge door handle forward until pin

clears catch and move handle rearward until pin

locks in chute notch (Fig. 4). Discharge door in

mower housing is now open.

1916

Figure 4

1. Pin in chute notch

POTENTIAL HAZARD

•Grass clippings and other objects can be

thrown from an open discharge tunnel.

WHAT CAN HAPPEN

•Objects thrown with enough force could

cause serious personal injury or death to

operator or bystander.

HOW TO AVOID THE HAZARD

•Never open door on discharge tunnel when

engine is running unless the side discharge

chute, discharge tunnel plug or optional

grass bag is securely installed.

POTENTIAL HAZARD

•Thrown objects may result if discharge

door does not close completely.

WHAT CAN HAPPEN

•Thrown objects can cause serious personal

injury or death.

HOW TO AVOID THE HAZARD

•If discharge door cannot be closed because

grass clippings clog discharge area, stop

engine and gently move discharge door

handle back and forth until door can be

closed completely. If door still cannot be

closed, remove obstruction with a stick, not

your hand.
