Topten TK220 Manuel utilisateur

GPS CAR ALARM SYSTEM

USER MANUAL

(Model: TK220)

GUANGZHOU TOPTEN ELECTRONICS FACTORY

Address: 20/F, Tower B, Gaoke Building, Tianhe North Road, Guangzhou, China.

Tel: (+86)20-38351400, 38351401 Fax: (+86)20-38351400

Website:http://www.t10.cn Email: [email protected]

Version 1.0

(Date: Oct., 2012)

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual

Page

CONTENT

Preface..............................................................................................................................2

I. Features & Functions ....................................................................................................3

II. How to operate it...........................................................................................................4

SMS Command Format.......................................................................................................... 4

Authorize the Alert-received Mobile..................................................................................... 4

Change User Password......................................................................................................... 4

Check the Vehicle’s Status .................................................................................................... 5

Arm/Disarm the System by SMS.......................................................................................... 5

Arm/Disarm by Phone Calling............................................................................................... 5

Check the Location by Google Map’s URL........................................................................ 5

Check the Real Physical Address........................................................................................ 6

Stop the Car.............................................................................................................................. 6

Restore the Stopped Car to Normal Status ....................................................................... 7

Monitor the Voice around the Car........................................................................................ 7

Two-way Talking with the Car ............................................................................................... 7

Set up the Shock Sensor....................................................................................................... 8

Arm the System Mutely. ......................................................................................................... 8

Turn ON/OFF Sleep Mode. ................................................................................................... 8

Check the IMEI No.................................................................................................................. 9

Study the Remote Control...................................................................................................... 9

Odometer function................................................................................................................... 9

SOS Anti-robbery Alert ........................................................................................................... 9

Set up Movement Alert......................................................................................................... 10

Set up Over-speed Alert....................................................................................................... 10

Set up Geo-Fence Alert........................................................................................................ 10

Change the Heart-beating Interval. ....................................................................................11

III. Remote Control..........................................................................................................12

IV. The Setting for GPRS Connection............................................................................12

V. Alarm Type..................................................................................................................14

VI. Installation .................................................................................................................15

VII. Specifications ...........................................................................................................23

VIII. FAQs & Troubleshooting.........................................................................................24

IX.Maintenance...............................................................................................................25

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual

Page

Preface

TK220 GPS car alarm & tracking device is a multifunctional product. It is an

integration of car alarm system & GPS tracking system.

It can be taken as a car alarm. In arm status, following operations will trigger

alarm: door open, engine on, shake, cut-off power. The system will trigger the

siren to sound on spot, it will also send out alarm message with location by

SMS/GPRS to your mobile phone or tracking center immediately.

What’s more, this device it has more other applied functions. Such as: Stop

the car by SMS/internet, monitoring voice and 2 way talking by phone, start the

engine by SMS, lock/unlock car door remotely, etc.

Read it Firstly:

Please read this manual thoroughly before you use the device; please keep

it for future reference.

Attention:

(1) Please keep the device away from water, humidity, high temperature,

heavy dust or strong magnetism.

(2) Please prepare a valid GSM SIM card in advance.

Warning:

We strongly suggest user let the professional car electrician to install the

system.

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual

Page

I. Features & Functions

1. Arm/disarm by SMS remotely, or by the remote controller

2. Check the car’s real physical address(such as city name, street name..) ;

3. Track by mobile SMS to get the latitude & longitude or the Google map’s

URL;

4. Track by GPRS data network for online tracking;

5. Track on command or by time interval via SMS/GPRS;

6. 2-way talking function(optional) & voice monitoring function;

7. Vibration alert, door open alert, movement alert and ignition on alert;

8. Mileage calculation function (=odometer)

9. Cut-off external power alert;

10. Power saving mode;

11. Geo-fence alert (radius range: 0.1~99KM);

12. Over-speed alert (speed range:1~255km/h);

13. SOS button to call for help in case of emergency;

14. Open/close car door/rear trunk remotely;

15. Start your car remotely;(optional)

16. Cut off engine to stop the car safely by SMS/GPRS;

17. Monitor fuel level;

18. Central lock automation, when car speed >30Km/h, car door will be locked

automatically;

19. Inbuilt 4Mb data logger to store the offline GPS waypoints;

20. Built-in rechargeable backup battery; when the car battery is cut off or

damaged, the built-in 600mAH backup battery can work for emergency

check, and the system will send out power failure alert immediately.

21. Two kinds of location information; user can check the GPS latitude,

longitude, speed, direction. If there is no GPS signal, user could also locate

the car by GSM base station code.

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual

Page

II. How to operate it

SMS Command Format

User can send SMS instruction to operate the tracker by any mobile phone,

the format of the instruction is:

User Password (******) + Control Code(XXX)

The default user password is 111111.

If the user password is changed, user should send the SMS instruction with

the new user password instead of 111111.

XXX is the control code, all the letters must be all capital letters or small

letters, any code mixed by two of them will be not available.

There is no space between the user password & the control instruction.

Authorize the Alert-received Mobile

SMS command: 111111*10 Mobile #1*20 Mobile #2*

In case of alarm, if user wants to get the alert SMS from the tracker, he/she

needs send the following SMS to program the system firstly, otherwise, the alert

information can not be received correctly.

Example:

User sends the SMS 111111*1013922713571*2013711189059* to the

tracker’s SIM card number, if there is any alert, system will send alert SMS to

both of these two mobiles. In case of SOS alert, the system will only send alert

to the mobile #2.

Change User Password

SMS command: 111111PSWnnnnnn

This instruction is used to change the user password. The length of the

user’s password is 3~6 digits. Users are suggested to change to the new

password in use.

Example:

User sends the SMS “111111PSW12345” to the system SIM card number,

and gets the confirmed SMS “111111PSW12345” in 3 seconds. It means that

the user password has been changed to 12345.

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual

Page

Remark: Please keep the password deep in mind if it is changed.

Check the Vehicle’s Status

SMS command: 111111CHK

This instruction is used to inquiry the vehicle’s location & system’s status.

The system will send back the SMS, includes the similar information, such

as “Car is Armed……”

Arm/Disarm the System by SMS

SMS command: 111111ARM

This SMS instruction is used to arm the system

SMS command: 111111DSM

This SMS instruction is used to disarm the system

Arm/Disarm by Phone Calling

User could also use the first alarm-received mobile phone to call the

system SIM card number, so as to arm/disarm the system.

Arm: After hearing several ring tones, if the systems hang up the call

automatically, and call back you, it means that the system is armed.

Disarm: After hearing several ring tones, if the system hangs up the call

automatically, and don’t call back you, it means that the system is disarmed.

Note:

(1) There is no communication fee for this operation, it is a very convenient way to arm

& disarm the system.

(2)The SIM card inside the device must have the function of Caller ID Display.

(3) Only the 1st authorized mobile phone can realize this function.

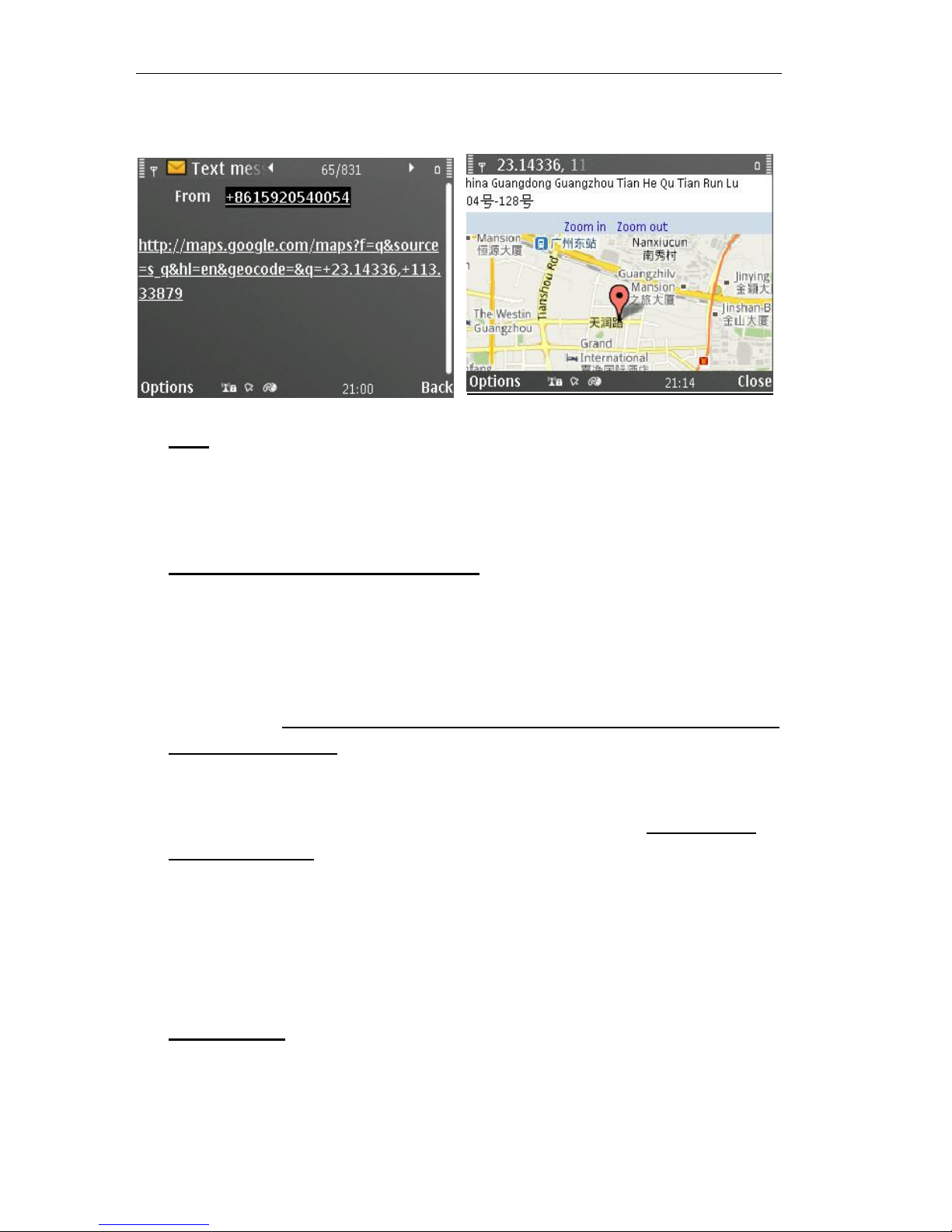

Check the Location by Google Map’s URL

Command: 111111MAP

User can use any mobile phone to send this command to tracker’s SIM

number, the tracker will automatically send back the SMS including the Google

map’s URL, user can use smart phone(be able to visit internet) to open the URL

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual

Page

link and then the car’s location will be showed on the Google map.

Note:

The SIM card inside the tracker must be activated with the service of caller’s

ID display.

Check the Real Physical Address

SMS command: 111111ADD

When user sends this SMS command to the tracker, the tracker will

automatically send back the car’s real physical address (such as city name,

street name) to your mobile by SMS.

Attentions: If you want this function, you need to link your tracker into our

TS03 tracking centre.

Remark:

(1) The GPRS service of the tracker’s SIM card must be activated, and

the correct GPRS setting is needed (refer to the chapter of the setting of

GPRS connection), user can set up the GPRS upload time interval to 0 so

as to save the GPRS flow;

(2) The physical address depends on the Google map’s address

information. If the place has very detailed information on Google map, then

the physical address by SMS is very detailed.

Stop the Car

You have two methods to stop your car.

(1) SMS command: 111111STP

(2) If your tracker has linked with our TS03 tracking centre. You can

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual

Page

stop your car by our TS03 tracking center also.

The two instructions are used to cut off the car’s power supply or fuel supply,

so as to stop the car.

Attention:

It is very dangerous to stop the car when the vehicle is running at high

speed. We do not take any responsibility to the consequence caused by this

action.

Restore the Stopped Car to Normal Status

SMS command: 111111RES

This instruction is used to restore the car to normal status after stopping the

car or SOS alert happens.

Monitor the Voice around the Car

SMS command: 111111MON

This instruction is used to monitor the voice around the car.

After sending out this SMS, the tracker will call back immediately, then, user

can monitor the voice around the car upon picking up the call.

Two-way Talking with the Car

SMS command: 111111MON:Tel

This instruction is used to program the phone number which is used for

carrying out direct monitoring or talking.

User uses this phone number to call the tracker, it will be connected

automatically without driver’s permission. By this way, user can monitor the

voice or talk with the driver freely.

Example: 111111MON:13922713571

Note: If the Tel is the same as the first alarm-received phone (111111*10

Mobile #1*20 Mobile #2*), then this telephone can only be used to carry out

direct monitoring, it can not realize the function arm/disarm by calling any more.

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual

Page

Set up the Shock Sensor

Command:111111SHK@

Normal status, when shock sensor is activated, it will trigger the alarm

immediately.

@=0, turn off shake sensor.

@=1, normal working mode(default setting).

Normal status, when sensor is activated, it will trigger the alarm immediately.

It is the default setting

@=2, Time-delay working mode

Time-delay status, if the sensor is activated for 3 seconds continuously, it

will trigger the alarm. This setting can avoid some false vibration alarm.

Arm the System Mutely.

There are two ways to carry out the function.

(1) Command:

111111MUTE:0, to turn off mute alarm.(default setting)

111111MUTE:1, to turn on mute alarm.

when user turn on MUTE alarm function, the vibration sensor will not

trigger the siren & it will not send out alarm SMS, but if the door is open

or ignition is ON, it will trigger alarm normally.

(2) Remote controller

You can press mute button to carry out this function too.

Turn ON/OFF Sleep Mode.

111111SLEEP0 Turn off sleep mode, it is the default setting

111111SLEEP1 Turn ON sleep mode, it is used to save power & GPRS

flow. In this working mode, if the engine is OFF, the system will go into sleep

mode after 3 minutes. In sleep mode, the device only reports the heart-beating

packet by GPRS, GSM & GPS module will go into power save mode also. Once

there is any vibration, or alarm, or incoming call/SMS, the system will wake up

immediately.

TK220 GPS Car Alarm Website:www.t10.cn, email:[email protected] User Manual

Page

Check the IMEI No.

Command: 111111REG

This instruction is used to check the GSM module’s IMEI number. Last 14

bits is tracker’s ID.

Study the Remote Control

Command: 111111STD

This instruction is for study of remote control.

Please send 111111STD to the device, then press ARM/DISARM button on

remote control, the remote is programmed successfully. If you want to study

another remote control, please send this command again, and press

ARM/DISARM button on the other remote control.

Odometer function

111111ODO: It is used to read the present odometer value.

111111ODO:R It will reset the device’s odometer reading to 00000 & start

calculation from the beginning.

111111ODO:0 It will reset the device’s odometer reading to 00000 &

close the calculation of odometer.

111111ODO:1~999999 It will make the device to start calculation of

odometer from the base value. Example: 111111ODO:38980, then the device

will reset the initial odometer reading as 38980KM & start the calculation again.

SOS Anti-robbery Alert

We have two ways for anti-robbery alert.

(1) Press SOS button;

once the SOS switch is pressed down & hold for at least 3 seconds, the

system will send alarm SMS to the second alert-received mobile & the

center number. User can send command 111111RES to release it.

(2) Press mute alarm button on the remote controller for several seconds;

Table des matières

Autres manuels Topten Alarme de voiture

Topten

Topten TK210 Manuel utilisateur

Manuels Alarme de voiture populaires d'autres marques

Clifford

Clifford 3606X Manuel utilisateur

Ultra Start

Ultra Start 2500M SERIES Manuel utilisateur

Ultra Start

Ultra Start 650 Series Manuel utilisateur

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuel utilisateur

Sparkrite

Sparkrite SRA8 Manuel utilisateur

Viper

Viper 4708V Manuel utilisateur

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuel

Falcon

Falcon Predator XL3 Guide de l'utilisateur

Audiovox

Audiovox Auto Security XR91 Mode d'emploi

Clifford

Clifford Sabre II Manuel utilisateur

CrimeStopper

CrimeStopper CS-8717 Guide de démarrage rapide

Ultra Start

Ultra Start 450 SERIES Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X3 Manuel utilisateur

Excalibur

Excalibur AL-1860-EDPB Manuel utilisateur

Clifford

Clifford CYBER 2 Manuel utilisateur

Gemini

Gemini 7057 Manuel utilisateur

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuel utilisateur

Magicar

Magicar FAI-440 Manuel utilisateur
