TOPMAQ BL-260A Manuel utilisateur
BL-260A
BLOWER WITH VACUUM KIT
WARNING
Always wear eye and hearing protection when operating this
machine. Minimize the risk of injury : Read this manual and
familiarize yourself with its contents. This product is intended for
outdoor use only and should be used only in well ventilated area.
1
INTRODUCTION
BL-260A engine blower has been designed and built to
deliver superior performance and reliability without
compromise to quality, compromise to quality, comfort,
safety, or durability BL-260A high performance engines
represent the leading edge of 2-cycle engine technology,
delivering exceptionally high power at remarkably low
displacement and weight . As a professional owner/operator,
you’ll soon discover why BL-260A is simple in a class by
itself!
IMPORTANT!
The information contained in this manual describes available
at the time of production. While every attempt has been made
to give you the very latest information about your BL-
260A,there may be some differences between your machine
and what is described here . We reserves the right to make
changes in production without prior notice, and without
obligation to make alterations to machines previously
manufactured. Before using this product, consult local
regulation noise restrictions and hours of operation.
CAUTION!
This BL-260A engine machine is equipped
with a speak-arresting muffler. Never
operate this machine without both the
muffler and spark arrestor installed and
properly functioning!
2
CONTENTS
Attention Statements⋯⋯⋯⋯⋯⋯⋯⋯⋯3
Product Description⋯⋯⋯⋯⋯⋯⋯⋯⋯ 4
Specifications⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯4 Assembling
the Machine⋯⋯⋯⋯⋯⋯⋯⋯5 Mixing
Fuel⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯8 Filling the Fuel
Tank⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯9 Starting the
Machine⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯10 Adjusting Engine
Speed⋯⋯⋯⋯⋯⋯⋯⋯13 Routine
Maintenances⋯⋯⋯⋯⋯⋯⋯⋯⋯15
Storage⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯17
Troubleshooting⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯18
3
ATTENTION STAEMENTS
This manual contains special “attention statements”
surrounded by boxes and preceded by the triangular Attention
Symbol
Additional attention statements that are not preceded by the
Attention Symbol are:
IMPORTANT!
A statement preceded by the word “IMPORTANT” is one
that possesses special significance.
NOTE:
A statement proceeded by word “NOTE” contains
information that is handy to know and may make your job
easier.
Read and follow this manual. Failure to do
so could result in serious injury.
Wear eye and hearing protection at all times
during the operation of this machine
WARNING!
A statement preceded by
WARNING contains
Information that should be
acted upon to prevent
serious bodily injury.
CAUTION!
A statement preceded by
the word “CAUTION”
contains information that
should be acted upon to
prevent machine damage.
4
Do not operate this machine if you are tired, ill or
under the influences of alcohol, drugs, or Medicine.
PRODUCT DESCRIPTION!
The operational procedures described in this manual are
intended to help you get the most from your machine and to
protect you and others from harm. These procedures are
general guidelines only, and are not intended to replace any
safely rules/laws that may be in force in your area. If you
have any question regarding your EBV260
blower ￡vacuum, or if you do not understand something
in this manual, your dealer will be glad to assist you.
WARNING!
Do not make unauthorized
Modifications to this machine
SPECIFICATIONS
Model⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯BL-260A
Dimensions(L×W×H)⋯⋯⋯⋯⋯⋯800×340×380
Engine Type⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1E34FB Cylinder
Diameter⋯⋯⋯⋯⋯⋯⋯⋯⋯34mm
Displacement⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯25.4cc
Fuel⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯Gasoline/oil mixture 25:1
Carburetor⋯⋯⋯⋯Membrane type primer pump
Wayof ignition⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯CDI Spark
plug⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯L9T(LD)
Starting⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯Recoil starter Fuel
Tank Capacity⋯⋯⋯⋯⋯⋯⋯⋯⋯0.5L
Weight⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯4.5kg
5
ASSEMBLING THE MACHINE
1. Assembling the vacuum
(1)
Nomenclature
(2)
Assembly
Open the fan cover, Insert discharging pipe into dust
connect inhale pipe bag from the jaws of the slide
No.1 and No.2 fastener according to the picture
Inhale
NO.1
pipe
Discharging
pipe
Inhale pipe
NO.2
Lower handle
Fan cover
Dust bag
6

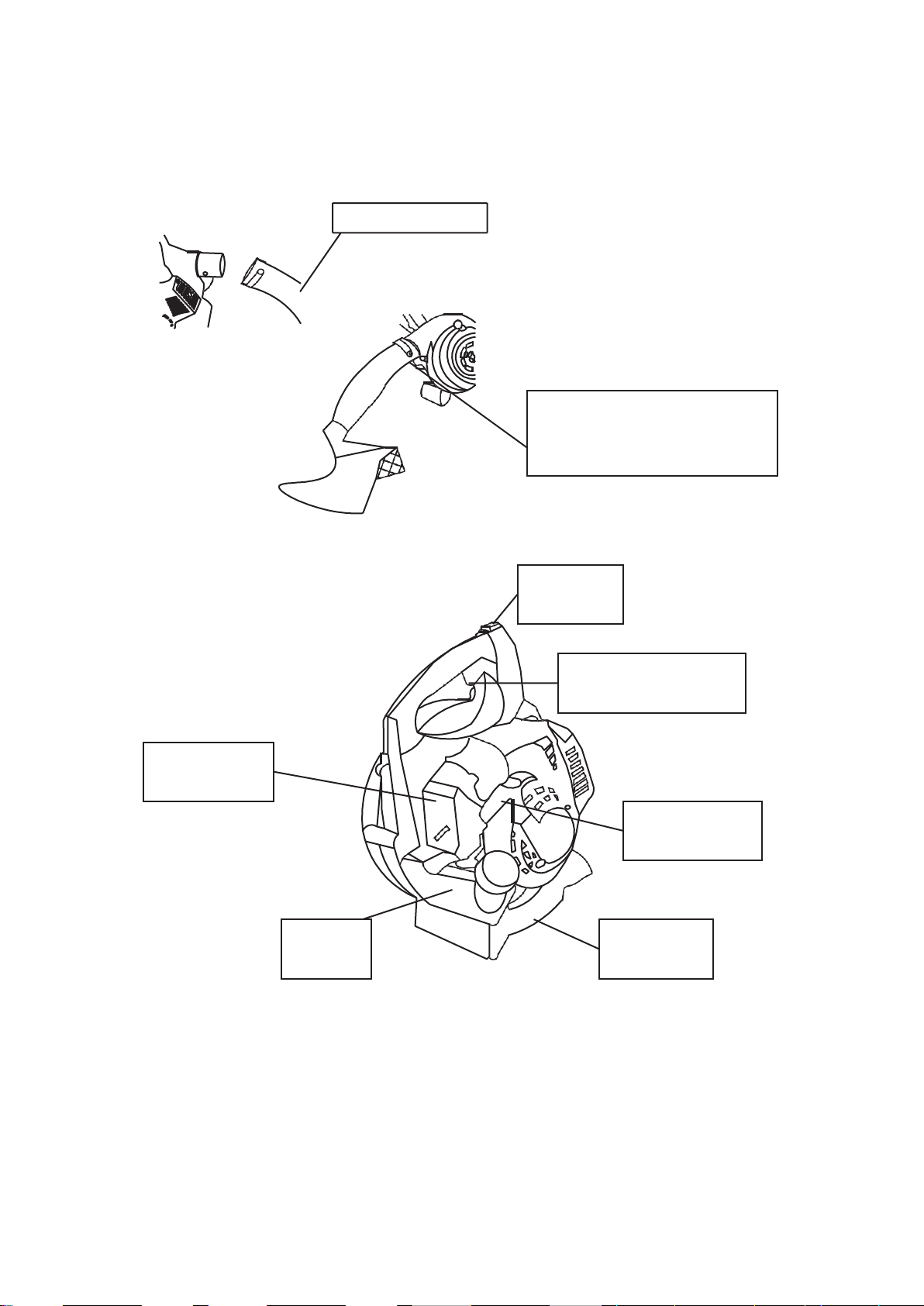

discharging pipe.
7
Throttler lever handle
Lower handle
Fuel tank
Starter handle
Cleaner cover
Stop switch
discharging pipe
Put the discharging pipe to the
machine.

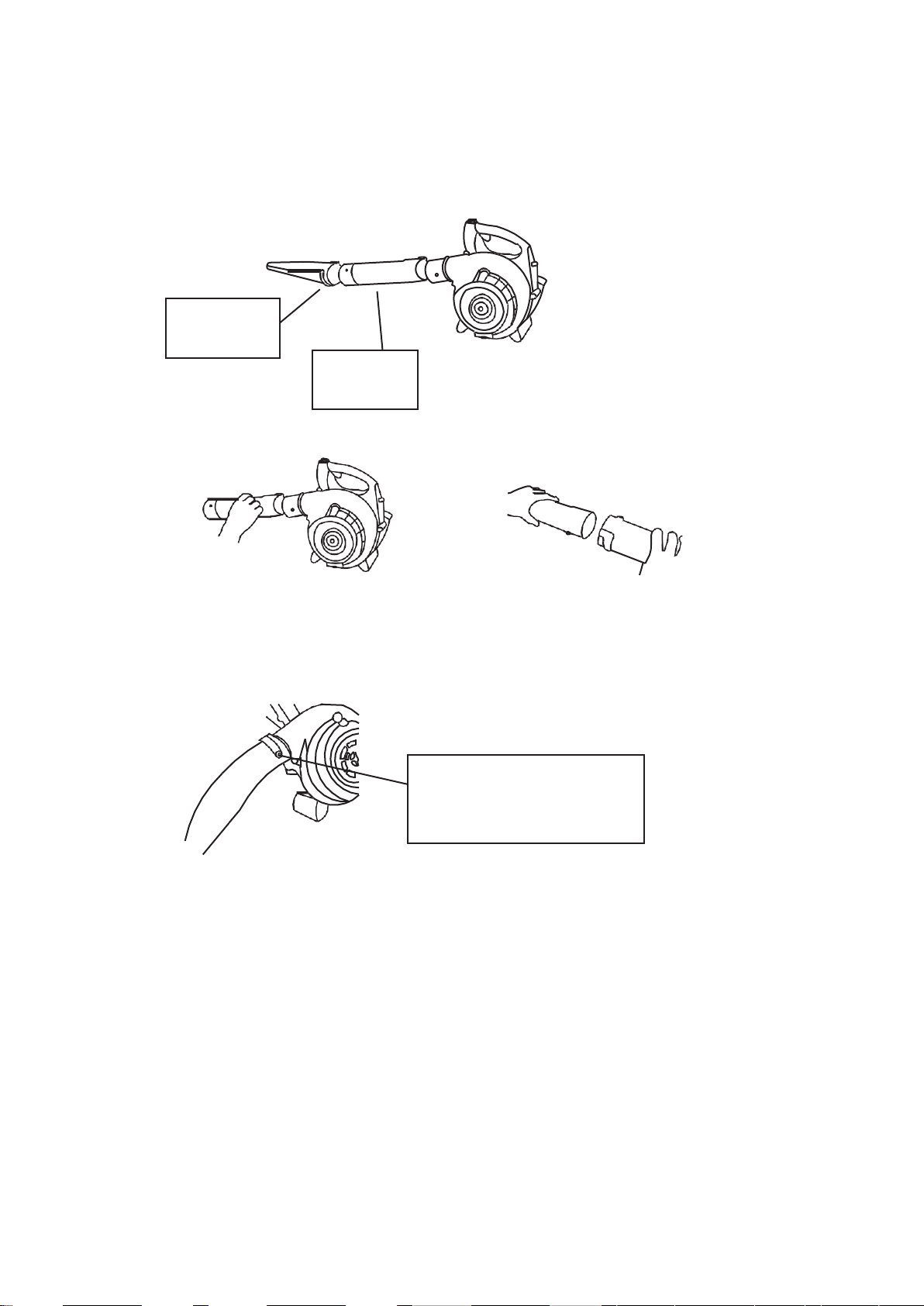

2. Install blower machine
(1)
Terms
Herein, use screw M5×10
to reinforce.
8
(2)
Install
Put blow pipe B to the machine Put blow A to Bby
by rotating rotating
IMPORTANT!
Mix only enough fuel for your immediate needs! If fuel must
be stored longer than 30-days,it should first be treated with a
stabilizer or equivalent product!
Blow pipe A
Use screw M5 × 10 to
reinforce
Blow pipe B
