TOPFLYtech TLW2-12BL Asset GPS Tracker

User Manual

20210826

Thanks for your purchasing of the high-quality GPS tracker from TOPFLYtech. Please read this user

manual carefully before installation and operation. Information in this manual is the property of

TOPFLYtech. Changes to the specifications and features in this manual may be made by

TOPFLYtech without prior notice. No part of this manual could be reproduced, copied, translated,

transmitted, or published in any form or by any means without TOPFLYtech's prior written

permission.

The tracker is using GNSS & LTE technologies and could collect device coordinates then transfer

them via LTE network to the server. It provides customer with cost-effective, efficient and safety

management. It has been widely used in commercial transportation, company vehicle fleet

management, intelligent transportation, logistics, car rental, engineering machinery, marine

transportation, and other segments.

TLW2-12BL


Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved 3
Contents
QUICK REFERENCE ..............................................................................................................................4
PRODUCT SPECIFICATIONS..............................................................................................................4
STANDARD ACCESSORIES INTRODUCTION ................................................................................6
LED INDICATOR AND SIM CARD SLOT .........................................................................................6
WIRE DEFINITION ...............................................................................................................................7
INSTALLATION GUIDE .......................................................................................................................7
1 SIM CARD PRE-INSTALLATION NOTE..........................................................................................................7
2 SIM CARD INSTALLATION...............................................................................................................................7
3 INSTALLATION .................................................................................................................................................7
QUICK TROUBLE SHOOTING............................................................................................................7
1 UNABLE TO CONNECT TO THE TRACKING PLATFORM.................................................................................7
2 TRACKER SHOWS OFFLINE.............................................................................................................................7
3 UNABLE TO LOCATE........................................................................................................................................8
4 LOCATION DRIFT.............................................................................................................................................8
5 NO COMMAND REPLY ...................................................................................................................................8
WARRANTY AND STOCK ..................................................................................................................8
OPTIONAL ACCESSORIES LIST .........................................................................................................8
FCC WARNING.................................................................................................................................9
ISEDC WARNING.......................................................................................................................... 10

1. Quick Reference

FOTA (firmware over the air) Notification

TOPFLYtech is committed to providing clients with the best user experience. We are offering

automatic firmware update feature for every device. This feature allows devices always having the

latest version firmware. It can save clients the time and effort of updating firmware manually.

Please note that this feature is enabled in default. If you want to turn it off, please contact with

TOPFLYtech. If this feature is disabled, the fw update only can be done by sending upgrade

command manually.

2. Product Specifications

Network Specifications

Operating Band

LTE FDD Cat M1:

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/

B25/B26/B27/B28/B66/B85

LTE FDD Cat NB2:

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/

B25/B28/B66/B71/B85

GSM/EDGE:

850/900/1800/1900 MHz

Data Transmission

eMTC: Max. 588 (DL), Max. 1119 (UL)

NB1: Max. 32Kbps (DL), Max. 70Kbps (UL)

NB2: Max. 127 (DL), Max. 158.5 (UL)

EDGE: Max. 296Kbps (DL), Max. 236.8Kbps (UL)

GPRS: Max. 107Kbps (DL), Max. 85.6Kbps (UL)

GNSS Specifications

GNSS Chipset

MediaTek High Gain GNSS receiver

Parallel GNSS

GPS+Glonass or GPS+Beidou

Receiver type:

33 tracking / 99 acquisitions- channel GNSS

receiver

Sensitivity

Acquisition: -149 dBm

Tracking: -167 dBm

Reacquisition: -161 dBm

Horizontal Position Accuracy

Autonomous: < 2.5 m CEP

TTFF @ -130 dBm with (without) EASY™

Cold Start: < 15s (32s)

Warm Start: < 8s (28s)

Hot Start: < 1s (1s)

Interfaces

Digital Input

3 digital inputs:

1 digital input for ignition detection

1 digital input for standard or SOS

1 digital input for standard or RPM

Digital Output

2 digital outputs:

1 digital output for relay control

1 digital output for others

Configurable Input

3 configurable inputs

(Input range 0-32V)

Network, GNSS Antenna

Internal only

Indicator LED

Network and GNSS

FOTA

Yes

Temperature Sensor

1 temperature sensor

BLE 5.0

Yes

Tracker Configuring

Micro USB connector

General Specifications

Waterproof

IP65

Dimensions

120mm*42mm*12mm (4.72” *1.65” *0.47”)

Weight

49g (1.73oz)

Battery

Li-Polymer 200 mAh/ 3.7V

Operating Voltage

7V to 60V DC

Operating Temperature

-25℃ ~ +70℃ (-13°F ~ 158°F)

Storage Temperature

-40℃ ~ +85℃ (-40°F ~ 185°F)

Air Interface Protocol

Transmit Protocol

TCP, UDP, MQTT, SMS

Protocol Check & Encryption Support

MD5/ AES256

BLE Accessory Support

Yes

Scheduled Timing/angle/distance Report

Report position and status at preset intervals

External Power Status Alarm

Report when external power is disconnected

Low Power Alarm

Report when backup battery is low

Speeding Alarm

Report when speed exceed the pre-set value

Towing Alarm

From internal 6-axis accelerometer

Remote Control

Remote output control

Network Signal Jamming Detection

Report network jamming

Data Roaming Control

Avoid additional data consumption

Driving Behavior Monitoring

Aggressive driving behavior detection, e.g.,

harsh braking and acceleration

Crash Detection

Accident data collection for reconstruction and

analysis

3. Standard Accessories Introduction

Sponge Double-side Adhesive Tape Extension wire

4. LED indicator and SIM card Slot

Note: Indicator lights will go out automatically after the tracker turns on for 8 mins.

5. Wire Definition

6. Installation Guide

6.1 SIM Card Pre-Installation Note

6.1.1 SIM card data service should be enabled.

6.1.2 If SIM card is locked via PIN, please unlock it first.

6.1.3 Ensure there is sufficient balance in the SIM card.

6.2 SIM card installation

6.2.1 Open the rubber stopper on the side

6.2.2 Insert the SIM card by following the direction icon on the tracker cover

6.2.3 Give a little push to the SIM card. When there is a “click” sound, it stands for the

SIM card has been successfully inserted

6.3 Installation

6.3.1 Away from emission source such as all kinds of sensors, burglar alarm and other

communication devices.

7. Quick Trouble Shooting

7.1 Unable to Connect to the Tracking Platform

7.1.1 Check the APN and IP settings.

7.1.2 Check the SIM card whether support specific network and the data service

whether is enabled.

7.1.3 Make sure there is no limitation or already added server IP to the IP whitelist when

using a M2M SIM card.

7.1.4 Check the remaining balance or network signal of the SIM card.

7.2 Tracker Shows Offline

7.2.1 Check the external power voltage to see whether the tracker is disconnected from

external power.

7.2.2 Check whether the vehicle entered network blind area.

7.2.3 Check the balance of tracker SIM card.

7.2.4 If the connection lost happens on the last several days of the month, check

whether the network service is terminated by carrier because of exceeding the

max data usage volume.

7.3 Unable to locate

7.3.1 Is the top side (with TOP SIDE logo on) facing upwards without shielded by

metallic things during the installation?

7.3.2 Does the vehicle enter an area with no satellite coverage?

7.4 Location Drift

In an area with poor GNSS signal (like the areas with lots of high buildings), location drift

may happen. When move to open area, the drift will no longer exists.

7.5 No Command Reply

7.5.1 Check the command format. Make sure it’s correct.

7.5.2 Vehicle may be in network blind area.

7.5.3 Ensure the SIM card is properly inserted.

8. Warranty and Stock

The standard warranty period is 12 months starting from the date of purchasing. If the tracker

will be stored for a long time, please connect it to the external power and recharge the internal

battery (10 hours) every 3 months. It will be helpful to the internal battery life.

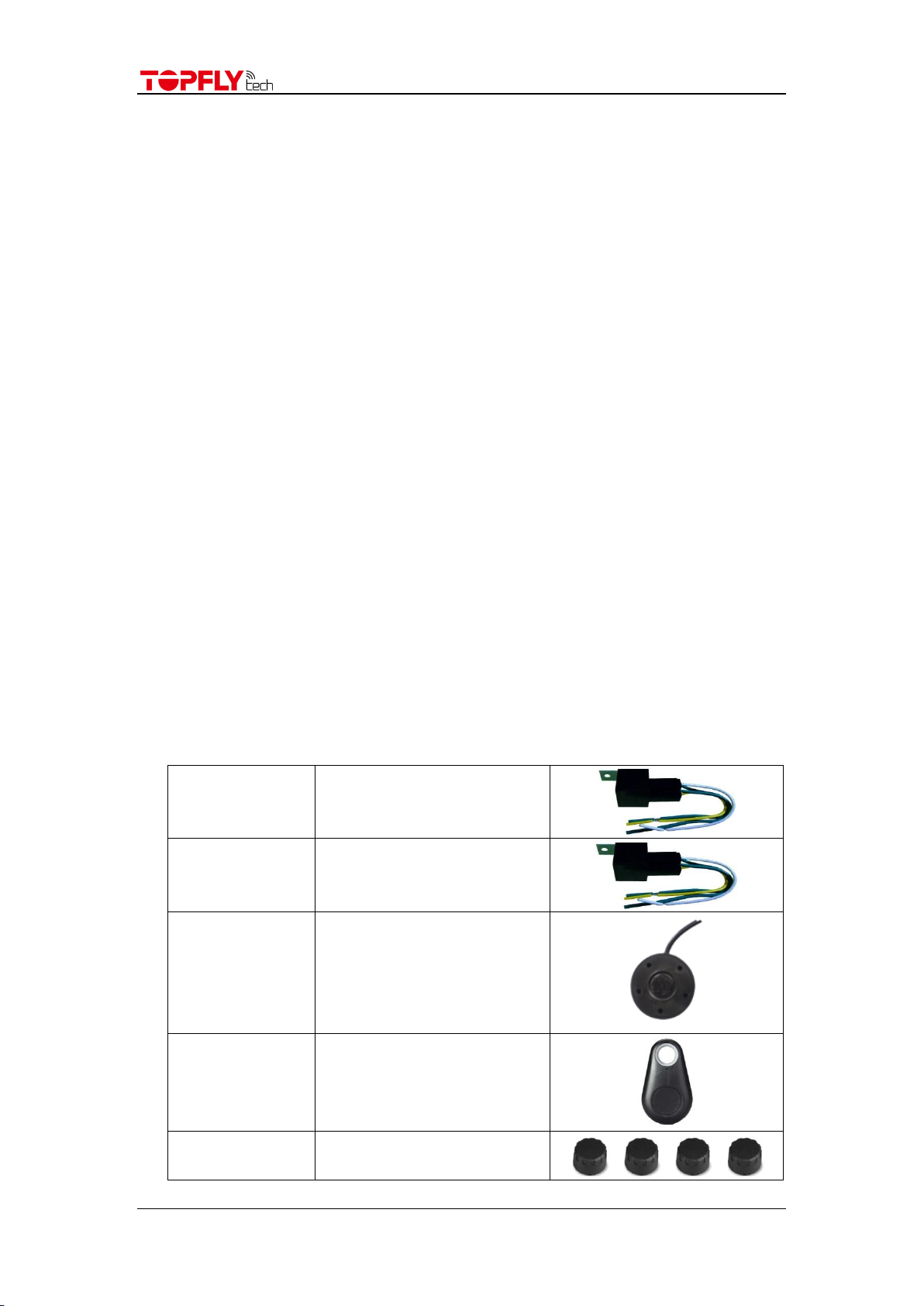

9. Optional Accessories List

TA01

Fuel Supply Cut Relay(12V)

TA11

Fuel Supply Cut Relay(24V)

TA34

Ultrasound Fuel Sensor v2

TA12

BLE Tag

TA20

External TPS Set (BLE)

TA22

Internal TPS Set (BLE)

TSTH1-B

BLE 5.0 Wireless Temperature &

Humidity Sensor

TSDT1-B

BLE 5.0 Wireless Door &

Temperature Sensor

TSR1-B

BLE 5.0 Wireless Relay

10. FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

—Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause

undesired operation

Caution!

Any changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

IMPORTANT NOTICE:

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20 cm

between the radiator and your body.

11. ISEDC Warning

This device complies with Innovation, Science, and Economic Development Canada licence-

exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause

undesired operation of the device.

Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement

économique Canada applicables aux appareils radio exempts de licence. L'exploitation est

autorisée aux deux conditions suivantes :

(1) l'appareil nedoit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le

brouillage est susceptible d'en compromettre le fonctionnement.

The device is compliance with RF exposure guidelines, users can obtain Canadian information

on RF exposure and compliance.The minimum distance from body to use the device is 20cm.

Le présent appareil est conforme Après examen de ce matériel aux conformité ou aux limites

d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et la

conformité and compliance d’acquérir les informations correspondantes. La distance minimale

du corps à utiliser le dispositif est de 20cm.

Table des matières

Autres manuels TopflyTech GPS

TopflyTech

TopflyTech TLW1-10A/E Manuel utilisateur

TopflyTech

TopflyTech TLD2-D Manuel utilisateur

TopflyTech

TopflyTech TLD1-DA Manuel utilisateur

TopflyTech

TopflyTech TLW1-4A/E Manuel utilisateur

TopflyTech

TopflyTech T8803 PRO Manuel utilisateur

TopflyTech

TopflyTech TLP1-SM Manuel utilisateur

TopflyTech

TopflyTech SolarGuardX 100 GPS E-Lock Manuel utilisateur

TopflyTech

TopflyTech TLW1-8A/E Manuel utilisateur

TopflyTech

TopflyTech TLD1-DE Manuel utilisateur

TopflyTech

TopflyTech T8806+R Manuel utilisateur

TopflyTech

TopflyTech T8803+E Manuel utilisateur

TopflyTech

TopflyTech TLW2-2BL Manuel utilisateur

TopflyTech

TopflyTech TLW1-4A Manuel utilisateur

TopflyTech

TopflyTech TLP1-P Manuel utilisateur

TopflyTech

TopflyTech TLD1-A Manuel utilisateur

TopflyTech

TopflyTech TA12 Manuel utilisateur

TopflyTech

TopflyTech TLW2-12B Manuel utilisateur

TopflyTech

TopflyTech TLP1-LF Manuel utilisateur

TopflyTech

TopflyTech TLP2-SFB Manuel utilisateur

TopflyTech

TopflyTech T8608D Manuel utilisateur

TopflyTech

TopflyTech T8808+ Manuel utilisateur

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Garmin

Garmin SOUNDER 125 Manuel utilisateur

Garmin

Garmin DEZL 580 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Garmin

Garmin ECHOMAP PLUS Manuel utilisateur

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Garmin

Garmin 15 H Series Manuel utilisateur

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

Magellan

Magellan eXplorist 100 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

Garmin

Garmin DEZL OTR500 Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur
