Topcom Webtalker V 1.0 Manuel utilisateur

WEBT@LKER 200

USER GUIDE

V 1.0

GB The features described in this manual are published with reservation to

modifications.

This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC.

The Declaration of conformity can be found on :

http://www.topcom.net/support/cedeclarations.php

Topcom Webt@lker 200 3

ENGLISH

Topcom Webt@lker 200

1 Before Initial use 4

1.1 Intended Purpose 4

1.2 Cleaning 4

1.3 Disposal of the device (environment) 4

2 Safety advice 4

3 System requirements 5

4 Buttons/LED 5

5 Getting started 6

5.1 Hardware installation 6

6 SKYPE software and application installation 6

6.1 Installing Skype Software 6

6.2 Webt@lker 200 Utility installation 10

6.3 Uninstall the Webt@lker 200 Utility 14

7 Using the Webtalker with Skype® 14

7.1 Scrolling through SKYPE without using the Webt@lker 200 display. 14

7.2 Calling a Contact person using the Webtalker 200 display. 14

7.3 Call List 15

7.4 Speed Dialling 16

7.5 Calling a Phone Number (Skype Out) 16

7.6 Answering a Call 16

7.7 Changing the ringer melody 17

7.8 Microphone mute 17

7.9 Adjusting Receiver Volume 17

7.10 Clearing a Skype Name or Number 17

8 Troubleshooting 18

9 Topcom warranty 20

9.1 Warranty period 20

9.2 Warranty handling 20

9.3 Warranty exclusions 20

4 Topcom Webt@lker 200

Topcom Webt@lker 200

1 Before Initial use

Thank you for purchasing this new Topcom USB telephone.

1.1 Intended Purpose

This USB phone provides you more conveniences to make free calls over the Internet from

PC to PC anywhere as easy as using normal telephones. Simply plug the USB phone into

the USB port of your PC, download the Internet telephony software SKYPE®, and you can

start making phone calls. You can easily access the net and connect your friends, family

members or colleagues. It’s designed similar to a mobile phone with quick dial and volume

control buttons.

1.2 Cleaning

Clean the telephone with a slightly damp cloth or with an anti-static cloth. Never use cleaning

agents or abrasive solvents.

1.3 Disposal of the device (environment)

At the end of the product lifecycle, you should not throw this product into the

normal household garbage but bring the product to a collection point for the

recycling of electrical and electronic equipments. The symbol on the product,

user guide and/or box indicate this.

Some of the product materials can be re-used if you bring them to a recycling point. By re-

using some parts or raw materials from used products you make an important contribution to

the protection of the environment.Please contact your local authorities in case you need

more information on the collection points in your area.

2 Safety advice

Always read the safety instructions carefully

Keep this User's Manual for future reference

Keep this equipment away from humidity

If any of the following situation arises, get the equipment checked by a service technician:

• The equipment has been exposed to moisture.

• The equipment has been dropped and damaged.

• The equipment has obvious sign of breakage.

• The equipment has not working well or you cannot get it work according to User's

Manual.

Topcom Webt@lker 200 5

Topcom Webt@lker 200

ENGLISH

3 System requirements

To use Skype® with the Webt@lker 200, your computer must meet the following minimum

system requirements:

• PC running Windows® 2000 or XP.

• 400 MHz processor

• 128 MB RAM

• 15 MB free disk space on your hard drive

• Internet Connection

* The requirements are subject to Skype software. For the latest requirements, please visit

the Skype website www.skype.com

4 Buttons/LED

1. LCD display

2. Volume up button

3. Menu - Scroll up button

4. On-hook / Delete button

5. Volume Down button

6. Menu - Enter SKYPE contact list button

7. Keyboard

8. ‘#’ / Ring tone button

9. Skype button

10. USB connector

11. Microphone

12. ‘0’/ + button

13. ‘*’ / Mute button

14. Menu - Scroll Down button

15. Dial/Answer button

16. Menu - Enter SKYPE call list button

17. Speaker

123

456

789

6 Topcom Webt@lker 200

Topcom Webt@lker 200

5 Getting started

5.1 Hardware installation

Connect one end of the provided USB cable to the USB phone (10) and the other end to your

computer’s USB port. When connected to your computer, Windows® will automatically

detect the new device.

Under Windows XP/2000, you don’t need to install the driver. The system will automatically

install the Windows built-in driver. After that, you are ready to use the USB phone.

6 SKYPE software and application installation

Skype is a little piece of software that lets you talk over the Internet to anyone, anywhere for

free.

To use Skype® with the USB phone in Windows® 2000/XP, please follow the instructions in

this chapter to complete the installation.

6.1 Installing Skype Software

Insert the Topcom Webt@lker 200 CD-ROM into your CD-ROM drive. The setup menu would

start up automatically.

If the program doesn’t run automatically, click on START in the toolbar and select Run.

Enter D:\CD_Start.exe (if D in not your CD-ROM drive, enter the appropriate letter)

1. Once the auto run screen appears, select ‘Download SKYPE’.

Make sure your PC is connected to the internet

Topcom Webt@lker 200 7

Topcom Webt@lker 200

ENGLISH

If an internet security warning pops up, select ‘Run’ to proceed the downloading and to start

the installation wizard.

1. Select the language you will use for installation. Click ‘NEXT’ to continue with the

installation.

2. Read the Software License Agreement. If you accept the License Agreement, select ‘I

accept the agreement’. Click ‘NEXT’ to continue the installation.

8 Topcom Webt@lker 200

Topcom Webt@lker 200

3. Browse to the folder were you want to install the SKYPE software and click ‘NEXT’ to

continue.

4. Select if you can allow Skype to start automatically each time you start windows and

select if a desktop icon must be created. Click ‘NEXT’ to continue.

5. The software will now be installed. This may take several minutes.

With Skype always running, other users will be more likely to find you

online. You can change these settings at any time from the Skype program

by going to the “file” menu and selecting “options”.

Topcom Webt@lker 200 9

Topcom Webt@lker 200

ENGLISH

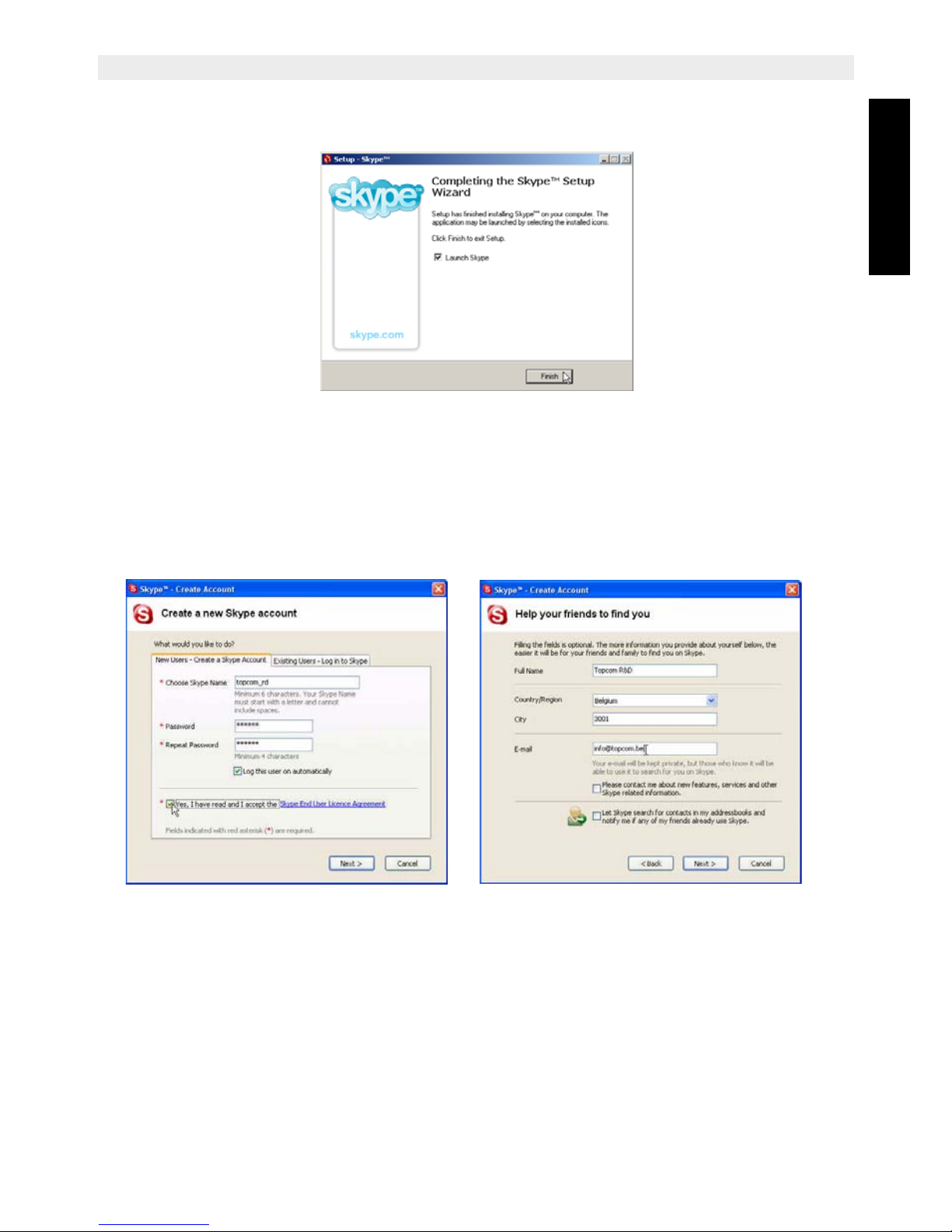

6. Ensure ‘Launch Skype’ is selected and click ‘Finish’ to complete the installation.

7. Once you have finished the installation, the ‘Create a new Skype account’ menu will

be displayed. If you want to register a new account, enter all requested information.

Read the Skype End User Agreement and accept this agreement. Click ‘Next’ to

continue. The next screen will ask for additional information so other user can find you

easily.

8. If you have already a Skype account, select ‘Existing Users - Log into Skype’. Enter

your Skype user name and password and click ‘Next’ to log in.

9. The SKYPE main screen appears and you will be logged on the SKYPE network.

10 Topcom Webt@lker 200

Topcom Webt@lker 200

6.2 Webt@lker 200 Utility installation

To insure that the Webt@lker 200 is functioning optimal with Skype, the utility must be

installed.

Insert the Topcom Webt@lker 200 CD-ROM into your CD-ROM drive. The setup menu would

start up automatically.

If the program doesn’t run automatically, click on START in the toolbar and select Run.

Enter D:\CD_Start.exe (if D in not your CD-ROM drive, enter the appropriate letter)

1. Once the auto run screen appears, click ‘Install Software’.

For the latest version of the utility software please look at our website:

http://www.topcom.net/support/downloads.php
