Topaz OCR Manuel de programmation

440944-001 –Revision A

Assembling the TOPAZ OCR

This procedure describes how to connect video and power cables, and attach the

touchscreen display to TOPAZ. Before you begin:

Read this procedure before you set up TOPAZ

Determine where you are going to set up and use TOPAZ

Make sure you have a clean, flat, sturdy surface to assemble TOPAZ

A fully assembled TOPAZ weighs approximately 46 lbs. / 21 kg. Use caution

when unpacking and lifting TOPAZ and the touchscreen. Get assistance if

you need help lifting and holding the display.

Familiarize yourself with the touchscreen video and power connectors

No tools are needed to assemble TOPAZ

Setting Up TOPAZ

CAUTION: The TOPAZ is heavy. Get assistance if you need help moving it.

Step 1. Unpack TOPAZ and place it on a flat, sturdy surface.

Step 2.

The monitor arm has

three cables: HDMI,

USB, and LED Flash.

Place the cables

through the large

opening in the monitor

bracket (1).

Step 3.

Place the 12V DC

power cable (2) across

TOPAZ so that it rests

between the control

panel and the monitor

bracket (with the other

cables).

Setting Up the Touchscreen Display

CAUTION: The touchscreen display is heavy. Get assistance if you need help

moving it.

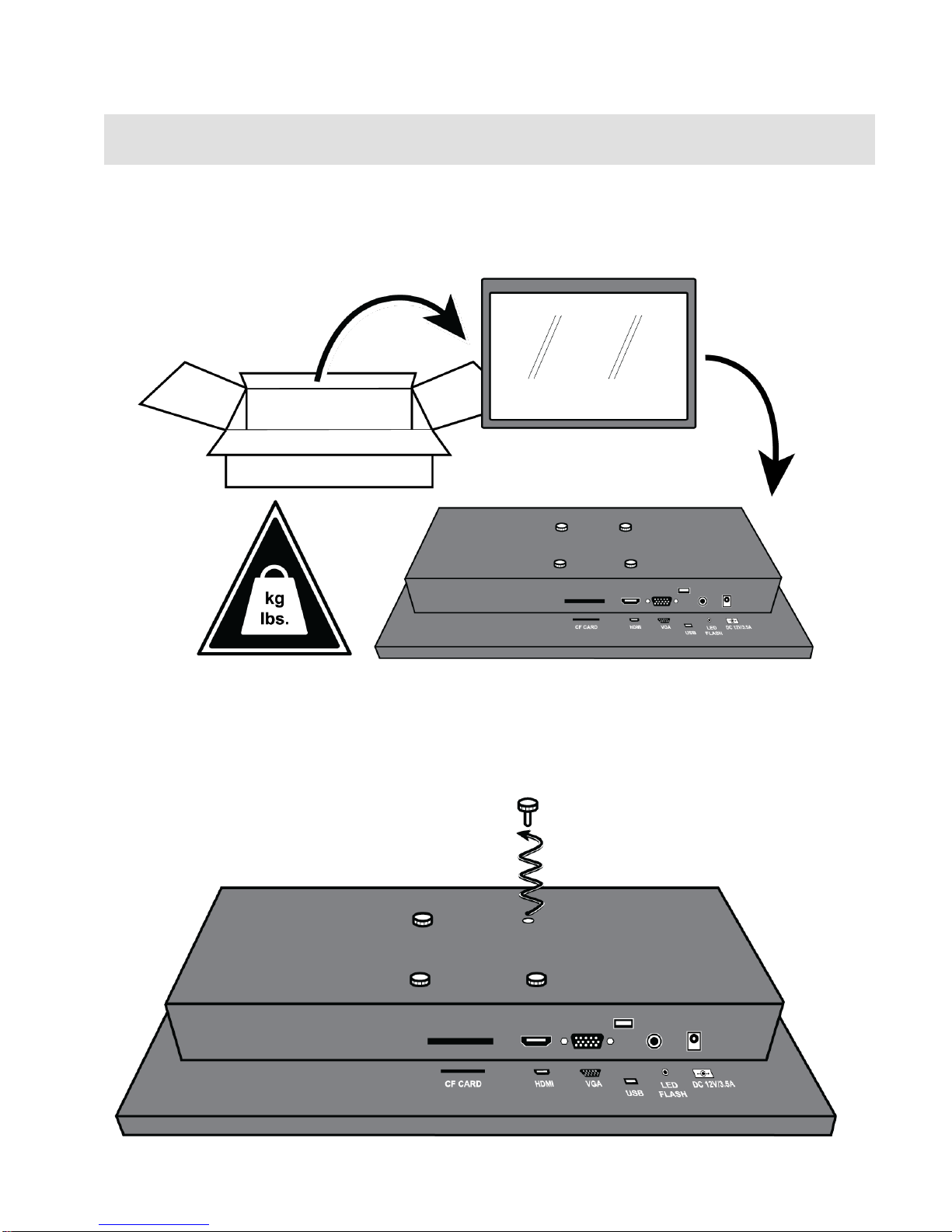

Step 1.

Unpack the display and place it face down on a clean flat, sturdy surface.

Step 2.

Remove the four thumbscrews from the back of the display, and set them on

the TOPAZ XY table.

Step 3.

The display’s video and power connectors are on the bottom of the display.

Familiarize yourself with the location of these connectors. This will be helpful

when later connecting video and power cables.

HDMI connector (1)

USB connector (2)

LED Flash connector (3)

12V DC power connector (4)

Connecting Cables and Securing the Touchscreen Display

Important: Make sure the video and power cables are out of the way before

placing the display on the control panel.

CAUTION:

The display is heavy.

Get assistance if you

need help lifting and

holding it in place.

Step 1.

Pick up the display so

that it is facing you, and

then place its bottom

edge on the top of the

control panel.

Step 2.

While holding the top of

the display, carefully

pivot it toward you so

that the screen is facing

down

Step 3.

With the display resting

on the control panel,

connect the following

cables to the connectors

on the bottom of the

display:

HDMI cable (1)

USB cable (2)

LED Flash cable (3)

12V DC power

cable (4)

Step 4.

Carefully pivot and

raise the display

(1) so that its back

is resting against

the monitor

bracket and its

bottom is resting

on the control

panel (2).

Important: Make

sure the video and

power cables are

clear and not

squeezed between

the back of the

display and the

bracket.

Step 5.

While bracing the

display, secure it

to the bracket

using the four

thumbscrews that

you removed and

placed on the XY

table.

Insert the four

thumbscrews

through the screw

slots on the

bracket and the

screw holes on the

back of the

display.

Tighten the four

thumbscrews.

This completes

assembly of the

TOPAZ OCR.

Turning On TOPAZ

Step 1.

Plug the power cord from the

middle power connector on the

rear of TOPAZ to an electrical

wall outlet.

Step 2.

Press the main power switch to

the ON position. It is located

near the LED reading light on

the right side of TOPAZ.

Step 3.

Press the green standby power switch on the right side of the control panel.

For more information about using TOPAZ, refer to the TOPAZ OCR User

Guide.
