Top RC Model F9F Cougar Manuel utilisateur
第 1 页，共 17 页
第 2 页，共 17 页
第 3 页，共 17 页
Accessory part lists for wing installation. 3. Epoxy the wood block to the servo tray base on the
mark line.
1. Ready for assemble the wing servos.
4. Epoxy the wood block to the servo tray tightly.
2. Put the wood block to appropriate position base on the
servo tray, mark out with red.
5. Assemble the servo to the servo tray with screws.
第 4 页，共 17 页
6. Assemble the servo to the wing 9. Before glue the arm to the slot, put masking tape
around the slot to keep clean.
7. Drag the servo line out of the wing.
10. Glue the arm to the slot and wait it dry.
8. Prepare to assemble the push rod arm.
11.Connect the arm of the flap and servo arm with push
rod.
第 5 页，共 17 页
12.The scketch map of the servo for the wing assembly
finished. 14.Prepare the parts for assembly the stab servo.
Accessories part list for the stabilizer installation.
15.Measure the deepth and mark out where the servo
would location.
13.Sanding the fiber horn.
16.Trim a lot for the stab servo arm.
第 6 页，共 17 页
17.Glue the horn to the elevator and assemble the servo to
the stabilizer. 19.Apply instand type AB glue to the slots in the rudder.
18.Connect the arm of servo to the horn with push rod.
20.Apply instand type AB glue to the slots in vertical fin.
Accessories part lists for the rudder installation.
21.Assemble the rudder to the vertical fin and make sure
it can move freely.
第 7 页，共 17 页
22.Apply instand type AB glue to the slots in the tail cone. 25.Mark it out at the outer side of the vertical.
23.Assemble the tail cone to the vertical fine tightly.
26.Trim a slot for the servo arm.
24.Measure the deepth of the rudder servo position.
27.Assemble the servo into the vertical fin with screw
driver.
第 8 页，共 17 页
28.The sketch map after the servo of rudder assembly. 31.Glue the fiber horn to the slot tightly.
29. Trim a slot at the appropriate position in the rudder.
32.Remove the masking tape after the glue dried.
30.Put masking tape around the slot to keep the plane body
clean after work done.
33.Connect the servo arm to the rudder fiber horn .
第 9 页，共 17 页

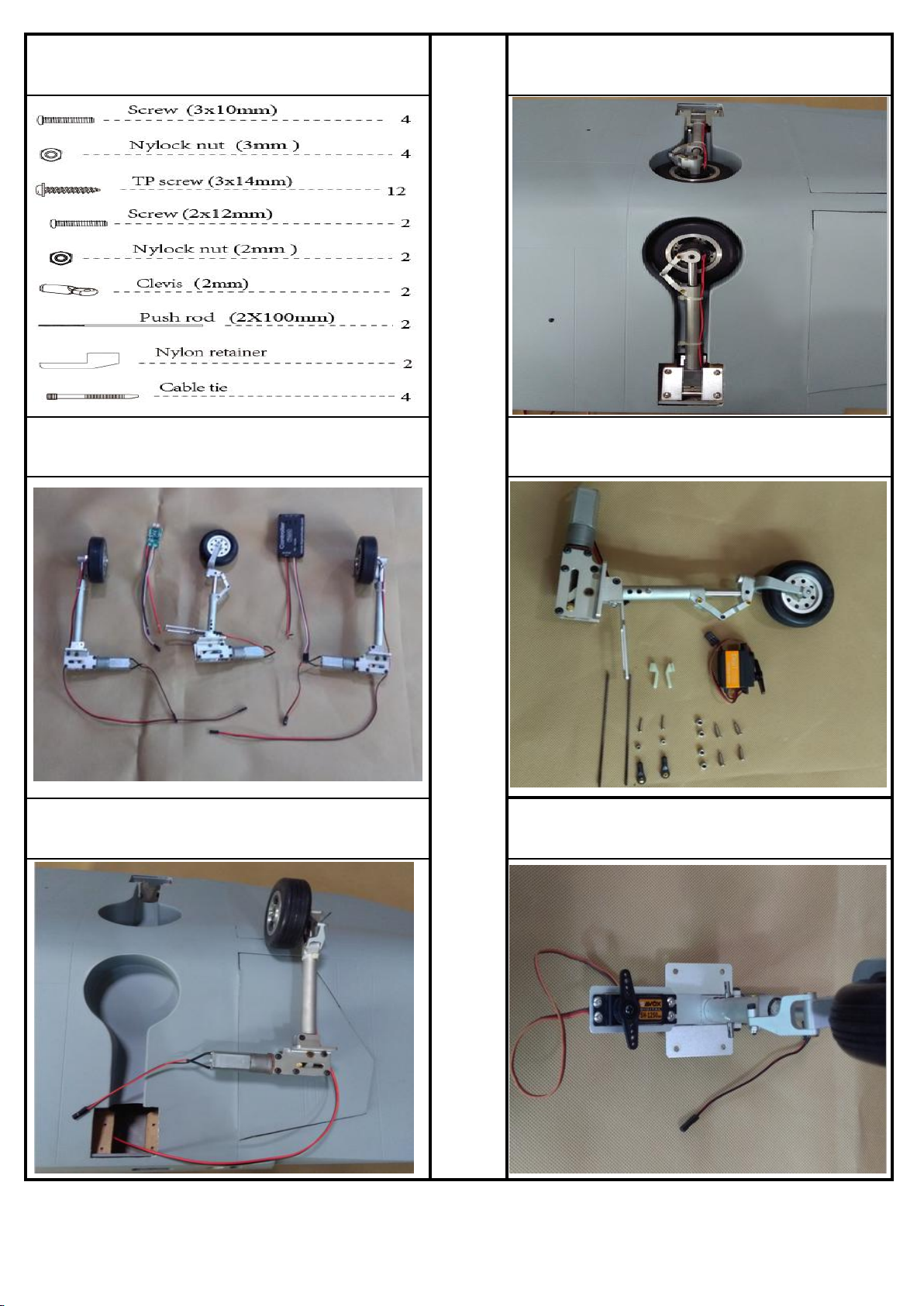

Accessory part lists for retract installation(Optional and
need purchased separately).
36.The sketch map after the main retracts assembled
completely.
34.The sketch map of the electric retract system (Optional
and need purchased separately)
37.The sketch map of the nose gear and nose gear servo
parts.
35.Assemble the retract to the fuselage with screws.
38.Assemble the nose servo to the nose gear.
