Chapter 1 Introduction

Thank you for purchasing and using of our products. If you have questions after reading this manual, please

contact your local distributor or call our company's engineers directly for further consultation.

1.1 Introduction of the Instrument

TH7100 series is a family of single-phased programmable AC power supply which is able to simulate a variety

of normal and abnormal AC input conditions, and do the measurement of some important parameters. The main

features and benefits of the instrument are listed below:

24-bit color, 4.3-inch LCD display

Chinese and English operating interface

Support output switch control

Voltage (V), Current (I), Power (P), Peak Current (Ap), Crest Factor (CF), and Power Factor (PF) can be

displayed simultaneously

Starting phase angle (0~359°), ending phase angle (0~359°)

Support surge/drop, and dimming mode function

Support front and rear panel output

Memory capacity

Manual mode: 50 sets

Programmable mode: 50 sets, 9 steps/set

Intelligent temperature-controlled fan, two stages fan speed

Start up with user’s setting

Support timing function

Support RS232 (SCPI and MODBUS protocol), and USB COM.

Support remote signal output function (PASS、FAIL、PROCESSING)

Support remote control input function (includes output switch and input control of 7 memory groups)

Support over setting current protection (HI-A), over voltage protection (OVP), low-voltage protection

(LVP), over current protection (OCP), over power protection (OPP), over temperature protection (OTP)

Th7100 series single-phase programmable AC power supply includes the following models:

Model

Voltage

Current

Power

TH7105

300V

4.2A

500W

TH7110

300V

8.4A

1000W

TH7120

300V

16.8A

2000W

Table 1-1 Main Parameters of Various Models

1.2 Working Condition

1.2.1 Power Connection

1) Power supply: 100~120Vac or 198~242Vac

2) Power supply frequencies: 47~63Hz

3) Power range: ≥80VA

4) The power input line L, zero-line N and ground-line E should be the same as the power plug of this

instrument. Remove the protection cover on the rear panel before use of the instrument, the detailed

wire connection diagram is shown in figure 1-1:

Figure 1-1

1.2.2 Environment Temperature and humidity

TH7100 series programmable AC power supply is only allowed to be used indoors and in low-condensation

areas. The general environmental requirements of this instrument are shown in table 1-2. The fan speed changes

intelligently with the radiator temperature. When the radiator temperature reaches 60°C, the fan accelerates.

When the radiator temperature reaches 130°C, the instrument shuts off the output.

Environment Condition

Requirements

Operating Temperature

0℃~40℃

Operating Humidity

20%~80%（non-condensation）

Storage Temperature

-20°C~70°C

Operating Altitude

≤2000m

Pollution

Pollution level2

Safety

Safety class II

Figure 1-2

1.2.3 Precautions for usage

1) Please do not use the tester in dusty, vibrative, direct sunlight and corrosive gases and other adverse

environments.

2) Please do not use damaged equipment. Before use of the instrument, please check if there are any

cracks on the shell.

3) Please connect the device with the provided cable. Before operating the instrument, make sure theAC

power supply is well grounded.

4) Before connecting to the device, check all the security labels on the device.

5) Please use wire with rated load. The capacity of all load wires must be able to withstand the maximum

short-circuit output current of the power supply without overheating. If there are multiple loads, each

pair of load wires must be able to safely carry the full load rated short-circuit output current of the

power supply.

6) Please do not install replacement parts or make any unauthorized modification of the instrument.

7) Please do not use the device when the cover is removed or loose.

8) It is strictly prohibited to use this instrument on life support system or any other equipment with safety

requirements.

9) Keep the instrument well ventilated to avoid overheating. Do not block the ventilation hole of the

equipment to avoid internal temperature rising affecting the accuracy.

10) Please use dry cloth to clean the shell of the equipment. Do not clean the inside of the instrument.

11) Please do not switch the instrument frequently to avoid loss of stored data.

12) The instrument has been carefully designed to reduce clutter due to AC power input. However, it

should still be used under low noise conditions. If that is inevitable, please install the power filter.

13) When the instrument is not used for a long time, please put it in the original box or similar box and

stored in a ventilated room with temperature of 5℃~40℃and relative humidity less than 85% RH.

Do not store the instrument in a corrosive atmosphere containing harmful impurities and should avoid

direct sunlight.

1.2.4 Warm-up

For accurate measurement, the warm-up time should not be less than 30 minutes.

1.3 Safety and Symbols

1.3.1 Signs and Symbols

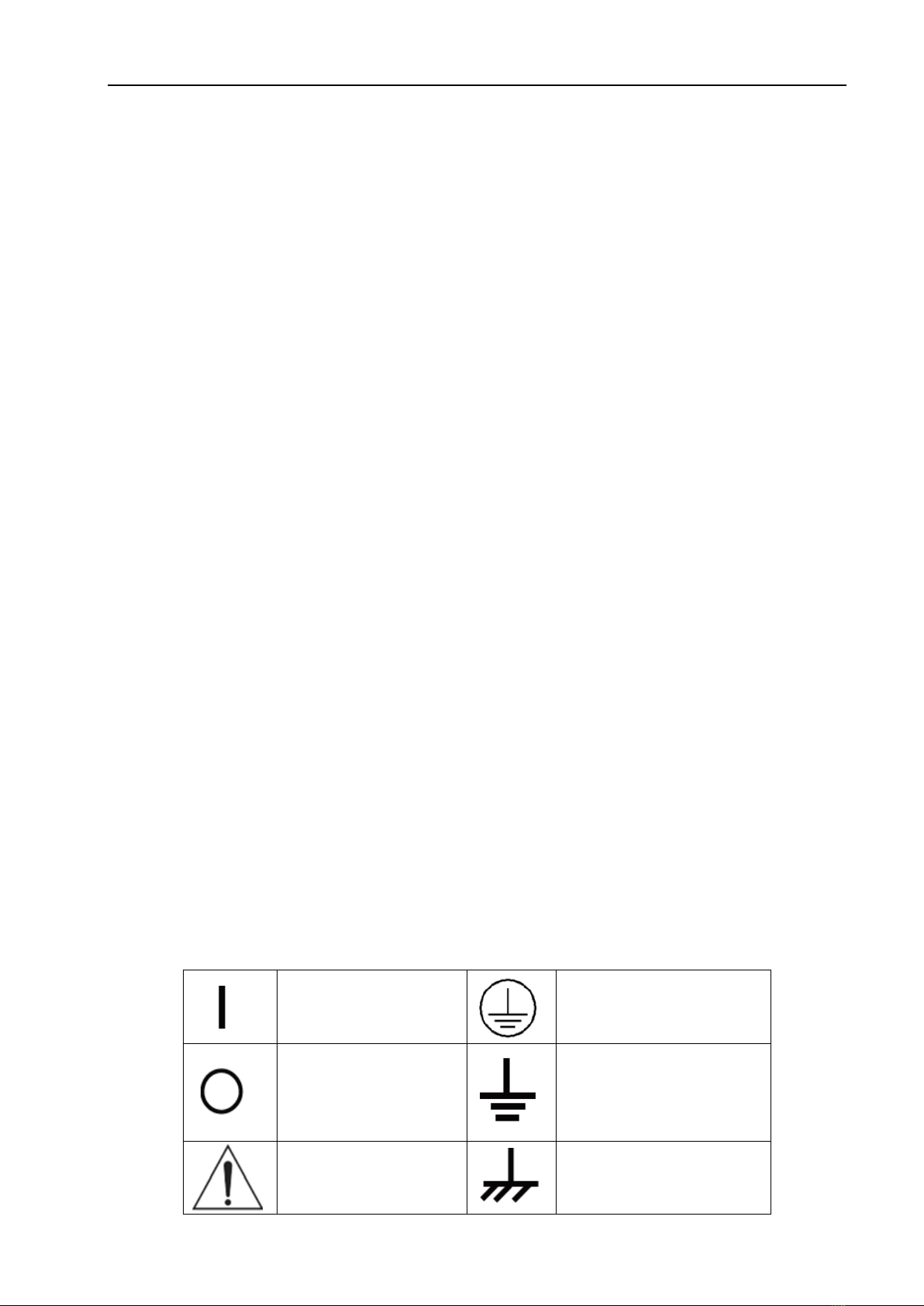

ON ( power switch closed)

Protective grounding terminal

OFF (power switch open)

Ground terminal

Warning sign

Power line ground

Shock hazard sign

Table 1-3

1.3.2 Laws and regulations

CE label indicates that the instrument complies with all relevant European laws (a year indicates the

year in which the design was approved).

This device complies with the marking requirements of WEEE directive (2002/96/EC), and this

additional product label states that this appliance/electronic product should not be discarded in household waste.

According to the WEEE directive annex I classification of the equipment, the instrument belongs to “monitor”

products.

Chapter 2 Introduction

The content of this chapter is just a general description. It mainly introduces the front and rear panel, display

area, boot interface and basic operation. Please refer to chapter 3 for detailed introduction.

2.1 Introduction to Front Panel

TH7100 series programmable AC power supply front panel is shown in figure 2-1.

Figure 2-1 Front panel

Index

Name

Function

U disc interface

Read or store data

Power switch

Trademark and models

Instrument trademark and models

Function buttons

Screen-labeled function keys

DISP

Quickly switch to measurement display page

SETUP

Quickly switch to measurement setting page

SYSTEM

Quickly switch to system setting page

V-SET

Voltage setting

I-SET

Current setting

F-SET

Frequency setting

ESC

Exit or cancel

ON/OFF

Output switch

Power Output Socket

Power output Socket

ENTER

Enter button

LOCK

Keyboard lock button

TRIG

Surge/drop manual trigger button

Number pad and delete button

Number input and delete

knob

Adjust the setting value or move the cursor

Arrow key and OK button

Move the cursor and enter

LCD display

Screen display

2.2 Introduction to Rear Panel

TH7100 series programmable AC power supply rear panel is shown in figure 2-2.

Ce manuel convient aux modèles suivants

Table des matières

Manuels Distribution d'énergie CA populaires d'autres marques

PS Audio

PS Audio PowerPlay 8500 Manuel utilisateur

Elgar

Elgar CW 2501P Manuel utilisateur

Panamax

Panamax M5300-PM Manuel utilisateur

Ring Powering

Ring Powering RINV500 PowerSource Manuel utilisateur

ABB

ABB System pro E power Manuel

Heath

Heath Heathkit HL-2200 Manuel utilisateur

Panamax

Panamax Powermax PM8-EX Manuel utilisateur

Furman

Furman AC-210 E Manuel utilisateur

Abtus

Abtus PWR-DA09C/P Manuel utilisateur

Belkin

Belkin PureAV PF30L Manuel utilisateur

Furman

Furman P-1800 PF Prestige Series Manuel utilisateur

EasyFocus

EasyFocus SGR-UPS5011 Manuel utilisateur

Panamax

Panamax VT1512-IP Manuel utilisateur

socomec

socomec ATyS p Manuel utilisateur

Panamax

Panamax M8DBS-EX Manuel utilisateur

Panamax

Panamax M5400-EX Manuel utilisateur

Chroma

Chroma 61501 Manuel utilisateur

Furman

Furman P-1800 AR Prestige Serie Manuel utilisateur
