EMERGENCY RESPONSE GUIDE
ANY WHERE AND BACK
MT
EV
100% ELECTRIC
PREFACE
1
TOMCAR™ ERG 2017
Preface
The emergency response procedures for the Electric Tomcar vehicles are similar to those for hybrid-electric
vehicles with the same considerations for the high-voltage electric system components.
Tomcar Electric vehicles use an electric motor to power the vehicle. Electricity is stored in high-voltage
battery packs. The system incorporates a generator function in the electric motor that recharges the high-
voltage batteries during cruising and braking.
The information in this guide will help provide a safe response to emergencies involving Electric Tomcar
vehicles.
The Tomcar Electric vehicle has been designed with many safety features for your protection. These
features help provide safe access to the vehicle under various conditions; however, when approaching a
high-voltage vehicle in a fire, rescue or recovery situation, always follow one industry standard rule:
ALWAYS ASSUME THE VEHICLE’S HIGH VOLTAGE SYSTEM IS POWERED UP!
This manual is a part of your TOMCAR® and should remain with the vehicle.
TABLE OF CONTENTS
2
TOMCAR™ ERG 2017
TOMCAR™ Electric Vehicle Variants.................................................................................................................. 3
High-Voltage Electrical Disconnect Features..................................................................................................... 5
High-Voltage Warning Decals............................................................................................................................ 6
Components Location and Identification.......................................................................................................... 7
High-Voltage Disconnect Switch...................................................................................................................... 12
High-Voltage Battery Pack............................................................................................................................... 13
Approaching A Damaged High-Voltage Vehicle .............................................................................................. 15
Storage Placard................................................................................................................................................ 20
ELECTRIC VEHICLE IDENTIFICATION
3
TOMCAR™ ERG 2017
TOMCAR™Electric Vehicle Variants

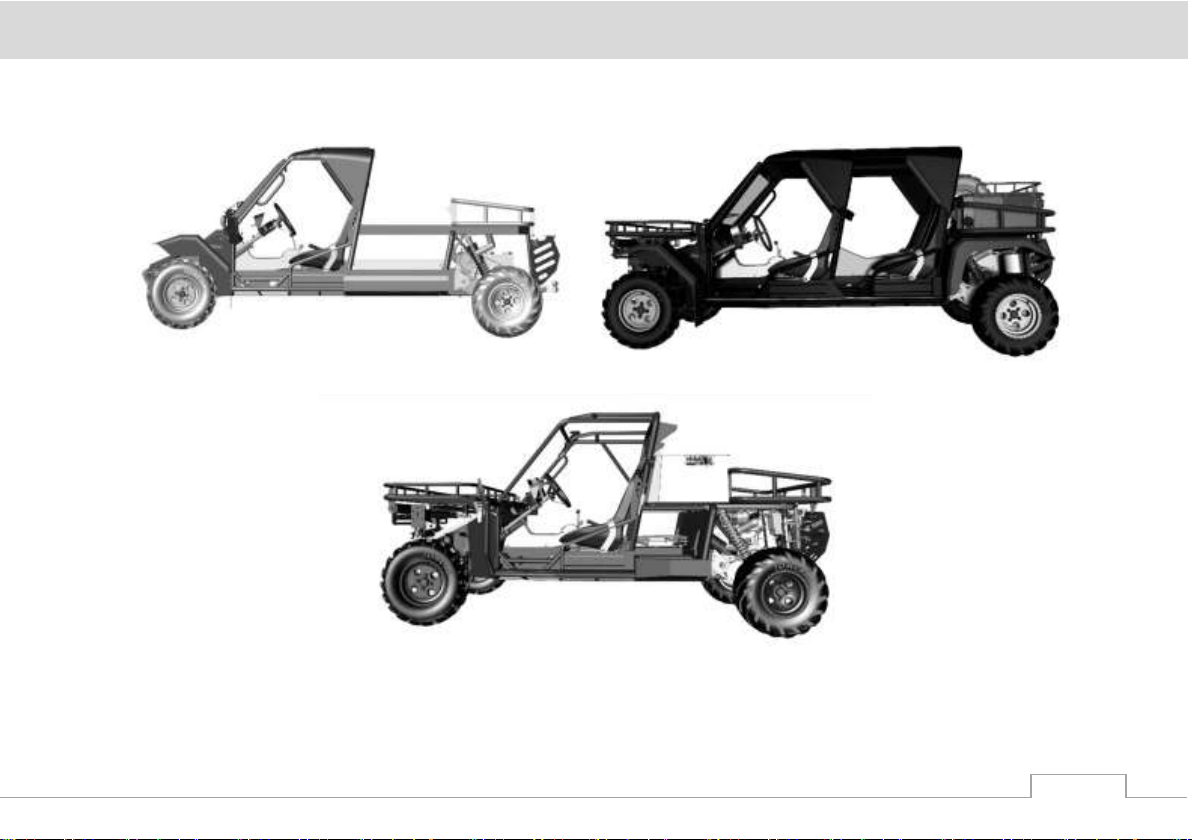

Two-Seater Pickup (TM37E)
Four Seater (TM47E)
Two-Seater Pickup (TM58E)
ELECTRIC VEHICLE IDENTIFICATION
4
TOMCAR™ ERG 2017

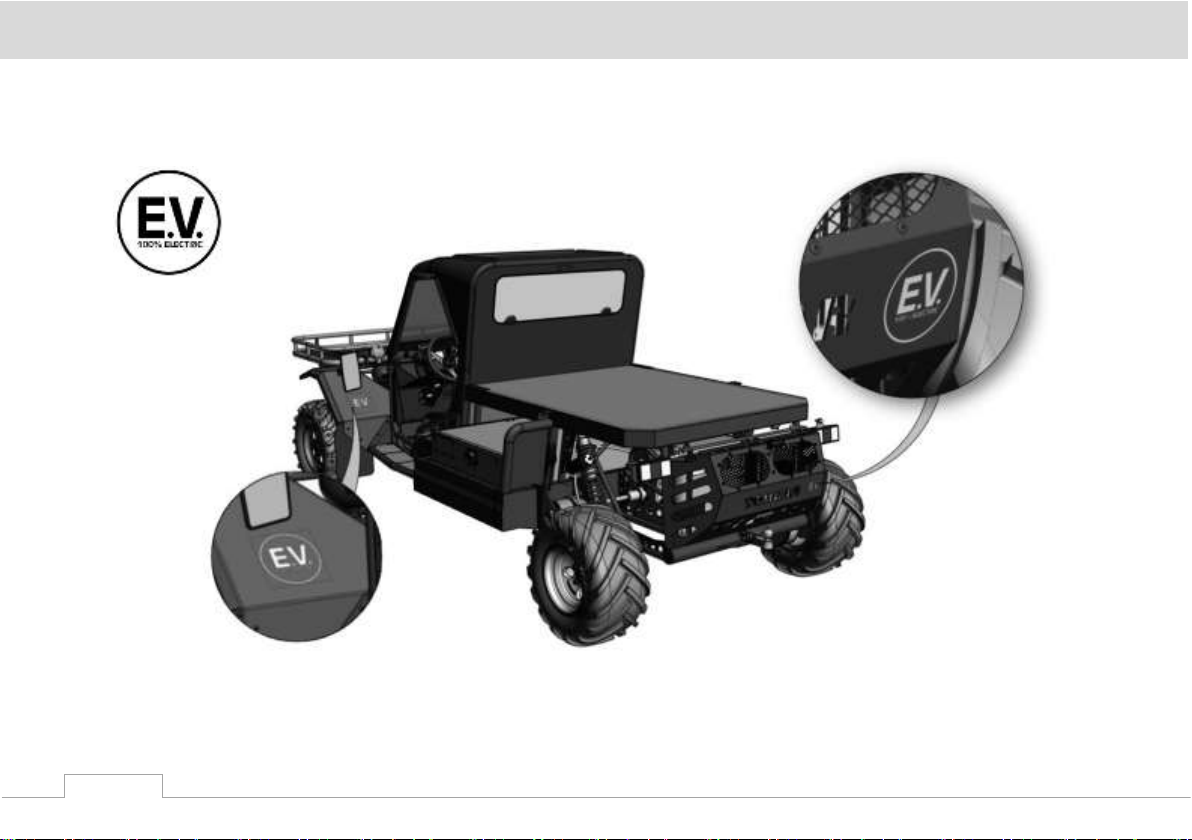

Tomcar Electric Vehicles can easily be identified by the “EV” badges located on the left and right front
fenders and rear bumper.
ELECTRIC COMPONENTS SAFETY
5
TOMCAR™ ERG 2017
High-Voltage Electrical Disconnect Features
WARNING
Electric vehicles damaged by a crash may have compromised high voltage safety systems and present a
potential high voltage electrical shock hazard.
Exercise caution and wear appropriate personal protective equipment safety gear, including high voltage
safety gloves and boots. Remove all metallic jewelry. Isolate high voltage systems as directed in this
manual. Failure to follow these instructions may result in serious personal injury or death.
The following list describes certain features that have been incorporated into Tomcar electric vehicles that
allows for either simple or automatic shut-off of the high-voltage electrical systems.
•High-Voltage Manual / Service Disconnect Switch –Any time the manual high-voltage disconnect
switch is in the ‘OFF’ position, the high-voltage system is isolated.
•High-Voltage Interlock Circuit –whenever a high voltage connector is disconnected, the high-
voltage interlock circuit opens and isolates the high voltage system. The circuit will also open when
a cable is cut, a high-voltage insulation fault is detected, a motor insulation fault is present or if the
safety mechanism safety checks discover a fault such as a welded contactor.
•Ignition in the ‘OFF’ Position –whenever the ignition switch is in the ‘OFF’ position and the vehicle
is not being charged, the high-voltage system is isolated.
•Thermal Sensors –Thermal sensors monitor the battery pack, motor controller and motor. If the
vehicle cooling or heating system is compromised, power limitations will be implemented up to
complete system shutdown.
ELECTRIC COMPONENTS SAFETY
6
TOMCAR™ ERG 2017
High-Voltage Warning Decals
Warning decals are located on components in the high-voltage system throughout the vehicle.
Please see examples below:
COMPONENTS LOCATION AND IDENTIFICATION
7
TOMCAR™ ERG 2017
Components Location and Identification
The Illustrations and definitions on pages 7 - 12, provide the location, description and basic function of the
high-voltage electric system components in all model variants.
NOTE: The high-power circuit is denoted by orange cables, orange with grey stripe wires and parts marked
by the symbol.
COMPONENTS LOCATION AND IDENTIFICATION
8
TOMCAR™ ERG 2017

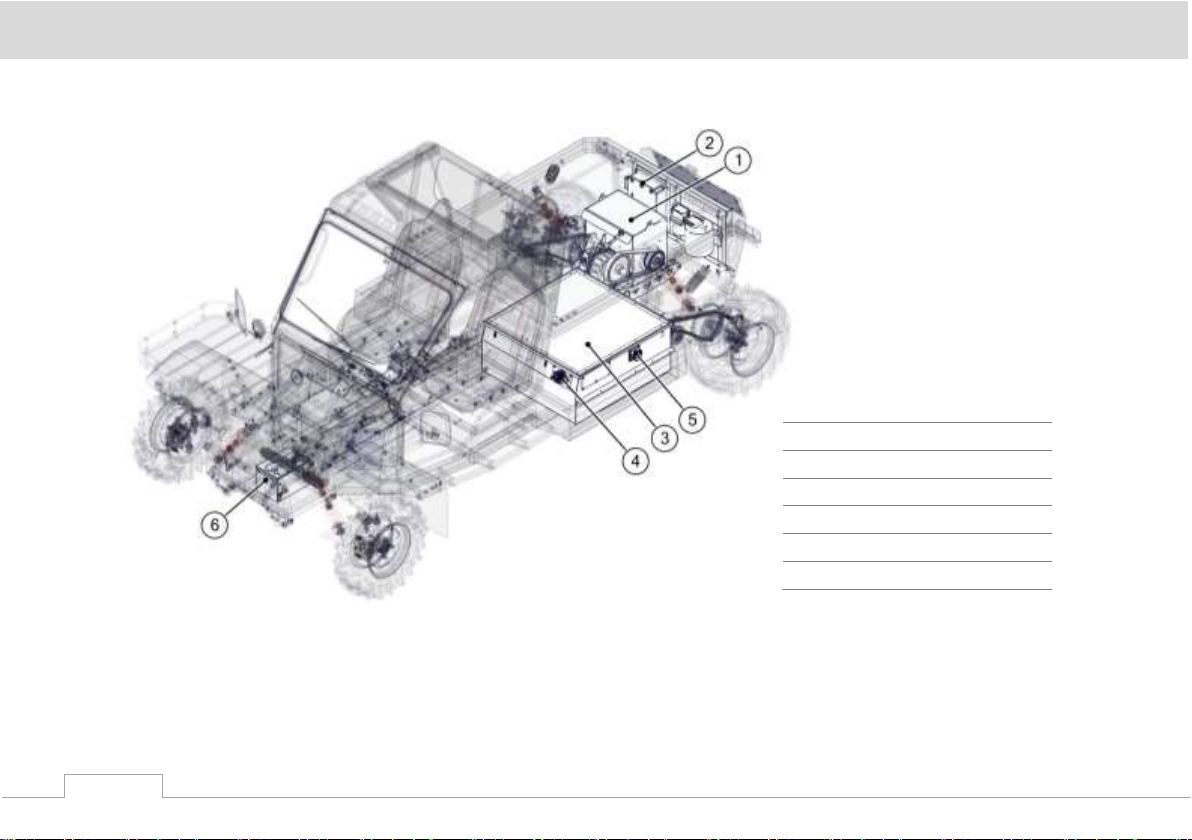

TM37E
1
Electric Motor
2
Motor Controller
3
Traction Battery
4
Safety Disconnect
5
Charger Socket
6
12-volt battery
COMPONENTS LOCATION AND IDENTIFICATION
9
TOMCAR™ ERG 2017

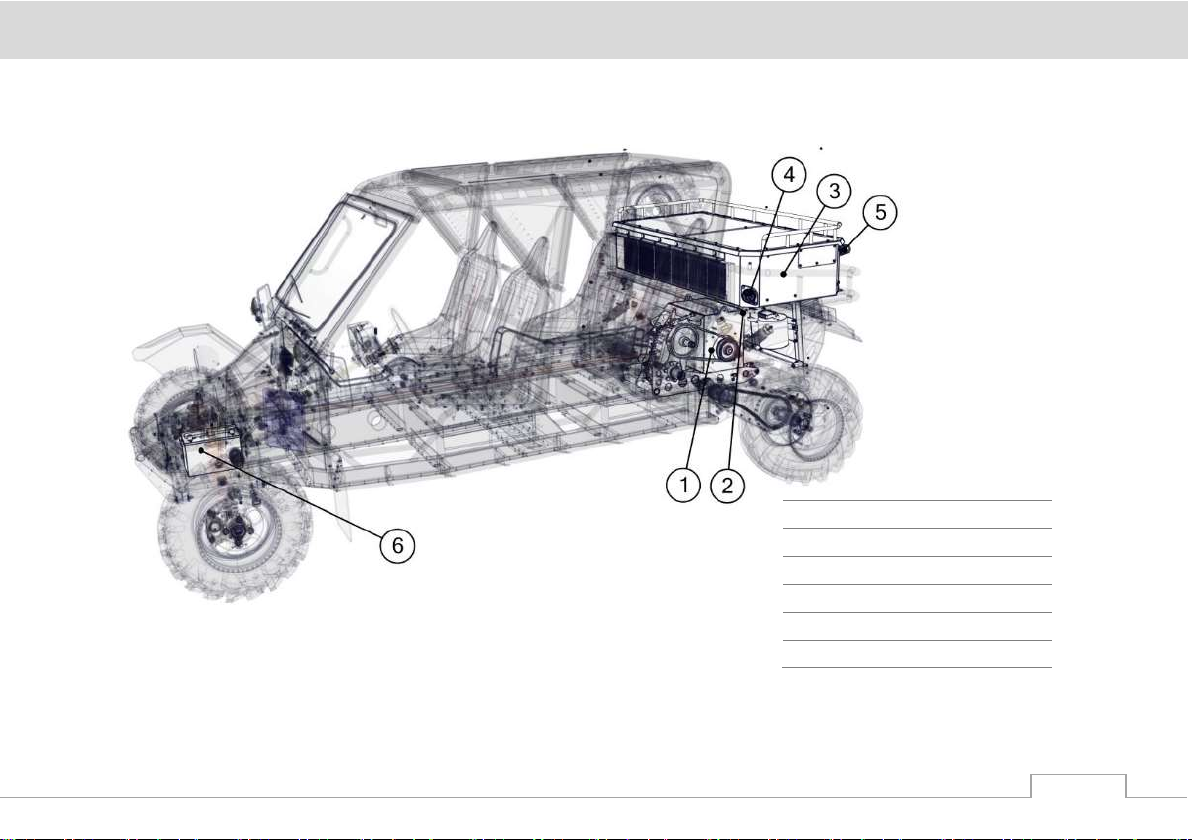

TM47E
1
Electric Motor
2
Motor Controller
3
Traction Battery
4
Safety Disconnect
5
Charger Socket
6
12-volt battery
