Partner: TOA

Model: D-901

Device Type: Digital Mixer

GENERAL INFORMATION

SIMPLWINDOWS NAME: TOA D-901 Digital Mixer Crosspoint.umc

CATEGORY: Mixer

VERSION: 1.0

SUMMARY: This module controls one of many possible crosspoints within the Toa D-901 Digital

Mixer.

GENERAL NOTES: This module controls one of many possible crosspoints within the Toa D-901 Digital

Mixer. It allows the control of crosspoint level and crosspoint on/off activation. It will

also provide true feedback indicating current level and channel on/off activation.

By using the SCA (Source Channel Attribute), SCN (Source Channel Number), DCA

(Destination Channel Attribute), DCN (Destination Channel Number) parameter pull

down menus, a crosspoint is selected and can be controlled. Multiple instances of

this module may be used. It is recommended to trigger the Polling option on all used

modules by routing the “Poll_Finished” signal from the first module to the next

module’s Poll_Enable input. This allows all D-901 Mixer Modules to poll sequentially.

Please refer to the DEMO PRO2 file for an example of this procedure.

CRESTRON HARDWARE REQUIRED: CNCOMH-2, CNXCOM-2, ST-COM, C2-COM

SETUP OF CRESTRON HARDWARE: RS232

Baud: 115200

Parity: N

Data Bits: 8

Stop Bits: 1

VENDOR FIRMWARE: 2.0

VENDOR SETUP: Set RS232 Mode to REMOTE

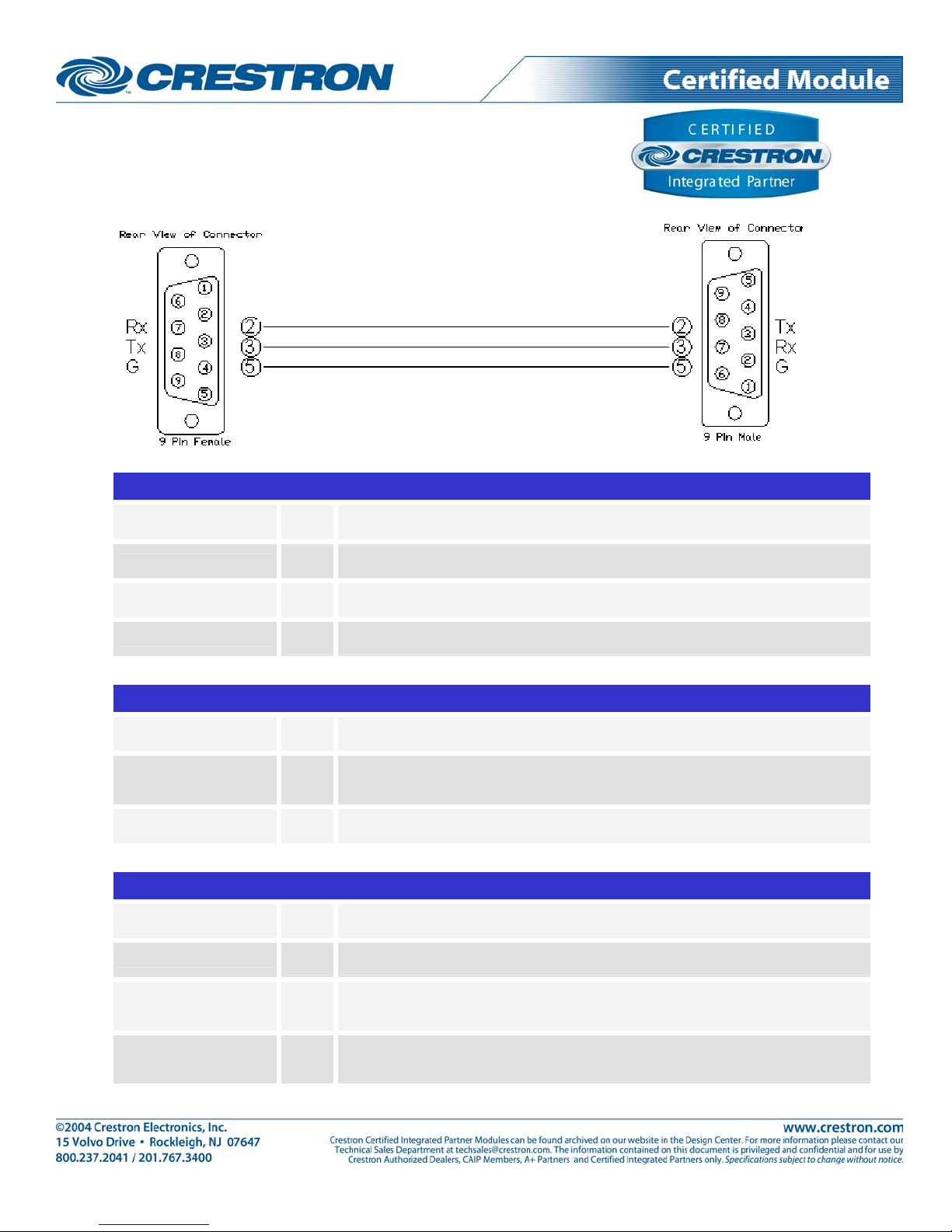

CABLE DIAGRAM: CNSP-121

Partner: TOA

Model: D-901

Device Type: Digital Mixer

CONTROL:

Level_Up/Down D Assert to increase/decrease device’s current level

Level_On/Off D Pulse to activate/deactivate controlled channel

Poll_Enable D Pulse to poll device for current settings

From_Device$ S Serial signal to be routed from a 2-way com port

FEEDBACK:

Level_On/Off_FB D True feedback indicating the currently active preset

Poll_Finished D When module has completed its polling cycle, signal goes high for one wavelength. This

signal is to be routed to the next D-901 Module used.

To_Device$ S Serial signal to be routed to a 2-way com port

PARAMETER FIELDS:

SCA P Source Channel Attribute - Parameter field allows the selection of input type (Line or Mic)

SCN P Source Channel Number - Parameter field allows the selection of input channel number

DCA P Destination Channel Attribute - Parameter field allows the selection of output type (Line

or Mic)

DCN P Destination Channel Number - Parameter field allows the selection of output channel

number

Partner: TOA

Model: D-901

Device Type: Digital Mixer

TESTING:

OPS USED FOR

TESTING: PRO2 Cntrl Eng [v3.177 (Release)]

COMPILER USED FOR

TESTING: 2.00.30

SAMPLE PROGRAM: TOA D-901 Digital Mixer Demo Pro2.smw

REVISION HISTORY: V. 1.0
