Toa N-SP80MS1 Guide d'installation

QUICK MANUAL

SIP MULTIMEDIA STATION N-SP80MS1

This is a quick manual for the N-SP80MS1.

Be sure to see the separate "N-SP80 Series Instruction Manual" before using the N-SP80MS1.

The latest version of the "N-SP80 Series Instruction Manual" can be downloaded from the TOA product

data download site (http://www.toa-products.com/international/).

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS ............................. 2

2. GENERAL DESCRIPTION ........................... 2

3. FEATURES ................................................... 2

4. HANDLING PRECAUTIONS ........................ 2

5. NOMENCLATURE AND FUNCTIONS ......... 3

Front .............................................................. 3

Rear ............................................................... 4

Right side ...................................................... 4

6. CONNECTION .............................................. 5

7. SYSTEM SETTING USING A BROWSER ... 6

Thank you for purchasing TOA’s N-SP80MS1 SIP Multimedia Station.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

• Beforeinstallationoruse,besuretocarefullyreadallthe instructionsinthis sectionforcorrectand safe

operation.

• Besuretofollowalltheprecautionaryinstructionsinthissection,whichcontainimportantwarningsand/or

cautions regarding safety.

• Afterreading,keepthismanualhandyforfuturereference.

• UsethespeciedACadapterandPoEswitchinghubfortheunit.Notethattheuseofanotheradapterand

PoEswitchinghubmaycauseare.

2. GENERAL DESCRIPTION

The N-SP80MS1 is a touch-panel type Multimedia station using Google’s Android platform designed for use in

combination with the SIP (Session Initiation Protocol) Intercom system.

The station can be used not only in SIP server mode but also in peer-to-peer mode: the former enables the

station to work by connecting to the SIP server and the latter enables it to work without using the SIP server.

Note: Android is a trademark of Google Inc.

3. FEATURES

• FullycompliantwithSIP.

• ConnectedtothenetworkviaEthernet.

• Supports2waysofconnection:ConnectiontotheSIPserverusingSIPandpeer-to-peerconnection.

• Supportsthefollowingaudiocodecs:G.711,G.722,G.729,L16,andOpus.

 (AudiocodecisxedtoG.722wheninpeer-to-peerconnection.)

• CanbepoweredbymeansofPoEorfromtheDCpowersupplyunit.

• EasytooperateonthescreenthankstoatouchpanelandGUI(GraphicalUserInterface)design,andin

addition, usable as a telephone by intuitive dial operation with a ten-key pad.

• Selectable one of 3 conversation methods: handset conversation, hands-free conversation, and headset

conversation.

• CompatibilitywithforCUCMobtainedbyCiscosystems.

• Easyconversationsbetweenstationsevenunderhighnoiseenvironment.

Note: CiscoSystemsisaregisteredtrademarkofCiscoSystems,Inc.intheUnitedStatesandcertainother

countries.

4. HANDLING PRECAUTIONS

The transmission quality of the internet is not always guaranteed.

Therefore, when this system is connected via the internet, the following symptoms may happen when the

network is congested.

• Packetloss

• Interruptionofspeechvoice

• Generationofnoise

Indicates a potentially hazardous situation which, if mishandled, could

result in moderate or minor personal injury, and/or property damage.

CAUTION

5. NOMENCLATURE AND FUNCTIONS

• Desktopdesign

• Handset,Hands-free(withAECfunction),Headsetconnectable

• Built-intouchpanel

• PoE-compatible(IEEE802.3afcompliant)

• Built-incamera

[Front]

10 11 12

1. Power ON/OFF button

Press this button to turn on the power and pressing

it again will place the unit in sleep state.

Holding it down for 1 second or more allows the

selection of either restarting the unit or setting the

manner mode.

2. Indicators

Indicate the following operation states.

: Indicates the unit’s power ON or OFF state.

The unit is operating when the indicator is

lit, and not operating when it is unlit.

: Indicates the network connection state.

 ConnectiontoaLANisestablishedwhen

the indicator is lit, and not established

when it is unlit.

: Indicates the absence incoming call/

unread message state.

The absence incoming call or unread

messages are present when the indicator

isashing,andnotpresentwhenitisunlit.

3. Camera

Abuilt-incamerawith2megapixels.

Usedwhenmakingconversationbetweenmultimedia

stations.

4. Handset

Usedforhandsetconversation.

5. Touch panel

A7"touchpanelscreen.

6. Home button

Returns the display to the home screen.

7. Menu button

Indicates the setting items on the screen.

8. Back button

Returns the display to the last screen you viewed.

9. Speaker button

Press this button to start hands-free conversation.

10. Sleep button

Press this button to place the unit in sleep state.

Holdingitdownfor1secondormoreallowsthe

selection of either restarting the unit or setting the

manner mode.

11. Volume control button

Adjusts the volume level of the built-in speaker.

12. Numerical keypad

Usedtoenterthenumbers.

13. Delete button

Deletes one by one the dial numbers entered

when making a call or the characters entered

when registering.

14. Message button

Press this button to read or write the short message.

(Only when in the SIP server mode)

15. Conference button

Starts the three-party conversation function.

16. Transfer button

Starts the transfer function during conversation.

(Only when in the SIP server mode)

17. OK button

Conrmstheselectiononthescreenwhileinthe

touch panel operation.

18. Contact button

Press this button when registering or selecting

the telephone book.

19. Hold button

Starts the hold function during conversation.

20. Mute button

Mutes the hands-free microphone and the

handset microphone.

[Rear] [Right side]

21 22 23

21. LAN connection terminal

ConnecttheLANcabletothisterminal.

ThisterminalcanbeconnectedtoPoEswitching

hub.

22. PC connection terminal

ConnectaPCtothisterminal.

23. DC input terminal

ConnecttheACadapter*tothisterminal.

*UsetheoptionalAD-1215Poritsequivalent.

24. Security slot

Usedtoconnectthesecuritywiresuchasatheft

preventing wire.

This is a Kensington lock slot.

25. Handset connection terminal

Connectthehandsettothisterminal.

26. USB connection terminal

ConnectaUSBdevicetothisterminal.

27. Headset connection terminal

Connectaheadsettothisterminal.

6. CONNECTION

N-SP80MS1 unit (Rear)

To the switching hub

To a PC

To AC mains

Theft preventing wire

Supplied

handset

[Power supply connection]

PowerissuppliedfromtheACadaptororthePoE-compatibleswitchinghub.

Forthepowersupplyfromtheswitchinghub,seebelow"2.LANconnectionterminal."

1. DC input terminal

ConnecttheACadapter.*

*UsetheoptionalACadapterAD-1215Poritsequivalent.Asfortheusableadapter,consultyourTOAdealer.

Tip

IfboththeACadapterandthePoEswitchinghubareconnected,thepowerwillbesuppliedfromtheone

thathasstartedfeedingrst.

[Switching hub and PC connections]

2. LAN connection terminal

Connectthisterminaltothe100BASE-TX-compatiblenetwork.

UsetheEthernetRJ-45connectorforconnection.

AsthisterminalcanbeconnectedtoPoEswitchinghub,powercanbesuppliedfromthePoEswitchinghub

when this terminal is connected to it.

Inthiscase,usetheswitchinghubmeetingthefollowingspecication.

SpecicationoftheusablePoEswitchinghub:IEEE802.3afcompliant

Tip

IfboththeACadapterandthePoEswitchinghubareconnected,thepowerwillbesuppliedfromtheone

thathasstartedfeedingrst.

3. PC connection terminal

ConnectaPCtothisterminal.

UsetheEthernetRJ-45connectorforconnection.

Thisterminalcanalsobeconnectedtothe100BASE-TX-compatiblenetwork.

Note

ThisterminalisnotPoE-compatible.

TheuseoftheACadapterotherthanthespeciedonemaycause

are.

CAUTION

WhenpowerissuppliedfromthePoEswitchinghub,besureto

usetheonemeetingthespeciedspecication.

The useofthe switchinghub other than the speciedone may

causeare.

CAUTION

[Other connections]

4. Handset connection terminal

Connectthesuppliedhandsettothisterminal.

5. Security slot

Connect a commercially available theft preventing

wire to this slot as needed.

This is a Kensington lock slot.

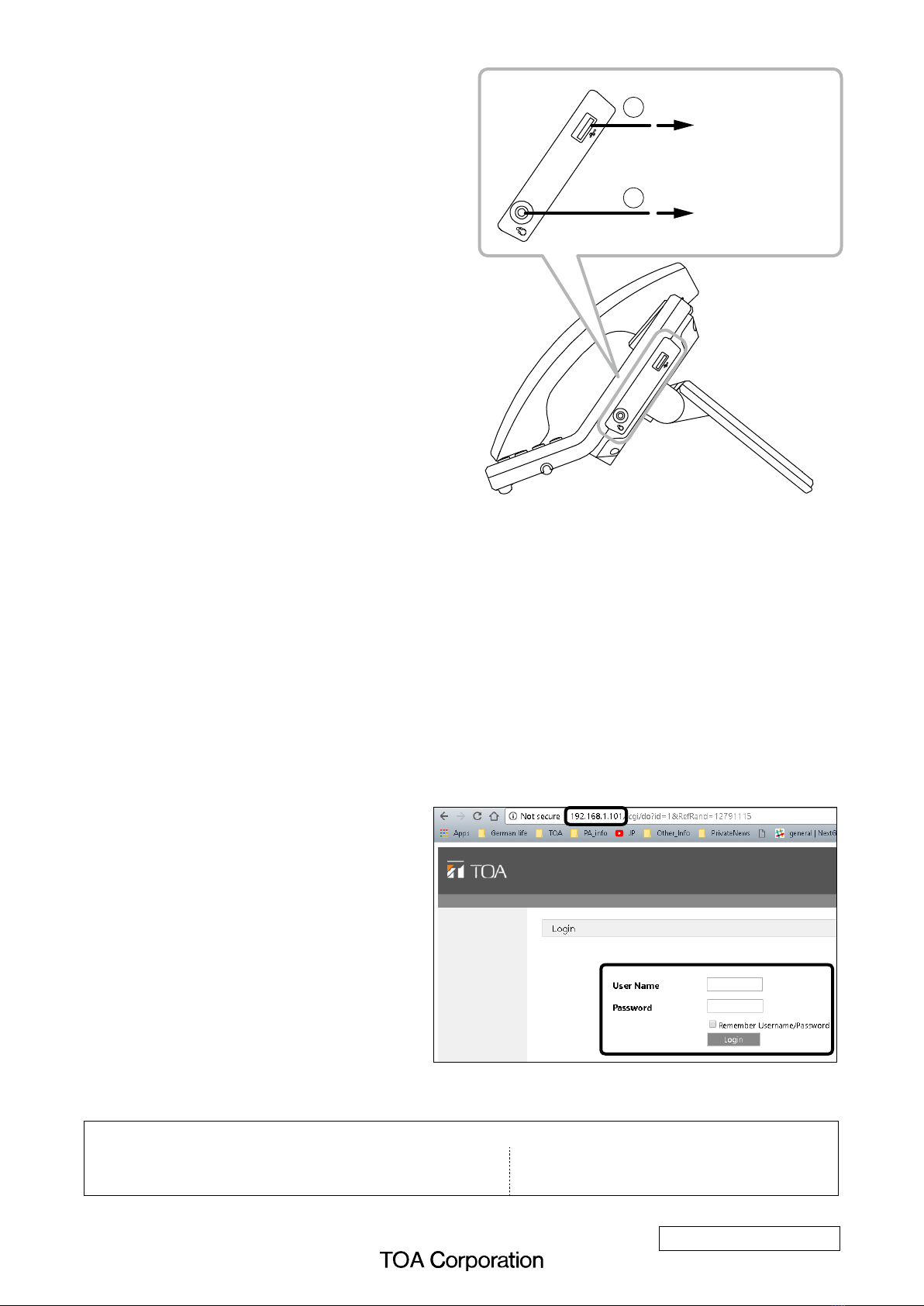

[USB device connection]

6. USB connection terminal

Connect a USB device such as a USB memory to

this terminal.

ThisterminalisUSB2.0compatible.

[Headset connection]

7. Headset connection terminal

Connectaheadsettothisterminal.

Usableheadset:16/32Ω,

3.5 mm (0.14") dia. mini plug (3 pins)

URL:http://www.toa.jp/

Traceability Information for Europe

Manufacturer:

TOACorporation

7-2-1,Minatojima-Nakamachi,Chuo-ku,Kobe,Hyogo,Japan

Authorized representative:

TOAElectronicsEuropeGmbH

Suederstrasse282,20537Hamburg,Germany

To a USB device

(USB memory, etc)

To the handset

N-SP80MS1 unit (Right side)

7. SYSTEM SETTING USING A BROWSER

A browser is required to access the system settings to activate unit.

Connecttotheunit'sWebserverbyusingtheIPaddress.

ThedefaultIPaddressis192.168.1.101.(Subnetmaskis255.255.255.0.)

WhenusingthedefaultIPaddress,enter"http://192.168.1.101"toestablishtheconnection.

TheIPaddresscanbeconrmedbyselectingthe"Setting"iconontheunit'stouchpanel.

For the details, see the separate "N-SP80 Series Instruction Manual."

The latest version of the "N-SP80 Series Instruction Manual" can be downloaded from the TOA product data

download site (http://www.toa-products.com/international/).

Usernameandpasswordsettingsareasfollows.

Username: N-SP80

 The user name is xed. It cannot

be changed.

Password: guest (default setting)

The password can be changed.

  Enteritwithupto63characters.

Notes

  •Unusablecharacters:&,%,',=

  •Passwordiscase-sensitive.

133-06-00042-00
