Toa 9000M2 Series Manuel utilisateur
1/40
9000M2 Series
Quick Start Guide
-Multi-zone BGM/Paging-
Retail Stores
2/40
System Overview
9000M2 Series Mixer Amplifier and audio devices are installed in back room. An audio source,
which is broadcast in each area, is selectable and output volume is also adjustable by remote
controllers on the wall.
Paging through telephone PBX to selected areas is also available.
When store announcements feed into the 9000M2 unit from external equipment, they can
override the other input sources.
System Components
1．A-9120DHM2 x 1
2．ZM-9012 x 4
3．ZM-9014 x 4
4．D-001T x 1 (D-001R may also be used for unbalanced RCAline input sources)
5．ZP-001T x 1
6．S-20S x 2
7．T-001T x 3
8．RC-001T x 1 (with AD-246)
9．CD Player x 1
10．Satellite Receiver x 1
11．PBX x 1
12．DA-250DH x 1
13．DA-250FHx 1
14．CS-304
15．F-2000BTWP
16．SC-615T
17．F-122CU2
18．PE-304
Setting
Input 1 (D-001T): CD-Player
Input 2 (D-001T): Satellite Receiver
3/40
Input 3 (ZP-001T): PBX
Input 4 (S-20S): Store Announcements 1 (Priority 2)
Input 5 (S-20S): Store Announcements 2 (Priority 2)
Output 1 (A-9120DHM2): Parking
Output 2 (A-9120DHM2): Entrance
Output 3 (DA-250DH): Cashiers
Output 4 (DA-250DH): Dressing Rooms
Output 5 (DA-250FH): Dept A
Output 6 (DA-250DH): Dept B
Output 7 (DA-250DH): Back Office
Output 8 (DA-250DH): Warehouse/Stockroom
Remote out (RC-001T) : ZM-9012[0] >> ZM-9012[1] >> ZM-9012[2] >>
ZM-9014[3] >> ZM-9014[4] >> ZM-9014[5] >>
ZM-9014[6] >> ZM-9012[7]
Button Configuration
ZM-9012[0]: Parking
Changing the output volume.
ZM-9012[1]: Entrance
Changing the output volume.
ZM-9012[2]: Cashiers
Changing the output volume.
ZM-9014[3] : Dressing rooms
Button1: Input 1 routes to speaker Output 4
Button2: Input 2 routes to speaker Output 4
Volume: Output 4
ZM-9014[4] : Dept A
4/40
Button1: Input 1 routes to speaker Output 5
Button2: Input 2 routes to speaker Output 5
Volume: Output 5
ZM-9014[5] : Dept B
Button1: Input 1 routes to speaker Output 6
Button2: Input 2 routes to speaker Output 6
Volume: Output 6
ZM-9014[6] : Back office
Button1: Input 1 routes to speaker Output 7
Button2: Input 2 routes to speaker Output 7
Volume: Output 7
ZM-9012[7]: Warehouse/ Storeroom
Changing the output volume.
C-OUT 1 connected to Trigger input 1 on S-20S -1
C-OUT 2 connected to Trigger input 1 on S-20S -2
5/40

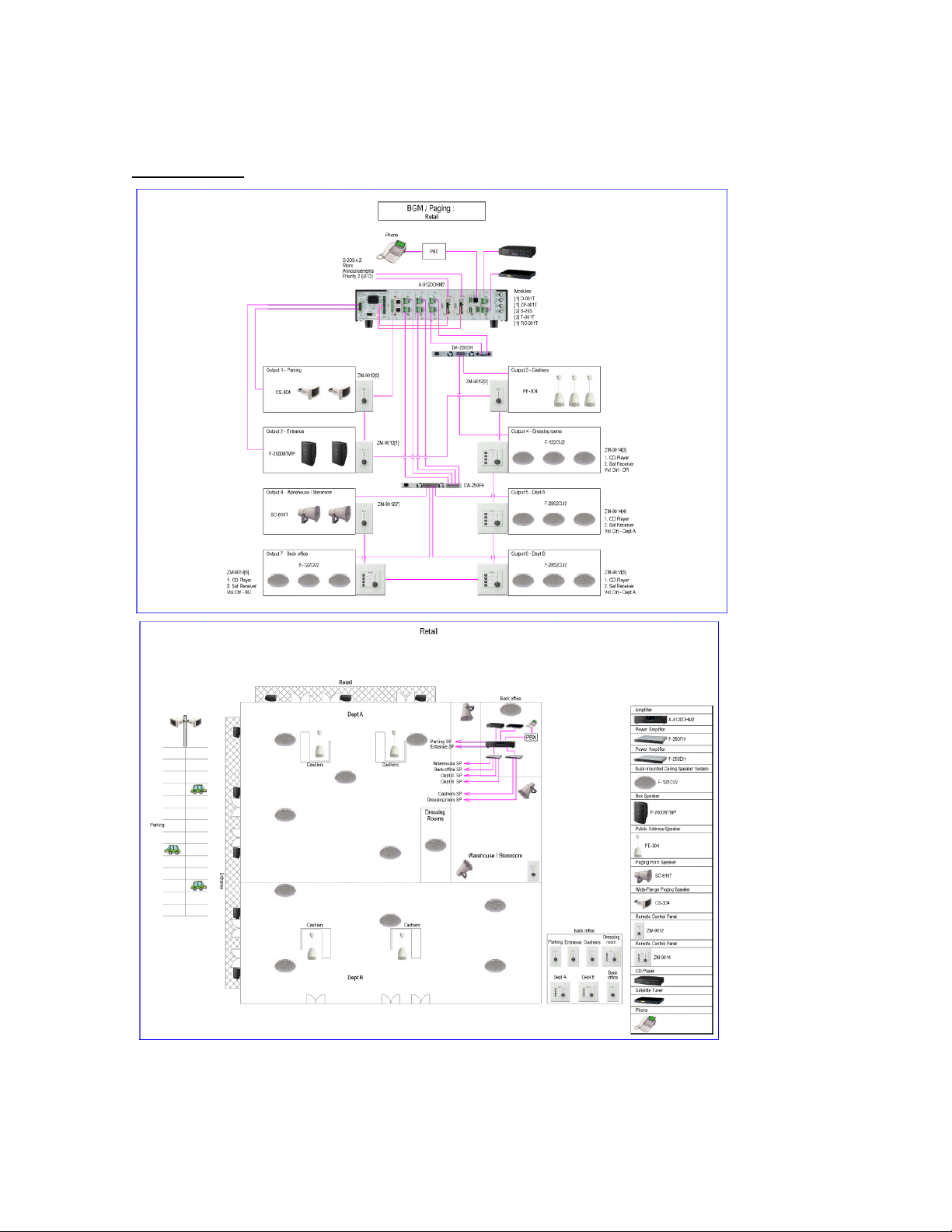

Configuration
6/40

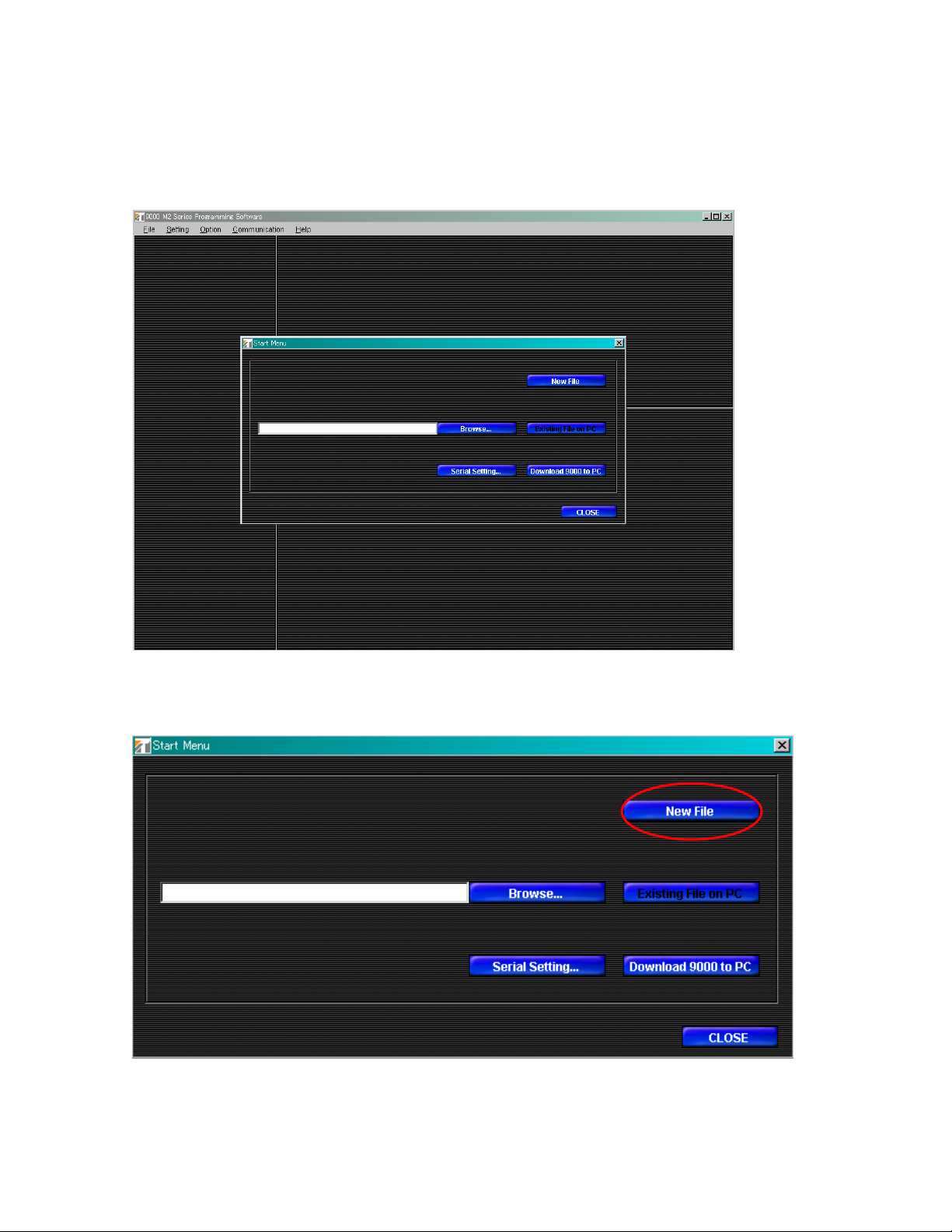

1. The following is the initial setting wizard screen.
2. Click “New File”on the Start Menu window.
7/40

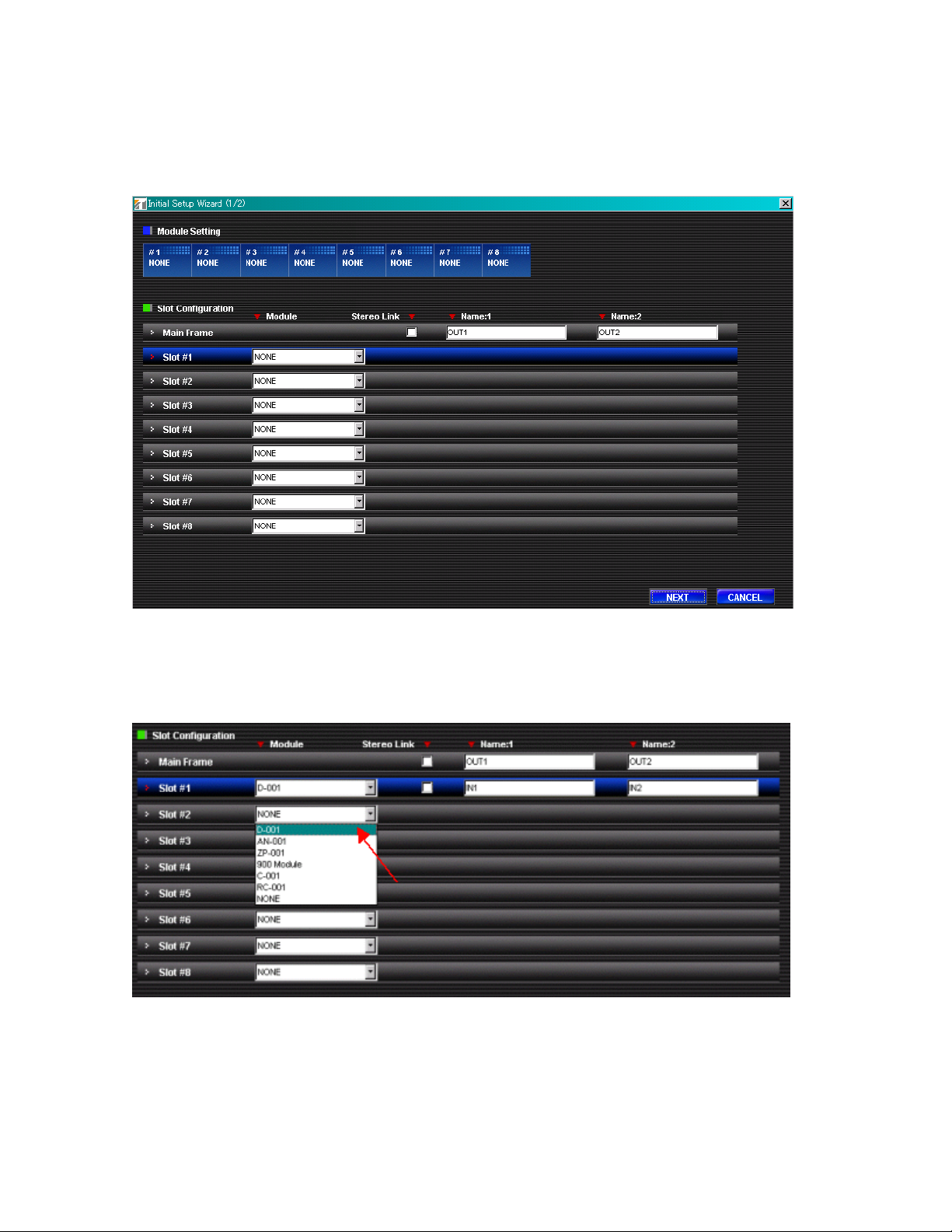

3. Set module configurations.
4. Select the modules to be inserted into the amplifier’s slots from the pull-down menu in the
Module field.
8/40

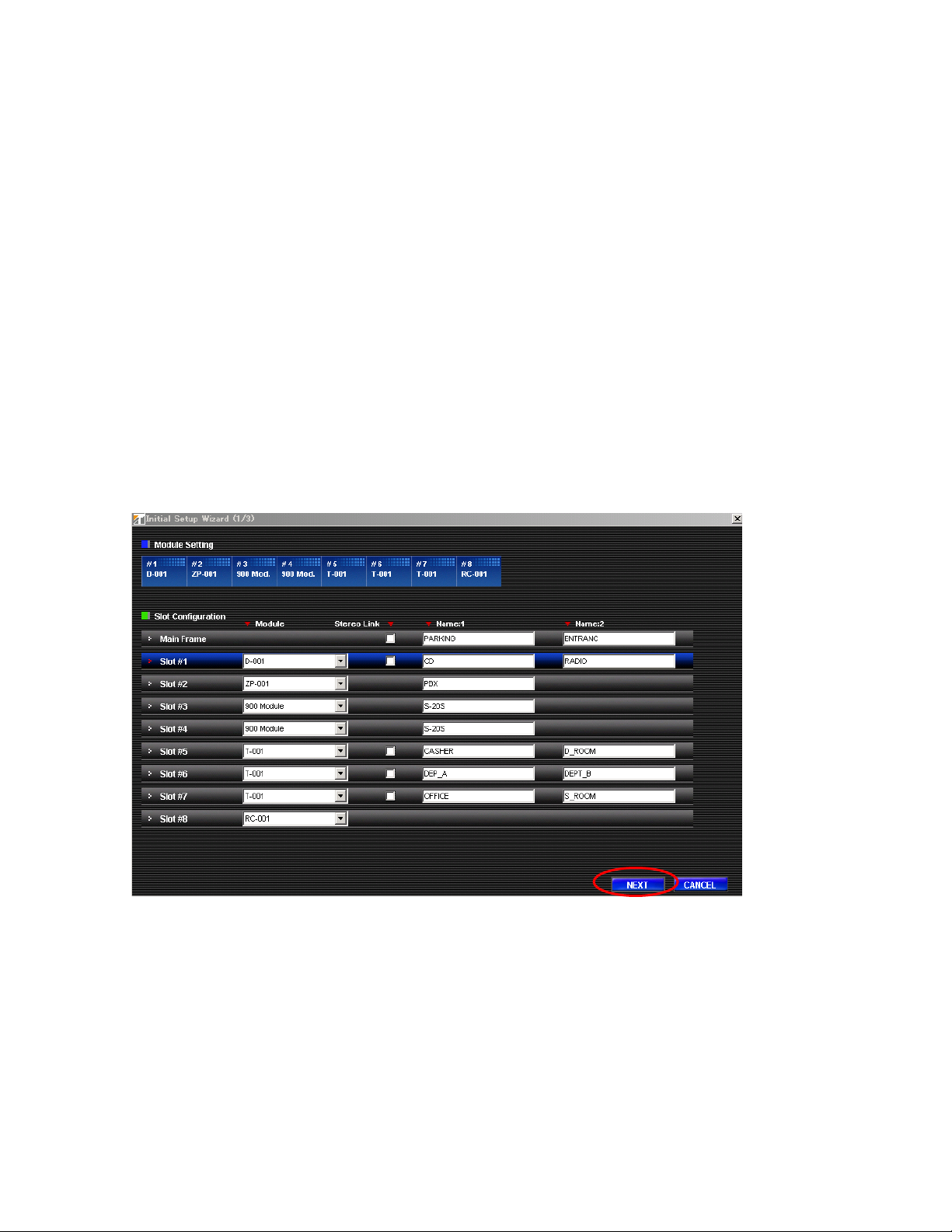

5. Select a module for each slot. At the same time, please name each channel (ex. “MIC 1”).
Main Frame Name 1 >> “PARKING”Name 2 >>”ENTRANCE”
Slot #1 >> D-001 Name 1 >> “CD”Name 2 >> “RADIO”
Slot #2 >> ZP-001 Name 1 >> “PBX”
Slot #3 >> 900 Module Name 1 >> ”S-20S”
Slot #4 >> 900 Module Name 1 >> “S-20S”
Slot #5 >> T-001 Name 1 >> “CASHER”Name 2 “D-ROOM”
Slot #6 >> T-001 Name 1 >> “DEPT-A”Name 2 “DEPT-B”
Slot #7 >> T-001 Name 1 >> ”OFFICE”Name 2 “S-ROOM”
Slot #8 >> RC-001
6. Click the “NEXT”button when finished.
9/40

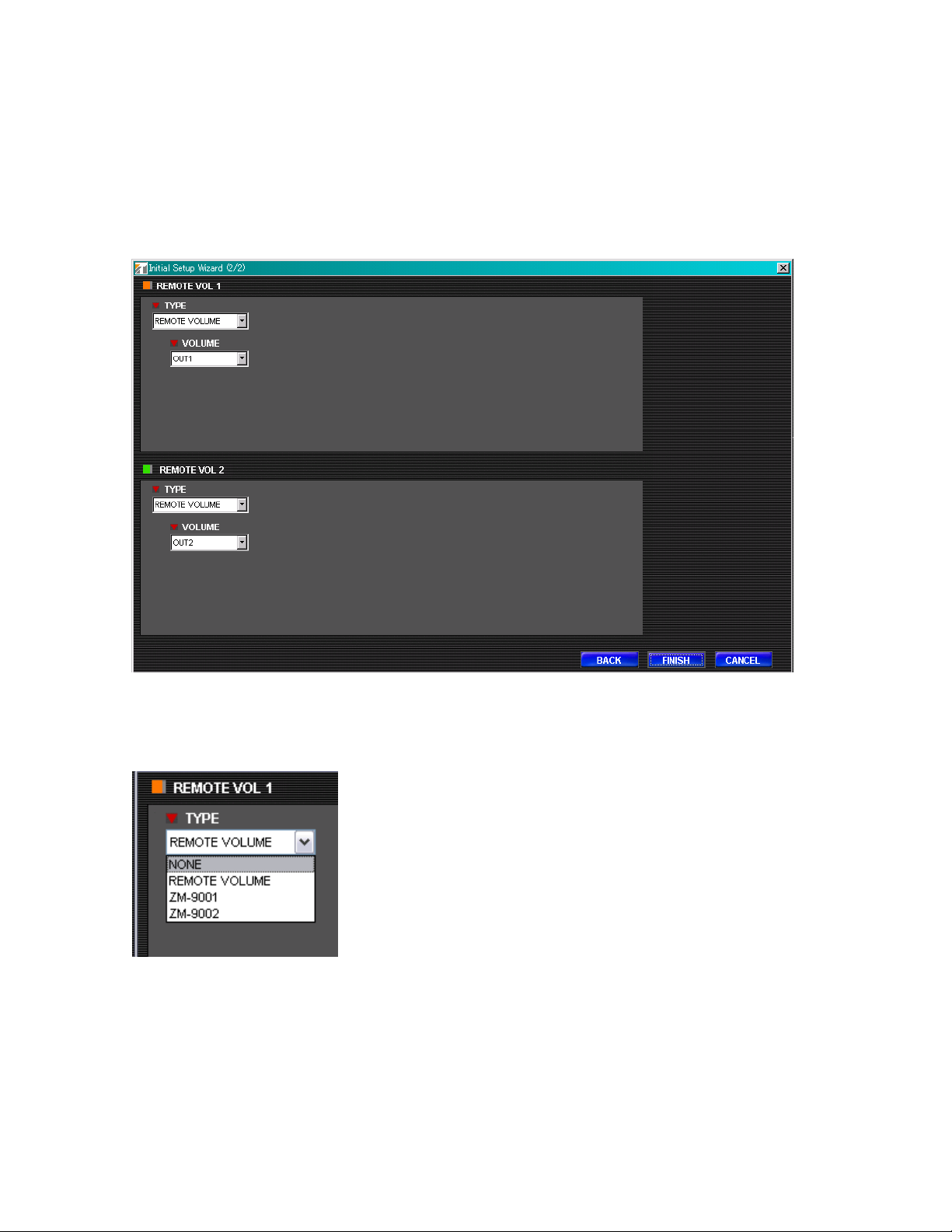

7. The following window is for setting devices connected to REMOTE VOLUME terminal on
9000M2 rear panel. If you do not use ZM-9001, ZM-9002 or ZM-9003, select “NONE”from the
combo box “TYPE”.
8. In this “BGM/Paging “application, select NONE both REMOTE VOL1 and REMOTE VOL2
10/40

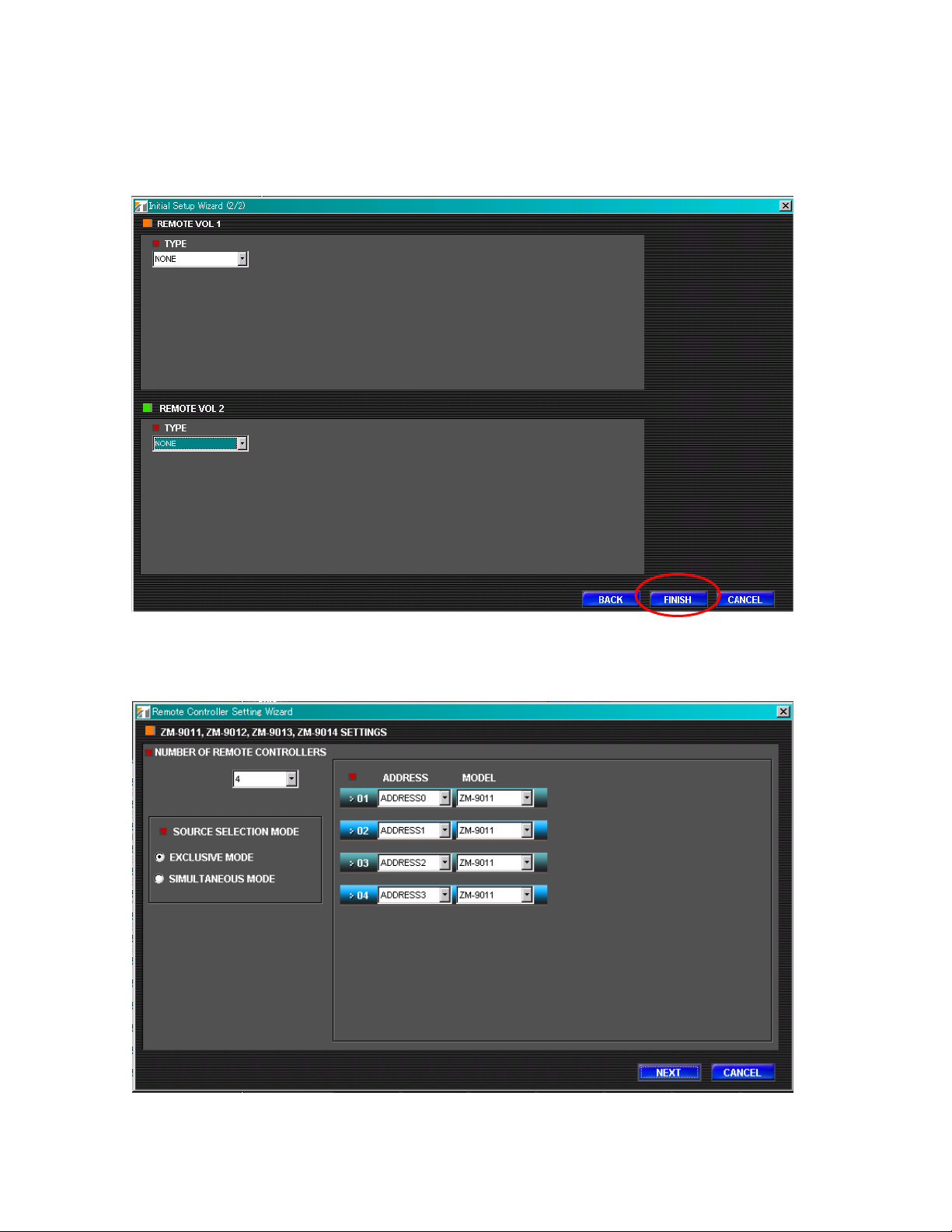

9. Click “FINISH”button.
10. Setting for Remote Controller: ZM-9011/9012/9013/9014.
