Key Features
• Complies with IEEE802.3u 100BASE-TX and 100BASE-FX standard

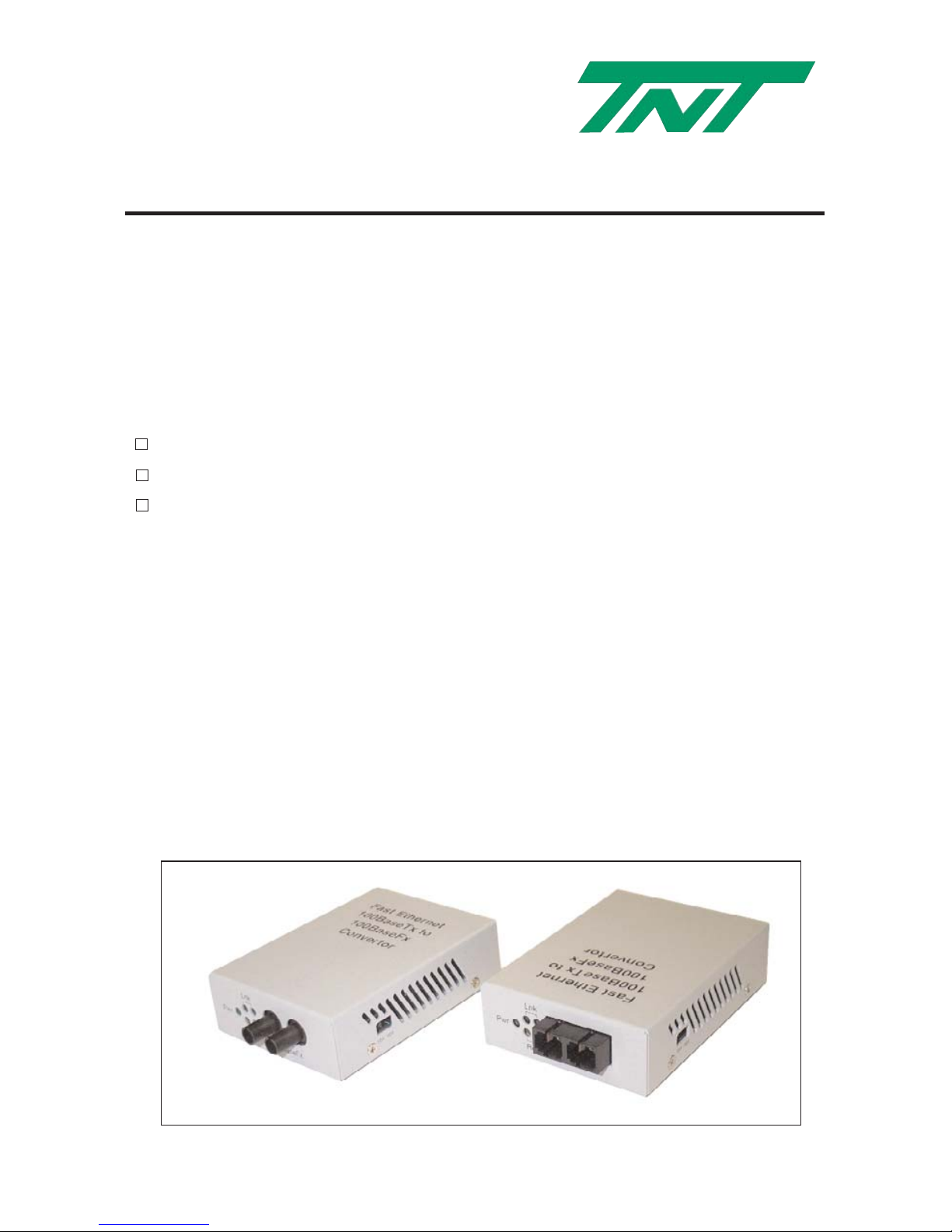

• Provides one 100BASE-TX and one 100BASE-FX port
• Support ST or SC fiber connector
• Provides a slide switch to set the Half/Full duplex mode, for connection
between a full duplex device and a half duplex device
• Five LED indicator, Power, TX Link, TX Receive, FX Link and FX Receive
• Extend fiber distance up to 2 Km when running in Full Duplex mode, Switch to
Switch connection, or Switch to Node connection
• Extend fiber distance up to 412 meter when running in Half Duplex mode, Switch to
• Switch connection, or Switch to Node connection
• Extend fiber distance up to 208 meter when running in Half Duplex mode, Switch to
Hub connection, or Hub to Node connection
• External power adapter with 5V, 1.5A
• FCC Class A and CE approved
• Wall Mountable
Applications
In order to achieve the purpose of effectively expanding the distance of the Fast
Ethernet network, position two 193-FXC (or 193-FXD) back to back between the
following devices:
Example A: Two LAN switches
Switch ----- 193-FX ------------------------ 193-FX ---- Switch
Example B: One LAN Switch and a LAN server
Switch ----- 193-FX ------------------------ 193-FX ---- Server
Example C: 100BASE-TX Hub and workstations (W/S)
Hub -------- 193-FX ------------------------- 193-FX ---- W/S
Instead of using tow 193-FX-(ST/SC) for "back to back" arrangement, another effective
application is to position one 193-FX directly between the 100BASE-TX network and
the Fiber-Optic (100BASE-FX) device.
Example D: Fiber Optic device and 100BASE-TX network
Fiber Optic Device --- 193-FX -------- 193-FX ---- 100BASE-TX network
