TMI Products VD33A Manuel utilisateur

Issued on : 19. 03. 2014

ψ29. 50 mm

H 4. 57 mm

Specification - 1

Specification - 2

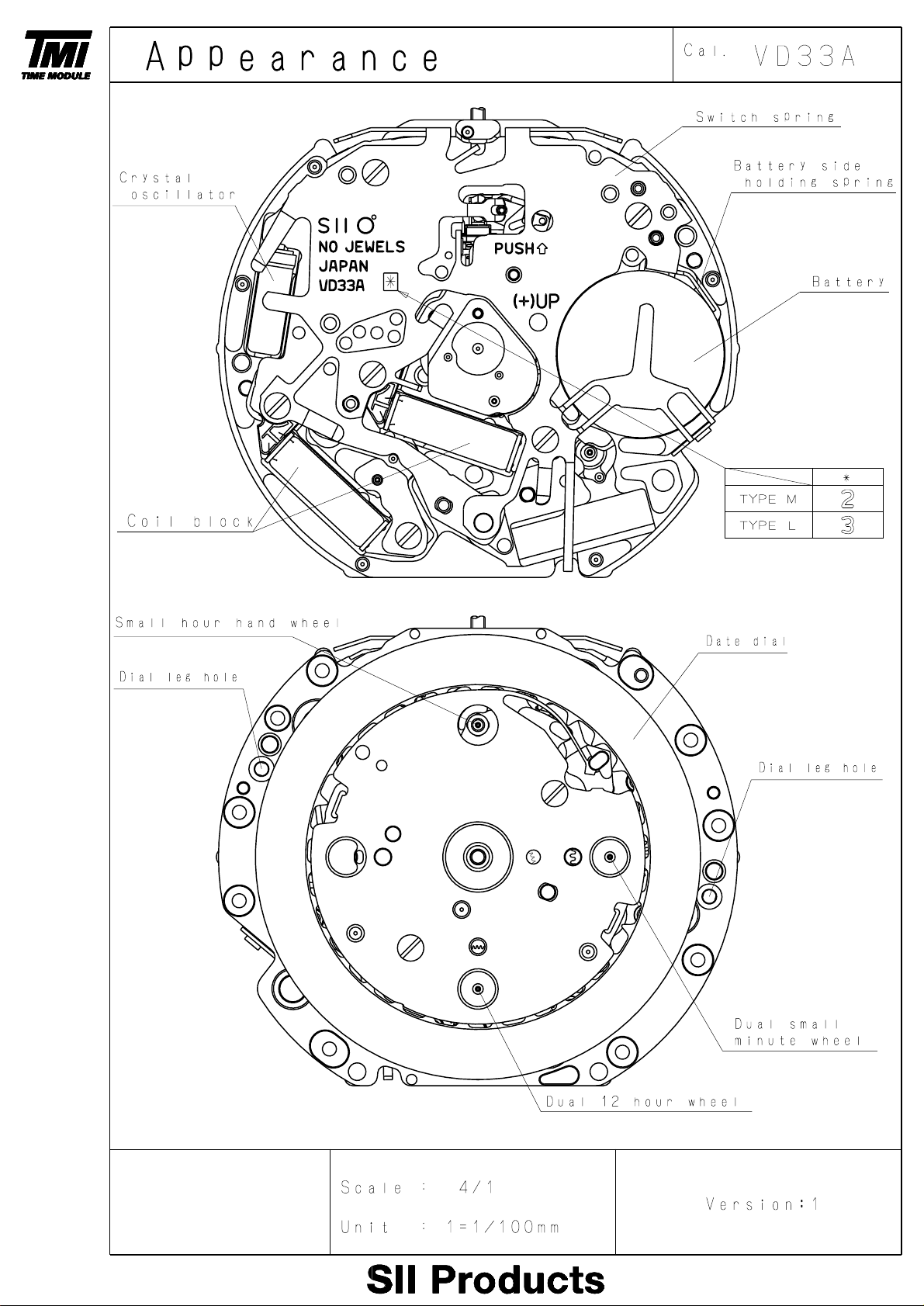

Appearance

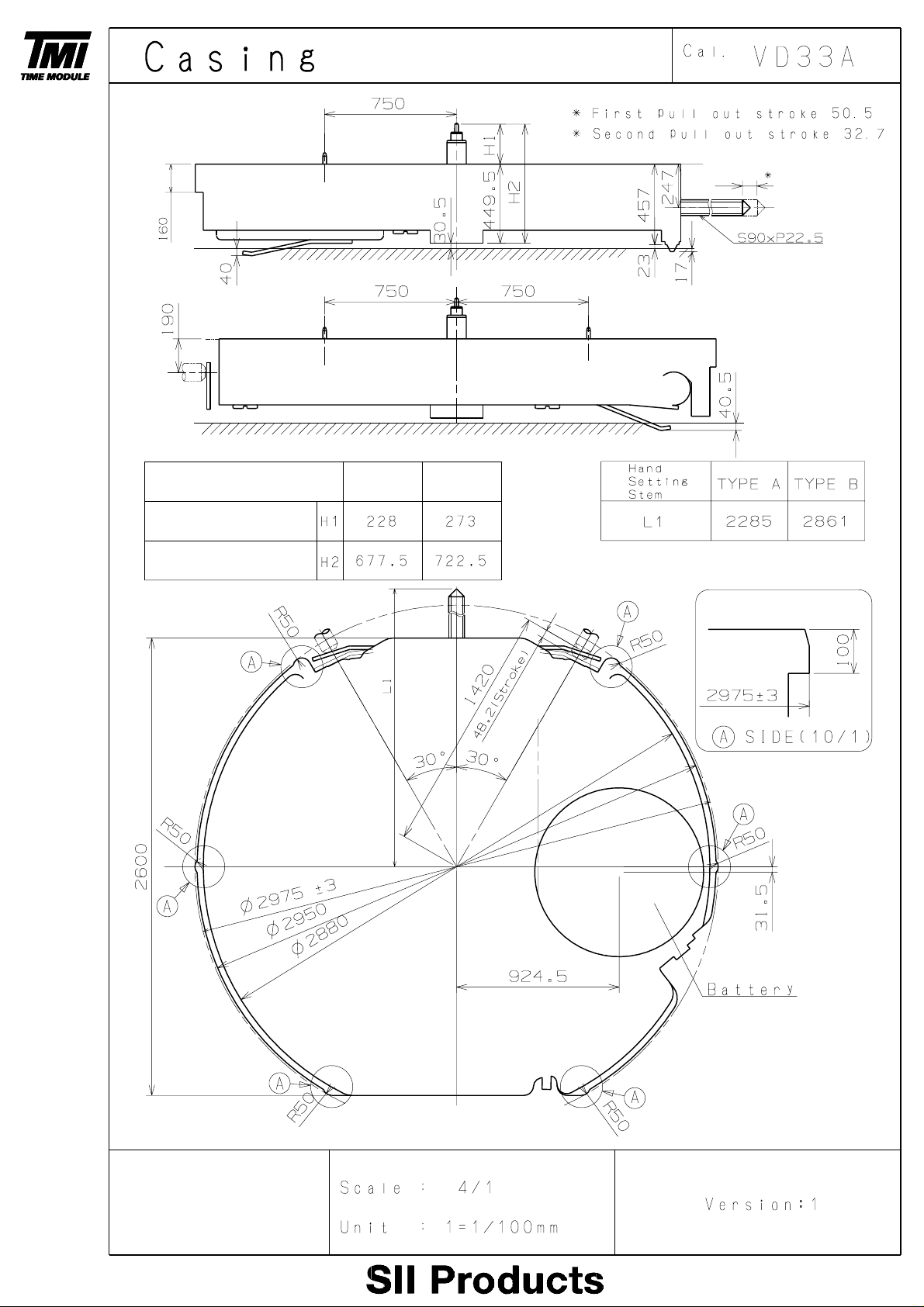

Casing

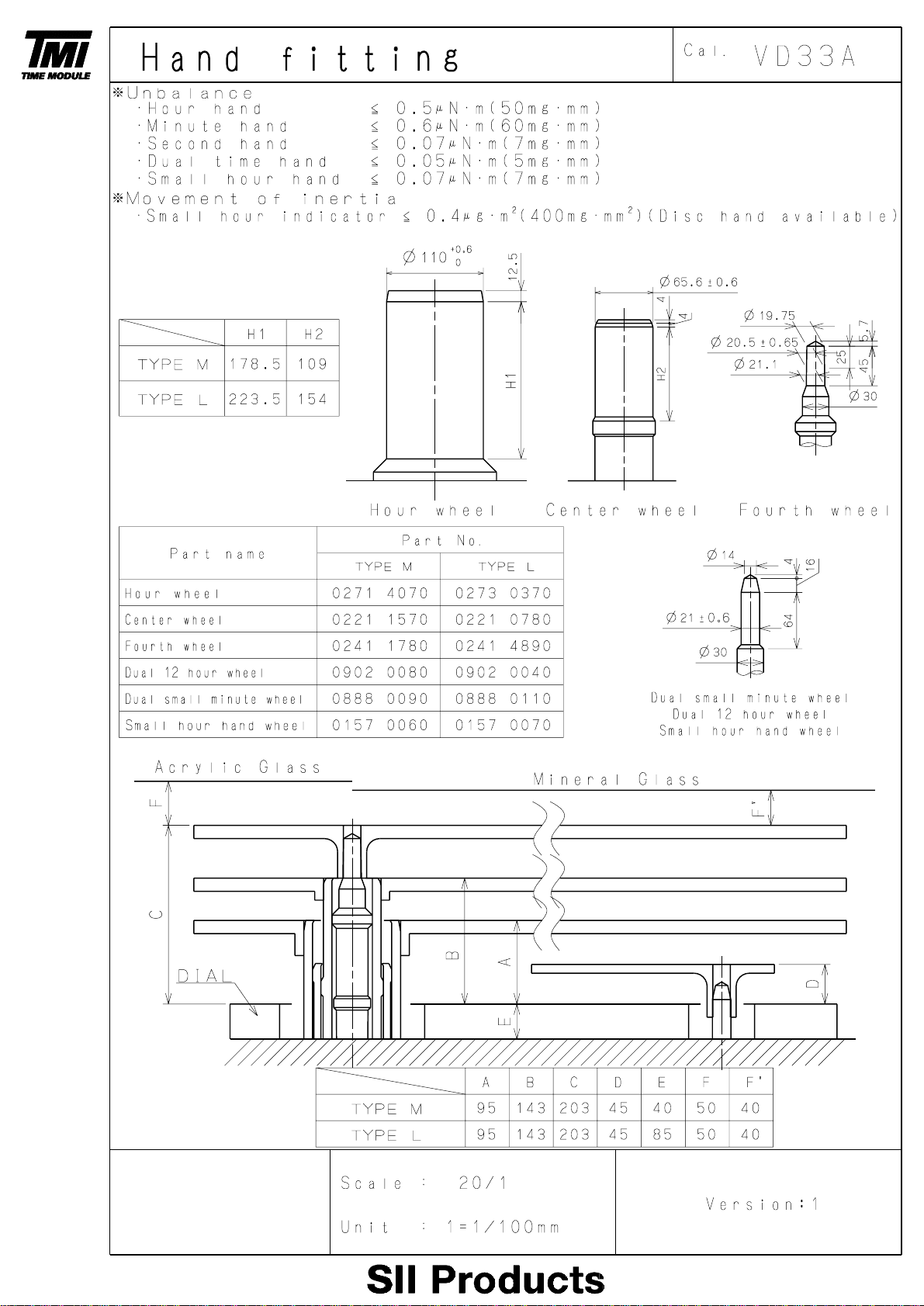

Hand Fitting

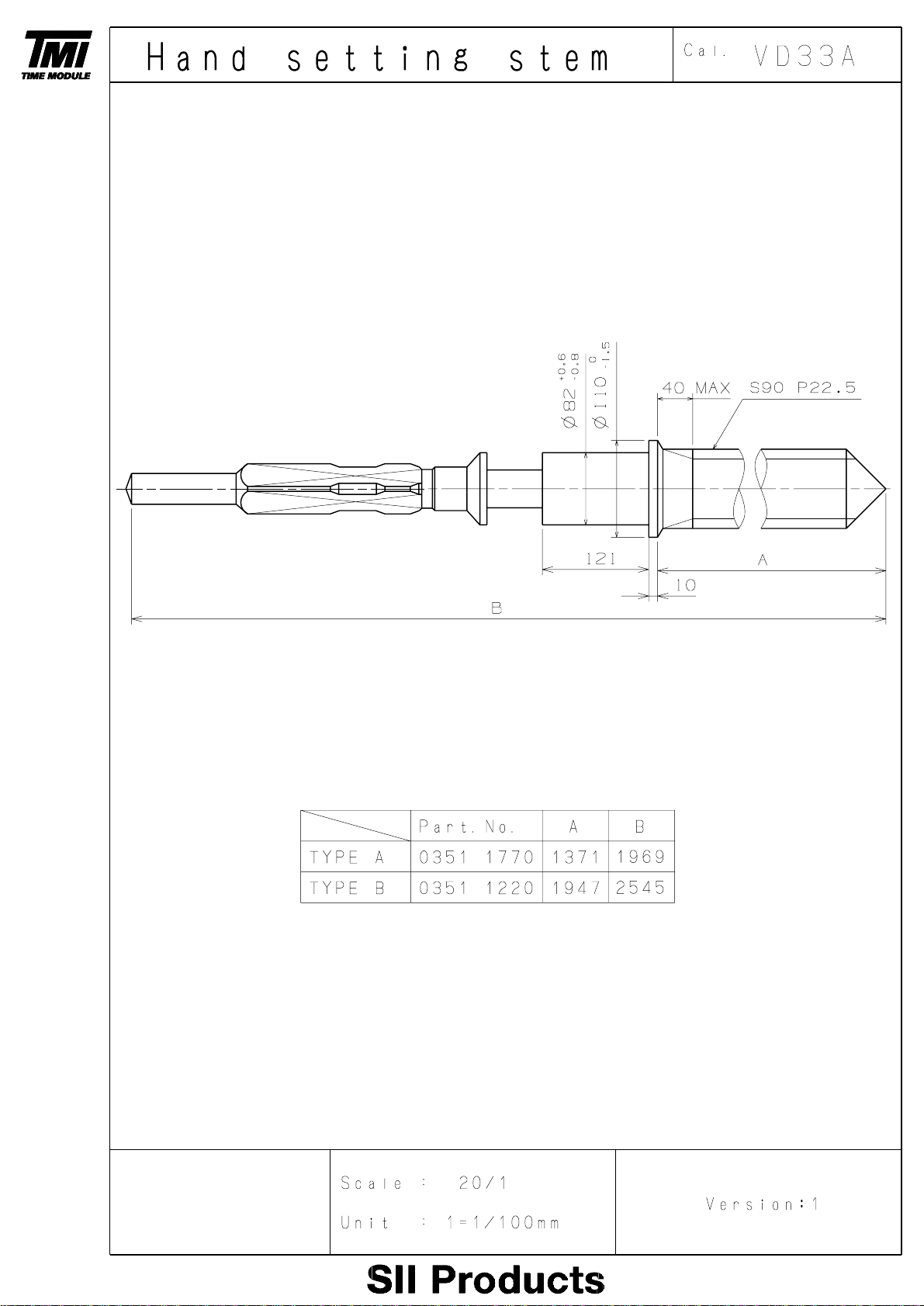

Hand Setting Stem

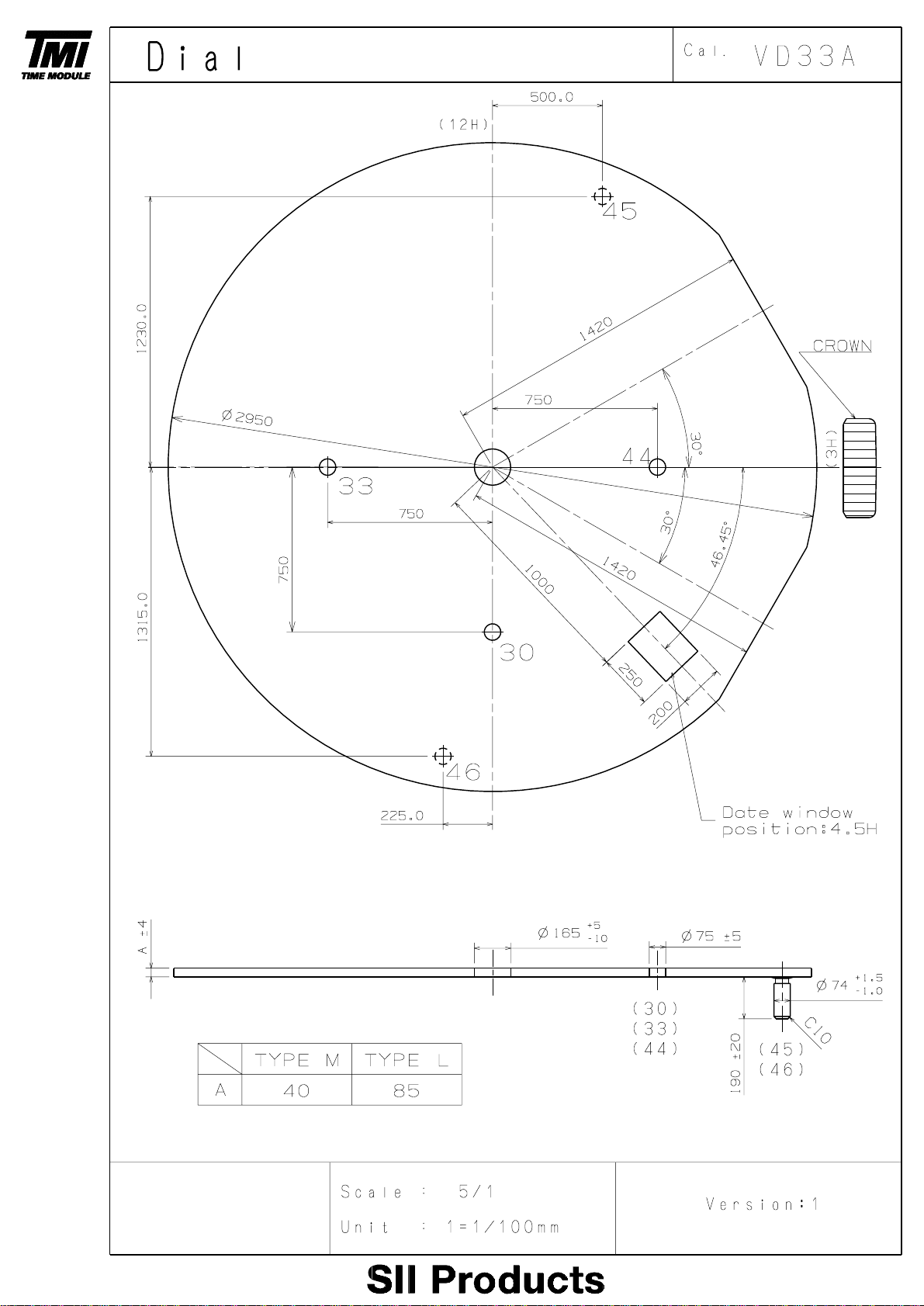

Dial

Assembly Plan - 1

Assembly Plan - 2

Hands

SII Products

Cal. VD33A

Version 1

Version No.Item

Version 1

MOVEMENT SPECIFICATION - 1

1. MOVEMENT DIMENSIONS

Outside diameter ψ29.50mm (12H~6H) x 26.00mm (3H~9H)

Casing diameter ψ28.80mm (12H~6H)

Total height 4.57 mm

2. TIME STANDARD

Type of quartz oscillator Tuning fork

Frequency of quartz oscillator 32,768 Hz

Accuracy Monthly rate: Less than 20 seconds per month at

normal temperature range

Regulation device Nil

Regulation hands unbalance Hour hand : Less than 0.50 µN·m ( 50mg·mm )

Minute hand : Less than 0.60 µN·m ( 60mg·mm )

Second hand : Less than 0.07 µN·m ( 7mg·mm )

Dual time hand : Less than 0.05 µN·m ( 5mg.mm )

24H indicator hand : Less than 0.07 µN·m ( 7mg.mm )

The moment of inertia 24H indicator hand

(Disc hand)

Additional function Regulator dual time ( 12 hours, 60 minutes )

24H indicator ( synchronized regular hour-hand )

3. BATTERY

Type Silver oxide battery

Size ψ9.5 x t 2.0 ( mm )

Battery life Approx. 2 years

Recommended battery SR920SW ( SEIZAIKEN )

4. STEPPING MOTOR

Number of units 2 pieces

Type Two pole stepping motor

Step 180°every second

5. JEWEL

0 jewel

6. ANTIMAGNETISM

≧1600 A / m ( Will not affected by general household appliance )

( direct current magnetic field )

7. SHOCK RESISTANCE

On equal level with general quartz movement

8. OPERATING TEMPERATURE RANGE

From - 5 ℃to + 50 ℃

9. TEST OF ACCURACY

Equipment to be used SEIKO Quartz Tester QT - 99

Greiner Quartz Timer - C

Witschi Q-Tester 4000

Duration of measurement 10 seconds

Microphone to be used Electromagnetic detection type

10. ATTACHED PARTS

* All specifications are subject to change without notice.

SII Products Version: 1

Three Hands with 3 Eyes / Date ( 24H Indicator, Regulator Dual Time of 12H & 60M )

CAL.VD33A 12 3 / 4 Ligne Quartz Movement

: Less than 0.40 µg·m² ( 400mg·mm² )

3013 - 14G0

0110 - 3400

Parts Name

Hand setting stem

Sticker

Silver oxide battery

Parts Code

0351-1770 (Normal) / 0351-1220 (Long)

Movement Specification - 2

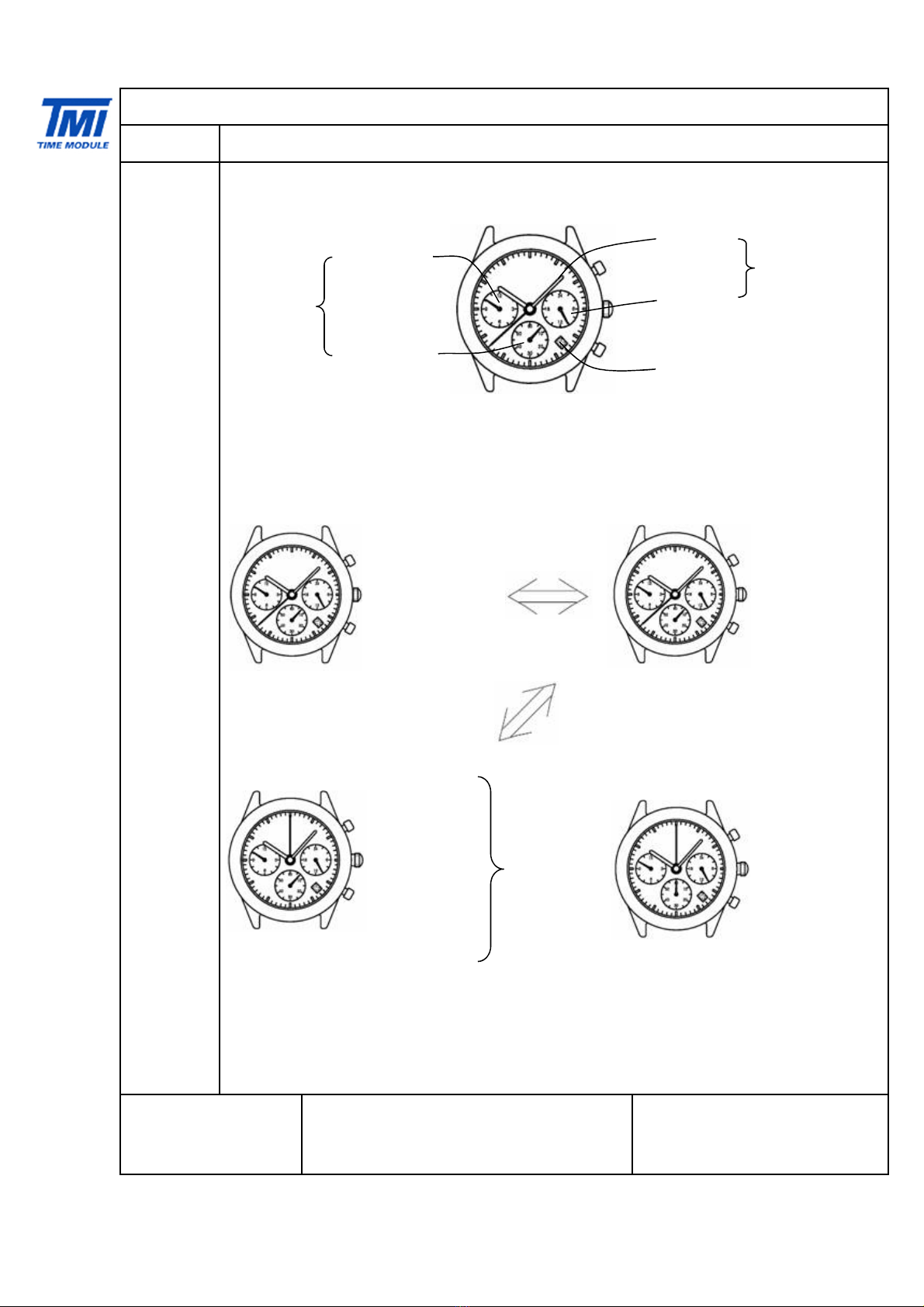

OPERATION

Version 1

SII Products

CAL. VD33A

2 step motors ( 3 hands with calendar, dual time of 12 hours )

Minute hand

12H hand

3 hands

First click position

24H hand

Linkage

Free

Dual time correction

-1 hour / PUSH

Dual time correction

+1 hour / PUSH

Dual time correction

-1 hour / PUSH

Dual time correction

+1 hour / PUSH

Adjusting calendar

(Clockwise)

Normal position

Second click position

Dual time zero position reset mode

( AC finished = Reset relieved )

Dual time correction

Counter clockwise

( Keep pushing :

hand moving fast )

Dual time correction

Clockwise

( Keep pushing :

hand moving fast )

Time setting

Reset switch

Second setting device

Dual time correction

Counter clockwise

( Keep pushing :

hand moving fast )

Dual time correction

Clockwise

( Keep pushing :

hand moving fast )

*Hands demonstration while AC reset :

Dual time minute hand :

Counter clockwise 1 / 2 cycle,

Clockwise 1 / 2 cycle.

Time setting

Reset switch

Second setting device

*After the Dual time hands reset to the [12:00]

position, push the crown back to normal

position.

AC functions

(Keep buttons

"A" & "B"

pressed at the

same time for

2 seconds,

and then release

the buttons)

Dual time

(Linkage)

Date

Center post 中心柱位

Maximum height from main plate surface

與機芯平面之最大高度

Total height incl. movement

機芯總高度

Type M

一般針高

Type L

高針

Type M 一般針高

Type L 高針

Hour wheel 時針輪

Center wheel 分針輪

Fourth wheel 秒針輪

Small hour hand wheel 小時針輪

Dual 12 hour wheel 兩地時間12小時時針輪

Type M 一般針高

Type L 高針

Type M 一般針高

Type L 高針

Dual small minute wheel 兩地時間小分針輪
