TMG TMG-GLS34 Manuel utilisateur
MODEL TMG-GLS34
34TON TOW BEHIND LOG SPLITTER
KOHLER®POWERED
PRODUCT MANUAL
V2022.03.02
Please read and understand the product manual completely before assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Do not return the product to dealer. They are not equipped to handle your requests.
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
www.tmgindustrial.com Toll Free:1-877-761-2819
TABLE OF CONTENTS
General Safety Rules.......................................................................................................................................... 2
Parts Description And Function............................................................................................................................ 8
Products Specifications...................................................................................................................................... 9
Unpacking & Assembly................................................................................................................................ . . .. 1 0
Operating the Log Splitter..................................................................................................................15
Maintaining the Log Splitter...............................................................................................................17
Troubleshooting..................................................................................................................................19
PART VI: Explosion View...................................................................................................................................21
Conventions used in this manual
WARNING
This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
CAUTION
This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
NOTICE
This information is important in proper using of your machine. Failure to follow this instruction could result in
damage to your machine or property.
Additional Information and Potential Changes
We reserve the right to discontinue, change, and improve its products at any time without notice or obligation
to the purchaser. The descriptions and specifications contained in this manual were in effect at printing.
Equipment described within this manual may be optional. Some illustrations may not be applicable to your
machine.
www.tmgindustrial.com 2/23 Toll Free:1-877-761-2819
GENERAL SAFETY RULES
WARNING
Read this Safety & Operating Instructions manual before you use the LOG SPLITTER. Become familiar with
the operation and service recommendations to ensure the best performance of your machine.

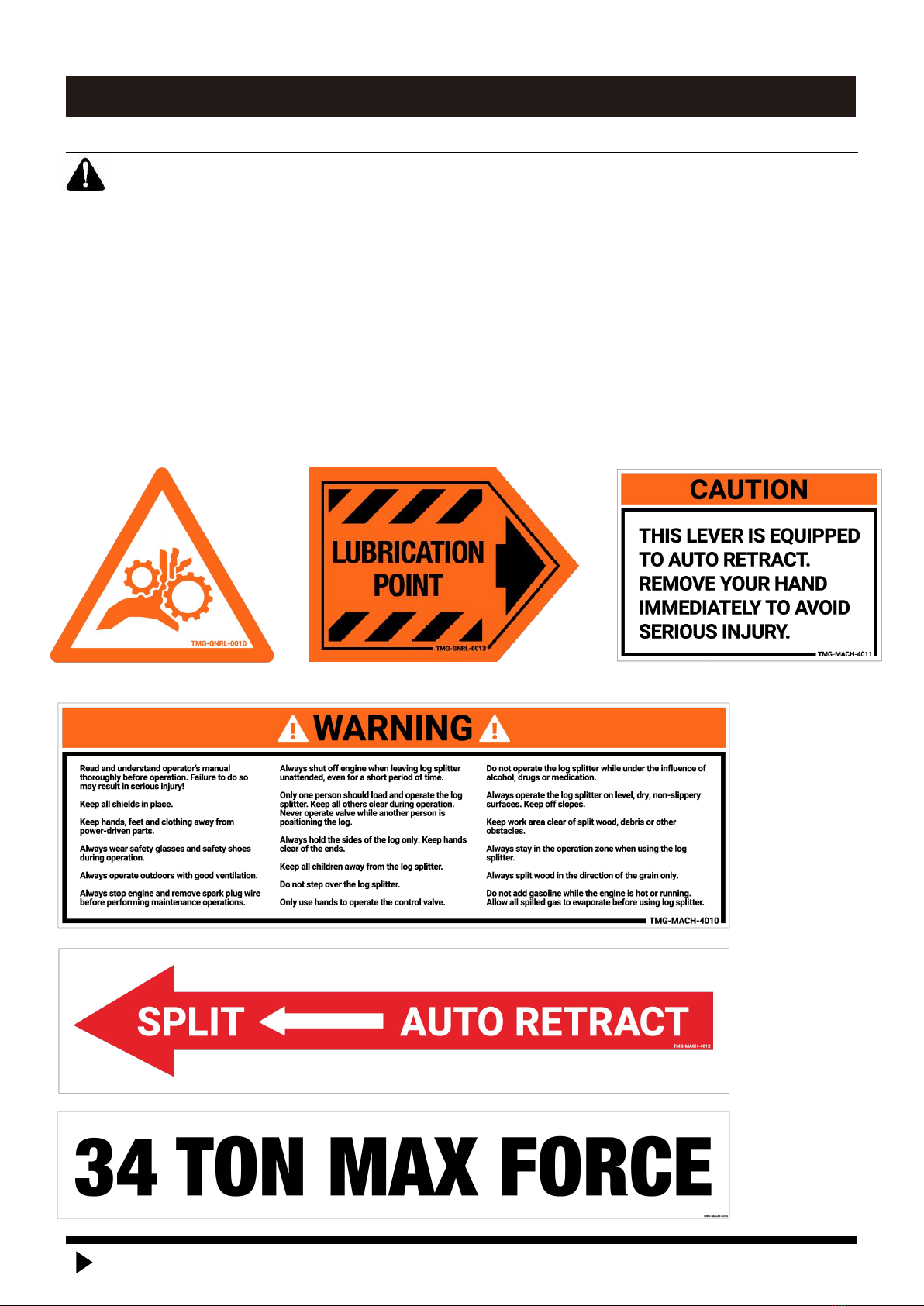

Labels
The LOG SPLITTER carries prominent labels as reminders for its proper and safe use. Shown below are
copies of all the Safety and Information labels that appear on the equipment. Take a moment to study them
and make a note of their location on your LOG SPLITTER as you set up and before you operate the unit.
Replace damaged or missing safety and information labels immediately.
0013
0010
4012
4011
4012
4010
4013
www.tmgindustrial.com 3/23 Toll Free:1-877-761-2819
4014
4015
4010
0013
4012
0010
4013
4014
4011
4015
www.tmgindustrial.com 4/23 Toll Free:1-877-761-2819
Protecting Yourself and Those Around You
WARNING
This is a high-powered machine, with moving parts operating with high energy. You must operate the
machine safely. Unsafe operation can create a number of hazards for you, as well as anyone else in the
nearby area. Always take the following precautions when using this machine:
A. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people,
their property, and themselves.
B. Always wear protective goggles or safety glasses with side shields while using the Log Splitter to protect
your eyes from possible thrown debris.
C. Avoid wearing loose clothing or jewelry, which can catch on moving parts.
D. We recommend wearing gloves while using the Log Splitter. Be sure your gloves fit properly and do not
have loose cuffs or drawstrings.
E. Wear shoes with non-slip treads when using your Log Splitter. If you have safety shoes, we recommend
wearing them. Do not use the machine while barefoot or wearing open sandals.
F. Wear long pants while operating the Log Splitter.
G. Use ear protectors or ear plugs rated for at least 20dba to protect your hearing.
H. Keep bystanders at least 50 feet away from your work area at all times. Stop the engine when another
person or pet approaches.
Safety for Children and Pets
WARNING
Tragic accidents can occur if the operator is not alert to the presence of children and pets. Children are often
attracted to the machine and the splitting activity. Never assume that children will remain where you last saw
them. Always follow these precautions:
A. Keep children and pets at least 50 feet from the working area and ensure they are under the watchful
care of a responsible adult.
B. Be alert and turn the machine off if children or pets enter the work area.
C. Never allow children to operate the Log Splitter.
Safety with Gasoline - Powered Machines
WARNING
Gasoline is a highly flammable liquid. Gasoline also gives off flammable vapor that can be easily ignited and
cause a fire or explosion. Never overlook the hazards of gasoline. Always follow these precautions:
A. Never run the engine in an enclosed area or without proper ventilation as the exhaust from the engine
contains carbon monoxide, which is an odorless, tasteless, and a deadly poisonous gas.
B. Store all fuel and oil in containers specifically designed and approved for this purpose and keep away
from heat and open flame, and out of the reach of children.
C. Replace rubber fuel lines and grommets when worn or damaged and after 5 years of use.
D. Fill the gasoline tank outdoors with the engine off and allow the engine to cool completely. Don't handle
gasoline if you or anyone nearby is smoking, or if you're near anything that could cause it to ignite or
explode. Reinstall the fuel tank cap and fuel container cap securely.
E. If you spill gasoline, do not attempt to start the engine. Move the machine away from the area of the spill
and avoid creating any source of ignition until the gas vapors have dissipated. Wipe up any spilled fuel to
www.tmgindustrial.com 5/23 Toll Free:1-877-761-2819
prevent a fire hazard and properly dispose of the waste.
F. Allow the engine to cool completely before storing in any enclosure. Never store a machine that has gas
in the tank, or a fuel container, near an open flame or spark such as a water heater, space heater, clothes
dryer or furnace.
G. Never make adjustments or repairs with the engine running. Shut down the engine, disconnect the spark
plug wire, keeping it away from the spark plug to prevent accidental starting, wait 5 minutes before
making adjustments or repairs.
H. Never tamper with the engine’s governor setting. The governor controls the maximum safe operation
speed and protects the engine. Over-speeding the engine is dangerous and will cause damage to the
engine and to the other moving parts of the machine. If required, see your authorized dealer for engine
governor adjustments.
I. Keep combustible substances away from the engine when it is hot.
J. Never cover the machine while the muffler is still hot.
K. Do not operate the engine with the air cleaner or the carburetor air intake cover removed. Removal of
such parts could create a fire hazard. Do not use flammable solutions to clean the air filter.
L. The muffler and engine become very hot and can cause a severe burn; do not touch.
General Safety
WARNING
Operating this Log Splitter safely is necessary to prevent or minimize the risk of death or serious injury.
Unsafe operation can create a number of hazards for you. Always take the following precautions when
operating this Log Splitter:
A. Your Log Splitter is a powerful tool, not a plaything. Exercise extreme caution at all times. The machine is
designed to split logs. Do not use it for any other purpose.
B. Know how to stop the Log Splitter quickly; see “stopping the engine” in Part III.
C. Never operate your unit on a slippery, wet, muddy, or icy surface. Exercise caution to avoid slipping or
falling.
D. See manufacturer’s instructions for proper operation and installation of accessories.
E. Never use the machine without ensuring that all guards and shields are in place.
F. Never, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard parts on the Log
Splitter. This includes all shields and guards. Modifications to your machine could cause personal injuries
and property damage and will invalid your warranty.
G. Allow only one person to operate the Log Splitter at any time.
H. If the machine start to make an unusual noise or vibrate, shut down the engine, disconnect the spark plug
wire, keeping it away from the spark plug to prevent accidental starting, wait 5 minutes for engine to cool
down, then inspect for damage. Vibration is generally a warning of trouble. Check damaged parts and
clean, repair and/or replace as necessary.
I. Never tamper with safety devices. Check their proper operation regularly.
J. Before performing any maintenance or inspection procedure on the Log Splitter shut down the engine,
disconnect the spark plug wire keeping it away from the spark plug to prevent accidental starting, wait 5
minutes for machine to cool down.
www.tmgindustrial.com 6/23 Toll Free:1-877-761-2819
K. Never allow people who are unfamiliar with these instructions to use the Log Splitter. Allow only
responsible individuals who are familiar with these rules of safe operation to use your machine.
L. Never overload or attempt to split logs beyond the manufacturer’s recommendation. It could result in
personal injury or damage to the machine.
M. While using the Log Splitter, don't hurry or take things for granted. When in doubt about the equipment or
your surroundings stop the machine and take time to look things over.
N. Never operate the machine when under the influence of alcohol, drugs, or medication.
O. Use the machine only in daylight.
P. Stay alert for hidden hazards or traffic.
Q. Keep all nuts and bolts tight and keep the equipment in good operating condition.
A Note to All Users
List of warnings and cautions cannot be all-inclusive. If situations occur that are not covered by this manual,
the operator must apply common sense and operate this LOG SPLITTER in a safe manner. Contact the
dealers for assistance in your area.
www.tmgindustrial.com 7/23 Toll Free:1-877-761-2819
PARTS DESCRIPTION AND FUNCTION
It may be helpful to familiarize yourself with the controls and features of your LOG SPLITTER as shown in
Figure 2, before beginning these procedures. If you have any question, please contact the dealers in your
area.
STAND FOOT
7HP KOHLER
ENGINE
OPERATION
TABLE
TOW BAR
OPERATION HANDLE
SAFETY HANDLE
WEADGE
www.tmgindustrial.com 8/23 Toll Free:1-877-761-2819
PRODUCTS SPECIFICATIONS
Splitting Force
34Ton
Engine
7HP four strokes, Recoil Start
Power
Gasoline
Control
Two-hands control
Wedge Height
7”
Log Length Capacity
24”
Log Diameter Capacity
28”
Cycle Time
3 seconds(Approximate)
Sprocket Rate
1:8
Flywheel Max RPM
450
Tire
16/8.0-7
H-beam height
26”
Overall Size
83”x33”x38”
Shipping Size
68”x19”x34”
Splitter weight
235kgs
*The diameter listed is indicative of the maximum suggested size - a small log can be difficult to split when it
contains knots or a particularly tough fiber. On the other hand, it may not be difficult to split logs with regular
fibers even if its diameter exceeds the maximum indicated above.
www.tmgindustrial.com 9/23 Toll Free:1-877-761-2819

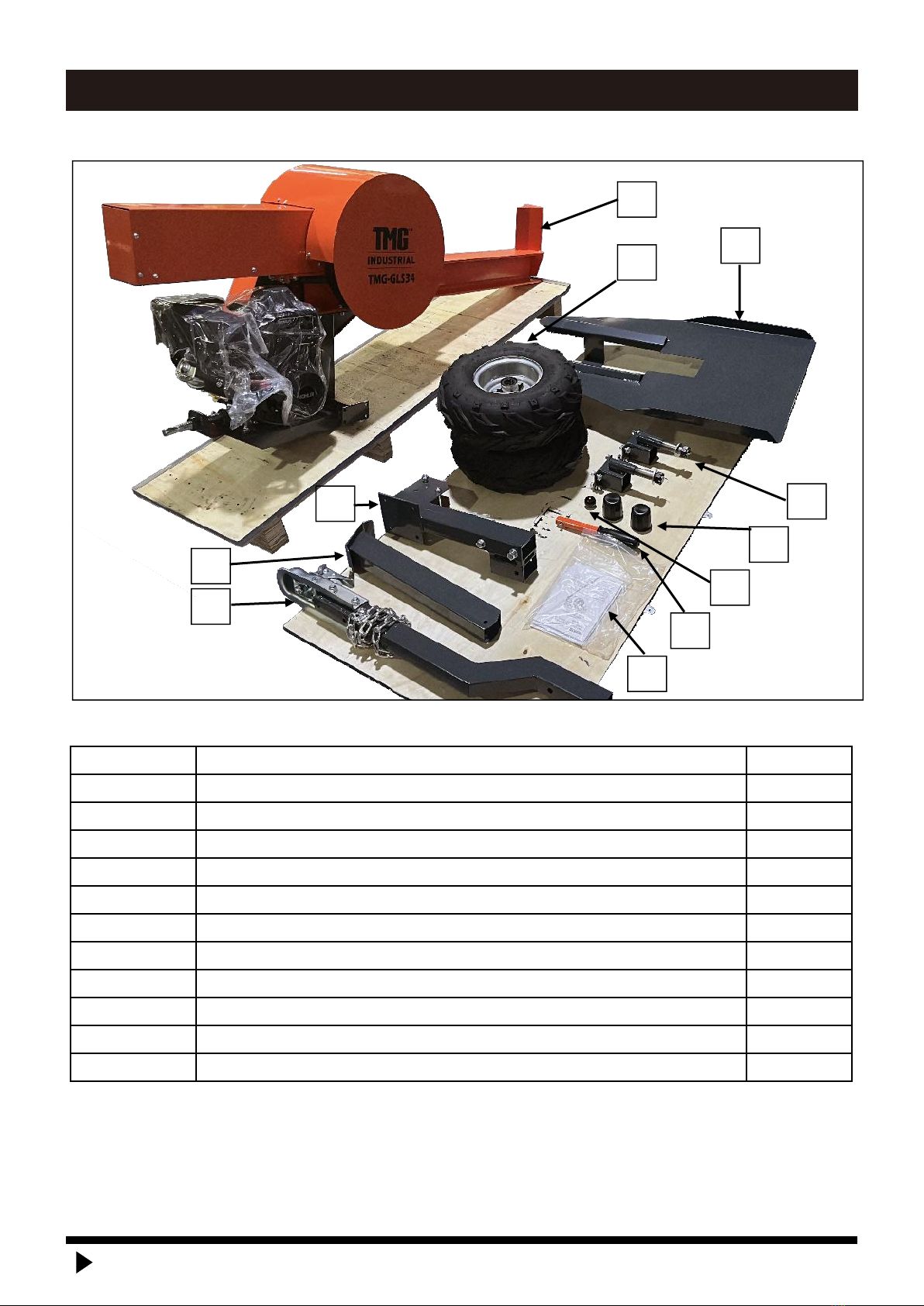

UNPACKING & ASSEMBLY
1. After unpacking, check the following components
* All numbers are not part numbers in the drawings. For correct part numbers, see explosive diagram
No.
Description
Qty
1
Main frame
1
2
Tow bar
1
3
Stand foot
1
4
Stand foot installation
1
5
Tire
2
6
Operation handle
1
7
Safety handle ball
1
8
Wheel axle
9
Wheel hub cover
1
10
Operation table
1
11
Manual
1
1
2
3
6
4
11
10
7
9
8
5
