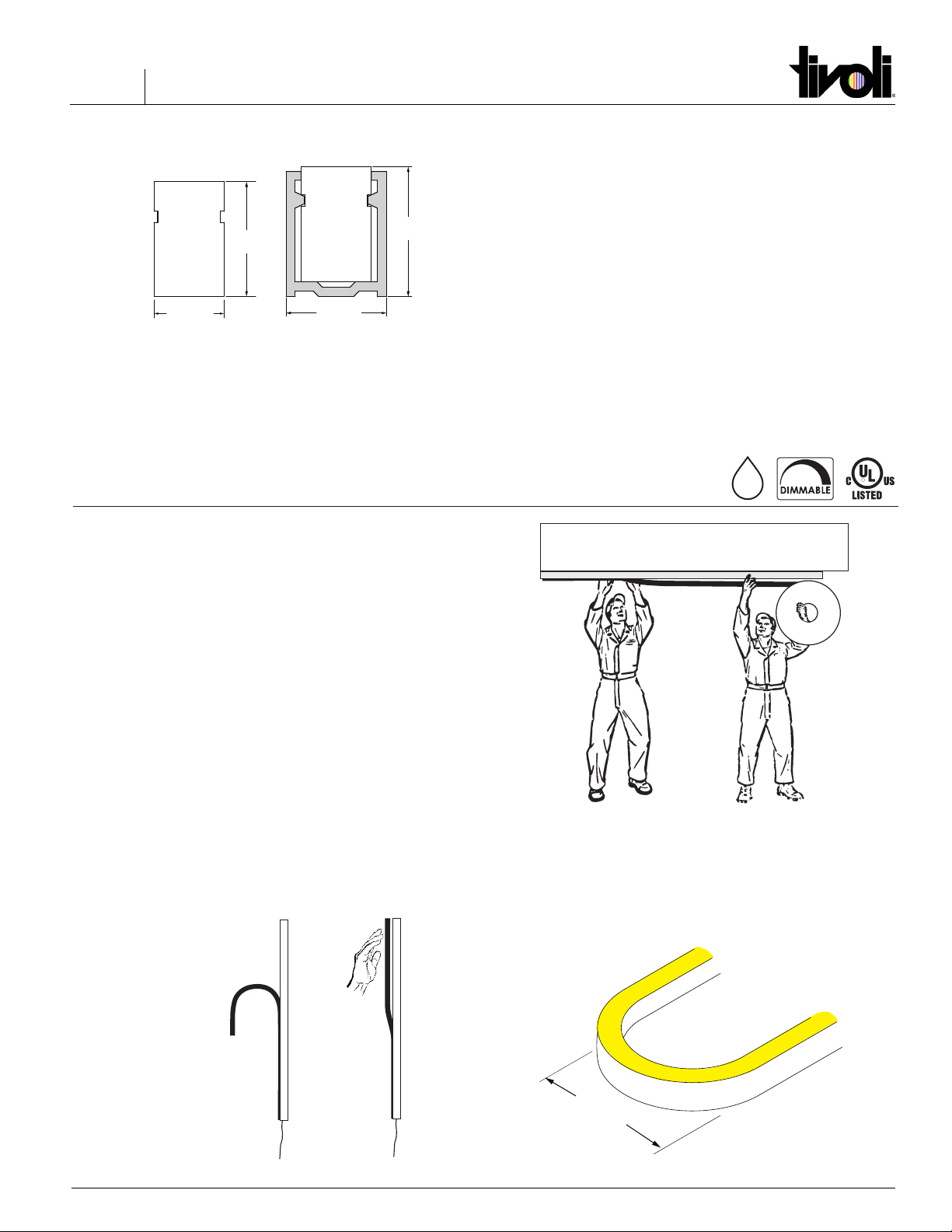

RGBW TRACE™ Horizontal Installation Instructions

7101009

Page 1 of 8

Please verify the contents of the packages!

Please read instructions entirely before starting

installation

Be sure power is turned off before installing the system

Call Tivoli, LLC tech support with questions

Caution: TRACE™ RGBW is designed to work with listed Class 2

24V DC transformers only. Use of any other power source will

cause damage, shorten the life of the fixture and will void the

warranty.

Consult any and all applicable local and national codes for

installation.

Do not conceal or extend exposed conductors through a building

wall as per local electrical code.

Warning: With any luminaire for any application, basic safety

precautions should always be followed to reduce the risk of fire,

electric shock and personal injuries. This lighting system should be

installed by a certified professional.

TRACE™ is an indoor/outdoor low voltage lighting system

used primarily for direct or indirect lighting designs.

Proles:

/”

/”

/”

/”

/”

/”

/”

/”

TRACE™ Horizontal

IP67 R

Trace™ Horizontal

Do not allow to twist or bend in the wrong direction.

WARNINGS

Keep Trace™ from twisting or bending in the wrong direction.

Two person installation.

WARNING! Risk of product damage.

Longer runs of Trace™ lighting strands must be installed by at least

two people.

IMPORTANT! The Trace™ luminaire must not be allowed to bend or

hang down. That way, the bending limit will not be inadvertently

exceeded, resulting in product damage.

TRACE™ RGBW MAY BE EASILY DAMAGED! The reliability of

the product can only be ensured if these warnings and cautions

are complied with faithfully. Keep these instructions for future

maintenance work.

Warning! Risk of product damage.

Trace™ RGBW Horizontal must not be bent at less than 2.0” diameter or damage will result. Do not allow Trace™ to twist or bend in the wrong

direction.

WARNING! Risk of Damage.

Insert Trace™ RGBW Horizontal into

channel evenly and gradually

to keep twisting and

bending to a minimum.

Bending

Diameter

2.0”

www.tivolilighting.com tel: 714-957-6101 fax: 714-427-3458

RGBW TRACE™ Horizontal Installation Instructions

7101009

Page 2 of 8

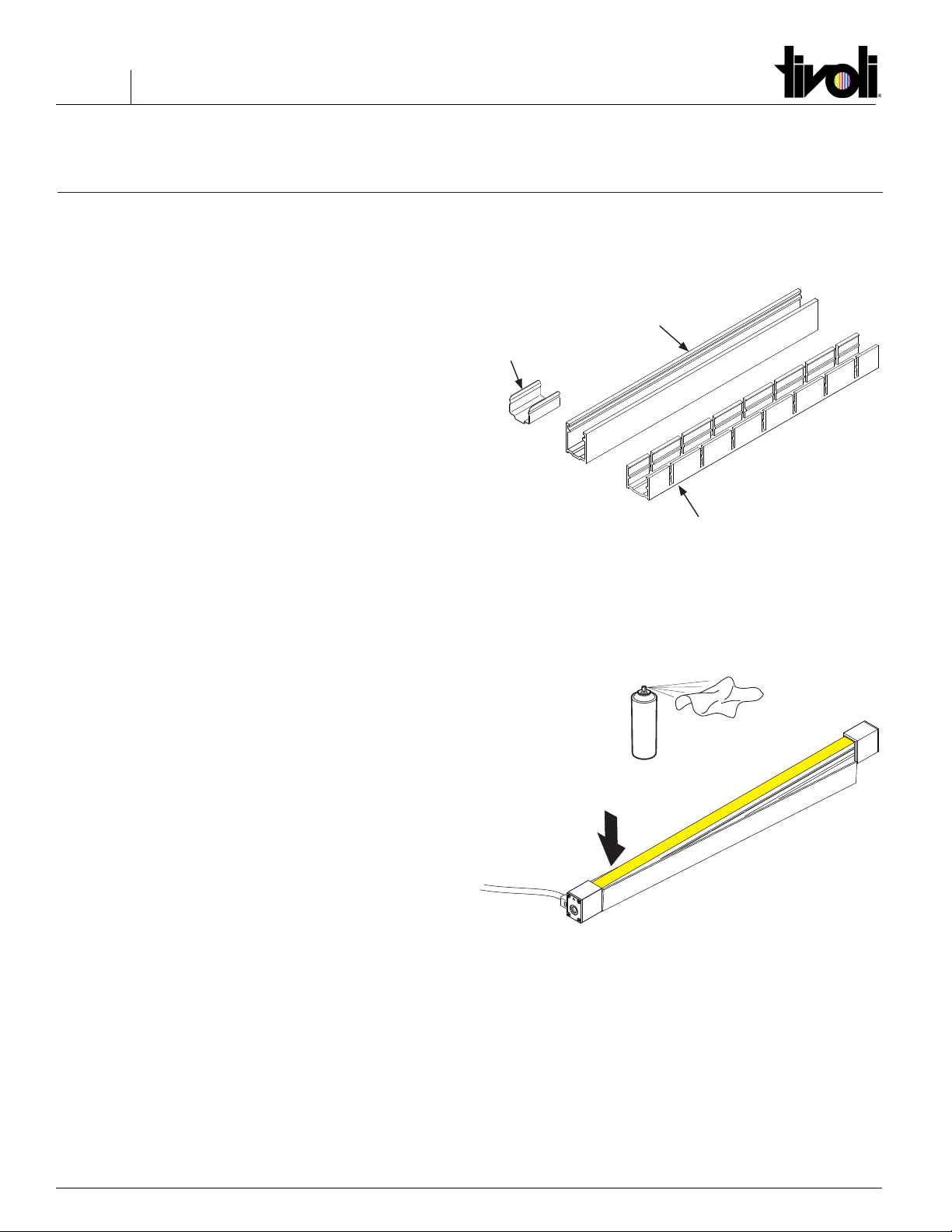

Overview: Read Before Installing Luminaire

Installation Notes:

Step 1: Measure run area where Trace™ RGBW is to be installed.

Locate power feed end at highest point of the run to minimize

exposure to water run off.

Step 2: A Mounting Channel is recommended for outdoor

applications. Lay channel along desired area and attach with screws

(by others) every 18 to 24 inches. If the design requires creating

bends and arcs, it is recommended that the Horizontal Notched

Channel be used. Mounting Clips are for use on indoor applications

only.

Note: Minimum bending diameter for the notched channel is 11”.

Trace™ Horizontal must not be bent less than 2” diameter or damage

will result.

Step 3: Trace™ must be installed with two people. One to press

the luminaire into the channel and the other to hold the spool and

unroll it while keeping the Trace™ flex body straight.

Warning: Risk of Product damage.

Do not stretch, pull, or yank. Doing so can damage the Trace™

internal connections and void the warranty.

Step 4: Insert Trace™ into mounted channel starting from power

connector end. The End Cap and Power Feed Connector do not fit

within the channel, so cut the Mounting Channel so that connectors

and End Caps will overhang outside the ends of the Channel. Trace™

should be pressed into the channel carefully and gradually, without

excessive bending or damage will result.

Note: We recommend using a dry spray lubricant, such as 3M Spray

Lubricant or WD-40 Specialist for all Trace™ installations to insure the

luminaire fits into the channel without damage. Additionally, when

installing with Mounting Clips, Silicone Sealant (FLXD-SIL-GE-10)

may be applied to the inside bottom surface.

Step 5: Secure power connection to building with use of C-clamp

(by others) or mount connection inside J-Box.

Connect to 24V DC power supply according to supplied wiring

diagrams.

Straight

Channel

Notched

Channel

Mounting

Clip

www.tivolilighting.com tel: 714-957-6101 fax: 714-427-3458

RGBW TRACE™ Horizontal Installation Instructions

7101009

Page 3 of 8

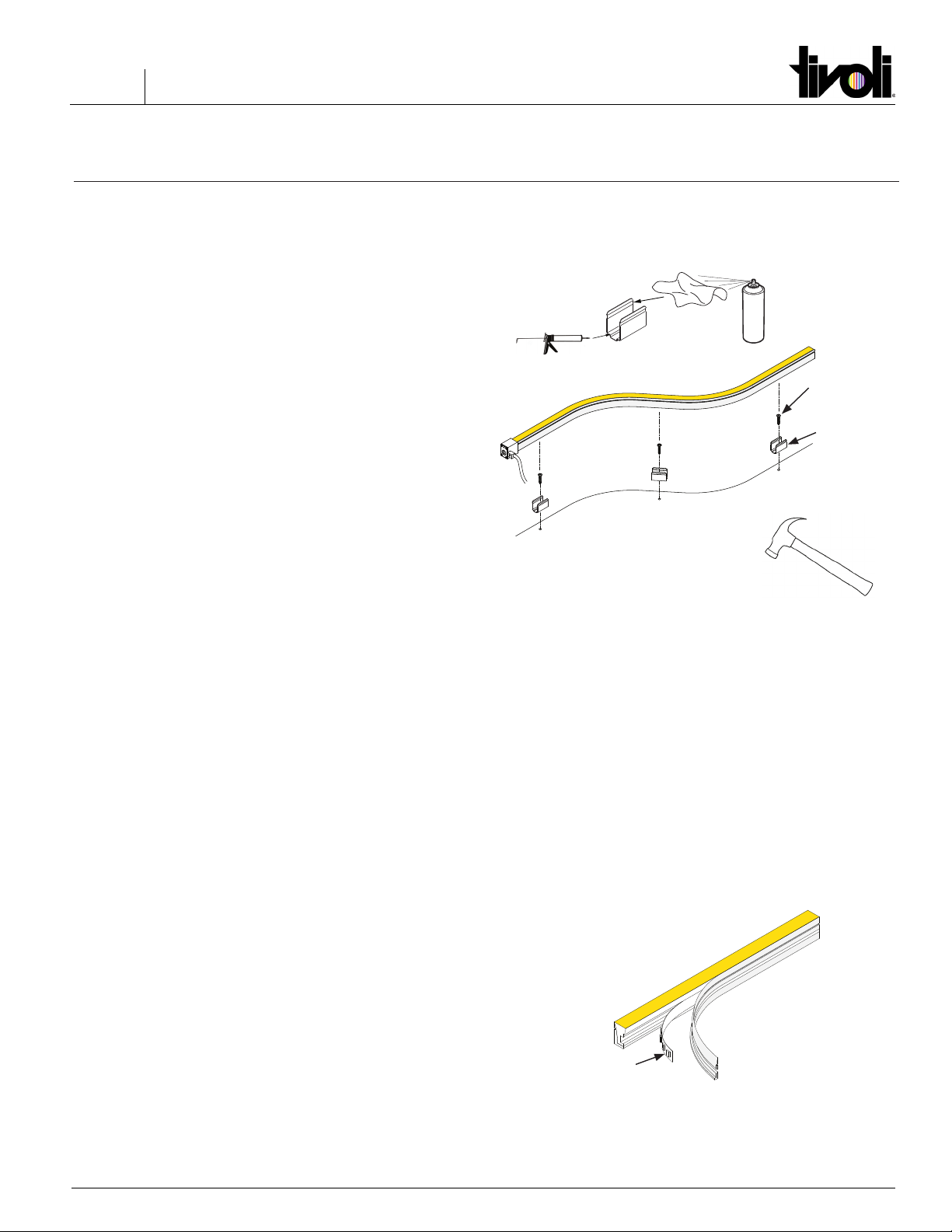

Trace RGBW Mounting Options

Screws

(Included)

Mounting Clip

Bending direction for Trace™ Horizontal

Tape Light

Trace™ Horizontal with Mounting Clips

Warning: Risk of Product Damage.

Only bend the Trace™ RGBW Horizontal so the lens bends side to side.

See diagram below.

Note: Minimum bending diameter for Trace™ Horizontal is 2” in the

horizontal direction only.

Step 1: Determine where the Mounting Clips will need to be installed

to achieve the desired shape.

Step 2: Position the Mounting Clips and attach with screws

(Included).

Step 3: Lay a bead of Silicone Adhesive (LFXD-SIL-GE-10) to the

inside bottom surfaces of the Mounting Clips, as shown.

Step 4: Spray Dry Lubricant on a rag and wipe the inside upper

surfaces of the mounting clips, as shown, to allow the Trace™ xture

to slide more easily into the mounting clip. 3M Spray Lubricant or

WD-40 Specialist is recommended.

Warning! Risk of Product Damage.

Regular WD40 490002 will stress craze, crack or swell the Trace™

Silicone covering. Do not use!

Step 5: Trace™ must be installed with two people. One to press

the luminaire into the channel and the other to hold the spool and

unroll it while keeping the Trace™ flex body straight.

Step 6: Press Trace™ into the Mounting Clip carefully and gradually,

without excessive bending or damage will result.

WARNING! Risk of Product Damage.

Do not hammer or pound the luminaire into the channel. Once

inserted, do not pull or yank on the xture. Trace™ will be damaged

unless it is handled carefully.

Step 7: Connect to power.

Bending Limitations

Warning! Risk of Product Damage.

Trace™ RGBW Horizontal can only be bent in the direction that does

not twist the Tape Light.

www.tivolilighting.com tel: 714-957-6101 fax: 714-427-3458

RGBW TRACE™ Horizontal Installation Instructions

7101009

Page 4 of 8

Horizontal

Notched

Channel

Bending direction for Trace Vertical

Tape Light

Screws

(by others)

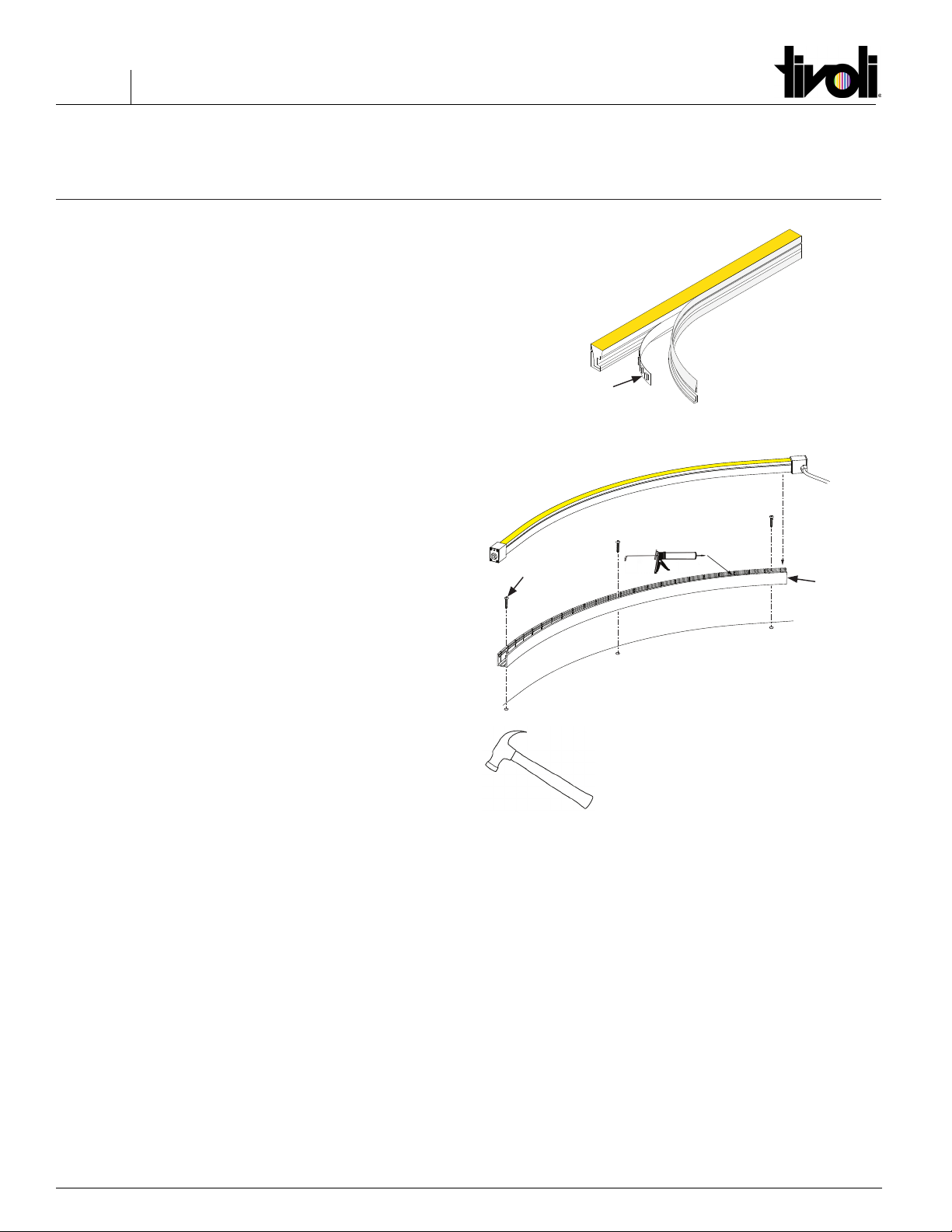

Trace RGBW Mounting Options (Continued)

Install Trace™ Horizontal in Notched Mounting Channel

Warning: Risk of Product Damage.

Only bend the Trace™ Horizontal so the lens bends side to side so as

not to twist the Tape Light. See diagram.

Note: Minimum bending diameter for the notched channel is 11”.

However, the minimum bending diameter for Trace™ Horizontal is 2”

in the horizontal direction only.

Step 1: Determine Channel mounting Location.

Step 2: Drill a hole 3” from each end of the Channel and 18”-24”

along length of Channel.

Step 3: Position the Notched Channel and attach with screws

(Included).

Step 4: Spray dry lubricant on a rag and wipe along the inside upper

surfaces of the extrusion. We recommend using a dry spray lubricant,

such as 3M Spray Lubricant or WD-40 Specialist for all Trace™

installations to insure the luminaire fits into the channel without

damage.

Step 5: Start by orienting the Trace™ with the Lens facing away from

the Channel, as shown.

Step 6: Trace™ must be installed with two people. One to press

the luminaire into the channel and the other to hold the spool and

unroll it while keeping the Trace™ flex body straight.

Step 7: Insert the Trace™ body into the Channel one ex section at a

time. Start at one end and and press it down carefully and gradually,

working along the Channel, inserting the Trace™ body into each

section until the entire Trace™ xture is securely mounted in the

channel.

WARNING! Risk of Product Damage.

Do not hammer or pound the luminaire into the channel. Once

inserted, do not pull or yank on the xture. Trace™ will be damaged

unless it is handled carefully.

Step 8: Connect to power.

Bending Limitations

Warning! Risk of Product Damage.

Trace™ RGBW Horizontal can only be bent in the direction that does

not twist the Tape Light.

www.tivolilighting.com tel: 714-957-6101 fax: 714-427-3458

RGBW TRACE™ Horizontal Installation Instructions

7101009

Page 5 of 8

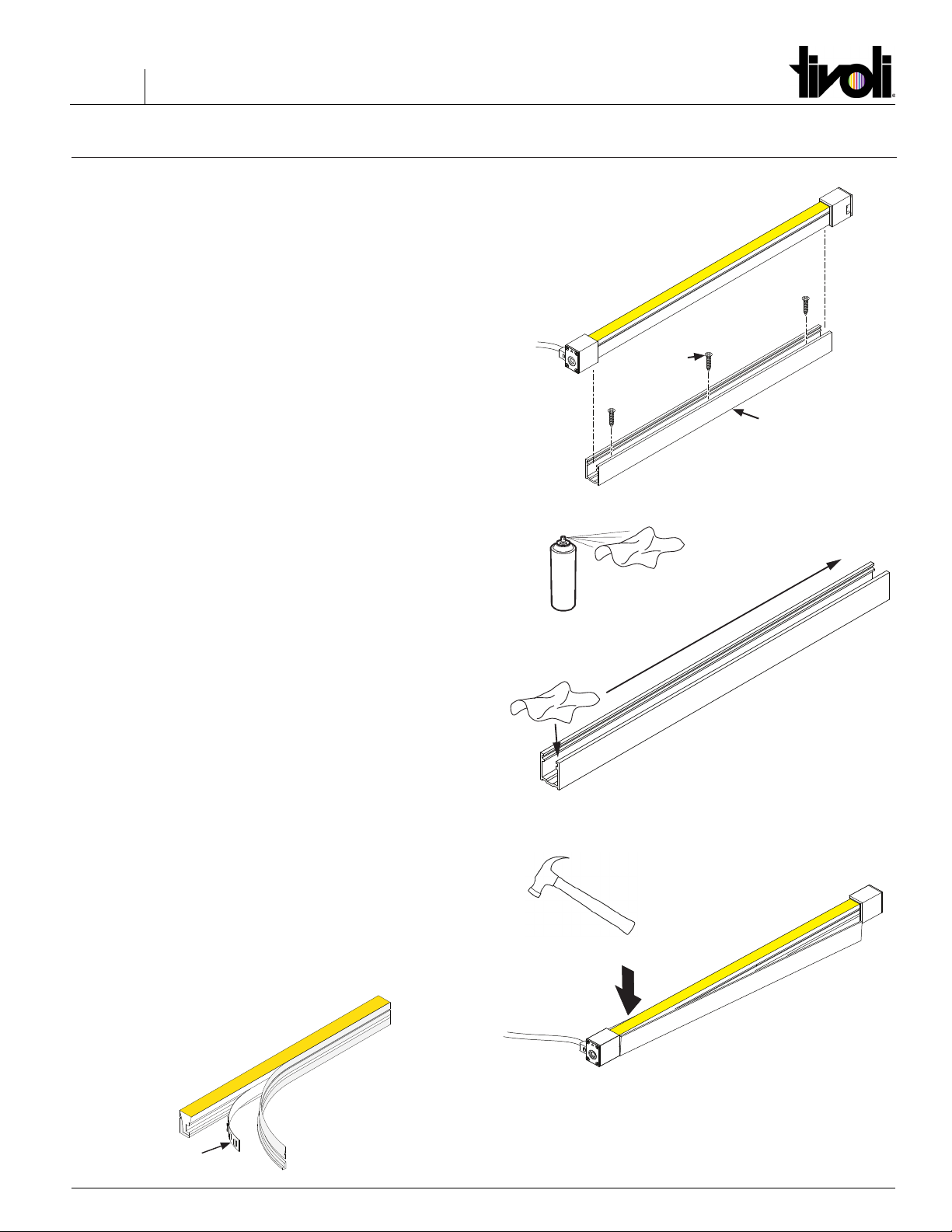

Trace RGBW Mounting Options (Continued)

Bending direction for Trace™ Horizontal

Tape Light

Straight Channel for Trace™RGBW Horizontal Installation

Step 1: Prepare Straight Mounting Channel for installation cutting it

to the correct length, keeping in mind that the End Caps will not t

inside the Channel, and by drilling screw holes 3”from each end and

additional holes approximately every 18” along the channel.

Step 2: Place Straight Channel on the mounting surface and mark

the hole locations.

Step 3: Remove the Channel and drill pilot holes at all hole locations.

Step 4: Place the Channel into position and secure with screws (not

included).

Note: Screws should be appropriate for the mounting location.

(ie: wood screws for wood, etc.)

Step 5: Spray dry lubricant on a rag and wipe along the inside upper

surfaces of the extrusion. We recommend using a dry spray lubricant,

such as 3M Spray Lubricant or WD-40 Specialist for all Trace™

installations to insure the luminaire fits into the channel without

damage.

Step 6: Trace™ must be installed with two people. One to press

the luminaire into the channel and the other to hold the spool and

unroll it while keeping the Trace™ flex body straight.

Step 7: Start by orienting the Trace™ with the Lens facing away from

the Channel, as shown.

Step 8: IMPORTANT! Insert the Trace™ body into the Channel. Start

at one end and and press it down carefully and gradually, working

along the Channel, inserting the Trace™ body along the channel until

the entire Trace™ xture is securely mounted in the channel.

WARNING! Risk of Product Damage.

Do not hammer or pound the luminaire into the channel. Once

inserted, do not pull or yank on the xture. Trace™ will be damaged if

it is not handled carefully.

Step 9: Connect to power.

Bending Limitations

Warning! Risk of Product Damage.

Trace™ RGBW Horizontal can only be bent in the direction that does

not twist the Tape Light.

Screws

(by others)

Straight

Channel

www.tivolilighting.com tel: 714-957-6101 fax: 714-427-3458

RGBW TRACE™ Horizontal Installation Instructions

7101009

Page 6 of 8

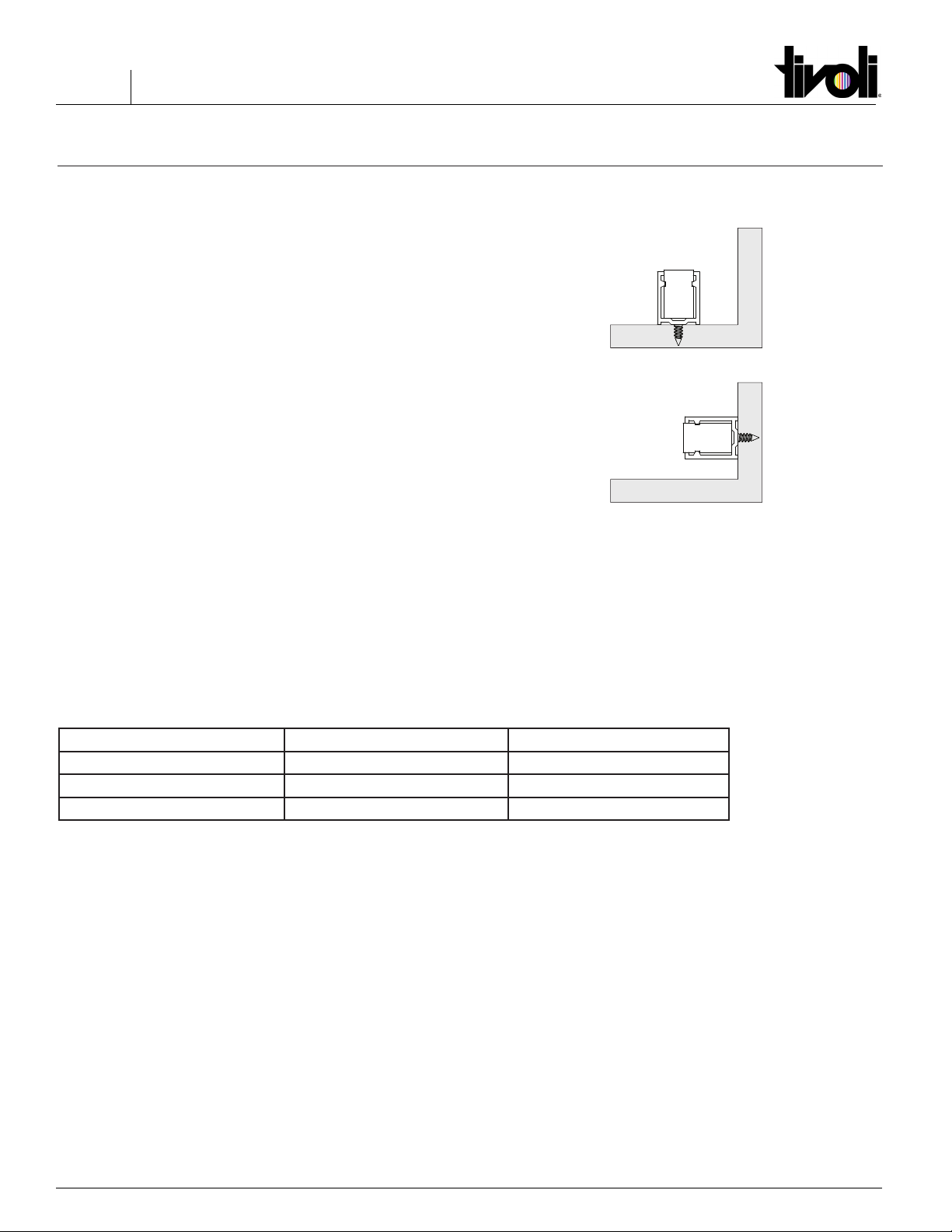

Trace™ RGBW Mounting Options (Continued)

Note: Trace™ Mounting Channel can be mounted on horizontal or

vertical surfaces.

Product Specication Guide

LUMINAIRE POWER CONSUMPTION MAX RUN LENGTH*

Trace RGBW, Low Output 1.5W 58’

Trace RGBW, Standard 3W 29’

Trace RGBW, High Output 4.5W 19’

www.tivolilighting.com tel: 714-957-6101 fax: 714-427-3458

RGBW TRACE™ Horizontal Installation Instructions

7101009

Page 7 of 8

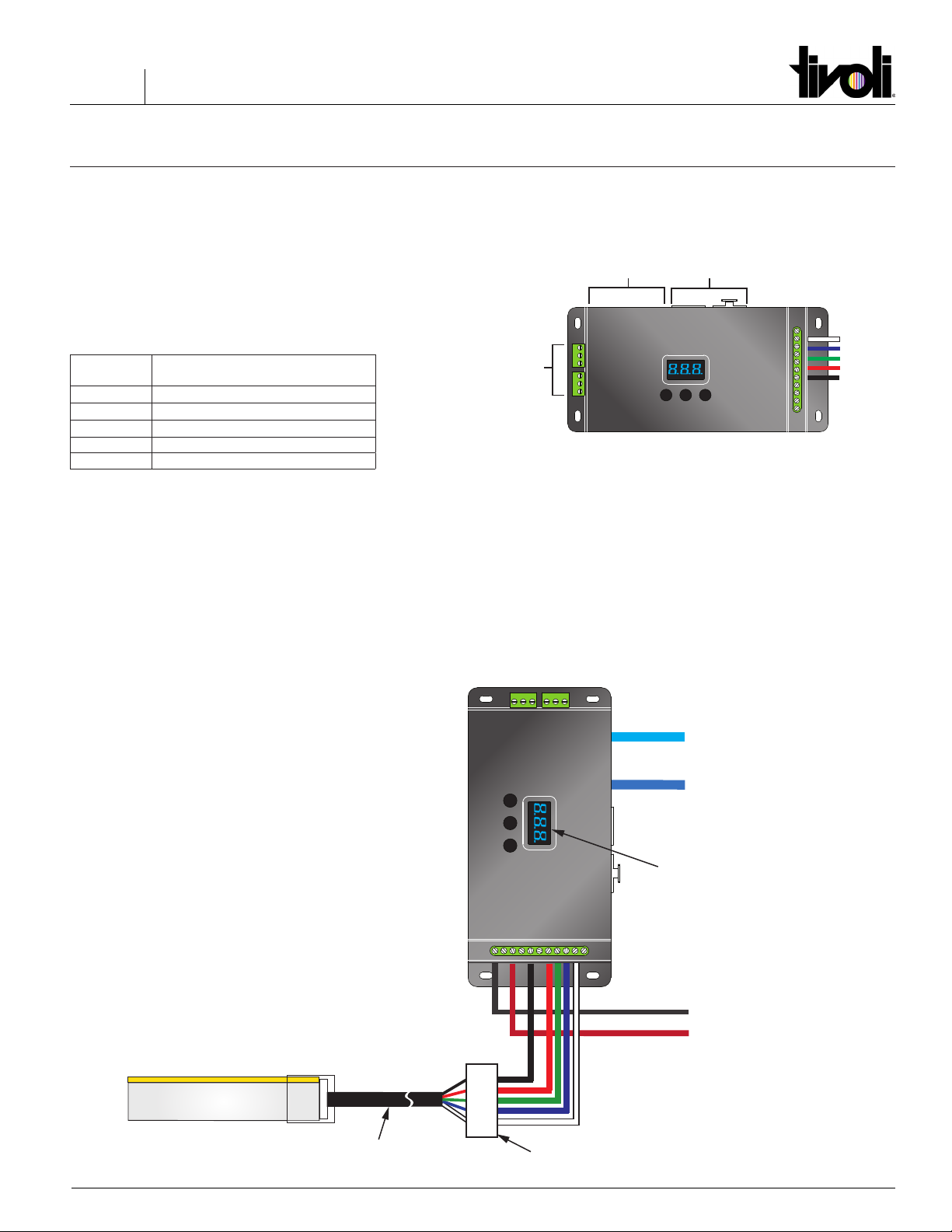

Driver

Output

Power

Input

D+D-D- D+ v+ v+ 1 2 3 4 5

DMX in DMX outDMX in DMX out

RJ45 To Master

DMX Controller

(By Others)

RJ45 To next

Sub-Controller

(By Others)

Note: Connectors located inside box

14ga

Wire

14ga Wire

Settings

Display

DMX512 & RDM Decoder

To Power Supply (Neg. Wire)

To Circuit Breaker (Pos. Wire)

XLR DMX in/out RJ45 DMX in/out

Output for LED

DC Power Input

Screw DMX in/out

Digital Display

Lead Wire

Trace™ RGBW Flex Light

BLK (+)

RED

GREEN

BLUE

WHITE

• DMX512 RDM decoder, RDM function can provide the

interface between DMX master and decoder.

• OLED Display

for example, DMX decoder’s address may be set from DMX

master console.

• Multiple kinds of DMX in/out ports: RJ 45, XLR , normal screws.

• Total 5 PWM output channels, common anode. DMX channel

quantity from 1CH~5CH programmable

• PWM output resolution ratio 8bit , 16bit settable.

• Output dimming curve gamma value from 0.1 ~ 9.9 settable.

• Programmable Decoding mode.

Safety and Warnings:

• Do not install with power applied to device.

• Do not expose to moisture.

Note: The Installation Instructions for your power supply includes

DMX programming instructions.

Trace™ RGBW Basic Wiring Diagram

Elecrical Connections for Trace™ RGBW

Step 1: Turn power o before beginning electrical installation.

Note: Contacting hot wires against the Trace™ leads may damage the

product and void the warranty.

Step 2: Connect Trace™ lead wires to RGBW-Sub-Controller, or

if using our ADUL-DIN series transformers, connect to pre-wired

connectors which are found inside the power supply box. Refer to

diagram below and on Page. Make sure each lead wire is connected

to the correct terminal, as follows:

LEAD WIRE

COLOR

SUB-CONTROLLER TERMINAL OR

ADUL-DIN CONNECTOR WIRE COLOR

Black Black (+)

White Blue

Red Red

Green Green

White White

Step 3: Connect to a listed Class 2, 24V DC transformer only. See list

of approved transformers.

Step 4: Optionally, Trace™ RGBW may be dimmed using an MLV or

ELV dimmer that is suitable for the power supply. Please contact our

technical support sta for more information.

Connect to

Tivotape

Driver

Output

Power

Input

V+

XLR ConnectorsRJ45 Connectors

DMX

in/out

DMX

in/out

Hard Wire

Connection

www.tivolilighting.com tel: 714-957-6101 fax: 714-427-3458

RGBW TRACE™ Horizontal Installation Instructions

7101009

Page 8 of 8

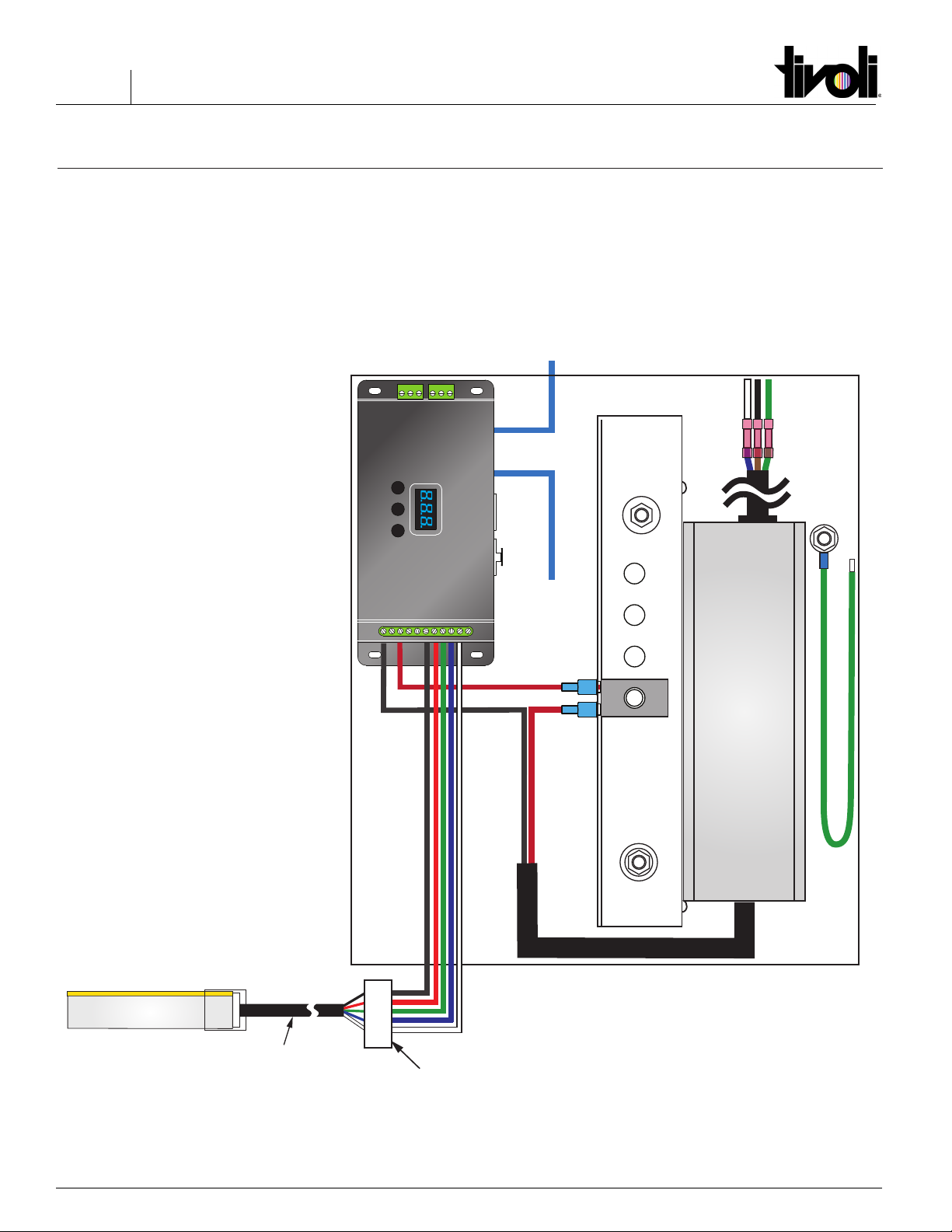

Power Supply with Sub-Controller Sample Wiring Diagram

There are many possible options for controlling Trace™ RGBW. See the specication Sheet for more information. The following

wiring diagram is for reference only. Please refer to the Installation Instruction for the Power Supply you choose for detailed

wiring instructions.

Driver

Output

Power

Input

D+D-D- D+ v+ v+ 1 2 3 4 5

DMX in DMX outDMX in DMX out

POWER

SUPPLY

Input

Output

RJ45 to next

Sub-Controller

(By Others)

or End Cap

RJ45 From

DMX Controller

(By Others)

14ga

Wire

Incoming Power

RGB

Sub-Controller

Note: Connectors located inside box

BLK (+)

RED

GREEN

BLUE

WHITE

Lead Wire

Trace™ RGBW Flex Light

See chart on Page 6 for

maximum run lengths

Autres manuels Tivoli Audio Équipement d'éclairage

Tivoli Audio

Tivoli Audio FLEX120 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
