Titan Controls SOARTAN Series Manuel utilisateur

Basic CO2 Controller

Instruction Manual

www.titancontrols.net

2 3

Basic CO2Controller

• Warnings and Cautions

• Factory Settings

• Basic CO2Controller Overview

• Instructions for Operation

• Error Codes

• Controller Speciﬁcations

• Controller Diagrams

• Installation Options

• Installation Example

• Warranty Information

• Service & Repair Program

Warnings & Cautions

SULFUR VAPORIZER WARNING

If a sulfur vaporizer is used, ﬁrst remove the remote sensor from area or

turn the controller OFF and cover the remote sensor probe with a protective

plastic bag. Remove the bag before turning the power back on.

Note: Failure to protect the sensor during Sulfur use will result in

damage to the infrared CO2sensor and void warranty.

• Read all instructions before operating controller.

• Do not put your controller in an area where it can get wet or sprayed.

• Mount your controller securely to the wall.

• When using “bug bombs” in area, cover controller completely to avoid

corrosion.

• There are no serviceable parts in controller. Do not attempt to repair the

unit.

• Breaking tamper proof seal will void your warranty.

• Do not put paper clips, tools, etc. into unit. Possible electrocution may

occur.

• Plug controller into surge protector to avoid potential damage to the unit.

• Conﬁrm that your power source is 120 volts/15 amps prior to plugging

controller into outlet.

2 3

• Check that all equipment that will be activated by this controller is the

proper voltage(s).

• Verify that the equipment you are controlling does not exceed a total of

14.5 amps.

• This controller is designed for “inside use” only.

• Avoid placing the controller near heat generating sources such as a CO2

Generator.

• Use caution if operating controller in extremely humid environments (90%

and above).

• Do not use controller for purposes other than the unit was designed to

function.

• Use controller within deﬁned environmental speciﬁcations.

• Ask your Dealer for tips and techniques regarding the use of this controller.

• Be conscientious when disposing of any products.

Factory Settings

• CO2PPM Setting: 1000 ppm

• CO2Dead-band: 50 ppm

• Calibrate CO2PPM: 400 ppm

• CO2Mode: PPM UP

Basic CO2Controller Overview

The Basic CO2Controller has an adjustable CO2set point, a 15 foot sensor

cord attached to an accurate CO2sensor and equipped with a photocell that

detects day/night conditions and will automatically disable the load output of

the CO2controller during nighttime conditions. This controller has CO2ppm

increase, fuzzy logic and CO2ppm decrease functions.

Instructions for Operation

CO2PPM Setpoint

Press the knob and turn to set, press again to conﬁrm the setting.

4 5

Deadband

Press knob and turn to set the dead-band (hysteresis) ppm, press again to

conﬁrm the setting.

EXAMPLE: When using CO2increase mode, if the set-point is 1000 ppm and

the dead-band is 50 ppm, the CO2output will activate at or below 1000 and

deactivate at 1050 ppm. For CO2decrease mode, the fan will activate at or

above 1000 ppm and turn off at 950 ppm.

CO2Mode

PPM Up: Increase the CO2ppm if using a CO2generator or CO2regulator

and compressed CO2tank.

Fuzzy Logic: If using CO2regulator and compressed CO2tank. This

mode applies fuzzy logic control to the CO2output. NOT for use with CO2

generators.

PPM Down: Will decrease the CO2ppm by using an exhaust fan.

Min/Max Recall: Click both knobs to display the CO2min/max ppm record.

This shows the lowest ppm and highest ppm levels for a 24 hour period. The

screen will return to normal display after 5 seconds or by a pressing both

knobs, and the record will be reset.

Calibration: Place the CO2sensor outdoors in an area free from people,

vehicles, animals, other CO2generating objects and press both knobs for 3

seconds. The display screen will read CAL/400. Keep the sensor from direct

sunlight and any breathing. Allow it 10 minutes to stabilize the ppm reading.

The screen will return to normal display once the calibration is complete.

Calibration should be performed approximately every 3 years.

Output

LED will be on when output is active.

CO2Disable

This function gives you the ability to coordinate the CO2controller with an

independent temperature controller. What this allows you to do, is avoid

having your controller enrich your room with CO2while your exhaust fan is

running. To utilize this feature, you simply plug the included power adapter

into your temperature controller. Whenever your temperature controller

activates, it will override the CO2controller enrichment mode.

4 5

Error Codes

S_SR: Check the sensor connection.

OUTP: If the CO2sensor doesn’t observe the ppm set point being reached in

a 2 hour time period, the screen will ﬂash the error code. Press the any knob

to reset the error.

OVLD: Outlet is being overloaded. Unplug units from controller and reduce

amperage load. Maximum amperage is 14.5 amps.

Controller Speciﬁcations:

• Max amp: 14.5 amps @ 120V AC/60Hz

• Sensor cord length: 15 feet

• CO2Range: 400-2000 ppm

• CO2Accuracy: +/- 100 ppm

• Weight: 2.1 lbs

• Dimensions: 5.07” x 4.68” x 1.95”

• Indoor Use Only

• Operating Temperature: 50° F to 95° F

• Maximum relative humidity: 95%

Controller Diagrams:

PPM Up

CO2

+Deadband

Setpoint

Off Time

CO2 PPM

CO2 Generator

Fuzzy Logic

CO2

+Deadband

-Deadband

Setpoint

Off Time

CO2 PPM

CO2 Tank - Solenoid Valve

6 7

Installation Options

Option 1: Secure the unit to a wall.

Option 2: Screw the controller to the grow tent tube with a U bolt.

6 7

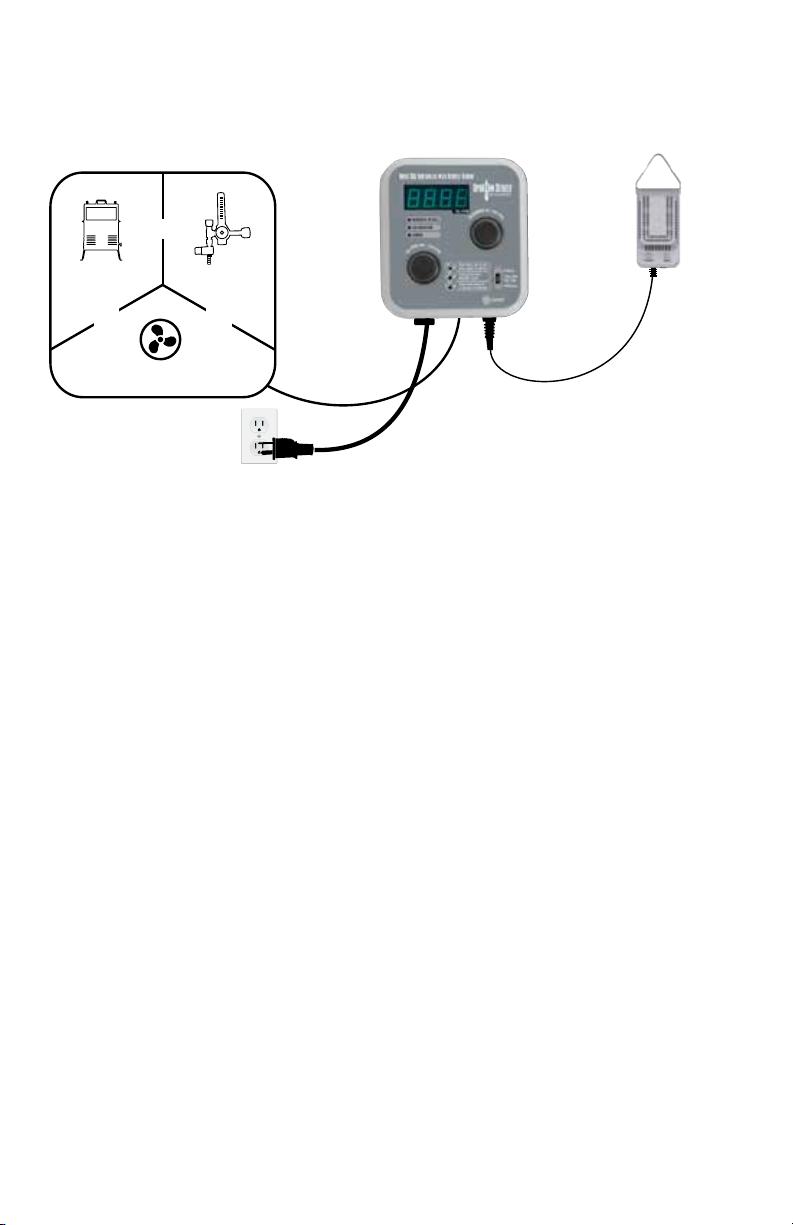

Installation Example

Warranty Information

• Titan Controls®warrants the original purchase of this product against

defects in material and workmanship under normal use for one (1) year from

the date of purchase.

• During the warranty period, Titan Controls®will, at our option, and

without charge, repair or replace this product if the controller or any of its

components fail or malfunction.

• All returns or repairs must be accompanied by a Return Merchandise

Authorization (RMA) number prior to any service of the product.

• This warranty is expressly in lieu of all other warranties, expressed or

implied, including the warranties of merchantability and ﬁtness for use and of

all other obligations or liabilities on the part of the seller.

• This warranty shall not apply to this product or any part thereof which had

been damaged by accident, abuse, misuse, modiﬁcation, negligence,

alteration or misapplication.

• Controllers with serial numbers or date tags that have been removed,

altered or obliterated; broken seals or that show evidence of tampering;

mismatched board serial numbers or nonconforming parts; are excluded

from coverage.

CO2Generator

Exhaust Fan

Remote Sensor

CO2Regulator

-OR-

120 Volt

Circuit

8 9

• Titan Controls®makes no warranty whatsoever in respect to accessories or

parts not supplied by Titan Controls®.

• Monetary refunds of the warranty will not be given.

• The Buyer assumes all responsibility regarding the use & installation of this

controller.

• All warranty service is provided through the factory or an authorized service

representative.

• This warranty shall apply only to the United States, including Alaska, Hawaii

and territories of the United States and Canada.

• Defective controllers need to be returned with the “proof of purchase”

receipt.

• For additional warranty information, contact a Titan Controls®Technical

Service Representative at 888-808-4826 or your Dealer. Our normal

business hours are Monday – Friday, 8 a.m. to 5 p.m. Paciﬁc Standard

Time. We are closed most major holidays.

• NOTE: Titan Controls®is a controller manufacturer. All sales offerings to the

public are done through a nationwide group of Dealers. No sales offerings will

be made directly to the general public.

Service and Repair Program

• For all service and repairs please contact one of our Technical Service

Representatives for a Return Merchandise Authorization (RMA) number.

• All factory service & repairs will be completed within 48 hours of receipt of

controller and after authorization by customer for repairs.

• Titan Controls®will, at its discretion, repair or replace the controller.

• Factory calibration services are available for all Titan Controls®.

• Returning Units: Please contact your retail store for returns.

8 9

Include the following if returning directly to Titan Controls®

• Proof of purchase • This completed form • RMA # on the outside of the box

Return Merchandise Authorization Number (Required): ____________________________________________

Company Name: ____________________________________________________________________________________

Contact Name: _____________________________________________________________________________________

Address: __________________________________________________________________________________________

____________________________________________________________________________________________________

Phone #: ___________________________________________________________________________________________

Email address: _______________________________________________________________________________

What is the nature of the problem? ______________________________________

___________________________________________________________

Shipping address will be given when the RMA # is issued:

WARRANTY SERVICE: Please read warranty information ﬁrst

If after reviewing the troubleshooting tips the unit will still not work, you should return it to

the Dealer where you purchased it. They will be able to further evaluate the unit and test

its various components and quite possibly will be able to identify and/or ﬁx any problems.

If the Dealer is unable to ﬁx the unit, they will return it to us for factory repair.

If there are no Dealers in your area, you may contact us directly for technical support.

If we cannot help you resolve the problem over the phone, we will issue you a RMA #

(return merchandise authorization) authorizing you to return the unit to us for factory

reconditioning (if the unit is under warranty). Contact the number below for a RMA and

shipping address. Complete the form below and include it with your unit. Also please

write the RMA # on the outside of the box.

Please package the unit in its original packaging. If it is damaged in shipment we cannot

be responsible.

Once we receive the unit back, we will repair it within 48 hours (business) and return it to

you freight prepaid via UPS ground shipment.

www.titancontrols.net

For technical assistance call us at 1-888-80-Titan or 1-888-808-4826.

Representative available Monday – Friday, 8 a.m. – 5 p.m. PST.

10 11

Notes:

_________________________________________________

________________________________________________

1 Square = ____ Foot / Feet

VANCOUVER, WASHINGTON U.S.A.

Revision D – 05/10/2017 LS © Titan Controls® 2017

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Titan Controls Contrôleurs

Titan Controls

Titan Controls CO2 Regulator Manuel utilisateur

Titan Controls

Titan Controls ATLAS 9 Manuel utilisateur

Titan Controls

Titan Controls Helios 9 Manuel utilisateur

Titan Controls

Titan Controls Helios 4 Fiche d'information produit

Titan Controls

Titan Controls Nyx 1 Manuel utilisateur

Titan Controls

Titan Controls 8 Light Controller Manuel utilisateur

Titan Controls

Titan Controls Helios 6 Manuel utilisateur

Titan Controls

Titan Controls Helios 16 Manuel utilisateur

Titan Controls

Titan Controls ZEPHYR 3 Manuel utilisateur

Titan Controls

Titan Controls SPARTAN Series Manuel utilisateur

Titan Controls

Titan Controls Mercury 2 Fiche d'information produit

Titan Controls

Titan Controls Kronus 4 Manuel utilisateur

Titan Controls

Titan Controls Helios 14 Manuel utilisateur

Titan Controls

Titan Controls Helios 3 Manuel utilisateur

Titan Controls

Titan Controls Mercury 3 Fiche d'information produit

Titan Controls

Titan Controls Helios 7 Manuel utilisateur

Titan Controls

Titan Controls Helios 11 Manuel utilisateur

Titan Controls

Titan Controls Eos 1 Manuel utilisateur

Titan Controls

Titan Controls EOS 702603 Manuel utilisateur

Titan Controls

Titan Controls Medusa 703380 Manuel utilisateur

Titan Controls

Titan Controls Helios 12 Manuel utilisateur

Titan Controls

Titan Controls Helios 17 Manuel utilisateur

Titan Controls

Titan Controls HELIOS 3 Fiche d'information produit

Titan Controls

Titan Controls Atlas 3 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
