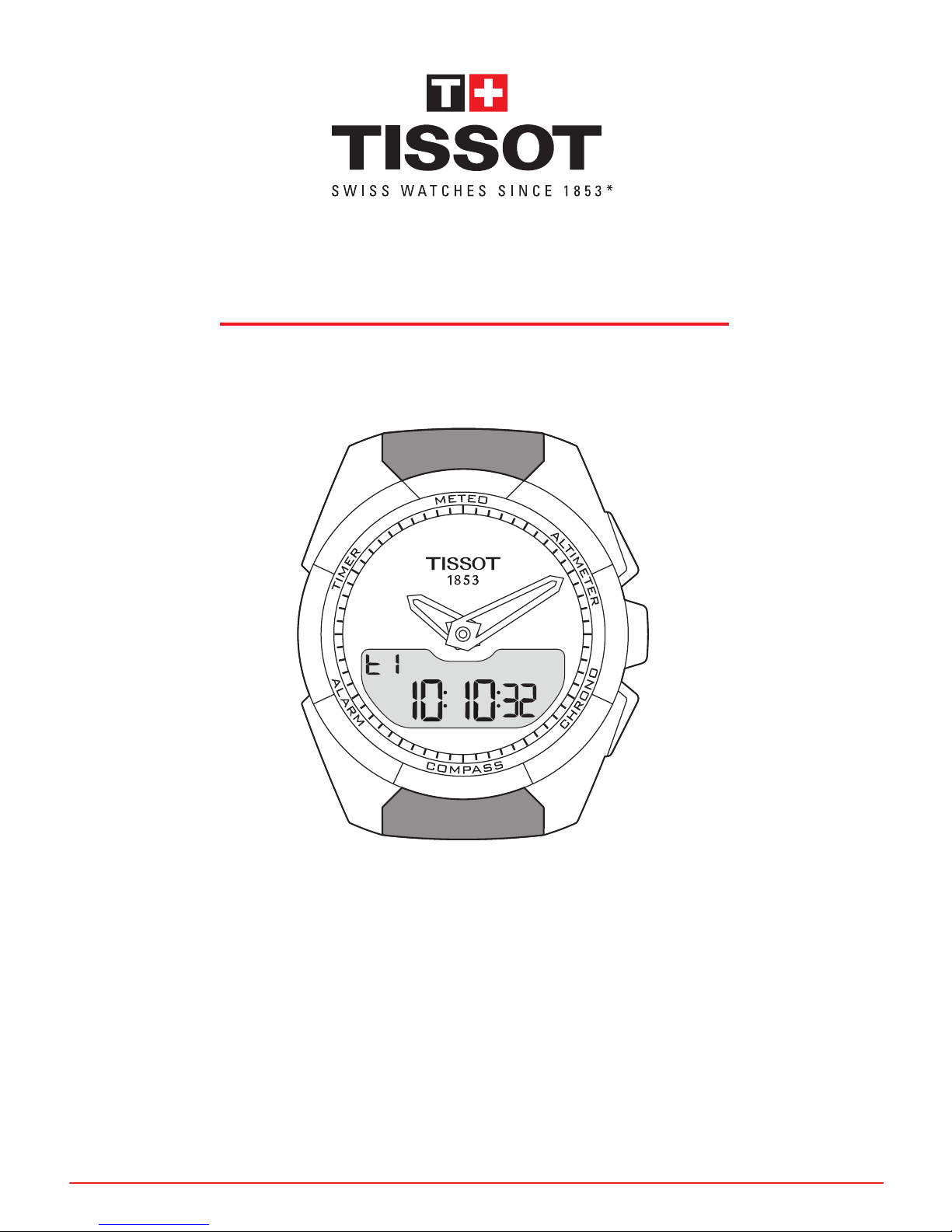

T-TOUCH SOLAR E84

USER’S MANUAL

Acknowledgements

We would like to thank you for choosing a TISSOT

watch, a Swiss brand among the most highly renowned

in the world. Your T-TOUCH SOLAR E84 watch enjoys

the most recent technical innovations. It gives you a

constant analogue time display and a variety of digital

displays.

In addition, the following functions can be accessed

simply by touching the glass: Meteo, Altimeter,

Chronograph, Compass, Alarm and Countdown.

Ofﬁcial service centers adresses

Recommended service prices

www.tissot.ch

TISSOT TACTILE

WATCHES MUST ONLY

BE SERVICED BY TISSOT’S

AUTHORIZED CUSTOMER

SERVICE CENTERS,

WHICH ARE LOCATED IN

OVER 160 COUNTRIES

WARNING

www.tissot.ch 154_EN

3/21

T-TOUCH SOLAR E84

december

LONDON

NEW-YORK

hPa

1015

1020

1025

hPa

T1T2

4478m

OPT

CAL

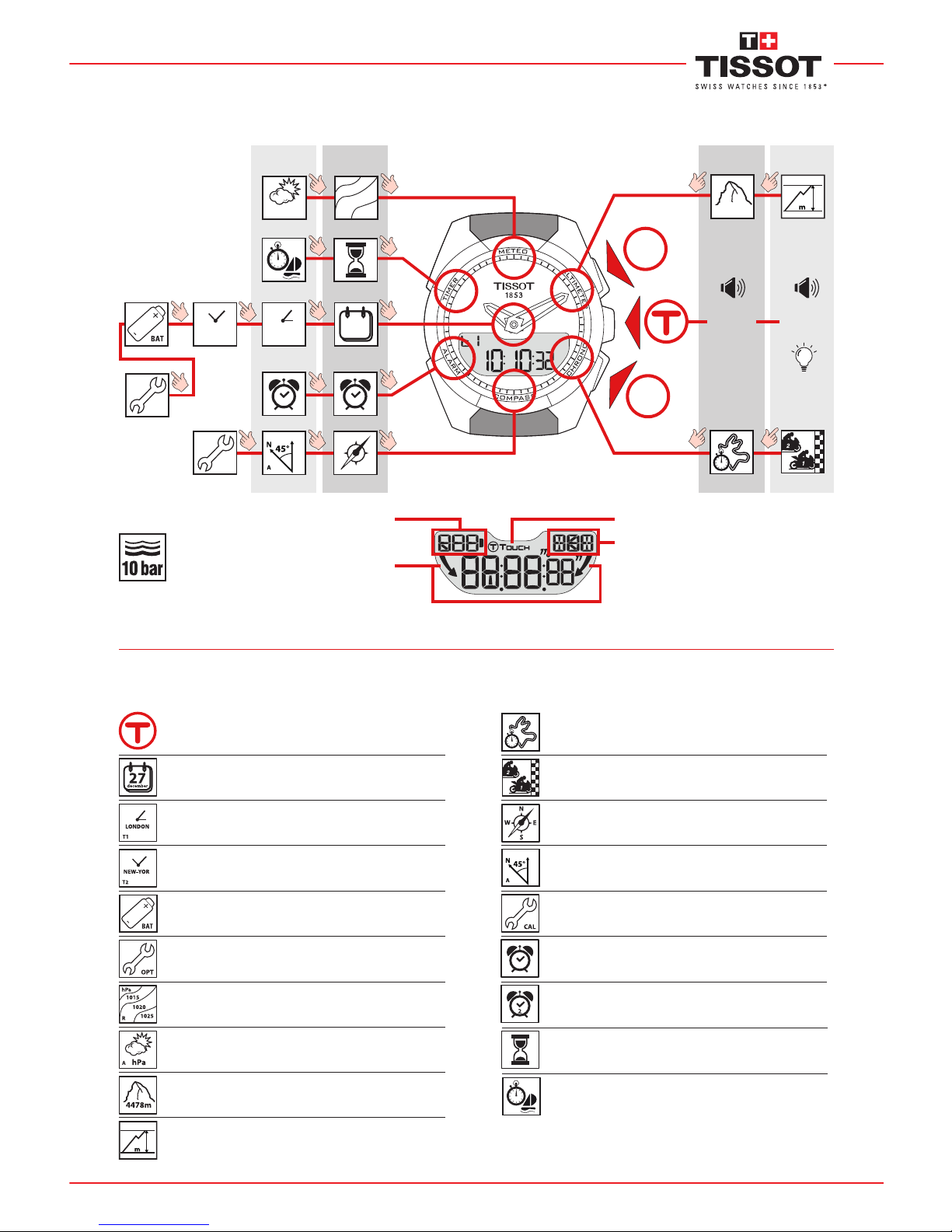

FUNCTIONS

In Battery display mode, charge

state (see page 6) Touch-sensitive glass active

2nd function 1st function 2nd function1st function

ACTIVATE

LIGHT

ACTIVATE

TOUCH-

SENSITIVE

GLASS

Water resistance: 10 bar

(100 m / 330 ft)

Battery type:

ML2016 accumulator

Week number or day of the week display

(see page 4)� other data may be displayed depend-4)� other data may be displayed depend-)� other data may be displayed depend-

ing on the selected function.

Refer to the functions for further details

Azimuth heading setting

direction display

(see page 15)

CENTRE – Date

CENTRE – Time 1

Activate touch-sensitive glass / Activate light

CENTRE – Time 2

CENTRE – Options

METEO – Weather, absolute pressure

CHRONO – Lap time chronograph

COMPASS – Compass

COMPASS – Calibration

ALARM – Alarm 1

TIMER – Countdown

FUNCTIONS

ALARM – Alarm 2

ALTIMETER – Altimeter

CENTRE – Battery charge level

ALTIMETER – Altitude difference meter

METEO – Weather, relative pressure

TIMER – Regatta

COMPASS – Azimuth

CHRONO – Split time chronograph

www.tissot.ch 154_EN

4/21

T-TOUCH SOLAR E84

GENERAL USER INFORMATION

Activating the touch-

sensitive glass

Display mode

Activate glass

When the glass is activated, the

symbol will ﬂash on the

digital display.

If the glass is not touched,

it will automatically deactivate

after 20 seconds.

Exception: In time-setting

mode, the glass will deactivate

after 60 seconds.

1 sec. 2 sec.

2 sec.

Setting mode

:move display and/or hand

position forward

:move display and/or hand

position backward

If the watch is not operated for

20 seconds, setting mode

will be deactivated.

Activating the light

Select a function

Touch one of the 7 touch-sensitive

areas of the glass to activate the

corresponding function.

The display light will stay on for

5 seconds.

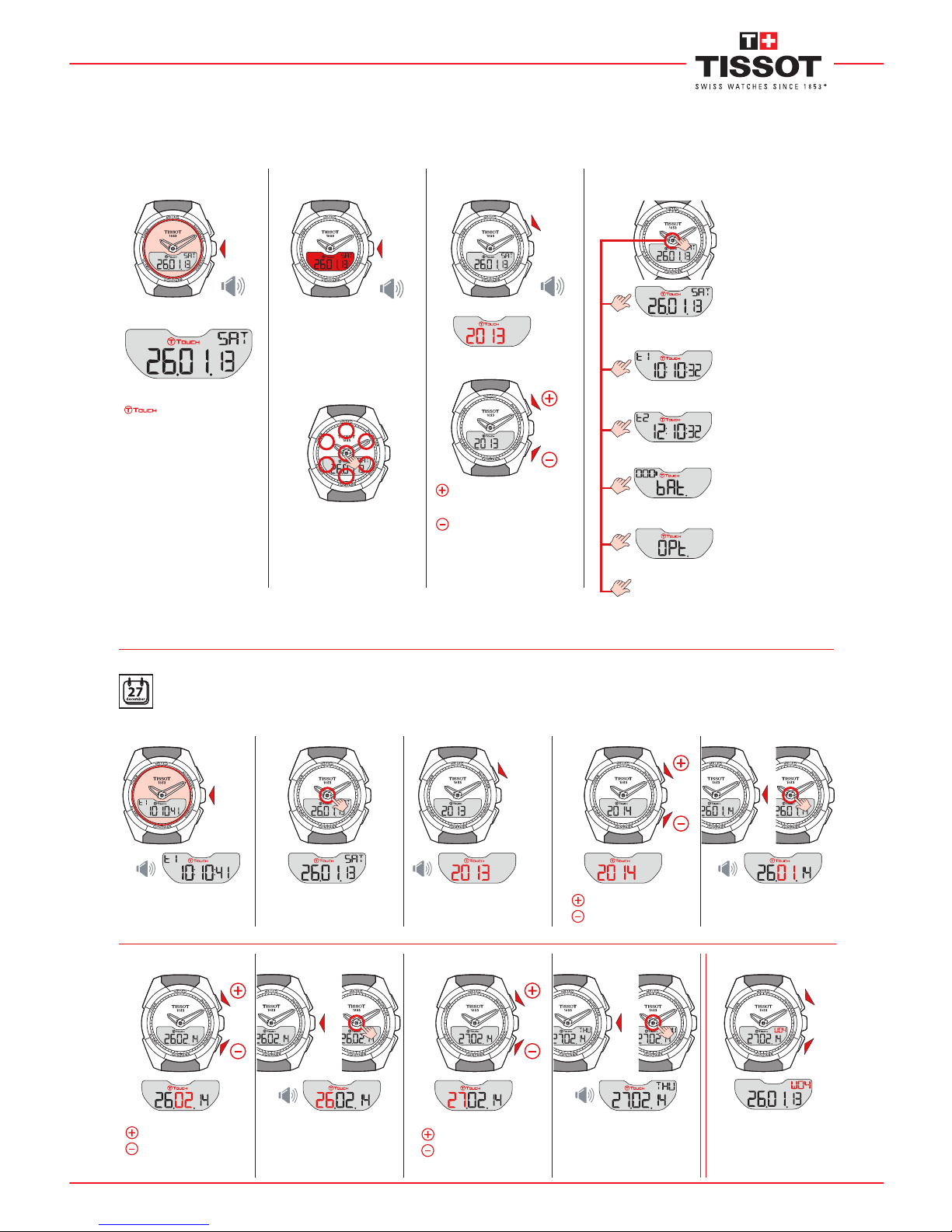

Date display =

Default display

Time 1: T1 display

Time 2: T2 display

Battery charge

level display

(see page 5)

Options display

(see page 6)

Back to Date display

DATE > SETTING

Activate glass Date display :forward 1 year

:back 1 year

:forward 1 month

:back 1 month

:forward 1 day

:back 1 day

Select month

Select day Validate setting

The calendar is perpetual, i.e. the number of days per month is predeﬁned. The date units are linked, so completing a full cycle of the months will

move the year forward.

2 sec.

Setting mode, select year

1 sec.

orororor

Week display

Weekdisplayedfor 2seconds

when the date is selected.

Note: The glass does not

need to be activated.

www.tissot.ch 154_EN

5/21

T-TOUCH SOLAR E84

LONDON NEW-YORK

T1 T2

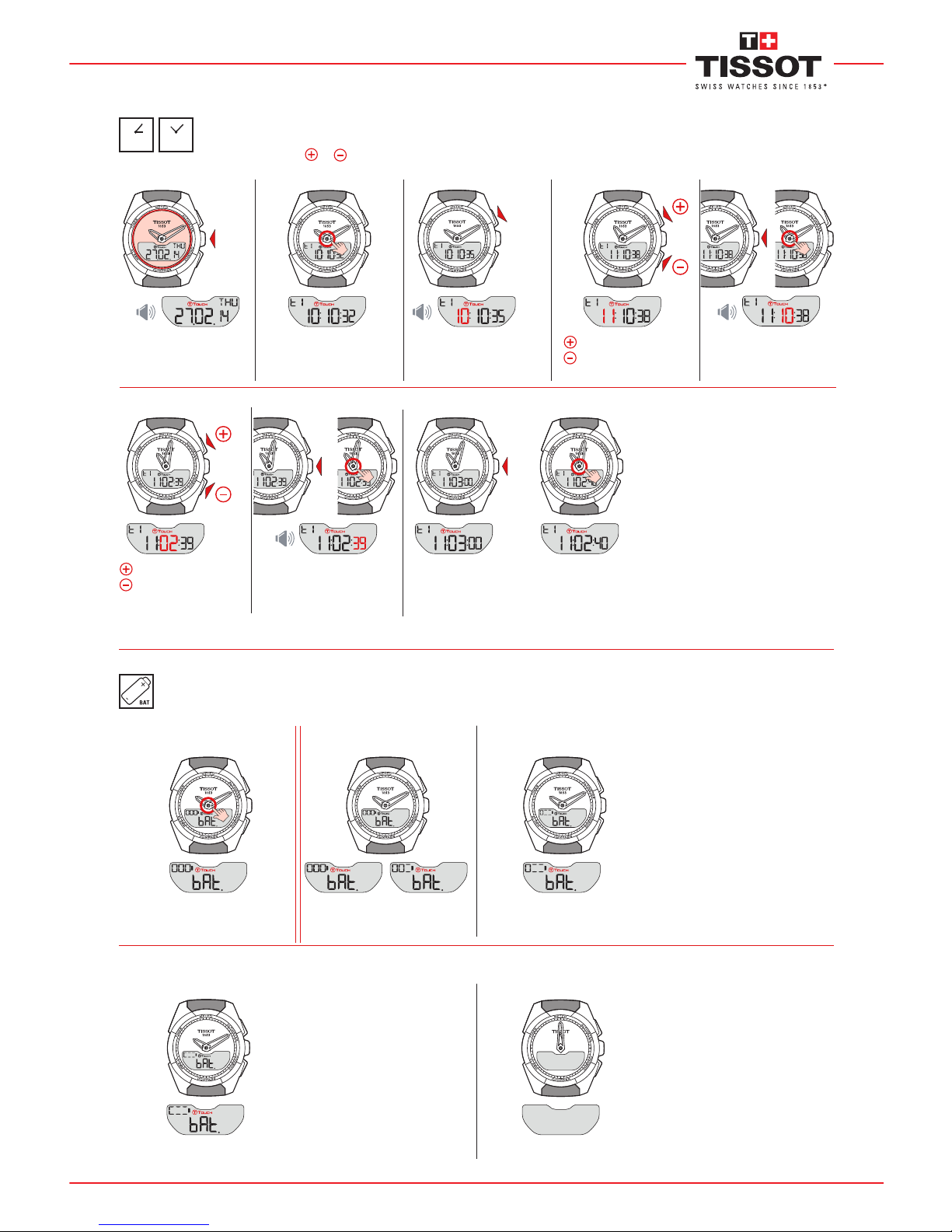

TIMES T1 & T2 > SETTING

Pressing and holding or will move the hands forward or backward. Time T2 is set in steps of 15 minutes.

Activate glass Time T1 or T2 display

(example: T1)

Switch to hour setting

mode

:forward 1 hour

:back 1 hour (hands and

display)

:forward 1 minute

:back 1 minute (hands and

display)

Validate the hour setting

and switch to minute

setting mode.

Validate the minute setting

and switch to seconds

synchronisation

mode (T1).

Seconds synchronisation (T1).

1 sec.

2 sec.

a) b)

or or

a) If the seconds are between 0and 30

when the push-button is pressed, the

minute is unchanged and the seconds

restart at zero.

If the seconds are between 31 and 59

when the push-button is pressed, the

minute is moved forward and the seconds

restart at zero.

b) The seconds continue.

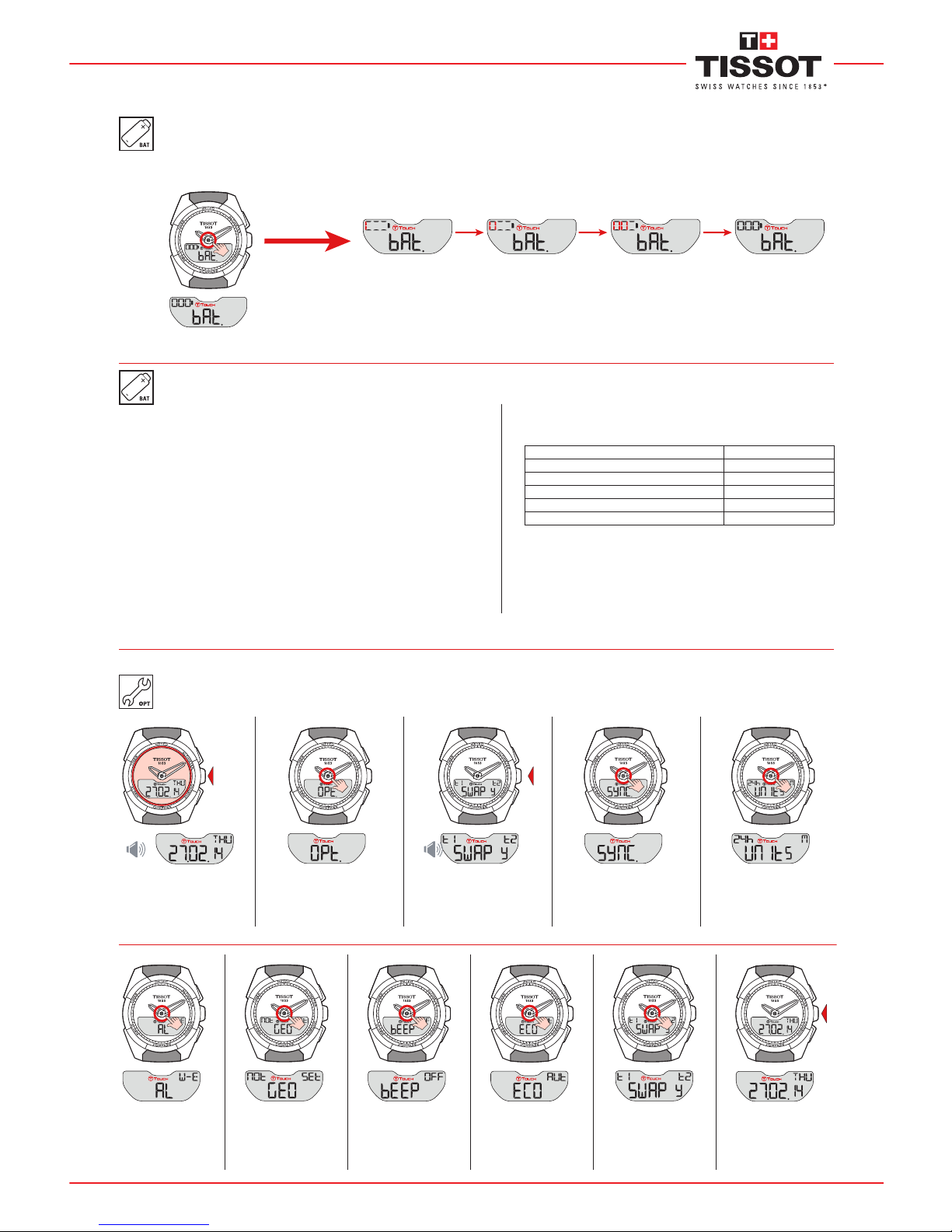

BAT (BATTERY) > READING THE CHARGE LEVEL

If the watch is in this mode, the charge state is indicated by the battery symbol.

In this state, the watch can no longer

operate correctly.

All the functions are deactivated,

except for time T1 and the date.

The watch will enter energy saving

mode (see page 9).

The watch will need to be exposed to

light to obtain sufﬁcient charge to run

normally.

Battery charge level

display

Normal operation

Battery at

1/3 charge

Battery

charged

Battery at

2/3 charge

Battery drained Battery ﬂat

The watch is stopped.

It automatically exits this state after

prolonged exposure to light.

The time and date must be reconﬁgured

upon exiting this state.

The light and compass can no longer be

activated.

"bAt" is displayed in alternation with the

regular function.

The watch will need to be exposed to light

to exit this mode.

Recharge indicator

www.tissot.ch 154_EN

6/21

T-TOUCH SOLAR E84

A micro-controller manages the watch's consumption and the battery

charge state display. According to this state, it deactivates certain

functions, or switches the watch to energy saving mode (see page 9).

Note 1: The battery charge is checked periodically (1x/min), and

continually when the light is activated.

Note 2: You are advised to recharge the battery within a few days of

the "bAt" symbol appearing.

Note 3: When fully charged and used sparingly, the watch can operate

for up to one year in a low-light environment.

Battery charge time

The table below indicates the charge time recommended for daily use.

Exposure level Daily use

Sunlight outdoors 7 minutes

Sunlight through a window 16 minutes

Daylight with cloudy sky 26 minutes

Daylight indoors 2 hours

Fluorescent light indoors 5 hours

Note: If the battery is completely ﬂat, the watch must be exposed to

light for at least 18 hours before it can be used.

BAT (BATTERY) > CHARGE INDICATOR

If the watch is exposed to a light intensity equal to or greater than a ﬂuorescent light and the battery is not fully charged, then it will be

recharged by means of the solar cell.

Battery charge level

display

Battery at

1/3 charge

Battery

charged

Battery at

2/3 charge

Battery drained or ﬂat

BAT (BATTERY) > GLOSSARY

OPTIONS > READING

Activate glass Options display

(see page 4)

Switch to sub-menus:

Time zone swap T1 to T2

display

(see page 7)

Units display

(see page 8)

Energy saving mode

display (see page 9)

Climate zone

display (see page 9)

Back to time zone swap

display

At any time:

exit sub-menu – back to

date display

Beep mode

display

(see page 8)

Synchronisation mode

display (see page 7)

1 sec.

Weekend days

selection for alarms

display

(see page 8)

www.tissot.ch 154_EN

7/21

T-TOUCH SOLAR E84

"SWAP n" = No

"SWAP y" = Yes

Mode

"SWAP y"

Validate setting

Times T1 and T2 are swapped

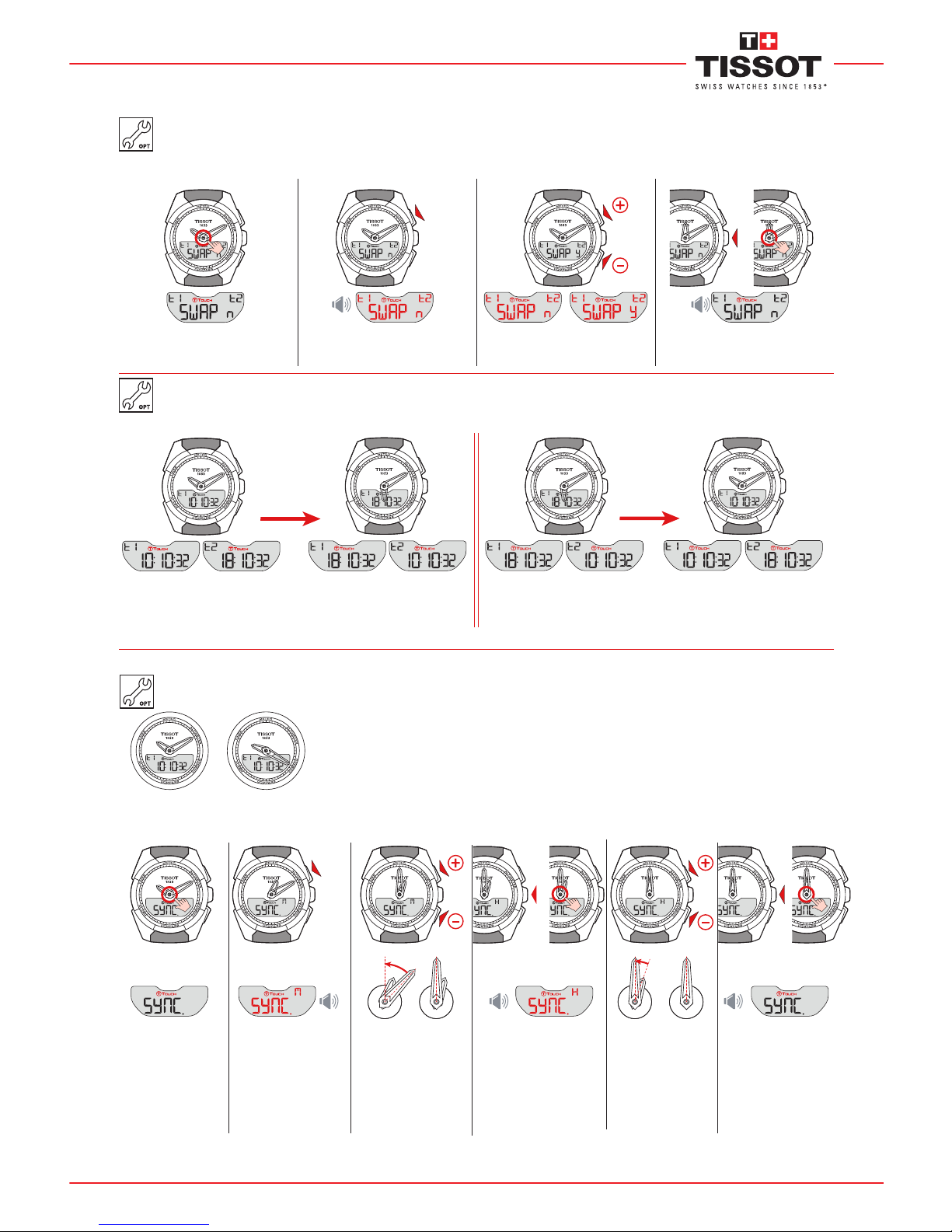

SWAP (TIME SWAP) > SETTING

SWAP mode is used to switch from time T1 to time T2 and vice versa. For example: before setting off, you can set under T2 the local time

zone for the country you are going to visit.

2 sec.

SWAP mode display

The analogue display and time T1 indicate

the time for the country you are visiting

Time T2 indicates the time where you live

Setting mode

Outward trip

Mode

"SWAP y"

SWAP (TIME SWAP) > EXAMPLE OF A TRIP ABROAD

10:10: Local time where you live / 18:10: Local time for the country you are going to visit.

The analogue display and time T1

indicate the time where you live

Time T2 indicates the time for the country

you are visiting

Return trip

SYNCHRO (SYNCHRONISATION) > SETTING

The watch needs to be synchronised if the watch hands do not display the same time as the digital display,

or if they are not correctly superimposed when accessing the functions.

The watch is desynchronised when its electric motor mechanism has been disrupted, by heavy impacts for

example.

NB: The glass must be active to access synchronisation mode.

Synchronisation

mode display

Synchronisation

setting mode

The hands should

be perfectly

superimposed in the

12 o'clock position

Position the minute

hand at 12 o'clock

Validate setting Position the hour hand

at 12 o'clock

Validate setting Back

to Time T1 mode

or or

✓ Synchronised ✗ Desynchronised

2 sec.

www.tissot.ch 154_EN

8/21

T-TOUCH SOLAR E84

Units display

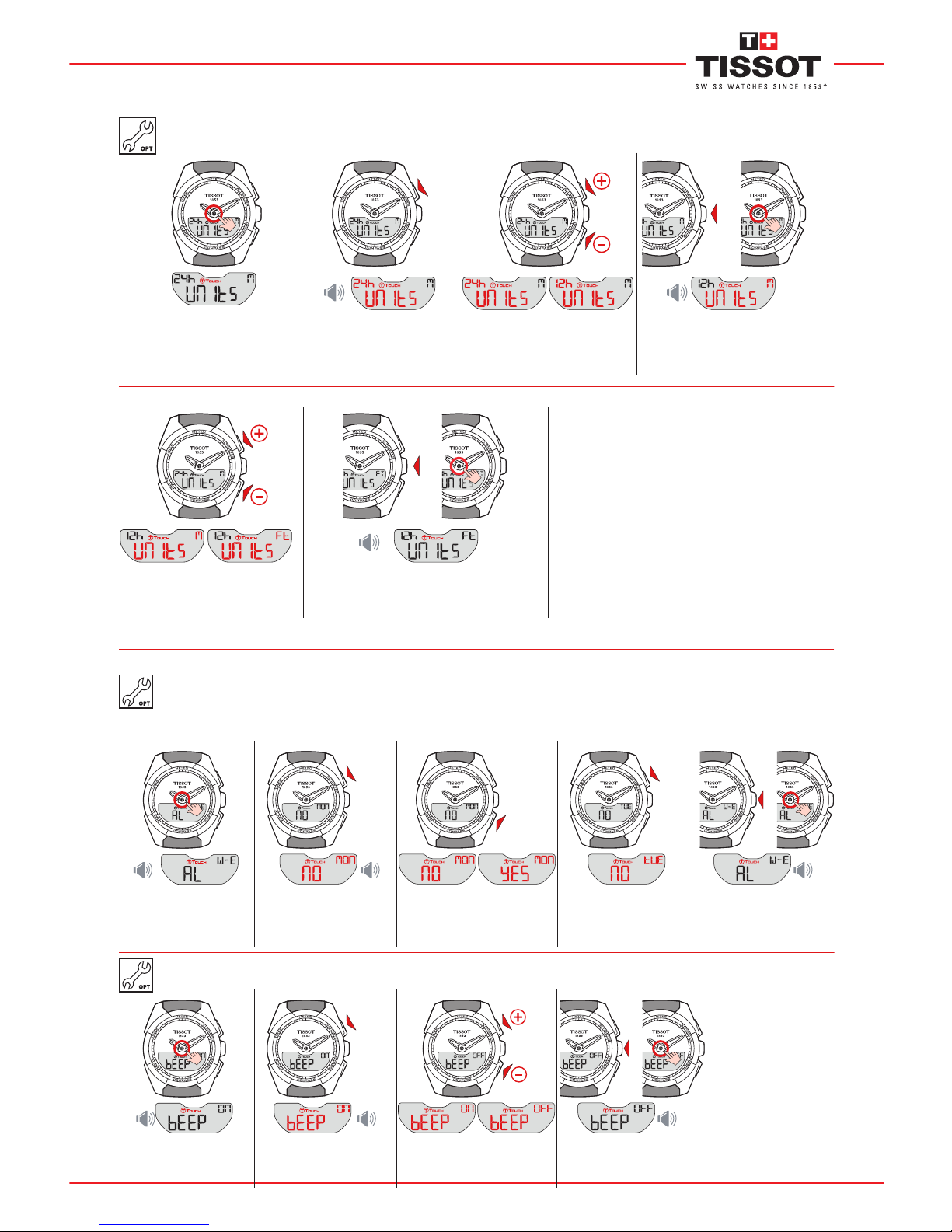

UNITS > SETTING

Switch to

time unit setting mode

Select 12/24-hour mode Validate time unit setting and switch to

m/ft unit setting mode

Note 1

Selecting 12-hour mode displays the date in the format

02.27.2014 (month, day, year), and 24-hour mode in the format

27.02.2014 (day, month, year).

Note 2

mmode: metres

ft mode: feet

Select mor ft mode Validate setting

2 sec.

AL (ALARM) > WEEKEND DAYS SELECTION

The alarm may be programmed to sound at the weekend or during the week only (see page 17). The days considered as the weekend may

vary between countries.

Day of the week display Activate the

weekend day setting

Select the displayed day

NO: week day

YES: weekend day

Scroll through the days, and

repeat the operation above for

each day

Validate setting

2 sec. 1 sec.

1 sec.

BEEP > SETTING

Beep display Setting mode Activated = on

Deactivated = off

Deactivating the

sound silences

adjustment beeps

but not the alarms.

Validate setting

2 sec.

www.tissot.ch 154_EN

9/21

T-TOUCH SOLAR E84

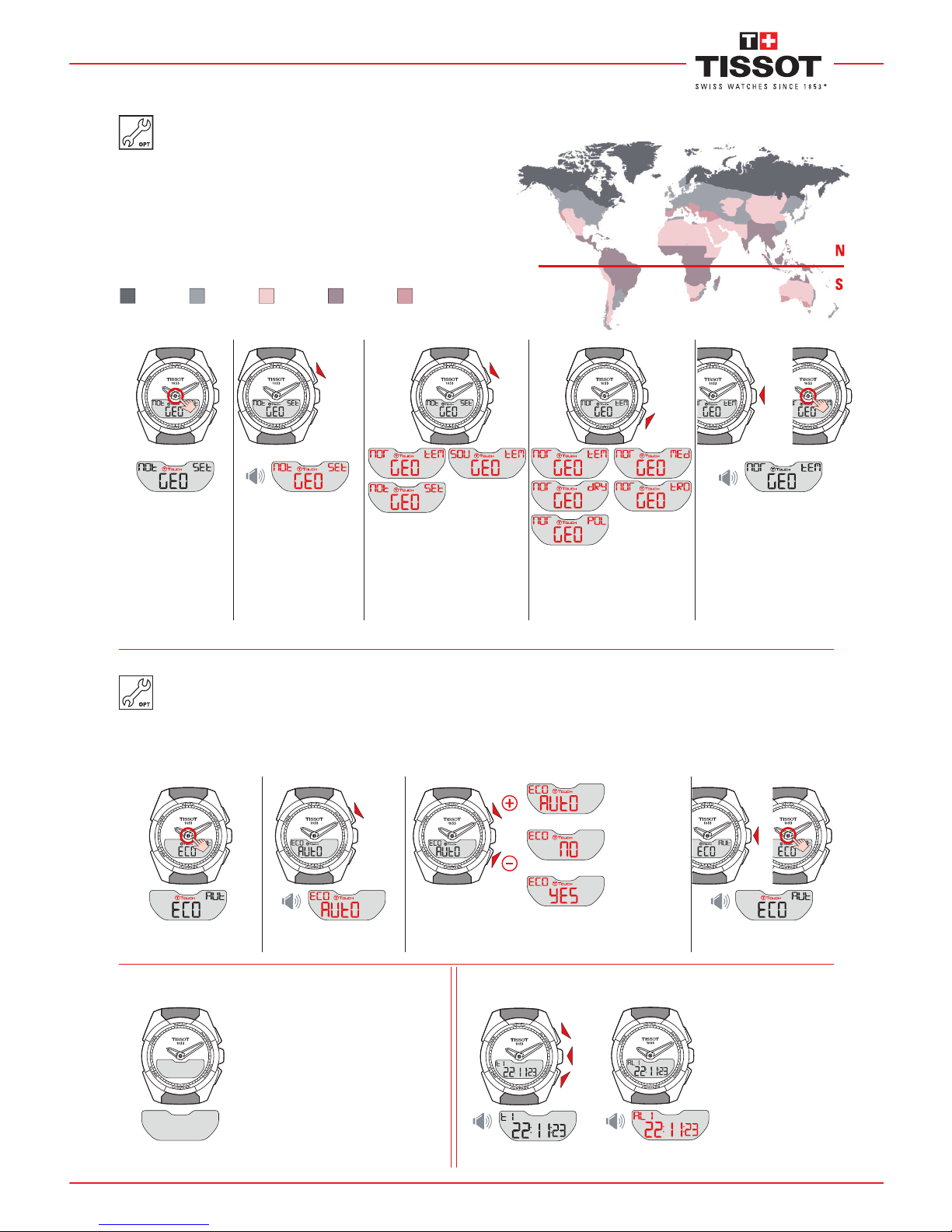

HEMISPHERE AND CLIMATE ZONE > SETTING

To get the best from the altimeter function, it is possible to adjust the

hemisphere and climate zone to your geographic location. Select your

climate zone according to the simpliﬁed Koeppen climate classiﬁcation

(see illustration on right).

If the watch is not set ("Not Set"), the standard atmosphere model

is used: set temperature at sea level = 15°C, mean pressure at sea level:

1013.25 hPa

Climate zone display Setting mode Select hemisphere:

nor =North

sou =South

not =not set

Set the local climate:

tEM = temperate /

MEd = Mediterranean /

dRY = dry / tRO = tropical /

POL = polar

Validate setting

Note

It is not possible to select polar

local climate for the South

Hemisphere.

2 sec.

Polar Temperate Arid Tropical Mediterranean

1 sec.

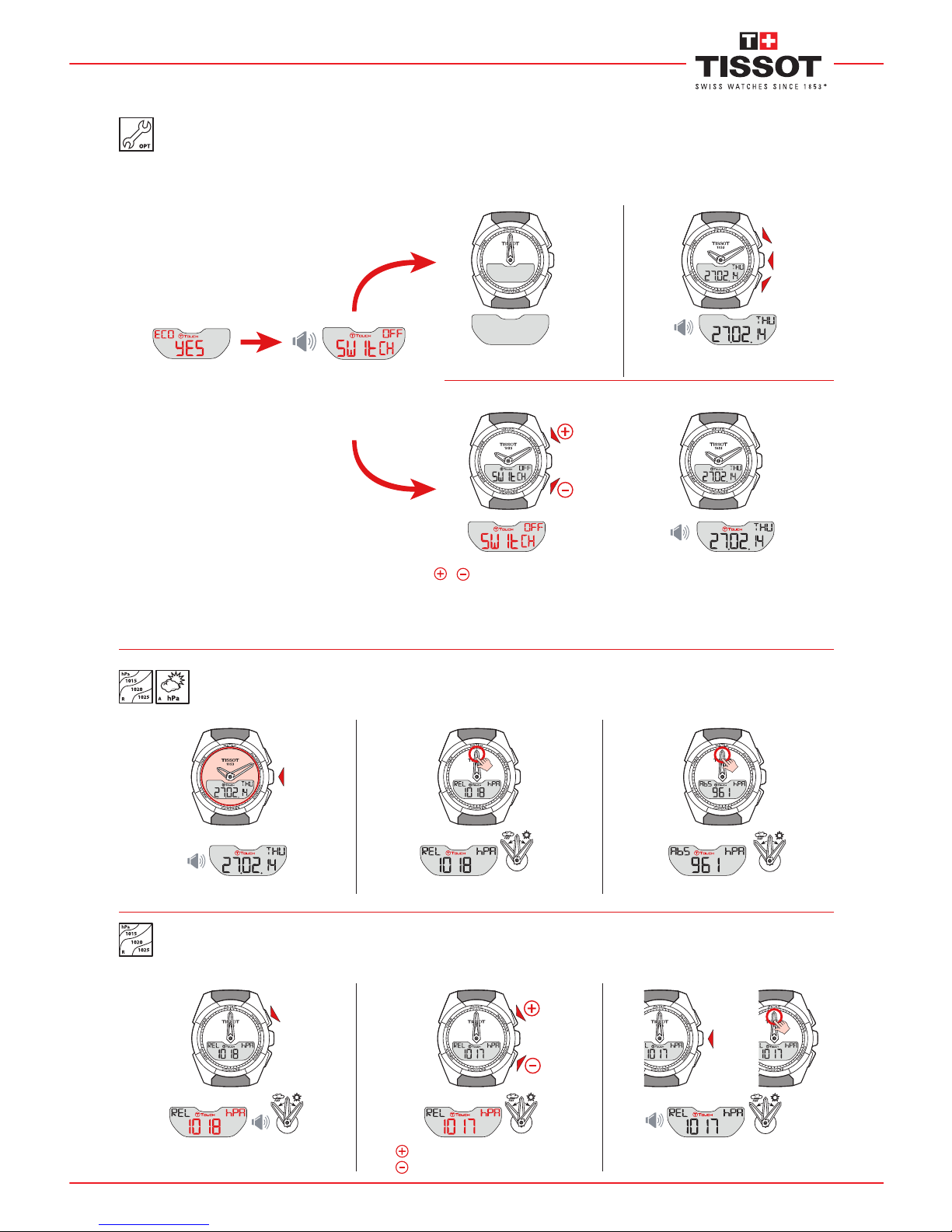

ECO (ENERGY SAVING MODE) > SETTING

This mode is used to save the battery at night if the watch is not operated for one hour, when time T1 is between 22:00 and 5:00.

The digital display is deactivated and the analogue display indicates time T1. The chrono or countdown are not stopped if they

are running. It is not possible to switch to energy saving mode from the Altimeter function.

With ECO AUTO, the watch automatic

switches to energy saving mode if no

operations or movements are detected for

1 hour between 22:00 and 5:00

if the battery is drained (see page 5).

With ECO NO, the watch never switches

back to energy saving mode.

With ECO YES, standby mode is

activated (see page 10).

Energy saving mode

display

Setting mode

AUTO =

Activated

NO =

Deactivated

YES = Activate

Standby mode

(see page 10)

Validate setting

2 sec.

Entering energy

saving mode

Exiting energy saving

mode

a) b)

a) Back to time & date

mode.

b) Activation of an alarm

makes the watch exit

energy saving mode.

or or

www.tissot.ch 154_EN

10/21

T-TOUCH SOLAR E84

SLEEP (STANDBY MODE) > SETTING

Standby mode is a battery saving mode. All the functions are deactivated, with only the time & date counters updated.

This mode economises the battery when the watch is not being worn.

IMPORTANT: Calibrate the altitude or relative pressure by exiting standby mode, in order to obtain the correct altimetric

and barometric values.

Back to time & date modea) The watch is in standby

Switch to standby mode after

5 seconds

Beep every second

Back to time & date mode

b) /:stop the count, the watch

does not switch to standby mode.

Activate standby mode

METEO (WEATHER) > READING

Activate glass Relative pressure display in hPa

:up 1 hectopascal

:down 1 hectopascal

Validate setting

Setting this pressure changes the altitude displayed. The possible relative pressure is deliberately limited between 950 hPa and 1100 hPa.

Setting mode

Absolute pressure display in hPa

METEO (WEATHER) > RELATIVE PRESSURE PRESETTING

1 sec.

2 sec.

or or

In meteo mode, the hands are superimposed to indicate the weather trend.

Table des matières

Autres manuels Tissot Montre

Tissot

Tissot AUTOMATIC CHRONOGRAPHS Manuel utilisateur

Tissot

Tissot T-TOUCH EXPERT Manuel utilisateur

Tissot

Tissot MOON PHASES WATCHES Manuel utilisateur

Tissot

Tissot Analog Watches with alarm Manuel utilisateur

Tissot

Tissot Couturier Grande date Manuel utilisateur

Tissot

Tissot GMT-24h Manuel utilisateur

Tissot

Tissot ANALOG WATCHES WITH ALARM Manuel utilisateur

Tissot

Tissot T026.420.11.031.01 Manuel utilisateur

Tissot

Tissot Analogue Mechanical Watches Manuel utilisateur

Tissot

Tissot T056.420.27.031.00 Manuel utilisateur

Tissot

Tissot T-TOUCH II Manuel utilisateur

Tissot

Tissot Multifunction Watches Manuel utilisateur

Tissot

Tissot SEA-TOUCH Manuel utilisateur

Tissot

Tissot Automatic Chronographs Manuel utilisateur

Tissot

Tissot QUARTZ CHRONOGRAPHS Manuel utilisateur

Tissot

Tissot Analog Watches Manuel utilisateur

Tissot

Tissot RACING-TOUCH Manuel utilisateur

Tissot

Tissot T-TOUCH EXPERT Manuel utilisateur

Tissot

Tissot T-Touch Manuel utilisateur

Tissot

Tissot AUTOMATIC CHRONOGRAPHS COSC Manuel utilisateur

Tissot

Tissot Navigator 3000 Manuel utilisateur

Tissot

Tissot SEA-TOUCH Manuel utilisateur

Tissot

Tissot T-Touch Connect Solar Manuel utilisateur

Tissot

Tissot Ballade III Gent T97.5.483.31 Manuel utilisateur

Manuels Montre populaires d'autres marques

Pandora

Pandora WATCH2 Manuel utilisateur

Casio

Casio QW-4343 Manuel utilisateur

Suunto

Suunto X6 Manuel utilisateur

Seiko

Seiko N830 Manuel utilisateur

MotionX

MotionX 365 Manuel utilisateur

Garmin

Garmin VENU SQ 2 Manuel utilisateur

QCY

QCY Watch GTC Manuel utilisateur

Canyon

Canyon Cindy CNE-KW41WP Manuel utilisateur

Esq

Esq Watches Guide d'installation

Crane

Crane AA5-CDSM-3A Manuel utilisateur

Timex

Timex W-214 Manuel utilisateur

DETOMASO

DETOMASO MATERA Manuel utilisateur

Geemarc

Geemarc Watch N Shake Manuel utilisateur

LORUS

LORUS W590 Manuel utilisateur

STENLILLE

STENLILLE Actío Manuel utilisateur

Casio

Casio 5594 Manuel utilisateur

Sinn

Sinn HUNTER'S WATCH 3. Edition Manuel utilisateur

Slazenger

Slazenger SLZ800 Manuel utilisateur
