INSTRUCTIONS FOR USE

Aluminium wheelchair

Product code: E1

1. Characteristics

The wheelchair is made of light aluminium frame reinforced with

double cross bar. Additionally upholstered backrest and seat are made

of air-permeable material. Flip-up, detachable and height adjustable

armrests are made in profiled version. The wheelchair is equipped with

quick release function allowing fast dismantling of wheels, backrest

angle adjustment, centre of gravity adjustment on the front and rear

wheels and with anti-tipping wheels. Footrests are available in a swing

away version. The wheelchair is supplied with pneumatic rear wheels

24’’ and solid rubber front wheels 8’’ in diameter.

The set includes:

•Frame

•Backrest and seat cushion

•Right footrest with footplate

•Left footrest with

footplate

•Pump

•Set of keys for

wheelchair

•assembly/dismantling

Elements of the wheelchair:

a. Hand grip

b. Transverse stabilization

c. Armrest height

adjustment

d. Backrest angle

adjustment

e. Locking pin of the armrest

f. Wheel lock

g. Quick release

h. Handrim

i. Assembly pin of the footrest

j. Footrest lever

k. Anti-tip wheels

l. Adjustment of the centre of gravity on the front wheels

m. Adjustment of the centre of gravity on the rear wheels

2. Application

The wheelchair is designed for people who have problems with

unassisted moving and for patients with dysfunctions and reduced

mobility. This self propelled wheelchair can also be pushed by an

accompanying person. The wheelchair is suitable for indoor and

outdoor use.

3. Assembly

UNFOLDING AND ASSEMBLY

Step 1. Unfolding the wheelchair

Place the wheelchair on the ground. Unfold the wheelchair using the

hand grips which are at the back of the backrest. Then, press the front

and rear edge of the seat so that all the elements fit together. Fasten

extended lower part of the backrest with Velcro under the seat. Press

transverse stabilization which is located at the back of the wheelchair

downwards.

Step 2. Assembly of upholstery

Fix the upholstery by putting it on the backrest and seat with Velcro

directed downwards.

Step 3. Assembly of footrests

Assemble the right and the left footrest in the front part of the frame

by placing them into the openings and turn them inwards until they are

locked.

Step 4. Adjustment of footrests

Adjust the right and the left footrest by twisting the screw off which is

placed at the bottom of footrests, and then push out the screw thread

on the other side. Proper space should be left between the footplates

and the ground as footplates set too low may cause difficulties in

overcoming such obstructions as curb. Adjust the footplates so that the

angle between trunk and thighs is 900 (optimum sitting position is

provided to the user, then).

Step 5. Adjustment of anti-tip wheels

In order to adjust anti-tip wheels, which are located at the back of the

wheelchair, pull the lock, move the wheels upwards or downwards,

and select appropriate height.

Step 6. Adjustment of backrest angle

To adjust the backrest angle, dismount rear wheels and place the

wheelchair on anti-tipping wheels. Twist off the screws with the use of

Allen wrench and set desired the angle (85⁰-115⁰) on both sides.

Note! It is forbidden to sit in the wheelchair while backrest angle

adjustment.

FOLDING

The wheelchair can be re-folded in order to be transported and stored

more easily.

•Swing away the footplates and set them in vertical position

(perpendicularly to the ground).

•Unfasten extended part of the backrest placed under the seat.

•Lift the transverse stabilization upwards.

•To fold the frame, pull the seat upwards by holding the front and

the back edge in the middle, so that the frame jumps out from the

connecting elements.

•If necessary, lift the anti-tipping wheels to the maximum height.

FLIP-UP FUNCTION OF ARMRESTS

•To flip-up the armrest, press the locking button located in the

front part of the armrest and push the armrest backwards.

•To detach the armrest, press the locking button located in the

front part of the armrest and push the armrest backwards slightly.

Then, pull the lock of the armrest located at the back of the

armrest and take out the armrest from the openings.

•To fix the armrest, put its rear part to the opening and lock it in

the front. Both locks must click.

HEIGHT ADJUSTMENT OF ARMRESTS

•To set appropriate height of the armrest, press the button located

on the outer side of the armrest.

PUMPING THE WHEELS

•The wheelchair was equipped with pneumatic rear wheels 24’’ in

diameter and swivel, PU front wheels 8’’ in diameter (tubeless

tyre). Remember to control the air pressure in both rear wheels

and check the condition of the tyres in search of abrasions, cuts

or surface depletion.

•To balance the air pressure in the wheels, twist off the cap of the

valve, insert the pump (included in the set) into the valve, and

pump the air.

WHEEL LOCKS

•To lock the wheels, push the wheel lock lever forwards until the

wheel is fully blocked (separately for left and right wheel). Please,

note that the wheel lock only serves to lock the wheels when the

wheelchair is at a complete stop.

WHEEL LOCKS ADJUSTMENT

The correct lock of the wheel lock depends on its adjustment and

position. The handle of the wheel lock should be positioned so that the

wheel lock shoe blocks the wheel firmly and the lever does not face

excessive resistance.

•In case of excessive resistance, pull the handle forwards slightly by

twisting off the locking screw which is located on the other side of

the wheel lock (from the inside of the wheelchair). Set the wheel

lock shoe in such position that the wheel lock blocks the wheel

easily and without resistance.

•When the wheel lock shoe does not touch or lock the wheel

sufficiently, follow the above instruction by moving the handle in

the opposite direction.

ADJUSTMENT FOR PATIENTS AFTER AMPUTATIONS IN THE LOWER

LIMBS AREA

Note! For professional adjustment, ask your retailer or other person

who has appropriate knowledge and qualifications. Do not adjust

inclination angle of the seat by yourself.

•To adjust the centre of gravity on the front wheels, unscrew fixing

screw in right and left wheel. Then, set the seat inclination by

moving fixing axis of the wheel upwards or downwards, the same

in both wheels.

•The seat inclination should be set in such a way so that the user

does not slide down from the wheelchair and can freely use

handrims.

•To adjust the centre of gravity on the rear wheels, dismount the

wheel. Then, unscrew fixing screw in right and left wheel and set

the seat inclination on the same height in both wheels.

SEAT BELT

•The belt, which is included in the standard equipment, protects

the trunk in cases when the user slides down from the wheelchair

or is not able to keep correct position independently. The belt is

fastened with the use of buckle.

4. Technical data

Overall width

64-68 cm

Inner width

46 cm

Overall depth

106 cm

Seat height from the

ground

50 cm

Overall height

92 cm

Seat dimensions

45 cm x 41 cm

Weight

17.5 kg

Maximum capacity

125 kg

Folded width

39 cm

Frame colour

graphite

5. Notes

Timago International Group does not bear responsibility of improper

moving in the wheelchair, failure to comply safety regulations and

misuse.

6. Cleaning and maintenance

Carry out the maintenance of the wheelchair components regularly:

•The upholstery and the cushion can be cleaned with damp (not

wet) cloth and cold or warm water, without the use of detergents.

Difficult stains can be cleaned with a sponge. Do not soak the

upholstery too much. Dry away from heat sources.

•Plastic elements should be cleaned with damp cloth possibly with

the use of appropriate detergents for plastic elements. In such

case follow the instructions given by the producer and safety

measures.

7. Storage and transport conditions

Device should not be exposed to direct sunlight, water or moisture.

8. Warranty information

All products distributed by our company are covered by a warranty, the

terms of which are described in the warranty card available on our

website. Please contact the retailer from whom you purchased the

product. Please, keep in mind that for warranty purposes, the proof of

purchase (receipt or invoice) should be retained.

9. Labels

Reference

number

Manufacturer

LOT number

Manufacture date

Serial number

Medical device

Note

Please read the

instruction

The manufacturer checked for compliance with

essential medical devices requirements.

Our complete line of products is available from our distributors.

Learn more at: www.timago.com. Thank you for choosing Timago!

Timago International Group

Spółka z o.o. i Spółka – Spółka komandytowa

ul. Karpacka 24/12

43-316 Bielsko-Biała, Polska

T.: +48 33 499 50 00

F.: +48 33 499 50 11

E.: info@timago.com

Rev. II, date 20.05.2021

Table des matières

Autres manuels Timago Fauteuil roulant

Timago

Timago FS 7962L Manuel utilisateur

Timago

Timago FS 894 Manuel utilisateur

Timago

Timago TGR-R KP 355L Manuel utilisateur

Timago

Timago FS 908LQ Manuel utilisateur

Timago

Timago FS 692 Manuel utilisateur

Timago

Timago FS 7962L Manuel utilisateur

Timago

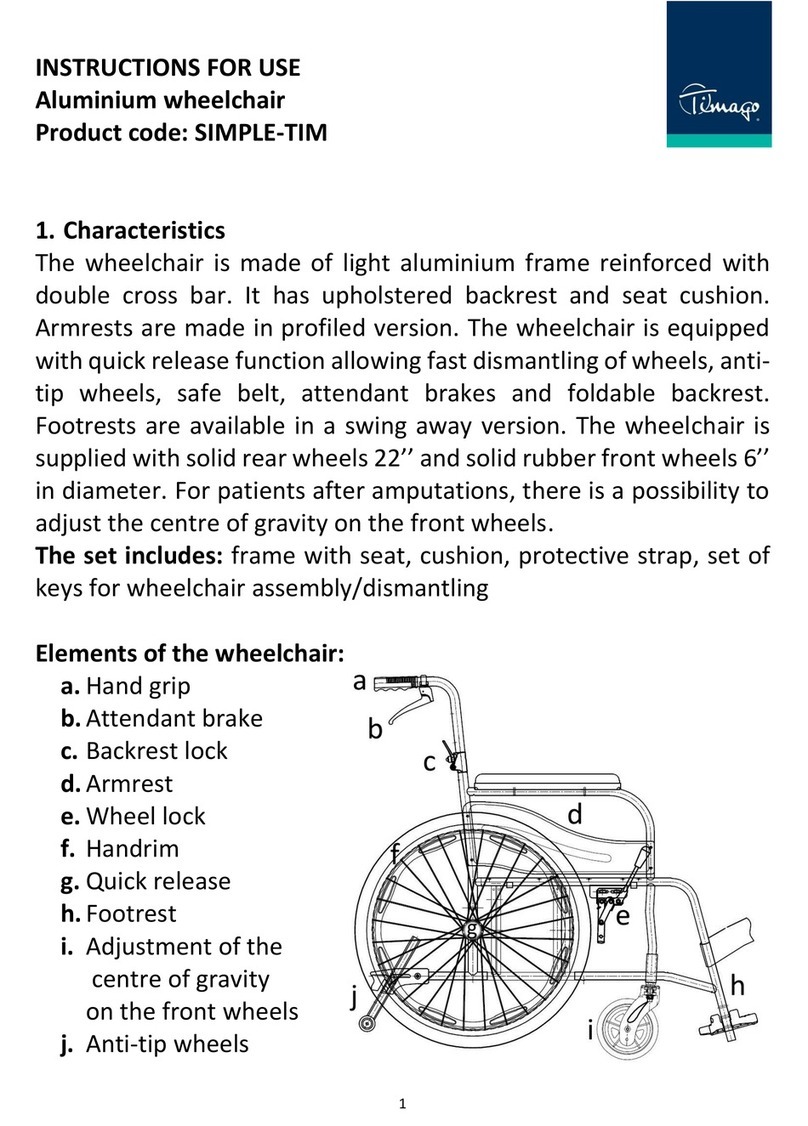

Timago SIMPLE-TIM Manuel utilisateur
