Quick Start Guide

Thunder Scientific Corporation

Model 2900 System Manual

Model 2900 Humidity Generation System

Document #SG2900 - Edition 1.8

Quick Start Guide

Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019

Quick Start Guide

For full version of this manual click on the Help Menu located on the upper right corner of the screen

Or go to www.thunderscientific.com/tech_info/reference_manuals.html

1CONTENTS

2Getting Started 2

2.1 About .....................................................................................................................2

2.2 Notice..................................................................................................................... 3

2.3 Safety Information..................................................................................................3

2.3.1 Live Power Source .................................................................................. 3

2.3.2 Electrostatic Discharge............................................................................3

2.3.3 Compressed Gas...................................................................................... 3

2.3.4 Personal Protective Equipment ................................................................ 3

2.3.5 Safety Symbols .......................................................................................4

2.4 Technical Support...................................................................................................4

2.5 License Agreement ................................................................................................. 4

2.6 Warranty ................................................................................................................6

2.7 Copyright ...............................................................................................................6

2.8 Trademarks.............................................................................................................6

2.9 Specifications .........................................................................................................7

2.10 Uncertainty ............................................................................................................8

2.11 Facility Requirements ............................................................................................. 9

2.11.1 Environment ...........................................................................................9

2.11.2 Floor Space.............................................................................................9

2.11.3 Power...................................................................................................... 9

2.11.4 Air Supply ..............................................................................................9

2.11.5 Distilled Water Supply ............................................................................ 9

2.12 Installation............................................................................................................ 10

2.12.1 Uncrating.............................................................................................. 10

2.12.2 Positioning............................................................................................ 10

2.12.3 Chamber Fluid ...................................................................................... 10

2.12.4 Reservoir Initial Filling Procedure ......................................................... 11

2.12.5 Setting Supply Pressure Regulator......................................................... 11

2.13 Quick Start ........................................................................................................... 12

2.13.1 Power-Up.............................................................................................. 12

2.13.2 Loading Screen ..................................................................................... 13

2.13.3 ControLog Screen ................................................................................. 14

2.13.4 Control Parameters................................................................................ 15

2.13.5 Control Modes ...................................................................................... 17

2.13.6 Generating and Shutting down............................................................... 18

2.13.7 Power-Off............................................................................................. 19

2.13.8 Set Date and Time................................................................................. 20

2.13.9 Help...................................................................................................... 21

Reference Drawings 18D29901-2,3 &4 + 18D29909-1, 2

Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019

2GETTING STARTED

This section will provide the user with information about the Model 2900 humidity generator, where to

obtain technical support, software license agreement, specifications, uncertainty, facility requirements

and installation. Following sections will provide further details on how to use and operate the Model

2900 generator using the ControLog software.

Note -All pressures are absolute unless noted otherwise.

2.1 ABOUT

The Thunder Scientific Model 2900 Humidity Generator is capable of producing known humidity

values using the fundamental, NIST proven, "two-pressure" principle. The Model 2900 uses this

fundamental “two-pressure” principle to continuously supply a known relative humidity, dew point,

frost point, parts per million, or other calculated value for instrument calibration and evaluation as

well as precision environmental testing.

The Model 2900 humidity generator encompasses a high-performance stand-alone Data Acquisition

Computer that performs all functions required for humidity generation and control and a second

dedicated Human Machine Interface (HMI) computer that runs ControLog. ControLog is a software

application that fully automates the operation of the Model 2900 humidity generator and allows

various device connections through a number of different interfaces. Data from the generator and

connected device or devices is automatically retrieved and stored for viewing in either numerical or

graphical format in real time or post process. Data can be transferred off the system via a USB drive

for further viewing, post processing and printing. The ControLog software also provides the primary

interface to the operator via the multi-point touch LCD and keyboard.

Key features of the of the ControLog software are:

•ControLog stores data into individual data sheets (tab). Each data sheet contains a

spreadsheet type view that consists of a date/time stamp and the measured data items

corresponding to that date/time stamp. Data sheets consist of three similar but different

types: Device Data, File Data and Data Summary. Each type has the same spreadsheet type

view and operation, but all three have different data sources.

•Graphing is a powerful tool used to view previously recorded data or to monitor the current

data in real-time. The graph works hand in hand with the data sheets. While the generator is

in operation, data sheets store the most recent data points from the generator and or

connected devices at the desired interval. A graph can be used to create a visual picture of

this stored data.

•The Auto Profiling feature is very similar to the Generate mode with the main exception that

profiling relies on a predefined list of setpoints referred to as a profile. The user configurable

profile is used as ControLog's road map during Auto Profile operation. It defines which

setpoint values to go to, at what rate to go from one setpoint to another, and how long to stay

at a specific setpoint before moving to the next setpoint.

•ControLog supports a customizable interface that works with most devices. ControLog will

allow the user to create a new device connection using the “Connection Wizard” or open

previously saved connections. The wizard will open a separate dialog window containing

Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019

various steps that will guide the user in defining the communication required to receive the

desired data items from the device. The user can create as many (up to 60) or as few data

items as they see fit for any one device. Each data item can be uniquely named and once

connected will be recorded in its own data sheet. ControLog also allows the user to save

these interfaces for future use. The “Connection Wizard” allows the user to step through the

connection configuration. Using the “Next” and “Back” buttons the user is allowed to

progress through the connection configuration steps. At any time, the user may cancel the

new connection or opening of a connection by selecting the “Cancel” button. Once the last

step has been completed the “Finish” button will be available to complete the new connection.

2.2 NOTICE

The specifications listed and the information contained in this document is subject to change without

notice. Screen shots shown in this document may differ slightly from the actual product and are given

to show functionality of the examples, procedures and program. Thunder Scientific Corporation makes

no warranties, either express or implied, regarding the examples, procedures and program, or the

fitness of these examples, procedures or program for a particular purpose. The examples, procedures

and program are made available solely on an "as is" basis and the entire risk as to their quality and

performance rests with the user. Thunder Scientific Corporation shall not be liable for any incidental or

consequential damages in connection with or arising out of the furnishing, use, or performance of the

examples, procedures or program.

2.3 SAFETY INFORMATION

Important safety guidelines need to be observed when operating this equipment. Precautions are highly

advisable so that no personal injury will occur during the operation and maintenance of the system.

Observation of local and national regulations must be adhered to regarding safety standards.

2.3.1 Live Power Source

Warning! Make sure all power sources are turned off before making internal adjustments or replacing

any components. Only authorized technicians should perform any maintenance or repairs to equipment.

2.3.2 Electrostatic Discharge

Caution! Electrostatic discharge (ESD) could possibly damage or destroy solid-stat parts when exposed

to static electric discharges. Be aware because electrostatic discharges may not be seen, felt or heard at

levels less than 4,000 volts.

2.3.3 Compressed Gas

Compressed gas is used on this system and if not properly vented may create an environment where the

state of foreign matter may be propelled. Proper safety precautions must be fallowed when applying

any pressure to the system. Before applying any pressure to the system, ensure that all pneumatic

connections are properly secured and tightened. Make sure all pressure settings are set to the proper

specifications before operation, testing, calibration or maintenance is performed.

2.3.4 Personal Protective Equipment

Safety glasses must be worn when preforming any maintenance, repairs or calibration when system

panels have been removed. Gloves may be needed on some maintenance or repairs.

Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019

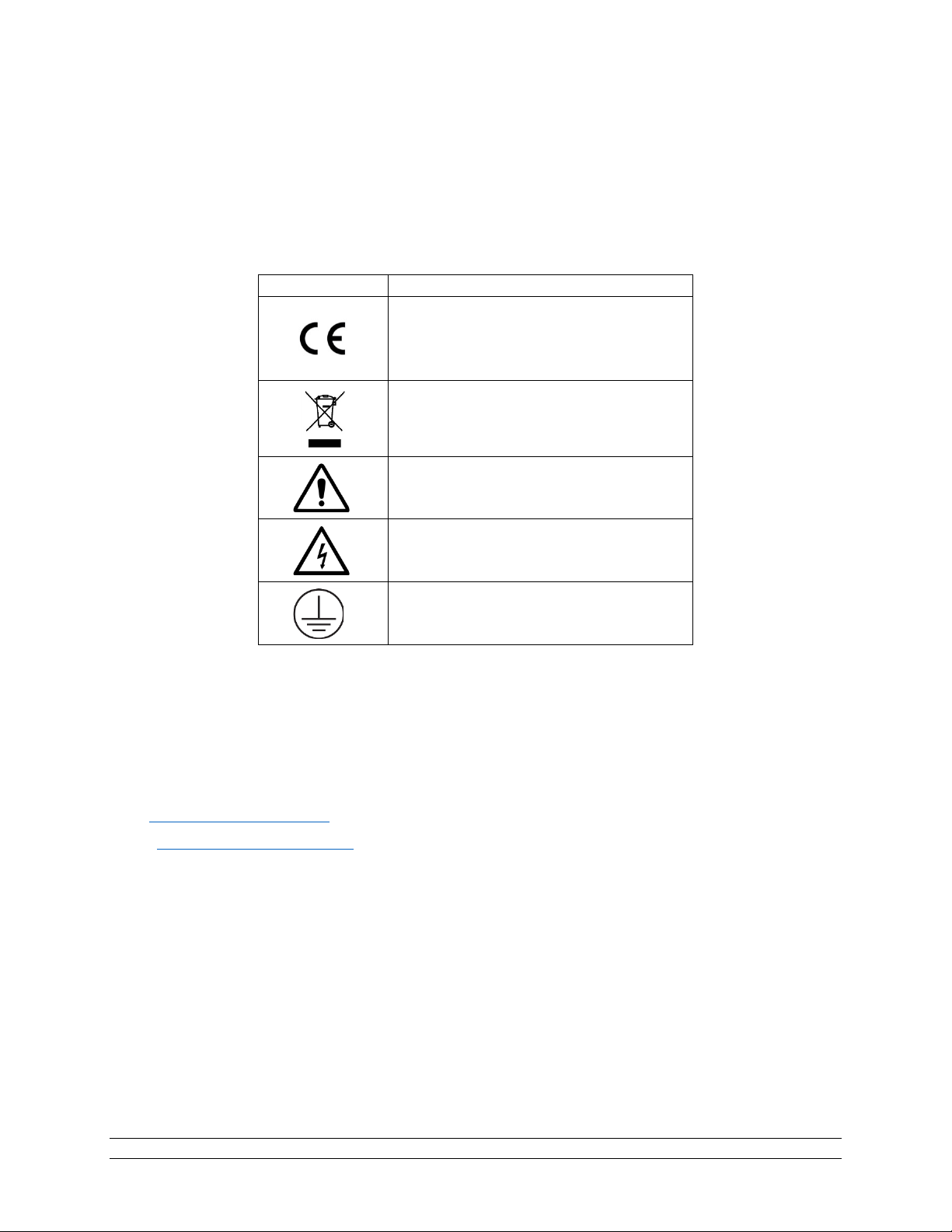

2.3.5 Safety Symbols

Symbols used in this manual for safety and other disciplines can be found in table 1-1.

Safety terminology used for identification of any safety conditions are as follows:

Warning indicates a potential hazard may exist and the user should be extremely careful.

Caution!identifies a condition or action that may cause damage to the system or the user.

Symbol

Description

The equipment has this symbol displayed

and indicates that the equipment meets

the requirements of the European safety

directives.

This symbol is shown from the WEEE

directive and indicates do not dispose of

this product in any municipal waste area.

This symbol means Caution should be

observed or important information.

This symbol indicates a potential shock

hazard may exist.

This symbol means Earth Ground.

Table 1-1

2.4 TECHNICAL SUPPORT

If the user requires assistance with any aspect of the 2900 Humidity Generating System or the

ControLog application, technical support can be obtained by contacting Thunder Scientific Corporation

by any of the following means:

Web: www.ThunderScientific.com

Email: support@thunderscientific.com

Tel : 1-505-265-8701

FAX : 1-505-266-6203

2.5 LICENSE AGREEMENT

THIS IS A LEGAL AGREEMENT BETWEEN YOU, THE END USER, AND THUNDER SCIENTIFIC

CORPORATION ("TSC"). THE ENCLOSED THUNDER SCIENTIFIC CORPORATION SOFTWARE

PROGRAM (THE "SOFTWARE ") IS LICENSED BY THUNDER SCIENTIFIC CORPORATION TO THE

ORIGINAL CUSTOMER AND ANY SUBSEQUENT TRANSFEREE OF THE PRODUCT FOR USE ONLY ON

THE TERMS SET FORTH HERE. PLEASE READ THIS LICENSE AGREEMENT. IF YOU DO NOT AGREE

TO THESE TERMS, RETURN THE FULL PRODUCT WITH PROOF OF PURCHASE WITHIN 30 DAYS FOR

A FULL REFUND.

Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019

• GRANT OF LICENSE. TSC grants to you the right to use one copy of the enclosed SOFTWARE on a single

terminal connected to a single computer (i.e. single CPU) or to a network server. If you install the SOFTWARE on

a network server, you must purchase a separate copy of the SOFTWARE for each computer terminal that will be

used to operate the SOFTWARE. If the anticipated number of users of the SOFTWARE will exceed the number of

applicable Licenses, then you must have a reasonable mechanism in place to ensure that the number of persons using

the SOFTWARE concurrently does not exceed the number of Licenses. If the SOFTWARE is permanently installed

on the hard disk or other storage device of a computer (other than a network server) and one person uses that

computer more than 80% of the time, then that person may also use the SOFTWARE on a portable or home

computer.

• COPYRIGHT. The SOFTWARE is owned by TSC and is protected by United States copyright laws and

international treaty provisions. You may either (a) make two copies of the SOFTWARE solely for backup or

archival purposes provided that you reproduce all copyright and other proprietary notices that are on the original

copy of the SOFTWARE provided to you, or (b) transfer the SOFTWARE to a single hard disk provided you keep

the original solely for backup or archival purpose. You may not copy the written materials accompanying the

SOFTWARE.

• OTHER RESTRICTIONS. You may not rent or lease the SOFTWARE, but you may transfer the SOFTWARE

and accompanying written materials on a permanent basis provided you retain no copies and the recipient agrees to

the terms of this Agreement. You may not reverse engineer, decompile, disassemble, or create derivative works

from the SOFTWARE.

SOFTWARE and written materials

• GOVERNMENT LICENSEE. If you are acquiring the SOFTWARE on behalf of any unit or agency of the United

States Government, the following provisions apply:

The Government acknowledges TSC's representation that the SOFTWARE and its documentation were developed at

private expense and no part of them is in the public domain.

The Government acknowledges TSC's representation that the SOFTWARE is "Restricted Computer Software" as

that term is defined in Clause 52.227-19 of the Federal Acquisition Regulations (FAR) and is "Commercial

Computer Software" as that term is defined in Subpart 227.471 of the Department of Defense Federal Acquisition

Regulations Supplement (DFARS).

The Government agrees that:

(i) If the SOFTWARE is supplied to the Department of Defense (DoD), the SOFTWARE is classified as

"Commercial Computer Software" and the Government is acquiring only "restricted rights" in the

SOFTWARE and its documentation as that term is defined in Clause 252.227-7013(c) (1) of the DFARS,

and

(ii) If the SOFTWARE is supplied to any unit or agency of the United States Government other than DoD,

the Government's rights in the SOFTWARE and its documentation will be as defined in Clause 52.227-19

• RESTRICTED RIGHTS LEGEND. Use, duplication, or disclosure by the Government is subject to restrictions as

set forth in subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS

252.227-7013. Thunder Scientific Corporation, 623 Wyoming SE, Albuquerque, NM 87123.

• EXPORT LAW ASSURANCES. You acknowledge and agree that the SOFTWARE is subject to restrictions and

controls imposed by the United States Export Administration Act (the "Act") and the regulations thereunder. You

agree and certify that neither the SOFTWARE nor any direct product thereof is being or will be acquired, shipped,

transferred or re-exported, directly or indirectly, into any country prohibited by the Act and the regulations

thereunder or will be used for any purpose prohibited by the same.

• GENERAL. This Agreement will be governed by the laws of the State of New Mexico, except for that body of

law dealing with conflicts of law.

Should you have any questions concerning this Agreement, or if you desire to contact TSC for any reason, please

write: Thunder Scientific Corporation, 623 Wyoming NE, Albuquerque, NM 87123

Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019

2.6 WARRANTY

Thunder Scientific Corporation (TSC) warrants, to the Buyer, the Product manufactured by TSC to

be free of defects in material and workmanship under normal use and service and to be free from

inadequate mechanical design when operated within the specified design limitations for a period of

one year from date of acceptance. TSC's obligation under this warranty shall be limited to the

following: The Product is returned to TSC with transportation charges prepaid and that TSC's

examination reveals the Product to be defective. TSC, at its option, shall either refund to the Buyer

the purchase price of the product or repair or replace at TSC's plant, any part or parts of the Product

which is or are defective. This warranty shall not apply to any Product which has been maintained,

handled, stored, repaired or altered in any manner, or by anyone other than an authorized TSC

representative, so as to affect adversely such Product or which has been subject to improper

installation, misuse, negligence, accident or corrosion. THIS WARRANTY IS EXCLUSIVE AND

IN LIEU OF ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE OR ANY OTHER WARRANTY, WHETHER EXPRESS OR IMPLIED, AND ALL

OTHER LIABILITIES AND OBLIGATIONS ON THE PART OF TSC; TSC SHALL NOT BE

LIABLE FOR ANY OTHER CLAIMS OR DAMAGES, EITHER DIRECT OR

CONSEQUENTIAL, ARISING DIRECTLY OR INDIRECTLY OUT OF SUPPLYING THE

PRODUCT. All warranties, express or implied, with respect to any device or component not

manufactured by TSC but incorporated into its Product are the responsibility of the original

manufacturer and shall not affect or apply to TSC.

2.7 COPYRIGHT

623 Wyoming Blvd. SE

Albuquerque, New Mexico 87123, USA

This document contains proprietary information which is protected by copyright. All rights are reserved.

No part of this document may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying and recording, for any purpose without the prior written consent of

Thunder Scientific Corporation.

2.8 TRADEMARKS

ControLog is a trademark of Thunder Scientific Corporation.

HumiCalc is a trademark of Thunder Scientific Corporation.

THUNDER SCIENTIFIC is the registered trademark of Thunder Scientific Corporation

MADE IN USA

Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019

2.9 SPECIFICATIONS

Relative Humidity Range: ......................................................................... 10 to 95 %RH, 10 to 40 L/min

Relative Humidity Range:1....................................................................... 95 to 98 %RH, 10 to 20 L/min

Frost Point Temperature Range: ....................................................................................... -33.60 to 0 °C

Dew Point Temperature Range: ..................................................................................... -36.94 to 70 °C

Chamber Temperature Range: 2.......................................................................................... -10 to 72 °C

Chamber Temperature Control Stability: 3................................................................................. 0.002 °C

Chamber Temperature Uniformity: 4......................................................................................... <0.04 °C

Chamber Temperature Heating Rate: from -10 to 72 °C............................... 0.5 °C per Minute (average)

Chamber Temperature Cooling Rate: from 72 to 0 °C .................................. 0.5 °C per Minute (average)

Chamber Temperature Cooling Rate: from 0 to -10 °C ................................. 0.2 °C per Minute (average)

Temperature Specification: ....................................................................................................... 0.027 °C

Gas Type: ........................................................................................................................Air or Nitrogen

Gas Pressure Rating: (MAWP)................................................................................................... 175 psiG

Gas Flow Rate Range: ...................................................................................................... 10 to 50 L/min

Gas Flow Rate Specification:............................................................................................5% of full scale

Saturation Pressure Range:..................................................................................... Ambient to 160 psiA

Saturation Pressure Specification: ............................................................................. 0.02% of full scale

Test Chamber Pressure Range: ..................................................................................................Ambient

Test Chamber Pressure Specification:...........................................................................0.02% of reading

Supply Pressure Range: .......................................................................................... Ambient to 150 psiG

Supply Pressure Specification: .................................................................................................... ±1 psiG

Display Resolution:........................................................................................................................ 0.001

Test Chamber Dimensions:........................................12” x 12” x 10” (304.8 mm x 304.8 mm x 254 mm)

Physical Dimensions: ..................................... 22” H x 36” W x 23” D (558.8 mm x 432 mm x 584.2 mm)

1The system will limit mass flow rate to 20 L/min for %RH greater than 95.

2Using glycol/water as the temperature heat transfer fluid from -10 to 72 °C. Note: the 2900 can only operate for

a finite amount of time at or below 0 °C

3Temperature Control Stability is defined as the standard deviation over a 10-minute period, as measured by the

saturation temperature control sensor after being at point for 60 minutes.

4Chamber Temperature Uniformity is defined as the maximum temperature difference between any two locations

at a single point in time. Locations are within one inch of the chamber wall and within 2.5 inches of the chamber

door. Using a minimum chamber fan speed of 25% for a temperature range of -10 °C to 72 ° when using fluid

jacket door option and ±10 °C from ambient when not.

Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019

2.10 UNCERTAINTY 1

RH Uncertainty: 10 to 95 %RH, 0 to 70 °C, 10 to 40 L/min...............................................0.5% of reading

RH Uncertainty: 95 to 98 %RH, 0 to 70 °C, 10 to 20 L/min...............................................0.5% of reading

Dew/Frost Point Uncertainty: < 0.01 °C, 10 to 40 L/min...............................................................0.05 °C

Dew Point Uncertainty: 0.01 to 70 °C, 10 to 40 L/min ..................................................................0.08 °C

Temperature Uncertainty: -10 to 72 °C ...................................................................................... 0.031 °C

1Chamber pressure at 1 atmosphere, Uncertainty values represent an expanded uncertainty using a coverage

factor, k=2, at an approximate level of confidence of 95%. Uncertainty is not specified at saturation temperatures

below 0 °C or at flow rates below 10 L/min. Uncertainty is based on the worst-case value from the 2900

uncertainty analysis.

Autres manuels pour 2900

Table des matières

Autres manuels Thunder Scientific Générateur portable

Thunder Scientific

Thunder Scientific 9500 Manuel utilisateur

Thunder Scientific

Thunder Scientific 2500 series Manuel utilisateur

Manuels Générateur portable populaires d'autres marques

Kohler

Kohler 20EORZ Mode d’emploi

Powerhorse

Powerhorse 83171 Manuel utilisateur

HURST

HURST ML-630-SI Manuel utilisateur

ETQ

ETQ TG4000 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 40265 Guide de configuration

ConMed

ConMed 7550 Manuel utilisateur

Owon

Owon Waveform Generator Manuel utilisateur

evertz

evertz 7700 Series Manuel utilisateur

Power Stroke

Power Stroke PS906025 Manuel utilisateur

Firefly

Firefly Cygnus CYG2400/460/24 Manuel utilisateur

Draper

Draper PG950S Mise à jour du firmware

PowerBoss

PowerBoss PowerBoss Manuel utilisateur

SDMO

SDMO SH 4000 Manuel utilisateur

EINHELL

EINHELL STE 5500 Manuel utilisateur

Wanco

Wanco WI3000P Manuel utilisateur

Full Boar

Full Boar FBT-3300 Manuel utilisateur

Dwyer Instruments

Dwyer Instruments ASG Manuel utilisateur

Westinghouse

Westinghouse WH1000i Series Manuel utilisateur
