Thule PORTAGE 819 Manuel utilisateur

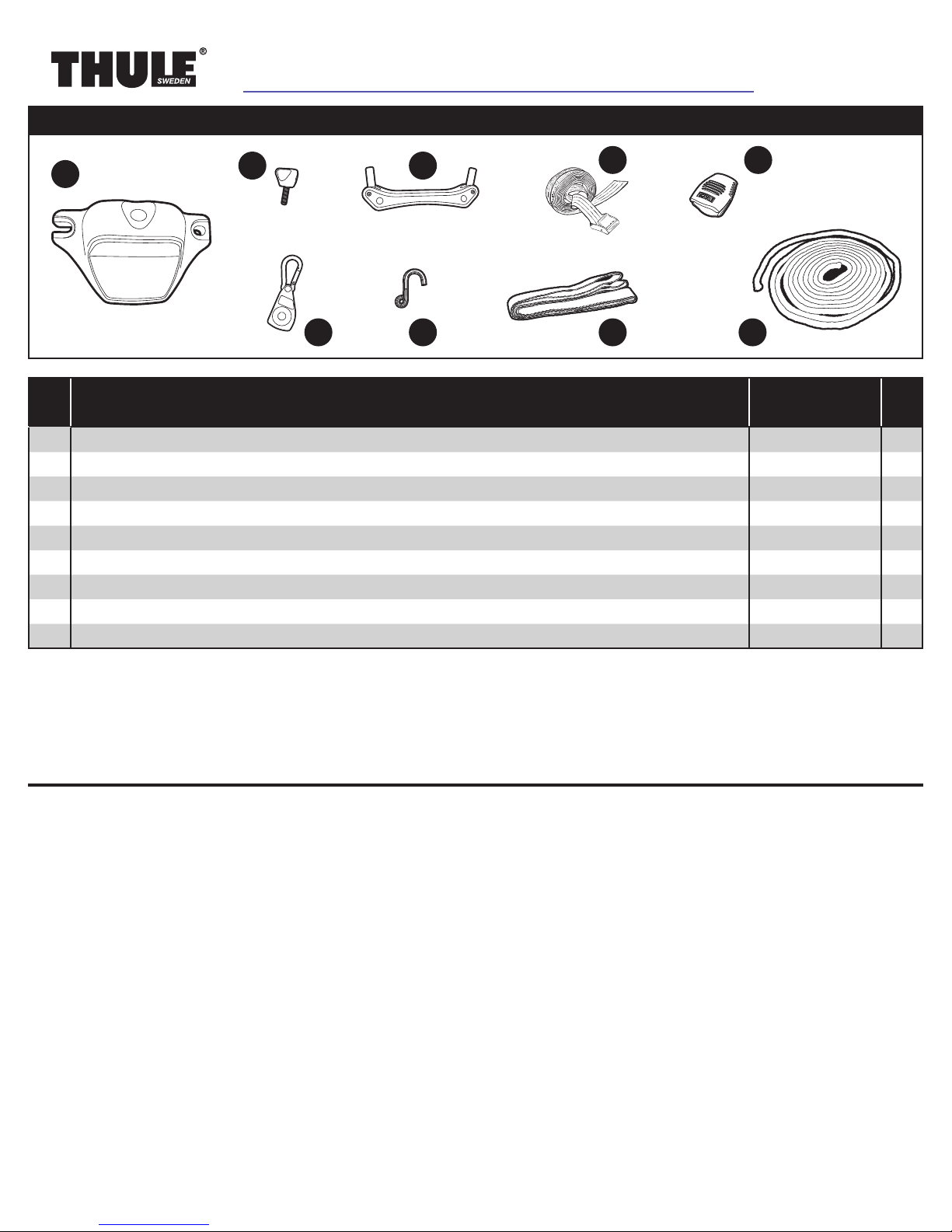

part description part number qty.

A7521604001 4

B7521606001 8

C7521605001 4

D753203002 2

E8535593 2

F8522883001 2

G8535465 2

H8535467 2

base with pad

3-wing knob with bolt

Fit bracket

strap

buckle bumper

ratchet with carabineer hook

hook

attachment strap

1/4" rope 8535466 2

PARTS INCLUDED

AB C D E

F G H I

PORTAGE CANOE CARRIER 819

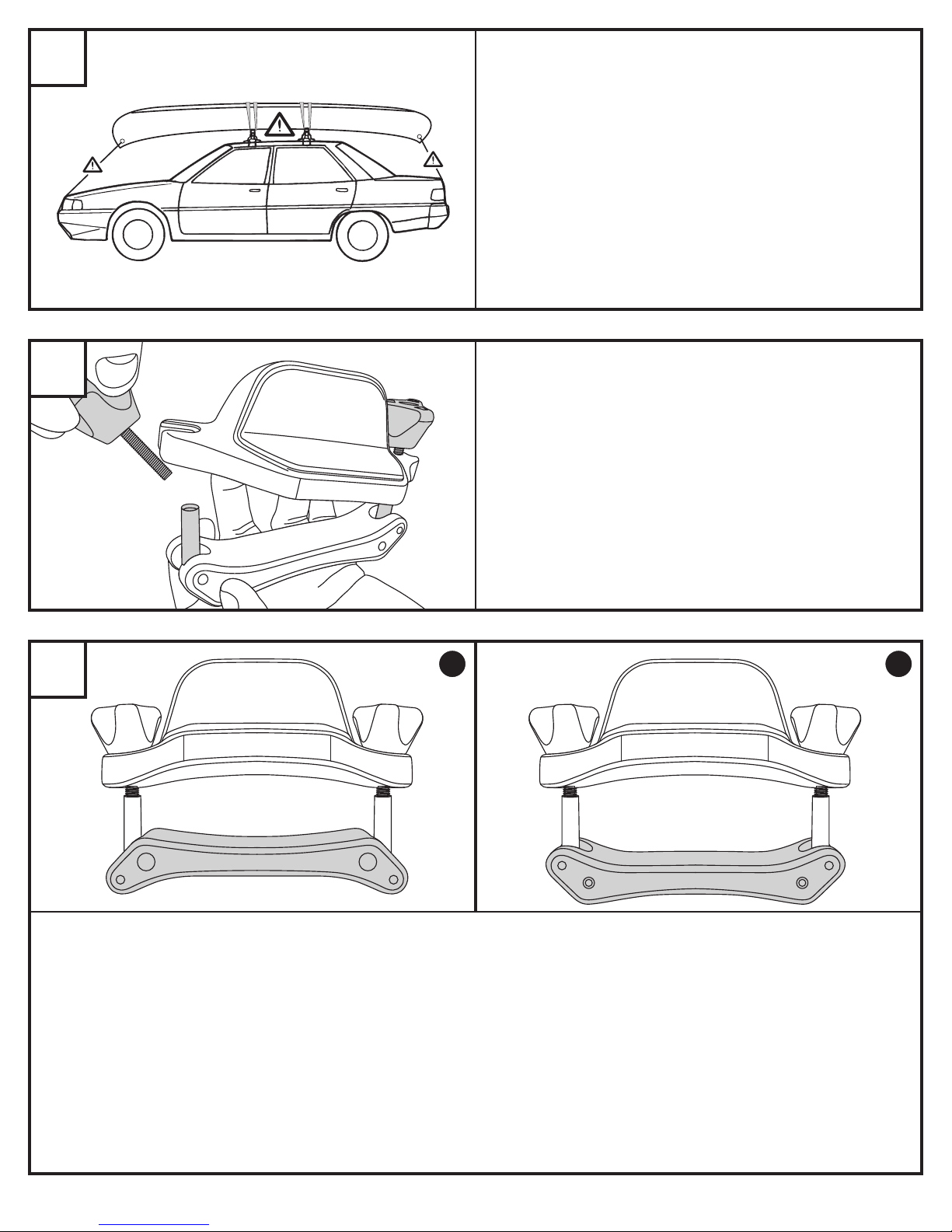

•Attach two 3-wing knobs with bolt to Flip-Fit bracket.

•The Flip-Fit bracket can be rotated and ﬂipped to ﬁt dierent width load bars. The tips on the Flip-Fit bracket should face down to ﬁt

thinner load bars (Figure A) and up to ﬁt wider load bars (Figure B).

A B

1•Mount the load carrier bars as far apart as possible with a

maximum of 36" apart.

•An XAdapt 12 kit may be purchased to mount canoe carrier ﬂush

to Aeroblade bars.

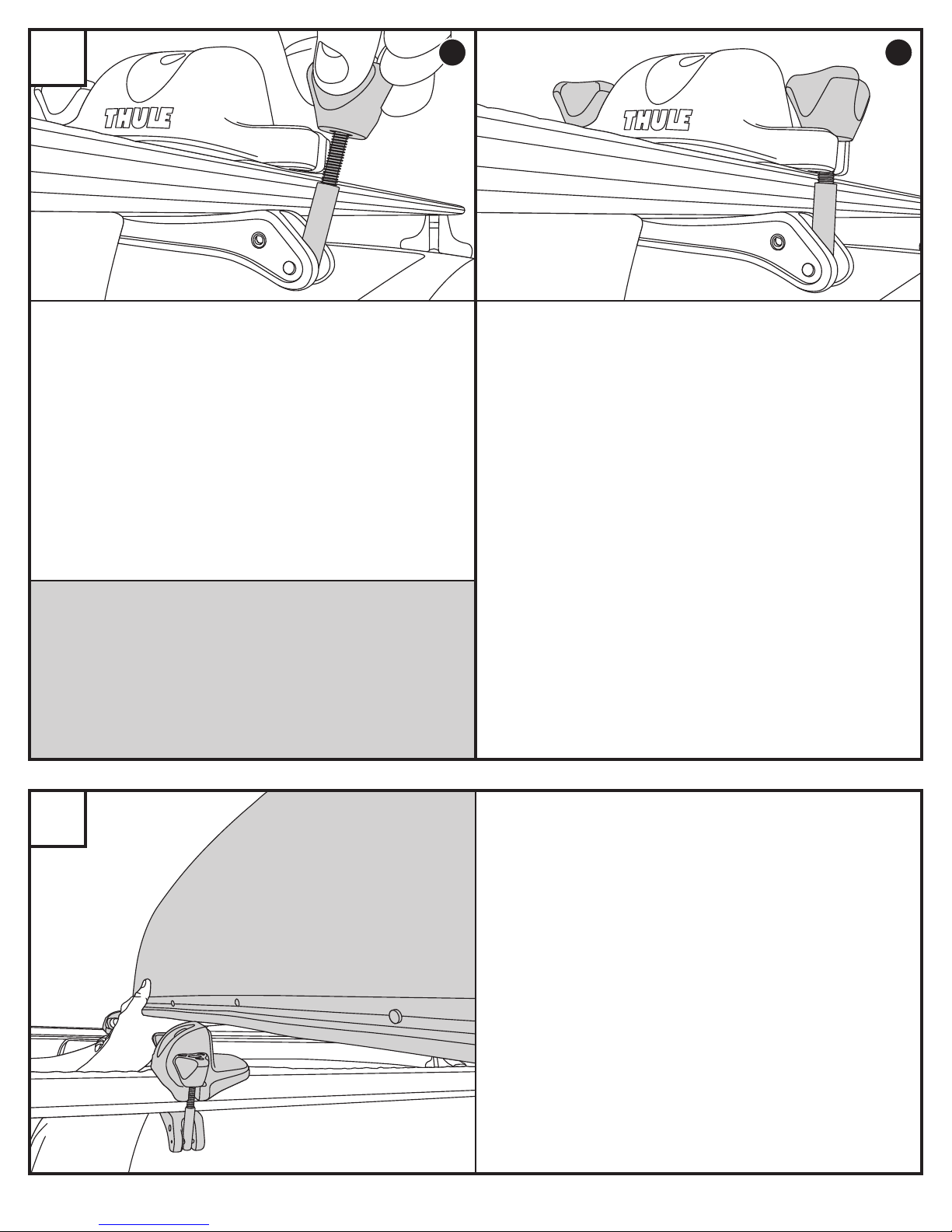

•Place bracket on load bar with Thule brand logo facing outwards.

Slide Flip-Fit bracket under load bar and rotate knob into slot on

side of base.

•Tighten both knobs so that bracket is held in place. Bracket will

likely need to be moved to ﬁt canoe.

NOTE: Canoe carrier bases must be placed inside of four

load bar feet that are attached to the vehicle.

A B

•Lift canoe, turn upside down and place canoe gunwales onto

cushioned grey pads of base. Loosen knobs and adjust spacing

of bases on load bar to ﬁt canoe properly. Tighten all eight knobs

ﬁrmly so that bases do not move.

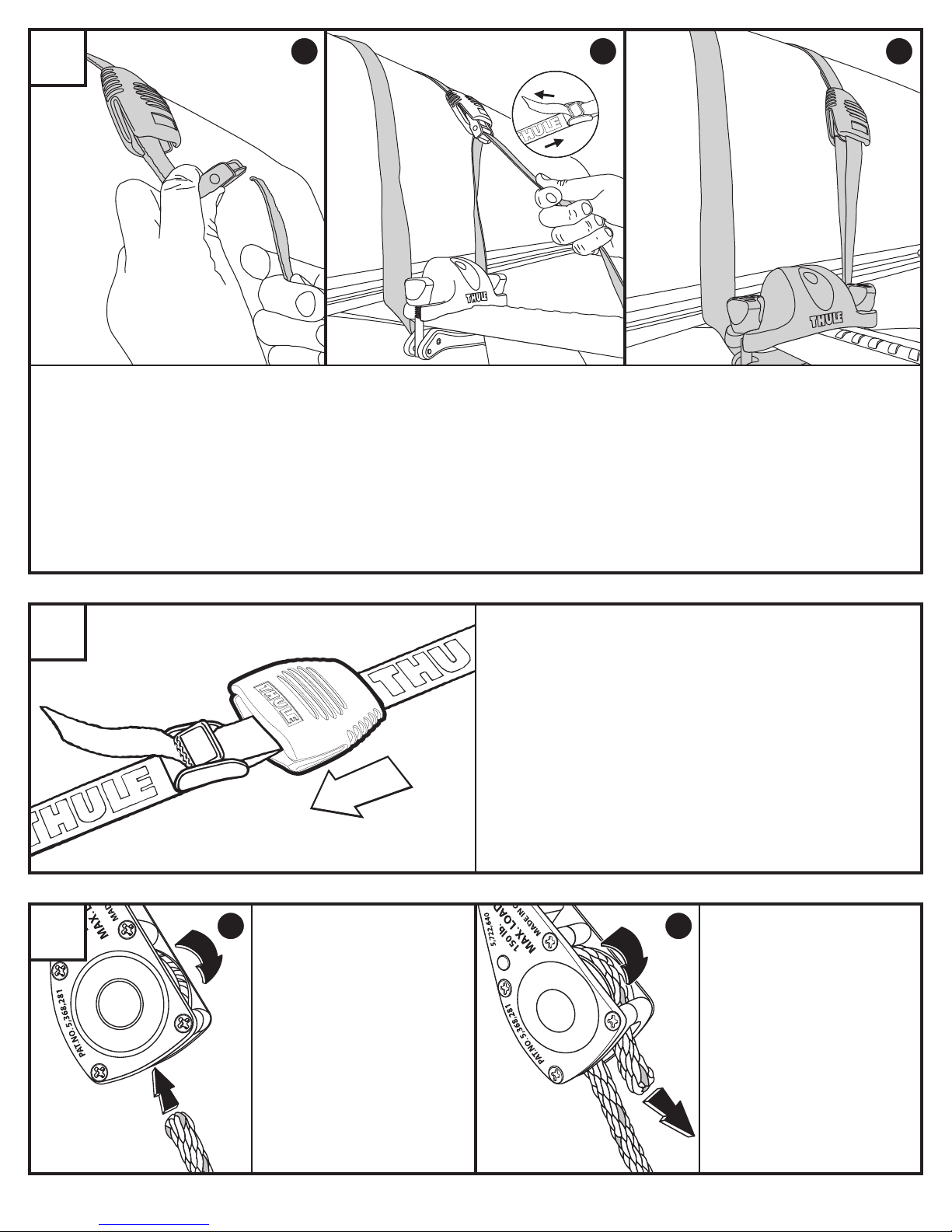

•Wrap strap over canoe and under load bar on both sides of canoe. Slide buckle bumper over metal buckle to prevent vehicle and canoe

scratches. Thread end of strap through metal buckle by pushing down on lever and then pulling down to tighten. Re-cover buckle with

buckle bumper.

A B

B C

•No scratches with Buckle Bumper

8•Feed end of rope up

through the bottom

while rotating the spool

clockwise.

•Keep rotating the spool

until rope exits at the

bottom.

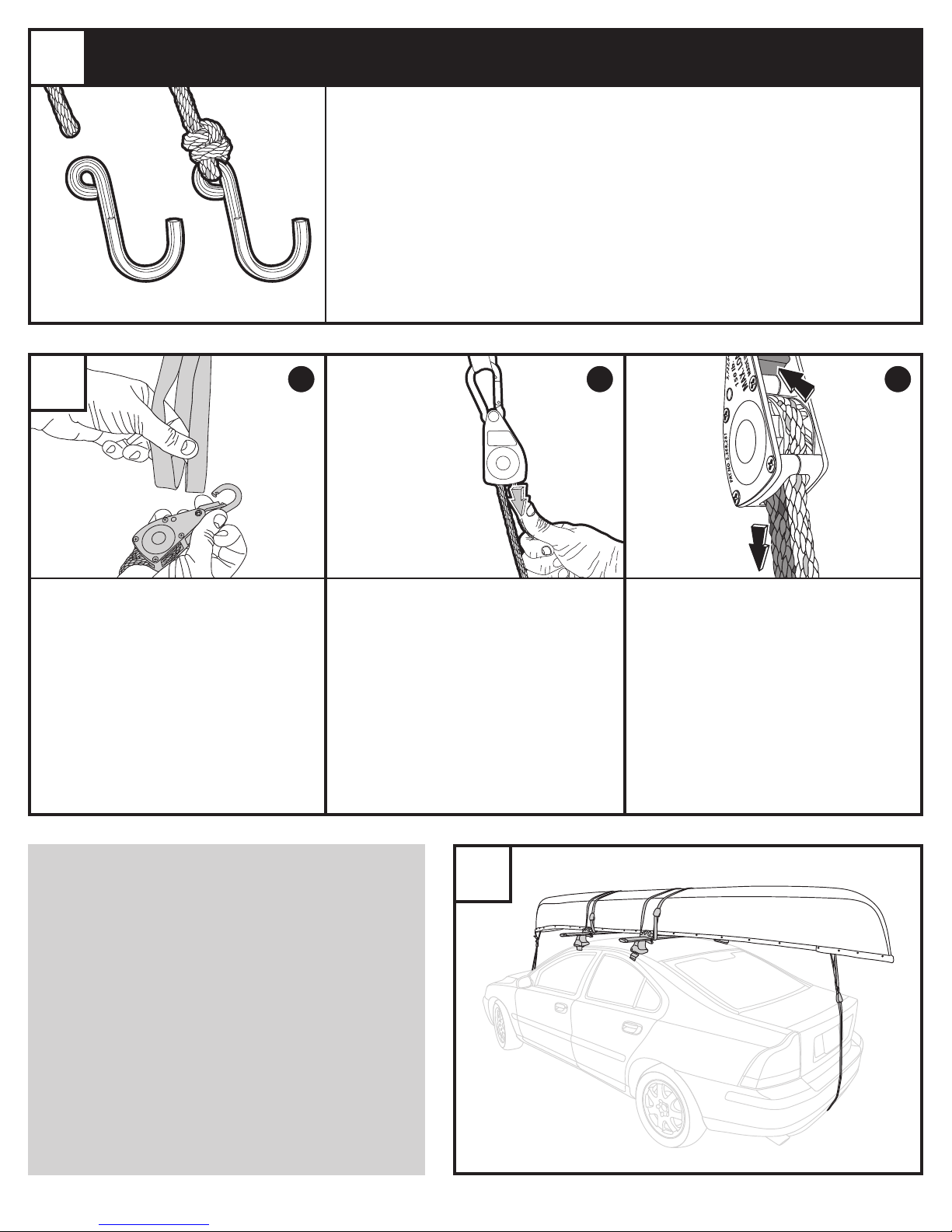

9BOW / STERN TIE DOWN

•Carefully attach hook to end of rope.

•Attach hook to vehicle undercarriage or tow hooks. If no attachment points are available,

purchasing a Thule Hood Loop strap (part 529) or Quick Loop strap (part 530) may

provide a solution.

•Loop black strap around canoe cross

bar or handle. Attach ratchet to both

ends of black strap.

•Pull free end of rope until desired

tightness is reached.

•Do not overtighten as this could deform

boat.

•To release, press lever located above

ratchet spool.

A B C

WARNING: Do not exceed load 150lb. limit of

QuickDraw. Inspect rope and ratchet

before each use. Do NOT use if

damaged. Avoid sharp edges, pinch

points, abrasive or hot surfaces.
