User Manual

Before installing the FERRARI F1 wheel on

your T500 RS base, it is essential that you first

update your base's firmware with the

corresponding version.

2/9

UPDATING THE FIRMWARE FOR YOUR T500 RS BASE

1. Leave the “GT” wheel installed on its base (and do not install the “Ferrari F1” wheel for the time

being).

2. On PC, download and install the "software pack" available here: http://ts.thrustmaster.com (under

“Online Support – FAQ/PC/Wheels/Ferrari F1 RS” or “PS3/Wheels/Ferrari F1 RS”).

3. Carry out the firmware update (the update procedure is also available in PDF format in the same

location on the website, for more information).

The new firmware is compatible with the 2 different T500 RS wheels

= “GT” wheel + “Ferrari F1” wheel

REMOVING THE “GT” WHEEL FROM ITS BASE

1. Unplug the base's USB cable before carrying out this procedure.

2. Turn the “GT” wheel 180° (viewed from the front, the GT logo should be upside down), in order to

access the “small attachment screw (B)” located on the ring of the “Thrustmaster Quick Release

(A)”.

3/9

3. Using a large cross-head screwdriver, carefully start to unscrew the “small attachment screw (B)”

(counterclockwise).

Three turns are enough = Do not completely unscrew this screw.

4. Position your left hand around the ring of the “Thrustmaster Quick Release (A)”, and your right

hand on the wheel. To untighten the wheel: turn the ring clockwise, and simultaneously turn the

wheel counterclockwise (you can force a bit, if necessary).

4/9

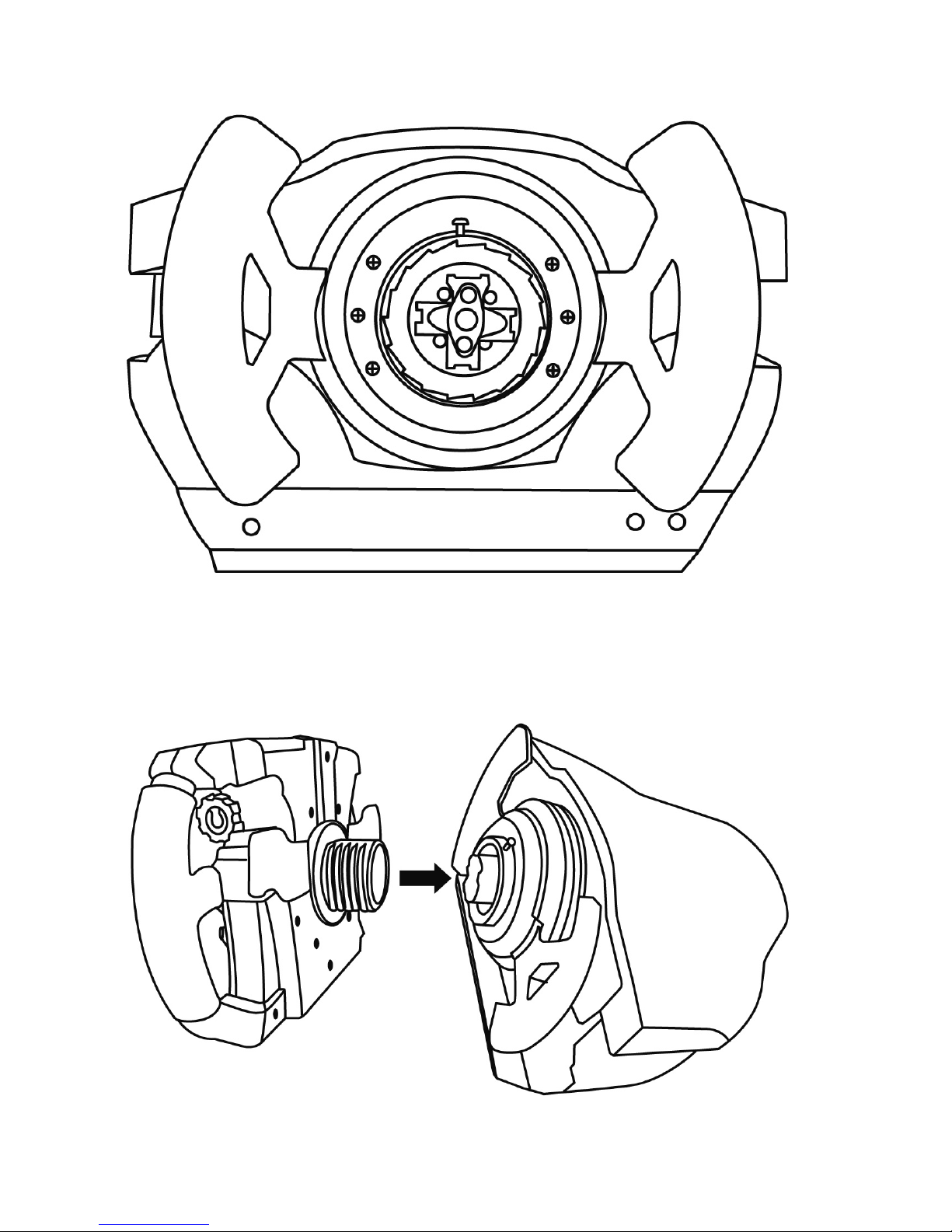

5. When you're done, simply remove the wheel from its base.

INSTALLING THE “FERRARI F1” WHEEL ON THE BASE

Carry out the procedure in reverse to install the “Ferrari F1” wheel:

5/9

During this procedure, take care to respect the positions of the connectors, using the arrows to

guide you:

Connector on the Base Connector on the Wheel

(Arrow pointing upward) (Arrow pointing upward)

Once the connectors are positioned in place, simply turn the “Thrustmaster Quick Release (A)” ring

(counterclockwise), while holding the wheel in place.

Strongly tighten the ring (as far as it will go) by holding the ring in place, and turning the wheel

(clockwise).

Be sure not to force when re-tightening the “small attachment screw (B)”

(using a cross-head screwdriver) = stop when you feel some resistance.

You are now ready to play!

6/9

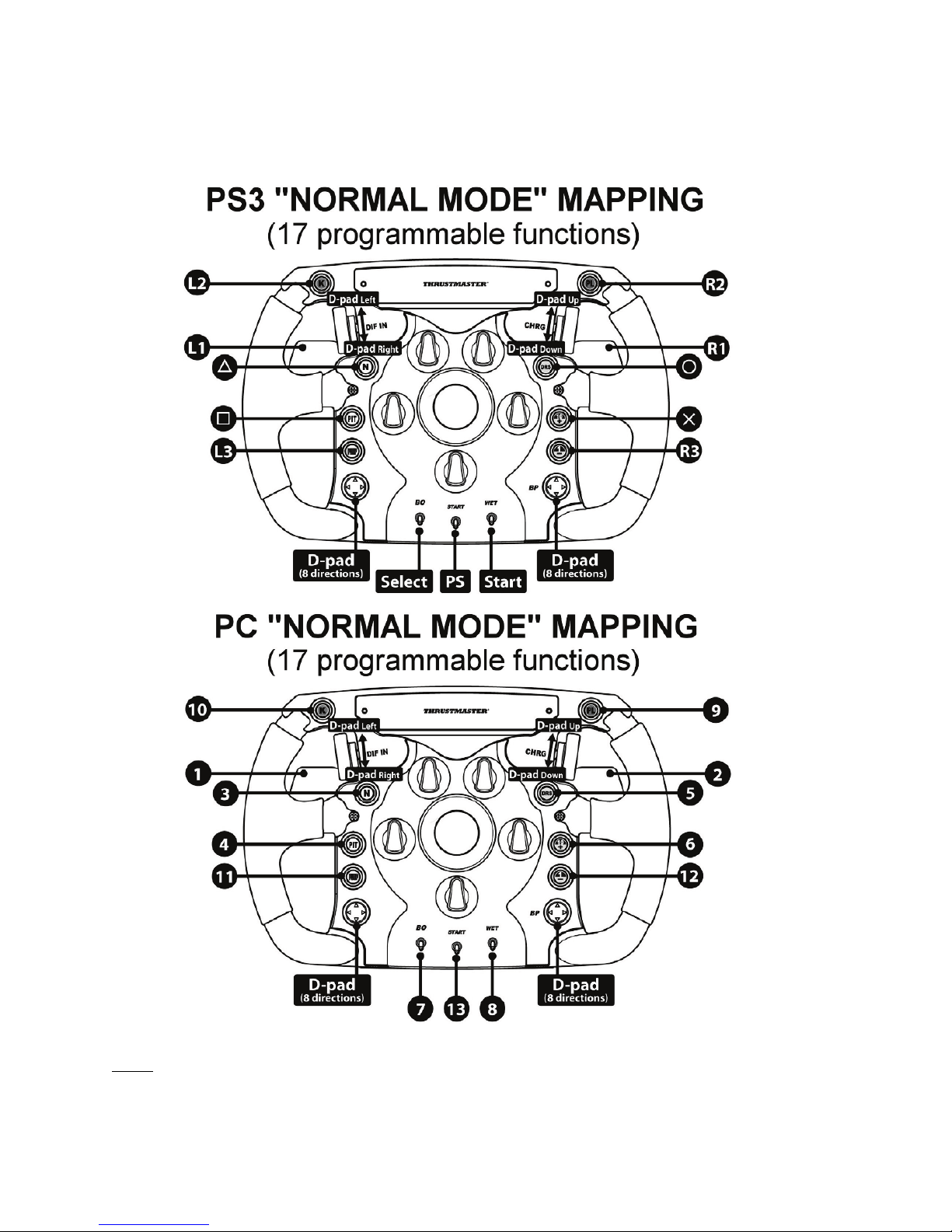

PS3 / PC “NORMAL MODE” MAPPING

On PlayStation®3 and on PC, the “Ferrari F1” wheel is recognized as a “T500 RS” wheel.

This is “Normal Mode”, with 13 action buttons in total + D-Pad (here the D-Pads, paddle shifters and

L3/R3 buttons are combined).

Notes: The 2 encoder wheels (= 2 Rotary Encoders) emulate the 4 main D-Pad directions. They can

therefore be used to directly change your car's settings while you're racing (motors, tires, wing, etc.).

To use them, if necessary, go to your game's "Controls" options and configure them accordingly.

7/9

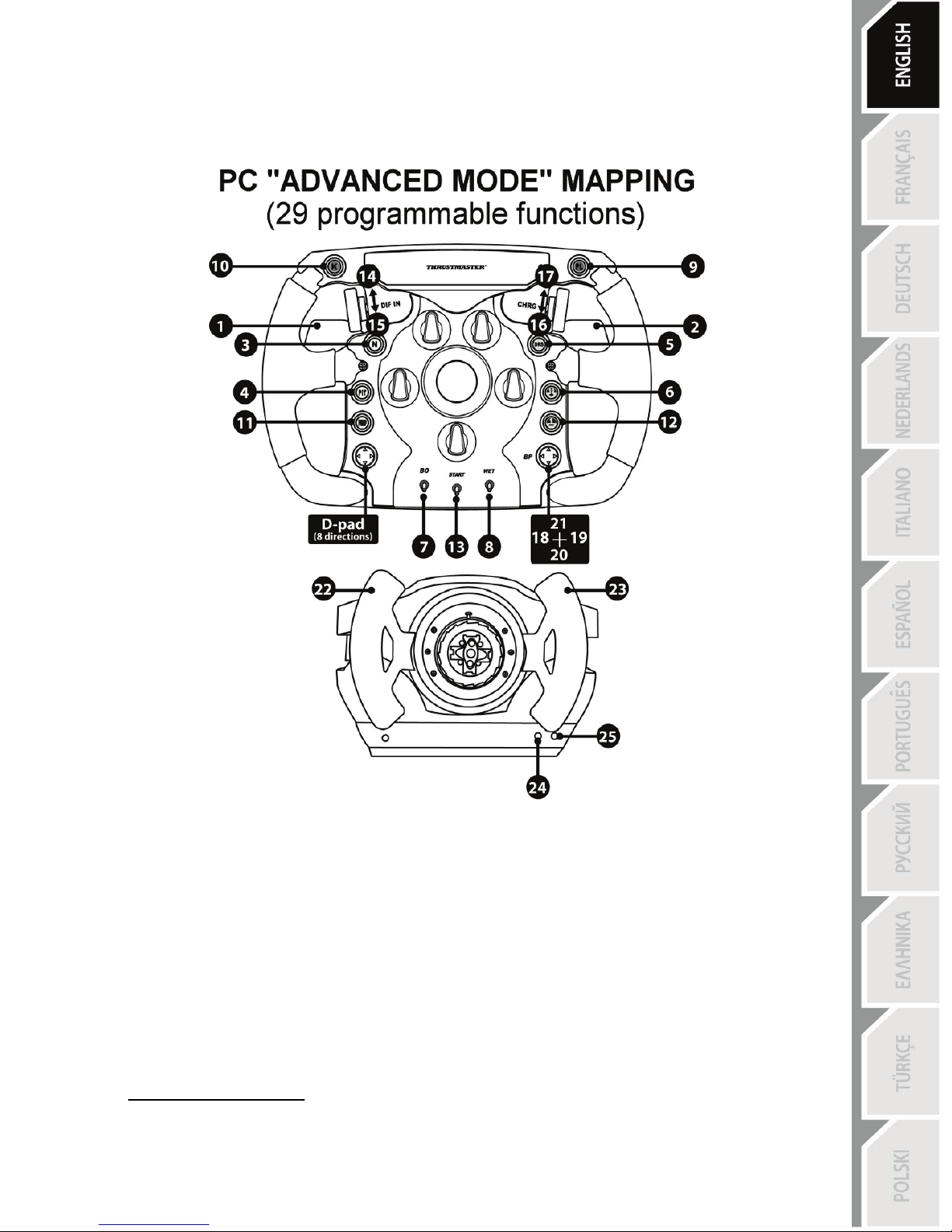

PC “ADVANCED MODE” MAPPING

On PC (only), your wheel can be configured to “Advanced Mode”, with 25 action buttons in total + 1

D-Pad (here the Rotary Encoders, D-Pads, paddle shifters and L3/R3 buttons are separate).

To do so: in the T500 RS Control Panel, select the “Advanced Mode” option.

TROUBLESHOOTING AND TIPS

* My wheel doesn't function correctly:

- Switch off your computer or console, disconnect all of your wheel’s cables, then reconnect the

cables and restart your game.

- Please refer to your game's user manual or online help for more information.

- Verify your wheel's firmware version (displayed on PC in the T500 RS Control Panel, once the

software package has been installed).

- Verify that your “Ferrari F1” wheel has been properly installed on the T500 RS base.

* A variety of help topics and tips (not included in this manual) are available on the

http://ts.thrustmaster.com website, under Technical Support.

8/9

TECHNICAL SUPPORT

If you encounter a problem with your product, please go to http://ts.thrustmaster.com and click

Technical Support. From there you will be able to access various utilities (Frequently Asked

Questions (FAQ), the latest versions of drivers and software) that may help to resolve your problem.

If the problem persists, you can contact the Thrustmaster products technical support service

(“Technical Support”):

By email:

In order to take advantage of technical support by email, you must first register online. The

information you provide will help the agents to resolve your problem more quickly. Click

Registration on the left-hand side of the Technical Support page and follow the on-screen

instructions. If you have already registered, fill in the Username and Password fields and then click

By telephone (if you do not have Internet access):

United Kingdom 08450800942

Charged at local rate Monday to Saturday from 8 a.m. to 7 p.m.

United States 1-866-889-5036

Free

Monday to Friday from 9 a.m. to 8 p.m.

Saturday from 8 a.m. to 2 p.m.

(Eastern Standard Time)

Monday to Friday from 6 a.m. to 5 p.m.

Saturday from 5 a.m. to 11 a.m.

(Pacific Standard Time)

Canada 1-866-889-2181

Free

Monday to Friday from 9 a.m. to 8 p.m.

Saturday from 8 a.m. to 2 p.m.

(Eastern Standard Time)

Monday to Friday from 6 a.m. to 5 p.m.

Saturday from 5 a.m. to 11 a.m.

(Pacific Standard Time)

Denmark 80887690

Free

Monday to Saturday from 9 a.m. to 8 p.m.

(English)

Sweden 0200884567

Free

Monday to Saturday from 9 a.m. to 8 p.m.

(English)

Finland 0800 913060

Free

Monday to Saturday from 10 a.m. to 9 p.m.

(English)

Hours of operation and telephone numbers are subject to change. Please visit http://ts.thrustmaster.com for the most

up-to-date Technical Support contact information.

WARRANTY INFORMATION

Worldwide, Guillemot Corporation S.A. (“Guillemot”) warrants to the consumer that this

Thrustmaster product will be free from material defects and manufacturing flaws for a period of two

(2) years from the original date of purchase. Should the product appear to be defective during the

warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If

the defect is confirmed, the product must be returned to its place of purchase (or any other location

indicated by Technical Support).

Within the context of this warranty, the consumer’s defective product will, at Technical Support’s

option, be either repaired or replaced. Where authorized by applicable law, the full liability of

Guillemot and its subsidiaries (including for indirect damages) is limited to the repair or replacement

of the Thrustmaster product. The consumer’s legal rights with respect to legislation applicable to the

sale of consumer goods are not affected by this warranty.

9/9

This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered

damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any

other cause not related to a material defect or manufacturing flaw; (2) in the event of failure to

comply with the instructions provided by Technical Support; (3) to software not published by

Guillemot, said software being subject to a specific warranty provided by its publisher.

Additional warranty provisions

In the United States of America and in Canada, this warranty is limited to the product’s internal

mechanism and external housing. Any applicable implied warranties, including warranties of

merchantability and fitness for a particular purpose, are hereby limited to two (2) years from the date

of purchase and are subject to the conditions set forth in this limited warranty. In no event shall

Guillemot Corporation S.A. or its affiliates be liable for consequential or incidental damage resulting

from the breach of any express or implied warranties. Some States/Provinces do not allow limitation

on how long an implied warranty lasts or exclusion or limitation of incidental/consequential damages,

so the above limitation may not apply to you. This warranty gives you specific legal rights, and you

may also have other legal rights which vary from State to State or Province to Province.

Guillemot Corporation S.A. PlayStation® is a registered trademark of Sony Computer Entertainment

Inc. Microsoft® Windows® is a registered trademark of Microsoft Corporation in the United States

and/or other countries. All other trademarks and brand names are hereby acknowledged and are

property of their respective owners. Illustrations not binding. Contents, designs and specifications

are subject to change without notice and may vary from one country to another. Made in China.

ENVIRONMENTAL PROTECTION RECOMMENDATION

At the end of its working life, this product should not be disposed of with

standard household waste, but rather dropped off at a collection point for the

disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling.

This is confirmed by the symbol found on the product, user manual or

packaging.

Depending on their characteristics, the materials may be recycled. Through

recycling and other forms of processing Waste Electrical and Electronic

Equipment, you can make a significant contribution towards helping to protect

the environment.

Please contact your local authorities for information on the collection point nearest you.

Reference: 5075917
