THOR THPS 1000 Series Manuel utilisateur
THPS 1000, 2000 & 3000
Series
Pure Sine Wave Inverter
User’s Manual
1. Important Safety Instructions
1-1. General SafetyPrecautions
1-1-1. Do not expose the Inverter to rain, snow, spray, bilge or dust.
To reduce risk of hazard, do not cover or obstruct the ventilation
openings. Do not install the Inverter in a zero-clearance compartment.
Overheating may result.
1-1-2. To avoid a risk of fire and electronic shock, make sure that existing
wiring is in good electrical condition and not undersized.
Do not operate the Inverter with damaged or substandard Wiring.
1-1-3. There are some components in the inverter can cause arcs and sparks.
To prevent from fire or explosion, do not put batteries, flammable
materials, or anything should be ignition–protected around the inverter.
1-2. Precautions When Working with Batteries
1-2-1. If battery acid contacts skin or clothing, you shall wash it out with soap
and water immediately. If battery acid contacts your eyes, you shall
wash it out with cold running water for at least 20 minutes and get
medical attention immediately.
1-2-2. Never smoke or make a spark or flame in the vicinity of the battery or
the engine.
1-2-3. Do not drop a metal tool on the battery. The resulting spark or
short-circuit on the battery of other electrical part may cause an
explosion.
1-2-4. Remove personal metal items such as rings, bracelets, necklaces,
and watches when operating with a lead-acid batteries.
Doing so may cause short circuit and very high temperature, which can
melt metal items and even burn you.
WARNING!
Before using the Inverter, read and save the safety
instructions.
2. Features
Pure sine wave output (THD <3%)
Output frequency：50 / 60Hz switch selections
Input & output fully isolated design
Power Saving Mode to conserve energy
High efficiency 89~94%
Driving highly reactive & capacitive loads at start moment
Tri-Color indicators show input voltage & output load level
Loading controlled cooling fan
Advanced microprocessor
Protection：Input low voltage Overload Short circuit
Low battery alarm Input over voltage Over temperature
2-1. Application
2-1-1. Power tools – circular saws, drills, grinders, sanders, buffers, weed
and hedge trimmers, air compressors, etc.
2-1-2. Office equipment – computers, printers, monitors, facsimile machines,
scanner, etc.
2-1-3. Household appliances – vacuum cleaners, fans, fluorescent and
incandescent lights, shavers, sewing machines.
2-1-4. Kitchen appliances – coffee makers, blenders, ice markers, toasters,
etc.
2-1-5. Industrial equipment – metal halide lamp, high – pressure sodium lamp,
etc.
2-1-6. Home entertainment electronics – television, VCRs, video games,
stereos, musical instruments, satellite equipment, etc.
SpecificationModel No.
Item THPS-1000-12 THPS-1000-24 THPS-1000-48 THPS-1000-212 THPS-1000-224 THPS-1000-248
W0001rewoPtuptuOsuounitnoC
W0011rewoPtuptuOmumixaM
W0002)xaM(gnitaRegruS
Input voltage 12V 24V 48V 12V 24V 48V
OutputVoltage 100 / 110 / 120V +/- 5% 220 / 230 / 240V +/- 3%
Frequency
(Switch Selectable) 50 / 60Hz +/-0.05%
)%3<DHT(evaWeniSeruPmrofevaWtuptuO
Efficiency (full load) Max. *189.0% 92.0% 93.0% 91.0% 94.0% 95.0%
No Load Current Draw (Max.) 1.43A 0.75A 0.38A 1.25A 0.65A 0.35A
Stand-By Current Draw (Max.) 0.25A 0.15A 0.09A 0.25A 0.15A 0.09A
Input Voltage Regulation 10.5-15
VDC
21.0-30
VDC
42-60
VDC
10.5-15
VDC
21.0-30
VDC
42-60
VDC
InputLevel Indicator Red / Orange / Green LED
Load Level Indicator
DELdeRrotacidnIeruliaF
Protection Overload, Short Circuit, Reverse Polarity(Fuse),
Over / Under Input Voltage, Over Temperature.
Remote Control Units TH-R6 / TH-R8 Optional
1-05906NE854LUnoitacifitreCytefaS
AssalCCCFCME
EN55022: 1997
EN55024: 1997
EN61000-3-2: 1998
EN61000-3-3: 1995
e-mark
e13 022694
Operating Temperature Range 0 - 40
Storage Temperature Range -30 to 70
nafgniloocdellortnocgnidaoLgnilooC
Dimensions 340(L)*182(W)*88(H)mm / 13.39(L)*7.17(W)*3.46(H) Inch
.sbL8.8/gk4thgieW
Note: The specifications are subject to change without notice.
℃
℃℃
SpecificationModel No.
Item THPS-2000-12 THPS-2000-24 THPS-2000-48 THPS-2000-212 THPS-2000-224 THPS-2000-248
W0002rewoPtuptuOsuounitnoC
W0022rewoPtuptuOmumixaM
W0004)xaM(gnitaRegruS
Input voltage 12V 24V 48V 12V 24V 48V
OutputVoltage 100 / 110 / 120V +/- 5% 220 / 230 / 240V +/- 3%
Frequency
(Switch Selectable) 50 / 60Hz +/-0.05%
)%3<DHT(evaWeniSeruPmrofevaWtuptuO
Efficiency (full load) Max. *189.0% 92.0% 93.0% 91.0% 94.0% 95.0%
No Load Current Draw (Max) 2.8A 1.5A 0.7A 2.64A 1.32A 0.65A
Stand-By Current Draw (Max) 0.60A 0.30A 0.15A 0.60A 0.25A 0.15A
Input Voltage Regulation 10.5-15
VDC
21.0-30
VDC
42-60
VDC
10.5-15
VDC
21.0-30
VDC
42-60
VDC
InputLevel Indicator Red / Orange / Green LED
Load Level Indicator
DELdeRrotacidnIeruliaF
Protection Overload, Short Circuit, Reverse Polarity(Fuse),
Over / Under Input Voltage, Over Temperature.
Remote Control Units TH-R6 / TH-R8 Optional
Safety Certification Meet UL458 EN60950-1
AssalCCCFCME
EN55022: 1997
EN55024: 1997
EN61000-3-2: 1998
EN61000-3-3: 1995
e-mark
e13 22846
Operating Temperature Range 0 - 40 ℃
Storage Temperature Range -30℃to 70℃
CoolingLoading controlled cooling fan ( 65℃ON , 45℃OFF)
Dimensions 368(L)*209(W)*166(H)mm / 14.49(L)*8.23(W)*6.53(H) Inch
.sbL8.91/gk9thgieW
Note: The specifications are subject to change without notice.
SpecificationModel No.
Item THPS-3000-12 THPS-3000-24 THPS-3000-48 THPS-3000-212 THPS-3000-224 THPS-3000-248
W0003rewoPtuptuOsuounitnoC
W0033rewoPtuptuOmumixaM
W0006)xaM(gnitaRegruS
Input voltage 12V 24V 48V 12V 24V 48V
OutputVoltage 100 / 110 / 120V +/- 5% 220 / 230 / 240V +/- 3%
Frequency
(Switch Selectable) 50 / 60Hz +/-0.05%
)%3<DHT(evaWeniSeruPmrofevaWtuptuO
Efficiency (full load) Max. *188.0% 91.0% 92.0% 90.0% 93.0% 94.0%
No Load Current Draw (Max) 3.0A 1.6A 0.8A 2.8A 1.5A 0.7A
Stand-By Current Draw (Max) 0.55A 0.35A 0.19A 0.55A 0.35A 0.19A
Input Voltage Regulation 10.5-15
VDC
21.0-30
VDC
42-60
VDC
10.5-15
VDC
21.0-30
VDC
42-60
VDC
InputLevel Indicator Red / Orange / Green LED
Load Level Indicator
DELdeRrotacidnIeruliaF
Protection Overload, Short Circuit, Reverse Polarity(Fuse),
Over / Under Input Voltage, Over Temperature.
Remote Control Units TH-R6 / TH-R8 Optional
Safety Cert. Meet UL458 EN60950-1
AssalCCCFCME
EN55022: 1997
EN55024: 1997
EN61000-3-2: 1998
EN61000-3-3: 1995
e-mark
e13 22845
Operating Temperature Range 0 - 40 ℃
Storage Temperature Range -30℃to 70℃
nafgniloocdellortnocgnidaoLgnilooC
Dimensions 398(L)*209(W)*166(H)mm / 15.67(L)*8.23(W)*6.53(H) Inch
.sbL22/gk8.9thgieW
Note: The specifications are subject to change without notice.
*1 : This test condition is normal DC input (13.5V) and Temperature 25℃.

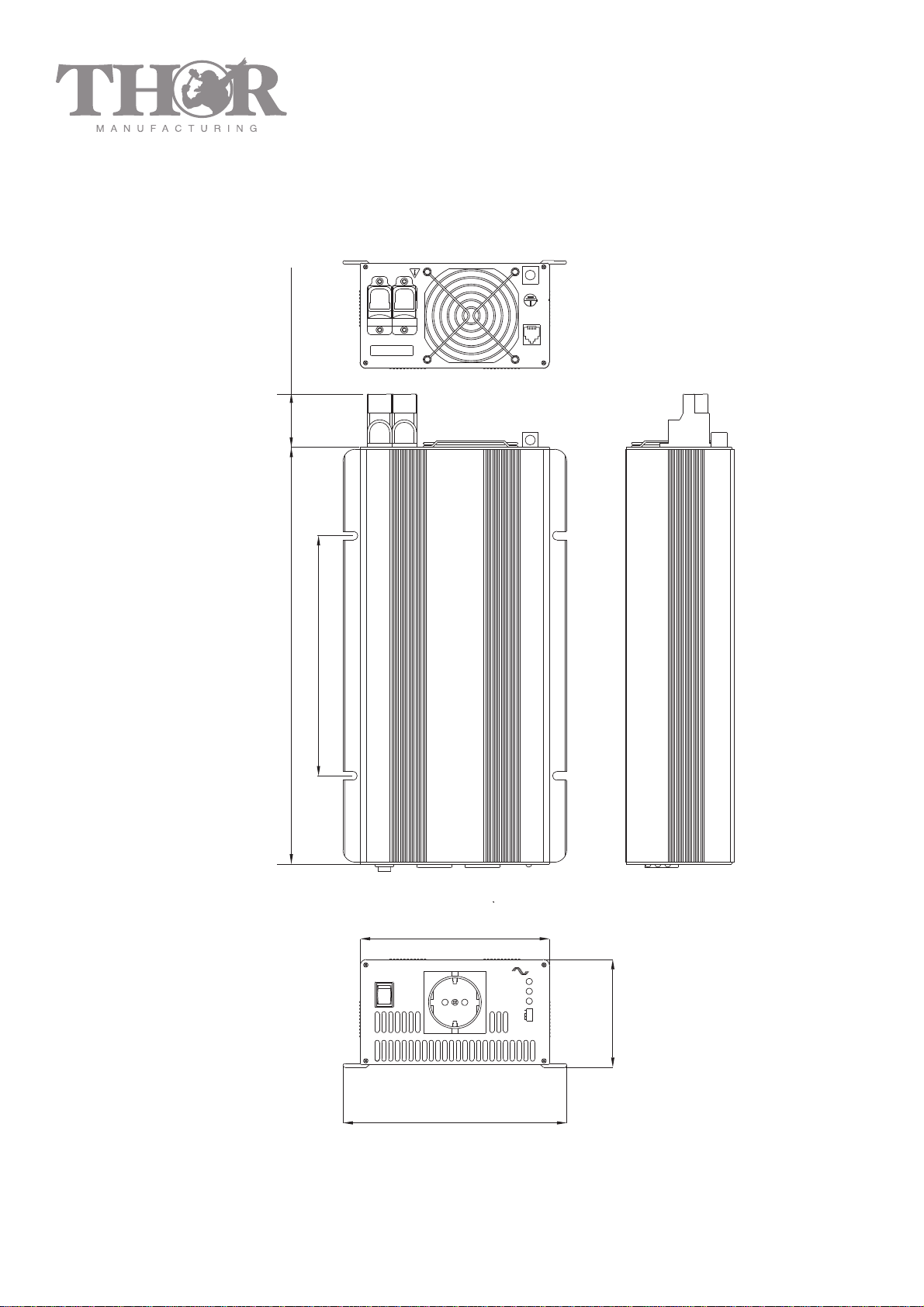

2-3. Mechanical Drawings
REM OT E
PORT
CHASSIS
GRO UN D
THPS1000 340.00 [13.39]
THPS1000 43.5 [1.71]
196.00 [7.72]
THPS1000 88.00[3.46]
THPS1000 182.00[7.17]
THPS1000 154.00 [6.06]
S3
S2
PWR.
S AV .
I
OS1
LOAD
LEVEL
INPUT
LEVEL
S4
ST A TU S
FREQ.
10 00 W
Pure Sine Wave Power Inverter
POS(+)NEG(-)
DC INPUT
REVERSE POLARITY
WILL DAMAGE UNIT
PURE SI NE WAVE IN VERT ER
ACOU TP UT
NONO
REMOTE
OFF
I
0
245.00 [9.65]
56.00 [2.20]
THPS2000 368.00 [14.49]
THPS3000 398.00 [15.67]
Pure Sine Wave Power Inverter
166.00 [6.53]
209.00 [8.23]
AC OUTPUT
PURE SINE WAVE INVERTER
S4FREQ.
S2
S1
S3 PWR.
SAV.
OI
0REMO.
LOAD
LEVEL
STATUS
INPUT
LEVEL
OFF
ON
I
177.00 [6.97]
200 0W
3. Introduction
This power inverter series is one of the most advanced line of mobile AC power
systems.
To get the most effective power inverter, it must be installed and used properly.
Please read the instructions of this manual before you install and operate this
model.
3-1. Front Panel Operations：

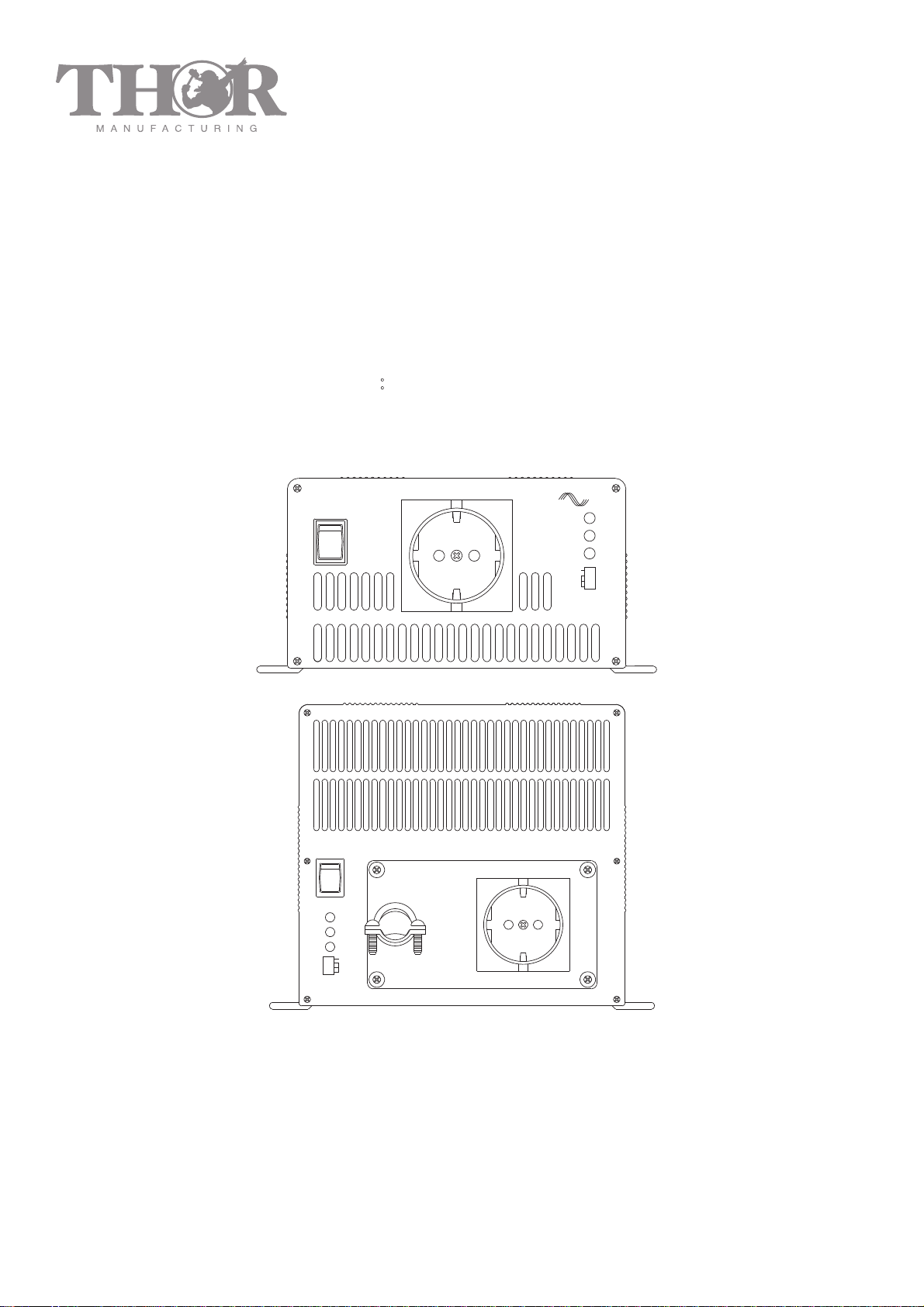

3-1-1. Front view：
PURE SINE WAVE INVERTER
AC OUTPUT
OFF
REMOTE
I
0
ON
S1
PWR.
SAV.
OI
INPUT
LEVEL
FREQ.
STATUS
S4
LOAD
LEVEL
S2
S3 THPS-1000
0
S4
S3
S1
S2
O
THPS-2000
FREQ.
PWR.
SAV.
LOAD
LEVEL
STATUS
INPUT
LEVEL
I
AC OUTPUT
PURE SINE WAVE INVERTER
REMO.
ION
OFF
3-1-2. ON / OFF/ REMOTE (Main) switch：
a. Before installing the inverter, you need to ensure the main switch
must be “OFF”.
b. Before using the remote unit, you need to ensure the main switch
must be “ REMOTE”.
THPS-3000
3-1-3. Input Level：Display Input Voltages
LED Status DC 12V DC 24V DC 48V
REDSlow Blink 10.3~10.6 20.5~21.2 40.8~42.4
RED 10.6~11.0 21.2~21.8 42.4~43.5
ORANGE 11.0~12.1 21.8~24.1 43.5~48.1
GREEN 12.1~14.2 24.1~28.6 48.1~56.3
ORANGE Blink 14.2~15.0 28.6~30.0 56.3~59.6
OVER RED Blink 15.0 30.0 59.6
3-1-4. Load Level：Display AC Loads (Watts)
LED status DARK GREEN ORANGE RED RED BLINK
THPS-1000~80W 80 ~ 330W 330 ~ 750W 750 ~ 960W Over 960W
THPS-2000~ 160W 160 ~ 660W 660 ~ 1500W 1500 ~ 1920W Over 1920W
THPS-3000 ~ 240W 240 ~ 990W 990 ~ 2250W 2250 ~ 2880W Over 2880W
3-1-5. AC Frequency：Selected by “S4” Dip Switch
Frequency S4
FFOZH05
NOZH06
