72MK89D

television set

safety precautions

SAFE USE OF THE EQUIPMENT

10 cm

5 cm 10 cm

10 cm 10 cm

1. TO TURN ON

LEAVE ROOM FOR VENTILATION

AVOID HEAT, WATER, DIRECT

SUNLIGHT.

Do not place audio loudspeakers

near to television. The magnets

in the speakers could cause

patches of colour to appear

on the screen.

To ensure your personal safety and the efficient operation of your

equipment, please follow the advice given below :

Télévision sets need ventilation to avoid overheating which can cause

damage to the components. The ventilation slots at the back of the set

should not be covered up by curtains, small covers, newspapers, etc…

There must be enough room in built-in cabinets to allow for the

cooling air to circulate. The set should not be placed directly next to

heating.

This appliance is designed for use in dry areas. If occasionally you

should whish to operate it outdoors (for example, on the balcony or

veranda), you must insure that it is protected against all forms of

moisture (dew, rain, splashed water).

A cold set may be switched on in a warm room only after any

condensation which may happen to be on the screen has evaporated.

Never remove the cabinet back. Have your aerial installed by an

authorised dealer or service technician.

In the evenings, after the TV programmes, or in case of a prolonged

absence, it is recommended that the appliance be switched off using

the main power switch. Remove the power plug from the wall outlet

under the following conditions :

1. During a thunderstorm. It is also recommended that you disconnect

the aerial plug.

2. If you find a burning smell or smoke emerging from the set.

Additional information :

Your TV set is adequately shielded to prevent emission of X-rays.

The acceleration voltage does not exceed the maximum value of 33 kV.

Work by non-qualified technicians, modification of the high voltage

setting or the replacement of the tube with a model that does not

comply with the manufacturer’s specifications may lead to a

considerable increase in X-ray radiation.

A set changed in any of the above ways no longer satisfies the initial

specifications and should not be put back into service.

2. CARE OF THE EQUIPMENT

3. DEMAGNETISATION

The screen should be cleaned with liquid glass cleaner.

• Never use abrasive cleaners.

• To clean the front and the cabinet of your equipment use a soft cloth dipped in mild detergent. The use of strong

solvents such as white spirits or alcohol based products could damage your equipment.

• Clean the vents on the rear panel of your set regularly.

The earth’s magnetic field may have an effect on your television by causing patches of colour to appear on the screen.

If this happens :

• Switch off the television with the on-off button ;

• Wait a few minutes and then press again to switch on.

This allows the screen to be demagnetised automatically. If patches of colour are still visible repeat the procedure.

The pages of this publication are printed on recycled paper.

HAUT-PARLEUR CASQUE AV

Son Auto/Stéréo Mono

Effet Normal Elargi

TV Aigues

TV Basses

HAUT-PARLEUR CASQUE AV

Casque

PREFERENCE  INSTALLATION

Volume 

Lumière

Couleur

Contraste

Rappel des réglages préférés

☞10

PREFERENCE INSTALLATION

☞9

Volume maximum

Langue GB FD E I S NL



Affichage chaîne Non Oui

Référence horaire PR 01

Programmation IR (-)Non Oui(+) PR--

Format 4/3 16/9

Zoom sous-titre Non Oui

Position sous-titres Bas(-) Haut (+)

☞20

☞19

☞16

☞19

☞14

☞11

☞22

☞24



REPERTOIRE REVEIL VERROUILLAGE

05 ARTE

06 M 6

07

08

00

01 T F 1

02 F R 2

03 F R 3

04 CANAL +

+/- Feuilleter la liste

0..9 Choix d'une chaîne

PR 03

Appareil en AV1/AV2 Stéréo Mono

HAUT-PARLEUR CASQUE AV

IMAGE PIP FORMAT

Lumière

Couleur

Contraste

Digital Mastering Non Oui



IMAGE PIP FORMAT

Arrêt automatique (-/+) -:--

REPERTOIRE REVEIL VERROUILLAGE

Entrer vos numéro de code

Mémoriser votre code

REPERTOIRE REVEIL VERROUILLAGE

☞34

Norme (-/+) France

Décodeur Aucun AV1 AV2

Recherche

Canal terrestre CH 22

Canal câble --

Chaîne 03

Réglage fin

Nom de station FR3

Effacer (-) Mémoriser (+)

PROGRAMME AV1 AV2 AV3

☞27

PROGRAMME AV1 AV2 AV3

Signal S-vidéo RVB

Nom VCR 1

☞27

Signal S-vidéo RVB

Nom VCR 2

PROGRAMME AV1 AV2 AV3

☞27

Signal S-vidéo RVB

Nom CAMCOR

PROGRAMME AV1 AV2 AV3

Pr +

Pr -

- ZOOM +

A-Z Z-A

-/--

Pr +

Pr -

VCRSATTV

- ZOOM +

A-Z Z-A

-/--

ART DIRECTION BY

RCT 702

LR 03 - AAA

2 x LR 03 AAA

PROGRAMME

Set-up - Preferences -

Browse - Clock - Lock -

Tuning - AV1 - AV2 - AV3.

SOUND

Speaker Configuration - Balance - Loudspeakers -

Headphone - AV (Audiovisual).


Picture - PIP - Format.

TELETEXT / TOPTEXT / FASTEXT

PERSONAL ADJUSTMENTS

and scrolling back through the menus.

TO REMOVE THE MENU DISPLAY

or to display programme information, the type of sound

transmission (MONO, STEREO or DUAL),

the programme name and number, the time.

PICTURE FREEZE

ZOOM FUNCTION

TO CALL UP PREVIOUSLY VIEWED PROGRAMME

TO CALL UP ALL PROGRAMMES IN TURN

VOLUME

- Horizontal movement in the menus

- -/+ adjustments of other functions.

Keys 1 to 0 are used to :

- Select the programmes (from 1 to 99)

- Enter the channels numbers

- The 0 key is used to call AV inputs 1, 2 and 3.

MUTE

STAND-BY

To operate your television set by remote control,

the selector switch TV-SAT-VCR must be on TV

position

When a red, green or yellow button is pressed for the first

time, the contents of the menu are displayed at the top of

the screen and the menu of the function selected is dis-

played at the bottom of the screen.

Moving horizontally along in the menus

selects the required function on the contents

line if it has not been already selected.

- The selected function is displayed in the same colour as

the button pressed (red, green, yellow).

Press the coloured button repeatedly to move down

through the menus selecting different lines.

- The line selected in the menus is displayed in the same

colour as the button pressed (red, green, yellow).

Make any adjustments.

Changes are saved when you quit the menus, except in

the PROGRAMME menu.

CONNECTIONS AND COMMANDS 5/6

AUTO-PROGRAMMING 7/9

Switching on - Automatic stations search

Programme organiser - New region

INSTALLATION 9/10

Volume limitation - Menu language -

Programme number display - Time reference - Preferred

settings.

PICTURE ADJUSTMENTS 11/14

PIP - Format

SOUND ADJUSTMENTS 14/19

Pro Logic - Loudspeakers - Balance

Headphone - AV

DAY TO DAY OPERATION 20/21

Switching on/Selecting programmes - Browse

OTHER FUNCTIONS - EXTRAS 22/25

Clock - Child lock - Lock

CONNECTIONS 26/30

Units connected - Calling up audiovisual programmes -

TELETEXT 31/33

Calling up Teletext - Options - Alarm - How to select -

Subtitles - New flash

MANUAL PROGRAMMING 34/35

Norm - Decoder - Channel/Cable - Programme - Fine

Tuning - Station name - Store/Erase - Access to the

organiser.

BATTERIES :

Refer to page 30 for the fitting of the batteries

contents

remote control

functions

remote control

using

Pr +

Pr -

- ZOOM +

A-Z Z-A

-/--

television set

connections and commands

S-VIDEO and 

AUDIO Sockets

VIDEO and 

AUDIO Sockets

Headphone

socket

Ø 6,35 mm

PR- PR+ INSTAL

On/Standby light :

Green = On

Red = Standby

Volume adjustments

Programme

selection

Installation-menu access button

On/Off switch

PR- PR+ INSTAL

VIDEO

AUDIO

S-VIDEO

VIDEO

AUDIO

S-VIDEO

AV 3

FRONT AND RIGHT SIDE

For further details,

see page 26.

Connect to A.C.

main supply

220-240 V ~50 Hz

AV 2

AV 1

Ψ75 S-Video Video Audio

Video recorder

Decoder

Satellite receiver

Camcorder

Camescope

Inoperative in 

Pro Logic mode

Front speaker

Surround speaker

Front speaker

Surround speaker

Unit 1 Unit 2

(IN)

(OUT)

or VHS

Camcorder

S-VHS

Aerial*

Video games consoleCDV player

AV1

AV2

television set

connections and commands

Connect respectively the red and black terminals of the

supplied speakers to the television’s red and black terminals.

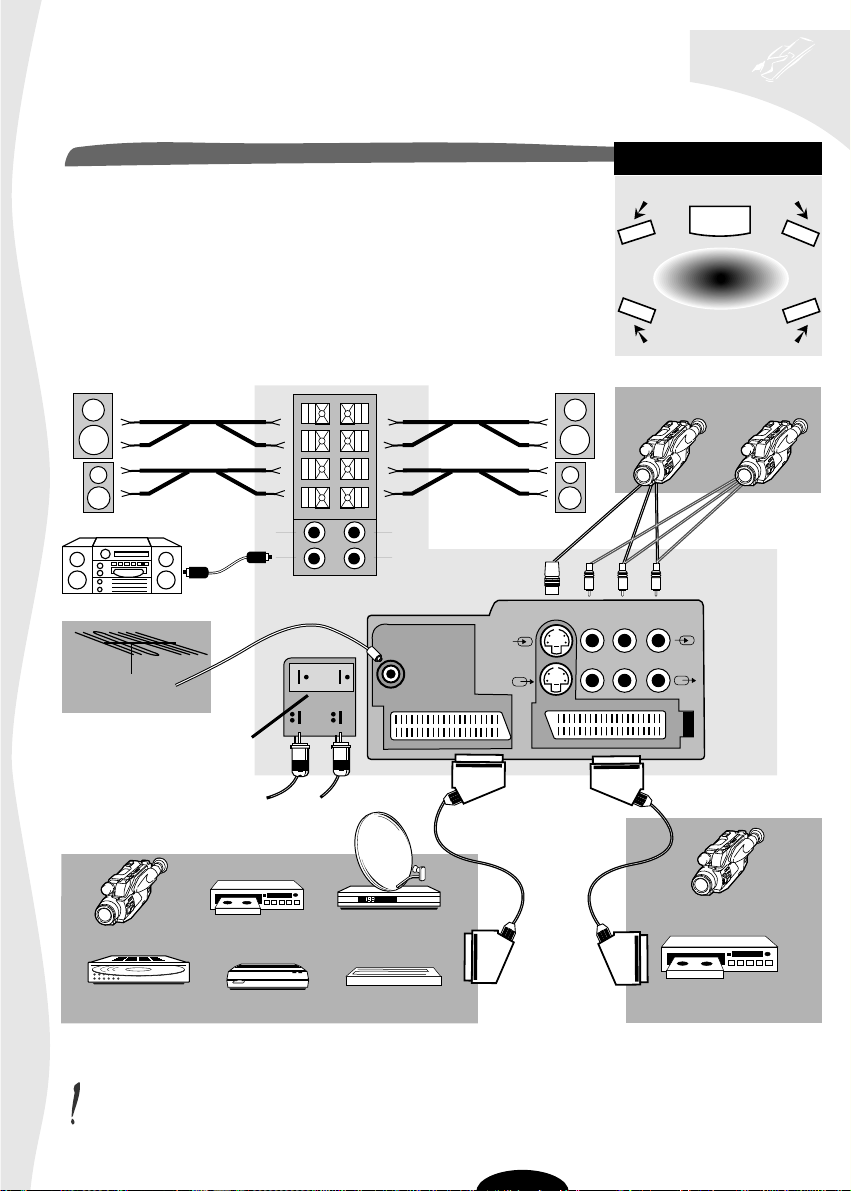

BACK CONNECTIONS

* We recommend that you use an aerial cable with double isolation.

Front speakers

Surround speakers

Listening

area

Ideal setting



NETHERLANDS : [ 1 ] 

BELGIUM : [ 2 ]

LUXEMBOURG : [ 3 ]

SWEDEN : [ 4 ]

DANMARK : [ 5 ]

FINLAND : [ 6 ]

NORWAY : [ 7 ]

OTHERS : [ 8 ]

Previous page : [ 9 ]

CHOOSE YOUR COUNTRY :

UK : [ 1 ]

FRANCE : [ 2 ]

GERMANY : [ 3 ]

ITALY : [ 4 ]

SPAIN : [ 5 ]

PORTUGAL : [ 6 ]

SWISS : [ 7 ]

AUTRIA : [ 8 ]

Next page : [ 9 ]

Turn on the television set main power.

The WELCOME menu is displayed.

If it is not,

Press the INSTAL button on the television control key pad.

Briefly press the remote control button corresponding to the

number of the language you require for the menus.

A list of countries appears (on two pages).

To go to the next or previous page, press

Briefly press the remote control button corresponding to the

country in which you are located,

for example: England, press

The menu which then appears permits the user to:

• start an automatic search,

• search for new channels,

• access channel organisation.

You can leave the menus at any time by pressing

the button.

For the first time or after a change of region,

start automatic channel search by pressing the key

Searching for stations and storing them in the memory depends

on the language chosen from the WELCOME menu.

The previously memorised stations are erased.

AUTO-PROGRAMMING is completed when the cursor is at the

extreme right.

To interrupt the search, press briefly on the key.

This displays the channel management menu.

WELCOME

television set

auto-programming

This set is equiped with an automatic station search system which is used for :

• Searching for all the stations received in your region and storing them in memory

• Automatically searching for the name of the station

• Automatically allocating a programme number.

WELCOME

BIENVENUE

WILLKOMMEN

BIENVENIDO

BENVENUTO

VÄLKOMMEN

WELKOM

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

ITALIANO

SVENSKA

NEDERLANDS

Press

Appuyer

Drücken

Pulse

Premere

Tryck

Druk op

key number

sur la touche

Sie die Taste

tecla numero

il tasto

knapp nummer

knop nummer

[1]

[2]

[3]

[4]

[5]

[6]

[7]

AUTO - PROGRAMMING

Searching for stations

10 stations found

To help you, follow the instructions

at the bottom of the menu (grey background).

AUTO - PROGRAMMING

INSTAL

1A-Z

Z-A

9



1A-Z

AERIAL INSTALLATION

Make sure that the aerial cable

and decoder (if any)

are connected to this TV set.

[ 1 ] Launch terrestrial installation

[ 2 ] Update the terrest. installation

[ 3 ] Access to the organiser

01 

02 

03

04

05

06

07

08

Moving PR 06 BBC to PR 04

+, -, 0..9 Give it another number

Green Confirm change

Red Cancel change

PR+, PR- Select a station

+, -, 0..9 Move this programme

Blue Change the name

Yellow Erase this station

To exit, press the (TV) key

+, - Next/Previous position

PR+, PR- Select a character

Green Confirm new name

Red Cancel new name

CHILD



C N N S-

- - - - - - -

C N N

+, - Next/Previous position

PR+, PR- Select a character 

Green Confirm new name

Red Cancel new name

PR+, PR- Select a station

+, -, 0..9 Move this programme

Blue Change the name

Yellow Erase this station

To exit, press the (TV) key

06 O S

07

08

television set

auto-programming

Pr +

Pr -

When the automatic search is completed, the

Programme Organiser menu appears.

Scan through to check that the stations found are correctly

numbered and named as you want than:

• IF YES ➡press briefly

the menu disappears and is replaced by the picture of the pro-

gramme selected.

• IF NO ➡you make changes as follows

Select the programme number to be changed.

Bring the cursor to the new programme number.

You may also use the number buttons 0 to 9.

Confirm the change (green button).

Press the blue button briefly.

A list of station names per country appears

United Kingdom Nederlands

France Belgique

Deutschland Luxembourg

Italia Sverige

España Danmark

Portugal Finland

Schweiz Norge

Österreich

Select the country you require.

If the name appears in the list displayed,

select the name

Confirm the selection (green button).

If the name does not appear in the list displayed,

select the "- - - - - -"line

You have 6 characters to enter a station name

To enter a station name,

Press the green button briefly and

the first character flashes.

Select the first character of the new name.

Enter the next character

and repeat the process up to the last character.

Confirm your choice (green button). The new name is

stored in the memory and the list disappears.

Programme Organiser

Pr +

Pr -

- The programme number

- The station name

Programme Organiser

PR+, PR- Select a station

+, -, 0..9 Move this programme

Blue Change the name

Yellow Erase this station

To exit, press the (TV) key

01 

02 

03

04 

05

06

07

08

Programme Organiser

01 

02 

03

04

05

06

07

08

+, - Next/Previous name page

PR+, PR- Select a new name

Green Confirm change

Red Cancel change

United Kingdom

SKYONE

DISCOV

UKGOLD

SKYSPO

BRAVO

ESPORT

S-NEWS

M T V

EUNEWS

- - - - - - -

BBC 1

BBC 2

I T V

CHAN 4

CHAN 5

SKY +

M-GOLD

M-CHAN

CHILD

C N N

Pr +

Pr -

Pr +

Pr -

This menu is used to :

• change the programme number,

• change the station number,

• delete a programme.

Pr +

Pr -

television set

auto-programming

installation

Maximum Volume Limitation

With this menu you may:

• Limit the maximum volume.

• Change the menu language (German, Spanish, French, English, Italian, Swedish, Dutch),

• Permanently display the number of the programme being watched,

• Store the time reference programme number,

Max. Volume

Language GB F D E I S NL



Programme Display Off On

Time reference PR 01

IR download (-)No Yes(+) PR --

Teletext Fine Tuning Off On

PREFERENCES SET-UP

Select the programme to be deleted.

Press the yellow button.

Confirm your choice (green button).

The programme is deleted

the following programme is selected.

You may cancel any unconfIrmed command (change of

programme number or channel name, programme erasure)

by pressind the red button.

To search only for new channels.

Press the television set INSTAL button.

Select the country and press the button

When search is finished, the Programme Organiser menu appears.

Reorganise the programmes.

To do this, follow the instructions given on the previous page.

To make the menu disappear, press on

Press the yellow button then the (-) button.

The SET-UP menu is displayed

Select the Max. Volume line (yellow button).

Set the maximum volume with the cursor.

The volume cannot be set to zero when using this function.

01 BBC 1

02 BBC 2

03

04

05

06

07

08

09 CANAL+

Erase PR 04 CANAL+

Green Confirm erase

R ed Cancel erase

SET-UP

Max. Volume

Language GB F D E I S NL



Programme Display Off On

Time reference PR 01

IR download (-)No Yes(+) PR --

Teletext Fine Tuning Off On

PREFERENCES SET-UP

To delete a programme

INSTAL

Z-A

New channels Turn on the television set by pressing

one of the buttons from 1 to 9.

Pr +

Pr -

television set

installation

Select the Language line (yellow key).

Select

All the menus will be displayed in the language selected.

Select the Programme Display line (yellow key).

Select : • Off no permanent display.

•On the programme number

is permanently displayed

Select the Time reference (yellow key).

The television set internal clock must be set.

This synchronises automatically when the television set is

turned on to a programme broadcasting Teletext, you can

opt to select any one of the 4 channels - BBC1, BBC2, ITV, CH4.

Select the corresponding programme number.

The IR download line has no effect on your TV set.

This menu enables you to save your preferred settings.

Press the yellow or pink key repeatedly to return to the

Menu contents line.

Press to display the PREFERENCES menu.

Select the line required with the yellow key.

Set with the key.

Erase the menu.

To return to your preferred settings at any time,

press the pink key.

Menu language

Programme number display

Time reference

Max. Volume

Language GB F D E I S NL



Programme Display Off On

Time reference PR 01

IR download (-)No Yes(+) PR --

Teletext Fine Tuning Off On



PREFERENCES SET-UP

Max. Volume

Language GB F D E I S NL



Programme Display Off On

Time reference PR 01

IR download (-)No Yes(+) PR --

Teletext Fine Tuning Off On

PREFERENCES SET-UP

Volume

Brightness

Colour

Contrast

Resets to these preferences

PREFERENCES SET-UP

PREFERENCES

GB : English

F : French

D : German

E : Spanish

I : Italian

S : Swedish

NL : Dutch

Max. Volume

Language GB F D E I S NL



Programme Display Off On

Time reference PR 01

IR download (-)No Yes(+) PR --

Teletext Fine Tuning Off On



PREFERENCES SET-UP

Volume

Brightness

Colour

Contrast

Resets to these preferences

PREFERENCES SET-UP

Teletext fine tuning

Teletext Fine Tuning Off On

This adjustment allows writing errors (missing letters) on the

teletext pages of French networks (L Standard) to be reduced.

To do this,

On must be selected int the Teletext Fine Tuning line.

This adjustment is not active for the B, G, D, K, K’ and I

standards.

Table des matières

Autres manuels THOMSON TV

THOMSON

THOMSON 26LB040S5/U Manuel utilisateur

THOMSON

THOMSON 15LCDM03B Manuel utilisateur

THOMSON

THOMSON easytv 24HD2S13 Manuel utilisateur

THOMSON

THOMSON 27LB125B5 Manuel utilisateur

THOMSON

THOMSON 20MH15CX Manuel utilisateur

THOMSON

THOMSON DTH 8543 - ADDITIF Manuel utilisateur

THOMSON

THOMSON DTH 8550 - Manuel utilisateur

THOMSON

THOMSON 28DT68L Manuel utilisateur

THOMSON

THOMSON T32E53U Manuel utilisateur

THOMSON

THOMSON 30LCDB03B Guide de l'administrateur

THOMSON

THOMSON DTI6300 Manuel utilisateur

THOMSON

THOMSON 21DU21C Manuel utilisateur

THOMSON

THOMSON G27693 Mode d’emploi

THOMSON

THOMSON CR20300 Manuel utilisateur

THOMSON

THOMSON MT31AS Manuel utilisateur

THOMSON

THOMSON 28WS23E Manuel utilisateur

THOMSON

THOMSON ICC20 Manuel utilisateur

THOMSON

THOMSON 28VT68ND Manuel utilisateur

THOMSON

THOMSON Intuiva Manuel utilisateur

THOMSON

THOMSON 20MF15GT Manuel utilisateur

THOMSON

THOMSON IFC230 Manuel utilisateur

THOMSON

THOMSON TX807 C Manuel utilisateur

THOMSON

THOMSON 29DMV88KH Manuel utilisateur

THOMSON

THOMSON 28VT68NE Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
