THCV245A

SerDes transmitter with bi-directional transceiver

1General Description

THCV245A is designed to support 1080p60 2Mpixel

uncompressed video data over 15m 100ohm

differential STP or single-end 50ohm Coaxial cable

with 4 in-line connectors between camera and

processor by V-by-One®HS.

THCV245A supports a MIPI CSI-2. Each CSI-2 data

lane can transmit up to 1.2Gbps/lane. Virtual channel

is supported.

THCV245A is particularly targeted to medical and

other applications requiring low power consumption.

One high-speed V-by-One® HS lane can transmit up

to 1080p60fps. The maximum serial data rate is

4Gbps/lane. 2nd output lane supports HDR large

amount of data or data copy-and-distribution

experience.

THCV245A is capable to control and monitor

camera module from remote ECU via GPIO, UART or

1Mbps 2-wire serial interface.

Several fault and error detection function including

CRC provides hardware functional safety design.

2Features

MIPI CSI-2 with 1,2 or 4-lane input

MIPI D-PHY supports 80Mbps~1.2Gbps

MIPI Virtual channel supported

Video formats: RAW8/10/12/14/16/20,

YUV422/420, RGB888/666/565, JPEG, User-

defined generic 8-bit

V-by-One®HS 400Mbps~4Gbps x2lane

V-by-One®HS standard version1.5

Reference clock input CKI range 10~40MHz

shareable with video source CMOS sensor

Wide range IO voltage from 1.7V to 3.6V

Additional spread spectrum to reduce EMI

2-wire serial interface 1Mbps bridge function

Remote GPIO/UART control and monitoring

Error detection including CRC and notification

Low Current Consumption

QFN40 5x5mm 0.4mm pitch Exp-pad package

3Block Diagram

RD3p

RD3n

CSI2 / Formatter

SerializerPLL

Controls

RCKp

RCKn

OSC

RD1p

RD1n

Settings

2-wire

serial I/F

TX0N

TX0P

TCMN

TCMP

MIPI CSI-2

Rx 4-lane THCV245A V-by-One® HS

Tx 2 lane

Sub-Link

RD0p

RD0n

RD2p

RD2n

TX1N

TX1P

GPIO

CKI

Preliminary

THCV245A_Rev.0.90_E

Security C

2/67

Contents Page

1General Description.........................................................................................................................................1

2Features ...........................................................................................................................................................1

3Block Diagram ................................................................................................................................................1

4Pin Configuration............................................................................................................................................4

5Pin Description................................................................................................................................................5

6Functional Description....................................................................................................................................6

6.1 Functional Overview...............................................................................................................................6

6.2 Reference clock supply............................................................................................................................6

6.3 MIPI input setting....................................................................................................................................7

6.4 HTPDN/LOCKN.....................................................................................................................................8

6.5 V-by-One® HS output setting.................................................................................................................9

6.5.1 MPRF (Main-Link PRivate Format) ...............................................................................................9

6.5.2 V-by-One® HS standard format....................................................................................................10

6.5.3 V-by-One® HS output Byte mode.................................................................................................16

6.5.4 V-by-One® HS output Distribution mode.....................................................................................16

6.5.5 V-by-One® HS Low Radiation Emission or High Immunity Resistance mode............................16

6.5.6 V-by-One® HS output Odd/Even swap.........................................................................................17

6.5.7 V-by-One® HS output Drivability ................................................................................................17

6.5.8 V-by-One® HS output Low Frequency mode...............................................................................17

6.5.9 Target Pixel clock..........................................................................................................................18

6.6 Blanking period restriction under low MIPI data-rate environment......................................................18

6.7 PLL setting ............................................................................................................................................19

6.8 PLLAuto setting function .....................................................................................................................22

6.9 V-by-One® HS output data-rate............................................................................................................23

6.10 V-by-One® HS output Spread Spectrum...............................................................................................23

6.11 V-by-One® HS CRC.............................................................................................................................24

6.12 MIPI Packet Header V-by-One® HS output bridge mode ....................................................................25

6.13 MIPI Virtual Channel bridge.................................................................................................................26

6.14 V-by-One® HS VSYNC generation......................................................................................................27

6.15 V-by-One® HS HSYNC generation......................................................................................................28

6.16 MIPI Short Packet V-by-One® HS output bridge mode .......................................................................30

6.17 2-wire serial interface............................................................................................................................32

6.17.1 2-wire serial I/F slave Device ID...................................................................................................32

6.17.2 2-wire serial Read/Write access to local Register..........................................................................33

6.18 2-wire serial I/F Watch Dog Timer........................................................................................................34

Preliminary

THCV245A_Rev.0.90_E

Security C

3/67

6.19 Register Auto Checksum diagnosis....................................................................................................... 34

6.20 Sub-Link setting ....................................................................................................................................35

6.20.1 Sub-Link 2-wire Set and Trigger mode (2-wire Normal mode)....................................................37

6.21 Sub-Link Watch Dog Timer...................................................................................................................40

6.22 Sub-Link Interrupt detection .................................................................................................................41

6.23 GPIO setting..........................................................................................................................................42

6.23.1 Sub-Link Polling GPIO input/output.............................................................................................42

6.23.2 Register GPIO ...............................................................................................................................44

6.24 Internal Error / status signal monitoring GPIO output ..........................................................................45

6.25 Internal Error / status signal monitoring register...................................................................................46

6.26 Interrupt monitoring ..............................................................................................................................47

6.27 Build-In Self-Test pattern generator (BIST)..........................................................................................49

6.28 Main-Link Field BET............................................................................................................................51

6.29 Sub-Link Field BET operation and output from GPIO .........................................................................51

6.30 CMOS IO Input noise Filter..................................................................................................................52

6.31 CMOS output drive strength .................................................................................................................52

6.32 CKO reference clock buffer output .......................................................................................................53

6.33 Soft Reset ..............................................................................................................................................54

6.34 Power On Sequence...............................................................................................................................56

6.35 Lock / Re-Lock Sequence .....................................................................................................................57

7Absolute Maximum Ratings..........................................................................................................................58

8Recommended Operating Conditions............................................................................................................58

9Consumption Current....................................................................................................................................59

10 DC Specifications......................................................................................................................................60

10.1 CMOS DC Specifications......................................................................................................................60

10.2 MIPI Receiver DC Specifications .........................................................................................................60

10.3 CMLTransmitter DC Specifications.....................................................................................................61

10.4 CML Bi-directional Buffer DC Specifications......................................................................................62

11 AC Specifications..........................................................................................................................................63

11.1 MIPI Receiver AC Specifications..........................................................................................................63

11.2 CMLTransmitter AC Specifications ..................................................................................................... 63

11.3 CML B-directional Buffer AC Specifications .......................................................................................63

11.4 2-wire serial Master/Slave AC Specifications....................................................................................... 64

12 Package......................................................................................................................................................66

13 Notices and Requests.................................................................................................................................67

MIPI is a licensed trademark of MIPI, Inc. in the U.S. and other jurisdictions.

Preliminary

THCV245A_Rev.0.90_E

Security C

4/67

4Pin Configuration

30 29 28 27 26 25 24 23 22 21

VDDM

SCL

SDA

AIN

INT

VDDL

PDN0

VDDIO

MSSEL

LOCKN

31 RD3P THCV245A VDDA 20

32 RD3N TX0N 19

33 RD1P 41 EXPGND TX0P 18

34 RD1N TX1N 17

35 RCKP TX1P 16

36 RCKN TEST 15

37 RD0P TCMN 14

38 RD0N TCMP 13

39 RD2P PDN1 12

40 RD2N VDDB 11

VDDM

VDDOP

CKO

VDDIO

CKI

VDDL

GPIO0

GPIO1

GPIO2

GPIO3

1 2 3 4 5 6 7 8 9 10

Preliminary

THCV245A_Rev.0.90_E

Security C

5/67

5 Pin Description

Pin Name Pin # type* Description

RD3P/N 31,32 MI MIPIlane3 differential data input

RD1P/N 33,34 MI MIPIlane1 differential data input

RCKP/N 35,36 MI MIPI differential clock inputs

RD0P/N 37,38 MI MIPIlane0 differential data input

RD2P/N 39,40 MI MIPIlane2 differential data input

TX0P/N 18,19 CO V-by-One® HS lane0 High-speed CML signal output

TX1P/N 16,17 CO V-by-One® HS lane1 High-speed CML signal output

TCMP/N 13,14 CB/B TCMP/N(PDN1=1): CML Bi-directional Input/Output(Sub-Link).

NC (PDN1=0): Not Connected. Must be open.

SCL 29 B 2-wire serial Master/Slave SCL

SDA 28 B 2-w ire serial Master/Slave SDA

PDN0 24 I Whole IC Power Down

0 : Power Down

1 : Normal Operation

PDN1 12 I Sub-Link Power Down

0 : Sub-Link Power Down

1 : Sub-Link Normal Operation

TEST 15 I Test pin. Must be tied to Ground for normal operation.

CKI 5 I Reference Clock Input

CKO 3 O Reference Clock Output

LOCKN 21 I LOCK detect input Negative polarity

If external LOCKNconnection is used, it is supposed to be

connected to Rx LOCKN w ith a 30kΩ pull-up resistor.

GPIO0 7 B GPIO0

GPIO1 8 B GPIO1

GPIO2 9 B GPIO2

GPIO3 10 B GPIO3

MSSEL 22 I

MSSEL (PDN1=1): Sub-Link Master/Slave Select

0 : Sub-Link Master side(inside 2-w ire serial I/F is slave)

1 : Sub-LinkSlave side(inside 2-wire serial I/F is master)

Sub-Link Master is connected to HOST MCU.

HTPDN(PDN1=0): HoT Plug Detect input Negative polarity

Must be connected to Rx HTPDN w ith a 30kΩ pull-up resistor.

AIN 27 I Select Slave Address

0 : 2wire serial Address = 7'b000_1011

1 : 2wire serial Address = 7'b011_0100

INT 26 O

Interrupt signal output.

It must be connected with a pull-up resistor.

0 : Interrupt occurred

1 : Steady state

VDDOP 2 P PLL Power supply Pin 1.2V

VDDM 1,30 P MIPIPower supply Pin 1.2V

VDDA 20 P Analog Power supply Pin 1.2V

VDDL 6,25 P Digital Power supply Pins 1.2V

VDDB 11 P Analog Power supply Pin 1.8~3.3V

VDDIO 4,23 P IO Pow er supply Pin 1.8~3.3V

EXPGND 41 G Exposed Pad Ground : Must be tied to Ground

*type symbol

MI=MIPIInput, CO=CML Output

CB=CML Bi-directional input/output

B=1.8~3.3V CMOS Bi-directional input/output, I=1.8~3.3v CMOS Input, O=1.8~3.3v CMOS Output

P=Power, G=Ground

Preliminary

THCV245A_Rev.0.90_E

Security C

6/67

6 Functional Description

6.1 Functional Overview

THCV245A can receive MIPI CSI-2 video and transmit it to over 15m length. With High Speed CML SerDes,

high reliability and robustness encoding scheme and CDR (Clock and Data Recovery) architecture, the

THCV245A enables to transmit RAW/YUV/RGB/JPEG/Generic8bit data through Main-Link by single 100ohm

differential pair or 50ohm Coax cable with minimal external components. Maximum supported resolution is

horizontal active 3840 pixels format. In addition, the THCV245A has Sub-Link which enables bi-directional

transmission of 2-wire serial interface signals, GPIO signals and also HTPDN/LOCKN signals for Main-Link

through the other 1-pair of CML-Line. The THCV245A system is able to watch peripheral devices and to control

them via 2-wire serial interface or GPIOs. They also can report interrupt events caused by change of GPIO inputs

and internal statuses such as CRC error.

6.2 Reference clock supply

Reference clock supply CKI is required since MIPI CSI-2 clock stream will not always be continuous.

CKI frequency examples are 24MHz, 27MHz and 37.125MHz.

To supply the same oscillator clock as CMOS sensor to THCV245A is recommended.

See Figure 1.

Physical layout artwork of oscillator clock trace is supposed to be designed to shorten stub branch as possible.

Figure 1. Reference clock supply basic method

Another alternative is to make use of THCV245A CKO internal clock buffer function.

CKO clock buffer may strengthen clock drive ability in order to compensate clock signal loss in large structure.

On the other hand, additional clock buffer may become another EMI emission source as trade-off.

Figure 2. Reference clock supply clock buffer method (optional)

THCV

245

CMOS Sensor

CKICKO

OSC

MCLK

Stub

Stub branch of OSC clock trace

must be as short as possible for

signal integrity.

245

CMOS Sensor

CKICKO

OSC

MCLK

(good

)

large structure available

(bad

)

rather high EMI emission

can be long

Preliminary

THCV245A_Rev.0.90_E

Security C

7/67

6.3 MIPI input setting

Setting of MIPI input can be configurable by 2-wire access to internal register.

Lane0 of MIPI input must always be used regardless of configuration as an obligation.

Table 1. MIPI input setting

Addr(h) Bits Register width R/W Description Default

0x1025 [0] R_RX_PN_SW 1 R/W MIPIP/Nswap 1'h0

0x1026 [7:6] R_RX_LANE_SEL0 2 R/W MIPIData Lane RX0P/RX0Npin input mapping/swap select

MIPIstandard format lane# assignment used on RX0P/RX0Ninput

The same setting as R_RX_LANE_SEL1/2/3 is prohibited. 2'h0

0x1026 [5:4] R_RX_LANE_SEL1 2 R/W MIPIData Lane RX1P/RX1Npin input mapping/swap select

MIPIstandard format lane# assignment used on RX1P/RX1Ninput

The same setting as R_RX_LANE_SEL0/2/3 is prohibited. 2'h1

0x1026 [3:2] R_RX_LANE_SEL2 2 R/W MIPIData Lane RX2P/RX2Npin input mapping/swap select

MIPIstandard format lane# assignment used on RX2P/RX2Ninput

The same setting as R_RX_LANE_SEL0/1/3 is prohibited. 2'h2

0x1026 [1:0] R_RX_LANE_SEL3 2 R/W MIPIData Lane RX3P/RX3Npin input mapping/swap select

MIPIstandard format lane# assignment used on RX3P/RX3Ninput

The same setting as R_RX_LANE_SEL0/1/2 is prohibited. 2'h3

0x102C [0] R_RX_CLKLANE_EN 1 R/W MIPIClock Lane Enable

0:Disable

1:Enable 1'h0

0x102D [4] R_RX_DATALANE_EN 1 R/W MIPIData Lane Enable

0:Disable

1:Enable, following R_RX_LANE_SEL_EN 1'h0

0x102D [1:0] R_RX_LANE_SEL_EN 2 R/W

MIPIValid Data Lane number select

00:1Lane (lane0 Enable)

01,10:2Lane (lane<1:0> Enable)

11:4Lane (lane<3:0> Enable)

2'h3

Preliminary

THCV245A_Rev.0.90_E

Security C

8/67

6.4 HTPDN/LOCKN

Hot-Plug Function

HTPDN indicates Main-Link connect condition between Transmitter and Receiver. HTPDN of Transmitter side

is high when Receiver is not active or not connected. Then Transmitter can enter into power down mode. HTPDN

is set to Low by the Receiver when Receiver is active and connects to the Transmitter, and then Transmitter must

start up and transmit CDR training pattern for link training. HTPDN is open drain output at the receiver side.

Transmitter side needs Pull-up resistor.

There is an application option to omit HTPDN connection between Transmitter and Receiver. In this case,

HTPDN at Transmitter side should always be at Low.

Lock Detect Function

LOCKN indicates whether CDR PLL of Main-Link is in lock status or not. LOCKN at Transmitter input is set

to High by pull-up resistor when Receiver is not active or in CDR PLLtraining. LOCKN is set to Low byReceiver

when CDR lock is completed. After that the CDR training mode finishes and then Transmitter shifts to the normal

mode. LOCKN of Receiver is open drain. Transmitter side needs pull-up resistor.

When an application omits HTPDN, LOCKN signal should only be considered with HTPDN pulled low by

Receiver.

Vcc

(Tx side)

MSSEL

(HTPDN)

LOCKN

THCV241A

30kΩ

HTPDN

LOCKN

30kΩ

Vcc

(Tx side)

MSSEL

(HTPDN)

LOCKN

THCV241A

HTPDN

LOCKN

V-by-One®

HS Rx

30kΩ

With HTPDN connect Without HTPDN connect

V-by-One®

HS Rx

Figure 3. Physical wire connection for wired Hot-plug and Lock detect scheme

It will need same GND potential reference between transmitter and receiver device to connect HTPDN and

LOCKN pins directly like above. HTPDN and LOCKN can also be transmitted via Sub-Link without physical

wire connection. Assignment can be configurable by 2-wire access to internal register.

Table 2. HTPDN/LOCKN register

Addr(h) Bits Register width R/W Description Default

0x101D [1:0] R_HTPDN_SEL 2 R/W

V-by-One® HS HTPDNassignment

00:Sub-Link at PDN1=1 / HTPDNpin input at PDN1=0,

01:Reserved,

10:forced Low (Must be set at V-by-One® HS Distribution Enable),

11:forced High

2'h0

0x101E [5:4] R_LOCKN0_SEL 2 R/W V-by-One® HS LOCKNfor lane0 assignment

00:Sub-Link, 01:LOCKNpin input, 10:forced Low, 11:forced High 2'h0

0x101E [1:0] R_LOCKN1_SEL 2 R/W V-by-One® HS LOCKNfor lane1 assignment

00:Sub-Link, 01:LOCKNpin input, 10:forced Low, 11:forced High 2'h0

THCV245A

Preliminary

THCV245A_Rev.0.90_E

Security C

9/67

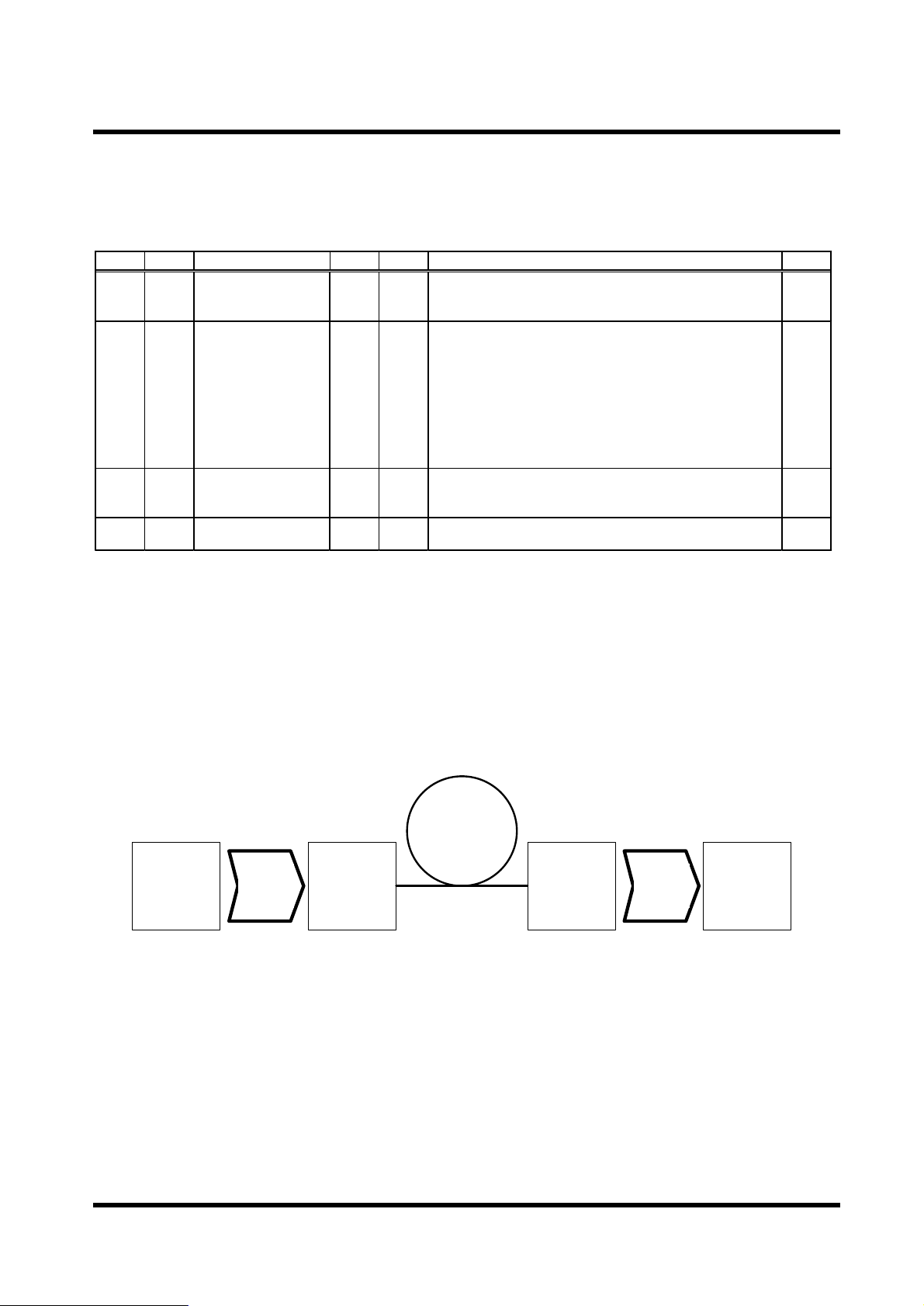

6.5 V-by-One® HS output setting

Setting of V-by-One® HS output format can be configurable by 2-wire access to internal register.

Table 3. V-by-One® HS output format setting

6.5.1 MPRF (Main-Link PRivate Format)

MPRF format encoding preserves original data packet input to THCV245A and output the data packet from

counterpart V-by-One® HS receiver. The counterpart receiver must have installed MPRF format decoder like

THCV242 because MPRF is not standard format.

Output V-by-One® HS Byte Mode is 4Byte Mode.

Video formats: RAW8/10/12/14/16/20, YUV422/420, RGB888/666/565, JPEG, and User-defined generic 8-bit

are all supported with MPRF.

Figure 4. MPRF (Main-Link PRivate Format)

Addr(h) Bits Register width R/W Description Default

0x1000 [0] R_VX1_LANE 1 R/W V-by-One® HS output lane number setting

0:1lane

1:2lanes 1'h1

0x1001 [6:4] R_OUTPUT_FMT 3 R/W

V-by-One® HS output format setting

000:Main-Link PRivate Format (MPRF)

001:V-by-One® HS Standard YUV422(16bit)/RAW8

010:V-by-One® HS Standard RGB888

011:V-by-One® HS Standard RGB565

100:V-by-One® HS Standard RAW10 Mode1

101:V-by-One® HS Standard RAW12 Mode1

110: V-by-One® HS Standard RAW10 Mode2

111: V-by-One® HS Standard RAW12 Mode2

3'h0

0x1002 [5] R_HFSEL 1 R/W V-by-One® HS HFSEL (High Freq. SELect) mode Enable

0:HFMode Disable

1:HFMode Enable 1'h0

0x1055 [1:0] R_BITMAP_SEL 2 R/W V-by-One® HS output data mapping select

00:MAP1, 01:MAP2, 10:MAP3, 11:MAP4 2'h0

THCV245ACMOS Sensor THCV242 Processor

In ECU or

controller

Original

Data packet

(format,

payload, etc.)

Preserved

Data packet

(format,

payload, etc.)

Main-Link

MPRF

format

Preliminary

THCV245A_Rev.0.90_E

Security C

10/67

6.5.2 V-by-One® HS standard format

THCV245A output format capabilities as transmitter are shown as follows. D[31:0] indicates V-by-One®HS

standard version1.5 Packer packet definition. Data can be transmitted normally only when both transmitter and

receiver are set to the same available format. Some of the THCV245A format may not be supported by particular

counterpart receiver because THCV245A prepares multiple formats that suit to multiple receiver devices

alternatives.

Table 4. V-by-One® HS 1lane output data mapping format 1/3

R_OUTPUT_FMT 1

R_HFSEL 0 1

R_BITMAP_SEL 0 1 2 0 3 0 1

default V-by-One®HS Byte Mode 3333344

Format Name

Vx1HS std. Packer Packet ref. YUV422

Map1 YUV422

Map2 YUV422

Map3 RAW8 RAW8

Map4 YUV422HF

Map1 YUV422HF

Map2

V-by-One®HS_D[31] - - - - - Y[7](1st) Cb(U)[7]

V-by-One®HS_D[30] - - - - - Y[6](1st) Cb(U)[6]

V-by-One®HS_D[29] - - - - - Y[5](1st) Cb(U)[5]

V-by-One®HS_D[28] - - - - - Y[4](1st) Cb(U)[4]

V-by-One®HS_D[27] - - - - - Y[3](1st) Cb(U)[3]

V-by-One®HS_D[26] - - - - - Y[2](1st) Cb(U)[2]

V-by-One®HS_D[25] - - - - - Y[1](1st) Cb(U)[1]

V-by-One®HS_D[24] - - - - - Y[0](1st) Cb(U)[0]

V-by-One®HS_D[23] Cb(U)[7]/Cr(V)[7] Y[7](1st)/Y[7](2nd) 0 RAW[7] (1st) RAW[7] (1st) Cb(U)[7] Y[7](1st)

V-by-One®HS_D[22] Cb(U)[6]/Cr(V)[6] Y[6](1st)/Y[6](2nd) 0 RAW[6] (1st) RAW[6] (1st) Cb(U)[6] Y[6](1st)

V-by-One®HS_D[21] Cb(U)[5]/Cr(V)[5] Y[5](1st)/Y[5](2nd) 0 RAW[5] (1st) RAW[5] (1st) Cb(U)[5] Y[5](1st)

V-by-One®HS_D[20] Cb(U)[4]/Cr(V)[4] Y[4](1st)/Y[4](2nd) 0 RAW[4] (1st) RAW[4] (1st) Cb(U)[4] Y[4](1st)

V-by-One®HS_D[19] Cb(U)[3]/Cr(V)[3] Y[3](1st)/Y[3](2nd) 0 RAW[3] (1st) RAW[3] (1st) Cb(U)[3] Y[3](1st)

V-by-One®HS_D[18] Cb(U)[2]/Cr(V)[2] Y[2](1st)/Y[2](2nd) 0 RAW[2] (1st) RAW[2] (1st) Cb(U)[2] Y[2](1st)

V-by-One®HS_D[17] Cb(U)[1]/Cr(V)[1] Y[1](1st)/Y[1](2nd) 0 RAW[1] (1st) RAW[1] (1st) Cb(U)[1] Y[1](1st)

V-by-One®HS_D[16] Cb(U)[0]/Cr(V)[0] Y[0](1st)/Y[0](2nd) 0 RAW[0] (1st) RAW[0] (1st) Cb(U)[0] Y[0](1st)

V-by-One®HS_D[15] 0 0 Y[7](1st)/Y[7](2nd) 0 0 Y[7](2nd) Cr(V)[7]

V-by-One®HS_D[14] 0 0 Y[6](1st)/Y[6](2nd) 0 0 Y[6](2nd) Cr(V)[6]

V-by-One®HS_D[13] 0 0 Y[5](1st)/Y[5](2nd) 0 0 Y[5(2nd) Cr(V)[5]

V-by-One®HS_D[12] 0 0 Y[4](1st)/Y[4](2nd) 0 0 Y[4](2nd) Cr(V)[4]

V-by-One®HS_D[11] 0 0 Y[3](1st)/Y[3](2nd) 0 RAW[7] (2nd) Y[3](2nd) Cr(V)[3]

V-by-One®HS_D[10] 0 0 Y[2](1st)/Y[2](2nd) 0 RAW[6] (2nd) Y[2](2nd) Cr(V)[2]

V-by-One®HS_D[9] 0 0 Y[1](1st)/Y[1](2nd) 0 RAW[5] (2nd) Y[1](2nd) Cr(V)[1]

V-by-One®HS_D[8] 0 0 Y[0](1st)/Y[0](2nd) 0 RAW[4] (2nd) Y[0](2nd) Cr(V)[0]

V-by-One®HS_D[7] Y[7](1st)/Y[7](2nd) Cb(U)[7]/Cr(V)[7] Cb(U)[7]/Cr(V)[7] RAW[7] (2nd) RAW[3] (2nd) Cr(V)[7] Y[7](2nd)

V-by-One®HS_D[6] Y[6](1st)/Y[6](2nd) Cb(U)[6]/Cr(V)[6] Cb(U)[6]/Cr(V)[6] RAW[6] (2nd) RAW[2] (2nd) Cr(V)[6] Y[6](2nd)

V-by-One®HS_D[5] Y[5](1st)/Y[5](2nd) Cb(U)[5]/Cr(V)[5] Cb(U)[5]/Cr(V)[5] RAW[5] (2nd) RAW[1] (2nd) Cr(V)[5] Y[5(2nd)

V-by-One®HS_D[4] Y[4](1st)/Y[4](2nd) Cb(U)[4]/Cr(V)[4] Cb(U)[4]/Cr(V)[4] RAW[4] (2nd) RAW[0] (2nd) Cr(V)[4] Y[4](2nd)

V-by-One®HS_D[3] Y[3](1st)/Y[3](2nd) Cb(U)[3]/Cr(V)[3] Cb(U)[3]/Cr(V)[3] RAW[3] (2nd) 0 Cr(V)[3] Y[3](2nd)

V-by-One®HS_D[2] Y[2](1st)/Y[2](2nd) Cb(U)[2]/Cr(V)[2] Cb(U)[2]/Cr(V)[2] RAW[2] (2nd) 0 Cr(V)[2] Y[2](2nd)

V-by-One®HS_D[1] Y[1](1st)/Y[1](2nd) Cb(U)[1]/Cr(V)[1] Cb(U)[1]/Cr(V)[1] RAW[1] (2nd) 0 Cr(V)[1] Y[1](2nd)

V-by-One®HS_D[0] Y[0](1st)/Y[0](2nd) Cb(U)[0]/Cr(V)[0] Cb(U)[0]/Cr(V)[0] RAW[0] (2nd) 0 Cr(V)[0] Y[0](2nd)

Table des matières

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
