Thetford 23709 Guide de configuration

08/05/2006Date:

Tools required:

V1Version:

Description: C200S CS Electric Valve

Part number: 23709

Look for Service Centers, Point of Sale addresses and other

information on: www.thetford-europe.com

Repair instruction

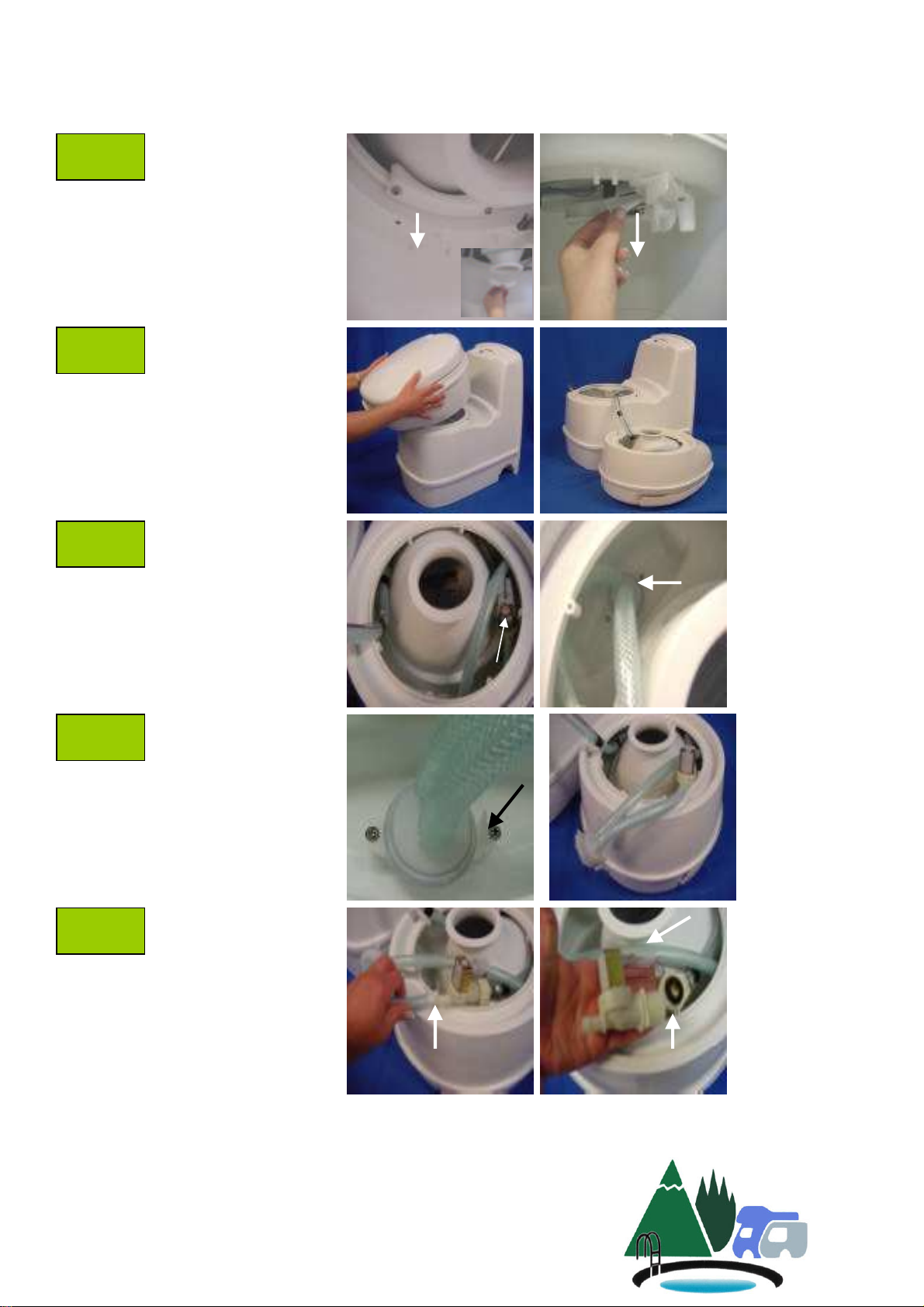

Pull the waste tank out of

the Cassette toilet by lifting

up the yellow clip.

Inside view, part is

assembled with 4 screws

(2 in front, 2 at the back).

C200S/CS toilet.

Remove the two bowl

retainers.

This bracket

is 3x assembled around the

toilet bowl. Each bracket

has two screws.

3. 1.

08/05/2006 Description: C200S CS

Electric Valve 1

For bracket nr. 3, we

advise you to use a mirror

as the bracket is very

difficult to see.

2. 3.

Electric valve

Vacuum

breaker

1. 2.

Hose barb

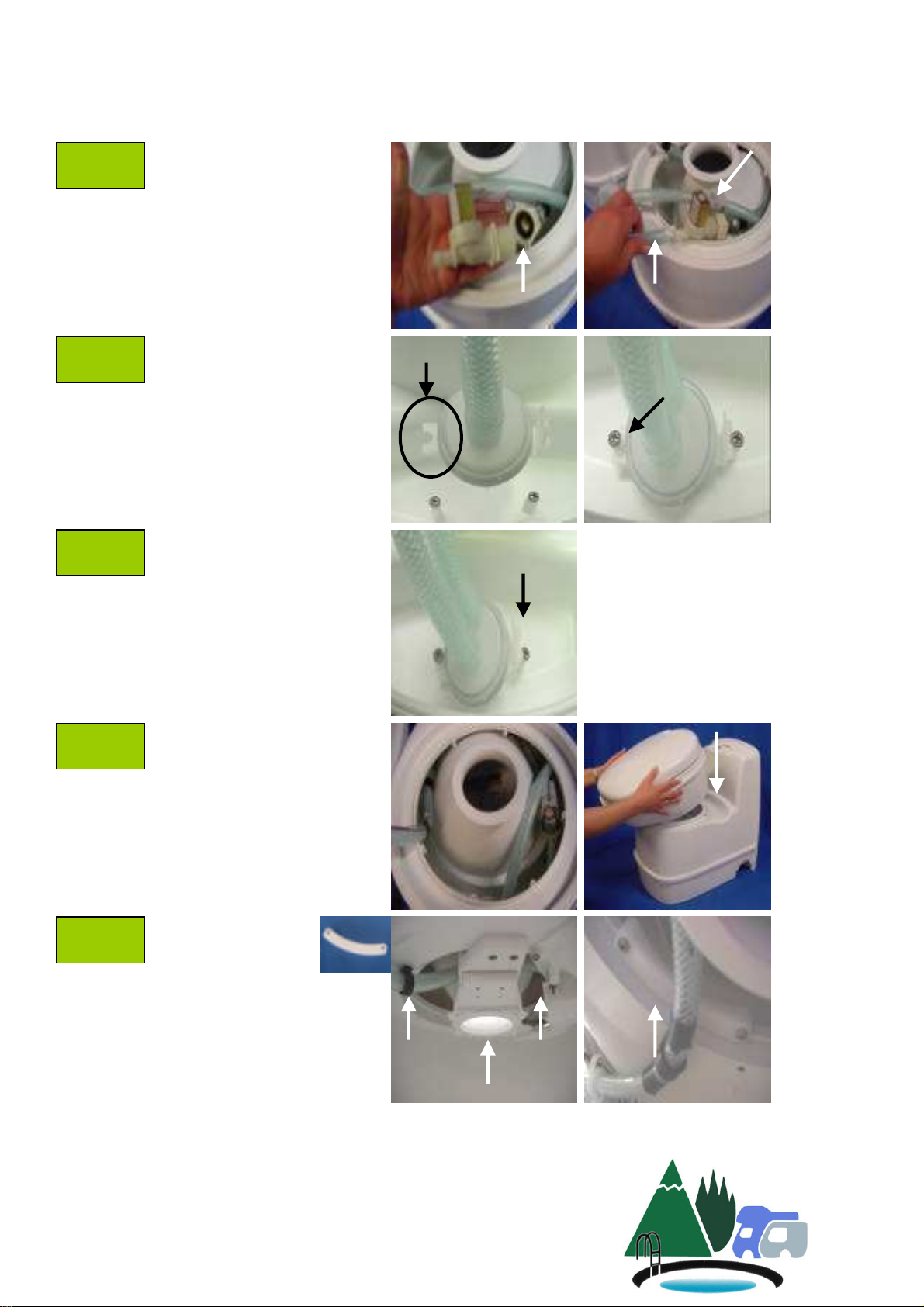

When all the parts are

unscrewed, the toilet bowl

can be taken off.

Looking into the toilet

bowl, the electric valve

can be found.

By taking out the vacuum

breaker it is easier to

replace the electric valve.

Press against upstanding

rib (1) and the part

can be taken out.

Remove the flush tube

including electric valve.

Make the electric valve on

both sides loose from the

tubes and, pull both

connectors loose. 1. Can

be pulled off 2. Unscrew

the hose barb 3. Can be

pulled off

08/05/2006 Description: C200S CS

Electric Valve 2

Replace the electric

valve.

1. 2.

Opening

Place vacuum breaker back into

position the following way.

Place complete water tube back

into the toilet bowl.

Replace the three brackets.

place toilet bowl back in

position.

08/05/2006 Description: C200S CS

Electric Valve 3

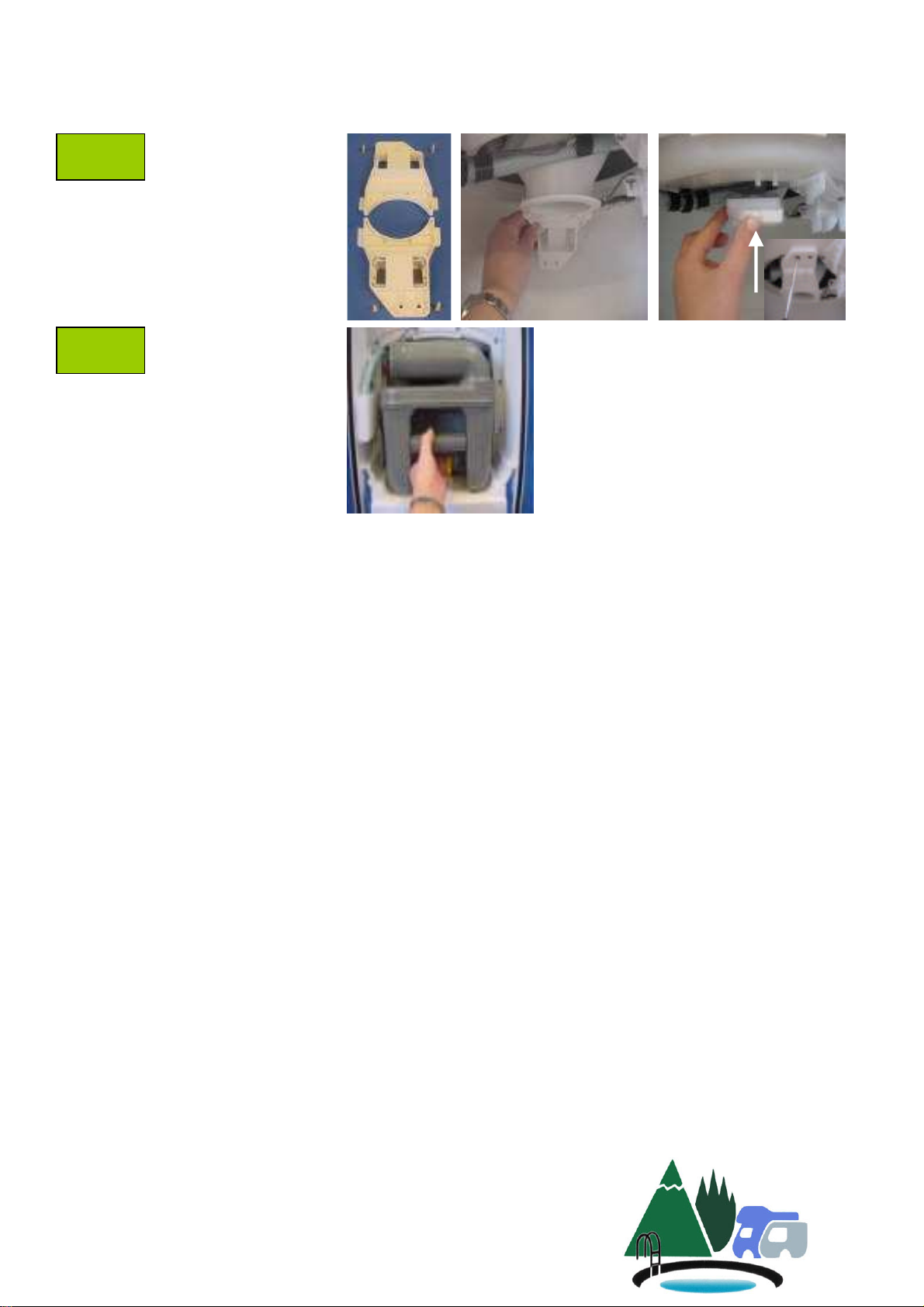

Replace the two bowl

retainers.

Note : Bracket with the

magnet in it, has to be

placed in the front.

+ magnet

Place waste tank back

into the toilet.

08/05/2006 Description: C200S CS

Electric Valve 4
