Thermor Evidence3 Instructions d'installation

Warning

- Caution hot surface: some parts of this product may become hot and

cause burns. Must pay particular attentiong to the presebce od children

and vulnerable people.

- Keep away from this unit the children under 3 years old, unless they are

under a constant supervision

- This device should not be used without supervision by children under 14

years old, by persons with reduced physical, sensory or mental capabili-

ties or by persons with lack of experience or knowledge,unless they can

benefit through a person responsible for their safety, of prior instructions.

- Children less than 14 years old must not play, adjust, clean or perform

the maintenance on the unit.

- This appliance must be connected according to the rules and standards

applicable, by an authorized person.

- The instruction book is available by contacting the customer service

number mentioned on the warranty included in this guide

- Do not use the device if the power cord is damaged.

- To avoid overheating and for safety reasons, do not cover the heater.

- Devices with this symbol should not be placed with household waste but

must be collected-separately and recycled. The collecting and recycling

of end of life products must be made according to the provisions and

ordinances.

- The installation of a device in elevation causes an increase in the outlet

temperature of air (about 10 °C per 1000 m of vertical).

Installation

1.1 WHERE INSTALL THE UNIT？

- This device has been designed to be installed in residential premises. In

all other cases,plesae consult your dealer

- The installation must be made in the rules, the state of the art and

complies with the standards in force in the country of installation.

- The devices are Class II and protected against splash water IP 24. They

can be installed in volume 2 of the bathrooms (Figure e). It is forbidden to

install the devices in volume 1. The control box of the device must not be

manipulated by a person using the shower or the bath.

- Respect the minimum distances with the obstacles for the installation of

the device.

- Tne wall bracket lets a free space behind the unit to avoid disturbing its

regulation. The distance between unit and the wall must not be obstructed.

1. 2 WHERE AND HOW DO NOT INSTALL THE DEVICE?

- Do not install the device in an air flow who may disturb its regulation （

under the ventitation etc.）,under other combustible materials

- The air outlet grid and the control box should be visible in the upper part

of the device. It is forbidden to install a vertical unit horizontally and vice

versa (see figure).

Utilsation

2.1 Description of the control unit

1.3 HOW TO INSTALL THE DEVICE?

1.3.1 Mobile installation

- The mobile installation with feet must be positioned on a horizontal

surface. Refer to the instruction of the feet kits.

- Do not use this heater near a bathtub, a shower or a pool.

- Do not use this heater in small spaces when they are occupied by

people who are unable to leave the room by themselves unless constant

supervision is provided.

1.3.2 Wall installation

- Release the appliance’s hook-on bracket

1.3.3 Fix the hook-on bracket

- Use the wall-mouting bracket as a template for positioning the heater

Drilling points A

Drilling points B

1.3.4 Connceting the panel heater

- Refer toe the instruction

- The appliance should have a 220v/60Hz power supply

- In humid areas such as bathrooms and kitchens the power socket must be

installed at least 25 cm above the floor.

1.3.5 Lock the appliance on the hook-on bracket

Place the device on inclined supports c, rotates the device to put it on the

supports D. Lower the device on he attachment Iug. A click indicates that the

unit is attached and locked. To unlock the attachment lug,grab a screwdriver

and push the tab (at the top left of the attachment lug behind the unit) to the

wall. Lift the unit while holding the tab with the screwdriver. Tilt it forward and

remove the supports C.

2.2 Fixing the comfort temperature

- The comfort temperature is the temperature that you would like while the

room is occupied.

- The comfort mode allows you to adjust the temperature set to the tempera-

ture needed.

- Set the switch H on and adjust the knob on the desired position,the

heating indicator G lights if the ambient temperature is lower than desired

.wating until the temperature stabilizes.

Advice for user

- There is no point in setting maximum heating the room temperature will

not rise any quicker. If you leave for several hours, remember to reduce the

temperature.If you have several units in a room, let them operate simulta-

neously. This will give you a more uniform temperature without increasing

electricity consumption. This is also true for an unoccupied room it is

interesting to let the device on with a lower setting than turning it off

completely.

Maintenance

To maintain performances of your unit, you should clean the upper and

lower grilles of the unit about twice a year using a vacuum cleaner or a

brush. Have a professional check of the inside of the unit every five years.

Dirt may collect on the grille of the unit if the atmosphere is polluted. this

phenomenon is due to the poor quality of the ambient air. in this case, it is

recommended to check that the room is well ventilated (ventilation, air inlet,

etc.), and that the air is clean. The unit will not be replaced under the

guarantee because of this type of dirt. The unit casing should be cleaned

with a damp cloth, never use abrasive products.

2.3 Fixing the Eco temperature

- The Eco mode allows you to lower the comfort temperature of 3 to 4 ° C

during unoccupied periods of the room. It is recommended to use this mode

for periods of no more than 2 hours. Put the cursor H on ECO then adjust the

knob to the desired position, the heating indicator G lights if the ambient

temperature is lower than the desired temperature setting ECO. Wait until the

temperature stabilizes.

2.4 Frost-Free mode

- This is the position of the knob that keeps the temperature at approxi-

mately 7 °C in the room during a prolonged absence from home (genera lly

more than 24 hours). Put the H cursor on

2.5 Locking the controls

- It is possible to block or limit the use of the knob I and to block H cursor to

prevent any mani pulations.Detach the unit from the bracket. on the back of

the thermostat, remove the pieces 1 of their support.

- K position to block the knob.

- L positions to limit the operating range of the knob.

- M position to block the H cursor on the desired mode.

Evidence3 Ev3

Evidence3

500

Evidence3

1000

Evidence3

1500

Evidence3

2000

Evidence3

2500

500W 1000 W 1500 W 2000 W 2500 W

220-230 V

50 Hz

Class II IP24

UKRATLANTIC” Limited Liability Company

2类区域

3类区域

60cm

1类区域

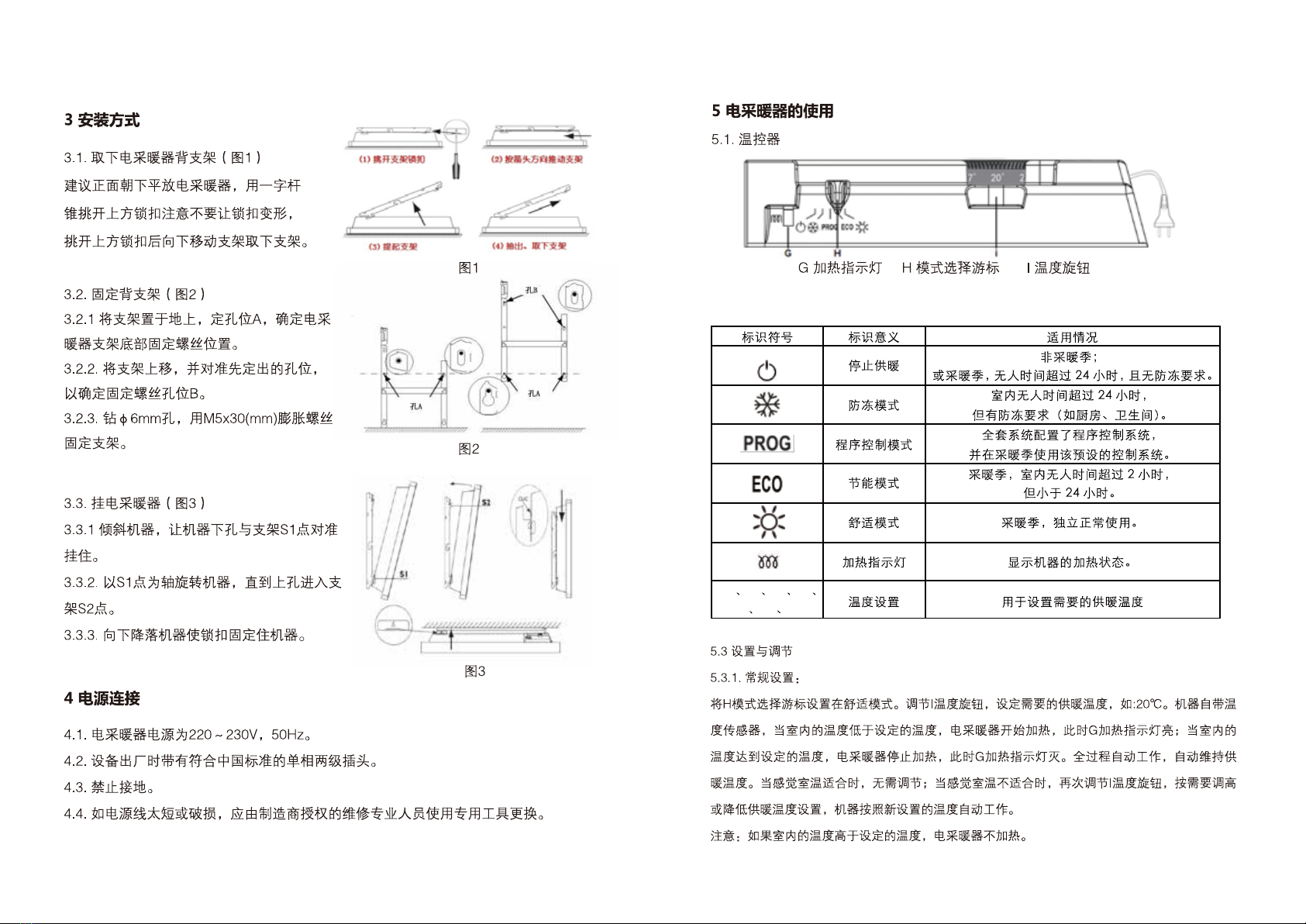

5.2. 标识解读

12° 14° 17° 20°

23° 26° 30°

7 常见问题

Ev3落地支架安装示意图

各组件：步骤一

步骤二

步骤三

步骤四

步骤五

步骤六

安装后示意图：

侧面：

背面：
