Thermo Scientific TSG Series Manuel utilisateur

Installation and Operation

329067H01 • Revision A • March 2018

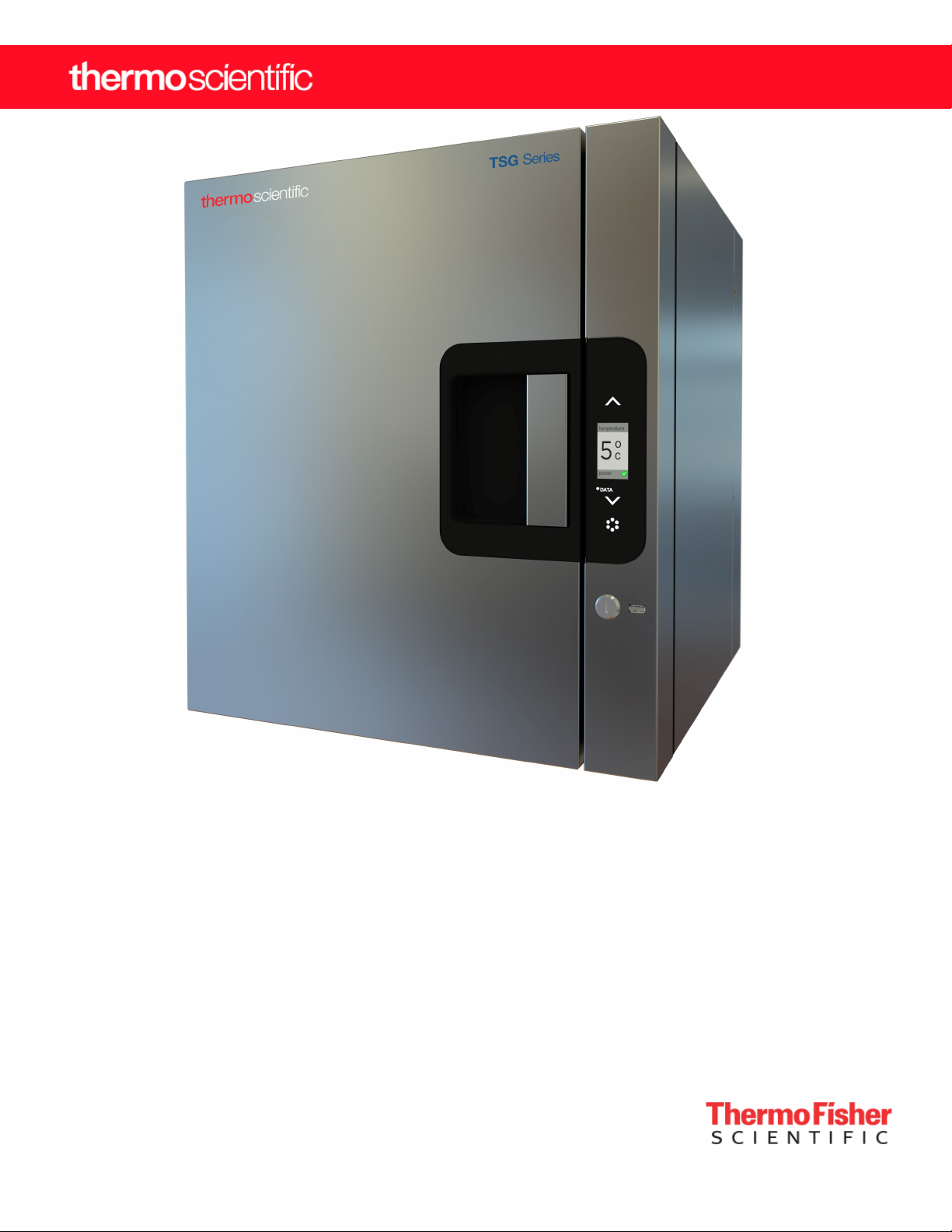

1.8 cu.ft. Countertop Refrigerator

TSG Series

IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in

damage to the unit, injury to operating personnel, and poor equipment performance.

CAUTION All internal adjustments and maintenance must be performed by qualified service personnel.

Material in this manual is for informational purposes only. The contents and the product it describes are

subject to change without notice. Thermo Fisher Scientific makes no representations or warranties with

respect to this manual. In no event shall Thermo be held liable for any damages, direct or incidental, arising

from or related to the use of this manual.

Contents

Product Specifications ................................................. 1

General Specifications and Features......................... 1

Physical Dimensions ................................................ 1

Data Monitoring and Logging .................................. 2

Environmental Operating Conditions ........................ 2

Warranty ................................................................. 2

Compliance Statements ........................................... 3

System Block Diagram................................................. 4

Safety Precautions....................................................... 5

Symbols used in this Manual.................................... 5

Refrigerant Pressure................................................. 5

Electrical Components ............................................. 5

Unpacking Your TSG205 Refrigerator .......................... 6

Inspecting for Damage ............................................. 6

Lifting, Carrying, Locating and Unboxing .................. 6

Identifying All Parts................................................... 6

Installation.................................................................... 7

Intended Use of the TSG205 Refrigerator................. 7

Assembling and Mounting........................................ 7

Leveling.................................................................... 7

Supply Circuit........................................................... 7

Ventilation ................................................................ 7

Powering On and Power Cord Guidelines................. 7

Uninterruptable Power Supply (UPS) ........................ 8

TSG205 LED Indicator ............................................. 8

Checking the Glycol Sample Bottle .......................... 8

Preprogrammed Settings ......................................... 9

Preset alarms/alerts ................................................. 9

Set Point Temperature ............................................. 9

Loading Products for the First Time.......................... 9

Tips for Managing Door Openings............................ 9

Automatic Defrost Cycles......................................... 10

Getting to Know Your Product ..................................... 11

Product Exterior - Front............................................ 11

Control Panel ........................................................... 11

Product Exterior – Side ............................................ 12

Product Exterior – Rear ............................................ 12

Product Interior ........................................................ 13

Navigating TSG205 Controls........................................ 14

Reading the LCD (Temperature) Display................... 14

Interpreting System Icons......................................... 14

Interpreting System Alerts ........................................ 14

Data Log...................................................................... 15

Downloading Data.................................................... 15

Clearing the Data log (After Downloading)................. 15

How to Upload Data to a Computer ......................... 15

Adjusting the Data Log Interval................................. 15

Uploading and Viewing your Data............................. 16

Adjusting Alert Settings ................................................ 17

Adjusting the Door Ajar Alert..................................... 17

Adjusting the Temperature Range Alert .................... 17

Adjusting the Memory Alert ...................................... 17

Adjusting the Battery Alert........................................ 17

Adjusting the Power Alert ......................................... 18

Tools............................................................................ 19

Obtaining Important Product Information.................. 19

Calibrating the Unit................................................... 19

Defrosting your Refrigerator...................................... 19

Updating Firmware................................................... 19

Editing User PIN....................................................... 20

Settings ....................................................................... 21

Adjusting the Display Settings .................................. 21

Adjusting the Set Point Temperature ........................ 21

Setting the Date & Time ........................................... 21

Setting Retention Values .......................................... 22

Maintenance ................................................................ 23

Frequently Asked Questions ........................................ 24

Troubleshooting........................................................... 25

Warranty and Service................................................... 27

1.8 cu.ft. Countertop Refrigerator Product Specifications | 1

Product Specifications

General Specifications and Features

Physical Dimensions

Model TSG205SA

Model Style 1.8 cu.ft. compact refrigerator

Materials Powder coated steel exterior with easy-to-clean interior aluminum walls

Internal Chamber Capacity 52 liters/1.8 cu.ft.

Chamber Temperature Uniformity ± 2°C from center air temperature

Cooling System Solid-state heat pump refrigeration system

Refrigerant R744, non-flammable, zero ozone depleting, low toxicity

Refrigerant Charge Quantity 24.1 grams

Refrigerant Pressure Rating 12410 kPa

Energy Consumption 0.6 kWh/day @ 4°C

Insulation CFC-free insulation

Display Full-color 61 mm LCD with LED backlighting

Power Cord 1 meter, NEMA hospital grade plug for US/CAN

Noise Level <=42 dBA @ 1m

Power Input

Output

Product IP Rating

115 V, 60 Hz, 1.2 A

Class 1 USB port

IP 31

Amps 1.2 A

Weight 34 kg

Outer Dimensions (W x D x H) 521 mm x 561 mm x 584 mm

20.5” x 22.1” x 23”

Internal Dimensions (W x D x H) 363 mm x 310 mm x 467 mm

14.3” x 12.2” x 18.4”

2 | Product Specifications 1.8 cu.ft. Countertop Refrigerator

Data Monitoring and Logging

Environmental Operating Conditions

Warranty

Memory 512 kb non-volatile memory

Access I/O Ports One 3.5 mm port for expanded temperature monitoring

Temperature Sensors Interior chamber air and glycol

Ambient Temperature Range 32°C maximum temperature environment

Humidity Range Low humidity. Not warranted for outdoor use

Warranty 2 years on all parts and labor from date of purchase.

5 years on heat pump from date of purchase.

1.8 cu.ft. Countertop Refrigerator Product Specifications | 3

Compliance Statements

CAUTION: For Class B - Unintentional

Radiators:

This device complies with Part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful

interference and (2) this device must accept any

interference received, including interference that

may cause undesired operation.

WARNING: Hazardous voltages are present: To

reduce the risk of electric shock and danger to

personal health, follow the instructions provided

in this manual.

CAUTION: ICES-003 Class B Notice—Avis

NMB-003, Class B

This Class B digital apparatus complies with

Canadian ICES-003.

CAUTION: NOTE: This equipment has been

tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses and can radiate

radio frequency energy and, if not installed and

used in accordance with the instructions, may

cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur in a

particular installation.

If this equipment does cause harmful

interference to radio or television reception,

which can be determined by turning the

equipment off and on, you are encouraged to try

to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the

equipment and receiver

• Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected

Consult the dealer or an experienced radio/TV

technician for help.

WARNING: Hazardous voltages are present: To

reduce the risk of electric shock DO NOT

remove the rear cover on this product. There are

no user serviceable parts inside. Refer service to

qualified personnel.

In order satisfy the FCC RF exposure limit for

transmitting devices, a separation distance of 20

cm should be maintained between the body and

the TSG205 refrigerator while in operation.

CAUTION: This device complies with Industry

Canada license-exempt RSS standard(s).

Operation is subject to the following two

conditions: (1) this device may not cause

interference, and (2) this device must accept any

interference, including interference that may

cause undesired operation of the device.

WARNING: The antenna used for this

transmitter must not be co-located in

conjunction with any other antenna or

transmitter.

CAUTION: Any modifications made to this

device that are not approved by Thermo

Scientific may void the authority granted to the

you by the FCC to operate equipment.

4 | System Block Diagram 1.8 cu.ft. Countertop Refrigerator

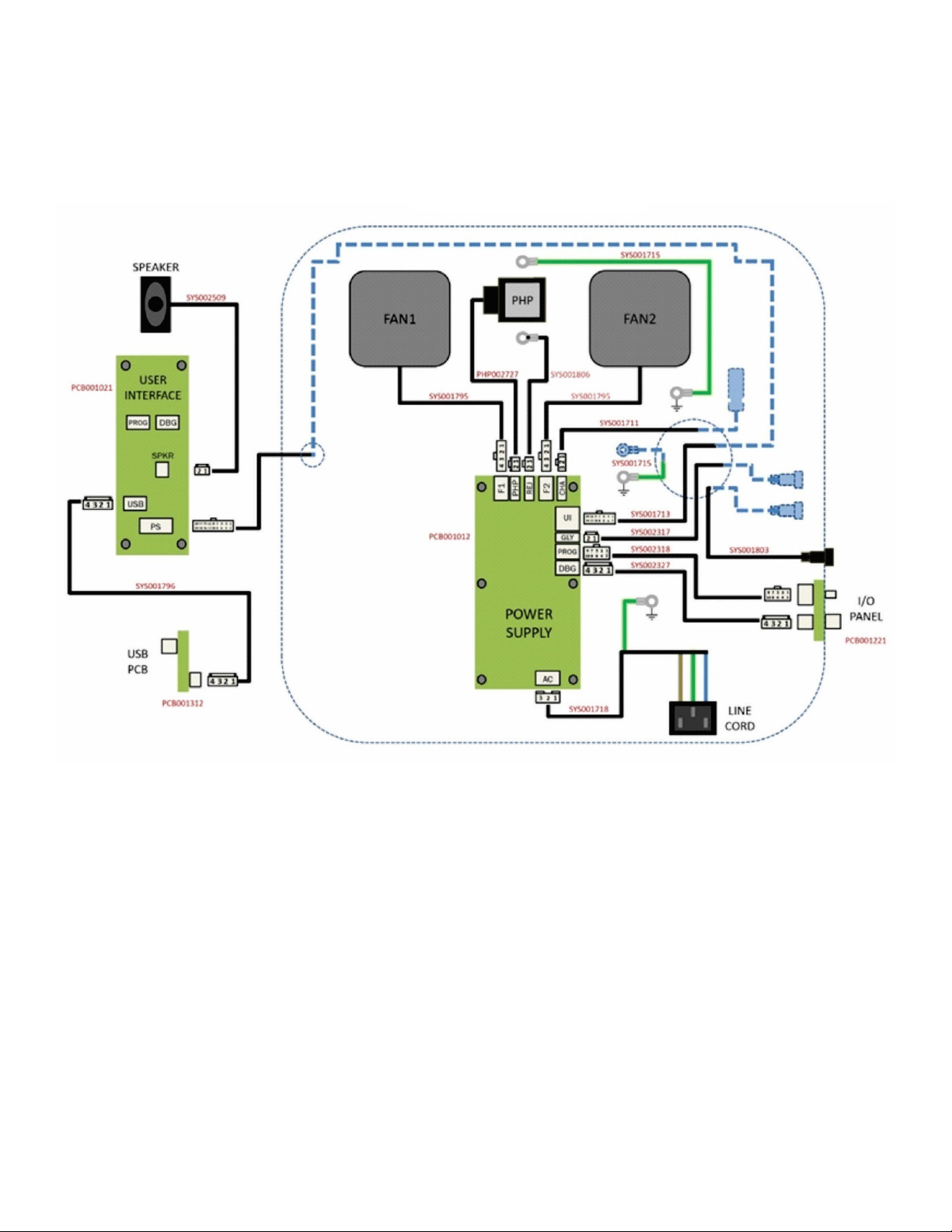

System Block Diagram

Note: The diagram is provided for informational purposes only. For repairs or operating issues, call Technical Service.

1.8 cu.ft. Countertop Refrigerator Safety Precautions | 5

Safety Precautions

All electrical appliances present some risk of injury. Your

TSG205 refrigerator is designed to meet safety standards.

Exercise caution while carrying and moving your refrigerator.

Do not place it where it can fall, be dropped, or where the

electrical connection can be submerged into water or other

liquids. If you are placing your TSG205 refrigerator on a

countertop, make sure all four leveling feet are on the

countertop and that you can open and close the unit without

unbalancing it.

Symbols used in this

Manual

Refrigerant Pressure

Electrical Components

Refer to section Unpacking Your TSG205

Refrigerator for details on handling and moving

the unit.

There are no user-serviceable parts within the

TSG205 product.

Used to indicate an electrical shock hazard.

Used when advice is given to prevent malfunction

or injury.

Used to prohibit flammable items.

Used to advise against proceeding with an

action.

When the TSG205 refrigerator is unplugged from

a power source, venting the pressure regulating

relief valves on the refrigeration system can

occur. In such cases, the system may need to be

recharged with R744. However, the pressure

regulating valves are not to be removed or

capped. Do not tamper with or alter the relief

setting. Service only by a factory authorized

service person.

Do not remove the rear cover or operate unit with

rear cover removed. Removal of the rear cover

can result in electrical shock. Service should be

done only by a factory authorized service person.

Autres manuels pour TSG Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Thermo Scientific Réfrigérateur

Thermo Scientific

Thermo Scientific 3678 Mode d'emploi

Thermo Scientific

Thermo Scientific Jewett Pass-Thru BBR55D-2A Series Manuel du propriétaire

Thermo Scientific

Thermo Scientific TSX2305SA Manuel utilisateur

Thermo Scientific

Thermo Scientific PLR 221 Manuel utilisateur

Thermo Scientific

Thermo Scientific 05LRAETSA Manuel utilisateur

Thermo Scientific

Thermo Scientific TSX Series Manuel du propriétaire

Thermo Scientific

Thermo Scientific TSX Series Manuel du propriétaire

Thermo Scientific

Thermo Scientific 10ECEETSA Manuel utilisateur

Thermo Scientific

Thermo Scientific REVCO Series Manuel utilisateur

Thermo Scientific

Thermo Scientific 18LCEETSA Manuel utilisateur

Thermo Scientific

Thermo Scientific 50FREETSA Manuel utilisateur

Thermo Scientific

Thermo Scientific 20LFEETSA Manuel utilisateur

Thermo Scientific

Thermo Scientific Fisher Scientific Isotemp 05FREEFSA Manuel utilisateur

Thermo Scientific

Thermo Scientific TSG400R Manuel

Thermo Scientific

Thermo Scientific Revco Manuel utilisateur

Thermo Scientific

Thermo Scientific Fisher Scientific Isotemp 50FREEFSA Guide de démarrage rapide

Thermo Scientific

Thermo Scientific 151R-AEV-TS Manuel utilisateur

Thermo Scientific

Thermo Scientific ES Series Manuel utilisateur

Thermo Scientific

Thermo Scientific Harris MBF-700 Guide de configuration

Thermo Scientific

Thermo Scientific TSG Series Manuel utilisateur

Thermo Scientific

Thermo Scientific TSG Series Manuel utilisateur

Thermo Scientific

Thermo Scientific LTX108 Manuel utilisateur

Thermo Scientific

Thermo Scientific TSG Series Manuel du propriétaire

Thermo Scientific

Thermo Scientific 20ERCETSA Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
