Thermo-bug 2.0 basic Manuel utilisateur

Operating Manual

Thermo-bug® 2.0

2 | Thermo-bug 2.0 basic Operating manual 0218

Preface

Thermo-bug® 2.0 basic

Before taking this high-temperature

radiator into operation, please read

this operation manual with care and

familiarise yourself with the operating

elements.

In particular the danger notes should be

given increased attention.

We assume no liability for damage from

improper handling and application; the

warranty claim lapses.

The practical

thermal exterminator for

analogue single

operation

Thermo-bug® 2.0 basic

Thermo-bug® 2.0

basic

Operating Manual

Before delivery, the radiator has been

reviewed and tested for function.

Please check the devicefor possible

transport damage after delivery.

Thermo-bug 2.0 basic | 3

Operating manual 0218

Contents

04 First steps

06 Display and target value settings

08 Product properties and

misdiagnosis

10 Safety notes, guarantees and

general notes

Thermo-bug® 2.0

basic

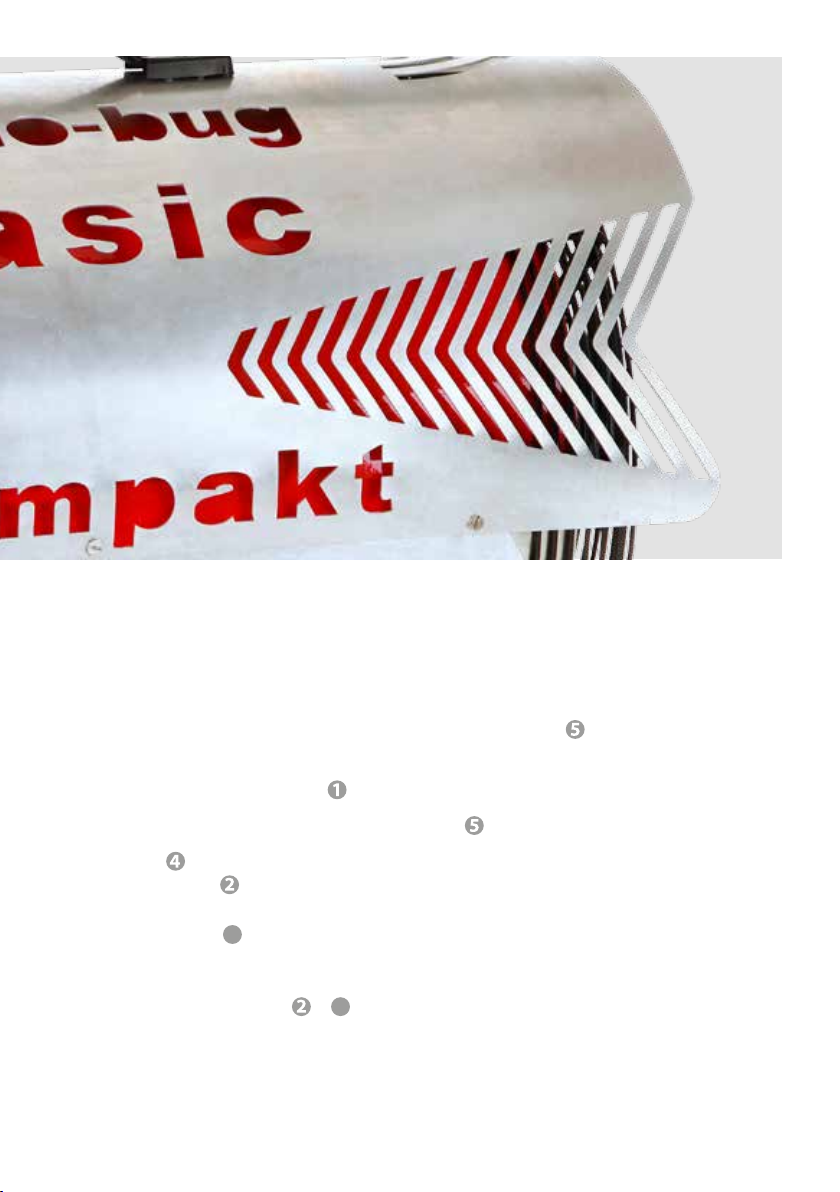

First steps

Main switch

Power switch 4.5 KW

Power switch 9 KW

Sockets for temperature sensor

Display for temperature sensor

4 | Thermo-bug 2.0 basic Operating manual 0218

Commissioning

After connection of the Thermo-bug®

2.0 basic to the mains 3x400 V, fuse 16 A:

1. Switch on the main switch (2). The fan

is running.

2. Insert the temperature sensor in

socket (2 .

3. Power switch (2) : The heating is

running at half power 4.5 KW.

Power switch (3) : The heating is

running at full power 9 KW.

The switches must be pushed in

sequence in the order – to get

full power.

Sockets for temperature sensor

Display for temperature sensor

The display (2) can be used to set the

desired temperature and to read the

current temperature. The maximum

temperature can be set via the display

2) as well (see below).

The temperature sensor should be

placed at a height of approx. 1 m in

open space (not covered), since the

pre-set ambient air temperature will

not be achieved otherwise.

To deactivate the Thermo-bug® 2.0

basic, observe the instructions on

page 7.

Thermo-bug 2.0 basic | 5

Operating manual 0218

6 | Thermo-bug 2.0 basic

Thermo-bug® 2.0

basic

Display and

target value settings

0.0.0.

SET

OUT

ALM

H/C

Indicator lamps

SET ●= Set value setting active

OUT ●= Output relay active

ALM ●= Alarm relay active

H/C ●= Cooling function active

H/C ●= Heating function active

Quit button (exit menu)

Function button for target value

setting and parameterisation

Arrows and parameterisation

Operating manual 0218

Target value settings

The target value setting serves to adjust

the desired value.

1. Hold the function button down

for 3 seconds.

2. Use the arrows to set the

desired value now.

3. Use the function button bestätigen

to conrm the setting.

Thermo-bug 2.0 basic | 7

Deactivation

Important: Switch o power

switch and of the

Thermo-bug® 2.0 basic and let the

fan lag for at least 5 minutes

(without heating) so that the device

can cool o!

Do not simply pull the plug!

This would lead to a danger that

the connection cables overheat!

Then switch o via the main

switch and disconnect from the

mains.

= 3 Sek. – – –&

0.0.0

Quit button (exit menu)

Function button for target value

setting and parameterisation

Arrows and parameterisation

Operating manual 0218

8 | Thermo-bug 2.0 basic

Thermo-bug® 2.0

basic

Product properties

and troubleshooting

nPower switch for 4.5 KW

(half power)

nPower switch for 9 KW

(full power)

nPluggable external temperature sensor

with 4 m cable

nTemperature display with adjustable

temperature

n230 V socket for the Thermo-bug®

airblower with a 4A fuse

nHigh-performance fan for high

temperatures

nOverheating protection with

automatic resetting

nHousing protection type IP54

nEasy handling from low dead weight

(15 kg)

Operating manual 0218

Thermo-bug 2.0 basic | 9

Error diagnosis (only when the device is powered down (pull the plug))

Error

1) Radiator without

function in spite of

mains connection

2) Heating elements glow

3) Fan is running, but

heating is not or only at

half power

4) Fan noise

5) Thermo-bug 2.0 basic

does not work

Cause

Plug loose or no contact,

no supply voltage

Fuse blown

Device overheated

Main switch o, input

voltage too high

Air supply blocked, fan

standing

Temperature controller is

not on or defective

PCB fuse defective

Imbalance, bearing

damage

No temperature sensor

inserted

Remedy

Attach plug, insert

again

New fuse

Let cool o by 15 °C,

switch on

Measure mains voltage

Keep air supply free,

cool o

Activate, replace

Replace fuse on the

PCB

Inform manufacturer

Insert temperature

sensor

Troubleshooting

nIf the errors continue to occur after remediation, contact the manufacturer

without delay.

Operating manual 0218

10 | Thermo-bug 2.0 basic

Safety measures

nNever work on the device while it

is live!

nNote the power data of the rating

plate when connecting!

nThe connection line must be

secured via the power switch and

circuit breaker!

nConnection lines must have a

corresponding line cross-section!

nMaintenance work must only be

performed by qualied specialists!

Maintenance and spare parts

nAt longer standstill times, remove

any dust deposits on the heating

rods with compressed air.

nOnly use genuine spare parts.

nA damaged mains cable must only

be replaced by a specialist.

Guarantee

The guarantee period shall be 12

months after the date of purchase of

the device.

Any repairs will be performed free of

charge during this warranty period if

the defective parts show faults during

our inspection.

Repair will not extend the warranty

period.

The following damage shall be

excluded from warranty:

nUnintended us

nNon-observation of the instructions

nImproper use

nRegular wear

nChanges to the device

nImproper repairs or maintenance

work

We are not liable for costs or damage

caused by use of the device.

Danger notes

nKeep small parts away from the proximity of running fans.

nNever cover the radiator in operation!

nDo not store any ammable materials near the radiator!

Operating manual 0218
