Thermador WD24 Manuel utilisateur

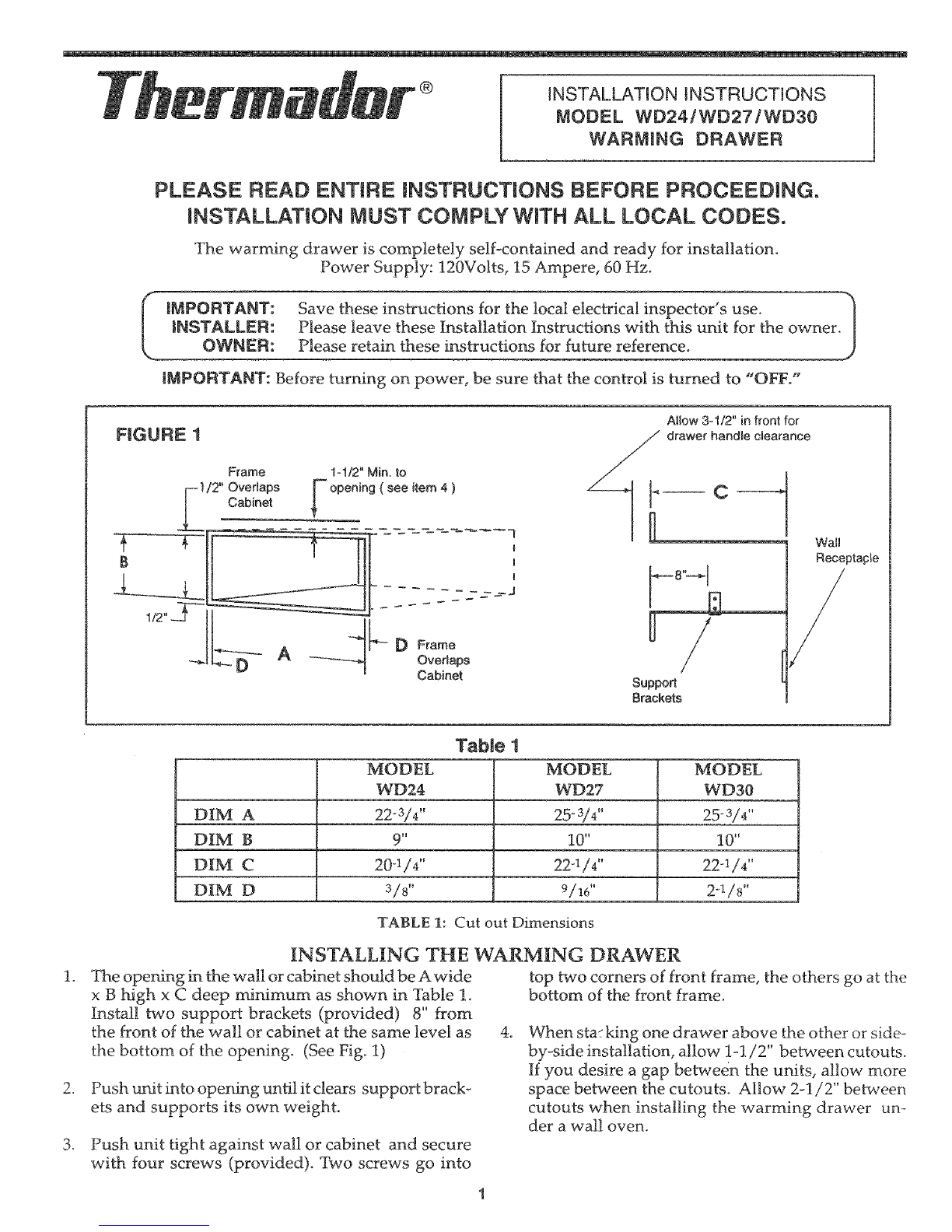

®INSTALLATmON iNSTRUCTIONS

MODEL WD24/WD27/WD30

WARMING DRAWER

PLEASE READ ENTtRE iNSTRUCTiONS BEFORE PROCEEDnNG.

iNSTALLATiON MUST COMPLY WITH ALL LOCAL CODES.

The warming drawer is completely self-contained and ready for installation.

Power Supply: 120Volts, 15 Ampere, 60 Hz.

iMPORTANT: Before turning on power, be sure that the control is turned to "OFF."

FIGURE 1

Frame 1ol/2" Min. to

Cabinet

Allow 3ol/2" in front for

drawer handle clearance

Wal_

Receptacle

Support

Brackets

Table 1

MODEL MODEL MODEL

WD24 WD27 WD30

DIM A 22-3/4" 25-3/4" 25-3/4"

DIM B 9" 10" 10"

DIM C 20-1/4 '' 22°1/4"

DIM D 3/8" 9/lg' 2-!/8"

TABLE 1: Cut out Dimensions

INSTALLING THE WARMING DRAWER

The opening ha the wall or cabinet should be A wide

x B high x C deep minimum as shown in Table 1.

Install two support brackets (provided) 8" from

the front of the wall or cabinet at the same level as

the bottom of the opening. (See Fig. 1)

Push unit into opening until it clears support brack-

ets and supports its own weight.

Push unit tight against wall or cabinet and secure

with four screws (provided). Two screws go into

top two corners of front frame, the others go at the

bottom of the front frame.

.When sta: king one drawer above the other or side-

by-side installation, allow 1-1/2" between cutouts.

If you desire a gap between the units, allow more

space between the cutouts. Allow 2-1/2" between

cutouts when installing the warming drawer un-

der a wall oven.

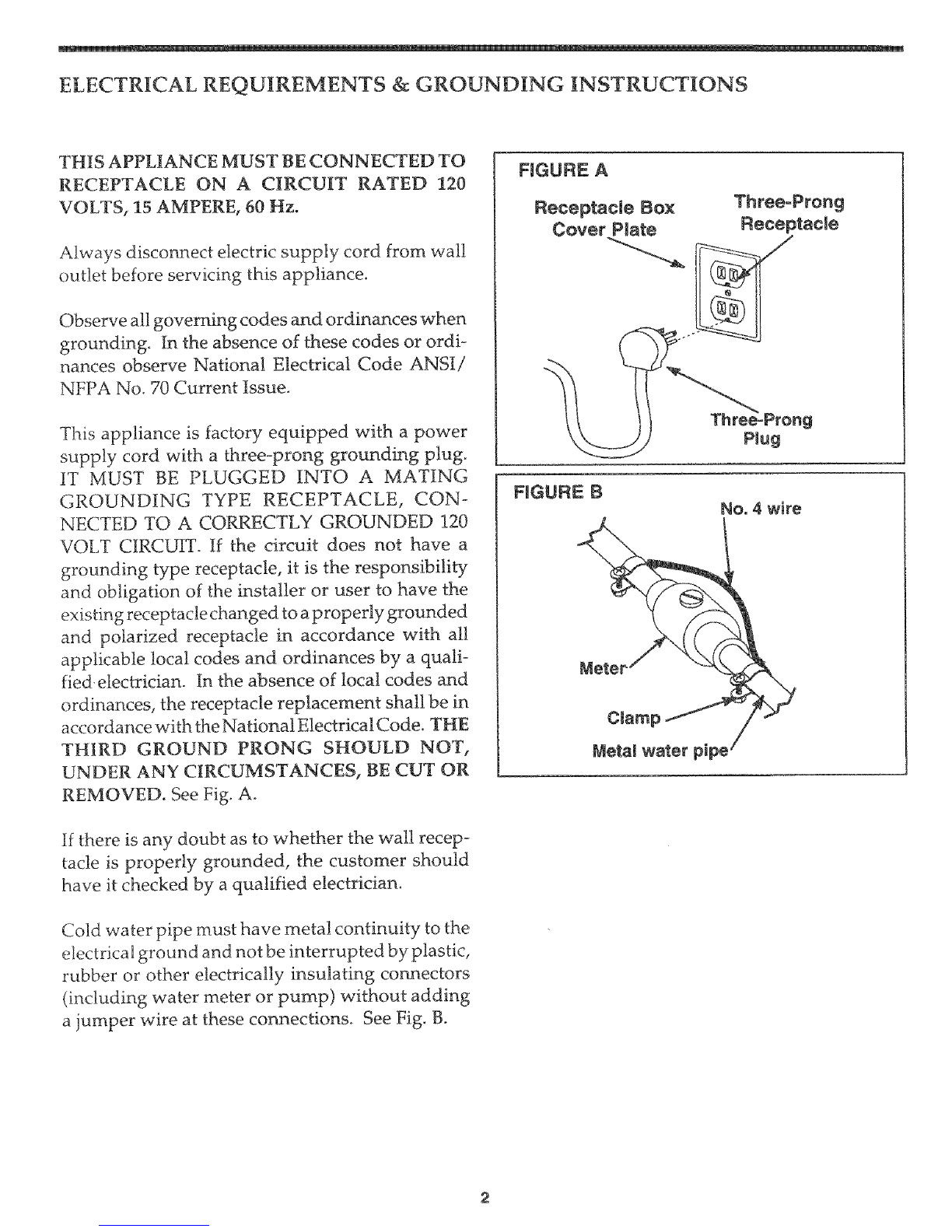

ELECTRICAL REQUIREMENTS &GROUNDING INSTRUCTIONS

THIS APPLIANCE MUST BE CONNECTED TO

RECEPTACLE ON A CIRCUIT RATED 120

VOLTS, 15 AMPERE, 60 Hzo

Always disconnect electric supply cord from wall

outlet before servicing this appliance.

Observe all governing codes and ordinances when

grounding. In the absence of these codes or ordi-

nances observe National Electrical Code ANSI/

NFPA No. 70 Current Issue.

This appliance is factory equipped with a power

supply cord with a three-prong grounding plug.

IT MUST BE PLUGGED INTO A MATING

GROUNDING TYPE RECEPTACLE, CON-

NECTED TO A CORRECTLY GROUNDED 120

VOLT CIRCUIT. If the circuit does not have a

grounding type receptacle, it is the responsibility

and obligation of the installer or user to have the

existing receptacle changed to a properly grounded

and polarized receptacle in accordance with all

applicable local codes and ordinances by a quali-

fied electrician. In the absence of local codes and

ordinances, the receptacle replacement shall be in

accordance with the National Electrical Code. THE

THIRD GROUND PRONG SHOULD NOT,

UNDER ANY CIRCUMSTANCES, BE CUT OR

REMOVED. See Fig. Ao

if there is any doubt as to whether the wall recep-

tacle is properly grounded, the customer should

have it checked by a qualified electrician.

Cold water pipe must have metal continuity to the

electrical ground and not be interrupted by plastic,

rubber or other electrically insulating connectors

(including water meter or pump) without adding

a jumper wire at these connections. See Fig. B.

FIGURE A

Receptacle Box Three-Prong

Cover Plate Fteceptacie

FIGURE B No. 4 wire

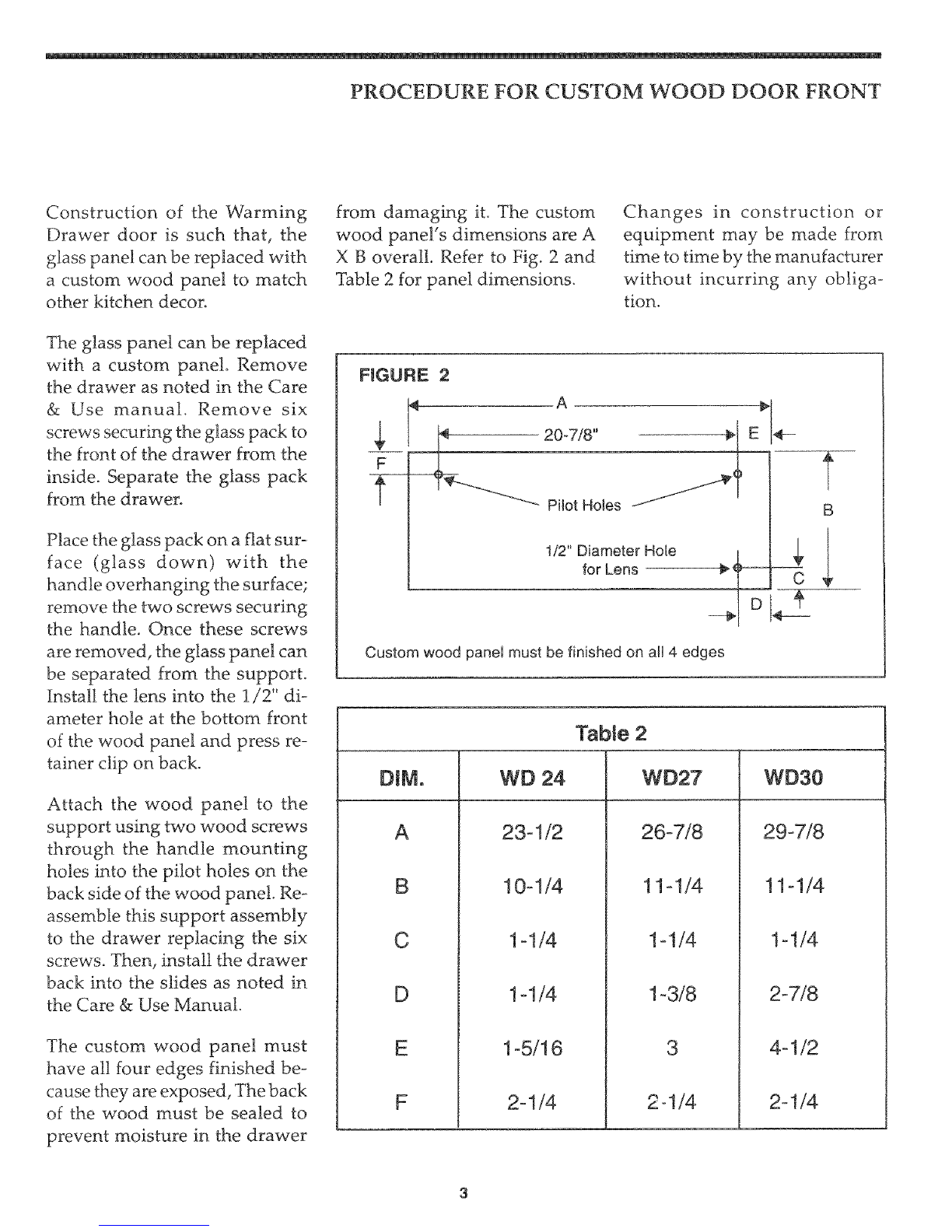

PROCEDURE FOR CUSTOM WOOD DOOR FRONT

Construction of the Warming

Drawer door is such that, the

glass panel can be replaced with

a custom wood panel to match

other kitchen decor.

The glass panel can be replaced

with a custom panel. Remove

the drawer as noted in the Care

& Use manual. Remove six

screws securing the glass pack to

the front of the drawer from the

inside. Separate the glass pack

from the drawer°

Place the glass pack on a flat sur-

face (glass down) with the

handle overhanging the surface;

remove the two screw's securing

the handle. Once these screws

are removed, the glass panel can

be separated from the support.

Install the lens into the 1/2" di-

ameter hole at the bottom front

of the wood panel and press re-

tainer clip on back.

Attach the wood panel to the

support using two wood screw's

through the handle mounting

holes into the pilot holes on the

back side of the wood panel, Re-

assemble this support assembly

to the drawer replacing the six

screws. Then, install the drawer

back into the slides as noted in

the Care & Use Manual.

The custom wood panel must

have all four edges finished be-

cause they are exposed, The back

of the wood must be sealed to

prevent moisture in the drawer

from damaging it. The custom

wood panel's dimensions are A

X B overall, Refer to Fig. 2 and

Table 2 for panel dimensions,

Changes in construction or

equipment may be made from

time to time by the manufacturer

without incurring any obliga-

tion.

FIGURE 2

f-- Pilot Holes

1/2" Diameter Hole

for Lens ___4t_D-

Custom wood panel must be finished on aH4 edges

TaNe 2

DiM.

WD 24

23-1/2

10-1/4

WD27

26o7/8

11-1/4

WD30

29-7/8

! 1-1/4

1-1/4

1-5/16

2ol/4

I-1/4

I-3/8

2-1/4

1-1/4

2-7/8

4-1/2

2-1/4

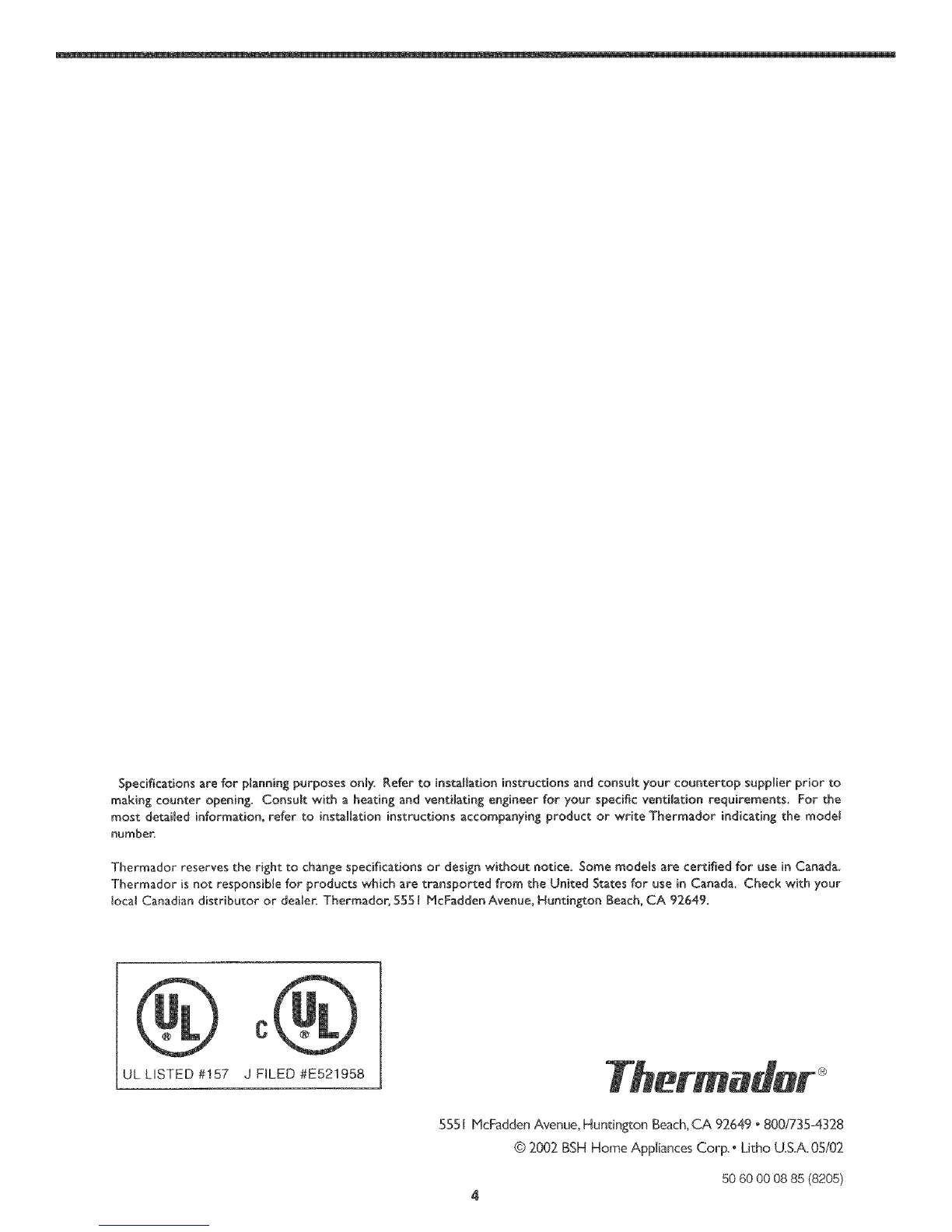

Specificationsare forp_anningpurposes only.Referto installationinstructionsand consultyour eountertop suppHierpriorto

making counter opening. Consubt with a heatingand ventilatingengineer for your specificventiSationrequirements. For the

most det_{led{nformation,referto installationinstructionsaccompanying product or writeThermador indicatingthe model

number.

Thermador reservesthe rightto change specificationsor designwithout notice.Some models are certifiedfor use inCanada.

Thermador isnot responsib[efor products which _re transportedfrom the United Statesfor use inCanada. Check with your

local Canadian distributor or dealer. Thermador, SSSI McFadden Avenue, Huntington Beach, CA 92649.

UL LISTED #157 JF_LED#E521958 _®

5551 McFadden Avenue, Huntington Beach,CA 92649 o800/735-4328

@ 2002 BSH Home Appliances Corp. • Litho U.S.A.05/02

50 60 00 08 85 (8205)
