Thermador MBB Manuel utilisateur

For

Built

Microwave Ovens

INSTALLATION

INSTRUCTIONS

Oven

Model

MBB

Built-In

Trim Kits

Models:

MET27B

MET30B

(Sold Separately)

Page 2

IMPORTANT:

Local codes vary. Installation, electrical connections, circuit breakers

and grounding must comply with all applicable codes. Save these instructions

for your local electrical inspector's use.

INSTALLER: Please leave these Installation Instructions with this unit for the

owner.

OWNER: Please retain these instructions for future reference.

WARNING: Disconnect power at the breaker before installing.

Please read this entire manual before proceeding

Table of Contents

Step 1: Unpacking ................................. 3

Step 2: Preparing the Cabinet ................ 4

Step 3: Preparing the Electric ................. 5

Step 4: Preparing the Trim Kit ................ 5

Step 5: Installing the Ducts .................... 6

Step 6: Completing the Installation ......... 7

Page 3

Step 1: Unpacking

A. Tools Needed:

• Tape Measure

• Drill with 1/16" bit

• Pliers

• # 2 Phillips Head Screwdriver

• Gloves

• Safety Goggles

Microwave Oven Model MBB

Remove and discard all packing

material.

Parts Included:

• Care & Use manual (1)

• Warranty Card (1)

• Plastic Turntable (1)

• Glass Tray (1)

B. Trim Kit Models MET27B & MET30B

Remove and discard all packing materials.

Parts Included:

• Trim Frame (1)

• Base Pan (1)

• Trim Bracket (2)

• Side Duct (1)

• Upper Exhaust Duct (1)

• Top Intake Duct (1)

• Rear Intake Duct (1)

• Installation Instructions (1)

• 10-foot Roll Tape (1)

• Screws #8

3/8" Type B (Blunt

Point) (7)

• Screws #8

3/8" Type A (Sharp

Point) (9)

• Grommet (1)

• Template (1)

• 7/16" Lag Bolts (2)

Table 1 - Model Numbers

Caution:

• Trim kits are designed for use

only with the Thermador

microwave oven models listed

(See Table 1).

• For safety, do not alter or

modify any part of this kit or

oven.

• Unit is heavy and requires at

least two people to lift or

move.

Trim Kits Microwave

Ovens

30" Cabinet

27" Cabinet

MET30BB

MET30BW

MET30BS

MET27BB

MET27BW

MET27BS

MBBB

MBBW

MBBS

MBBB

MBBW

MBBS

Page 4

14"

➛

➝

➛

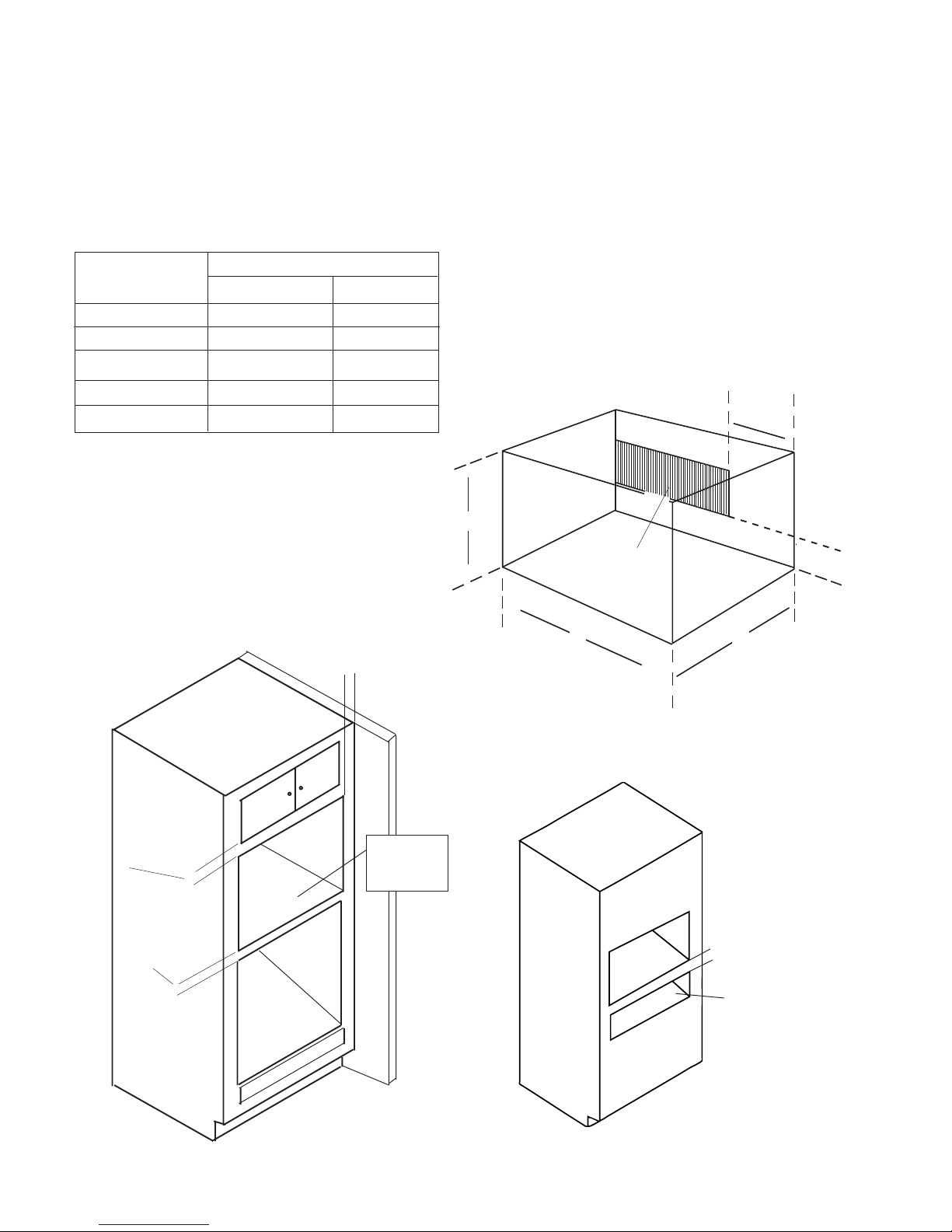

Step 2: Preparing the Cabinet

• The cabinet cutout dimensions are shown in

Figure 1.

• It is a good practice when the microwave oven is

installed at the end of a cabinet run, adjacent to a

perpendicular wall or cabinet door, to allow at least

1/2"

(12.7 mm) space between the side of the trim

and wall or door.

• Your microwave oven can be installed into a

cabinet or wall by itself or above any of the

following Thermador wall ovens: C271, C301,

CM301, S301, SC301. Or,

Thermador Warming

Drawers WD27 and WD30 (see Figures 2a and

2b).

• Outlet can be located anywhere within the shaded

area as indicated in Figure 1.

Warming

Drawer

cutout

Microwave

cutout

1-1/2"

(38 mm)

}

Figure 1

Outlet should be

in the shaded area.

Dimension MET27B MET30B

Trim Height 17-1/4"17

-1/4"

Trim Width 26-3/4"29

-3/4"

Cutout Height (A) 17" ±1/16" 17" ±1/16"

Cutout Width (B) 25-1/2" ±1/16"28

-1/2" ±116"

Depth (C) 24" ±1/16" 24" ±1/16"

Figure 2a

Microwave

Cutout

1-3/4"

(44.5 mm)

}

Thermador

single wall

oven

cutout

1" (25.4 mm) minimum

from cutout to wall.

}

(25.4 mm) Bottom of

microwave

shelf

Figure 2b

Trim Kit Model

Page 5

WARNING: Improper grounding can result in risk of electric shock.

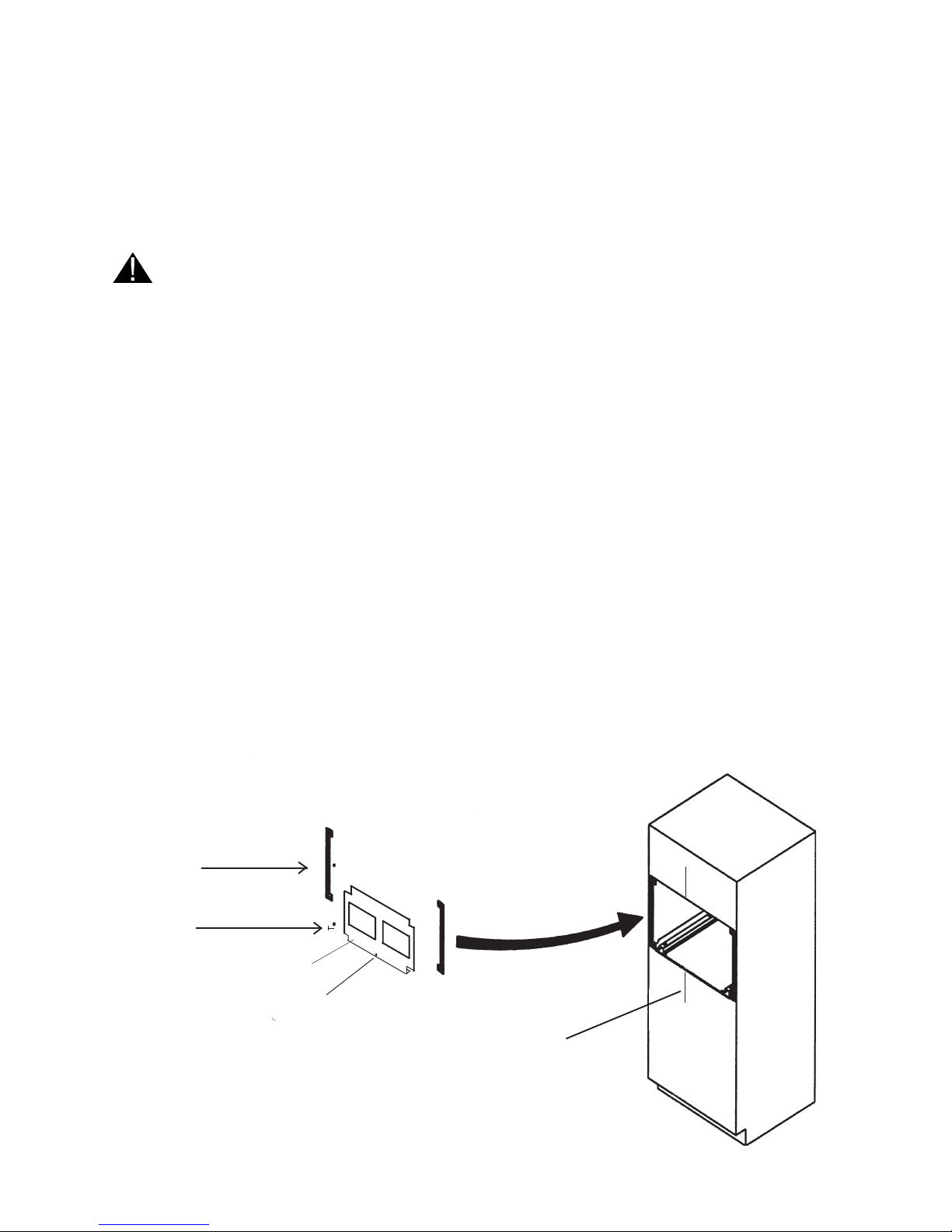

Step 4: Preparing the Trim Kit

(1) Attach the two vertical side trim brackets to the template as shown in Figure 3. Use two (2) #8 x

3/8, Type B screws on each side.

(2) Mark the center line on bottom edge of the cutout.

(3) Hold template in front of cabinet cutout. Line up the bottom of the template with the bottom of the

cutout. Align the template notch with the centerline of the cutout.

(4) Mark the location of the three holes in the trim brackets on both sides. Set brackets and tem-

plate aside.

(5) Drill 1/16" diameter starter holes.

(7) Remove template from trim brackets and discard. Set brackets and screws aside to be installed

later in the process.

Note: DO NOT attach trim brackets at this time. Continue to

Step 5: Installing the Ducts.

Step 3: Preparing the Electric

The Thermador microwave oven is equipped with a grounded cord. The wall receptacle must be

installed and grounded in accordance with the national electrical code. It can be installed anywhere in

the shaded area in Figure 1 (previous page). Electrical connections and grounding must comply with all

applicable local codes.

The electrical requirements for a separate circuit serving only this microwave oven are: 120V, 60Hz,

15Amp.

Figure 3

Align notch in template

with center line

of cabinet cutout

Screws #8

3/8"

Centerline

Template

Trim Brackets

Page 6

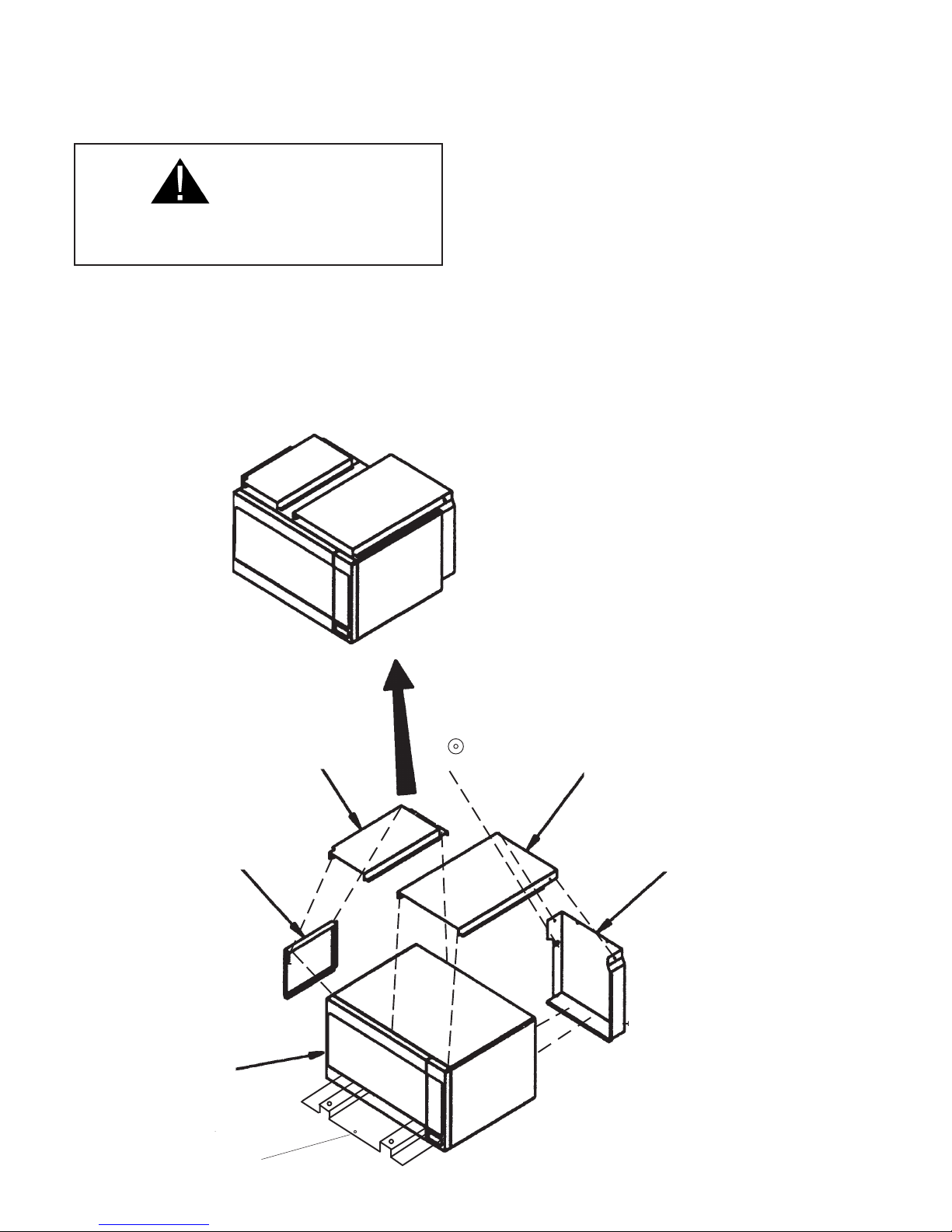

Step 5: Installing The Ducts

Figure 4

Microwave

Oven

Top

Intake

Duct

Rear

Intake

Duct

Outer Case Screw

Side

Duct

Upper

Exhaust

Duct

1. Remove and discard the protective plastic

film from the 4 ducts.

CAUTION

The ducts have sharp edges. Be careful when

handling.

Base Pan

(center hole)

Grommet

2. Set microwave upside down in stable loca-

tion.

3. Use pliers to remove and discard all four (4)

black plastic feet from bottom of microwave.

4. Attach base pan to bottom of microwave at

leg holes. Fasten with two (2) 7/16" lag bolts.

Install one bolt through front right leg hole

and one through back left hole. Return mi-

crowave to right-side-up position.

2. Loosen the outer case screw near the vent

on left side of the microwave.

3. Position side duct on left side of oven. Slide duct

under loosened outer case duct screw and tighten.

4. Position upper exhaust duct on top left side (hinge

side) of oven. The left side will overlap the side

duct. Fasten upper exhaust duct and side duct

to microwave using two (2) #8 x 3/8" Type B

screws.

5. Wrap grommet around electrical cord.

6. Thread grommet and electrical cord in the

receiving hole provided in the rear intake duct.

7. Attach rear intake duct to the rear of the oven.

Fasten with one (1) #8 x 3/8" Type B screw.

6. Position top intake duct on top side of oven. Slide

the back edges under the rear intake duct. Fasten

top intake duct and rear intake duct to microwave

using four (4) #8 x 3/8" Type B screws.

7. Use tape provided to cover all duct seams. Verify

that all seams are tightly sealed.

Page 7

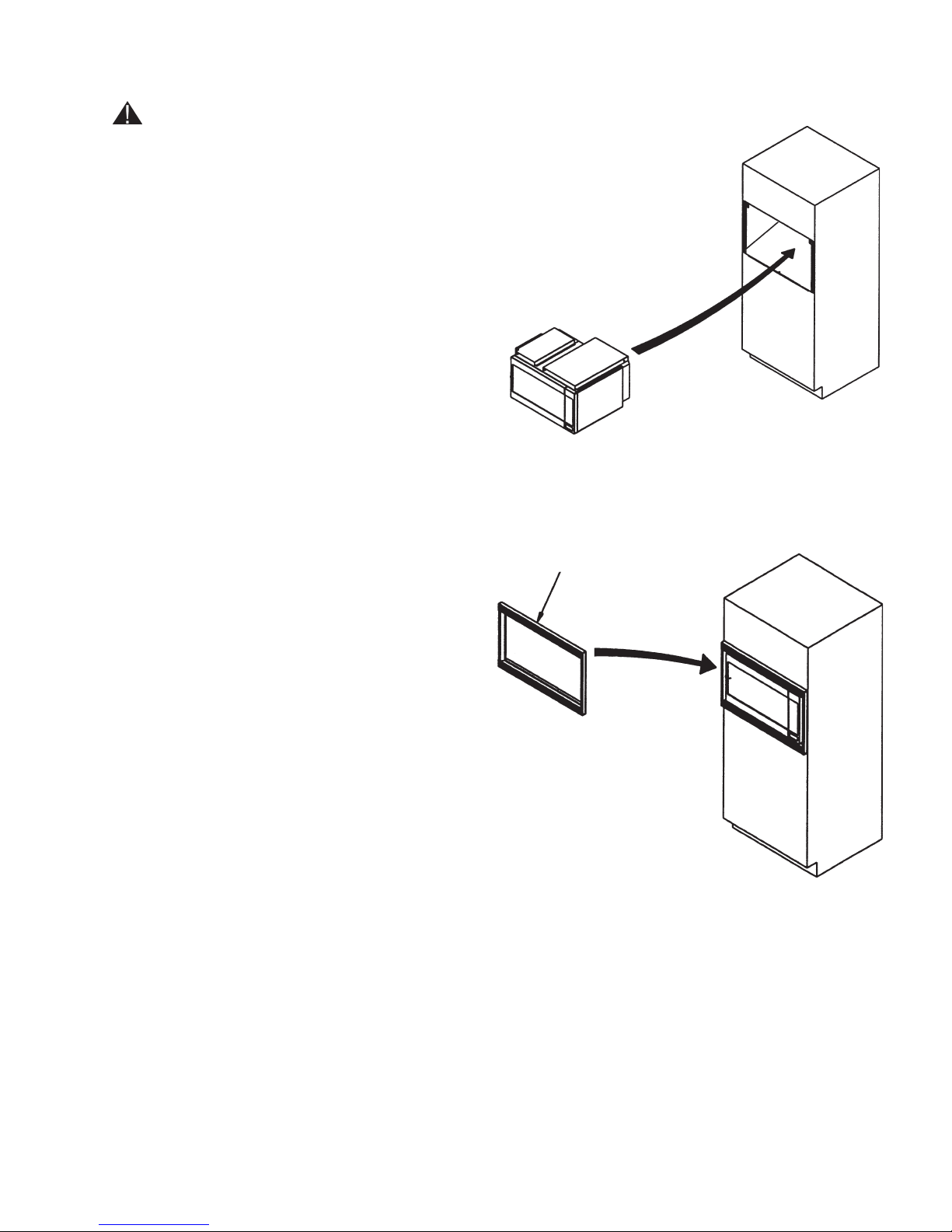

Caution: The microwave oven is heavy. Al-

ways use at least two people to lift the unit.

1. Lift oven into position and rest right rear cor-

ner in cabinet cutout.

2. Reach past microwave on left side to insert

electrical cord into outlet.

3. Slide oven the rest of the way into the cabi-

net. Position microwave in cabinet so that

base pan center hole aligns with cabinet

centerline. When properly installed, the front

end of pan will be flush with the front edge

of the shelf.

4. Open the microwave door to access three

holes on the base pan below the microwave.

Drill 1/16" holes through the three (3) base

pan holes into the cabinet cutout bottom.

Fasten base pan to shelf with three 3 #8 x

3/8 Type A screws.

11. Install both vertical trim brackets on the cabi-

net using three (3) #8 x 3/8 Type A screws

on each side. The flanges on the ends of

the brackets should be inside the cabinet.

12. Snap frame trim into the trim brackets

(Figure 6). The four (4) ball studs on the

back of the frame snap into the four (4) spring

clips on the trim brackets. Tip: Place

screwdriver behind spring clip to support

bracket.

13. Install the plastic turntable. Place in center

of oven bottom with base in hole. Turn

turntable clockwise until it drops into place.

Place glass tray on top of turntable.

14. Test the operation of the microwave. See

the Care & Use manual for operating instruc-

tions.

Step 6: Completing the Installation

Figure 5

Figure 6

Frame Trim

BSH Home Appliances Corporation

5551 McFadden Avenue, Huntington Beach, CA 92649 • 800/735-4328

Thermador reserves the right to change specifications or design without notice. Some models are

certified for use in Canada. Thermador is not responsible for products which are transported from

the United States for use in Canada.

Check with your local Canadian distributor or dealer. Thermador,

5551 McFadden Avenue, Huntington Beach, CA 92649.

For the most up-to-date critical installation dimensions by fax, use your fax handset and phone

702/833-3600. Use code #8030.
