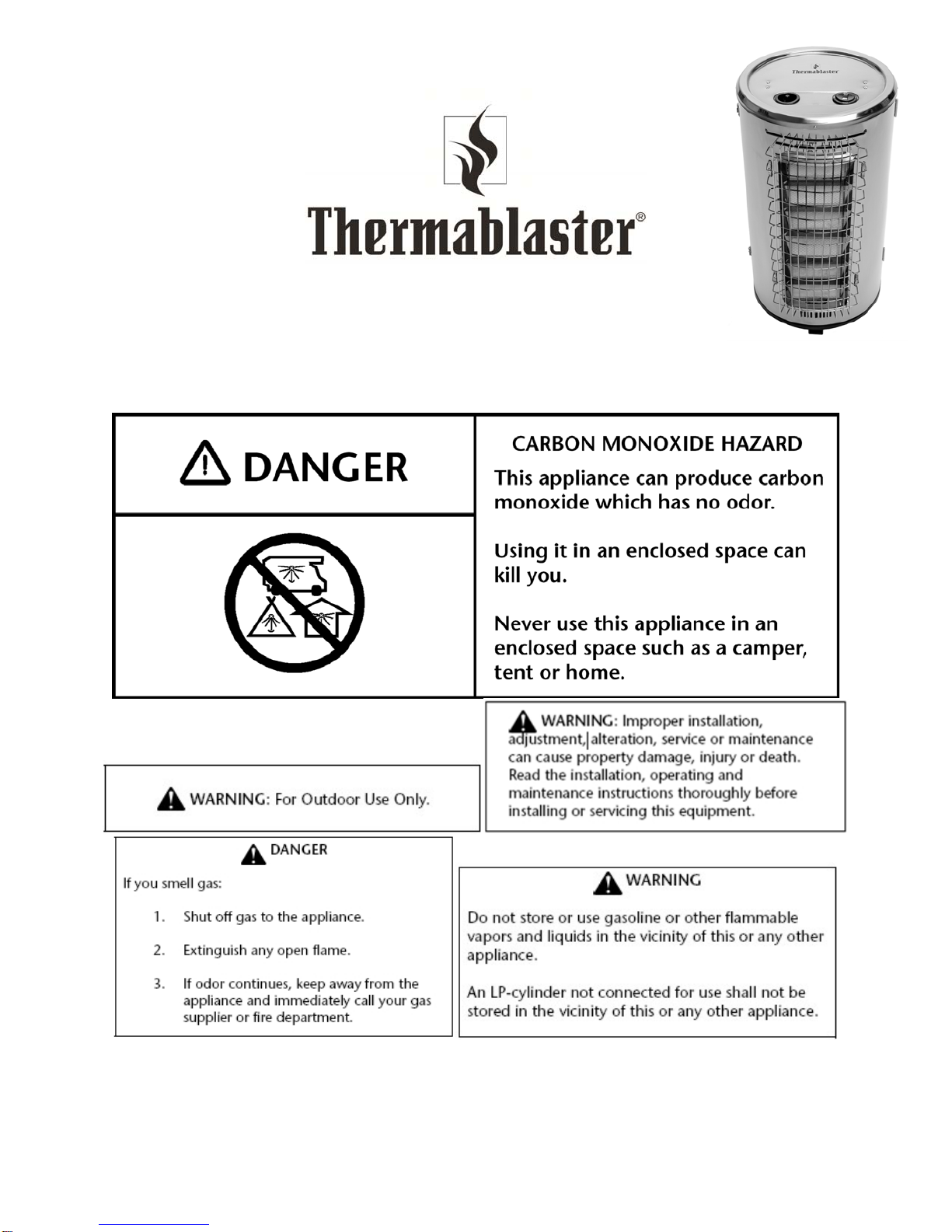

Thermablaster RC9200IT Manuel utilisateur

Infrared Cabinet Heater

Product Manual

MODEL: RC9200IT

CAUTION - FOR YOUR SAFETY

Reecon North America, L.L.C.

1090 Freeport Road

2nd Floor

Pittsburgh, PA 15238

The installer should leave the instructions with the consumer

The consumer should retain the instructions for future reference

Conforms to ANS: Z83.26a-(2008) Conforms to CSA: 2.37a-(2008), Gas-Fired Outdoor Infrared Patio Heater (except wind)

PRODUCT SPECIFICATIONS

Model RC9200IT

BTU（available）32,000

BTU(9.2Kw)

Gas type LP

Pressure regulator

setting 11 WC

Maximum Inlet Gas

Supply Pressure 11 WC

Ignition Electric Piezo

Heat Setting 2 stage (Hi/Low)

1. IMPORTANT SAFETY INFORMATION

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or

service this heater. Improper use of this heater can cause serious injury or death from burns, fire,

explosion, electrical shock, and carbon monoxide poisoning. Only a qualified installer, service agent, or

local gas supplier may install and service this product.

WARNING: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance.

CARBON MONOXIDE POISONING: Early signs of carbon monoxide poisoning resemble the flu with

headache, dizziness and/or nausea. If you have these signs, heater may not be working properly. Get

fresh air at once! Have heater serviced. Some people - pregnant women, persons with heart or lung

disease, anemia, those under the influence of alcohol, those at high altitude - are more affected by

carbon monoxide than others.

WARNING: Any change to this heater or its controls can be dangerous.

WARNING: Do not use any accessories not approved for use with this heater.

WARNING: Carefully supervise young children when they are in the area with the heater.

WARNING: Make sure both grill guards are in place before running the heater.(see diagram page 4)

WARNING: Keep the appliance area clear and free from combustible materials, gasoline, and other

flammable vapors and liquids.

WARNING: Due to high temperatures, the appliance should be located out of traffic and away from

furniture and draperies.

WARNING: Certain materials or items, when stored under the heater, will be subjected to radiant

heat and could be seriously damaged.

WARNING: Heater becomes very hot when running. Keep children and adults away from hot

surfaces to avoid burns or clothing ignition. Heater will remain hot for a time after shutoff.

Allow surfaces to cool before touching.

WARNING: Do not place clothing or other flammable material on or near the appliance. Never place

any objects in the heater.

WARNING: Failure to keep the primary air opening(s) of the burn(s) clean may result in sooting and

property damage.

WARNING: Do not allow fans to blow directly into the heater. Avoid any drafts that alter burner

flame patterns. Do not use in windy conditions.

WARNING: Do not use a blower insert, heat exchanger insert or other accessory not approved for

use with this heater

WARNING: Failure to position the parts in accordance with these diagrams or failure use only parts

specifically approved with this heater may result in property damage or personal injury.

This heater needs fresh air ventilation to run properly. This heater has an Oxygen Depletion Sensing

(ODS) safety shutoff system. The ODS shuts down the heater if not enough fresh air is available.

See Air for Combustion and Ventilation.

DO NOT RUN HEATER: Where flammable liquids or vapors are used or stored or under dusty

conditions.

Always run heater with control knob locked positions. Never set control knob between locked positions.

Poor combustion and higher levels of carbon monoxide may result.

Periodic visual check of pilot and burner flame, are necessary for proper operation.

QUALIFIED INSTALLING AGENCY

Only a qualified agency should install and replace gas piping, gas utilization equipment or

accessories, and repair and equipment servicing. The term “qualified agency” means any individual, firm,

corporation, or company that either in person or through a representative is engaged in and is

responsible for:

a) Installing, testing, or replacing gas piping or

b) Connecting, installing, testing, repairing, or servicing equipment; that is experienced in such work; that

is familiar with all precautions required; and that has complied with all the requirement of the authority

having jurisdiction.

2. PRODUCT FEATURES

SAFETY PILOT

This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS pilot

shuts off the heater if there is not enough fresh air.

TIP OVER SWITCH

This heater is equipped with a safety tip over switch in the event the heater is knocked over.

PIEZO IGNITION SYSTEM

This heater is equipped with an electronic piezo control system.

3. PREPARING FOR INSTALLATION

Before beginning assembly or operation of the product, make sure all parts are present. Compare parts

with package contents list and diagram below. If any part is missing or damaged, do not attempt to

assemble, install or operate the product. Contact customer service for replacement parts.

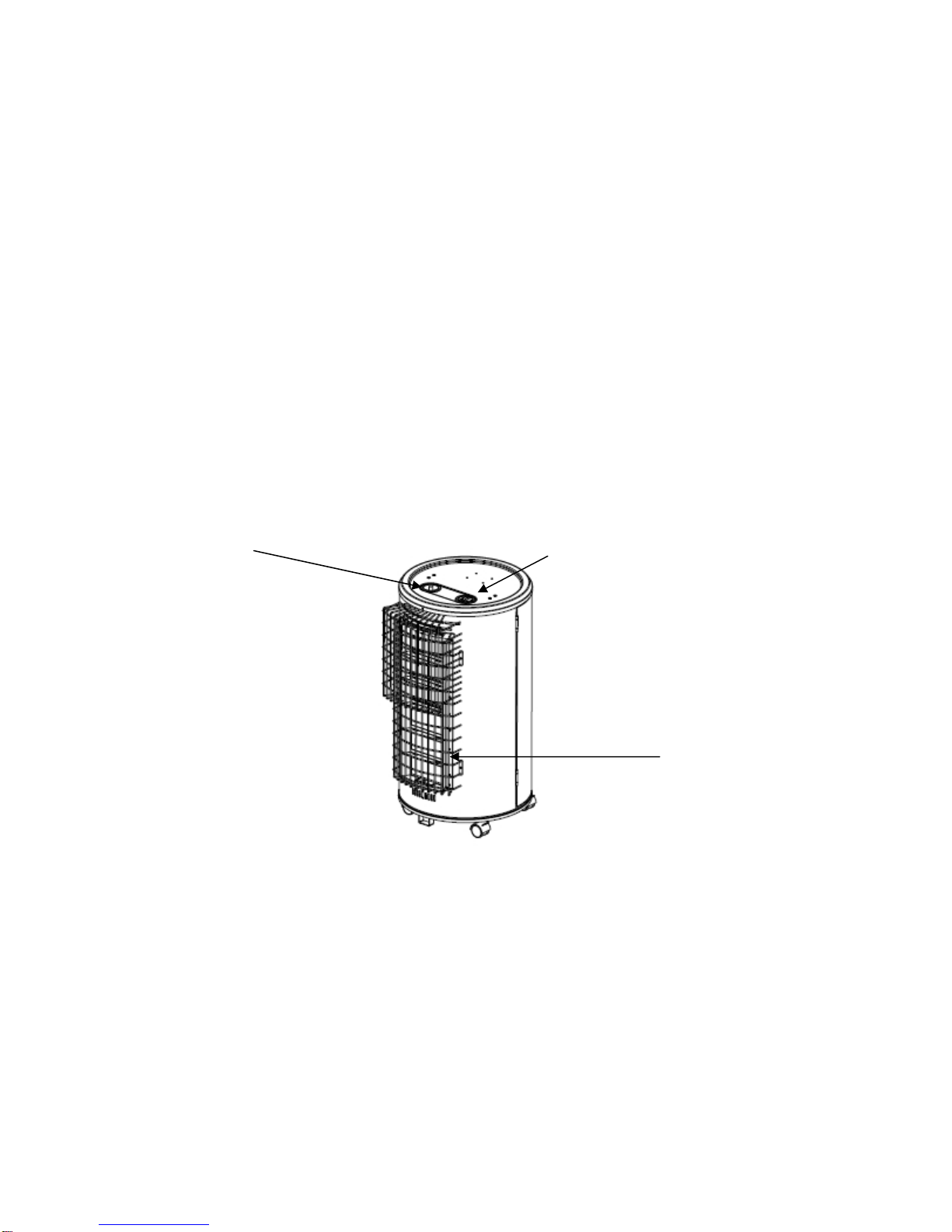

Figure 1 – gas heater cabinet

UNPACKING

1. Remove heater from carton.

2. Remove all protective packaging applied to heater for shipping

3. Check heater for any shipping damage. If heater is damaged, promptly inform dealer where you bought

heater.

Igniter button Control knob

Protective front cover

4. INSTALLATION

WARNING: A qualified service person must install heater. Follow all local codes.

Check Gas Type

Be sure your gas supply is right for your heater. Otherwise, call dealer where you bought the

heater for proper type heater.

Connect Hose & Regulator to Cylinder

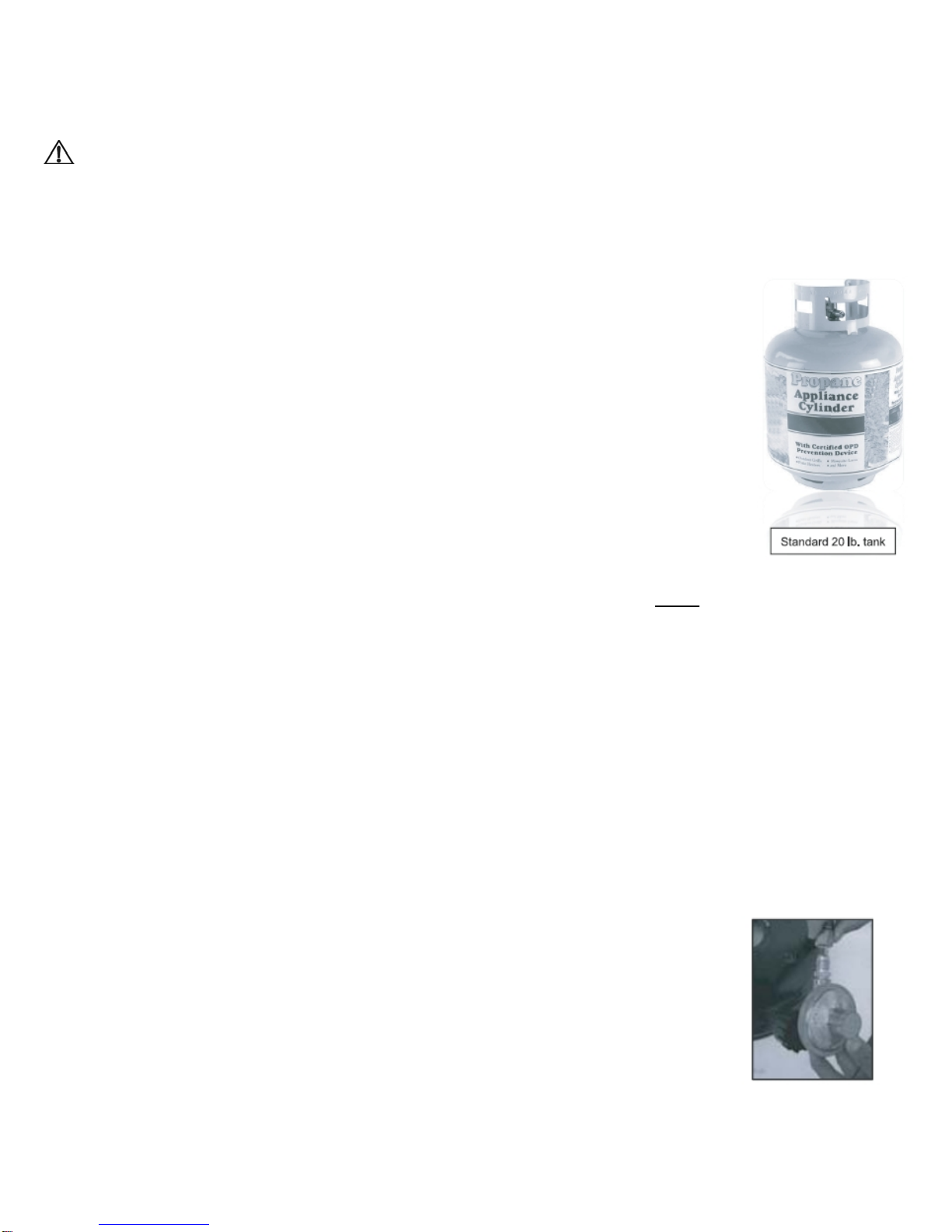

1) You must provide propane gas and propane cylinder. Use a standard 20 lb.

propane cylinder. (See figure 2)

2) Use this heater only with a propane vapor withdrawal supply system. See chapter

5 of the standard for storage and handling of liquefied petroleum Gas, ANSI/NFPA58.

Your local library or fire department should have this book.

3) The minimum permissible gas supply inlet pressure of 11 W.C. is required for

purpose of input adjustment.

4) The normal hourly of 32,000BTU is required input rating for a heater for automatic

operation at ratings less than full input rating.

Figure 2 – propane cylinder

5) The pressure regulator and hose assembly supplied with the appliance must be used.

6) The regulator hose must be attached to the tank and the heater inside the heater cabinet. This will

make sure the hose is located out of pathways where people may trip over it or in areas where the hose

may be subject to accidental damage.

7) The installation must conform with local codes, or in the absence of local codes, with National Fuel

Gas Code, ANSI Z223.1.

8) LP-gas supply cylinder to be used must be:

(a) Constructed and marked in accordance with the Specifications for LP-gas cylinders of the U.S.

Department of Transportation (DOT); or the Standard for Cylinders, Spheres and Tubes for

Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable;

(b) Provided with a listed overfilling prevention device; and

9) A dented, rusted or damaged propane cylinder may be hazardous and should be

checked by your cylinder supplier. Never use a propane cylinder with a damaged

valve connection.

10) The propane cylinder must be constructed and marked in accordance with the

specifications for LP gas cylinders of the U.S. Department of Transportation (DOT).

11) Never connect an unregulated propane cylinder to the heater. figure 3

12) Screw regulator onto gas hose. Dot not cross-thread. (see figure 3)

13) Tighten securely.

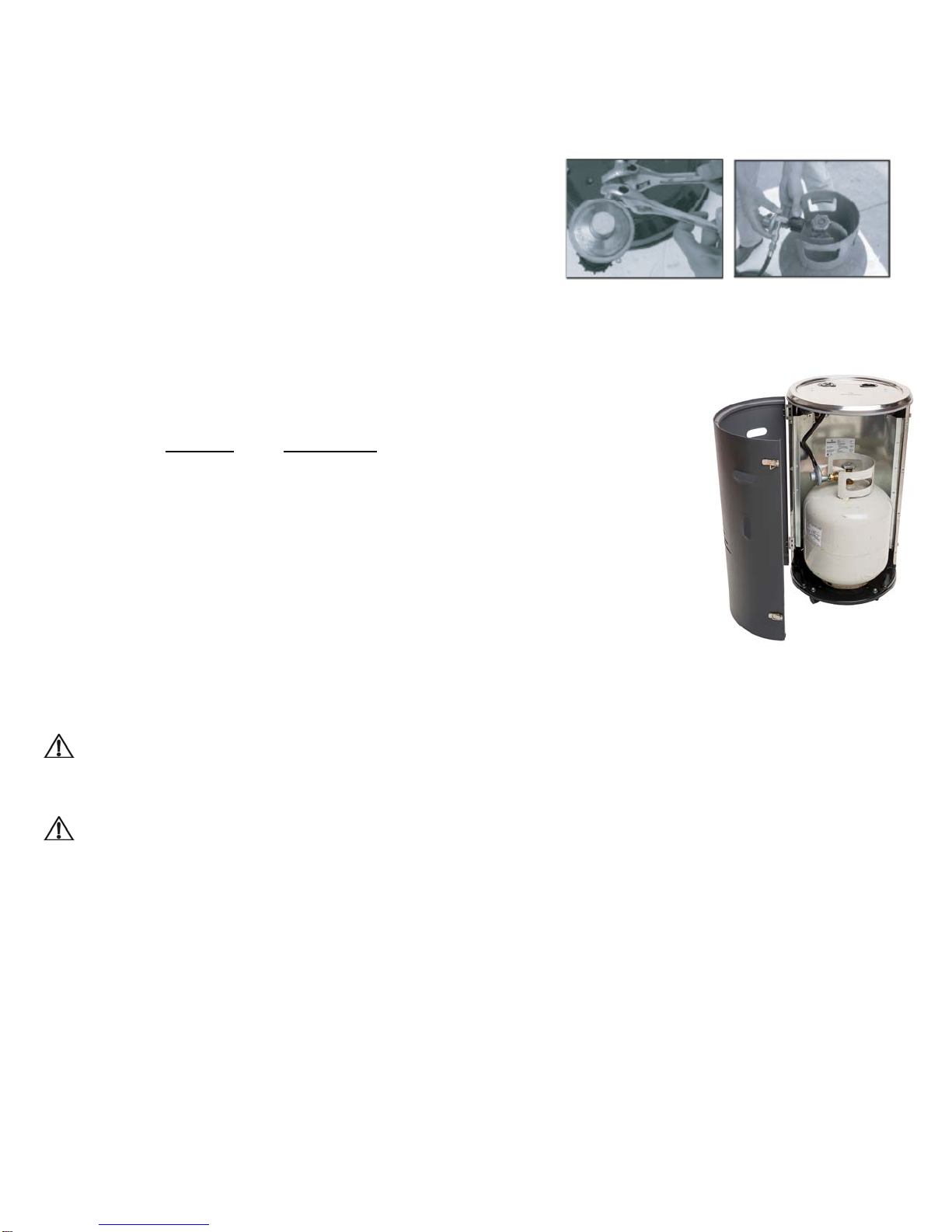

14) Attach regulator to cylinder. (see figure 4)

figure 4

15) Complete attachment.

16) Install the cylinder and latch closed. (see figure 5)

17) Close the rear cover.

18) Attach the primary AND secondary protective grills using the screws

provided with the heater. Ensure both screw holes on each side of both grills

are securely fastened to the heater. (Please see diagram on page 14 showing

both grills separately and also there attached position to the heater)

figure 5

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all

leaks at once.

WARNING: Never use an open flame to check for a leak. Apply a mixture of liquid soap and water to

all joints. If bubbles form, there is a leak. Correct all leaks at once.

Pressure Testing Heater Gas Connections

1) Open gas supply tank valve.

2) Make sure control knob of heater is in the OFF position.

3) Check all joints from equipment shutoff valve to control valve. Apply mixture of liquid soap and

water to gas joints. If bubbles form, there may be a leak.

4) Correct all leaks at once.

5. AIR FOR COMBUSTION AND VENTILATION

This heater is equipped with multiple ventilation holes in and around the heater. The following

MUST be adhered to when using this heater:

1) Adequate clearance MUST always be provided for the air opening around the heater.

2) Adequate air MUST be provided into the combustion chamber.

3) This heater MUST always be kept clear of ANY combustible material.

The following are the minimum clearances from combustibles:

1) 4 inches from the floor

2) 5 feet from ANY wall or railing

3) 8 feet from the ANY ceiling or overhead cover

USER MUST NEVER OPERATE THE HEATER WITH ANY VENT COVERED TO ALLOW ADEQUATE

FRESH AIR INTO THE HEATER AND COMBUSTION CHAMBER

6. OPERATION

FOR YOUR SAFETY READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing

property damage, personal injury or loss of life.

Before Turning Gas Supply ON:

1) Your heater was designed and approved for outdoor use only. Do NOT use it inside a building, garage,

or any other enclosed area.

2) Make sure surrounding areas are free of combustible materials, gasoline, and other flammable vapors

or liquids.

3) Ensure that there is no obstruction to air ventilation.

4) Be sure all gas connections are tight and there are no leaks by using soap on the hose. No bubbles

should be seen. If you see bubbles then the connection is not secure.

5) Inspect the gas pressure regulator and hose prior to each use. (if there is evidence of

excessive abrasion or wear, or if the hose is damaged DO NOT USE THE HEATER. The user

MUST replace the hose with the manufacture specified replacement hose and regulator)

6) Regulator Hose should be connected at the top of the propane cylinder and attached directly to the

heater out of the way area where accidental damage could occur.

7) ONLY the pressure regulator and hose assembly supplied with the appliance must be used

8) Be sure the cylinder cover is clear of debris.

9) Be sure any component remove during assembly or servicing is replaced & fastened prior to starting.

Before lighting

1) Heater should be thoroughly inspected before each use and by a qualified service person at least

annually.

2) If relighting a hot heater, always wait at least 5 minutes

3) Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas should

be leak tested. If the hose leaks, it must be replace prior to operation. Only use the replacement hose

assembly specified by manufacturer.

Lighting

1) STOP! Read the safety information on the inside of the heater. User MUST follow these lighting

procedures or the heater will NOT operate properly.

2) Make sure equipment shutoff valve is fully open.

3) Turn control knob clockwise to the OFF position.

4) Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell

gas, STOP! Do not try to light any appliance. Do not touch electrical switch or use any phone in the

building. Immediately contact gas supplier from a neighbor’s phone. Follow gas supplier’s

instructions. If you can’t reach the gas supplier, call the fire dept. If you don’t smell gas, go to the

next step.

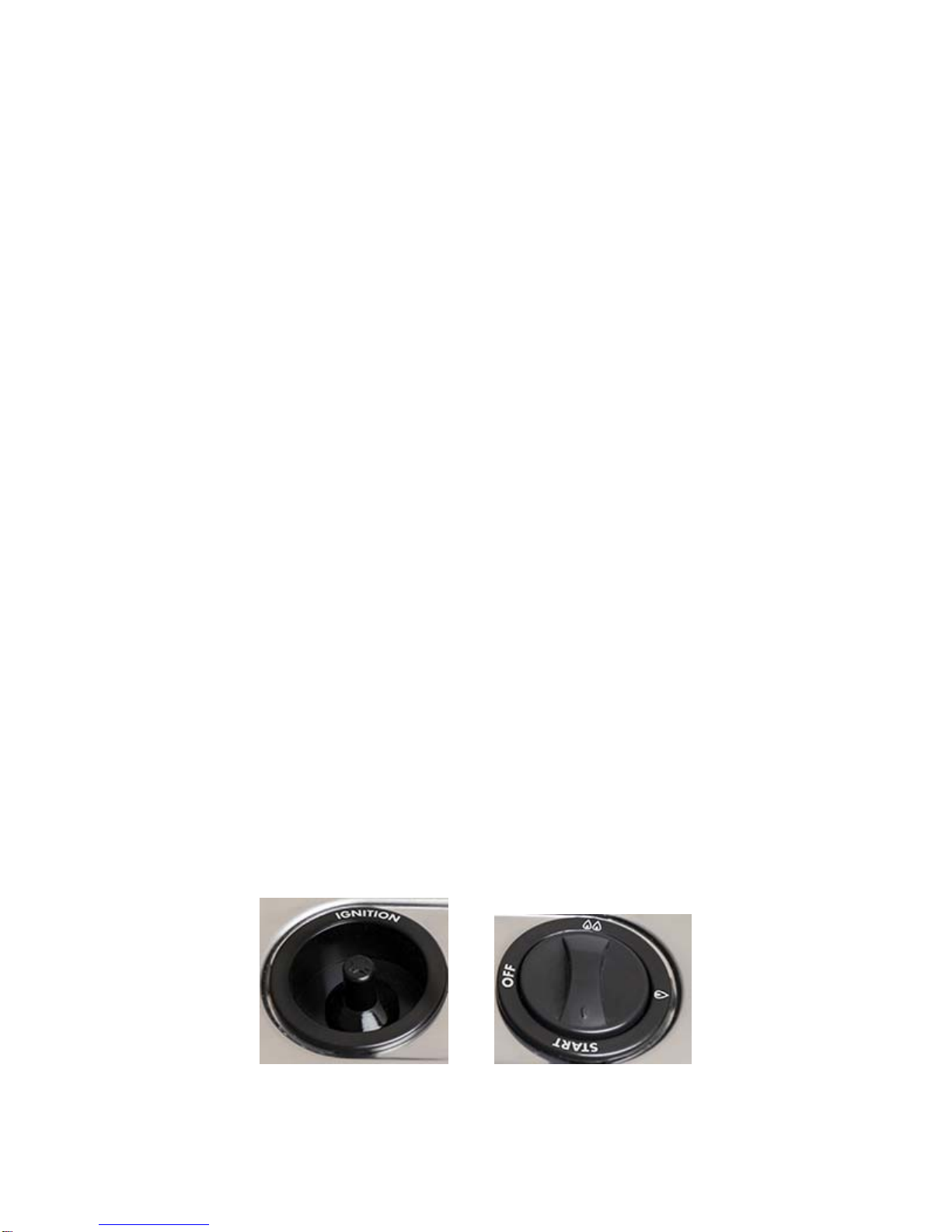

5) Turn control knob counterclockwise to the START position. Press in control knob for five (5)

seconds (see the follow Figure 6) and simultaneously press the igniter button. This will light the

pilot. The user must verify the pilot is lit prior to turning the knob to the first flame position. In the

event the pilot is not lit you must wait 5 minutes to relight.

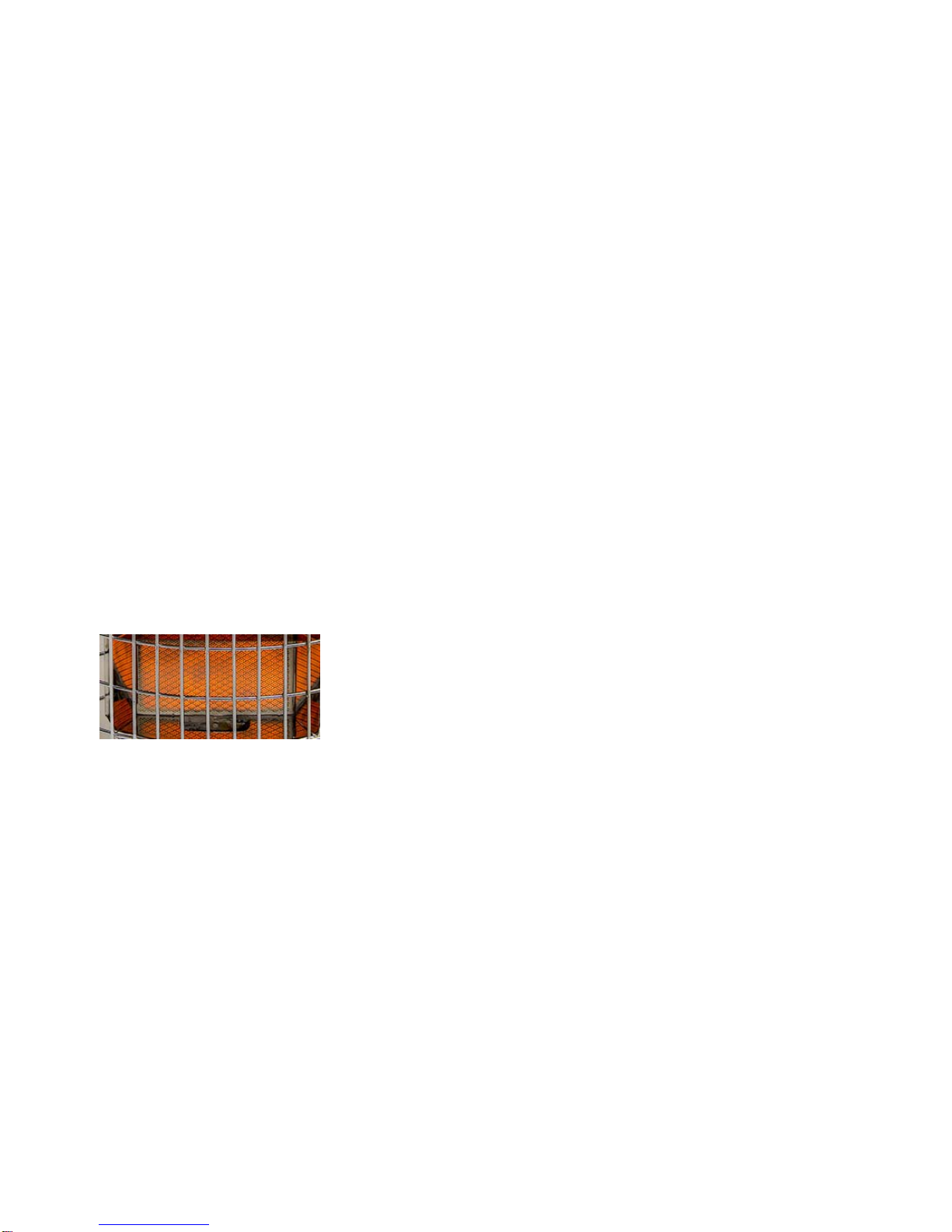

6) Turn control knob to single flame symbol. This will light the bottom 3 ceramic plaques.

7) Turn the knob again to the double burner symbol and this will light the upper 3 ceramic plaques.

(it is best to allow the bottom 3 plaques to warm up first prior to turning the top plaques on.)

figure 6 figure 6.1

Shut down

1) Turn control knob clockwise to START (normally, burner will make a slight popping sound when

extinguished.)

2) To extinguish pilot, depress control knob and continue to turn it clockwise to OFF.

3) Turn cylinder valve clockwise to OFF and disconnect regulator when heater is not in use.

After operation check:

1) Gas control is in OFF position.

2) Gas Tank valve is OFF.

3) Disconnect gas hose by unscrewing the plastic end attached to the cylinder.

4) Heater is upright in a secure location.

5) Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed

from the appliance.

6) A cylinder must be stored outdoors in a well-ventilated area out of the reach of children

7) A disconnected cylinder must have dust caps tightly installed and must not be stored in a building,

garage or any other enclosed area.

7. CARE AND MAINTENANCE

WARNING: Turn off heater and let cool before servicing. Any grills removed for servicing MUST be

replaced prior to use.

CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean.

Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service

technician. Heater may need more frequent cleaning due to dirt and other debris normally found

outdoors.

CAUTION: The appliance is equipped with a piezo electric operated ignition device. The user MUST

follow the proper lighting instructions or damage to the heater or fire may occur.

CLEANING ODS/PILOT AND BURNER

Use a vacuum cleaner, pressurized air, or a small, soft bristled brush to clean.

CLEANING BURNER PILOT AIR INLET HOLE

We recommend that you clean the unit every 2,500 hours of operation or every three months. We also

recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean

these parts we recommend using compressed air no greater than 30 PSl. Your local computer store,

hardware store, or home center may carry compressed air in a can. You can use a vacuum cleaner in the

blow position. If using compressed air in a can, please follow the directions on the can. If you don’t follow

directions on the can, you could damage the pilot assembly.

1) Shut off the unit, including the pilot. Allow the unit to cool for at least thirty minutes.

2) Inspect burner and pilot for dust and dirt.

3) Blow air through the ports/slots and holes in the burner and clean the pilot assembly. A yellow tip

on the pilot flame indicates dust and dirt in the pilot assembly. There is a small pilot air inlet hole

about two inches from where the pilot flame comes out of the pilot assembly (see figure 7). With

the unit off, lightly blow air through the air inlet hole. You may blow through a drinking straw if

compressed air is not available.

4) With the unit on, visually check the burner flames to very an even orange pattern on ALL 6 burners.

Compare with figure 7 below.

Insert air cleaning decide through grill to clean burner holes

Figure 7

CLEANING THE CABINET

Air Passageways

Use a vacuum cleaner or pressurized air to clean.

Exterior

Use a soft cloth dampened with a mild soap and water mixture.

Wipe the cabinet to remove dust.

If you need replacement parts you must go to an authorized dealer for professional service!

Every part of the heater shall be secure against displacement and shall be constructed to maintain a fixed

relationship between essential parts under normal and reasonable conditions of handling and usage.

Parts not permanently secured shall be designed so they cannot be incorrectly assembled and cannot be

improperly located or misaligned in removing or replacing during cleaning or other servicing.

Autres manuels pour RC9200IT

Table des matières

Autres manuels Thermablaster Chauffage

Thermablaster

Thermablaster WDFT060-VF-IR Manuel utilisateur

Thermablaster

Thermablaster RC9200IT Manuel utilisateur

Thermablaster

Thermablaster WDFT250-VF-IR Guide de démarrage rapide

Thermablaster

Thermablaster GLDF24R-VF Guide de démarrage rapide

Thermablaster

Thermablaster WDFT060-VF-IR Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
