The World Models Manufacturing Super Stunts 60 Manuel utilisateur

Wing Span

Wing Area

Flying Weight

Fuselage Length

80 in / 2030 mm

1337 sq in / 86.3 sq dm

8.0 lbs / 3550 g

68.5 in / 1740 mm

Warning !This model is not a toy.

It is designed for maximum performance. Please seek advice if one is not familiar with this kind

of engine powered precision model. Operating this model without prior preparation may cause

injuries. Remember, safety is the most important thing. Always keep this instruction manual at

hand for quick reference.

FACTORY PRE-FABRICATED

ALMOST-READY-TO-FLY (ARF) SERIES

MADE IN CHINA

0.6 cu. in. displacement 2-stroke0-0.75

Requires : 4 channel radio w 5 standard servos - /

* Specifications are subject to change without notice.*

Specifications

INSTRUCTION MANUAL

Super Stunts 60

P. 1

P. 3 - 11

Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT

and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you

find to be defective after the gluing process may be difficult to remove for warranty replacement. The

manufacturer will replace any defective parts. but will not extend to the parts that are good before

gluing to defective parts during assembly.

INDEX

BEFORE YOU BEGIN

PARTS LIST

ASSEMBLY

SAFETY PRECAUTIONS

P. 1

P. 2

P. 11

BEFORE YOU BEGIN

Read through the manual before you begin, so you will have an overall idea of what to do.

Symbols used throughout this instruction manual comprise of the following : -

3mm

Do not overlook this symbol!

Cut off shaded portion.

Peel off shaded portion

covering film.

Pay close attention here!

Pierce the shaded portion

covering film.

Must be purchased separately!

Drill holes with the specified

diameter (here: 3mm).

Ensure smooth non-binding

movement while assembling.

Apply instant glue

(C.A.glue, super glue.)

Assemble left and right

sides the same way.

Apply epoxy glue.

Apply thread locker

Warning!

Parts List

P. 2

1.MAIN WING -- 1 pair

2.SCREW PB2x20mm -- 8 pcs

FUEL TUBE Ø6x5mm -- 8 pcs

STRAPER -- 4 pcs

CLEVIS -- 4 pcs

HORN -- 4 sets

PUSHROD Ø1.8x165mm w/Threads(For Aileron&Flap Servo) -- 4 pcs

3.SCREW PA3x30mm -- 1 pc.

SCREW PM3x30mm -- 1 pc.

WASHER d3xD12mm -- 2 pcs

WING TUBE Ø25.4x516mm -- 1 pc.

4.STABILIZER & ELEVATOR -- 1 set

FUSELAGE -- 1 pc.

SCREW PM3x22mm -- 3 pcs

WASHER d3xD7mm -- 3 pcs

BALSA(Fin Tip)6x245mm -- 1 pc.

5.VERTICAL FIN & RUDDER -- 1 set

6.FUEL TANK 380cc -- 1 set

BALSA 10x10x109mm(For Fixing Fuel Tank) -- 1 pc.

7.ENGINE MOUNT PL5111070 -- 1 set

SOCKET HEAD SCREW M4x25mm -- 4 pcs

WASHER d4xD9mm -- 4 pcs

8.WOODEN 6x9x18mm(For Front Landing Gear) -- 1 pc.

9.FRONT LANDING GEAR -- 1 set

WHEEL Ø70mm -- 1 pc.

COLLAR Ø4.1mm w/set screw -- 3 sets

STEERING ARM Ø4.1mm w/set screw -- 1 set

FRONT WHEEL PUSHWIRE Ø1.6x490mm -- 1 pc.

PLASTIC TUBE d2.5xD4x420mm -- 1 pc.

10.MAIN LANDING GEAR -- 1 set

SCREW PA3x12mm -- 4 pcs

MOUNTING PLATE 12x20mm -- 2 pcs

11.MAIN WHEEL Ø70mm -- 2 pcs

COLLAR Ø4.1mm w/set screw -- 4 sets

12. M4x30mm -- 4 pcs

WASHER d4xD9mm -- 8 pcs

M4 NUT -- 8 pcs

SPINNER Ø62mm -- 1 pc.

THROTTLE PUSHWIRE 1.2x370mm -- 1 pc.

STIC TUBE d2xD3x220mm -- 1 pc.

13.PLYWOOD 3x61x117.5mm(For Throttle Servo) -- 1 pc.

BALSA 8x8x61mm(For Throttle Servo Stand) -- 2 pcs

14.LINKAGE CONNECTOR Ø2.1mm -- 2 sets

15.SCREW PM2x16mm -- 2 pcs

M2 NUT -- 2 pcs

FUEL TUBE Ø6x5mm -- 2 pcs

CLEVIS -- 2 pcs

HORN(Non-Basa)(For Rudder) -- 2 sets

RIGGING C0UPLER Ø1.8x27mm w/Threads(For Rudder) -- 2 pcs

COPPER TUBE d2.5xD3.2x8mm(For Rudder Servo) -- 4 pcs

WIRE Ø1x1000mm(For Rudder) -- 2 pcs

16.SCREW PB2x16mm -- 2 pcs

FUEL TUBE Ø6x5mm -- 1 pc.

HORN -- 1 set

CLEVIS -- 1 pc.

PUSHROD Ø1.8x920mm w/Threads(For Elevator) -- 1 pc.

17.SPONGE 10x80x200mm(For Radio Equipment) -- 2 pcs

STRATER-- 1 pc.

RIGGING Z BEND Ø1.8x27mm(For Rudder Servo) -- 2 pcs

COPPER TUBE d2.5xD3.2x8mm -- 2 pcs

FUEL TUBE Ø6x5mm -- 1 pc.

PLYWOOD 6x37x116mm(For Elevator &Rudder Servo) -- 2 pcs

BALSA 6x8x37mm(For Elevator &Rudder Servo Stand) -- 4 pcs

18.SOCKET HEAD SCREW M4x40mm -- 2 pcs

WASHER d4xD15mm -- 2 pcs

PLYWOOD 3x40x116mm(Wing Protection) -- 1 pc.

19.DECALS:A098DEC -- 1 set

SOCKET HEAD SCREW

TOUGHLON:--

TOUGHLON STL 100 WHITE

TOUGHLON STL 201 BLACK

TOUGHLON STL 310 RED

TOUGHLON STL 351 DARK BLUE

P.3

Main Wing

1Main Wing

PA3x30mm Screw

d3xD12mm Washer

PA3x30mm

Washer d3xD12mm

Wing Tube

Ø25.4x516mm

PM3x30mm

Aileron & Flap Servos

PB2x20mm Screw

Pushrod

Ø1.8x165mm Straper

Fuel Tube

Ø6x5mm

Lead for servo

wire Provided

Bottom View

Step 1. Insert the aluminum wing tube with the pre-drilled hole end into the right wing. Align

the lines marked at the wing root and wing tube, then apply the PM3x30mm machine screw

through the pre-drilled hole on top of the wing. ( please confirm the alignment of the hole by

putting a 2.5mm diameter rod through the pre-drilled wing hole before applying the screw )

The hole on the wing tube is pre-threaded, do not over tighten the PM3 screw, the set up is for

future removal of the wing.

Note : It is recommended that the wing tube stays with the left wing.

Removal of the wings could be achieved by removing the right wing

machine screw, the right wing then the left wing with wing tube. If removal

of wing tube from left wing is also required, it is recommended that instead

of applying self-tapping screw in step 2, you pre-tap with M3 thread cutter and

apply M3 machine screw.

Step 2. Install the right wing to the left wing. Locate

the pre-drilled 2.5mm hole at top of left wing, and drill

along with 2.5mm drill bit until it passes through the

Wing tube. Apply the PA3x30mm self-tapping screw.

Washer d3xD12mm

Apply instant type CA glue to both sides of each hinge.

PM3x30mm Screw

PB2x20mm

Clevis

Fuel Tube

Ø6x5mm

TWM PL8210010

CLEVIS WRENCH

2.5mm

Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please

look for pin-holemarks at under side of control surfaces.

P.4

Vertical Fin/Rudder

Stabilizer & Elevator

PM3x22mm Screw

d3xD7mm Washer

PM3x22mm

d3xD7mm

Balsa

6x245mm

Temporary install the main wing, adjust

leveling of the stabilizer to make it as

parallel to the main wing as possible.

(Stabilizer)

(Main Wing)

BB'

B=B'

Bottom View

Apply instant type CA glue to both sides of each hinge.

C=C'

C C

P.5

Front Landing Gear

Engine Mount

Fuel Tank

Fuel Tank 380cc

Fuel Tank Setup

Fuel Tank

380cc

Top View

M4x25mm Socket Head Screw

d4xD9mm Washer

Engine Mount

PL5111-070

Washer

d4xD9mm

M 4x25mm

Blind nuts are off-centered to keep

the spinner at the fuselage axis.

Apply thread locker to screws

Wooden

6x9x18mm

Balsa 10x10x109mm

(For ixing )Fuel Tank Position F

P.6

Landing Gear

Front Wheel

3mm Set Screw

4.1mm Collar

PA3x12mm Screw

PA3x12mm

3mm Set Screw

4.1mm Collar Wheel Ø70mm

Main Landing Gear

Ø4mm

4.1mm Collar

3mm Set Screw

2mm

Ø1.6x490mm(Frint wheel Pushrod)

3mm Set Screw

Front View

Wheel mmØ70

3mm Set Screw

Completed

3mm Set Screw

P.7

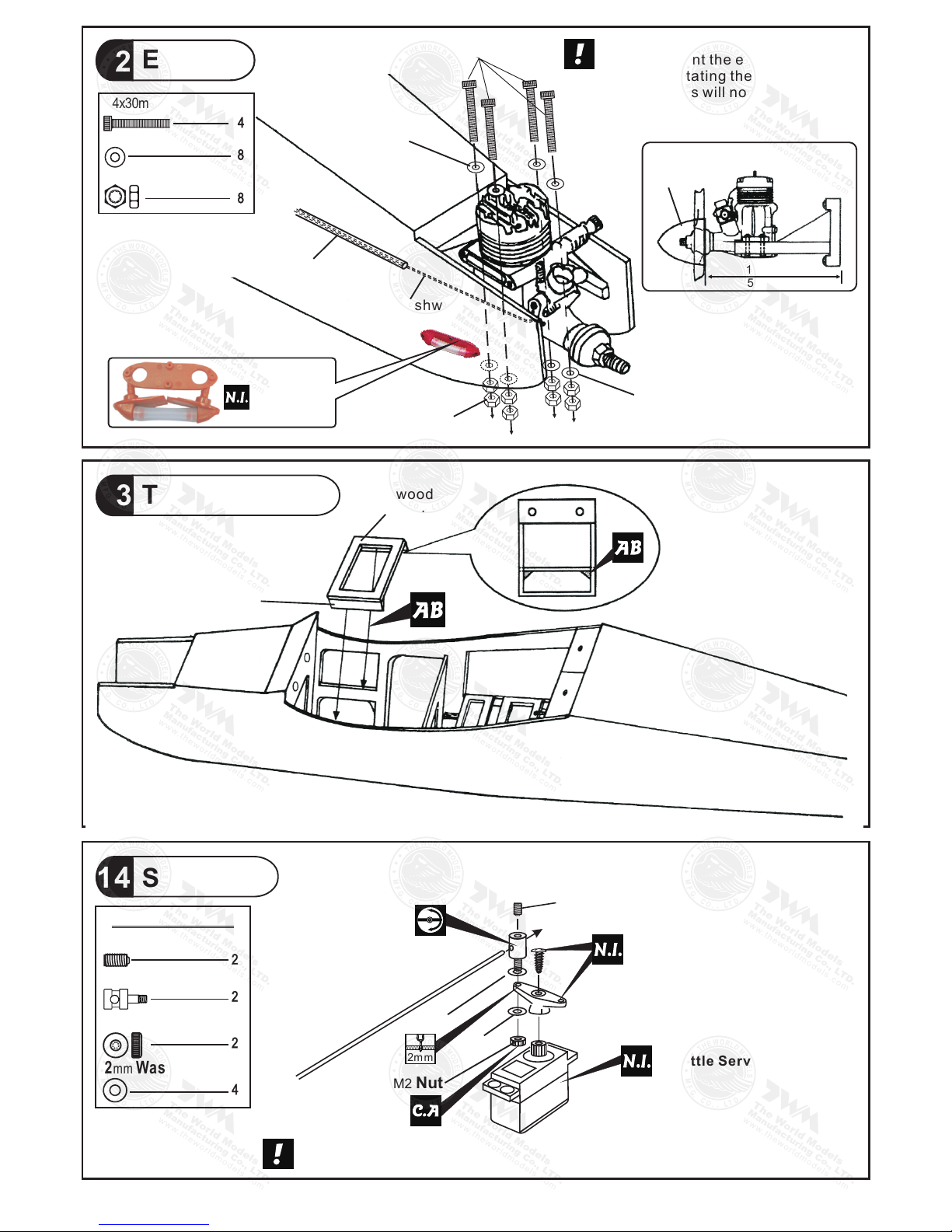

Servo Set

Throttle Servo

Engine

Linkage Stopper

3 X 3mm Set Screw

L i n k a g e C o n n e c t o r

2mm Nut

2mm Washer

d4xD9mm Washer

M4 Nut

Plastic tube

d2xD3x220mm

M4x30mm

Throttle Pushwire

Ø1.2x370mm

IIIustration is for upright mounting.

You can mount the engine inverted

simply by rotating the engine mount.

Thrust angles will not be affected.

Install Engine position

Spinner

Ø62mm

136mm

5.35in.

d4xD9mm

Washer

d4xD9mm

Washer

Plywood

3x57x117.5mm

Balsa

8x8x61mm

M4 Nut

Please refer to attached sheet for linkage connector installation.

Included with the radio Set.

Throttle Pushwire

3x3mm Set Screw

Throttle Servo.

2m m

2mm

Washer

M2 Nut

2mm

Washer

Fuel Filler

PL8110030

M4x mm 30 Socket Head Screw

P.8

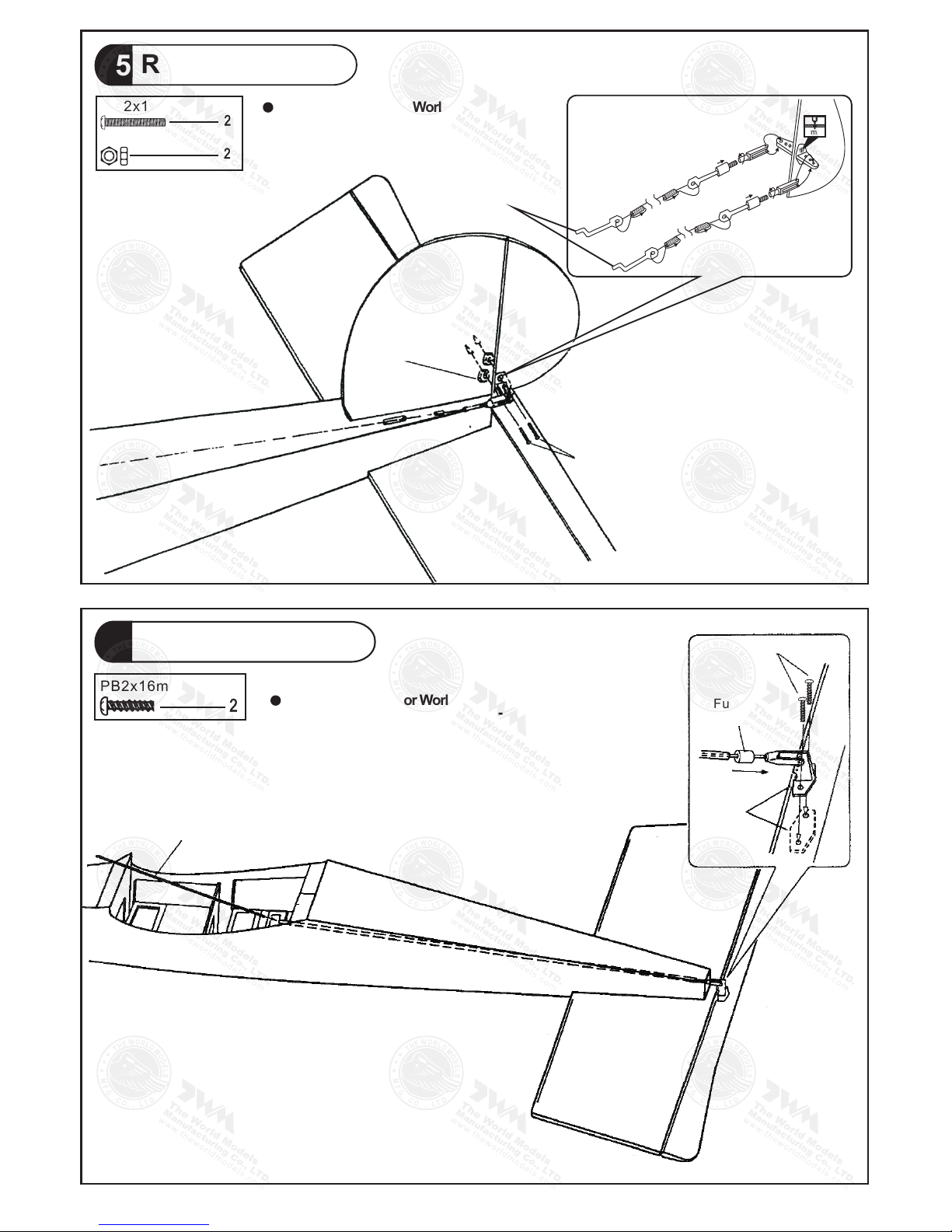

Rudder Pullwire

Fuel Tube

PM2x16mm Screw

2mm Nut

PM2x16mm

2mm Nut

16 Elevator Pushrod

PB2x16mm Screw

Pushrod

Ø1.8x920mm

PB2x16mm

Fuel Tube

Ø6x5mm

Horn

Copper Tube

d2.5xD3.2x8mm

Ø 1mm pilot holes for World Models

tri-horn are pre-drilled. Please look

for pin-holemarks at side of control

surfaces.

RIGGING COUPLER

Ø1.8x27mm

2mm

Ø 1mm pilot holes for World Models tri-horn

are pre-drilled. Please look for pin-holemarks

at under side of control surfaces.

Ø6x5mm

P.9

Main Wing

d4xD15mm Washer

M4x40mm

d4xD15mm

Wing Protection

3x40x116mm

17 Radio Equipment

Install Pinch the servo as shown in the diagram.

Throttle

Pushwire

Throttle

Servo

Rudder

Servo

Elevator

Servo

Top View

Front

Charge Receptacles

KP0041300

Plywood

6x37x116mm

Plywood

6x37x116mm

Balsa

6x8x37mm

Copper Tube

Press down the center

1/3 portion

Balsa

6x8x37mm

4mm

M4x mm 40 Socket Head Screw
