The Diagnostic Box TDB003 Manuel utilisateur

TDB003!PAGE 1

VERSION 1.6!26/05/2015

TDB003 PROXIMITY SMART KEY SYSTEM TESTER

OPERATING MANUAL

CONTENTS

INTRODUCTION

PAGE 3

SMART/PROXIMITY SYSTEM OPERATION

PAGE 4

GENERAL OPERATION

PAGE 6

TRANSPONDER KEY TESTING

PAGE 9

REMOTE CONTROL (RF) TESTING

PAGE 11

REMOTE CONTROL (IR) TESTING

PAGE 12

TRANSPONDER COIL ANTENNA TESTING

PAGE 13

PROXIMITY/SMART KEY SYSTEM FULL TESTING

PAGE 14

PROXIMITY/SMART KEY SYSTEM SCAN MODE

PAGE 16

OSCILLOSCOPE MODE

PAGE 17

SETTINGS INFORMATION

PAGE 18

VEHICLE PROXIMITY TRANSMITTER LOCATIONS

PAGE 19

SPECIFICATION

PAGE 57

CONTACT INFORMATION

PAGE 58

DECLARATION OF CONFORMITY

PAGE 59

CONTENTS

TDB003!PAGE 2

VERSION 1.6!26/05/2015

The TDB003 Proximity/Smart Key Systems Tester offers a simple and cost effective way to

diagnose and test problems relating to the vehicle immobiliser system, which is made up

of a number of components.

The TDB003 enables the transponder key, remote control operation, external vehicle

antenna transmitters, internal vehicle antenna transmitters and transponder antenna to be

fully tested to ensure that all parts of the system are working.

The TDB003 can display signal levels, frequency measurements, signal waveforms and

a number of other useful features.

Features include :-

•Standard transponder key test

•Infra Red (IR) remote control test

•Radio Frequency (RF) remote control test

•Proximity/Smart key test

•Proximity/Smart vehicle antenna transmitter test

•Proximity/Smart key signal amplitude level indication

•Radio Frequency (RF) remote control amplitude level indication

•Transponder frequency indication

•Oscilloscope waveform function (FAST and SLOW)

•Proximity/Smart key system scan modes

•Audible signal indication

•Transponder vehicle antenna test

INTRODUCTION

TDB003!PAGE 3

VERSION 1.6!26/05/2015

SMART/PROXIMITY SYSTEM OPERATION

TDB003!PAGE 4

VERSION 1.6!26/05/2015

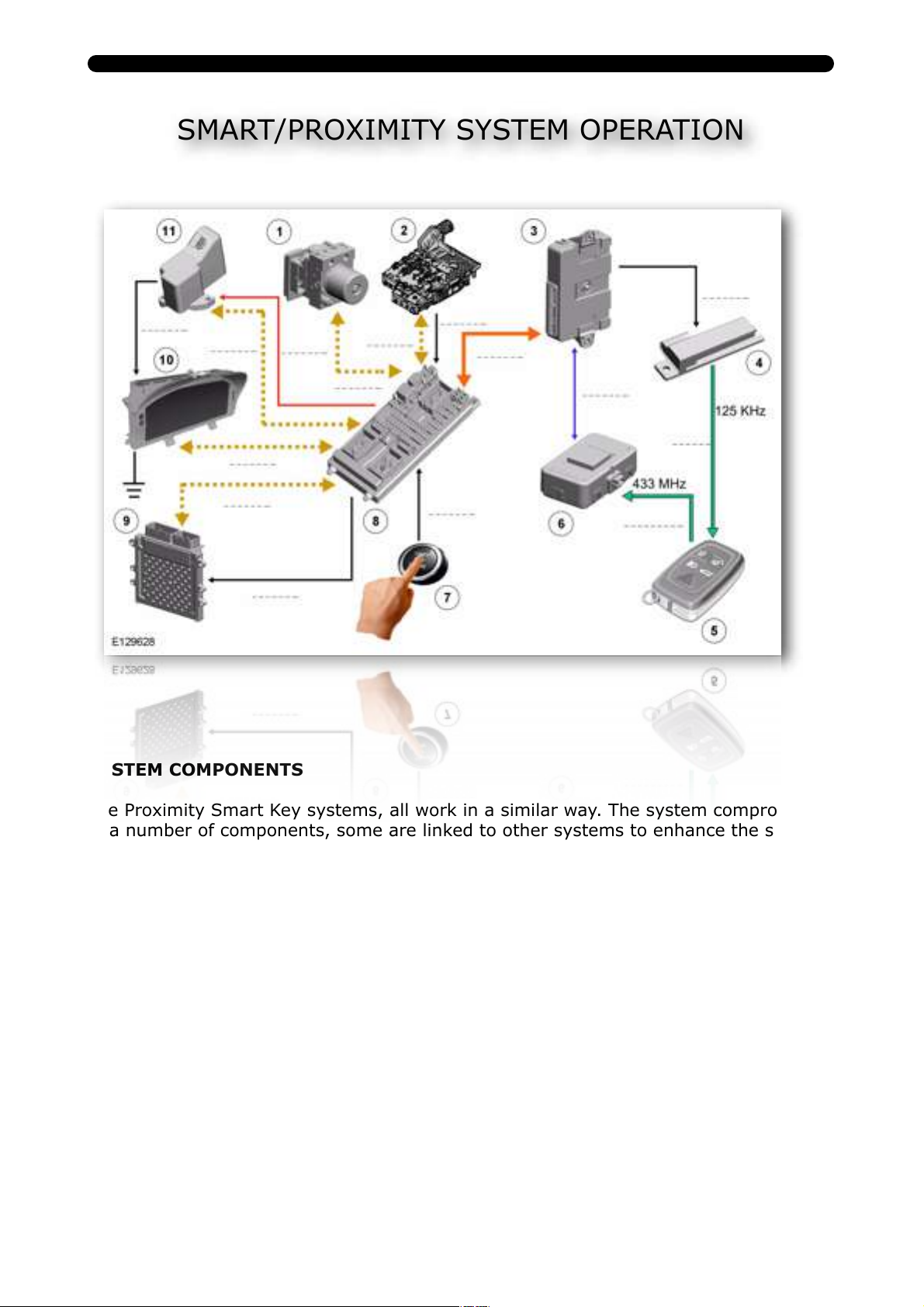

SYSTEM COMPONENTS

The Proximity Smart Key systems, all work in a similar way. The system compromise’s

of a number of components, some are linked to other systems to enhance the security

of the whole vehicle.

1. ABS Anti Braking System Module ECU.

2. TCM Traction Control Module ECU.

3. KVM Keyless Vehicle Module ECU.

4. Low Frequency Transmitter (125kHz/134kHz) Doors, Boot/Trunk and Internal.

5. Smart/Proximity Key.

6. RF Radio Frequency Receiver Module ECU (315MHz/433MHz).

7. Engine Start/Stop button.

8. Security System Module ECU.

9. ECM Engine Control Module ECU.

10. Instrument Cluster Module.

11. Steering Control Module ECU.

SMART/PROXIMITY SYSTEM OPERATION

TDB003!PAGE 5

VERSION 1.6!26/05/2015

OPERATION

The Smart/Proximity key receives low frequency signals on 125kHz or 134kHz

frequency.

The key has a transponder, which when you operate the vehicle door by either pulling

the handle or pressing the button (This varies on vehicles and models) the

transponder is energised through a 125kHz or 134kHz signal. The key then responds

to the vehicle on a higher RF frequency 433MHz or 315MHz sending a security

message.

If the vehicle and the key communicate with the correct security messages, then the

vehicle will open the door and allow the starting of the vehicle using the start/stop

button.

There are a number of sensors transmitting the 125KHz/134KHz signal around the

vehicle, normally in the doors, boot/trunk, external bumper, centre console, rear

seats, glove box area etc, depending on the make and model.

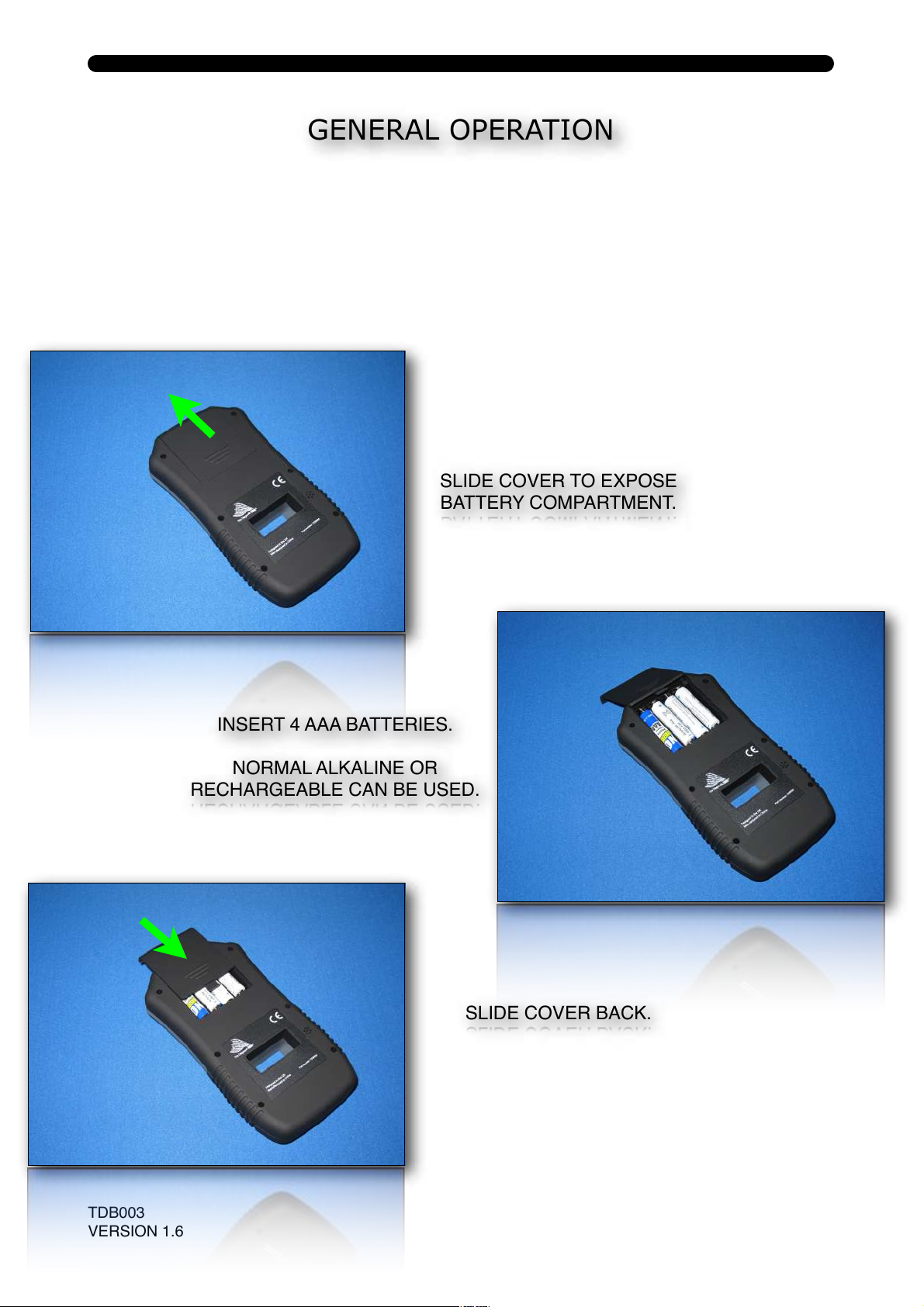

INSERTING/REPLACING BATTERIES

GENERAL OPERATION

TDB003!PAGE 6

VERSION 1.6!26/05/2015

SLIDE COVER TO EXPOSE

BATTERY COMPARTMENT.

INSERT 4 AAA BATTERIES.

NORMAL ALKALINE OR

RECHARGEABLE CAN BE USED.

SLIDE COVER BACK.

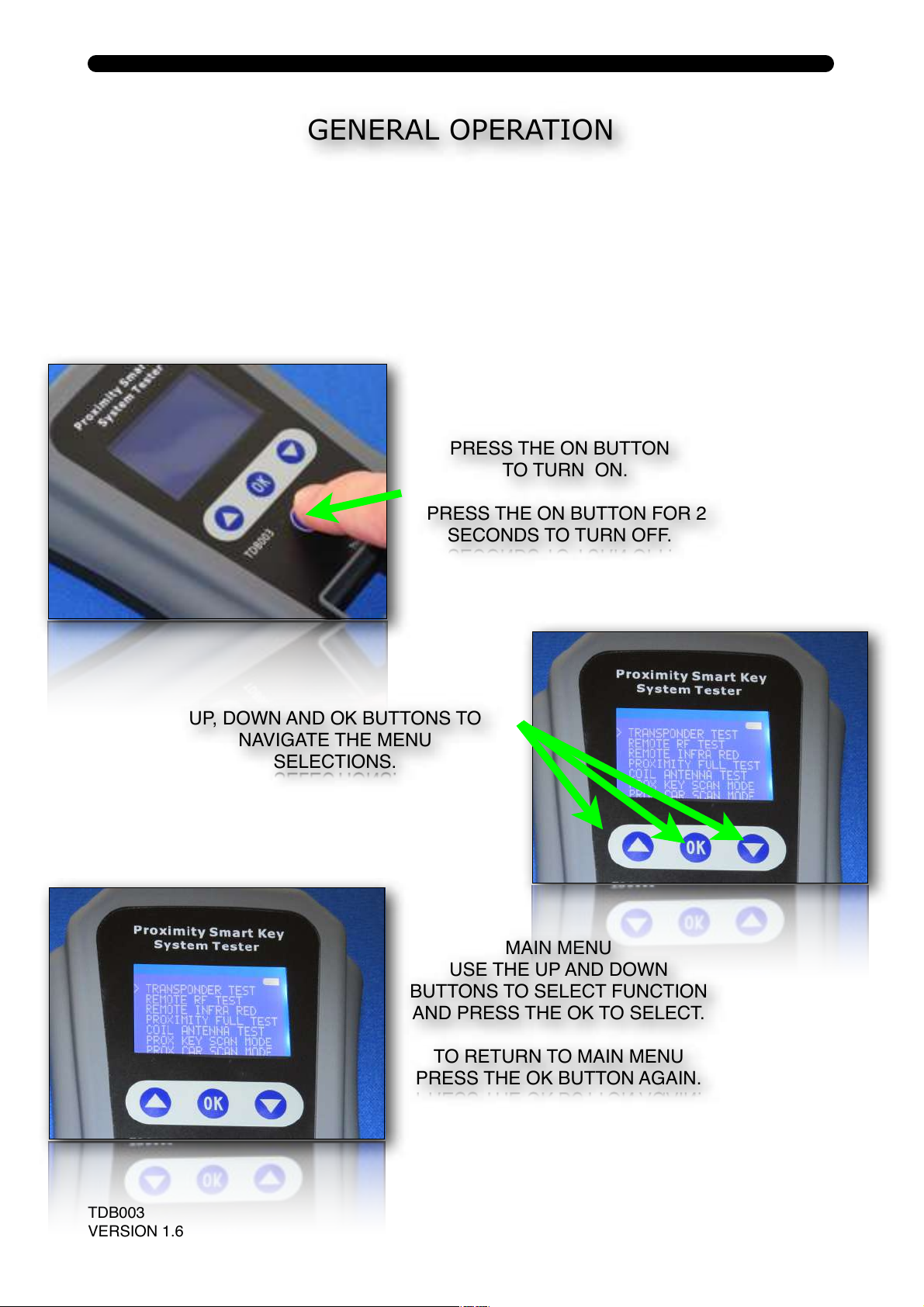

SWITCHING ON/OFF AND MENU NAVIGATION

GENERAL OPERATION

TDB003!PAGE 7

VERSION 1.6!26/05/2015

PRESS THE ON BUTTON

TO TURN ON.

PRESS THE ON BUTTON FOR 2

SECONDS TO TURN OFF.

UP, DOWN AND OK BUTTONS TO

NAVIGATE THE MENU

SELECTIONS.

MAIN MENU

USE THE UP AND DOWN

BUTTONS TO SELECT FUNCTION

AND PRESS THE OK TO SELECT.

TO RETURN TO MAIN MENU

PRESS THE OK BUTTON AGAIN.

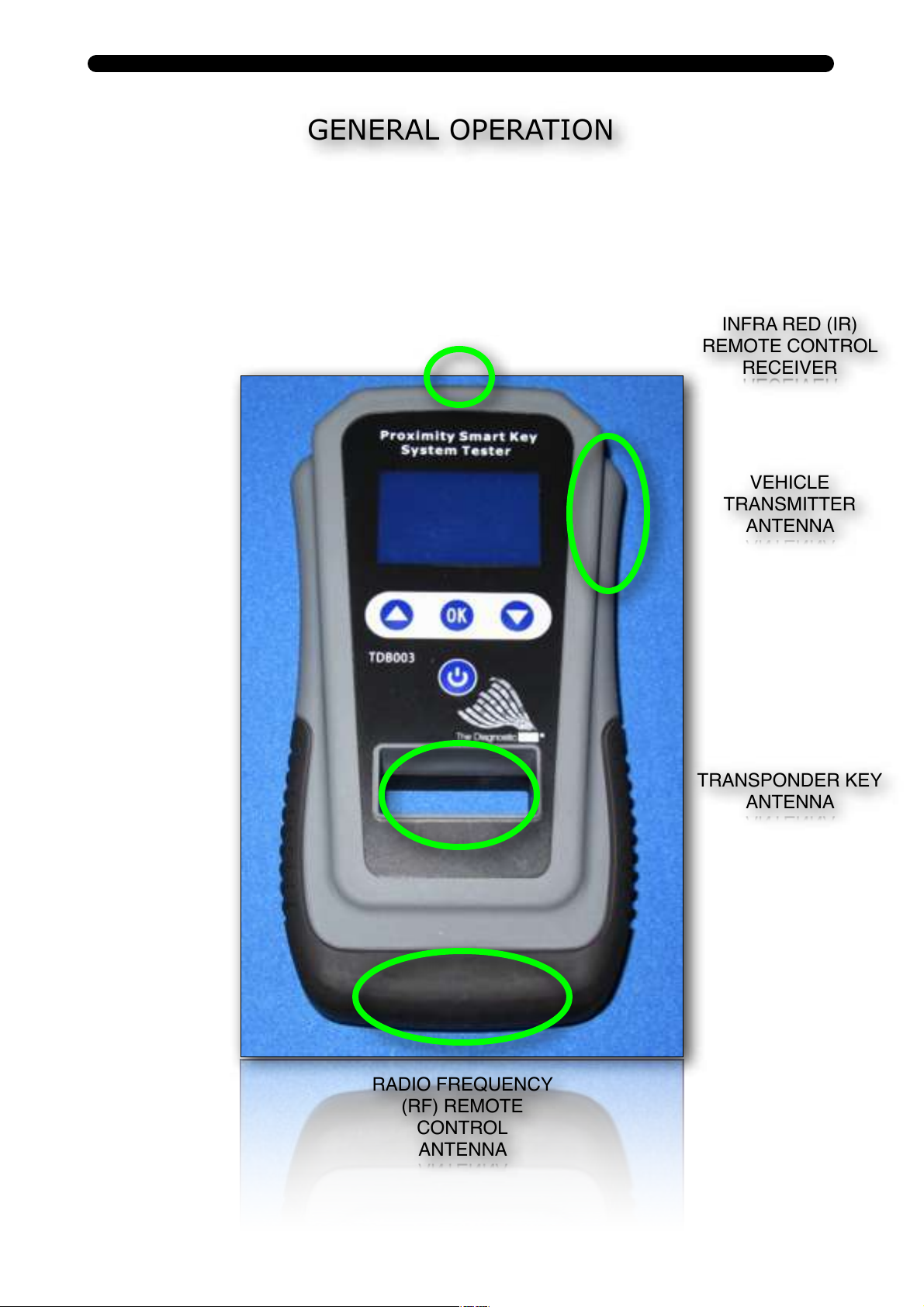

ANTENNA RECEIVING LOCATIONS

GENERAL OPERATION

TDB003!PAGE 8

VERSION 1.6!26/05/2015

VEHICLE

TRANSMITTER

ANTENNA

TRANSPONDER KEY

ANTENNA

RADIO FREQUENCY

(RF) REMOTE

CONTROL

ANTENNA

INFRA RED (IR)

REMOTE CONTROL

RECEIVER

TRANSPONDER KEY TESTING

TDB003!PAGE 9

VERSION 1.6!26/05/2015

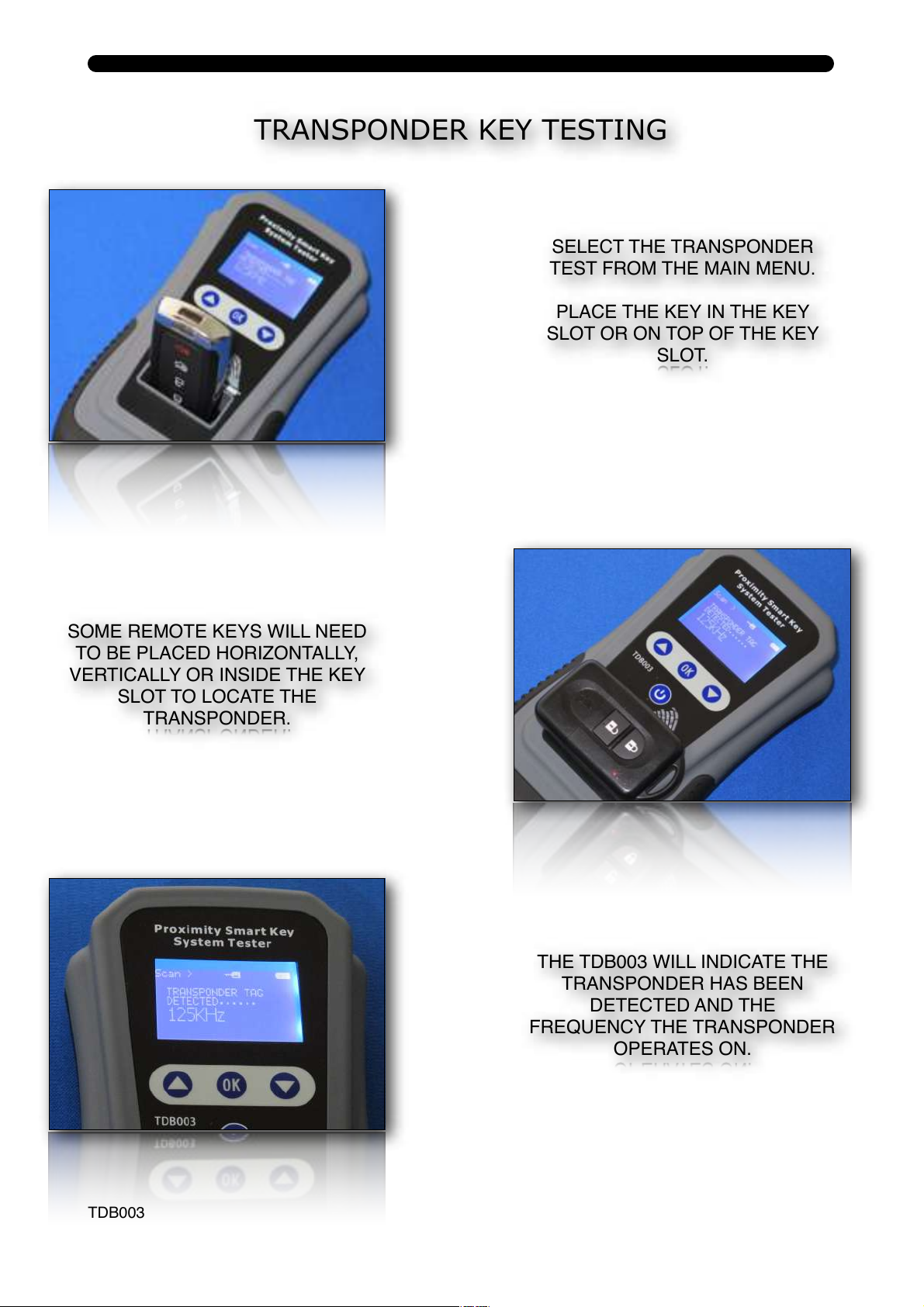

SELECT THE TRANSPONDER

TEST FROM THE MAIN MENU.

PLACE THE KEY IN THE KEY

SLOT OR ON TOP OF THE KEY

SLOT.

SOME REMOTE KEYS WILL NEED

TO BE PLACED HORIZONTALLY,

VERTICALLY OR INSIDE THE KEY

SLOT TO LOCATE THE

TRANSPONDER.

THE TDB003 WILL INDICATE THE

TRANSPONDER HAS BEEN

DETECTED AND THE

FREQUENCY THE TRANSPONDER

OPERATES ON.

TRANSPONDER KEY TESTING

TDB003!PAGE 10

VERSION 1.6!26/05/2015

TRANSPONDER DETECTION CAPABILITY TABLE

PHILIPS PCF7935

MEGAMOS 8E

TEXAS 4D 80-BIT

PHILIPS HI-TAG2,

HI-TAG2 EXTENDED,

HI-TAG2 PRO

TEMIC 11/12/14

TEXAS 128-BIT

PHILIPS HI-TAG3

TEMIC 8C

TEXAS 4D (4E)

CHRYSLER

MEGAMOS 13

TEXAS 4C

CN1 (4C)

MEGAMOS 48,

MEGAMOS 48 CAN

TEXAS 4D 40-BIT

CN2 (4D)

JET C1 (4C)

JMA TPX1 (4C)

KEYLINE TK24 (4C)

JET C2 (4D)

JMA TPX2 (4D)

KEYLINE TK40 (46)

JET C3 (46)

JMA TPX4 (46)

KEYLINE TK60 (46)

SILCA EH3 (4C/4D)

KEYLINE TK100 (4C/

4D/46)
