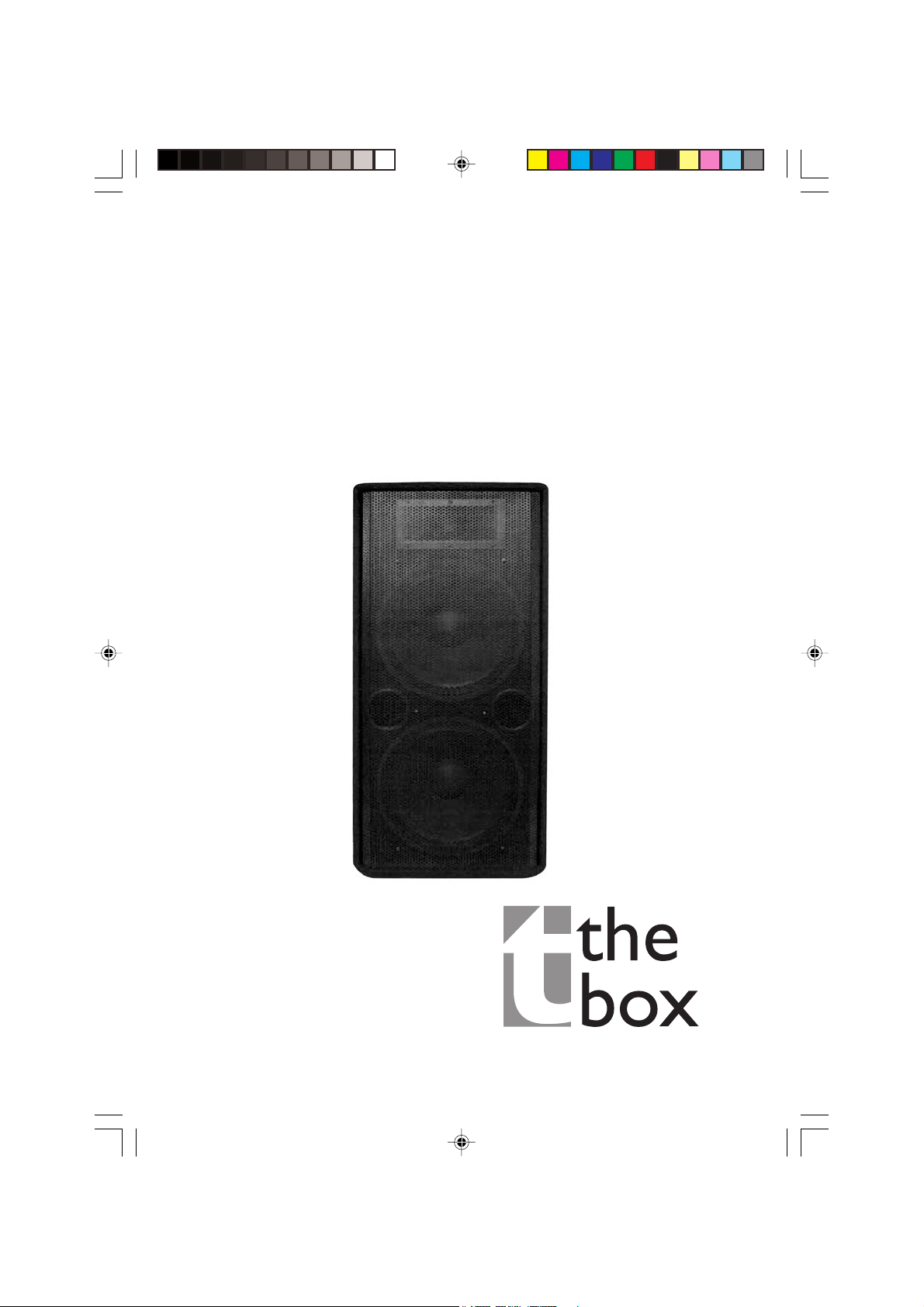

The box PA 252 Manuel utilisateur

PA 252

Professional 900-Watt PA Speaker with 2 x 15" Woofers and

1.75" Titani m-Diaphragm Compression Driver

Users manual

DATA-MANFULL_PA252_ENG_Rev_A.PMD 20.02.2006, 14:301

PA 252

SAFETY INSTRUCTIONS

1) Read these instr ctions.

2) Keep these instr ctions.

3) Heed all warnings.

4) Follow all instr ctions.

5) Do not se this device near water.

6) Clean only with a dry cloth.

7) Be s re to mo nt yo r speakers on a solid, stable and level base or stand. Vibrating

floors do not provide reliable s pport for speaker enclos res or stacks.

8) Do not install near any heat so rces s ch as radiators, heat registers, stoves, or other

apparat s (incl ding amplifiers) that prod ce heat.

9) Only se attachments/accessories specified by the man fact rer.

10) Use only with the cart, stand, tripod, bracket, or table specified by the man fact rer, or

sold with the device. When a cart is sed, se ca tion when moving the cart/device

combination to avoid inj ry from st mbling over it.

11) Refer all servicing to q alified service personnel. Servicing is req ired when the nit

has been damaged in any way, liq id has been spilled or objects have fallen into the device,

the nit has been exposed to rain or moist re, does not operate normally, or has been

dropped.

12) Do not block any ventilation openings. Install in accordance with the man fact rers

instr ctions.

DATA-MANFULL_PA252_ENG_Rev_A.PMD 20.02.2006, 14:302

PA 252

1. CONNECTIONS

Connections

Two ¼ lo dspeaker inp ts are wired in parallel. Yo can alternatively connect one

of the connectors to the o tp t on yo r power amp and tap into the signal from the

amp once again on the second connector, in order to feed this signal into an additional

lo dspeaker.

Two professional speaker inp ts (Ne trik® Speakon®-compatible) are wired in parallel.

The pin designation is pins 1+ and 1-. Yo can alternatively connect one of the

connectors to the o tp t of yo r power amp and tap into the signal from the amp once

again on the second connector, in order to feed this signal into an additional lo dspeaker.

Connector compatible to Neutrik® Speakon®

+ATTENTION: Never connect more than one power amp output to the

loudspeaker system. This may permanently damage your setup.

Speakon is a registered trademark of Neutrik Aktiengesellschaft Corporation.

DATA-MANFULL_PA252_ENG_Rev_A.PMD 20.02.2006, 14:303

PA 252

2. POWER AMP RATING

The power rating of yo r amp sho ld be ro ghly twice the speaker load capacity.

ATTENTION!

+When several loudspeakers are wired in parallel the overall impedance

Zges to e handled y the power amp can e calculated, as shown elow,

from the individual impedance values of the connected speakers:

Your amplifier may e damaged if the actual impedance drops elow its

input impedance. Please make sure that the calculated total impedance

Zges is not smaller than the minimum impedance specified for your amplifier.

3. WIRING

In the following example, the main o tp t signal of a mixing console is connected to a power

amplifier. Both the o tp ts and inp ts are stereo. A PA 252 is connected to each of the amp

o tp ts, and these speakers reprod ce the entire freq ency range (f ll range).

Full-range stereo operation

DATA-MANFULL_PA252_ENG_Rev_A.PMD 20.02.2006, 14:304

PA 252

4. SPECIFICATIONS

6<67(0'$7$ 3$

Type 2-way full-range speaker

Frequency response 45 Hz - 20 kHz

Power rating (Peak program) 900 W

Impedance 4

Sound pressure level (1 W @ 1 m) 98 dB (Full Space)

Dispersion 90° x 40°

Crossover frequency 2.7 kHz

Rigging/fittings 2 x ergonomically shaped handles

&20321(176

HF driver 1.75" Titanium-diaphragm compression driver

Woofer 2 x 15" (385 mm)

',0(16,216:(,*+7

(W x H x D) ca. 21.5" x 43.6" x 19.6"

(545 mm x 1108 mm x 497 mm)

Weight approx. 90.4 lbs. (41.0 kg)

Shipping weight approx. 94.8 lbs. (43.0 kg)

THOMANN MUSIKHAUS is constantl striving to maintain the highest professional standards. As a

result of these efforts, modifications ma be made from time to time to existing products without prior

notice. Specifications and appearance ma differ from those listed or illustrated.

DATA-MANFULL_PA252_ENG_Rev_A.PMD 20.02.2006, 14:305
