Teze 12V100AH Manuel utilisateur
12V100AH
LiFePO4
https://tezepower.com/
(100A BMS)
PRODUCT
MANUAL
Lithium lron Phosphate (LiFePO4)Battery
Originate from TezePower
www.tezepower.com [email protected]m
1
PRODUCT OVERVIEW
BATTERY
Combination: 12.8V100Ah
Dimension: L12.99*W6.77*H8.46 inch
Plastic Shell Color: Black
TERMINAL & POST BOLTS
Terminal Size:
M8 (1.25mm Metric Thread)
Post Bolts:
M8 (1.25mm Metric Thread*16mm Bolt Length)
(The bolts can be replaced with M8 bolts of other lengths based on actual needs.)
GENERAL INFORMATION
Operating Voltage
12.8V
Charging Voltage
14.4±0.2V
Max Continuous Load Power
1280W
Max Continuous Charge/ Discharge Current
100A
www.tezepower.com [email protected]m
2
NOTICE BEFORE USING
Step 1:CONTACT US at service@tezepower.com to activate the FIVE-YEAR WARRANTY

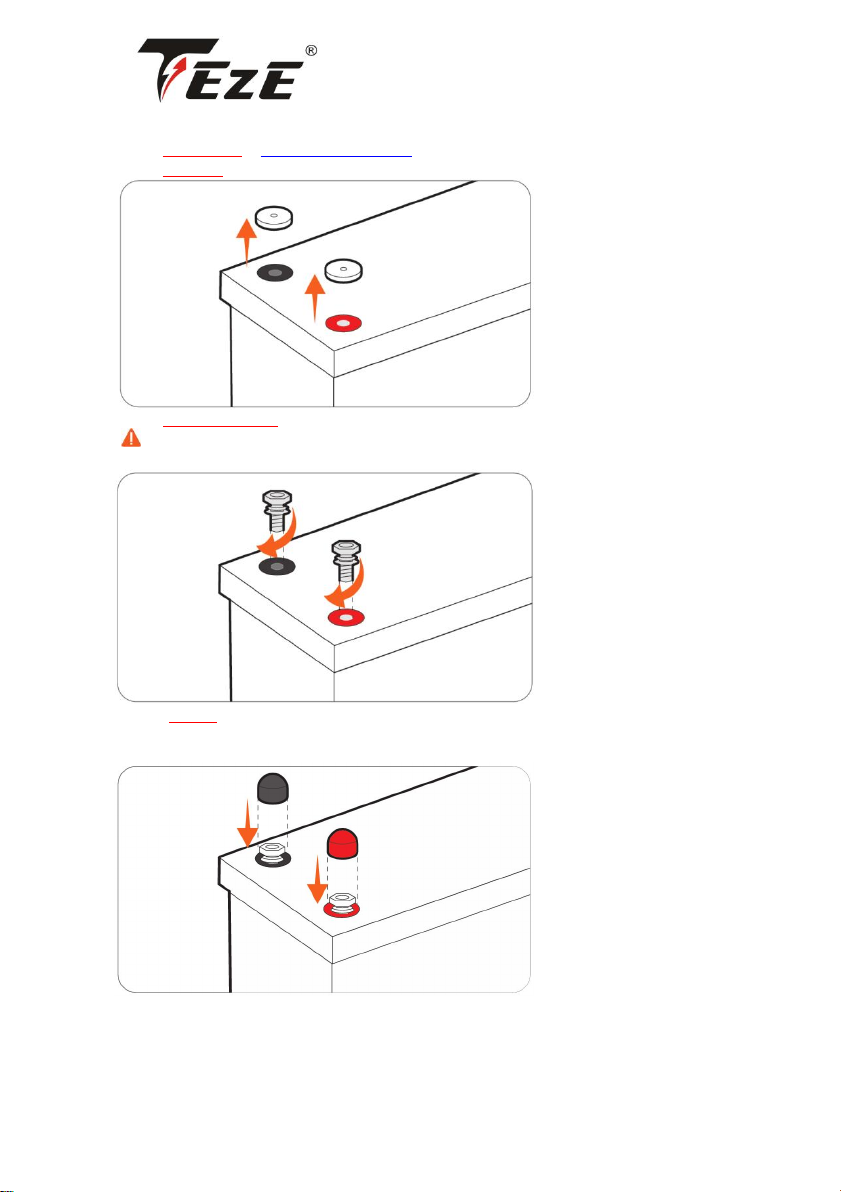

Step 2:PULL OUT Insulating Plugs
Step 3: TIGHTLY SCREW IN Post Bolts
Please tightly screw in the post bolts. Having loose battery terminals will cause the terminals to
build up heat resulting in damage to the battery.
Step 4: PUT ON Insulating Covers
Please put on the insulating covers to avoid metal or conductive objects touching the positive and
negative terminals of the battery at the same time, otherwise it is likely to cause a short circuit.
www.tezepower.com [email protected]m
3

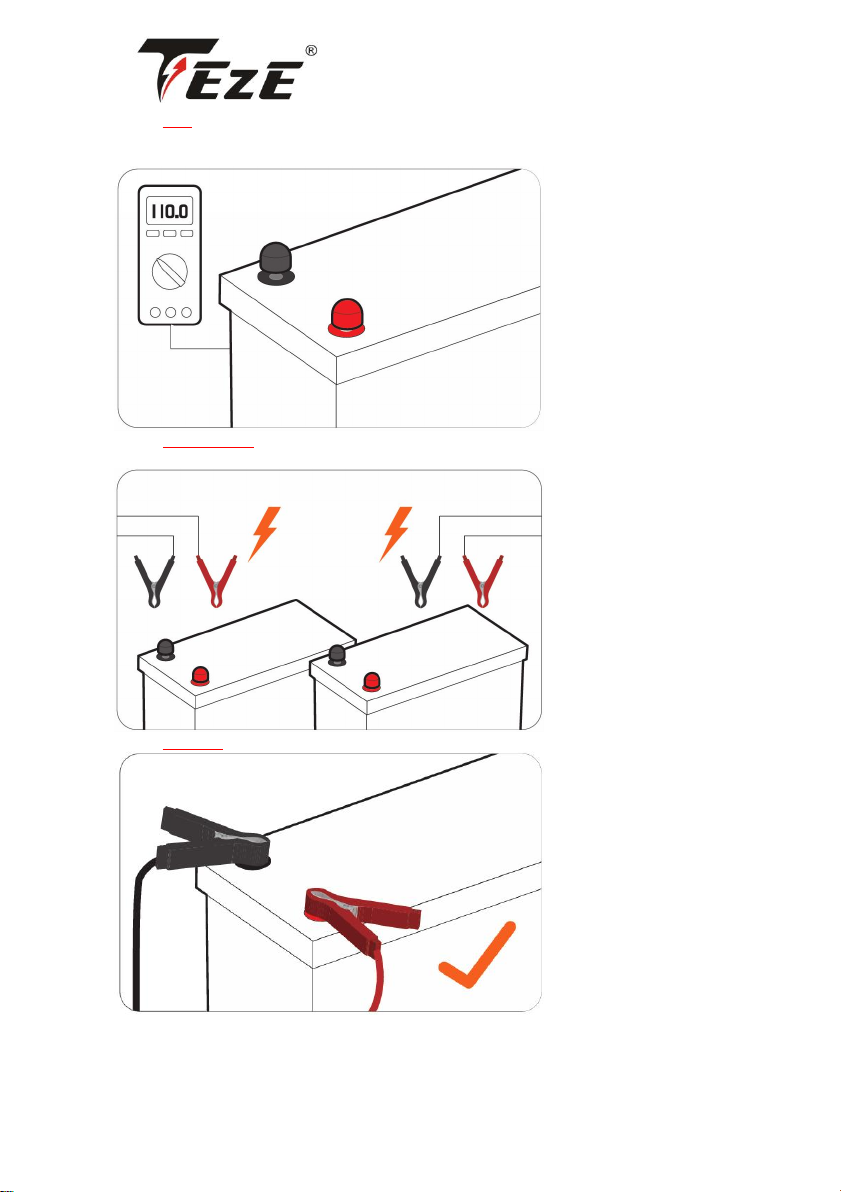

Step 5:TEST The Battery Voltage with Multimeter
≥12V To Step6
<12V Contact us at service@tezepower.com to help solve the problem.
Step 6: FULLY CHARGE The Battery Separately
(Refer to Page 06 for battery charging methods)
Step 7:CONNECT To Use
www.tezepower.com [email protected]m
4
contents
BATTERY- PACK MAIN PARAMETERS ..........................................................................5
APP type battery function ..........................................................................................5
Bluetooth module.......................................................................................................... 6
Self -heating module(Optional Features).......................................................................8
Active equilibrium module.............................................................................................8
THINGS TO KNOW BEFORE USING ............................................................................. 8
CHARGING METHODS ..............................................................................................9
THE VOLTAGE WHEN CHARGING & DISCHARGING....................................................... 9
Battery Charging Logic................................................................................................. 10
LiFePO4 Battery Charging Mode .................................................................................... 10
SOLAR PANEL(S) & CONTROLLER................................................................................. 10
Solar Panel .....................................................................................................................10
Controller .......................................................................................................................10
Controller Settings ......................................................................................................... 11
BATTERY CHARGER.......................................................................................................11
ALTERNATOR/GENERATOR.......................................................................................... 11
HOW TO ESTIMATE THE BATTERY CAPACITY ............................................................ 12
STATE OF CHARGE (SOC)..............................................................................................12
SERIES/PARALLEL CONNECTION ............................................................................... 13
THE PREMISE OF CONNECTION................................................................................... 13
LIMITATION FOR SERIES/PARALLEL CONNECTION...................................................... 13
HOW TO CONNECT BATTERIES.................................................................................... 13
Accessory Recommendation ...........................................................................................13
Step 1 Wear Insulating Gloves ....................................................................................... 14
Step 2 Voltage Balancing Before Connection ................................................................. 14
Step 3 Battery-to-Battery Connection ............................................................................ 15
Step 4 Rebalancing Every 6 Months ............................................................................... 16
Wiring Diagrams ............................................................................................................17
INVERTER SETTINGS ................................................................................................ 19
WHAT TO DO WHEN THE BATTERY STOPS WORKING? ..............................................20
ATTENTION ..............................................................................................................21
WARNING ................................................................................................................21
www.tezepower.com [email protected]m
5
BATTERY-PACK MAIN PARAMETERS
Cell
Prismatic LiFePO4 Battery
Nominal Capacity
100Ah
Usable Capacity
100Ah
Nominal Voltage
12.8V
Energy
1280Wh
Charge Method
CC/CV
Charge Voltage
14.4V±0.2V
Recommend Charge Current
20A(0.2C)
Battery Management System (BMS) Board
100A
Max. Continuous Charge / Discharge Current
100A
Max. Discharge Current 5 Seconds
280A
Max. Continuous Load Power
1280W
Cycle Life
≥4000 times
Internal Impedance
≤40mΩ
Battery Pack Case
Acrylonitrile Butadiene Styrene (ABS) Plastic
Protection Class
IP65
Weight
22.7lb/10.3kg
Dimension
L12.99*W6.77*H8.46 inch
L330*W172*H215 mm
Temperature Range
Normal-Charge:0C to 50℃/32°F to 122°F
Normal-Discharge:-20℃to 60℃/-4°F to 140°F
Self-Heating Charge: -20℃～50℃/-4℉-122℉
Self-Heating Discharge: -20℃～60℃/-4℉-140℉
Storage:-10℃to 50℃/14F to 122°F
www.tezepower.com [email protected]m
6
APP Type Battery Function
Bluetooth Module (Optional Features)
How to download “Smart BMS” APP
Android:
1. Redirect to download: https://www.dalyelec.cn/daly/SMART_BMS.apk .
2. Redirect to download: https://www.appgallery.huawei.com/#/app/C102450269 .
3. Scan the QR code download below:
Apple:
1. Redirect to download: http://apps.apple.com/cn/app/smart-bms/id1519968339 .
2. Search and Download ‘Smart BMS’ APP in Apple Store.
3. Scan the QR code download below:
Smart APP instruction
1. Once you download “Smart BMS” APP, make sure the Bluetooth in function.
2. Be sure the battery has been activated or follow the included product instruction to activate the
battery.
3. Click “Smart BMS” APP icon to launch.
4. You can see related Bluetooth series number on the APP interface.
5. Click the Bluetooth series number, direct to an interface with real time parameters of voltage,
current, capacity etc.
6. Entering the parameter interface, you will see 5 blocks, including protection, cell, acquisition,
temperature and charge/discharge control.
7. To get stable date, non-professional not recommended to make these setting.
8. Professionals need to use initial password 123456 to set up.
www.tezepower.com [email protected]m
8
Self-heating Module(Optional Features)
Heating power: Use the charger/battery itself to heat. heating
Logic: Connect the charger.
A. When the ambient temperature is detected to be lower than the set temperature (the customer
provides the temperature value), the heating is started and the charge and discharge are
disconnected
B. When the ambient temperature is detected higher than the set temperature (the customer
provides the temperature value), the heating is disconnected and can be charged and discharged
Heating module: Use a separate heating module. It is used separately from the protective plate, but
the heating is controlled by the protective plate.
Active Equilibrium Module
qualification
Data specification
Balance current
0.5~1A
Balance mode
Active equilibrium
Balance on condition
Reach the user-defined opening voltage and
differential pressure
Minimum voltage of single unit ≥ 3.2V (factory
default) and equalizing opening differential
pressure: ≥50mV (factory default)
Balance closing condition
Closing voltage and differential pressure
reaching the user-defined setting
Minimum voltage of single unit ＜3.2V (factory
default) and equalizing differential pressure: ＜
50mV (factory default)
Working power consumption
<11mA
Sleep current
300uA
working temperature
-20℃～60℃
Data Monitoring
Bluetooth APP
THINGS TO KNOW BEFORE USING
Always put on the insulating covers on the post bolts to avoid metal or conductive objects
touching the positive and negative terminals of the battery at the same time, otherwise it is
likely to cause a short circuit.
Install the battery upright with post bolt facing up, and it could not be mounted upside
down. If you need to mount the battery at its side, please contact service@tezepower.com to
confirm the direction.
Tightly screw in the post bolts. Having loose battery terminals will cause the terminals to
build up heat resulting in damage to the battery.
This battery is not intended to be used to start any devices, please DO NOT use it as a
starting battery.
