WARNING: If incorrectly used this machine can cause severe injury. Those who use

and maintain this machine should be trained in its proper use, warned of its dangers

and should read the entire manual before attempting to set up, operate, adjust or

service the machine.

OWNER/OPERATOR’S MANUAL

& ILLUSTRATED PARTS LIST

09-164 REV B

MODEL:

73-70632 LAWN SWEEPER LS340

CALIFORNIA

Proposition 65 Warning

Diesel engine exhaust and some of

its constituents are known to the State

of California to cause cancer, birth

defects and other reproductive harm.

Californie Proposition 65

Avertissement

Les échappements des moteurs diesel

et certains de leurs composés sont

reconnus par l’Etat de Californie pour

être cancérigènes, provoquer des

défauts congénitaux et d’autres dangers

en matière de reproduction.

ADVERTENCIA

AVERTISSEMENT

WARNING

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

California Advertencia

de la Proposicion 65

El estado de California hace saber que

los gases de escape de los motores

diesel y algunos de sus componentes

producen cáncer, defectos de

nacimiento y otros daños en el

proceso de reproducción humana.

L’

mission du moteur de ce mat

riel

contient des produits chimiques que

l’Etat de Californie consid

tre

canc

rig

nes, provoquer des d

fauts

cong

nitaux et d’autres dangers en

mati

re de reproduction.

El estado de California hace saber

que los gases de escape de este

producto contienen productos

quÍmicos que producen cáncer,

defectos de nacimiento y otros daños

en el proceso de reproducción

humana.

LAWN

SWEEPER

IMPORTANT MESSAGE

Thank you for purchasing this Jacobsen product. You have purchased a world class product, one of the best

designed and built anywhere.

This product comes with an Owner/Operator's Manual. The useful life and good service you receive from this

product depends to a large extent on how well you read and understand this manual. Treat this product properly

and adjust it as instructed, and it will give you many years of reliable service.

See a Jacobsen dealer for any service or parts needed. Jacobsen service ensures that you continue to receive

the best results possible from Jacobsen products. You can trust Jacobsen replacement parts because they are

manufactured with the same high precision and quality as the original parts.

Jacobsen designs and builds its equipment to serve many years in a safe and productive manner. For longest

life, use this product only as directed in the manual, keep it in good repair and follow safety warnings and

instructions. You'll always be glad you did.

Jacobsen, a Textron Company

One Bob Cat Lane

Johnson Creek, WI 53038-0469

2-2005

TABLE OF CONTENTS FIGURES PAGE

INTRODUCTION / SPECIFICATIONS ........................................................................................................... 2

SAFETY ..................................................................................................................................................... 3, 4

OPERATION / SERVICE ................................................................................................................................ 5

MAIN PARTS...................................................... FIGURE 1 ..................................................................... 6, 7

BRUSH PARTS .................................................. FIGURE 2 ..................................................................... 8, 9

LAWN

SWEEPER

INTRODUCTION / SPECIFICATIONS

SPECIFICATIONS

Overall Width ............................................................................... 62"

Overall Height .............................................................................. 52"

Overall Length to Hitch ................................................................ 66"

Width of Pick Up .......................................................................... 40"

Brush............................................................................................ 3 paddle, staggered

Depth Wheels .............................................................................. Semi-pneumatic

Hitch ............................................................................................. Right, left or center pull adjustment

Carrying Capacity ........................................................................ 24 cu. ft.

Weight .......................................................................................... 530 lbs.

DESCRIPTION

The Lawn Sweeper is designed to give a “clean sweep” in your lawn sweeping operations. The unit is

ground-driven so it can be pulled by any lawn and garden tractor. It can be used to trail behind with offset

hitch while mowing, or regular hitch to clean-up after you’ve finished mowing. The packing action allows

you to put much more material into the unit before it is necessary to unload.

There is a transport position for the sweeper and clutch levers on each wheel to disengage the wheel

clutches.

LAWN

SWEEPER

SAFETY

NOTICE !!!

Unauthorized modifications may present extreme

safety hazards to operators and bystanders and

could also result in product damage.

Jacobsen, a Textron Company strongly warns

against, rejects and disclaims any modifications,

add-on accessories or product alterations that are

not designed, developed, tested and approved by

Jacobsen Engineering Department. Any Jacobsen

product that is altered, modified or changed in any

manner not specifically authorized after original

manufacture–including the addition of “after-market”

accessories or component parts not specifically

approved by Jacobsen–will result in the Jacobsen

Warranty being voided.

Any and all liability for personal injury and/or property

damage caused by any unauthorized modifications,

add-on accessories or products not approved by

Jacobsen will be considered the responsibility of

the individual(s) or company designing and/or

making such changes. Jacobsen will vigorously

pursue full indemnification and costs from any party

responsible for such unauthorized post-manufacture

modifications and/or accessories should personal

injury and/or property damage result.

This symbol means:

ATTENTION!

BECOME ALERT!

Your safety and the safety of others is involved.

Signal word definitions:

The signal words below are used to identify levels

of hazard seriousness. These words appear in this

manual and on the safety labels attached to

Jacobsen machines. For your safety and the safety

of others, read and follow the information given with

these signal words and/or the symbol shown above.

DANGER indicates an imminently hazardous

situation which, if not avoided, WILL result in death

or serious injury.

WARNING indicates a potentially hazardous

situation which, if not avoided, COULD result in

death or serious injury.

CAUTION indicates a potentially hazardous

situation which, if not avoided, MAY result in minor

or moderate injury. It may also be used to alert

against unsafe practices or property damage.

CAUTION used without the safety alert symbol

indicates a potentially hazardous situation which, if

not avoided, MAY result in property damage

MODEL NUMBER: This number appears on

sales literature, technical manuals and price

lists.

SERIAL NUMBER: This number appears only

on your mower. It contains the model number

followed consecutively by the serial number.

Use this number when ordering parts or seeking

warranty information.

LAWN

SWEEPER

SAFETY

GENERAL SAFETY

• Read and understand the owner’s manual,

before attempting to operate this machine.

• Operate all controls from the operator’s

seat, (if so equipped). NO RIDERS.

• Keep all shields in place and safety

switches adjusted properly.

• Do not leave equipment unattended. STOP

the engine and remove the key (if so

equipped).

• Do not allow minors or the inexperienced to

operate this machine.

• Never allow anyone to operate or service

this machine while under the influence of

alcohol or drugs.

• Keep people and pets a safe distance away

from machines using power driven

attachments. Injury could result from flying

debris.

• Wear all the necessary protective clothing

and personal safety devices to protect your

head, eyes, ears, hands, and feet.

• Operate the machine only in daylight or in

good artificial light.

OPERATING SAFETY

1. Remove large objects or debris from the path of

the lawn sweeper.

2. Before leaving the tractor seat to clear

blockage, service or make adjustments:

1. Set PARKING brake.

2. Stop Engine.

3. Disengage clutches and raise broom to

transport position before transporting at high

speed.

LAWN

SWEEPER

OPERATION / SERVICE

OPERATING INSTRUCTIONS

1. Determine hitch position for offset or straight pull position.

2. Transport to clean-up site with the clutches disengaged and sweeper in transport position.

3. Lower the sweeper housing and adjust sweeper height on right side of sweeper housing by choosing

the pin location to regulate gauge wheel height.

NOTE: Operation is best when the sweeper is approximately 1/2" below the tips of the grass, but does

not “scrub” the lawn.

4. Adjust the float springs allowing the sweeper to “float” over rough areas or high spots in the lawn.

5. Engage clutches on both wheels by rotating the lever approximately 180 degrees.

6. When sweeping leaves - the best results are obtained by sweeping several times during the leaf fall

rather than waiting until there is a large accumulation. A large accumulation will require several passes

to make a clean sweep. MAXIMUM SPEED IS 10 M.P.H.

7. Open rear door to unload.

8. To transport: Always disengage wheel clutches and raise sweeper housing. DO NOT TRAVEL AT

HIGH SPEEDS WITH CLUTCHES ENGAGED! MAXIMUM SPEED IS 10 M.P.H.

NOTE: To disengage both wheels rotate each lever approximately 180 deg. You can feel a high spot

when it is disengaged.

Do not travel at high speeds with clutches

engaged. MAXIMUM SPEED IS 10 M.P.H.

Disengage clutches for transport. MAXIMUM

SPEED IS 10 M.P.H.

MAINTENANCE

Daily

Visually check chain drive - it should not run “dry”.

Lube with chain lube or 30W oil

Weekly or 50 Hours

Grease all bearings and wheels.

Check tire pressure (12 lbs.)

LAWN

SWEEPER

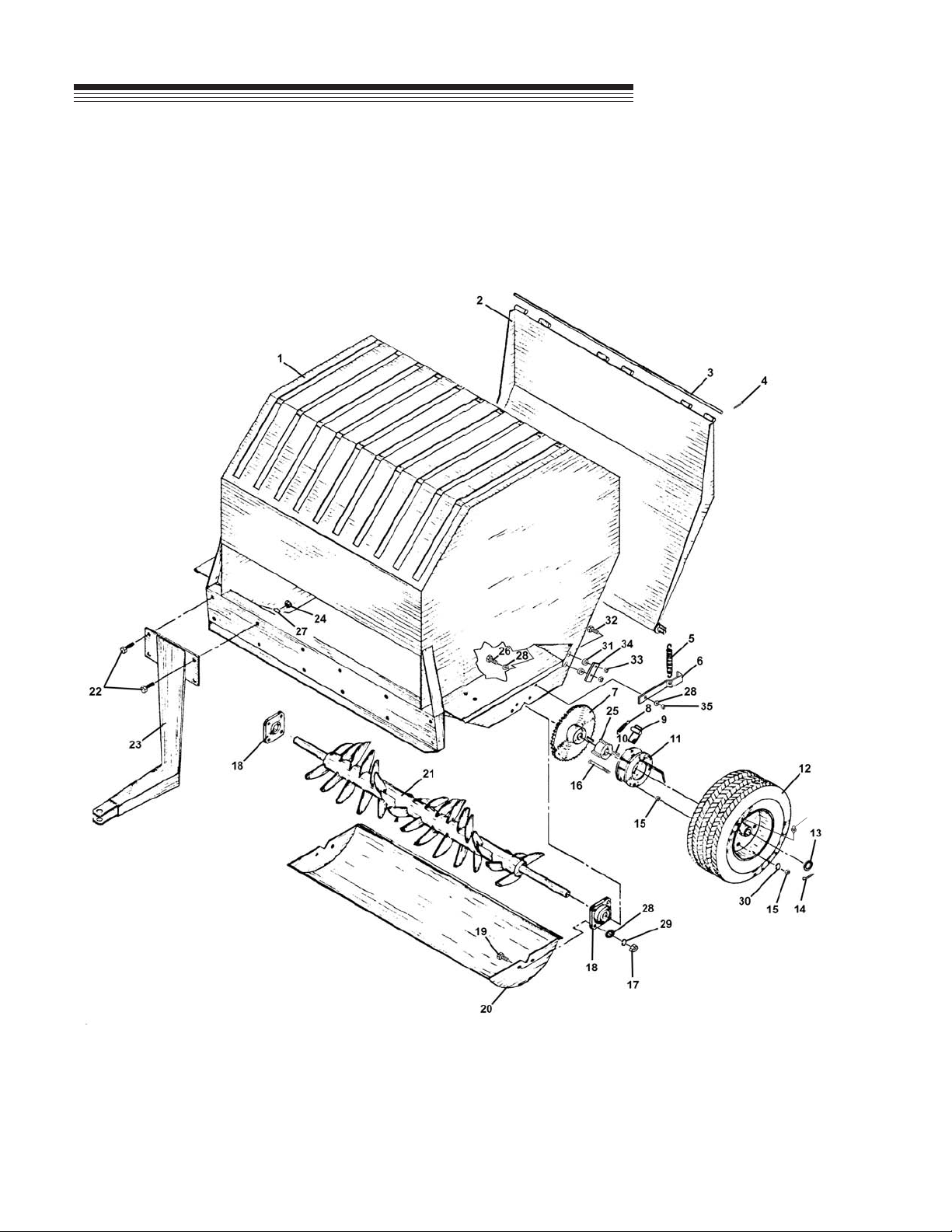

MAIN PARTS

FIGURE 1

LAWN

SWEEPER

ITEM PART NO. DESCRIPTION QTY ITEM PART NO. DESCRIPTION QTY

MAIN PARTS

FIGURE 1

1-1 62-602.7 MAIN FRAME, LS340 1

1-2 60-187.7 DOOR 1

1-3 42-205.7 HINGE ROD 1

1-4 64140-1 COTTER PIN-1/8X1 2

1-5 41-010 SPRING 2

1-6 40-114.7 LATCH-RIGHT 1

40-115.7 LATCH-LEFT 1

1-7 83-407016 SPROCKET 1

1-8 41-013 SPRING 2

1-9 86-020.7 CLUTCH PAWL-RIGHT 1

86-021.7 CLUTCH PAWL-LEFT 1

1-10 64164-10 1/4X1/4X1-1/4 MACH KEY 3

1-11 86-043.7 CLUTCH 2

1-12 50-030 WHL & TIRE ASSY 2

53-089 TIRE-16X7.50X8 1

50-101 RIM 1

55-IB-1 BEARING 1

* 29-053 GREASE FITTING, 1/4-28 2

1-13 64163-84 WASHER-1.015 X 1.75 X.125 7

1-14 02-CP0612 COTTER PIN, 3/16 X 1-1/2 2

1-15 64025-02 NUT-HEX 5/16-18 12

1-16 64123-66 BLT-HEX 5/16-18X3-1/2 6

1-17 64025-05 NUT-3/8-16 HEX 8

1-18 55-FB22016 BEARING 2

1-19 64123-16 BLT-HEX 3/8-16X1-1/4 8

1-20 60-188.7 BOTTOM PAN 1

1-21 80-124.7 PACKER ROTOR 1

1-22 64123-39 BOLT-HEX 1/2-13X1-1/4 4

1-23 62-357.7 HITCH 1

1-24 64025-09 HEX, NUT 1/2-13 4

1-25 86-044 HUB-CLUTCH DRIVE 2

1-26 64123-50 BOLT-HEX 3/8-16X1 2

1-27 64006-05 LOCKWSHR-HELICAL 1/2 4

1-28 64163-61 WSHR .81X.406X16GA 12

1-29 64006-03 LOCKWASHER-3/8 HEL 8

1-30 64006-02 LOCKWASHER-5/16 HEL 6

1-31 85-SC06 SET COLLAR-3/8 4

(AFTER SN 1097)

1-32 99-K02 BOLT, FLANGE 5/16-18 X 1 4

(AFTER SN 1097)

1-33 64141-6 NUT, 5/16-18 4

(AFTER SN 1097)

1-34 64-535 STOP-ADJUSTABLE LATCH 2

(AFTER SN 1097)

1-35 64229-03 LOCKNUT-NYLON 3/8-16 2

1-36 M0005 GREASE FITTING 2

LAWN

SWEEPER

BRUSH PARTS

FIGURE 2

Ce manuel convient aux modèles suivants

Autres manuels Textron Balayeuse à gazon

Textron

Textron Ransomes Pathway 1200 Mode d’emploi

Manuels Balayeuse à gazon populaires d'autres marques

Starmix

Starmix StarSweep 65 Manuel utilisateur

HAKO

HAKO Hako-Profi-Flipper Manuel utilisateur

RedMax

RedMax RMSZ2500 Manuel du propriétaire

Black & Decker

Black & Decker GWC1800L Manuel utilisateur

Sanitaire

Sanitaire SC6093A Manuel utilisateur

Zenoah

Zenoah RMSZ2601 Manuel utilisateur

Craftsman

Craftsman 486.242231 Manuel utilisateur

YARD Commander

YARD Commander SP31128 Manuel utilisateur

Agri-Fab

Agri-Fab 45-0570 Manuel utilisateur

FLORABEST

FLORABEST FKM 2400 A1 Manuel utilisateur

Craftsman

Craftsman 486.24212 Manuel utilisateur

Kärcher

Kärcher KM 120 Manuel utilisateur

Agri-Fab

Agri-Fab 26" Leaf/Lawnsweeper 45-02181 Manuel utilisateur

Nordic

Nordic WS-L0118 Manuel utilisateur

Smithco

Smithco 72-000-A Manuel utilisateur

Parker

Parker Suburbanite 895803 Manuel utilisateur

Agri-Fab

Agri-Fab 45-0290 Manuel utilisateur

Agri-Fab

Agri-Fab 26" Leaf/Lawnsweeper 45-02181 Manuel utilisateur
