Textron BROUWER TR130 Guide de configuration

TURF ROLLER

Model TR130

Starting Serial No. 1001

Owner / Operator's Manual

and

Illustrated Parts List

Form # 350019

289 N. Kurzen Rd., PO Box 504, Dalton, OH 44618

Tel. (330) 828-0200 Fax. (330) 828-1008

Date of Purchase: Month ________________Day____________________Year _______________

Dealer Name _________________________Phone__________________

Serial Number ________________________

Model Number ________________________

ALWAYS GIVE MODEL AND SERIAL NUMBER WHEN ORDERING SERVICE PARTS

TABLE OF CONTENTS

INTRODUCTION SECTION 1 page

Specifications ...........................................................................................1-1

Description ...............................................................................................1-1

SAFETY SECTION 2

General Safety .........................................................................................2-1

Operator Safety........................................................................................2-1

PRE-START INSTRUCTIONS SECTION 3

Starting Instructions..................................................................................3-1

Specifications for Fuels and Oils..............................................................3-2

OPERATION SECTION 4

Controls....................................................................................................4-1

Operating Precautions..............................................................................4-1

Freewheel Control....................................................................................4-2

SERVICE SECTION 5

Service Schedule .....................................................................................5-1

PARTS SECTION 6

Figure 1 - Engine and Drive Parts............................................................6-1

Figure 2 - Hydrostatic Drive Parts ............................................................6-3

Figure 3 - Front Roller Parts.....................................................................6-5

Figure 4 - Sprocket Assembly Parts.........................................................6-7

Figure 5 - Decals......................................................................................6-9

WARRANTY....................................................................................last page

Form # 350019 rev 8/96

rev 8/96 1 - 1350019

INTRODUCTION section 1

DESCRIPTION

The Turf Roller TR130 is the compact roller that is

easy to operate and transport - to get that rolling job

done quickly. It has the dual fill / drain plugs and

special rounded-edge design roller to prevent turf

damage and a large rear support roller.

SPECIFICATIONS

Model TR130 Turf Roller

Dimensions:

Overall length _______51 in. (130 cm)

Overall width _______33-1/2 in. (85 cm)

Overall height _______40 in. (102 cm)

Weight__________Empty 425 lbs.

(193.kg) Loaded 840 lbs.

(381 kg)

Drum Size ________24 in. diameter (61

cm) 30 in. wide (76 cm)

Engine:

Honda __________5-1/2 HP

Drive Train:

Speed __________0 - 4.2 MPH

Transmission _______Hydrostatic

350019 2 - 1rev 8/96

ATTENTION: This symbol

identifies potential health

and safety hazards. It

marks safety precautions.

ATTENTION: Your safety

and the safety of others is

involved.

•Read and understand the owner's manual,

before attempting to operate this machine.

•Operate all controls from the operator's seat,

(if so equipped). NO RIDERS.

•Keep all shields in place and safety switches

adjusted properly.

•Do not leave equipment unattended. STOP

the engine and remove the key (if so

equipped).

•Do not allow minors or the inexperienced to

operate this machine.

•Keep people and pets a safe distance away

from machines using power driven

attachments. Injury could result from flying

debris.

OPERATING SAFETY

CAUTION

SAFETY section 2

SIGNAL WORD DEFINITIONS

Indicates an imminently hazardous situation which, if not avoided, will result in

death or serious injury. This signal word is limited to the most extreme cases.

Indicates a potentially hazardous situation which, if not avoided, could result in

death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in

minor or moderate injury and/or property damage. It may also be used to alert

against unsafe practices.

GENERAL SAFETY

BE ALERT!

•Do not run engine at excessive speeds.

•Do not operate the turf roller unless the chain

and engine guards are securely in place.

•Tomaintaincontrol of themachine,use onlya

lowspeedwhile walkingbeside theturf roller.

•Exercise caution when operating across the

side of a hill. If the hill is too steep (20 degree

incline or more), the machine may tip over

causing personal injury and machine dam-

age. Always walk on the up--hill side of the

turfroller whenoperating onthesideofa hill.

•To prevent accidental movement of the ma-

chine, turn the engine off.

•When parking or unattended -- turn the en-

gine off to prevent movement of the roller.

rev 7/01 3 - 1350019

PRE-START INSTRUCTIONS section 3

BEFORE STARTING:

1. READ SAFETY DECALS

2. Check engine and hydrostatic transmission oil

levels.

3.Visually checkfor looseor missingpartsorbolts.

4. Fill with clean fuel.

STARTING INSTRUCTIONS:

1. Turn the fuel valve to the ON position.

2. Move the choke lever to the CLOSE position.

NOTE: The choke may not be needed if the en-

gine is warm.

3. Move the throttle lever slightly to the left.

4. Turn the engine switch to the ON position.

5. Pull the recoil starter grip lightly until resistance

is felt, then pull briskly. NOTE: Do not allow the

starter grip to snap back against the engine.

6. As the engine warms up, gradually move the

choke lever to the OPEN position.

7. Position throttle for the desired engine speed.

NEVER USE ETHER AS A STARTING AID, OR

SEVERE DAMAGE TO ENGINE MAY OCCUR.

NEVER FILL FUEL TANK WITH ENGINE

RUNNING!

SPECIFICATIONS FOR FUELS AND OILS

ENGINE OIL

Fill the crankcase with oil that meets API service

designation SF, SF/CC, or SF/CD. Do not mix brands

or grades of oil. Recommended weight for general all

temperature use is:

SAE 10W-30 or SAE 10W-40

FUEL

Use clean, fresh, regular or unleaded fuel. Use of

unleaded fuel results in less maintenance.

HYDRAULIC OIL

Fill hydrostatic transmission reservoir to the safe

level with approved hydraulic oil. Use only Steiner

Trans--Hydraulic Oil or SAE 30 engine oil. Do not use

automatic transmission fluid, multi-grade motor oil, or

any other type of hydraulic oil.

USE ONLY STEINER TRANS--HYDRAULIC OIL OR

SAE 30 ENGINE OIL. THE USE OF ANY OTHER OIL

MAY VOID WARRANTY AND IS NOT

RECOMMENDED.

350019 4 - 1rev 8/96

OPERATION section 4

Operating Instructions

ENGINE

The Brouwer Turf Roller is equipped with a 5--1/2 HP

engine.

Complete details and operation instructions can be

found in the engine manufacturer's manual.

LOCATION OF CONTROLS

The hydrostatic drive control is located on the left

side of the steering column.

The freewheel control crank is located on the front of

the hydrostatic air duct.

STARTING THE ENGINE

For complete engine starting and stopping

procedures, see the engine manual.

Always start the engine with

the hydrostatic drive lever in

neutral. Failure to observe this precaution could

result in serious personal injury and/or machine

damage.

CONTROL OPERATIONS

Hydrostatic drive control:

This control governs the travel direction (forward or

reverse) and travel speed of your turf roller. (See

Drawing 1)

To move forward, move lever to the left from neutral.

The further the lever is moved, the faster the forward

travel speed.

To reverse, move the lever to the right from neutral.

The further the lever is moved, the faster the reverse

travel speed.

When the engine is running

and the control lever is in

neutral, the machine can roll if left unattended.

Personal injury or machine damage may result.

Always use a slow steady movement when moving

the control lever from neutral to forward or reverse

so that the machine will not leap forward or reverse

-- not only for the safety of the operator, but also to

prevent damage to the machine.

Abrupt movement of the hydrostatic control lever can

cause the rear roller to lift. Shift slowly to avoid

injury.

Drawing 1 - Forward - Reverse Control

rev 8/96 4 - 2350019

OPERATION section 4

ENGINE SPEED CONTROL

This control is located on the engine. Set engine

speed between 2/3 and full throttle as desired. For

operation, see the engine manual.

Running engine at low throttle

settings could cause

hydrostatic transmission damage due to

inadequate cooling air flow.

FREEWHEEL CONTROL

The freewheel control allows the turf roller to be

moved by external means when the engine has

been shut off. Release the crank lock and turn the

freewheel control crank clockwise to engage the

freewheel and turn counter clockwise to disengage

the freewheel. Re--lock the control crank with the

crank lock. (See Drawing 2)

Do not activate the freewheel

control when the turf roller is

stopped on an incline or when the engine is

running.

Drawing 2 - Freewheel Control

350019 5 - 1rev 7/01

SERVICE section 5

PERIODIC MAINTENANCE

Check the hydrostatic drive oil level daily. Make sure the oil is at the correct

level for hot or cold. Markings for hot or cold levels are located on the breather

level indicator.

Tofilltheexpansion tank,unscrewthereservoir breather cap.Afterfilling to the

correct level, replace the cap. If additional oil is required, use only Steiner

Trans--Hydraulic Oil or SAE 30 engine oil. Do not use automatic transmission

fluid, multi-grade motor oil, or any other type of hydraulic oil.

Change hydraulic oil annually.

Grease the turf rollers with Lithium--based grease every 50 hours or monthly

(whichever occurs first). (See lubrication chart below)

DO NOT GREASE CHAINS. Lubricate chains with SAE 10W-30 motor oil

every 30 hours or weekly (whichever occurs first).

Change engine oil every 100 hours of operation or bi-monthly, whichever

occurs first. Use SAE 10W-30 or SAE 10W-40 with API service designation of

SF, SF/CC, or SF/CD.

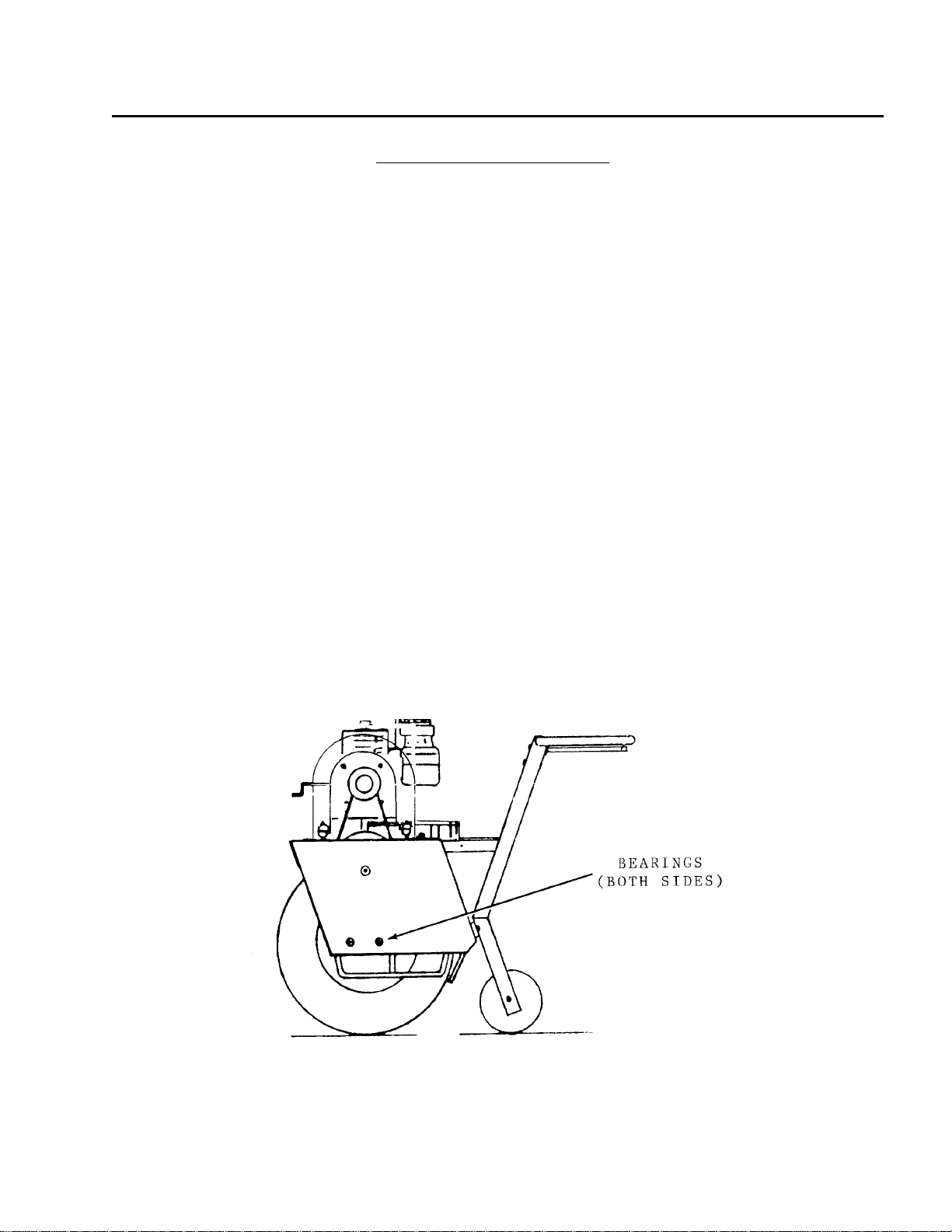

Drawing 3 - Lubrication Chart

rev 10/00 6 - 1350019

PARTS section 6

Engine and Drive

Parts

Figure 1

Table des matières

Autres manuels Textron Matériel de construction

Textron

Textron GREENLEE 884 Manuel utilisateur

Textron

Textron GREENLEE 766 M5 Manuel utilisateur

Textron

Textron GREENLEE GVIS 300 Manuel utilisateur

Textron

Textron Greenlee 882 Manuel utilisateur

Textron

Textron GREENLEE UT4 Manuel utilisateur

Textron

Textron GREENLEE IntelliBENDER 855GX Manuel utilisateur

Textron

Textron GreenLee 555 Series Manuel utilisateur

Textron

Textron Greenlee 1818 Manuel utilisateur

Textron

Textron Greenlee ALUMINUM SITE-RITE Series Manuel utilisateur

Textron

Textron GREENLEE 854 Manuel utilisateur

Textron

Textron JACOBSEN TH300 Guide de configuration

Textron

Textron Greenlee ALUMINUM SITE-RITE 840A Manuel utilisateur

Textron

Textron Greenlee HPB55 Series Manuel utilisateur

Textron

Textron Greenlee 854DX Manuel utilisateur

Textron

Textron 555C Manuel utilisateur

Textron

Textron Greenlee Quad Bender 853 Manuel utilisateur

Manuels Matériel de construction populaires d'autres marques

SASFORKS

SASFORKS EXTREME Manuel utilisateur

Hailo

Hailo H-50 Manuel utilisateur

Graco

Graco LineLazer ES 1000 Manuel d'utilisation et d'entretien

Greenlee

Greenlee 555RSC Manuel utilisateur

Manitowoc

Manitowoc Grove CD3340B Manuel utilisateur

Lux Tools

Lux Tools A-FMR-20 Set Manuel utilisateur

SIP

SIP 03683 Manuel utilisateur

Volvo

Volvo L30G Manuel utilisateur

Grizzly

Grizzly G8712 Manuel utilisateur

Modulift

Modulift CMOD 12 Manuel utilisateur

Case

Case DV201 Manuel utilisateur

Sealey

Sealey SC10.V2 Manuel utilisateur

Wacker Neuson

Wacker Neuson DT05 Manuel utilisateur

HYVA

HYVA AMCO VEBA 81 Series Manuel utilisateur

Atlas Copco

Atlas Copco Dynapac V5100TV Manuel utilisateur

Toro

Toro 323 Manuel utilisateur

Manitowoc

Manitowoc National Crane 1400A Manuel utilisateur

SGS

SGS EC1500 Manuel utilisateur
