User’s Guide

TPS40003 Based 5–A Converter in

Less Than One Square Inch

User’s Guide

EVM IMPORTANT NOTICE

Texas Instruments (TI) provides the enclosed product(s) under the following conditions:

This evaluation kit being sold by TI is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION

PURPOSES ONLY and is not considered by TI to be fit for commercial use. As such, the goods being provided

may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective

considerations, including product safety measures typically found in the end product incorporating the goods.

As a prototype, this product does not fall within the scope of the European Union directive on electromagnetic

compatibility and therefore may not meet the technical requirements of the directive.

Should this evaluation kit not meet the specifications indicated in the EVM User’s Guide, the kit may be returned

within 30 days from the date of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE

WARRANTY MADE BY SELLER TO BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED,

IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY

PARTICULAR PURPOSE.

The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user

indemnifies TI from all claims arising from the handling or use of the goods. Please be aware that the products

received may not be regulatory compliant or agency certified (FCC, UL, CE, etc.). Due to the open construction

of the product, it is the user’s responsibility to take any and all appropriate precautions with regard to electrostatic

discharge.

EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH ABOVE, NEITHER PARTY SHALL BE LIABLE

TO THE OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not

exclusive.

TI assumes no liability for applications assistance, customer product design, software performance, or

infringement of patents or services described herein.

Please read the EVM User’s Guide and, specifically, the EVM Warnings and Restrictions notice in the EVM

User’s Guide prior to handling the product. This notice contains important safety information about temperatures

and voltages. For further safety concerns, please contact the TI application engineer.

Persons handling the product must have electronics training and observe good laboratory practice standards.

No license is granted under any patent right or other intellectual property right of TI covering or relating to any

machine, process, or combination in which such TI products or services might be or are used.

Mailing Address:

Texas Instruments

Post Office Box 655303

Dallas, Texas 75265

DYNAMIC WARNINGS AND RESTRICTIONS

It is important to operate this EVM within the input voltage range of 0 V to 5.5 V.

Exceeding the specified input range may cause unexpected operation and/or irreversible damage to the EVM.

If there are questions concerning the input range, please contact a TI field representative prior to connecting

the input power.

Applying loads outside of the specified output range may result in unintended operation and/or possible

permanent damage to the EVM. Please consult the EVM User’s Guide prior to connecting any load to the EVM

output. If there is uncertainty as to the load specification, please contact a TI field representative.

During normal operation, some circuit components may have case temperatures greater than 50°C. The EVM

is designed to operate properly with certain components above 50°C as long as the input and output ranges are

maintained. These components include but are not limited to linear regulators, switching transistors, pass

transistors, and current sense resistors. These types of devices can be identified using the EVM schematic

located in the EVM User’s Guide. When placing measurement probes near these devices during operation,

please be aware that these devices may be very warm to the touch.

Mailing Address:

Texas Instruments

Post Office Box 655303

Dallas, Texas 75265

SLUU130A –September 2002 –Revised February 2003

4TPS40003-Based 5-A Converter in Less Than One Square Inch

TPS40003-Based 5-A Converter in Less Than One Square

Inch

Mark Dennis Systems Powe

Contents

1 Introduction 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 Features 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 Schematic 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 Design Procedure 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 PowerPADPackaging 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 Test Results/Performance Data 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 PCB Layout 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8 List of Material 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1 Introduction

The TPS40002 and the TPS40003 are voltage-mode, synchronous buck PWM controllers that utilize TI’s

proprietary Predictive Gate Drivetechnology to wring maximum efficiency from step-down converters. These

controllers provide a bootstrap charging circuit to allow the use of an N-channel MOSFET as the topside buck

switch to reduce conduction losses and increase silicon device utilization. Predictive Gate Drivetechnology

controls the delay from main switch turn-off to synchronous rectifier turn-on and also the delay from rectifier

turn-off to main switch turn-on. This allows minimization of the losses in the MOSFET body diodes by reducing

conduction and reverse recovery time. This user’s guide provides details on a 5-A buck converter that converts

3.3 V down to a 1.2-V level utilizing the TPS40003 controller, with less than one square inch board area.

A schematic for the board is shown in Figure 1. A list of material is provided in the final section.

2 Features

The specification for this board is as follows:

DVIN = 3.0 V to 3.6 V

DVOUT = 1.2 V ±3%

D0 A ≤IOUT ≤5 A

DEfficiency > 90% with a load of 2 A

DOutput voltage ripple < 2% VOUT

DPhysical size < 1 square inch circuit area

SLUU130A –September 2002 –Revised February 2003

TPS40003-Based 5-A Converter in Less Than One Square Inch

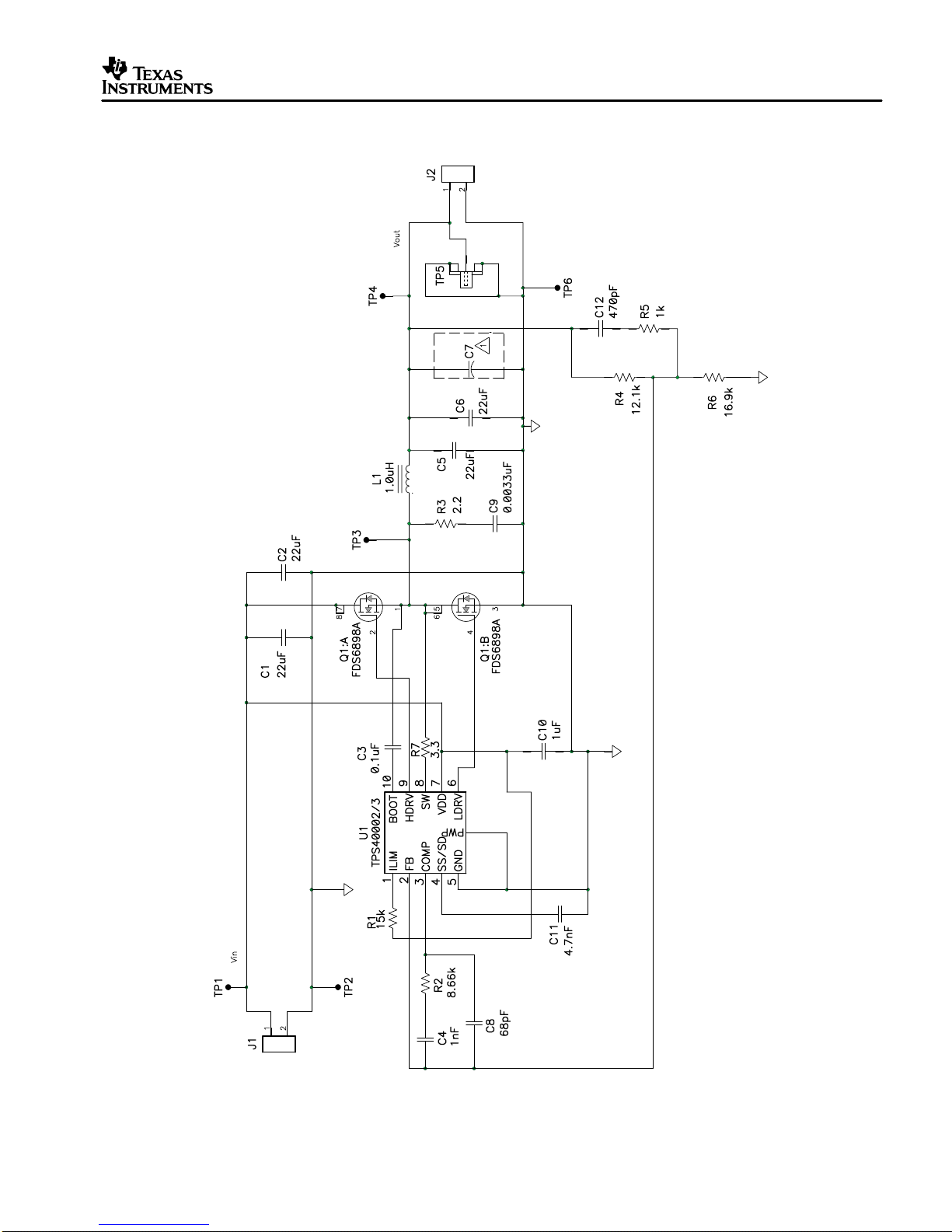

3 Schematic

Figure 1. Application Diagram for the TPS40002/3

SLUU130A –September 2002 –Revised February 2003

6TPS40003-Based 5-A Converter in Less Than One Square Inch

4 Design Procedure

4.1 TPS4000X Family Device Selection

The TPS4000X family of devices offers four selections to encompass the frequency and output current mode

choices. The TPS40003 is selected for the following reasons. First, the internal oscillator components set a fixed

switching frequency of 600 kHz. This allows minimally sized filter components in this compact design. The other

choice related to the TPS4000X family involves the selection of Discontinuous Current Mode (DCM) operation

or Continuous Current Mode (CCM) operation at lighter loads. In this design the TPS40003 is selected to keep

the current continuous all the way to zero load, to provide robust control characteristics.

4.2 Inductance Value

The output inductor value is selected to set the ripple current to a value most suited to overall circuit functionality.

The inductor value is calculated in equation (1).

L+VOUT

f IRIPPLEȧ

Ȣ1*VOUT

VIN(max)ȧ

Ȥ+1.2 V

600 kHz 1.25 A ǒ1*1.2 V

3.6 VǓ+1.07 mH

where IRIPPLE is chosen to be 25% of IOUT, or 1.25 A. A common value of 1 µH is selected.

4.3 Input Capacitor Selection

Bulk input capacitor selection is based on allowable input voltage ripple and required RMS current carrying

capability. In typical buck converter applications, the converter is fed from an upstream power converter with

its own output capacitance. In this converter, onboard capacitance is provided to supply the current required

during the top MOSFET on-time while keeping ripple within acceptable limits. For this power level, input voltage

ripple of 150 mV is reasonable, and a conservative minimum value of capacitance is calculated in equation (2).

C+I Dt

DV+5A 606 ns

0.15 V +20 mF

To meet this requirement with the lowest size and cost, a single 22 µF, X5R ceramic capacitor might be

considered. Although these capacitors have an extremely small resistance a typical datasheet indicates that

the part undergoes a 30°C temperature rise with 2 ARMS current at 500 kHz. With VIN= 3.0 V our circuit requires

nearly 2 ARMS of current, so for a conservative design two capacitors are selected to allow for conservative

current derating. These capacitors function as power bypass components and should be located near the

MOSFET package, to keep the high frequency current flow in a tight loop. The low impedance characteristics

of the dual ceramic capacitors help to reduce noise on the VDD supply of the device. Specifically, the high side

MOSFET current sense is referenced to this point, so noise at the device must be kept to a low level.

(1)

(2)

SLUU130A –September 2002 –Revised February 2003

TPS40003-Based 5-A Converter in Less Than One Square Inch

4.4 Output Capacitor Selection

Selection of the output capacitor is based on many application variables, including function, cost, size, and

availability. The minimum allowable output capacitance is determined by the amount of inductor ripple current

and the allowable output ripple in equation (3).

COUT(min) +IRIPPLE

8 f VRIPPLE +1.25 A

8 600 kHz 12 mV +22 mF

In this design, COUT(min) is 22 µF with VRIPPLE = 12 mV to allow for some margin. However, this only affects the

capacitive component of the ripple voltage. In addition, the voltage component due to the capacitor ESR must

be considered in equation (4).

ESRCout vVRIPPLE

IRIPPLE +0.012 V

1.25 A +9.6 mW

For compactness while maintaining transient response capability, two 22-µF ceramic capacitors are fitted in

parallel. The total ESR of these capacitors is below 3 mΩ, and contributes only a few mV to the output voltage

ripple.

4.5 MOSFET Selection

The small physical size of this design requires the use of a single SO-8 package which contains dual N-channel

MOSFETs. MOSFETs with an RDS(on) of 18 mΩare selected to keep the conduction losses to a manageable

amount at full load.

4.6 Short Circuit Protection

The TPS40003 implements short circuit protection by comparing the voltage across the topside MOSFET while

it is on to a voltage dropped from VDD by RLIM due to an internal current source of 15 µA inside pin 1. Due to

tolerances in the current source and variations in the power MOSFET on-voltage versus temperature, the short

circuit level can protect against gross overcurrent conditions only, and should be set higher than rated load. In

this particular case, RLIM is selected as:

RLIM +R1 +2.5 IOUT 0.018 W

15 mA+15 kW

For this design, RLIM = 15 kΩ, and the factor of 2.5 in the equation accounts for the variations in component

tolerances over temperature and output current ripple. The high currents that are switched under short circuit

conditions may cause SW pin 8 to be driven below ground several volts, possibly injecting substrate current

which can cause improper operation of the device. A 3.3-Ωresistor has been placed in series with this pin to

limit its excursion to safe levels.

(3)

(4)

(5)

SLUU130A –September 2002 –Revised February 2003

8TPS40003-Based 5-A Converter in Less Than One Square Inch

4.7 Compensation Design

The TPS40003 uses voltage mode control in conjunction with a high frequency error amplifier. For the fastest

transient response, the loop crossover frequency is set at 1/10 fS, or 60 kHz. The power circuit L-C double pole

corner frequency fCis situated at 24 kHz, and the output capacitor ESR zero is far higher at approximately 1MHz.

The feedback compensation network is implemented to provide two zeroes and three poles. The first pole is

placed at the origin to improve dc regulation.

The first zero is placed at approximately 2/3 fC, 18 kHz,

fz1 +1

2 p R2 C4

The second zero is selected at fC,

fz2 +1

2 p ǒR4)R5Ǔ C12

The two poles are placed at approximately 300 kHz, which is one-half the switching frequency,

fp1 +1

2 p R2 ǒC4 C8

C4)C8Ǔ

and

fp2 +1

2 p R5 C12

(6)

(7)

(8)

(9)

SLUU130A –September 2002 –Revised February 2003

TPS40003-Based 5-A Converter in Less Than One Square Inch

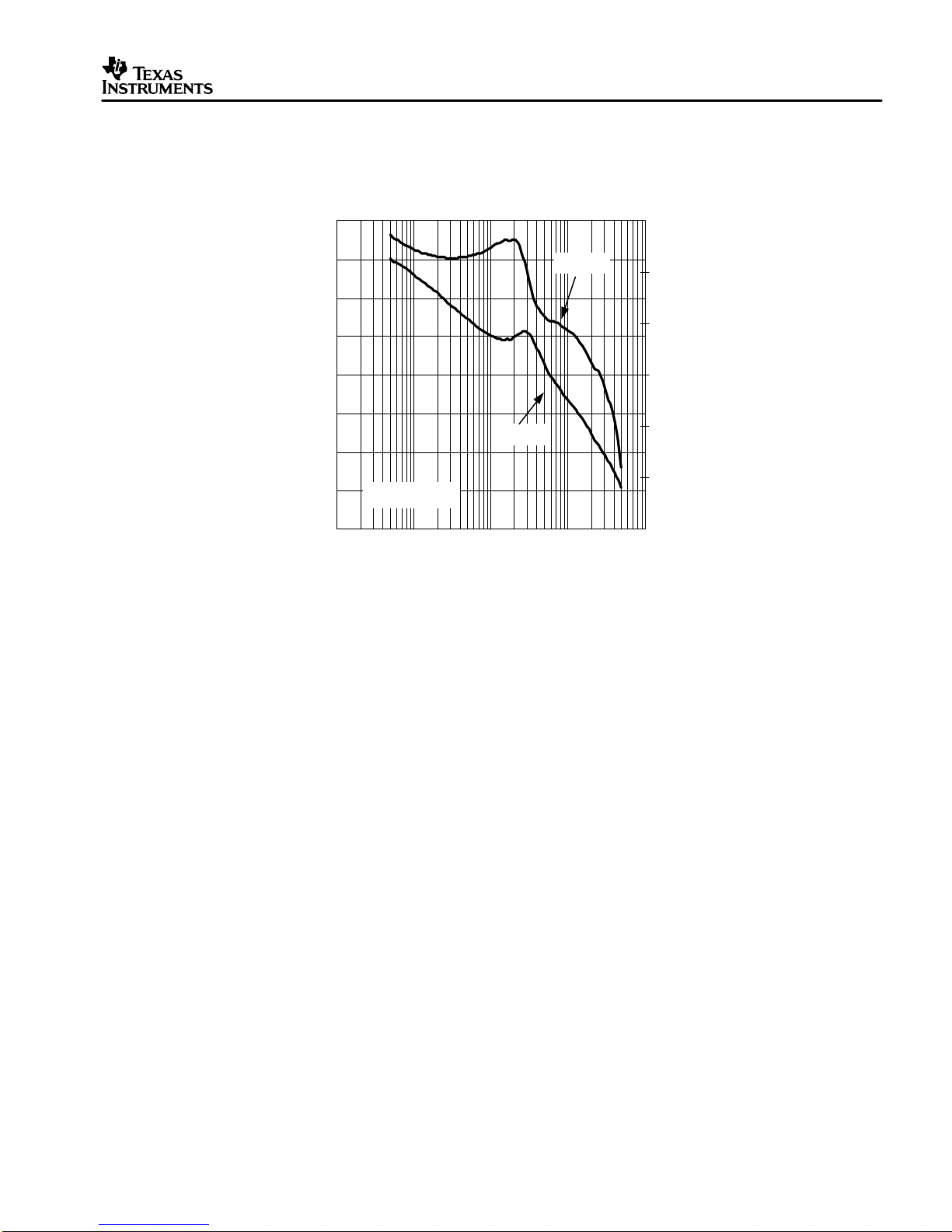

Figure 2 shows the plots for the closed loop gain and phase with VIN = 3.3 V and IOUT = 4.4 A. At the crossover

frequency of 60 kHz the phase margin is approximately 51 degrees.

100

150

100

–50

–100

–10

–20

–30

–40

1000 10000 1000000

Frequency – Hz

100000

Phase

–150

Gain – db

GAIN AND PHASE MARGIN

FREQUENCY

Phase – degrees

ILOAD = 4.4 A

VI= 3.3 V

Gain

Figure 2.

4.8 Snubber Component Selection

The switch node where Q1 and L1 come together is very noisy. An R–C network fitted between this node and

ground can help reduce ringing and voltage overshoot on Q1:B. This ringing noise should be minimized to

prevent it from confusing the control circuitry which is monitoring this node for current limit and Predictive Gate

Drive.

As a starting point, the snubber capacitor, C9, is generally chosen to be 5 to 8 times larger than the parasitic

capacitance at the node, which is primarily COS of Q1:B. Since COS is 440 pF for Q1:B, C9 is chosen to be 3.3 nF.

R3 is empirically determined to be 2.2 Ω, which minimizes the ringing and overshoot at the switch node. With

low input voltages the power loss, 1/2×C×V2×f , is relatively small at 24 mW.

SLUU130A –September 2002 –Revised February 2003

10 TPS40003-Based 5-A Converter in Less Than One Square Inch

5 PowerPADPackaging

The TPS4000X family is available in the DGQ version of TI’s PowerPADthermally enhanced package. In the

PowerPAD, a thermally conductive epoxy is utilized to attach the integrated circuit die to the leadframe die

pad, which is exposed on the bottom of the completed package. The leadframe die pad can be soldered to the

PCB using standard solder flow techniques when maximum heat dissipation is required. However, depending

on power dissipation requirements, the PowerPADmay not need to soldered to the PCB.

The PowerPADpackage helps to keep the junction temperature rise relatively low even with the power

dissipation inherent in the onboard MOSFET drivers. This power loss is proportional to switching frequency,

drive voltage, and the gate charge needed to enhance the N-channel MOSFETs. Effective heat removal allows

the use of ultra small packaging while maintaining high component reliability.

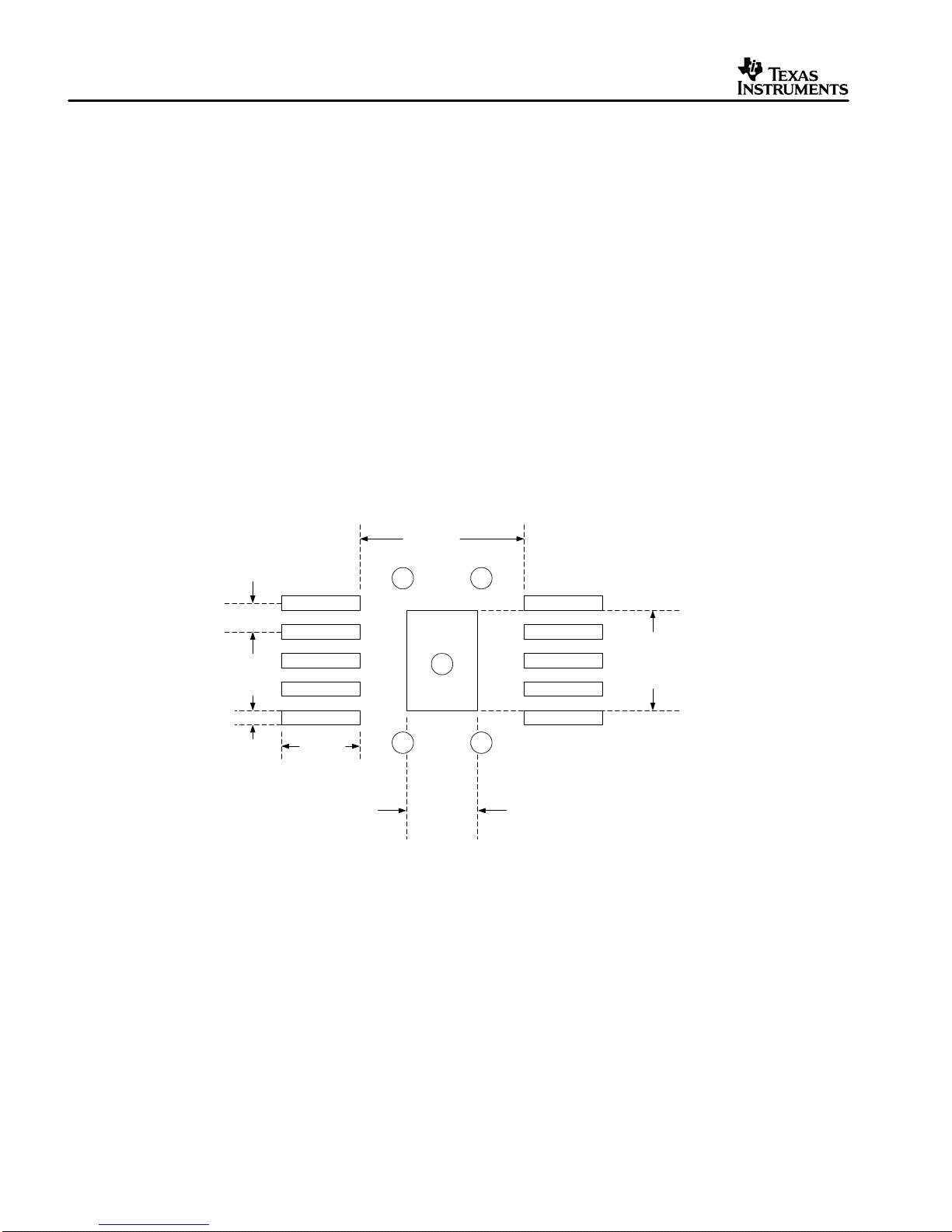

To effectively remove heat from the PowerPADpackage, a thermal land should be provided directly

underneath the package whether the package needs to be soldered or not. This thermal land usually has vias

that help to spread heat to internal copper layers and/or the opposite side of the PCB. The vias should not have

thermal reliefs that are often used on ground planes, because this reduces the copper area which transfers heat.

Additionally, the vias should be small enough so that the holes are effectively plugged when plated. This

prevents the solder from wicking away from the connection between the PCB surface and the bottom of the part.

A typical construction utilizes a few vias of 0.013”diameter plated with 1 ounce copper in the land under the

TPS40003. A typical layout pattern is shown in Figure 2, but does not show the copper land which would

encompass the vias above and below the device.

2.92mm

(0.115”)

0.5mm

(0.0197”)

0.28mm

(0.011”)

1.40mm

(0.055”)Via Dia.

0.33mm

(0.013”)

Miminum

PowerPad ”X”

1.3mm

(0.050”)

Minimum

PowerPad ”Y”

1.7mm

(0.068”)

Figure 3. PowerPAD PCB Layout Guidelines

The Texas Instrument document, PowerPADThermally Enhanced Package Application Report (SLMA002)

should be consulted for more information on the PowerPADpackage. This report offers in-depth information

on the package, assembly and rework techniques, and illustrative examples of the thermal performance of the

PowerPADpackage.

Table des matières

Autres manuels Texas Instruments Convertisseur de média

Texas Instruments

Texas Instruments TPS549B22EVM-847 Manuel utilisateur

Texas Instruments

Texas Instruments TPS65917-Q1 Manuel du produit

Texas Instruments

Texas Instruments TVP5147M1PFP Guide d'installation et d'utilisation

Texas Instruments

Texas Instruments ADS5102 EVM Manuel utilisateur

Texas Instruments

Texas Instruments TVP5154A Manuel utilisateur

Texas Instruments

Texas Instruments ADS1230REF Manuel utilisateur

Texas Instruments

Texas Instruments UCC28742EVM-001 Manuel utilisateur

Texas Instruments

Texas Instruments TPS6110XEVM-216 Manuel utilisateur

Texas Instruments

Texas Instruments UCC2891 Manuel utilisateur

Texas Instruments

Texas Instruments ADS79 EVM-PDK Series Manuel utilisateur

Texas Instruments

Texas Instruments TPS40001 Manuel utilisateur

Texas Instruments

Texas Instruments H.264 High Profile Encoder Manuel utilisateur

Texas Instruments

Texas Instruments TPS6103 Series Manuel utilisateur

Texas Instruments

Texas Instruments UCC28517 Manuel utilisateur

Texas Instruments

Texas Instruments DP83TC813EVM-MC Manuel utilisateur

Texas Instruments

Texas Instruments TPS54320 Manuel utilisateur

Texas Instruments

Texas Instruments DM6467 Manuel utilisateur

Texas Instruments

Texas Instruments HPA070 Manuel utilisateur

Texas Instruments

Texas Instruments DAC 300 Series Manuel utilisateur

Texas Instruments

Texas Instruments TPS543C20AEVM-054 Manuel utilisateur

Texas Instruments

Texas Instruments LDC3114 Manuel utilisateur

Texas Instruments

Texas Instruments UCC28782EVM-030 Manuel utilisateur

Texas Instruments

Texas Instruments TVP5151 Manuel utilisateur

Texas Instruments

Texas Instruments TPS61092 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
