TI-84 Plus CE Python – Tello Drone

Getting Started

Tello Drone

Installation of ti_runtime and 84 Plus CE Tello modules

1. Determine if your micro:bit card is a V1 or V2. The V2 card has scallops

on the board's gold edge, while the V1 is straight. The Tello Drone only

works on a V2 board. Download and unzip the Tello .zip file to a

convenient location on your computer, such as your desktop. Locate

the 2.x.x ti-runtime.hex file.

2. Click here to watch a video on how to configure your Tello drone.

3. Connect the micro:bit to your computer using a micro USB cable. The

micro:bit will appear as a flash drive icon on the computer. Drag and

drop the 2.x.x ti-runtime.hex file to the micro:bit icon. Alternatively,

left-click on the file and use the 'Send to' command to copy from the

Tello folder to the micro:bit card. This file provides functionality

between the TI-84 Plus CE Python and the micro:bit card. The

ti_runtime installation is a one-time process. If the micro:bit is

connected back to the PC and programmed in a different language

other than Python, such as MakeCode, the ti_runtime.hex will need to

be installed again. See additional information at the end of the

document.

Texas Instruments Incorporated 2 education.ti.com

TI-84 Plus CE Python – Tello Drone

Getting Started

Tello Drone

4. Locate the TELLO.8xv file in the Tello folder. Use TI-Connect to transfer

the TELLO.8xv module from your computer to the calculator. The

module will install automatically into the archive memory.

a. Select Actions from the menu.

b. Select Add Files from Computer…

c. Navigate to the module folder.

d. Select in the TELLO.8xv and select Open.

e. The menu on the right will appear. Select SEND to complete

the transfer.

Note: Get the PC and Mac: TI-Connect CE Software (free):

https://education.ti.com/en/products/computer-software/ti-connect-ce-

5. Register your Tello Drone.

a. Download the Tello flight app to your phone. You will need the

app to do a one-time registration of your new drone.

b. Turn on the Tello drone.

c. Use a phone to search for available WiFi hotspots.

d. Connect to your Tello drone. An example of a Tello drone SSID

is TELLO-9EF498.

e. Open the application, and you will be prompted to register

your drone. Once registered, you do not need the phone or

Tello application.

f. Disconnect your phone from the Tello drone and quit the Tello

app. You will no longer need this app to program on the TI-84

Plus CE PYTHON. Ensure the Tello does not reconnect to the

phone again; this will cause a problem when the calculator

attempts to connect to the drone.

Texas Instruments Incorporated 3 education.ti.com

TI-84 Plus CE Python – Tello Drone

Getting Started

Tello Drone

6. Connect the Tello Drone system.

a. Insert the micro:bit V2 card into the BitMaker expansion

board. Be sure the 5x5 LED display faces the correct direction.

b. Connect the external battery to the BitMaker power port.

c. Connect the Grove WiFi module to the BitMaker ~P1 port.

d. Ensure the external battery is fully charged and turned ON.

e. Turn ON the BitMaker board. The LEDs on the micro:bit,

BitMaker board, and the WiFi Module will illuminate.

f. Connect the unit-to-micro:bit cable to the micro:bit card's USB

port (micro-end) and then to the TI-84 Plus CE Python

calculator (mini-end). Then turn ON the calculator.

g. Ensure the Tello drone is fully charged and turn it ON. It will

blink several colors and settle on flashing yellow when it is

ready.

7. Configure the Tello Drone system.

a. Select [New] to create a program with the name 'TESTFLT'

b. Select [Ok]. There will be a blank Python editor screen on your

calculator.

c. Import the tello module into your program. Select the [Fns…]

tab and select [Modul] tab.

d. Select the [Add-On] tab and select from tello import * the

import statement will paste at the program's top.

e. Ensure the Tello is quickly blinking yellow; run the program.

f. Select the [Run] tab. Drone configuration will begin.

Texas Instruments Incorporated 4 education.ti.com

TI-84 Plus CE Python – Tello Drone

Getting Started

Tello Drone

g. Select the micro:bit expansion board, Grove or BitMaker, and

ensure the WiFi module is inserted into the ~P1 port.

h. Select Advanced only if you are using a different expansion

board or port other than P1.

i. The system will scan for a Tello SSID and connect if available.

It is best only to have one Tello turned on and ensure the Tello

is not connected to a phone or other WiFi device.

j. Enter a single character ID, 0-9 or A-Z, to identify the

Tello/micro:bit pair. It is best to mark this ID on the Tello. After

paring, the micro:bit will automatically connect to only this

Tello.

k. Unplug the cable from the calculator and then plug it back into

the calculator to reset the system.

l. Your Tello is now ready to fly!

Creating Your First Python Tello Program

2. Select [New] to create a program named 'TESTFLT' or edit the same

program from the previous steps.

3. Select [Ok]. There will be a blank Python editor screen on your

calculator.

4. Import the tello module into your program. Select the [Fns…] tab and

select [Modul] tab.

5. Select the [Add-On] tab and select from tello import * the import

statement will paste at the program's top. This action will import the

tello module into the editor and add the tello menu to the bottom of

the module list.

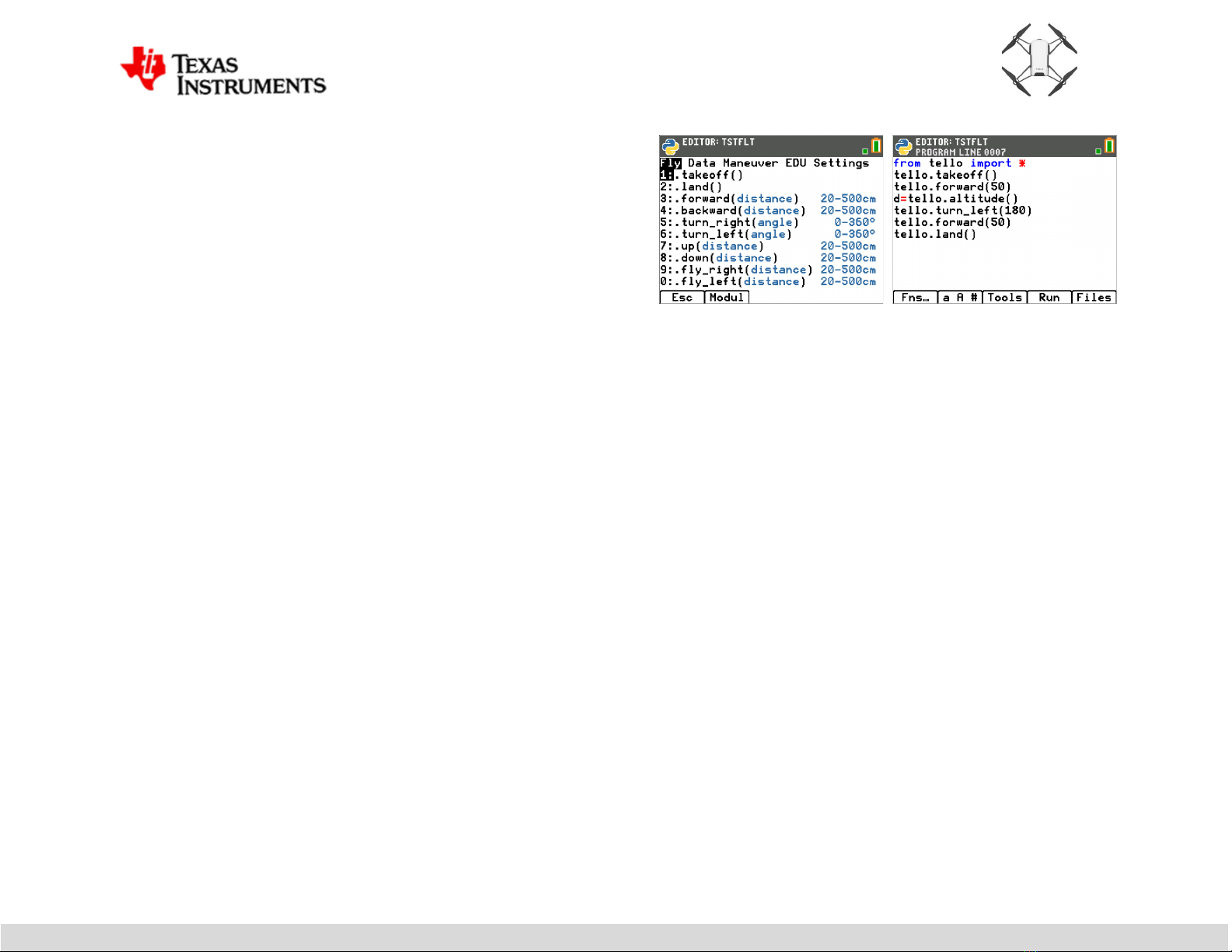

6. Next, select [Fns...] and arrow over to the Modul tab, then arrow

down to tello drone and press [enter]. The menus will display all of the

tello drone methods.

Texas Instruments Incorporated 5 education.ti.com

TI-84 Plus CE Python – Tello Drone

Getting Started

Tello Drone

7. Select .takeoff() always as the first statement in all flight programs.

8. Explore the Python programming menus and the tello module menus

and enter the remainder of the TESTFLT program.

9. Place your drone in a well-lighted area free of obstructions. The drone

has a positioning camera on the underside, and it works best when the

drone flies over a nonuniform floor, e.g., a patterned rug. Ensure

everything is powered up and Run the program.

10. Modify your program by adding a flip at the end of the square. The

drone must have at least 50% battery charge to perform a flip. The

charge

Texas Instruments Incorporated 6 education.ti.com

TI-84 Plus CE Python – Tello Drone

Getting Started

Tello Drone

Trouble Shooting

Problem

Solution

I don't see the tello module menus.

Use TI-Connect to transfer the module to the calculator. The menus only

appear in the editor after the from tello import * line.

I don't see the Texas logo on my micro:bit.

Transfer the TI_runtime file to the microbit card.

The calculator will not connect to the Tello drone.

Quit the program. Unplug the cable from the calculator and press the reset

button on the back of the microbit card and the RST button Grove WiFi

module. Reconnect the cable to the calculator and try again.

The default TX and RX pins for the BitMaker expansion board are P2 and P1.

If using a different expansion board other than the MakerBit, you must

configure different TX and RX pins unique to that board's port. For example,

if using the Grove Shield, plug the Grove WiFi into the P1/P15 port and enter

Command status reports "COMPLETED", but Tello flight is erratic.

Tello uses flight vision for positioning. A well-lighted space is required.

Additionally, the floor should not be uniform or glossy in appearance. Try

moving to an area with a different floor appearance with lots of light.

Tello crashes and flies oddly.

Bent propellers and interference with propeller guards may be the problem.

Replace propellers (notice markings on props and placement order). There is

also a IMU calibration that can be done using the phone software. See the

owner's manual.

Tello drone will not take off, and the status light is blinking red.

Charge the drone battery.

Tello will not perform flips.

The battery charge must be greater than 50%.

The calculator does not connect to Tello, and microbit displays an unhappy

face

•Check that the WiFi module is in the correct port.

•Check that the expansion board's power switch is ON if present.

•Check that all batteries are fully charged.

•Check the external battery connected to the expansion board is turned

on.

•Disconnect and reconnect the calculator and the external battery and try

the program again.

For more information on the Tello drone

•Tello drone user manual
