TI-30XS MultiView™ and

TI-30XB MultiView™ Scientific

Calculator

Important information ............................................................2

Examples ..............................................................................3

Switching the TI-30XS MultiView calculator on and off ........3

Display contrast ....................................................................3

Home screen ........................................................................4

2nd functions ........................................................................5

Modes ...................................................................................5

Menus ...................................................................................7

Scrolling ................................................................................9

Answer toggle .....................................................................10

Last answer ........................................................................ 11

Order of operations ............................................................. 11

Clearing and correcting .......................................................13

Fractions .............................................................................13

Percentages ........................................................................15

x10nkey ..............................................................................16

Powers, roots and inverses ................................................16

Pi .........................................................................................17

Angle menu .........................................................................18

Rectangular to polar ...........................................................20

Trigonometry .......................................................................21

Hyperbolics .........................................................................23

Logarithm and exponential functions ..................................24

Constant .............................................................................24

Memory and stored variables .............................................26

Data editor and list formulas ...............................................29

Statistics .............................................................................31

Probability ...........................................................................36

Function table .....................................................................38

Errors ..................................................................................40

Battery information .............................................................. 42

In case of difficulty ..............................................................43

Texas Instruments Support and Service .............................44

Important information

Texas Instruments makes no warranty, either express or

implied, including but not limited to any implied warranties of

merchantabilityandfitnessfor a particularpurpose,regarding

any programs or book materials and makes such materials

available solely on an "as-is" basis. In no event shall Texas

Instruments be liable to anyone for special, collateral,

incidental, or consequential damages in connection with or

arising out of the purchase or use of these materials, and the

soleandexclusiveliability ofTexasInstruments,regardlessof

the form of action, shall not exceed the purchase price of this

product. Moreover, Texas Instruments shall not be liable for

any claim of any kind whatsoever against the use of these

materials by any other party.

MathPrint,APD,AutomaticPowerDown,EOS,and MultiView

are trademarks of Texas Instruments Incorporated.

Examples

Each section is followed by instructions for keystroke

examples that demonstrate the TI-30XS MultiView™ and

TI-30XB MultiViewfunctions.All references in thismanualwill

refer to the TI-30XS MultiView, but are also applicable for the

TI-30XB MultiView.

Examplesassumeall defaultsettings, asshowninthe Modes

section.

For more activities and examples, see the TI-30XS

MultiView™ Teacher Guide available at education.ti.com/

guides.

Switching the

TI-30XS MultiView

calculator on

and off

&turns on the TI-30XS MultiView calculator. % '

turns it off. The display is cleared, but the history, settings,

and memory are retained.

The APD™ (Automatic Power Down™) feature turns off the

TI-30XS MultiView calculator automatically if no key is

pressed for about 5 minutes. Press&after APD. The

display, pending operations, settings, and memory are

retained.

Display contrast

The brightness and contrast of the display can depend on

room lighting, battery freshness, and viewing angle.

To adjust the contrast:

1. Press and release the %key.

2. Press T (to darken the screen) or U (to lighten the

screen).

Home screen

On the Home screen, you can enter mathematical

expressions and functions, along with other instructions. The

answers are displayed on the Home screen. The TI-30XS

MultiView screen can display a maximum of four lines with a

maximum of 16 characters per line. For entries and

expressions of more than 16 characters, you can scroll left

and right (!and ") to view the entire entry or expression.

In the MathPrint™ mode, you can enter up to four levels of

consecutive nested functions and expressions, which include

fractions, square roots, exponents with ^, Ê, ex, and 10x.

When you calculatean entry on the Home screen, depending

uponspace,theansweris displayed either directlytotheright

of the entry or on the right side of the next line.

Special indicators may display on the screen to provide

additional information concerning functions or results.

Indicator Definition

2nd 2nd function.

HYP Hyperbolic function.

FIX Fixed-decimal setting. (See Mode

section.)

SCI, ENG Scientific or engineering notation.

(See Mode section.)

DEG, RAD,

GRAD Angle mode (degrees, radians, or

gradians). (See Mode section.)

K Constant feature is on.

L1, L2, L3 Displays above the lists in data

editor.

The TI-30XS MultiView™ calculator

is performing an operation.

º » An entry is stored in memory before

and/or afterthe active screen. Press

#and $to scroll.

2nd functions

Most keys can perform two functions. The primary function is

indicated on the key and the secondary function is displayed

above it. Press %to activate the secondary function of a

given key. Notice that 2nd appears as an indicator on the

screen. To cancel it before entering data, press % again.

For example, %b25 < calculates the square root of

25 and returns the result, 5.

Modes

Use pto choose modes. Press $ # ! " to choose a

mode, and < to select it. Press - or %Q to

return to the Home screen and perform your work using the

chosen mode settings.

Default mode settings are shown highlighted.

DEG RAD GRAD Sets the angle mode to degrees,

radians, or gradians.

NORM SCI ENGSetsthenumericnotationmode.Numeric

notation modes affect only the display of results, and not the

accuracy of the values stored in the unit, which remain

maximal.

NORMdisplaysresultswithdigitstotheleftandrightofthe

decimal, as in 123456.78.

SCI expresses numbers with one digit to the left of the

decimal and the appropriate power of 10, as in

1.2345678Ã105(which is the same as 123456.78).

¹ ¸ An entry or menu displays beyond

16 digits. Press !or "to scroll.

Note: In some restricted environments (for example

function table, data editor, and the %h menu), the

TI-30XS MultiView™ calculator may display Einstead of

Ã10n.

ENG displays results as a number from 1 to 999 times 10

toaninteger power.Theinteger power isalwaysa multiple

of 3.

Note: C isa shortcutkey toentera numberinscientific

notationformat.Theresultdisplays in thenumericnotation

format set in mode.

FLOAT 0123456789 Sets the decimal notation mode.

FLOAT (floating decimal point) displays up to 10 digits,

plus the sign and decimal.

0123456789 (fixed decimal point) specifies the number of

digits (0 through 9) to display to the right of the decimal.

CLASSIC MATHPRINT

CLASSIC mode displays inputs and outputs in a single

line.

MATHPRINT mode displays most inputs and outputs in

textbook format.

Examples of Classic and MathPrint modes

Classic mode MathPrint mode

Sci Sci

Float

Floatmodeandanswertoggle

key.

Menus

Certain keys display menus: H, %I, v,

%t, %, %h, and %{. Some

keys may display more than one menu.

Press "and $ to scroll and select a menu item, or press

thecorresponding number nextto themenu item.To returnto

the previous screen without selecting the item, press -.

To exit a menu or application and return to the Home screen,

press %Q.

Fix 2 Fix 2 and answer toggle key.

U n/d U n/d

Exponent example Exponent example

Square root example Square root example

Cube root example Cube root example

The menu chart shows the menu keys and the menus they

display.

H%I

(Press once to display theData editor screen. Press again to

display the menu.)

Press vwhile you are in the Add/Edit Formula option of

the FORMULA menu to display this menu:

PRB RAND DMS R ¶P

1: nPr 1: rand 1: Ä1: R ´Pr(

2: nCr 2: randint( 2: Å2: R ´PÁ(

3: ! 3: Æ3: P ´Rx(

4: r 4: P ´Ry(

5: g

6: ´DMS

CLEAR FORMULA

1: Clear L1 1: Add/Edit Frmla

2: Clear L2 2: Clear L1 Frmla

3: Clear L3 3: Clear L2 Frmla

4: Clear ALL 4: Clear L3 Frmla

5: Clear ALL

1: L1

2: L2

3: L3

% %h %{

Scrolling

!" # $

Press ! or "to place the cursor horizontally over the

expression entered. Press % ! or % " to move the

cursor directly to the beginning or end of the expression.

After an expression is evaluated, use #and $to scroll

through previous entries, which are stored in the TI-30XS

MultiView™ calculator’s memory. You can reuse a previous

entrybypressing<topasteit on the bottomline,andthen

evaluating a new expression.

STATS

1: 1-Var Stats

2: 2-Var Stats

3: StatVars This menu option displays after you

calculate 1-var or 2-var stats.

StatVars menu:

1: n

2: Ï

3: Sx

Etc. See StatVar values for full list.

Reset Recall Var Clear Var

1: No 1: x = 1: Yes

2: Yes 2: y = 2: No

3: z =

4: t =

5: a =

6: b =

7: c =

Examples

Answer toggle

Pressthe n key totogglethe displayresultbetweenfraction

and decimal answers, exact square root and decimal, and

exact pi and decimal.

Example

Scroll 1T1<

2T 2<

3T 3<

4T 4<

# # # # <

T 2<

Answer

toggle %b8 <

Autres manuels pour TI-30XS Multiview

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Texas Instruments Calculatrice

Texas Instruments

Texas Instruments TI-84 PLUS series Instructions de fonctionnement

Texas Instruments

Texas Instruments TI-73 Explorer Manuel

Texas Instruments

Texas Instruments TI-84 - Plus - Edition Graphing Calculator Manuel utilisateur

Texas Instruments

Texas Instruments E-5032 Manuel utilisateur

Texas Instruments

Texas Instruments TI-83 Manuel utilisateur

Texas Instruments

Texas Instruments BA II Plus Manuel utilisateur

Texas Instruments

Texas Instruments TI-84+ Mode d’emploi

Texas Instruments

Texas Instruments TI-73 Explorer Guide de démarrage rapide

Texas Instruments

Texas Instruments TI36X - Solar Scientific Calculator Manuel utilisateur

Texas Instruments

Texas Instruments Titanium TI-89 Instructions de montage

Texas Instruments

Texas Instruments TI-82 STATS Manuel utilisateur

Texas Instruments

Texas Instruments TI-32 - Explorer Plus Solar Powered... Manuel

Texas Instruments

Texas Instruments TI-Nspire CX II Series Manuel utilisateur

Texas Instruments

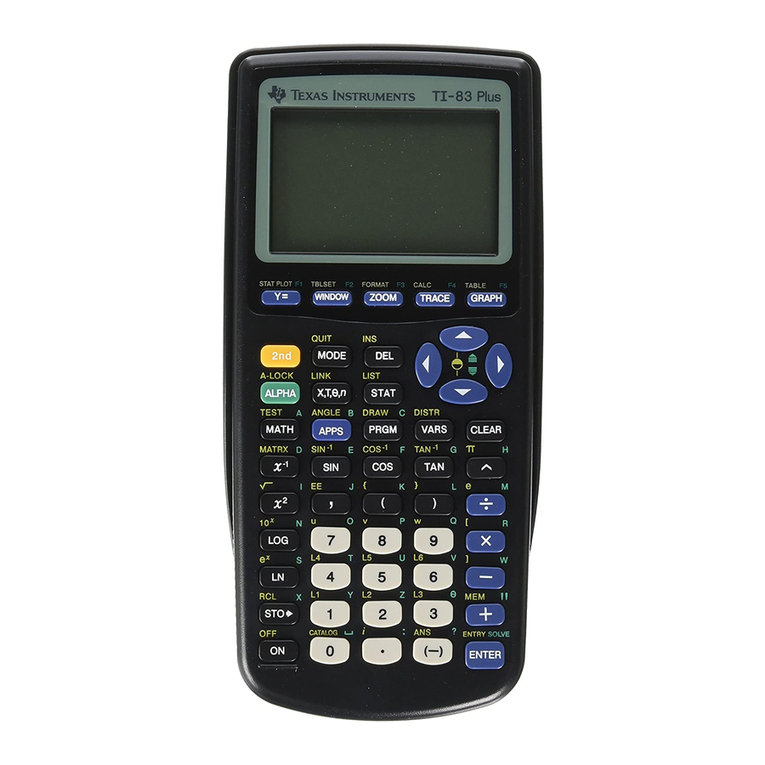

Texas Instruments TI-83 Plus Silver Edition Manuel utilisateur

Texas Instruments

Texas Instruments TI-83-Plus Instructions de montage

Texas Instruments

Texas Instruments TI-84 Plus Silver Edition Manuel utilisateur

Texas Instruments

Texas Instruments TI-82 STATS Manuel utilisateur

Texas Instruments

Texas Instruments Titanium TI-89 Manuel utilisateur

Texas Instruments

Texas Instruments BA II Plus Manuel utilisateur

Texas Instruments

Texas Instruments TI-5015 Manuel utilisateur

Texas Instruments

Texas Instruments TI-Nspire Manuel utilisateur

Texas Instruments

Texas Instruments TI-30X - IIS Scientific Calculator Manuel utilisateur

Texas Instruments

Texas Instruments TI-83 - Plus Graphing Calculator Guide de démarrage rapide

Texas Instruments

Texas Instruments Titanium TI-89 Guide de démarrage rapide

Manuels Calculatrice populaires d'autres marques

HP 35s Manuel

Casio

Casio CFX-9970G Manuel utilisateur

LEXIBOOK

LEXIBOOK EL350 Manuel utilisateur

HP HP-97 Manuel utilisateur

Citizen

Citizen SDC-414N Manuel utilisateur

Casio

Casio fx-3800P Manuel utilisateur

Canon

Canon P26-DHIII Manuel utilisateur

Citizen

Citizen 520DPA Manuel utilisateur

Sharp

Sharp EL-9900 Manuel utilisateur

Casio

Casio FX-9860GII - SOFTWARE VERSION 2-00 Manuel utilisateur

Casio

Casio MS-7UC Manuel utilisateur

Sharp

Sharp WriteView EL-W506 Manuel technique

Casio

Casio FC-200 Manuel utilisateur

Casio

Casio fx-CG50 Manuel utilisateur

HP HP-67 Guide de l'utilisateur

Royal

Royal CBC2000 Manuel utilisateur

Heathkit

Heathkit IC-2009 Manuel utilisateur

Universal

Universal UNV-15907 Manuel utilisateur
