Technical description and operating instructions

Consono 35

Active subwoofer US 5110/1

gb was

here

Technical description and operating instructions

Consono 35

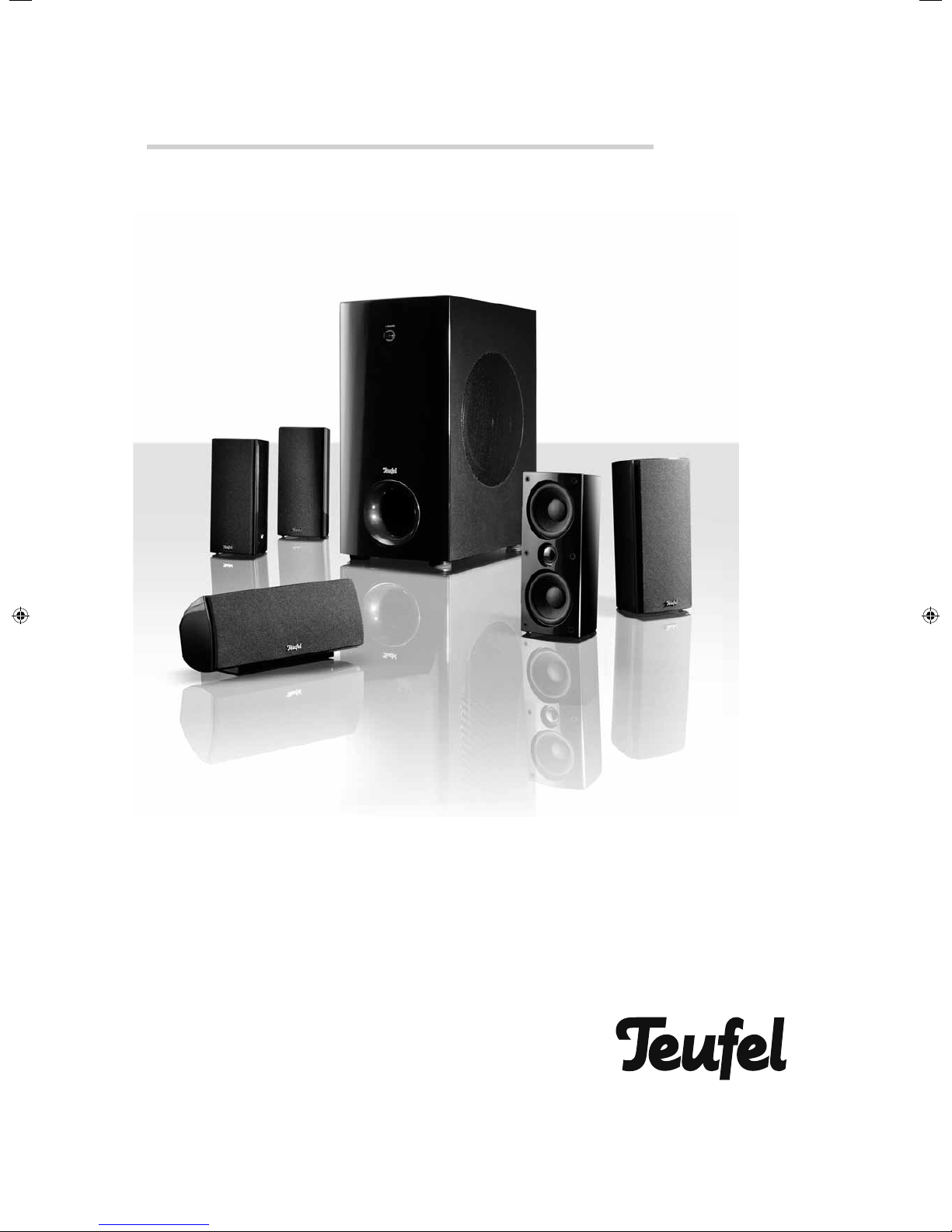

5.1 Home Cinema Speaker Set

91554 GB 20100621.indd 191554 GB 20100621.indd 1 22.06.2010 9:33:22 Uhr22.06.2010 9:33:22 Uhr

2• Consono 35

Contents

Product contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

General notes and information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Connection and settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Protecting the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

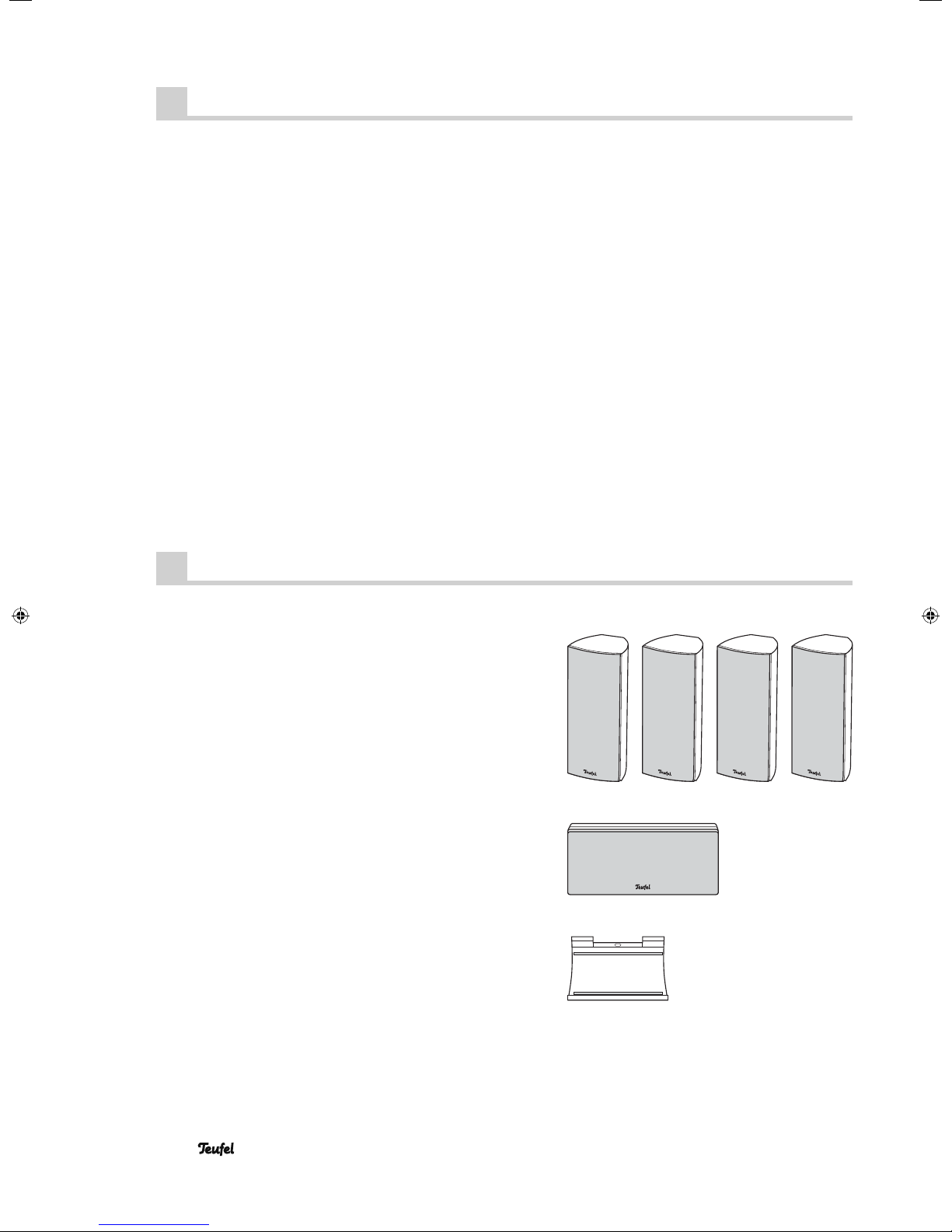

햲4 x satellite speakers CS 35 FCR

햳1 x center speaker CS 35 C

햴1 x holder for center speaker CS 35 C

You will ﬁnd the corresponding active subwoofer for this

5.1 home cinema speaker set in a separate box.

Check that all items have been delivered and that noth-•

ing is damaged.

If the delivery is incomplete or you ﬁnd damage sus-•

tained in transit, do not operate the product but contact

our service department (see page 3).

Product Contents

햳

햴

햲

91554 GB 20100621.indd 291554 GB 20100621.indd 2 22.06.2010 9:33:24 Uhr22.06.2010 9:33:24 Uhr

• Consono 35 3

Notice

The information in this document may be changed with-

out prior notice and in no way constitutes any liability on

the part of Lautsprecher Teufel GmbH.

No part of these instructions may be reproduced in any

form or be broadcasted in any way electronically, me-

chanically, by photocopy or recording without the written

permission of Lautsprecher Teufel GmbH.

Version 1.0

June 2010

Original packaging

If you wish to exercise your eight-week right of return, we

ask that you be absolutely sure to hold onto the packag-

ing. We can only accept the return of the speakers WITH

THE ORIGINAL PACKAGING.

Empty boxes are not available!

Complaints

In case of complaint we will need the following informa-

tion to process your enquiry:

1. Invoice number

Can be found on the sales slip (enclosed with the

product) or on the order conﬁrmation received as a PDF

document, e.g. 4322543

2. Serial number and/or batch number

Can be found on the back of the device,

e.g. serial number: CL30000240129A-123.

Many thanks for your support!

Contact

For questions, suggestions or criticism please contact our

customer service department:

Lautsprecher Teufel GmbH

Gewerbehof Buelowbogen · Buelowstrasse 66

10783 Berlin (Germany)

Tel.: 00800 - 200 300 40 (free of charge)

Fax: +49 (0) 30 / 300 930 930

www.teufelaudio.com

Proper use

Only use the speakers as described in these instructions.

Any other use will be deemed as not in accordance with

the instructions and may lead to damage to property

or even persons. The manufacturer accepts no liability

for damage caused by use not in accordance with the

instructions.

The unit is intended for private use.

Before using the speakers for the ﬁrst time please

ﬁrst read the safety notes and operating instruc-

tions carefully. This is the only way to use all

functions safely and reliably.

Keep the operating instructions safe and pass them on to

anyone who may own the unit after you.

General notes and information

91554 GB 20100621.indd 391554 GB 20100621.indd 3 22.06.2010 9:33:24 Uhr22.06.2010 9:33:24 Uhr

4• Consono 35

Safety notes

Caution icons

You will ﬁnd the following caution icons used in these

instructions:

Danger High risk!

Failure to observe the warning may result in

severe personal injury or death.

Attention Moderate risk!

Failure to observe the warning may result in

property damage.

Minor risk!

Points which should be observed when han-

dling the unit.

Safety notes

Danger Danger to children!

Children can become trapped in the packing

ﬁlm when playing and suffocate.

Do not allow children to play with the unit or the pack-•

ing ﬁlm. Danger of suffocation.

Ensure that children do not remove small parts from•

the unit or take them off of the unit (e.g. control knobs

or plug adapters). They could swallow the parts and

choke. Never allow children to use electrical devices

without supervision.

Danger Danger to hearing!

Loud noise may lead to hearing loss.

There is a potential risk of sudden very high

noise pressure especially when activating the subwoofer

which is set to full volume. This may have psychological

consequences and also cause physical injury. Children

and pets are particularly at risk.

Set your signal source unit volume control to a low•

setting.

When the volume is set high, always keep a certain•

distance from the unit and never place your ear directly

on the speaker.

To avoid damage to health, avoid extended listening at•

high volume.

Danger Danger of injury/damage!

Incorrect location may result in damage.

Never use the unit unmounted in vehicles, in unstable•

locations, on wobbly tripods or furniture, on underdi-

mensioned brackets etc. The speakers could tip or fall

down and cause injury to persons or be damaged.

Arrange the speakers so that they cannot be knocked•

over accidentally and make sure that the cables do not

pose a trip hazard.

Ensure that any wall mounting is performed in a profes-•

sional manner.

Only use suitable wall brackets for mounting. Check•

the carrying capacity of the walls.

Do not place the unit near sources of heat (e.g. heat-•

ers, ovens, other heat generating equipment such as

ampliﬁers etc.)

Attention Fire hazard!

Improper use may lead to damage or ﬁre.

Do not place open ﬂames such as burning candles or•

similar on the unit.

Ensure sufﬁcient ventilation.•

Do not place the unit in direct sunlight.•

Only use the unit in indoor areas.•

Do not use the appliance in damp rooms and protect•

it from water drops and splashes. Ensure that no vases

or other vessels ﬁlled with liquid are placed on or

near the appliance to prevent the housing from being

penetrated by liquid.

91554 GB 20100621.indd 491554 GB 20100621.indd 4 22.06.2010 9:33:25 Uhr22.06.2010 9:33:25 Uhr

• Consono 35 5

Setup

Location tips

Select a stable, level base and/or a suitable wall.•

Make sure that the environment is clean and free from•

dust.

Avoid placing the unit close to sources of heat or in•

direct sunlight.

Do not place any heavy objects on the cables or the•

speakers.

Center speakers

Set up the center speaker on the enclosed holder• 햴in

a central position directly under or beside the screen.

Front speakers

The front speakers are set up to the right and left of the•

screen or hung at a height of approx. 80 to 160 cm.

They should be roughly in line with the center speaker•

and form an equilateral triangle with the listener – the

so-called stereo triangle (distance from the listener =

distance between the speakers).

The speakers should project sound directly into the•

room or slightly towards the listener.

Rear speakers

The rear speakers are set up or hung next to (a) or•

behind (b) the listener at a height of 1.20m to 2.10m.

There should be at a distance of at least 100 cm to the•

listener.

Subwoofer

The location of the subwoofer is arbitrary and does not•

affect the other speakers. A location between the front

speakers is ideal often.

Wall mounting

Danger Risk of damage!

Incorrect location may result in damage.

Ensure that any wall mounting is performed in a profes-•

sional manner.

Only use suitable wall brackets for mounting. Check•

the carrying capacity of the walls.

You can mount the satellite speakers on the wall using•

the long hole on the back of the speaker.

You can purchase installation materials (cables,•

wall brackets and resonance dampers) espe-

cially designed for these speakers in our webshop

(www.teufelaudio.com) in the “Accessories” area.

Stereo triangle

Front FrontCenter

Rear

Subwoofer

(a) (a)

(b) (b)

햴

91554 GB 20100621.indd 591554 GB 20100621.indd 5 22.06.2010 9:33:25 Uhr22.06.2010 9:33:25 Uhr

6• Consono 35

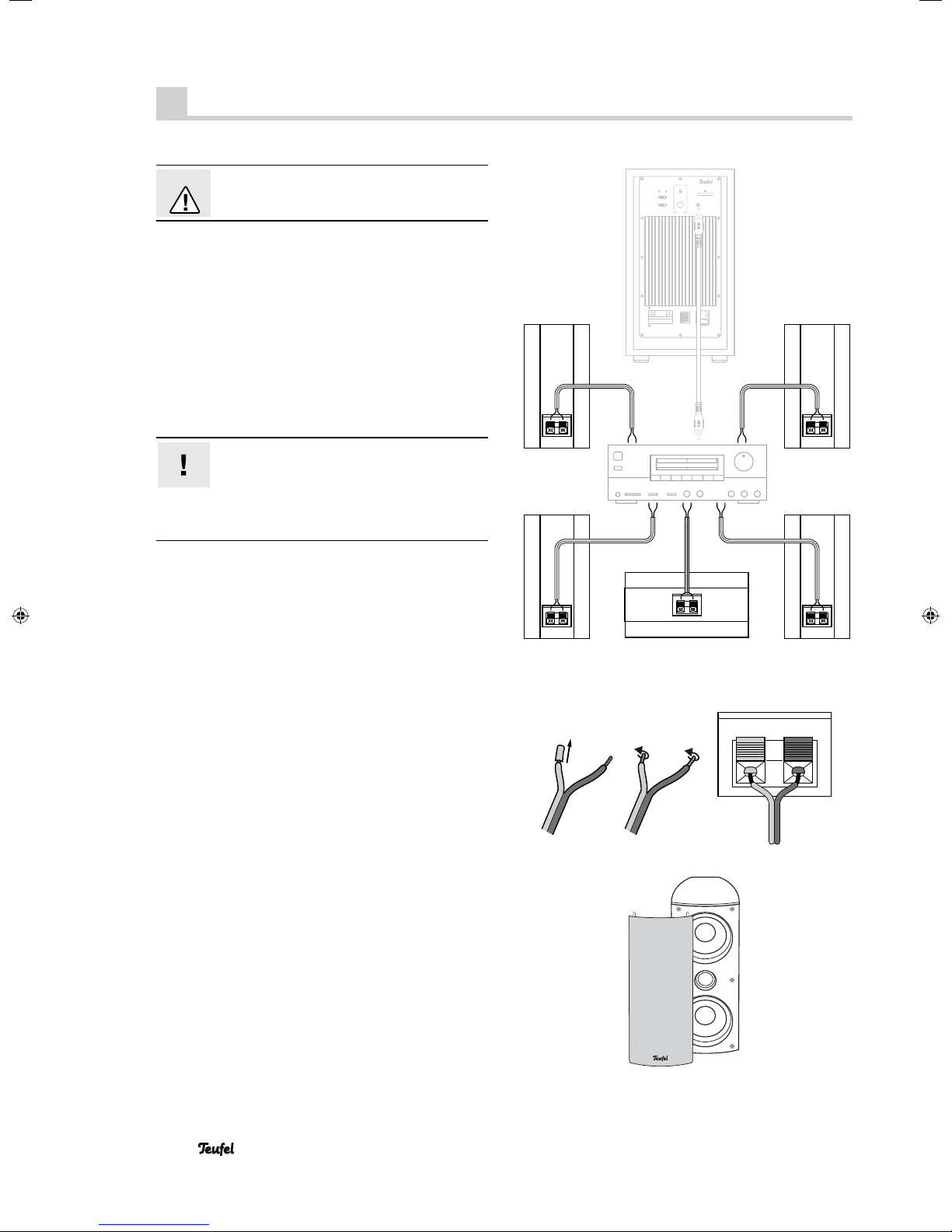

Connection and settings

Danger Danger of injury/damage!

Arrange the cables so that they do not pose a

trip hazard.

Satellite speakers

Pull the mains plug of your AV receiver out of the•

socket.

Lay the speaker cable from your AV receiver to each•

of the speakers. This cable should be a high-quality

double-wire speaker cable with marked strands. The

cross-section should amount to at least 0.75 mm2.

A connector comprising two terminals is located on the•

back of each satellite speaker, to which you have to

connect the speaker cables.

The terminals are each marked in red (+) and black (-).•

Make sure the polarity is correct!

Connect the like coloured terminals with one

another. Otherwise the sound quality will suffer.

The speaker connectors of your AV receiver should be

marked similarly. The strands of the speaker cables are

marked with different colours or shapes.

Split the single-wire down to approx. 30 mm on both1.

ends and strip off approx. 10 mm of insulation.

Twist the stripped strands so that no wire is protruding.2.

Push the red and black lever of the connector terminal3.

up and insert the stripped strand ends in the underlying

opening. Releasing the lever will lock the single-wires

in place.

Connect the cables to the other satellite speakers in the4.

same way.

Connect the speaker cables to your AV receiver. The5.

operating instructions of the appliance should contain

notes on this.

Subwoofer

Connect the subwoofer as described in the correspond-•

ing operating instructions.

Removing the cover grills

You can remove the from the speakers by carefully•

reaching behind the protective grid and slowly pulling

it off to the front.

When reattaching the grids, ensure that the installation•

pins slide into the corresponding holes on the speaker.

Crossover frequency

The optimal crossover frequency for the Consono-35-•

System

is 150Hz. To the extent possible, set your AV

ampliﬁer to this value.

US 5108/1

Auto Level

Mid

Low High

Power Limiter

On Auto

0° 180°

Phase

Line Input

Min Max

Volume

Vorsicht

Power

On Off

220-240V ~50Hz

250 Watts

91554 GB 20100621.indd 691554 GB 20100621.indd 6 22.06.2010 9:33:26 Uhr22.06.2010 9:33:26 Uhr

• Consono 35 7

Troubleshooting

The following instructions should help you to solve problems. If this doesn’t work, please contact our hotline (see page 3).

Mind the warranty instructions.

Problem Possible cause Solution

Playback is noisy. Generally speaking, the system is very low-

noise. In the high range area, very good-

quality high-resolution speaker systems can

expose the poor quality of a signal source

(e.g. from MP3 ﬁles).

Ensure that the source is sending a clear

signal.

The sound seems dull. The speakers have been connected with

the incorrect polarity.

Make sure the speaker cables of all satellites

are connected properly.

Care and cleaning

Clean the speakers regularly with a soft, damp microﬁber

cloth. In the process, be absolutely sure to observe the

following notes:

If possible use only plain water with no cleaning pro-•

ducts. In case of stubborn marks, a mild soap solution

may be used.

In no circumstances should caustic cleaning products,•

white spirit, thinners, petrol or similar be used for

cleaning.

Disposing of the unit

Used units must not be disposed of with

household waste.

If the unit is no longer operational, every

consumer is required by law to dispose of

used devices separate from household waste,

Protecting the environment

e. g. at a collection point run by the communal author-

ity borough. In this way, used devices can be recycled

and waste materials disposed of in an environmentally

friendly manner.

For this reason, electrical equipment is labelled with the

displayed symbol

91554 GB 20100621.indd 791554 GB 20100621.indd 7 22.06.2010 9:33:26 Uhr22.06.2010 9:33:26 Uhr

Technical data

Impedance: 4 ohm

Dimensions (W x H x D): 90 x 200 x 98 mm

Net weight: 820 g

This product conforms with Council of the

European Union guidelines 2004/108/EC and

2006/95/EC

Technical changes reserved!

Instruction No. 91554_GB/HC-20100621

For questions, suggestions or other issues please contact our customer service department:

Lautsprecher Teufel GmbH

Gewerbehof Bülowbogen - Aufgang D1

10783 Berlin (Germany), Bülowstr. 66

Tel.:

00800 200 300 40 (toll-free)

Fax: +49 (0)30 -300930 930

www.teufelaudio.com

No liability is accepted for the

accuracy of this information. Tech-

nical changes, typographical errors

and other errors reserved.

91554 GB 20100621.indd 891554 GB 20100621.indd 8 22.06.2010 9:33:26 Uhr22.06.2010 9:33:26 Uhr

gb was

here

Technical description and operating instructions

Active subwoofer

US 5108/1

US 5110/1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Teufel Système de haut-parleurs

Teufel

Teufel 5 THX SELECT Manuel utilisateur

Teufel

Teufel Theater 80 Manuel

Teufel

Teufel Concept E 100 Manuel utilisateur

Teufel

Teufel Cinebar Ultima Manuel de la liste des pièces

Teufel

Teufel theater 6 hybrid Manuel utilisateur

Teufel

Teufel concept c 300 black edition Manuel

Teufel

Teufel POWER HIFI Manuel de la liste des pièces

Teufel

Teufel cinebar 11 Manuel de la liste des pièces

Teufel

Teufel raumfeld one s Manuel utilisateur

Teufel

Teufel Concept E 100 Manuel

Teufel

Teufel System 10 THX Ultra 2 Manuel

Teufel

Teufel system 8 Manuel

Teufel

Teufel Concept E 400 Manuel

Teufel

Teufel Concept D 500 THX Manuel

Teufel

Teufel Concept C 200 Manuel utilisateur

Teufel

Teufel LT 3 Power Edition Manuel utilisateur

Teufel

Teufel motiv 2 Manuel de la liste des pièces

Teufel

Teufel Cinebar One Manuel utilisateur

Teufel

Teufel cinebar 11 Manuel de la liste des pièces

Teufel

Teufel Raumfeld Cube Manuel utilisateur

Teufel

Teufel Cubycon 2 Manuel de la liste des pièces

Teufel

Teufel Concept E 200 Control Manuel

Teufel

Teufel Concept E 400 Manuel utilisateur

Teufel

Teufel Theater 4 Hybrid Series Manuel

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
