TerraTrike Rover Manuel utilisateur
www.TerraTrike.com - 800.945.9910
4525 Stauffer Ave SE, Suite A. Kentwood, MI
49508 USA
Assembly Guide
Pilot’s Handbook
Technical Illustration
&
Parts List
Table of Contents
Assembly Guide - Pg 1-8

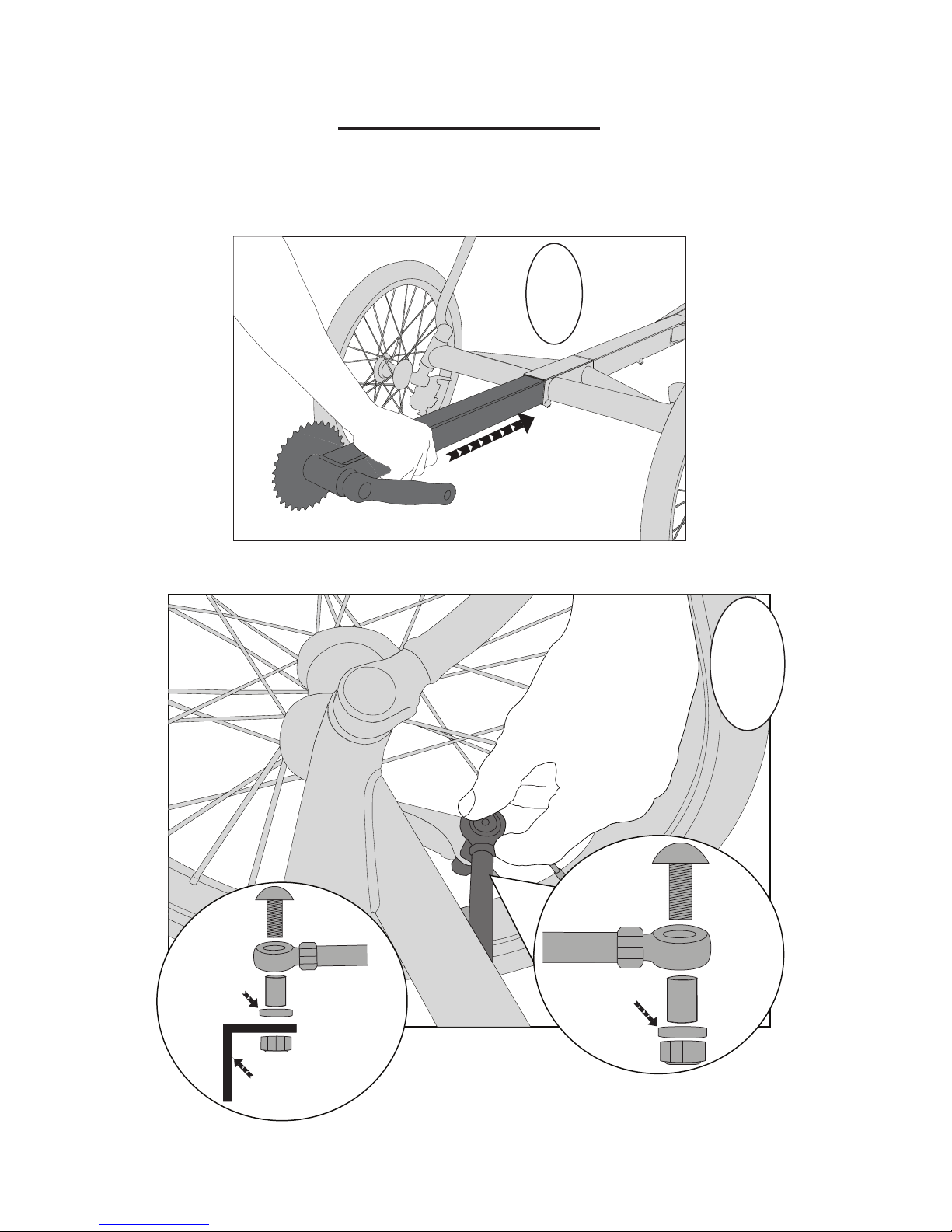

Boom Install - Pg 1
Tie Rod Install - Pg 1

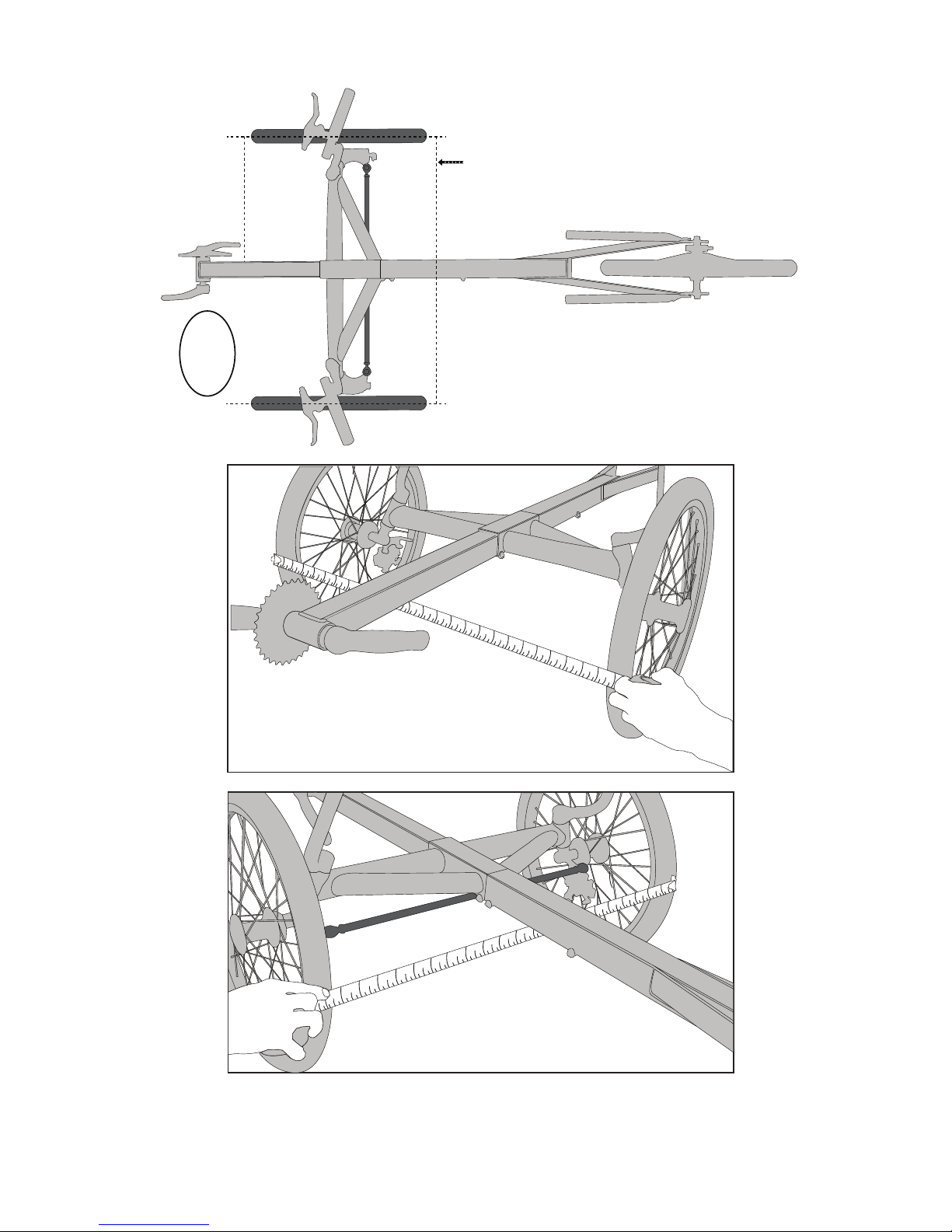

Alignment - Pg 2

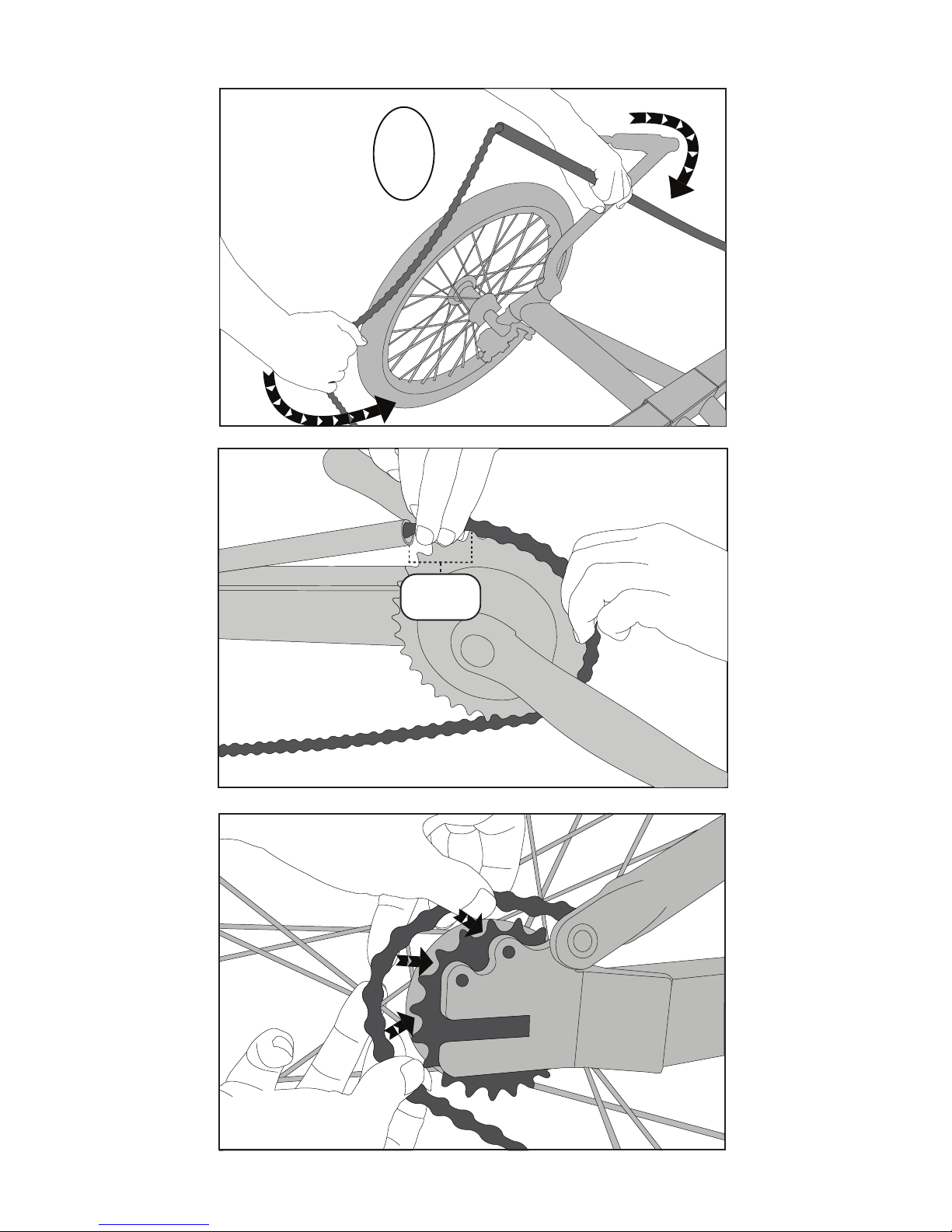

Chain Install - Pg 3
Tighten Set-Screw - Pg 4
Install Chain Tube Clamp - Pg 4
Install Seat - Pg 5
Install Pedals - Pg 6
Install Water Bottle/Accessory Mount Block - Pg 6
Install Reectors - Pg 7

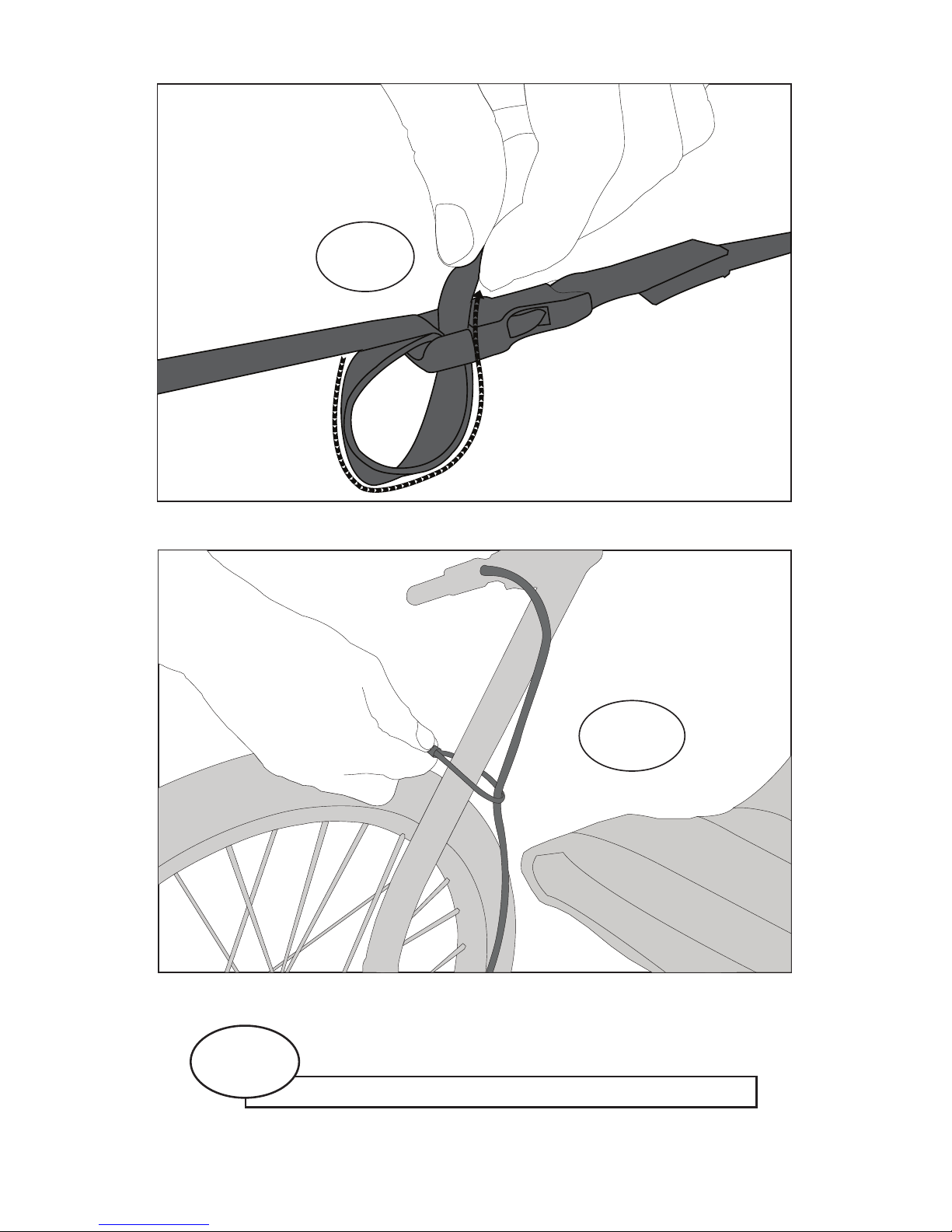

Tuck Seat Straps - Pg 8
Zip Tie Cables - 8
Rover Sizing Chart - Pg 9
Pilot’s Handbook - Pg 10-14
General Information - Pg 10-12
-Unpackaging - Pg 10
-Cautions/Safety - Pg 10
-Riding Tips - Pg 10-11
-Special Tandem Consideration - Pg 11
-Survivals Tips - Pg 11
-Maintenance of your TerraTrike - Pg 11-12
-TerraTrike Lifetime Warranty - Pg 12
-Liability Waiver - Pg 12
Rover Information - Pg 13-14
-Disassembly - Pg 13
-Shiing - Pg 13
-Handle Bar Adjustment - Pg 13
-Seating Position Adjustment - Pg 14
-Tire Pressure - Pg 14
Technical Illustration - Pg 15
Parts List - Pg 16
Notes - Pg 17
Company Contact Information - Pg 18
Warranty Registration - Pg 18
1
RIGHT HAND
SIDE OF TRIKE
2
Hubmount
Hubmount
“L” Bracket (computer
sensor mount)
LEFT HAND
SIDE OF TRIKE
Assembly Guide
Dark Grey = Installation/Adjustment
1
29 13/16”
from center
of tires
3
Inate
Tires
First
13 15/16”
2
4
1” - 2”
3
5
7
-IMPORTANT-
Rover 3 and Rover 8
also have a chain tube
for return (bottom)
part of chain.
T
op
of
ma
i
n t
u
be
One located
under this
tube
Tighten to 8-10Nm
(70-85 in. lbs.)
6
Pull While tightening
Set Screws (Step 6)
Spacer(s) only used on
Rover 3, 8 & Tandem
4
A
9
B
Main
Tube
Seat frame Base
Chain
(drive
train)
side
of trike
8
Seat
stay
pins
5
11
10
6
13
12
7
15
14
Handle bar adjustment - SEE PG 13
16
8
