TerraTec HomeArena MX 2.1 Manuel utilisateur

Quick Start Guide (English)

Version: 08.09.04

CE Declaration

We:

TerraTec Electronic GmbH, Herrenpfad 38, D-41334 Nettetal, Germany

hereby declare that the product:

HomeArena MX 2.1

to which this declaration refers are in compliance with the following standards or standardiz-

ing documents:

EN 55013, EN 55022, EN 60065

The following are the stipulated operating and environmental conditions for said compliance:

residential, business and commercial environments and small-company environments.

This declaration is based on:

Test report(s) of the EMC testing laboratory

The information in this document is subject to change without notice and shall not be deemed as a warranty by the

seller. No warranties, express or implied, are made with regard to the quality, suitability or accuracy of this docu-

ment. The manufacturer reserves the right to change the contents of this document and/or the associated products

at any time without the provision of prior notice to specific persons or organizations. The manufacturer shall not be

held liable for damages of any kind arising from the use, or the inability to use this product or its documentation,

even if the possibility of such damage is known. The information in this document is subject to copyright. All rights

are reserved. No part of this manual may be reproduced or transmitted in any form or for any purpose without the

express written permission of the copyright holders. Product and brand names contained in this document are used

for identification purposes only. All registered trademarks, product designations or brand names used in this

document are the registered property of their respective owners.

2 HomeArena MX 2.1 (Deutsch)

Welcome!

We're pleased that you have chosen a TerraTec speaker system and would like to congratulate

you on this decision.

We're convinced that our HomeArena MX 2.1 system will provide you with a great deal of en-

tertainment and reliable service in the coming years.

Your TerraTec Team

Unpacking the system:

After you have unpacked the system, please ensure that it is complete.

You should have the following items:

· 2 satellite speakers (3 m cable length)

· 1 subwoofer

· 2 wall mounts

· 1 audio connector cable, 3.5 mm jack/RCA (1.8m)

· 1 audio connector cable, 3.5 mm jack/3.5m jack (1.8m)

· 1 video game console adapter (3.5 mm female jack to female RCA)

· 1 printed Quick Start Guide (D, NL, F, GB, I, ES)

· 1 customer service card

Service

In case you encounter unexpected problems during the installation, our support team is

available by phone from Monday to Friday between 1:00 pm to 8:00 pm, Central European

Time.

For more information, please refer to the included customer service card.

We would also be pleased to answer your questions online. For further information, please

visit http://www.terratec.net/support.

Should it become necessary to return the product to our service department, please follow the

detailed instructions on the customer service card. Thank you.

HomeArena MX 2.1 (Deutsch) 3

Design & operation:

Please ensure that the power is off when connecting any of the components. This will protect

you from any possible - albeit weak - electrical shocks, as well as protecting your speakers

and your hearing from sudden peaks.

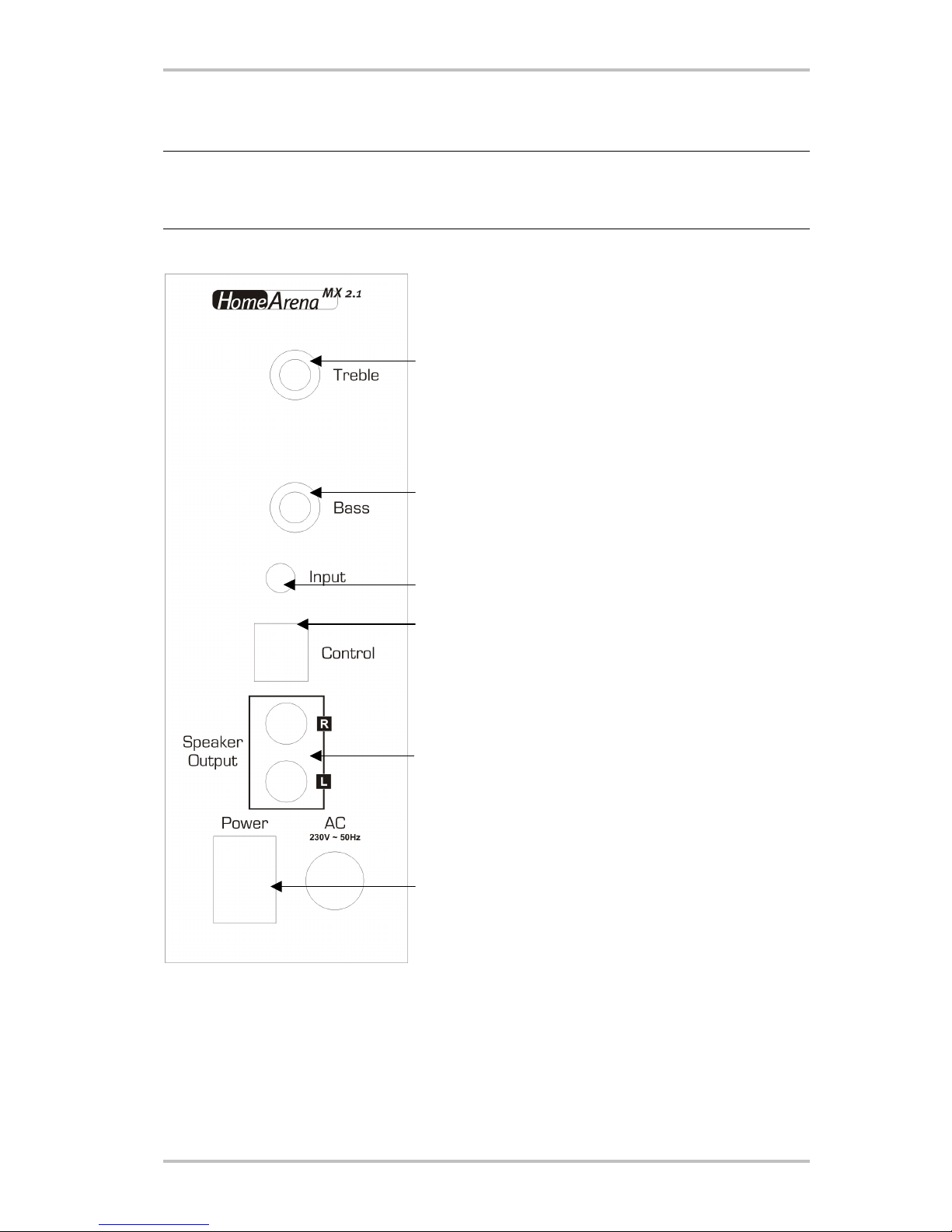

Please refer to the diagram below for the connectors and controls of your HomeArena MX 2.1.

Control input

3.5 mm stereo audio input (line)

Bass

Treble

Speaker output

Power switch

Please note that the speaker cables are color-coded.

Rot = right speaker with controls

White = left speaker

4 HomeArena MX 2.1 (Deutsch)

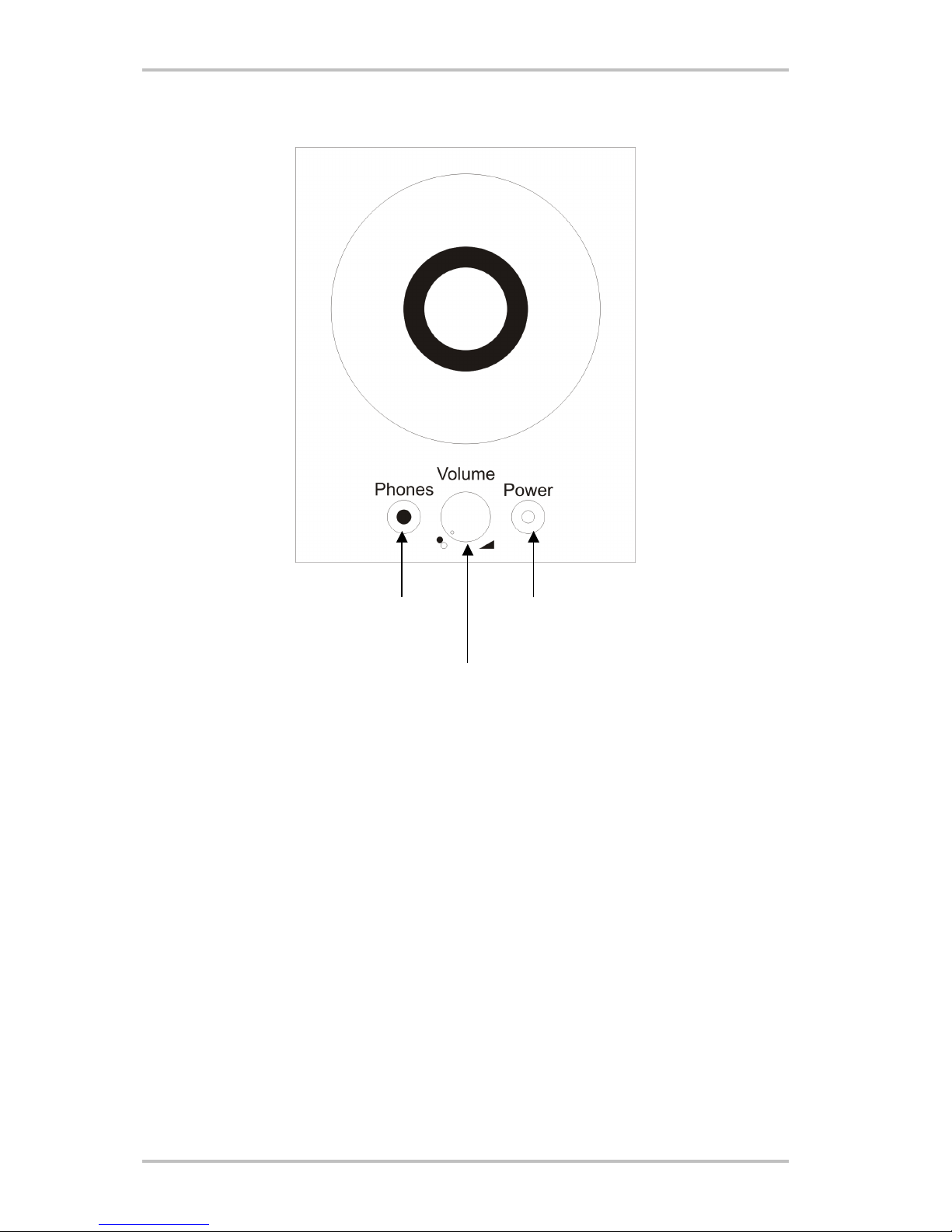

The speaker with controls:

Headphones (3.5 mm female jack) Power LED

Volume + On/Off switch

HomeArena MX 2.1 (Deutsch) 5

Specifications:

Total output power: 22 watts RMS

Frequency response: 20 Hz – 20 KHz

Input impedance: 10 kOhm

Subwoofer:

· 1 x 4" (10.16 cm) subwoofer

· 12 watts RMS

· 4 ohms impedance

· Wooden bass reflex enclosure

· Integrated amplifier

· Stereo input (3.5 mm jack)

· Audio controls (bass and treble)

· Power cable (1.8 m)

Satellites

· 2 x 2.5" (6.35 cm) speakers

· 5 watts RMS each

· HIPS enclosures

· 4 ohms impedance

· Audio controls on one speaker

· Headphone socket, 3.5 mm jack

· Volume control and power switch

Dimensions

· Subwoofer (W/H/D) : 130 x 267 x 255 mm

· Satellites (W/H/D): 85 x 110 x 105 mm

Power supply:

· 230V/50Hz, integrated in subwoofer

System requirements

· PC with sound card or other audio source (MP3 player, DVD player, video game console)

with line level output

6 HomeArena MX 2.1 (Deutsch)

HomeArena MX 2.1 (Deutsch) 7

Safety notes

1. Do not connect the subwoofer's outputs to an external amplifier

2. Do not open the housing, high voltages occur inside

3. Do not expose to direct sunlight, protect against rain or spray

4. Switch off and unplug the AC power supply of the HomeArena MX 2.1 if you are not going

to use it for extended periods.
