Tepex PSF 218 Manuel utilisateur

Strana 1

Page 1

Doc. No.: TEPEx.RS.093

Ver: 0

Date: 12. 2018.

Fluorescentna svjetiljka

PSF 218, PSF 236, PSF 258

Fluorescentna sigurnosna

svjetiljka PSF 218E, PSF 236E

Fluorescent light fitting

PSF 218, PSF 236, PSF 258

Emergency light fitting

PSF 218E, 236E

Upute za uporabu User manual

U P O Z O R E N J E !

Upute za uporabu sadrže osnovne informacije o proizvodu.

Montaža, instaliranje, uporaba i održavanje trebaju biti

izvedeni prema ovoj Uputi kako bi bio osiguran siguran rad

unutar nazivnih karakteristika. Ovu Uputu nadopunjuju

nacionalni Pravilnici i norme. Odgovorna osoba korisnika je

dužna osigurati njihovo provođenje. Neprovođenje može

umanjiti protueksplozijsku zaštitu uređaja i dovesti u

opasnost ljude, imovinu i okoliš. Svako neispravno i

nedozvoljeno postupanje kao i nepoštivanje odredbi ove

Upute isključuje svaku odgovornost proizvođača.

Prije ugradnje/puštanja u pogon:

- Pažljivo pročitati cijelu Uputu za uporabu,

- Izvršiti odgovarajuću obuku odgovornog osoblja,

- Provjeriti da je sadržaj ove Upute u potpunosti razumljiv

odgovornim osobama,

- Uvjeriti se da su primijenjeni svi zahtjevi nacionalnih Pravilnika i

posebne sigurnosne mjere ukoliko postoje.

U slučaju nejasnoća:

- Kontaktirati proizvođača.

Tijekom pogona:

- Osigurati da ove Upute za uporabu i druge radne upute korisnika

budu vidljivo istaknute i dostupne odgovornom osoblju cijelo

vrijeme,

- Provjeravati provođenje ove Upute i svih drugih sigurnosnih

uputa korisnika.

W A R N I N G !

The user manual contains basic information about the

product. Mounting, installation, usage and maintenance

should be carried out under this user manual to provide and

ensure safe operation within the nominal characteristics.

This user manual complement national Regulation and

Standards. The responsible person shall ensure their

implementation. Failure off implement this user manual can

reduce explosion protection and endanger people, property

and the environment. Any improper and illegal actions as

well as non-compliance with the provisions of this user

manual excludes all responsibility by manufacturer side.

Before installation/commissioning:

- Carefully read all instructions,

- Execute proper training of responsible personnel,

- Check that the contents of these instructions is fully

understandable by the responsible personnel,

- Make sure that all the requirements and national Regulations

as well as all special security measures are applied.

In lack of understanding:

-Contact the manufacturer.

During operation:

- Ensure that this user manual and other work instructions are

available to the responsible staff at all times,

- Check the implementation of these instructions and all other

safety user’s instructions

Medarska 69, Zagreb, Croatia

XMade in Croatia

tel. 00385 49 222 900

fax. 00385 49 426 450

e-mail: [email protected]

web: www.tepex.hr

0722

Strana 2

Page 2

SADRŽAJ:

1. Namjena………………………………….………………………..

2. Sukladnost proizvoda.……………………....………………

3. Stupanj zaštite i tehnički podaci.……………….………

4. Tipna oznaka.…………….……………………………………..

5. Polarna karakteristika……………………………………….

6. Montaža i instaliranje ……………………..……………….

7. Način rada i instaliranje PSF 218E/236E……………

8. Dimenzije……………………….…………………………………

9. Rezervni dijelovi.………………………………………………

10. Pribor……………………………………………………………….

11. Održavanje, popravak, obnavljanje i pregradnja.

12. Odgovornosti i ovlaštenja……….…………………………

13. Skladištenje i transport….………………………………….

14. Jamstvo proizvođača………….……………………………..

15. Označavanje……………………………………………………..

CONTENTS:

1. Purpose……………………………………………………………….

2. Product compliance……………………………….……………

3. Degree of protection and technical data.………….…

4. Types………….……………………………………………………….

5. Polar curve…………………….……………………………………

6. Mounting and installation ………………………………….

7. Operating modes and installation PSF 218E/236E.

8. Dimensions………………………………………………………….

9. Spare parts…….…………………………………………………..

10. Accessories………………………………............................

11. Inspection, maintenance, repair and overhaul…….

12. Responsibility and authorization.………………………..

13. Storage and transport………………………………………….

14. Manufacturer's warranty.…………………………………….

15. Marking……..………………………………………………………..

1. NAMJENA

Protueksplozijski zaštićene fluorescentne svjetiljke PSF 218 /

PSF 236 / PSF 258 namijenjene su za opću rasvjetu, a fluorescentna

svjetiljka u slučaju opasnosti PSF 218E / PSF 236E za opću rasvjetu i

rasvjetu u slučaju opasnosti (sigurnosna i nadomjesna) u

industrijskim prostorima na mjestima s potencijalno eksplozivnom

atmosferom plinova, para i prašine u zonama opasnosti 1, 2, 21, 22

sukladno normama EN 60079-10-1/-2/.

Svjetiljka koristi standardne dvokontaktne fluorescentne cijevi T8

(26mm), 18W/36W - G13 spojene u paralelnu konfiguraciju, a 58W

–G13 spojenu u serijsku konfiguraciju.

2. SUKLADNOST PROIZVODA

Proizvod je sukladan Pravilniku o opremi i zaštitnim sustavima

namijenjenim za uporabu u potencijalno eksplozivnim atmosferama,

NN br. 33/16.

Proizvod je sukladan normama:

-EN 60079-0:2012+A1:2013,

-EN 60079-1:2014,

-EN IEC 60079-7:2015+A1:2018,

-EN 60079-18:2015+A1:2017,

-EN 60079-31:2014.

Proizvod je razvijen, proizveden i ispitan prema postojećem stanju

tehnike, sukladno normama EN ISO 9001:2015, EN ISO 80079-

34:2011 i EN ISO 14001:2015.

Proizvod je sukladan ATEX Direktivi 2014/34/EU.

Proizvod je sukladan LVD Direktivi 2014/35/EU.

Proizvod je sukladan RoHS Direktivi 2011/65/EU.

Proizvod je sukladan EMC Direktivi 2014/30/EU.

3. STUPANJ ZAŠTITE I TEHNIČKI PODACI

Certifikat:

EXA 18 ATEX 0087

Oznaka:

Oznaka kategorije i

protueksplozijske zaštite

uređaja:

PSF 218

PSF 236

II 2G Ex db eb mb IIC T4 Gb

II 2D Ex tb IIIA/IIIC T80°C Db

PSF 218E

PSF 236E

II 2G Ex db eb mb IIC T4 Gb

II 2D Ex tb IIIC T80°C Db

PSF 258

II 2G Ex db eb mb IIC T4 Gb

II 2D Ex tb IIIA T80°C Db

Temperatura okoline:

PSF 218/236 -30°C/-20°C < Ta < +50°C

PSF 218E/236E -20°C < Ta< +40°C

PSF 258 -20°C < Ta< +50°C

1. PURPOSE

Explosion proof fluorescent light fittings type PSF 218 / PSF 236 / PSF

258 are intended for general lighting and emergency light fitting PSF

218E / PSF 236E are intended for emergency and general lighting in

industrial areas with potentilly explosive atmosphere in Zones 1, 2, 21,

22 according to EN 60079-10-1/-2/.

Ex fluorescent light fitting PSF 218E/236E is used as fluorescent lighting

fitting with two T8 (Ø26mm), 18W/36W –G13 connected in parallel

configuration, 58W –G13 connected in serial configuration.

2. PRODUCT COMPLIANCE

The product complies with the standards:

-EN 60079-0:2012+A1:2013,

-EN 60079-1:2014,

-EN IEC 60079-7:2015+A1:2018,

-EN 60079-18:2015+A1:2017,

-EN 60079-31:2014.

The product has been developed, manufactured and tested according

to the existing state of technique accordance with the standards EN

ISO 9001:2015, EN ISO 80079-34:2011 and EN ISO 14001:2015.

The product is in compliance with the ATEX Directive 2014/34/EU.

The product is in compliance with the LVD Directive 2014/35/EU.

The product is in compliance with the RoHS Directive 2011/65/EU.

The product is in compliance with the EMC Directive 2014/30/EU.

3. DEGREE OF PROTECTION AND TECHNICAL DATA

Certificate:

EXA 18 ATEX 0087

Marking:

Category and explosion

protection:

PSF 218

PSF 236

II 2G Ex db eb mb IIC T4 Gb

II 2D Ex tb IIIA/IIIC T80°C Db

PSF 218E

PSF 236E

II 2G Ex db eb mb IIC T4 Gb

II 2D Ex tb IIIC T80°C Db

PSF 258

II 2G Ex db eb mb IIC T4 Gb

II 2D Ex tb IIIA T80°C Db

Ambient temperature:

PSF 218/236 -30°C/-20°C < Ta < +50°C

PSF 218E/236E -20°C < Ta< +40°C

PSF 258 -20°C < Ta< +50°C

0722

Strana 3

Page 3

Mehanička zaštita:

IP 66 sukladno EN 60529

Otpornost na udar:

IK 08

Klasa zaštite:

I (PE - zaštitno uzemljenje)

Nazivni napon Un:

230 V AC, 50 Hz

Radni napon:

220-240 V, 50/60 Hz

Nazivna struja:

PSF 218/218E –0,17A

PSF 236/236E –0,33A

PSF 258 –0,5A

Faktor snage:

λ=0,95

Balast lumen factor BLF:

97,5%

End of life EOL:

Elektroničke predspojne naprave SMP 07 i SMP 08

u potpunosti su sukladne sa EN 61349-2-

3:2011+A11:2017 („end of life effect“)

Životna dob predspojne

naprave:

100 000 sati pri Tservice=65°C uz 20% ispada max.

60 000 sati pri Tservice=70°C uz 20% ispada max.

Životna dob izvora :

20.000 sati (long life cijevi do 79.000 sati na

poseban zahtjev)

Izvor svjetlosti:

fluorescentna cijev 18W / 36W / 58W, T8-Ø26

mm, sukladno EN 60081:2008+A4:2012

Podnožje:

G13 sukladno EN 60061-1:2008+A45:2012

Kabelski uvodi:

Dvije uvodnice Ex e M25x1,5 za kabel Ø7-15mm i

dva Ex e čepa sukladno sa EN 62444:2013

Prolazno ožičenje:

PSF 218/236/258 - 5x1,5mm2, max. 16A

PSF 218E/236E –looping –ulaz i izlaz na jednoj

strani svjetiljke

Centralna blokadna

sklopka:

Centralna blokadna sklopka osigurava

beznaponsko otvaranje. Kada je centralna

blokadna sklopka u poziciji “OPEN” unutarnji

elementi svjetiljke nalaze se u beznaponskom

stanju (elektronička predspojna naprava, grla

G13…). Blokadna sklopka uključuje svjetiljku

nakon zatvaranja pokrova i zakretanje blokadne

sklopke u poziciju “CLOSE”. U slučaju kvara ili

nedostatka jedne od fluorescentnih cijevi,

elektronička predspojna naprava kod PSF

218/236/218E/236E isključuje napajanje

predmetne fluorescentne cijevi, a kod PSF 258

isključuje napajanje obje fluorescentne cijevi.

Maksimalan broj

svjetiljaka (kom.) po

jednom automatskom

instalacijskom prekidaču:

Automatski instalacijski prekidač

1 p B 10A

1 p C 10A

1 p B 16A

1 p C 16A

PSF 218

PSF 236

PSF 258

Kućište:

SMC, poliester ojačan staklenim vlaknima, boja

RAL 7038

Pokrov:

PC, polikarbonat

Nazivni momenti

pritezanja:

-pritisne matice uvodnice –2,5 Nm

-tijela uvodnice u kućište – 3,5 Nm

-čepa u kućište – 4 Nm

-vijak priključne stezaljke – 0,5 Nm

Duljina skidanja izolacije

s priključnih vodiča:

9 mm

Osnovne mjere:

PSF 218/218E - 790 x 200 x 130 (DxŠxV)

PSF 236/236E - 1370 x 200 x 130 (DxŠxV)

PSF 258 –1665 x 200 x 130 (DxŠxV)

Masa:

PSF 218 –7,5 kg

PSF 236 –10 kg

PSF 258 –12kg

PSF 218E –9kg

PSF 236E –12,5kg

Mechanical protection:

IP 66 according to EN 60529

Resistance to shock:

IK 08

Class of protection:

I (PE - protective earthing)

Rated voltage Un:

230 V AC, 50 Hz

Operating voltage:

220-240 V, 50/60 Hz

Rated current:

PSF 218/218E –0,17A

PSF 236/236E –0,33A

PSF 258 –0,5A

Power factor:

λ=0,95

Balast lumen factor BLF:

97,5%

End of life EOL:

The electronic ballasts, type SMP 07 and SMP 08

fulfills the requirements according to EN 61347-

2-3:2011+A11:2017 (simulation of the "end of

life effect“ of fluorescent lamps)

Lifetime of ballast:

100 000 hours at Tservice=65°C with a 20% failure

max.

60 000 hours at Tservice=70°C with a 20% failure

max.

Lifetime of lighting

source:

20,000 hours (long tube lifetime up to 79,000

hours, only on special request)

Light source:

fluorescent tube, 18W / 36W / 58W, T8-Ø26 mm,

according to EN 60081:2008+A4:2012

Lampholder:

G13 according EN 60061-1:2008+A45:2012

Cable entry:

Two cable glands Ex e M25x1,5 for cable

diameter Ø7-15mm and two Ex e plug in

accordance with EN 62444:2013

Through wiring:

PSF 218/236/258 - 5x1,5mm2, max. 16A

PSF 218E/236E - looping of the cables (entry and

exit on one side)

Central interlocking

switch

Central interlocking switch provides an no-load

condition. When the central interlocking switch

is in position "OPEN" internal elements of the

lamps are in no-load condition (electronic

control gear, G13…). The interlocking switches

power on a flashlight after closing the cover and

rotate the lock switch in position "CLOSE". In

case of failure or lack of one of the fluorescent

tubes, electronic control gear od PSF

218/236/218E/236E shuts off the power to the

malfunctioned fluorescent tubes, and PSF 258

shuts off to the both fluorescent tubes.

Maximum number of

lamps (pieces) per one

automatic circuit

breaker:

Automatic circuit breaker

1 p B 10A

1 p C 10A

1 p B 16A

1 p C 16A

PSF 218

PSF 236

PSF 258

Housing:

SMC, polyester plastic reinforced with glass

fibber, colour RAL 7038

Diffuser:

PC, polycarbonate plastic

Tightening torque:

pressure screw –2,5 Nm

intermediate gland and plug –3,5 Nm

plug in housing –4 Nm

screw terminals –0,5 Nm

Isolation stripping

length of the wires:

9mm

Dimension:

PSF 218/218E - 790 x 200 x 130 (LxWxH)

PSF 236/236E - 1370 x 200 x 130 (LxWxH)

PSF 258 –1665 x 200 x 130 (LxWxH)

Weight:

PSF 218 –7,5 kg

PSF 236 –10 kg

PSF 258 –12kg

PSF 218E –9kg

PSF 236E –12,5kg

Strana 4

Page 4

PSF 218E / 236E

Baterija:

PSF 218E - Ni-Mh Saft VHT D, 4,8V 6Ah

PSF 236E - Ni-Mh Saft VHT F, 4,8V 10Ah ugrađena

u svjetiljku, mikroprocesorski upravljano punjenje,

pražnjenje i nadzor baterije

Battery:

PSF 218E - Ni-Mh Saft VHT D, 4,8V 6Ah

PSF 236E - Ni-Mh Saft VHT F, 4,8V 10Ah

built-in lighting, microprocessor controlled

charging, discharging and battery monitoring

Životna dob izvora :

srednja, 10.000 sati (long life cijevi do 70.000 sati

na poseban zahtjev)

Lifetime of lighting

source:

medium, 10,000 hours (long tube lifetime up to

70,000 hours, only on special request)

Nazivna autonomija:

1,5 / 3 sata

Rated autonomy:

1,5 / 3 hours

Svjetlosni tok u

baterijskom radu

ηBLF (balast lumen

faktor):

U baterijskom radu radi samo jedna fluorescentna

cijev

Autonomija

PSF 218E

PSF 236E

1,5h

60%

(800lm)

60%

(2000lm)

40%

(550lm)

30%

(1000lm)

Luminous flux in battery

mode ηBLF (ballast

lumen factor):

In battery mode only one fluorescent tube is

working.

Autonomy

PSF 218E

PSF 236E

1,5h

60%

(800lm)

60%

(2000lm)

40%

(550lm)

30%

(1000lm)

Emergency ballast

lumen factor:

Autonomija

1,5h

PSF 218E

40%

60%

PSF 236E

30%

60%

Emergency ballast

lumen factor:

Autonomy

1,5h

PSF 218E

40%

60%

PSF 236E

30%

60%

Vrijeme punjenja

baterije:

24 sati (15 sati > 90% autonomije),

Nakon 24 sata trajno dopunjavanje baterija u

„trickle charge“ režimu

Charging time:

24 hours (15 hours > 90% autonomy)

After 24 hours permanent filling battery in

„trickle charge“ mode

Napon prelaska s

mrežnog na baterijsko

napajanje:

U < 0,8 UNu trajanju više od 0,5 s

Charge-over battery

operation:

U < 0,8 UN for more than 0,5 s

Napon prelaska s

baterijskog na mrežno

napajanje:

U > 0,9 UNu trajanju više od 1 s

Charge-over mains

supply operation:

U > 0,9 UN for more than 1 s

Vrijeme prorade

emergency moda:

0,5s

Response time

emergency mode:

0,5s

Režim punjenja:

Isr [mA]

BATEx 01/6

BATEx 01/10

Nazivna struja:

300

600

Trickle charge:

150

Uvjeti punjenja nazivnom strujom:

Učelije ≤ 1,58 V

-20°C ≤ tčelije ≤ +75°C

tpunjenja ≤ 24 sata nakon reseta napona

Uvjeti punjenja u režimu „trickle charge“:

Učelije ≤ 1,58 V

-20°C ≤ tčelije ≤ +75°C

tpunjenja > 24 sata nakon reseta napona

Charging mode:

Isr [mA]

BATEx 01/6

BATEx 01/10

Rated current:

300

600

Trickle charge:

150

Charging conditions of rated current:

Ucells ≤ 1,58 V

-20°C ≤ tcells ≤ +75°C

Tcharge ≤ 24 hours after voltage reset

Charging conditions in „trickle charge“ mode

Ucells ≤ 1,58 V

-20°C ≤ tcells ≤ +75°C

tcharge > 24 hours after voltage reset

Režim pražnjenja:

Isr [A]

BATEx 01/6

BATEx 01/10

Autonomija 1,5h

2,6 –3,3

5,0 –6,5

Autonomija 3h

1,9 –2,4

2,8 –3,4

Uvjeti: Učelije ≥ 0,9 V

-20°C ≤ tčelije ≤ +75°C

Discharge mode:

Isr [A]

BATEx 01/6

BATEx 01/10

Autonomy 1,5h

2,6 –3,3

5,0 –6,5

Autonomy 3h

1,9 –2,4

2,8 –3,4

Uvjeti: Ucells ≥ 0,9 V

-20°C ≤ tcells ≤ +75°C

Svjetiljka se isporučuje s max. napunjenim baterijama.

Moguće je prilikom dužeg skladištenja (više od 6mj je svjetiljka

zatvorena bez priključka na napon) da LED indikator ne proradi

odmah. Nakon toga je potrebno regenerirati baterije (puniti

baterije oko 2 sata) i tada će LED indikator proraditi.

The light fitting is supplied with max. charged batteries.

It’s possible during prolonged storage (lamp is closed more than

six months without connection to the voltage) that the LED

indicator doesn’t work immediately. At that moment it’s

necessary to regenerate the batteries (recharge the batteries for

approx. 2 hours) and then the LED indicator will start to work

properly.

Strana 5

Page 5

4. TIP

4. TYPE

TIP / TYPE

P [W]

IZVOR / LAMP

TYPE

Un [V]

Ø [lm]

GRLO / LAMP

HOLDER

In [A]

MASA /

WEIGHT

PSF 218

2 x 18

230

2 x 1350

G13

0,17

7,5 kg

PSF 236

2 x 36

2 x 3350

0,33

10 kg

PSF 258

2 x 58

2 x 5200

0,5

12 kg

TIP / TYPE

P [W]

MAIN

IZVOR /

LAMP TYPE

Un [V]

Ø [lm]

GRLO / LAMP

HOLDER

In [A]

MASA /

WEIGHT

MAIN

EM. 1,5h

EM. 3h

PSF 218E

2 x 18

230

2 x 1350

1 x 800

1 x 550

G13

0,17 A

9 kg

PSF 236E

2 x 36

2 x 3350

1 x 2000

1 x 1000

0,33 A

12,5 kg

5. POLARNA KARAKTERISTIKA

5. POLAR CURVE

6. MONTAŽA I INSTALACIJA

6. MOUNTING AND INSTALLATION

Svjetiljka se standardno isporučuje sa fluorescentnim cijevima, sa

dvije Ex eb uvodnice M25 (za kabel 7-15mm), tri Ex eb čepa M25 te

priborom za ovjesnu montažu (PSF 30-150).

Svjetiljka je namijenjena za vanjsku i unutarnju primjenu.

Napomene za sigurnu instalaciju i montažu:

Provjera temperature okoline

Mogućnost instalacije u zonama opasnosti 1, 2, 21, 22

Provjera mjesta ulaza kabela u svjetiljku (narušena

mehanička zaštita, IP broj)

Oštećenje svjetiljke narušava protueksplozijsku zaštitu

prostora u koji je instalirana!

Otvaranje i zatvaranje svjetiljke:

Skinuti gumenu zaštitu sa centralne blokadne

sklopke. Okrenuti centralnu osovinu 1800

ulijevo (natpisna pločica - OPEN), s nasadnim

ključem. Klizači oslobađaju transparentni

pokrov i svjetiljka se otvara. Prilikom zatvaranja

slijediti obrnuti redoslijed radnji.

Prilikom zatvaranja svjetiljke, obratiti pažnju

na pozicioniranje brtve (utor u pokrovu) u

odnosu na kućište.

Fluorescent lighting fitting comes standard with fluorescent tubes, two

Ex eb cable glands M25 (for cable 7-15mm), three Ex eb plug M25 and

accessories for suspension assembly (PSF 30-150).

The lamp is designed for indoor and outdoor use.

Notes for safe installation and assembly:

Check the ambient temperature

Possibility of installation in hazardous areas 1, 2, 21, 22

Checking of cable entry into the fluorescent lighting fitting

(compromised mechanical protection, IP number)

Damage lamps does not ensures explosion protection of

the area in which lamp is installed!

Opening and closing of the fluorescent light fitting:

Remove the rubber protection on the central

interlocking switch. Turn the central axis 180° to the

left (marking - OPEN) with a socket wrench. Sliders

release transparent cover and the lamp opens. When

closing follow the orders of operations in reverse.

When closing, pay special attention to the

positioning of the seal (slot in the cover) relative to

the housing.

Strana 6

Page 6

Zakretanjem centralne blokadne sklopke,

svjetiljka je u beznaponskom stanju

Glavne priključne stezaljke: L, N

U otvorenom položaju, mehanička blokada

onemogućava pristup blokadnoj sklopki

PRILIKOM OTVARANJA KORISTITI UMJERENU

SILU!

Zamjena fluorescentnih cijevi

(“dvokontaktno” grlo G13)

Postaviti oba kraja fluorescentne cijevi u utore

grla, nakon toga izvršiti rotaciju fluo cijevi u

lijevu ili desnu stranu.

Odsijač s G13 grlima i T8 fluorescentnim

cijevima je pomoću nosača odsijača i

panta odsijača pričvršćen na temeljnu

ploču na 4 ili 6 različitih mjesta (2 ili 3na

svakoj strani).

Pristup stezaljkama obavlja se pomoću odvijača

na način da je potrebno odvojiti pante odsijača

od nosača odsijača na istoj strani laganim

pritiskom odvijača prema dolje.

Rotiranjem sklopa odsijača dobiva se pristup

stezaljkama i ostalim ugradbenim

komponentama pričvršćeni na temeljnu ploču.

Napomena: moguće je odvojiti pante odsijača

od nosača odsijača i na drugoj strani i dobiti

pristup stezaljkama rotiranjem sklopa odsijača

u drugu stranu.

Zatvaranje se obavlja suprotnim redoslijedom

radnji s tim da se pant odsijača vraća u nosač

odsijača samo laganim pritiskom ruke.

Kod puštanja u pogon kontrolna izolacijska mjerenja treba vršiti s

ispitnim naponom max. 500 V DC i to između:

-neutralnog vodiča i zemlje

-faznog vodiča L1 i zemlje

-faznog vodiča Lsw i zemlje

Ispitivanje između faznog i neutralnog vodiča nije dopušteno i može

voditi uništenju proizvoda.

By turning the central lock switch, the fluorescent

light fitting is in no-load state

The main connections terminals: L, N

In the open position, the mechanical lock

prevents access to the interlocking switches

USE MODERATE FORCE WHEN OPENING!

Replacing of the fluorescent tubes ("two

contacts" lamp holder G13)

Set both ends of the fluorescent tube in the lamp

holder slots, then perform the rotation of the

fluorescent tubes in the left or right side.

Internal reflector, with G13 lamp holders

and T8 fluorescent tubes, is with reflector

hinges and reflector lends carriers attached

to the base plate at four or six different sites

(two or three on each side).

Access to terminals is done with a screwdriver in a

manner that is necessary to separate the hinges

bracket of the reflector lends on the same side by

applying a moderate force with a screwdriver

toward the downward direction

Gaining access to the terminals is achieved by

rotating assembly of the reflector.

Note: it is possible to separate the hinges reflector

lends from the bracket and gain access to the other

side of the terminals by rotating assembly of the

reflector lends to the other side.

Closing is done in reverse order of actions by

bringing hinge reflector lends back to mount of the

reflector lends only by light hand pressure.

With the commissioning the control measurements of the isolation

should be performed with the test voltage max. 500 V DC between:

-Neutral and earth conductor

-Phase L1 and earth conductor

-Phase Lsw and earth conductor

Testing between the phase and neutral conductor is not allowed and

will get the wrong value and can lead to destruction of the product.

Strana 7

Page 7

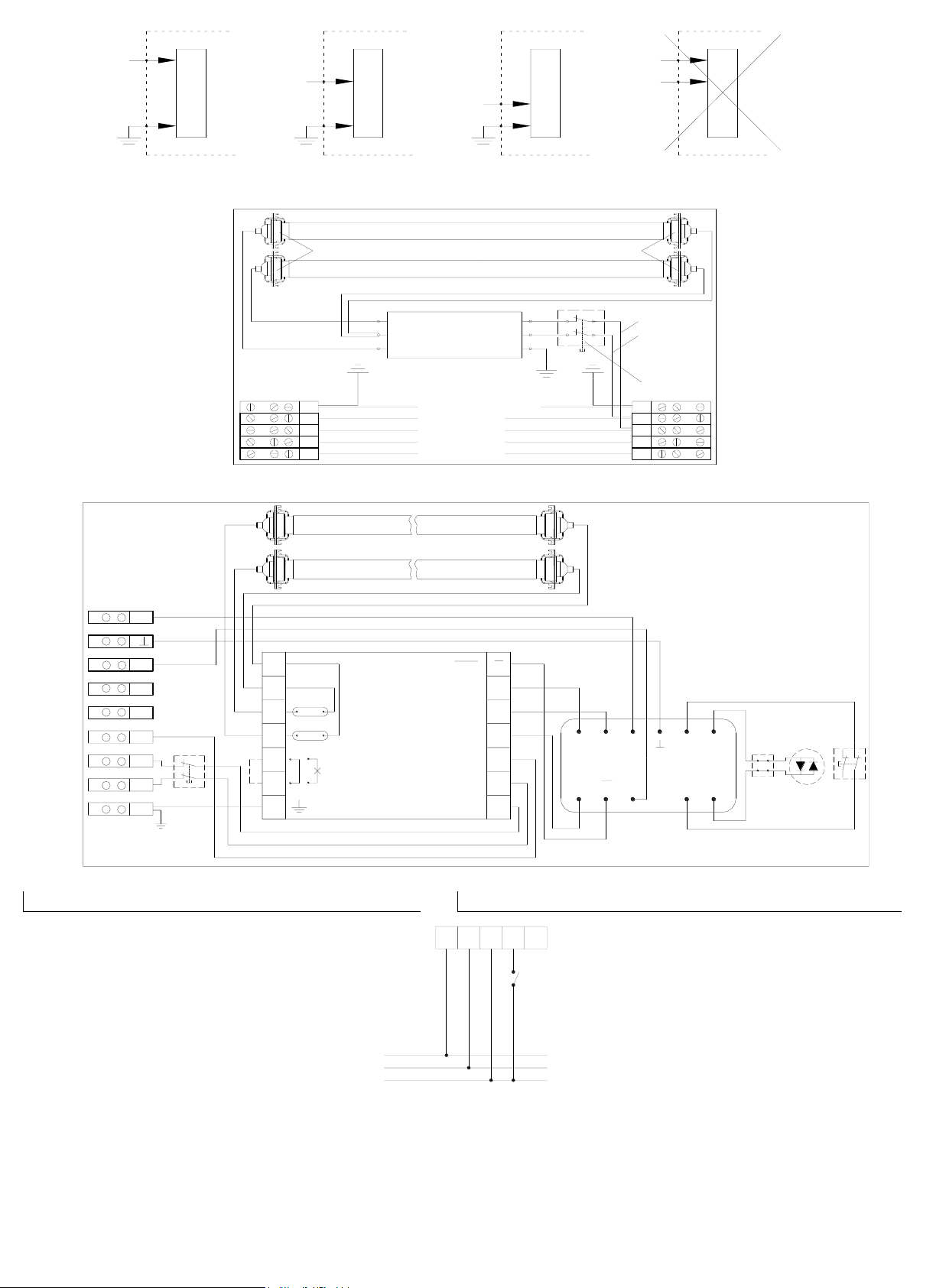

Električna shema spajanja PSF 218/236/258:

Wiring diagram PSF 218/236/258:

Električna shema spajanja PSF 218E/236E

Wiring diagram PSF 218E/236E:

7. NAČIN RADA I INSTALIRANJE PSF 218E/236E

7. OPERATING MODES AND INSTALLATION PSF 218E/236E

Moguć je rad u dvije vrste spoja:

a) Trajan spoj (Dauerschaltung, maintained)

Svjetiljka se može koristiti za opću i orjentacijsku rasvjetu s

mrežnim napajanjem Lsw preko instalacijske sklopke

korisnika. U slučaju pada napona ili ispada trajne faze L1,

bez obzira na stanje sklopke u krugu mrežnog napajanja

Lsw (uključeno ili isključeno mrežno napajanje),

svjetiljka svijetli u režimu baterijskog napajanja.

The lamp can operate with two types of connection:

a) Maintained (Dauerschaltung)

The light fitting can be used for general and orientation

lighting with main power supply via Lsw (installation

switch). In case of voltage drop or an interruption in the

mains power supply L1, the light fitting will continue to

operate in battery-powered mode, regardless of the

status of installation switch Lsw.

L1 L2

NL1

green-yellow 1,5 mm2

blue 1,5 mm2

black 1,5 mm2

SMP 07/12

SMP 08

18 W / 36 W / 58 W - T8

G 13 G 13

black 1 mm2

blue 1 mm2

PBT 02

18 W / 36 W / 58 W - T8

1,5h

SMPE 15/36

(SMPE 15/18)

L2L

L1L

L1H

L2H

Mode2

Mode1

+UB

+Uch

-UB

Lsw

Switched Phase

Neutral

Unswitched Phase

Battery -

Ucharge

Battery +

Enable

Emergency

Rest

Test

Lsw

11 12

PBT 03

T8 36 W (18 W)

T8 36 W (18 W) Emergency

+UB

-UB

+Uch

TEST

REST

LED+

LED-

BATEx 01/10 (BATEx 01/6)

SL2 LEDEx 02 21 11

PBT 03

PE NL1 Lsw L2

L1/L2/L3

PE NL1 Lsw L2

Strana 8

Page 8

b) Pripravan spoj (Bereitschaftschaltung, non

maintained)

Svjetiljka ne može raditi na mrežnom napajanju već

isključivo u režimu baterijskog napajanja u slučaju

pada napona ili ispada trajne faze L1

U oba spoja, u prisustvu trajne faze L1 moguće je

uključenjem sklopke u strujnom krugu TEST (oznaka

TEST na stezaljkama) provjeriti ispravnost nužne

rasvjete.

U oba spoja, u prisustvu ili ispadu trajne faze L1, bez

obzira na stanje mrežnom napajanja Lsw, moguće je

uključenjem sklopke u strujnom krugu RESET (oznaka

REST na stezaljkama) isključiti nužnu rasvjetu. Bez

obzira na stanje RESET funkcije, svjetiljka će svijetliti u

mrežnom radu.

Moguće je paralelno spajanje do 100 TEST/REST strujnih krugova

(više svjetiljaka) istog polariteta na jednu sklopku. Za veći broj

paralelno spojenih TEST/RESET strujnih krugova i veće duljine

kabela molimo kontaktirati proizvođača.

Svjetiljka je izvedena s elektroničkim sklopom sa

samonadzorom funkcionalnosti nužne rasvjete i

signalizacijom stanja. Samonadzor je trajan.

Signalizacija stanja vrši se crvenom i zelenom

signalnom LED-om u stanju svjetiljke kada ona ne

svijetli.

b) Non maintained (Bereitschaftschaltung)

In case of voltage drop or an interruption in the mains

power supply L1, the light fitting will operate only in

battery-powered mode.

In both types of the connection in the presence of

continuous phase L1, it is possible to verify the correctness

of the emergency system by turning on the switch in the

TEST circuit.

In both types of the connection in the presence or

interruption of continuous phase L1, regardless of the

status of the power supply Lsw, it is possible to turn OFF

the emergency lighting, by turning ON the switch in the

RESET circuit.

Max. 100 light fitting in line wiring can be connected per external

switch. For larger numbers of line wiring of TEST/REST circuits and

longer cable lengths, please consult the manufacturer.

The light fitting is equipped with an electronic set

for emergency lighting self-monitoring function

and status signalling function. Self-monitoring is

permanent. Status signalization is indicated with

red and green indicator LED when the light fitting

does not work.

FUNKCIJA

LED INDIKATOR

LED INDICATOR

FUNCTION

Upućuje na funkcionalnost nužne rasvjete i

nazivnu autonomiju s baterijama

napunjenim do nazivnog kapaciteta.

Baterije se trajno nadopunjavanju u režimu

„trickle charge“ (24 sata od početka

punjenja)

Zelena LED, trajno svjetlo

Green LED, permanent lighting

Indicates the optimal functionality of the

emergency system and the nominal

autonomy, with batteries rated capacity.

Batteries are permanently charged in

"trickle charge" mode (24 hours from the

start of charging).

Upućuje na funkcionalnost nužne rasvjete ali

ne s nazivnom autonomijom, baterije su u

fazi punjenja nazivnom strujom.

Temperatura okoline je unutar granice.

Zelena LED, trepteće svjetlo

Green LED, blinking lighting

Indicates the functionality of the emergency

system in non-nominal autonomy. Batteries

are under charging phase with rated current.

Ambient temperature is within the limits.

Upućuje na nefunkcionalnost nužne

rasvjete. Kvar će biti signaliziran odmah po

nastajanju.

Crvena LED, trajno svjetlo

Red LED, permanent lighting

Indicates the dysfunction of the

emergency system. The fault will be

signalled immediately as it occures

PE NL1 Lsw L2

L1/L2/L3

PE NL1 Lsw L2

TEST

REST

TEST

REST

TEST

REST

TEST

REST

Strana 9

Page 9

Razlozi nefunkcionalnosti mogu biti slijedeći (po vjerojatnosti

događanja):

- baterije su prazne. Treba ostaviti svjetiljku na mrežnom napajanju.

Nakon nekog vremena signalizacija će sama preći u zeleni LED

trepteće svjetlo i nužna rasvjeta će postati funkcionalna,

- centralna blokadna sklopka nije adekvatno zategnuta –svjetiljka

je u beznaponskom stanju. Treba adekvatno zategnuti centralnu

blokadnu sklopku i signalizacija će sama preći u zeleni LED

trepteće svjetlo i nužna rasvjeta će postati funkcionalna,

- električki priključak je izveden pogrešno. Priključak treba izvršiti

prema shemi spajanja,

- baterije su stare, trajno se pune nazivnom strujom punjena i

pregrijavaju se. Potrebno je zamijeniti baterijski modul BATEx

01/6 ili BATEx 01/10,

- baterije su stare i ne mogu dosegnuti potreban napon punjenja i

kapacitet. Potrebno je zamijeniti baterijski modul BATEx 01/6 ili

BATEx 01/10,

- osigurač u krugu baterije 16 AT je neispravan. Potrebno je

zamijeniti baterijski modul BATEx 01/6 ili BATEx 01/10,

- temperatura okoline je izvan danih granica.

Samonadzor ne uključuje kontrolu ispravnosti LED-a.

Opis oznake na svjetiljci ,

sukladno EN 60598-2-22:2014:

X - sigurnosna svjetiljka s baterijama ugrađenim u svjetiljku,

1 - sigurnosna svjetiljka u trajnom spoju,

A - sigurnosna svjetiljka sa samonadzorom i signalizacijom stanja,

B - sigurnosna svjetiljka s mogućnosti rada na mreži i automatskog

uključenja nakon povrata napajanja,

C - sigurnosna svjetiljka s RESET funkcijom,

D - sigurnosna svjetiljka za prostore s posebnim opasnostima,

180 - sigurnosna svjetiljka s autonomijom max. 3h.

Svjetiljka ima mogućnost autonomije od 1,5 i 3 sata. Za autonomiju

od 3 sata potrebno je kratko spojiti stezaljke Mode1 i Mode 2. Za

autonomiju od 1,5 sata, stezaljke Mode1 i Mode2 su u praznom

hodu (nespojene).

Reasons for this may include some of the following (the probability

of events):

- batteries are empty. The lamp should be left on the main power

supply. After a while the signalization will by itself transfer into

green LED, blinking lights and emergency lighting will become

functional

- central interlocking switch is not adequately tightened –light

fitting is in non load condition. It should adequately tightened

central interlocking switch and blinking lights and emergency

lighting becomes functional,

- connection is made incorrectly. Connection should be made

according to the connection scheme

- batteries are old, permanently charged with rated current and are

overheating. It is necessary to replace the battery module BATEx

01/6 or BATEx 01/10,

- batteries are old and can't reach the required charging voltage and

capacity. It is necessary to replace the battery module BATEx 01/6

or BATEx 01/10,

- the fuse in the battery circuit 16AT is faulty. Should be replace the

battery module BATEx 01/6 or BATEx 01/10,

- ambient temperature is outside specification limits.

Self-monitoring does not include a control of the LEDs validity.

Description of tag on the light fitting ,

according to EN 60598-2-22:2014:

X - emergency light fitting with built-in batteries

1 - emergency light fitting in a permanent connection

A - emergency light fitting with self-monitoring and status

signalling function

B - Emergency light fitting with main power supply option and

automatically turn ON after power return option

C - emergency light fitting with RESET function

D - emergency light fitting for use in areas with special hazards

180 - emergency light fitting with autonomy of max. 3h.

Light fitting has a possibility of autonomy of 1,5 and 3 hours. For the

autonomy of 3 hours is necessary to short circuit the terminals Mode 1

and Mode 2. The autonomy of 1,5 hours, terminals of Mode1 and

Mode2 are not connected

Autonomija

(Autonomy)

PSF 218E

PSF 236E

1,5 h

60% (800lm)

60% (2000lm)

3 h

40% (550lm)

30% (1000lm)

8. DIMENZIJE

8. DIMENSIONS

X1ABCD 180

Mode1

Mode2

1,5h

L1 [mm]

L2 [mm]

PSF 218

PSF 218E

750

400

PSF 236

PSF 236E

1370

800

PSF 258

1665

800

Strana 10

Page 10

9. REZERVNI DIJELOVI

9. SPARE PARTS

SKICA

(SKETCH)

OPIS

(DESCRIPTION)

OZNAKA ZA

NARUDŽBU

(MODEL CODE)

SKICA

(SKETCH)

OPIS

(DESCRIPTION)

OZNAKA ZA

NARUDŽBU

(MODEL CODE)

Pokrov PSF

(Diffuser PSF)

PSF 218 10-110

PSF 236 20-110

PSF 258 30-110

Signalni LED indikator

(Signal LED indicator)

LEDEx 02

Brtva PSF

(Gasket PSF)

PSF 218 10-120

PSF 236 20-120

PSF 258 30-120

Stezaljka

Therminal

SL2

Elektonička predspojna

naprava (Electronic

control gear)

SMP 07

SMP 08

Redne stezaljke

5 x 0,5-4mm2, set

Terminal 5 x 0,5-4mm2

PSF 218 10-130

El. predspojna naprava

i pretvarač za rasvjetu

u slučaju opasnosti

(Electronic ballast and

inverter for emergency

lighting)

SMPE 15-1

SMPE 15-2

Ex eb kabelska

uvodnica SPU 25

(Ex eb cable gland)

SPU 25

Baterijski modul

(Battery module)

BATEx 01/6

BATEx 01/10

Ex eb čep M25

(Ex eb plug)

SPC 25

10. PRIBOR

10. ACCESORIES

SKICA

(SKETCH)

OPIS

(DESCRIPTION)

OZNAKA ZA

NARUDŽBU

(MODEL CODE)

SKICA

(SKETCH)

OPIS

(DESCRIPTION)

OZNAKA ZA

NARUDŽBU

(MODEL CODE)

PSF

Ovjesna montaža, set

PSF 30-110

110

PSF

Zidna montaža pod

kutom, set

PSF 30-120

T8 ključ

PSF 30-130

Okasti vijak M8

PSF 30-140

180

PSF

Zidna montaža set

PSF 30-150

Metalne uvodnice za

armirane kabele M25

(kabel Ø13-21mm), set

PSF 30-160

PSF

Montaža na cijev, set

PSF 30-170

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Tepex Équipement d'éclairage

Tepex

Tepex PLFM 100 Series Manuel utilisateur

Tepex

Tepex FLXE 118 LED-N Manuel utilisateur

Tepex

Tepex FLXE 118 LED 0 Series Manuel utilisateur

Tepex

Tepex 0403.24/LED Manuel utilisateur

Tepex

Tepex RLF 320 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
