IB 9008540 (07--2011) 1

INSTRUCTION BULLETIN

No. 9008540

Machine: T16

Published: 07--2011

Rev. 00

NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the

Parts List in the appropriate place in the machine manual for future

reference. Retaining the Parts List will make it easier to reorder

individual parts and will save the cost of ordering an entire kit.

NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 9008033

SYNOPSIS:

This kit contains the parts needed to install the deluxe seat onto T16 scrubbers.

Please follow step-by-step instructions.

SPECIAL TOOLS / CONSIDERATIONS: NONE

(Estimated time to complete: 1 hour)

PREPARATION:

1. Park the machine on a clean level surface,

turn off the machine, and remove the key.

FOR SAFETY: Before leaving or servicing

machine, stop on level surface, turn off

machine, and remove key.

2. Disconnect the battery cables from the

batteries.

WARNING: Always disconnect battery

cables from machine before working on

electrical components.

IB 9008540 (07--2011)2

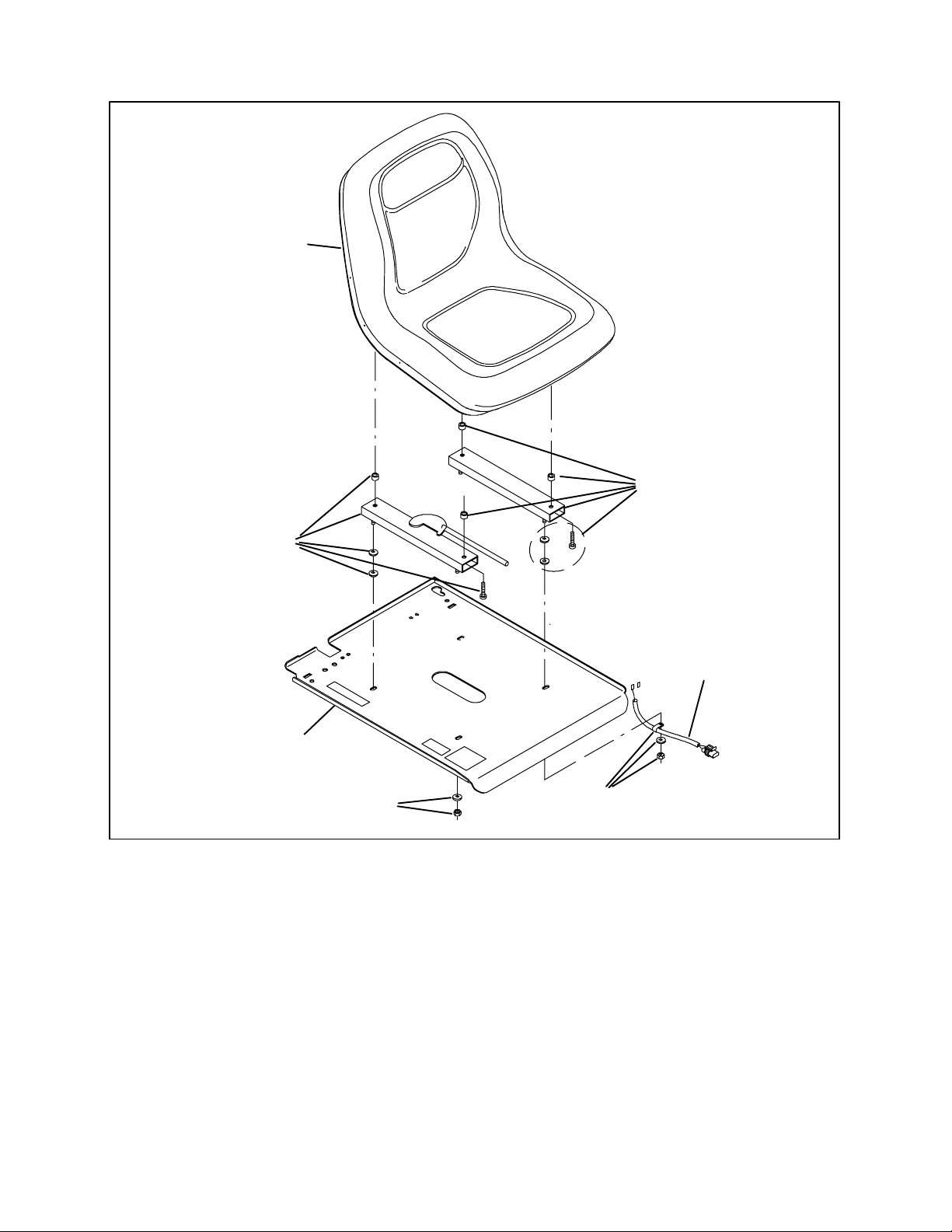

INSTALLATION:

Seat plate

Seat switch

harness

Remove and

discard seat slide

rail and hardware

Remove and

discard seat slide

rail and hardware

Remove and

discard seat

Remove and discard

hardware

Remove and

discardhardware

FIG. 1

1. Remove the existing seat assembly from the

machine. Set the set switch harness aside.

Discard the removed seat and all mounting

brackets and hardware. Refer to Fig. 1.

2. Use a SEMS M8 hex screw (9) to install the

latch bracket (8) onto the machine. Refer to

Fig. 2.

3. Use two M5 hex screws (11) to install the

latch (10) onto the latch bracket (6). Refer to

Fig. 2.

4. Use two M8 hex screws (7) and two flat

washers (4) to install the latch assembly

assembled in the previous step onto the seat

plate. Refer to Fig. 2.

5. Use a hex screw (16) and a flat washer (17)

to install the seat belts (15) onto the

suspension seat (1). Refer to Fig. 2.

6. Install the seat switch (2) into the seat switch

receptacle located on the bottom of the

suspension seat (1). Refer to Fig. 2.

IB 9008540 (07--2011) 3

7. Position the suspension seat (1) onto the seat

plate and connect the seat switch harness to

the seat switch.

8. Install the cable clamp (12) onto the seat

switch harness. Refer to Fig. 2.

9. Use four hex nuts (3) four flat washers (4),

and four spacers (5) to install the suspension

seat (1) and cable clamp (12) onto the seat

plate. Refer to Fig. 2.

10. Use two SEMS hex screws (14) to install the

arm rest (13) onto the suspension seat (1).

Refer to Fig. 2.

11. Reconnect the battery cables to the batteries.

12. Start and test the machine. Sit in the operator

seat, place the directional switch into the

forward position, and press the propel pedal.

The machine should move forward. Get out of

the operator seat, place the directional switch

into the forward position, and press the

propel. The machine should not move.

16 17

Seat plate

Seat switch

harness

FIG. 2

IB 9008540 (07--2011)4

Bill Of Materials For Seat Kit, Dlx, CI [T16] -- 9008033

Ref.

Tennant

Part No. Description Qty.

o9008033 )Seat Kit, Dlx, CI [T16] 1

Y1 223595 Seat, Suspension [Michigan Model V--5200] 1

Y2 223078 Switch, Seat, No [Delta 6500] 1

Y3 01760 Nut, Hex, Lock, .31--18, NL, Thin 4

Y4 32491 Washer, Flat, 0.31, Std 6

Y5386785 )Spacer, Latch, Fltr 4

Y6 1059310 Bracket, Mtg, Latch 1

Y7 16735 Screw, Hex, M8 X 1.25 X 16, 8.8 2

Y8 1066535 Bracket Wldt, Latch 1

Y9 1020341 Screw, Hex, M8 X 1.25 X 20, SS, SEMS 1

Y10 1025736 )Latch 1

Y11 12312 Screw, Hex, M5 X 0.80 X 12, 8.8 2

Y12 46236 Clamp, Cable, Stl, 0.25D X 0.56W, 1Hole 1

Y13 1061917 Armrest, RH 1

Y14 16953 Screw, Hex, .31--18 X 0.75, SEMS 2

Y15 1062792 )Seatbelt, Retractable 1

Y16 39663 Screw, Hex, .44--20 X 1.00, G5 2

Y17 1063373 Washer, Flat, 0.45B 1.00D .12, SS 2

TENNANT COMPANY

P. O. Box 1452

Minneapolis, MN 55440-1452
