Operator Manual EN

Model No.s: 603201 & 603202

EN ENGLISH

2SpeedScrub2401/2601 (04–97)

This manual is furnished with each new

SpeedScrub Model. It provides necessary

operation and maintenance instructions.

Read this manual completely and understand

the machine before operating or servicing.

This machine will provide excellent service.

However, the best results will be obtained at

minimum costs if:

The machine is operated with reasonable care.

The machine is maintained regularly - per the

machine maintenance instructions provided.

The machine is maintained with TENNANT

supplied or equivalent parts.

MACHINE DATA

Pleasefill out at time of installation for future reference.

Model No.-

Install. Date -

Serial No.-

TABLE OF CONTENTS

SAFETY PRECAUTIONS 3. . . . . . . . . . . . . . . . . . . . .

STANDARD MACHINE COMPONENTS 4. . . . . . .

CONTROL PANEL SYMBOLS 4. . . . . . . . . . . . . . . .

MACHINE INSTALLATION 5. . . . . . . . . . . . . . . . . . .

UNCRATING MACHINE 5. . . . . . . . . . . . . . . . . . . . .

INSTALLING BATTERIES 5. . . . . . . . . . . . . . . . . . .

MACHINE SETUP 6. . . . . . . . . . . . . . . . . . . . . . . . . . . .

ATTACHING SQUEEGEE ASSEMBLY 6. . . . . . . .

INSTALLING BRUSH OR PAD DRIVERS 6. . . . . .

FILLING SOLUTION TANK 7. . . . . . . . . . . . . . . . . .

MACHINE OPERATION 7. . . . . . . . . . . . . . . . . . . . . .

PRE–OPERATION CHECKS 7. . . . . . . . . . . . . . . . .

WHILE OPERATING MACHINE 9. . . . . . . . . . . . . .

STOPPING MACHINE 10. . . . . . . . . . . . . . . . . . . . .

EMERGENCY STOPPING 10. . . . . . . . . . . . . . . . . .

CIRCUIT BREAKERS 10. . . . . . . . . . . . . . . . . . . . . .

DRAINING TANKS 11. . . . . . . . . . . . . . . . . . . . . . . . . .

DRAINING RECOVERY TANK 11. . . . . . . . . . . . . .

DRAINING SOLUTION TANK 11. . . . . . . . . . . . . . .

BATTERY CHARGING 11. . . . . . . . . . . . . . . . . . . . . .

MAINTENANCE 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DAILY MAINTENANCE 12. . . . . . . . . . . . . . . . . . . . .

WEEKLY MAINTENANCE 13. . . . . . . . . . . . . . . . . .

MONTHLY MAINTENANCE 13. . . . . . . . . . . . . . . . .

QUARTERLY MAINTENANCE 13. . . . . . . . . . . . . .

BATTERY MAINTENANCE 13. . . . . . . . . . . . . . . . .

TRANSPORTING MACHINE 14. . . . . . . . . . . . . . . .

STORING MACHINE 14. . . . . . . . . . . . . . . . . . . . . . . .

TROUBLE SHOOTING 15. . . . . . . . . . . . . . . . . . . . . .

SPECIFICATIONS 16. . . . . . . . . . . . . . . . . . . . . . . . . . .

EC DECLARATION OF CONFORMITY FOR MACHINERY (Directive 89//392/EEC,Annex II, sub A)

TENNANT N.V.

Address: Industrielaan 6 5405 AB

P.O. Box 6 5400 AA Uden–The Netherlands

models: SPEEDSCRUB 2401/2601 nr.: 603201 & 603202

– is in conformity with the provisions of the Machinery Directive ( Directive 89/392/EEC),

as amended, and with national implementing legislation;

– is in conformity with the provisions of the following other EEC directives:

– the following ( parts/clauses of) harmonized standards have been applied:

EN 292–1, EN 292–2, EN 294, EN 349, EN 563, EN 60204–1, EN 60335–1 ...

– the following (parts/clauses of) national technical standards and specifications have been used: NA

Eric Megens – Technical Support Engineer

Uden/Netherlands, 03–12–97

ENGLISH EN

SpeedScrub2401/2601 (04–97) 3

SAFETY PRECAUTIONS

This machine is intended for commercial use. It is

designed to scrub hard floors in an indoor

environment and is not constructed for any other

use. Use only recommended pads, brushes and

cleaning solutions.

All operators must read, understand and practice

the following safety precautions:

The following safety alert symbol is used

throughout this manual as indicated in their

descriptions.

WARNING: To warn of hazards or unsafe

practices which could result in severe

personal injury or death.

CAUTION: To identify actions which

must be followed for safety operation of

equipment.

The following information signals potentially

dangerous conditions to the operator or

equipment:

FOR SAFETY:

1. DO NOT OPERATE, MAINTAIN OR

SERVICE MACHINE:

– Unless trained and authorized.

– Unless operator manual is read and

understood.

– If it is not in proper operating

condition.

2. WHEN OPERATING MACHINE:

– Remove loose objects on floor. Loose

objects may become dangerous

projectiles if struck by revolving

pads/brushes.

– Keep hands and feet away from

revolving pads/brushes.

– Keep machine moving to prevent

damage to finish or floor.

– Do not run machine where flammable

liquids or gases are present.

– Do not run on ramps or inclines

unless adequate personnel are present

for assistance.

– Always use extreme caution when

maneuvering.

3. BEFORE LEAVING OR SERVICING

MACHINE:

– Make sure machine is turned off and

key is removed.

– Stop on level Surface.

– Set parking brake.

– Disconnect batteries.

WARNING: Hazardous Voltage. Shock or

electrocution can result. Always disconnect

batteries before servicing machine.

WARNING: Batteries emit hydrogen

gases, explosion or fire can result. Keep

sparks and open flame away.

WARNING: Charge in a well ventilated

area and keep hood propped open when

charging batteries, explosion or fire can

result.

WARNING: Battery acid can cause burns.

Wear protective gloves and shield eyes when

servicing batteries.

CAUTION: Do not store outdoors and

avoid getting wet.

CAUTION: The use of supplies other than

those recommended by manufacturer may

cause damage.

EN ENGLISH

4SpeedScrub2401/2601 (04–97)

STANDARD MACHINE COMPONENTS

27 28

3533

15 2

124

1. Control Console

2. Control Twist Grips

3. Key Switch

4. Main ON/OFF Switch

5. Vacuum ON/OFF Switch

6. Brush/Solution ON/OFF Switch

7. Brush Pressure

(Raise/Lower) Switch

8. Battery Meter

9. Brush Pressure Meter

10. Reverse Switch

11. Speed Control Knob

12. Power Kill Button

13. Main, Vac/Drive Circuit Breakers

14. Squeegee Lift Lever

15. Solution Flow Lever

16. Solution Flow Adjustment Knob

17. Scrub Head Actuator

18. Adjustable Control

Console Levers

19. Recovery Tank Drain Hose

20. Solution Tank Drain Hose

21. Rear Fill Port

22. Squeegee Assembly

23. Recovery Tank

24. Recovery Tank Lid

25. Solution Tank

26. Solution Tank Fill Door

27. Safety Lights

28. Battery Compartment

29. Charger Plug

30. Drive Wheels

31. Rear Casters

32. Brush Skirt

33. Skirt Housing

34. Skirt Housing Latch

35. Wall Rollers

36. Parking Brake

CONTROL PANEL SYMBOLS

MainPower

Vacuum

Solution Flow

Less Brush

Pressure

More Brush

Pressure

Fast Speed

Slow Speed

Reverse

Squeegee Up

Squeegee Down

Right Side

Brush Motor

Circuit Breaker

Left Side

Brush Motor

Circuit Breaker

Vacuum

Motor Circuit

Breaker

Main Power

Circuit Breaker

Read Manual

Before Operating

Battery Charge

Meter

Brush Pressure

Meter

Brush

ENGLISH EN

SpeedScrub 2401/2601 (04–97) 5

MACHINE INSTALLATION

UNCRATING MACHINE

Carefully check carton for signs of damage.

Report any damage at once to carrier. Check

carton contents to ensure all accessories are

included. Squeegee is packaged with machine.

Batteries, battery charger and pad driver(s) are

packaged separately.

ATTENTION: Battery installation must be

accomplished after removing machine from

shipping crate.

To uncrate your machine, remove shipping straps

and carefully lift or make a ramp using crate

boards to remove machine from pallet.

CAUTION: Do not roll machine off pallet,

damage may occur.

INSTALLING BATTERIES

WARNING: Batteries emit hydrogen

gases, explosion or fire can result. Keep

sparks and open flame away.

WARNING: Battery acid can cause burns.

Wear protective gloves and shield eyes when

handling batteries.

Battery Specifications:

Two 12 volt, deep cycle batteries. Consult with an

Authorized Distributor for specific batteries.

Maximum battery dimensions are 7”(17.8cm) W x

15”(38cm) L x 14”(35.5cm) H.

FOR SAFETY: Before battery installation,

stop on level surface, set parking brake.

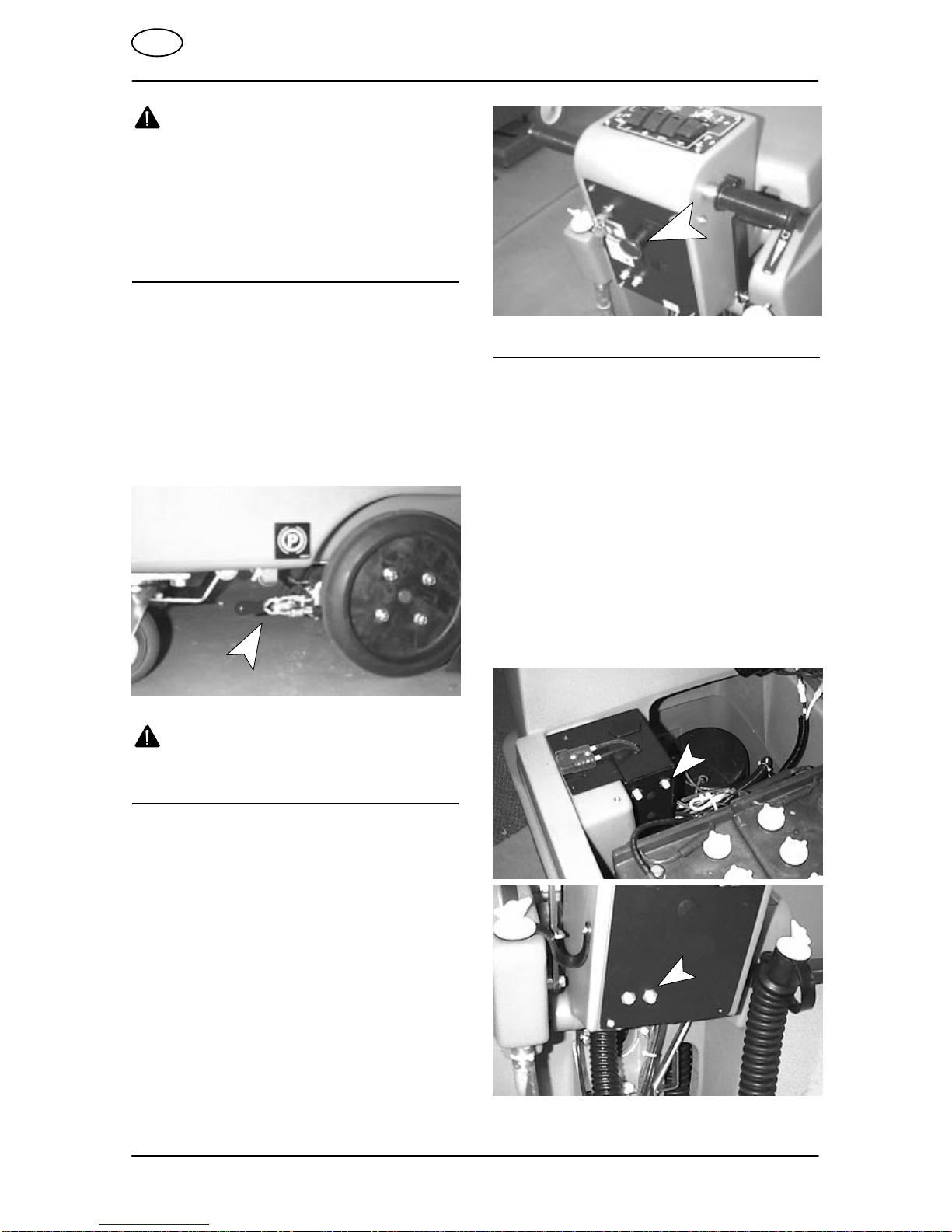

1. Set parking brake. Brake lever is located

behind right side drive wheel. (Figure 1)

FIG. 1

2. Turn all switches to the OFF position and

remove key.

3. Carefully hinge open recovery tank to access

battery compartment. Remove loose battery

cables from compartment.

(Figure 2)

FIG. 2

4. Carefully install batteries into battery tray at

bottom of compartment and arrange battery

posts as shown. (Figure 3)

(+) (–)

(+)

(–)

FIG. 3

CAUTION: Do not drop batteries into

compartment, battery and machine housing

damage may result. This damage in not

covered by warranty.

5. Connect battery cables to battery posts as

shown (RED TO POSITIVE & BLACK TO

NEGATIVE). (Figure 3)

6. Turn key and main switch on and check

battery meter charge level. Charge if

necessary.

(See BATTERY CHARGING)

EN ENGLISH

6SpeedScrub2401/2601 (04–97)

MACHINE SETUP

ATTACHING SQUEEGEE ASSEMBLY

1. Raise squeegee mount bracket by pulling

back on squeegee lift lever. (Figure 4)

FIG. 4

2. Loosen two thumb knobs on squeegee

assembly and slide squeegee into slots on

squeegee mount bracket. Squeegee roller

wheels should face outward. (Figure 5)

FIG. 5

3. Tighten thumb knobs securely.

4. Connect vacuum hose from machine to

squeegee assembly. (Figure 6)

FIG. 6

INSTALLING BRUSH OR PAD DRIVERS

1. Turn key and main switch on.

2. Completely raise scrub head by pressing top

half (–) of brush pressure switch. (Figure 7)

WARNING: To prevent accidental

starting, remove key before installing brush or

pad drivers.

FIG. 7

3. Unfasten black latch at front of machine and

hinge open skirt housing to access motor hub.

(Figure 8)

FIG. 8

4. Select recommended pads or brushes that

best meets your cleaning needs.

IMPORTANT: Consult an authorized distributor to

assist you in choosing the correct pad or brush for

your specific cleaning need.

5. (For Pad Installation) Attach pads to pad

drivers before connecting drivers to motor

hubs. Secure pads with plastic centerlock

ring. (Figure 9)

ENGLISH EN

SpeedScrub2401/2601 (04–97) 7

FIG. 9

6. Align pad driver mounting studs with slots in

motor hub. Give the driver a quick turn toward

the motor hub spring clip. Be certain that

spring clip locks into one of the studs before

operating machine. (Figure 10)

FIG. 10

NOTE: Always make sure pad drivers and motor

hub surfaces are always clean before installing

drivers. Clean surfaces will ease pad driver

removal later.

7. Close skirt housing and refasten latch.

FILLING SOLUTION TANK

1. Transport machine to filling station. Raise

squeegee and brush when transporting.

2. Turn off key.

3. Open solution fill door at front of machine and

fill solution tank with 17 gallons (64L) of clean

water (140°F/ 60°C maximum temperature).

Or use the rear fill port to fill solution tank.

Twist off plug and insert hose to fill. The clear

tube below the fill port has 5 gallon (19L)

increment markers to indicate amount of

water in tank. (Figure 11)

FIG. 11

NOTE: If filling with a bucket be certain that

bucket is clean. This will prevent possible solution

line clogs.

4. Add cleaning chemical. See proper dilution

ratio instructions on bottle.

CAUTION: Use only recommended

cleaning chemicals, DO NOT use substitutes.

Consult an authorized distributor to assist

you with the recommended cleaning

chemicals.

WARNING: Use only nonflammable

commercial cleaning chemicals.

MACHINE OPERATION

Read and understand SAFETY PRECAUTIONS

on page 3 before operating machine.

PRE–OPERATION CHECKS

Sweep and dust mop floor to remove particles

and other debris.

Check battery meter charge level to ensure

batteries are fully charged.

(See BATTERY

CHARGING)

Check condition of pads or brushes.

Check condition of squeegee blades.

1. Release parking brake lever if set.

2. Adjust control grips to a comfortable operating

height, squeeze together the two levers below

the console. (Figure 12)

EN ENGLISH

8SpeedScrub2401/2601 (04–97)

FIG. 12

3. Disengage squeegee lift lever from the up

position and lower squeegee. (Figure 13)

FIG. 13

4. Turn on key and main switch.

5. Lower scrub head to floor by pressing bottom

half (–) of brush pressure switch. (Figure 14)

FIG. 14

6. Turn on the vacuum and brush/solution

switches.

NOTE: The brushes and solution flow will not

start until control grips are rotated.

7. Push solution flow lever forward to activate

solution flow. Push completely forward for

maximum flow. (Figure 15)

FIG. 15

8. Before starting, turn speed control knob to

slowest speed. (Figure 16)

9. Begin scrubbing by rotating control grips

forward. Gradually increase your speed by

turning speed control knob forward.

(Figure 16)

FIG. 16

CAUTION: For first time users, start out

slow until you can maneuver machine with

ease.

10. Once machine begins to move, check the

needle position of the brush pressure meter.

Only operate machine with needle in

designated cleaning range per application

(SCRUB or STRIP). Never operate machine

in red zone. Depress brush pressure switch to

properly adjust brush pressure. (Figure 17)

ENGLISH EN

SpeedScrub2401/2601 (04–97) 9

SCRUB STRIP

RED ZONE

PAD PRESSURE METER

CLEANING

RANGE

FIG. 17

CAUTION: To prevent possible floor

damage and brush circuit breakers from

tripping, do not operate machine with brush

pressure needle in the red zone.

11. To operate machine in reverse, simply pull

reverse switch backwards (one speed).

(Figure 18)

FIG. 18

12. To stop machine, release control grips.

WHILE OPERATING MACHINE

WARNING: Keep hands and feet clear of

revolving pad or brush.

1. Observe amount of solution flow on floor.

Adjust solution control lever to desired flow.

To increase or decrease the maximum

solution flow, turn solution flow adjustment

knob clockwise to increase or

counterclockwise to decrease. Adjustment

knob is located at rear of machine.

(Figure 19)

FIG. 19

2. Periodically check for foam buildup in

recovery tank

(look through clear lid)

. If

excessive foam buildup begins to develop,

pour a recommended foam control solution

into recovery tank.

CAUTION: Do not allow foam or water to

enter vacuum ball float screen, vacuum motor

damage will result. Foam will not activate ball

float. Vacuum motor damage due to foam or

water is not covered by warranty.

3. Always operate at a slower speed when

scrubbing around walls or obstacles.

4. Always reduce speed to maintain control

when turning machine.

5. If squeegee leaves streaks, raise and wipe

blades with a cloth. Pre-sweep area to

prevent streaking.

6. Overlap each pass by 2” (5cm).

7. Change or turn over pads when dirty.

8. Stay clear of floor obstructions, such as

electrical plates or grates, they will destroy

pads.

9. During brief stops, you do not have to turn off

any switches, the brushes and solution flow

will automatically stop when control grips are

released.

10. Periodically check battery meter discharge

level. When needle drops to the red zone,

recharge batteries.

EN ENGLISH

10 SpeedScrub2401/2601 (04–97)

CAUTION: Do not continue to run

machine when battery meter needle is in the

red zone, battery damage will result.

11. While cleaning, view clear tube gallon marker

for remaining cleaning solution. Each mark on

hose indicates five gallons / 19 liters.

12. When solution tank runs dry, drain recovery

tank

. (See DRAINING TANKS)

STOPPING MACHINE

1. Turn off brush/solution switch, raise brushes

and continue to vacuum until all dirty water is

consumed.

2. Release control grips.

3. Raise squeegee and scrub head.

4. Turn off switches and remove key.

5. Set parking brake, pull lever backwards to

set. (Figure 20)

FIG. 20

ATTENTION: Before leaving machine,

stop on level surface, set parking brake, turn

off machine and remove key if left unattended.

EMERGENCY STOPPING

To stop machine in case of an emergency, hit the

red power kill button located at rear of control

console. The power kill button immediately stops

all power to machine.

(Figure 21)

To reset power kill button, shut off all switches and

turn kill button to the right. Resume to normal

operation.

FIG. 21

CIRCUIT BREAKERS

The SpeedScrub models are equipped with (4)

circuit breakers to protect machine from damage.

If circuit breakers should trip, the breakers will not

reset immediately upon tripping. Determine

reason why breaker tripped, allow motor to cool

and reset.

Brush motor circuit breakers will trip due to

excessive overload on pad. Reduce pad pressure

or replace pad if breaker should trip. Brush motor

circuit breakers (15amp) are located near charger

plug.

The main (10amp) and drive/vacuum (35amp)

circuit breakers are located at rear of machine.

(Figure 22)

FIG. 22

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Tennant Accessoires

Tennant

Tennant 5700XPS Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
