Teltonika TST100 Guide d'installation

Quick Manual

E-scooter tracker

TST100

TST100 | Wiki

Table of Contents

Table of Contents .......................................................................... 2

Know your device .......................................................................... 3

Pinout................................................................................................. 4

Set up your device......................................................................... 5

How to insert Micro-SIM card and connect the battery................ 5

PC Connection (Windows)............................................................... .5

How to install USB drivers (Windows)............................................. 6

Configuration (Windows) ................................................................. 6

Quick SMS configuration.................................................................. 8

Installation instructions............................................................... 9

LED indications ............................................................................ 10

Characteristics............................................................................. 10

Basic characteristics ....................................................................... 10

Electrical characteristics................................................................. 11

Safety information...................................................................... 12

Certification and Approvals ....................................................... 13

TST100 | Wiki

Know your device

Figure 1 TST100 device view

TST100 | Wiki

Pinout

Table 1 TST100 pinout

Pinname

Description

VCC (8-50)V

Power supply (8-50) V DC (+).

GND (-)

Ground pin. (8-50) V DC (-)

Power control wire

Data received pin

Data transmitter pin

TST100 | Wiki

Set up your device

1. Insert Micro-SIM card as shown with PIN request disabled or

read our Wiki how to enter PIN later in Teltonika

Configurator. Make sure that Micro-SIM card cut-off corner is

pointing forward to slot.

2. Connect battery as shown to device.

3. Connect micro usb cable as shown

4. To power up TST100, connect green plug to the E-scooter

5. Open Teltonika configurator, select TST100 device and

configure it according to your requirements (how to install

drives on page 6).

6. Once all done, disconnect TST100 from PC and E-scooter. Attach

the lid by two screws as shown

NOTE: E-scoter Firmware should be V3.1.1 or higher. Please

contact Segway-Ninebot for firmware updates.

How to insert Micro-SIM card and

connect the battery

TST100 | Wiki

How to install USB drivers

(Windows)

1. Please download COM port drivers from here.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

Setup will

continue

installing the driver

and eventually the

confirmation window will appear. Click Finish to complete the

setup.

Configuration (Windows)

At first TST100 device will have default factory settings set. These

settings should be changed according to the user's needs. Main

configuration can be performed via Teltonika Configurator

software. Get the latest Configurator version from here.

Configurator operates on Microsoft Windows OS and uses

prerequisite MS .NET Framework. Make sure you have the correct

version installed.

Table 2 MS .NET requirements

MS.NETrequirements

Operating

system

MS .NET Framework

version

Version

Links

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework

4.6.2

32 and 64 bit

www.microsoft.com

Downloaded Configurator will be in compressed

archive. Extract it and launch Configurator.exe. After launch

software language can be changed by clicking in the right

bottom corner (Figure 2 Language selection).

Configuration process begins by pressing on connected device

(Figure 4 Device connected via USB).

After connection to Configurator Status window will be displayed

(Figure 3 Configurator Status window).

Figure 2 Language selection

TST100 | Wiki

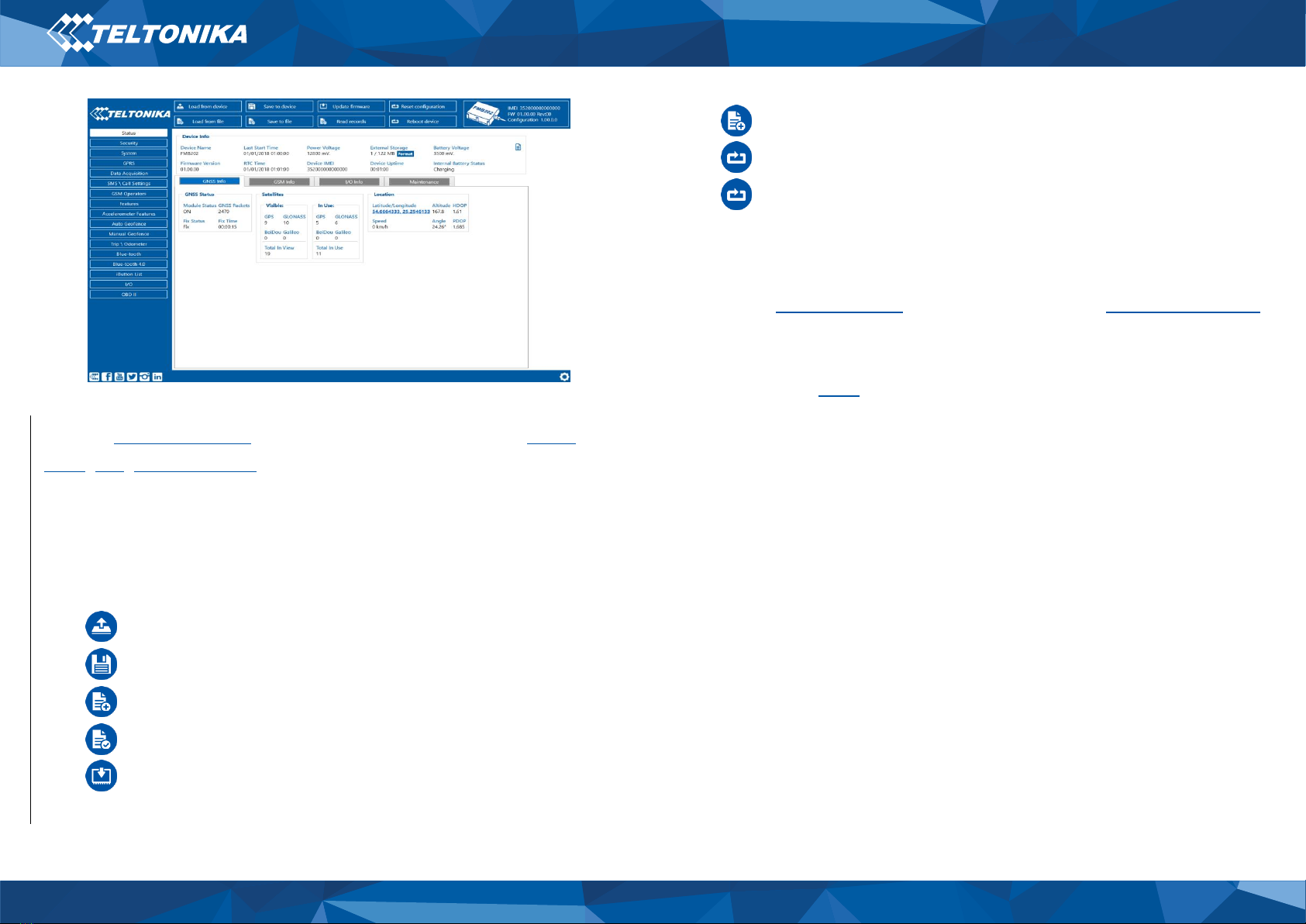

Various Status window tabs display information about GNSS,

GSM,I/O, Maintenance and etc. FMB202 has one user editable

profile, which can be loaded and saved to the device. After any

modification of configuration the changes need to be saved to

device using Save to device button. Main buttons offer following

functionality:

1. Load from device –loads configuration from device.

2. Save to device –saves configuration to device.

3. Load from file –loads configuration from file.

4. Save to file –saves configuration to file.

5. Update firmware –updates firmware on device.

6. Read records –reads records from the device.

7. Reboot device –restarts device.

8. Reset configuration –sets device configuration to

default.

Most important configurator section is GPRS –where all your

server and GPRS settings can be configured and Data Acquisition

–where data acquiring parameters can be configured.

More details about FMB202 configuration using Configurator can

be found in our Wiki.

Figure 4 Device connected via USB

Figure 3 Configurator Status window

TST100 | Wiki

Quick SMS configuration

Default configuration has optimal parameters present to ensure

best performance of track quality and data usage.

Quickly set up your device by sending this SMS command to it:

Note: Before SMS text, two space symbols should be inserted.

GPRS settings:



2001

–APN

–APN username (if there

2002

are no APN username, empty

field should be left)

–APN password (if there

2003

are no APN password, empty

field should be left)

Server settings:

–Domain

2004

–Port

2005

–Data sending protocol

2006

(0 –TCP, 1 –UDP)

Default configuration settings

Movement and ignition detection:

E-scooter movement

will be detected by

accelerometer

Device makes a record On Moving if one of these events happen:

300 seconds passes

E-Scooter turns 10

degrees

E-scooter moves 100

meters

Speed difference

between last coordinate

and current position is

greater than 10 km/h

Device makes a record On Stop if:

1 hour passes while E-

scooter is stationary

and switched is off

Records sending to server:

If device has made a

record it is sent to the

server every 120

seconds

After successful SMS configurationTST100 device will synchronize

time and update records to configured server. Time intervals

and default I/O elements can be changed by using Teltonika

Configurator or SMS parameters.

" setparam :APN;

2001

:APN_username;

2002

:APN_password;

2003

:Domain;

2004

:Port;

2005

;0"

2006

TST100 | Wiki

Installation instructions

PAY ATTENTION! E-scotter should be

swithched off when connecting TST100 plug.

To avoid any damage double check if cable

and plug are placed correctly before

attaching bracket to the

E-scooter .

TST100 | Wiki

LED indications

Table 3 Navigation LED indications

Table 4 Status LED indications

Behaviour

Meaning

Permanently switched on

GNSS signal is not received

Blinking every second

Normal mode, GNSS is working

Off

GNSS is turned off because:

Device is not working or Device is in

sleep mode

Blinking fast constantly

Device firmware is being flashed

Characteristics

Basic characteristics

Table 5 Basic characteristics

Module

Name

TM2500

Technology

GSM, GPRS, GNSS, BLUETOOTH

GNSS

GPS, GLONASS, GALILEO, BEIDOU,

SBAS, QZSS, DGPS, AGPS

Receiver

33 channel

Tracking sensitivity

-165 dBM

Accuracy

< 3 m

Hot start

< 1 s

Warm start

< 25 s

Cold start

< 35 s

Cellular

Technology

GSM

2G bands

Quad-band 850 / 900 / 1800 / 1900

MHz

Data transfer

GPRS Multi-Slot Class 12 (up to 240

kbps), GPRS Mobile Station Class B

Data support

SMS (text/data)

Behaviour

Meaning

Blinking every second

Normal mode

Blinking every two seconds

Sleep mode

Blinking fast for a short time

Modem activity

Off

Device is not working or Device is in

boot mode
