Set-Up
1. Plug the USB drive into your working PC and install
TelitView. The USB drivers should load automatically.
2. Using the USB cable, connect the PC to the EVK Unit by
inserting the mini-USB connector into the USB-1
connector located at the rear of the EVK.
3. Connect the antenna into the RF connector
4. Activate the TelitView application and click “Setup”.
5. Select SL869-3DR and click “OK”.
EVK Kit Contents
Quick Start Guide For Telit SL869-3DR EVK
USB CABLE ANTENNA
EVALUATION KIT USB DRIVE
For more information, refer to the SL869-3DR EVK User Guide.
For technical support please contact:
TS-AP[email protected]
6. Select the correct serial port and set the baud rate to
115200.
The Front Panel Status screen will be display the following:
•Signal Quality –Satellite signal level
•Scatter Plot –Navigation position updates
•Navigation States –Position, time, fix status
•NMEA Monitor –Real time TX serial output
Additional status screen under the “Tools” tab.
•MoDRTM Control Panel –Real time course/speed
7. To log data, click on the Record data icon in the main tool
bar. Assign a file name and location, click “save” and “start
to log”.

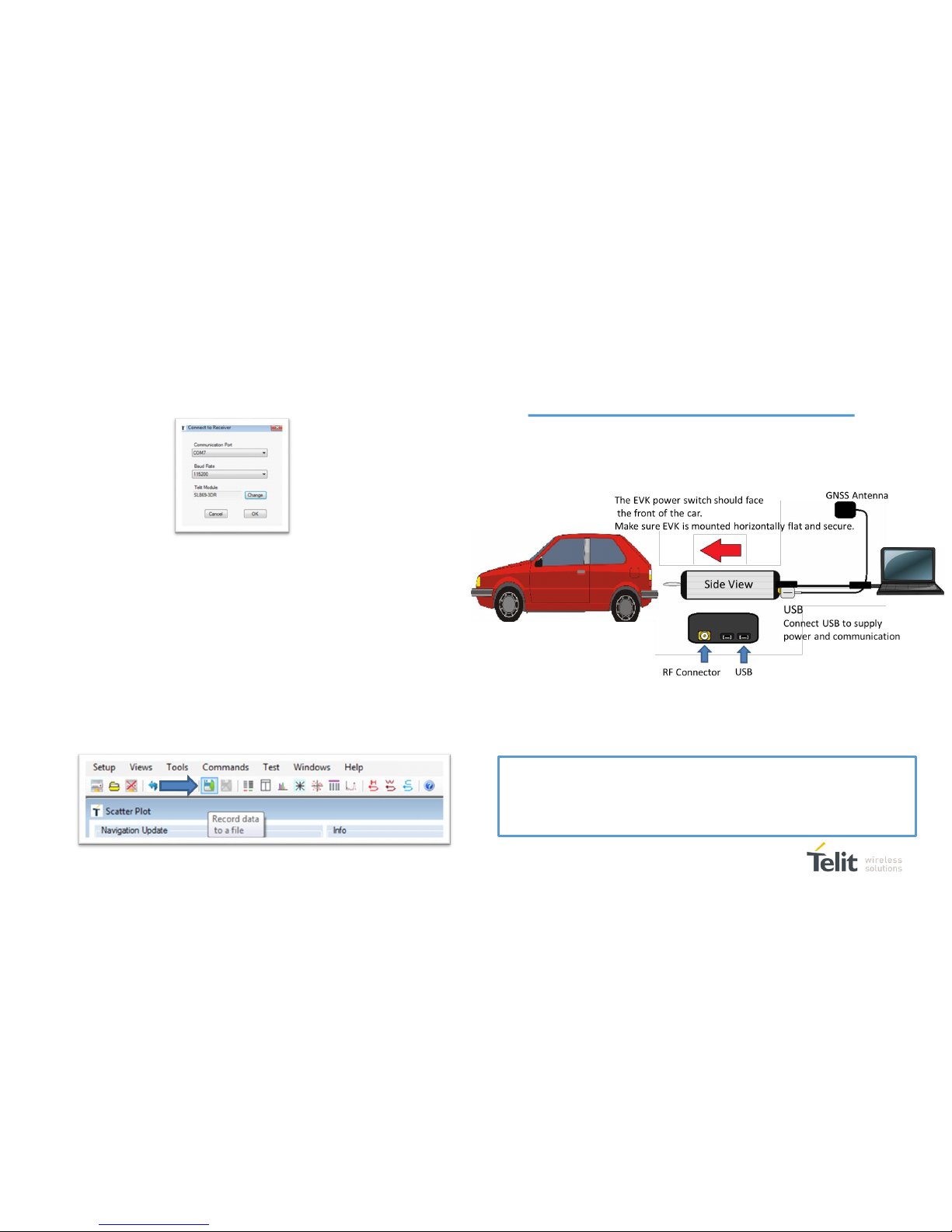

SL869-3DR INSTALLATION
